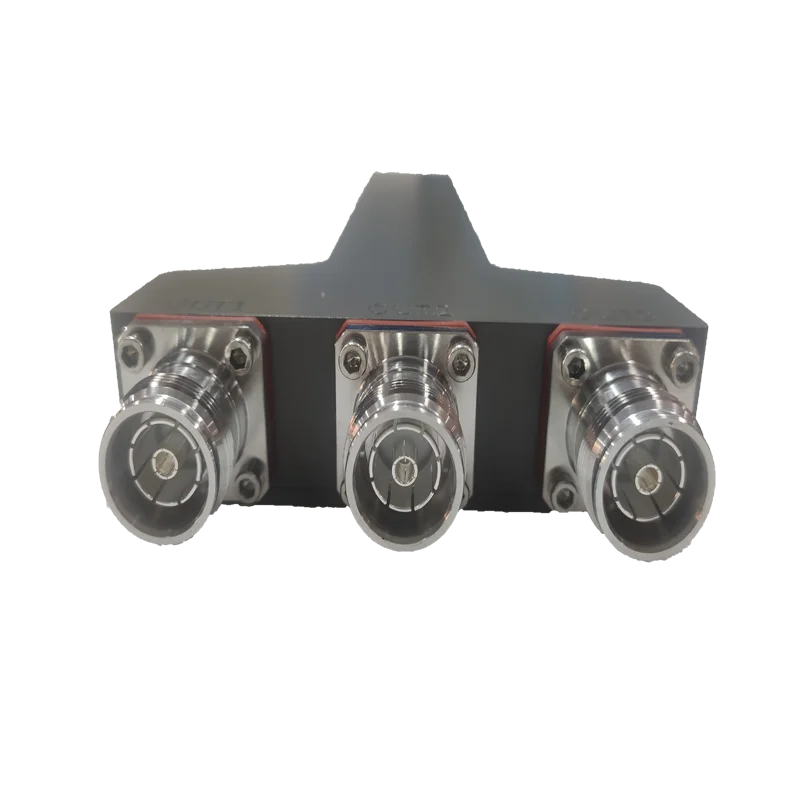

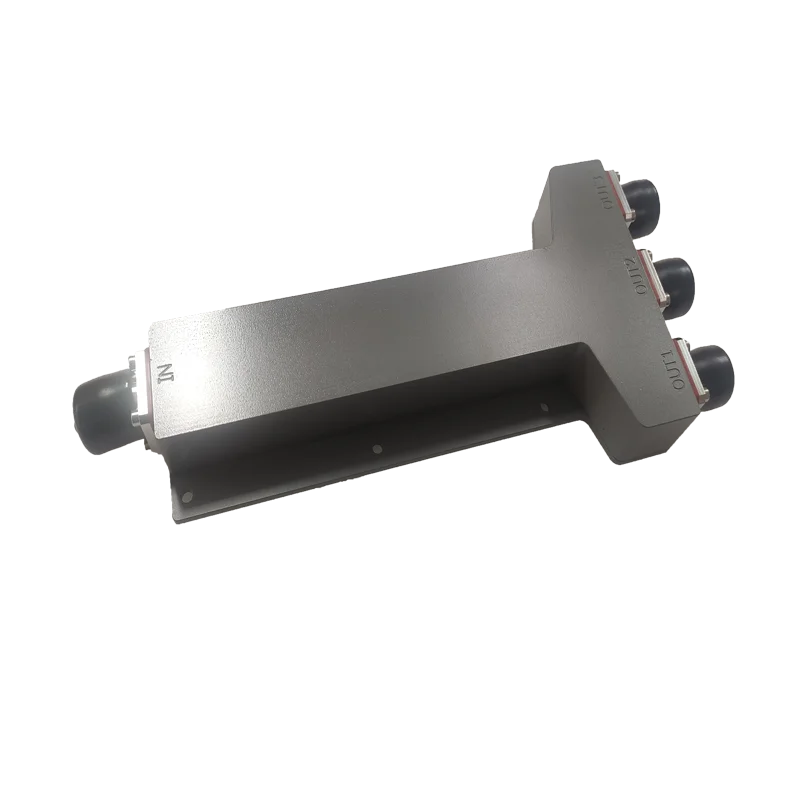

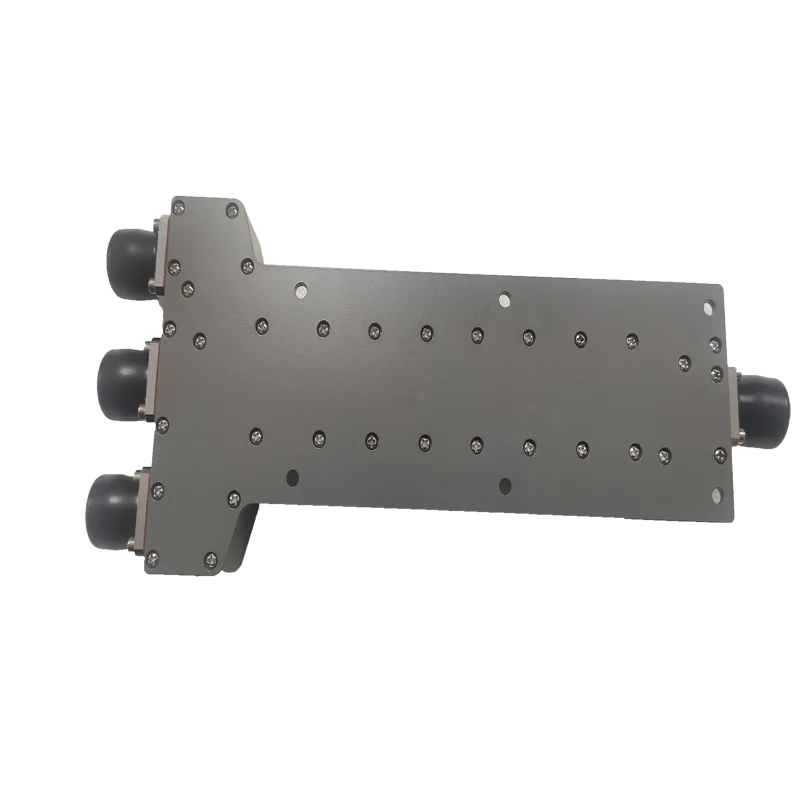

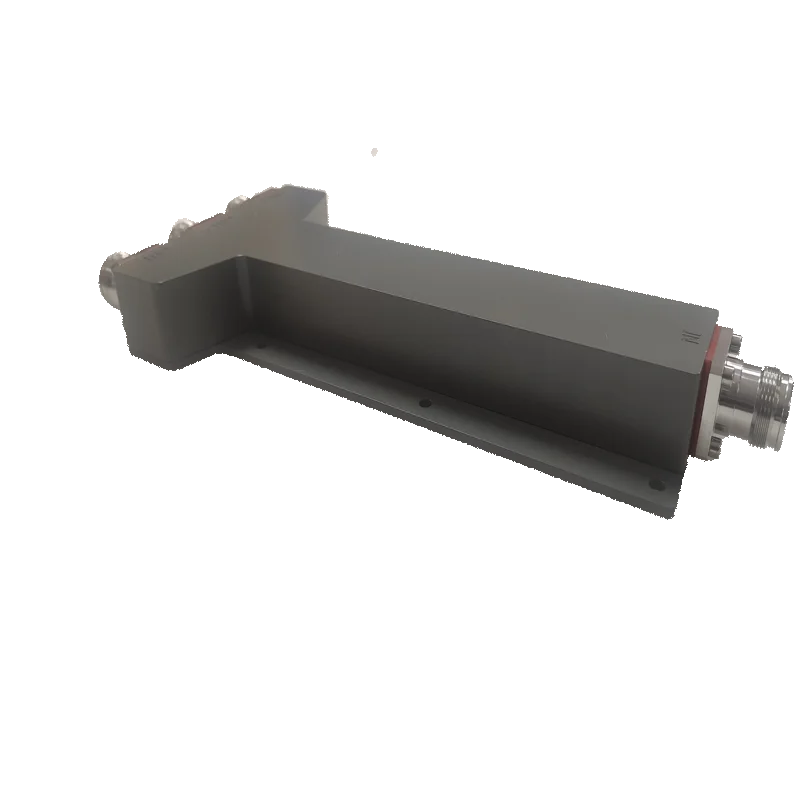

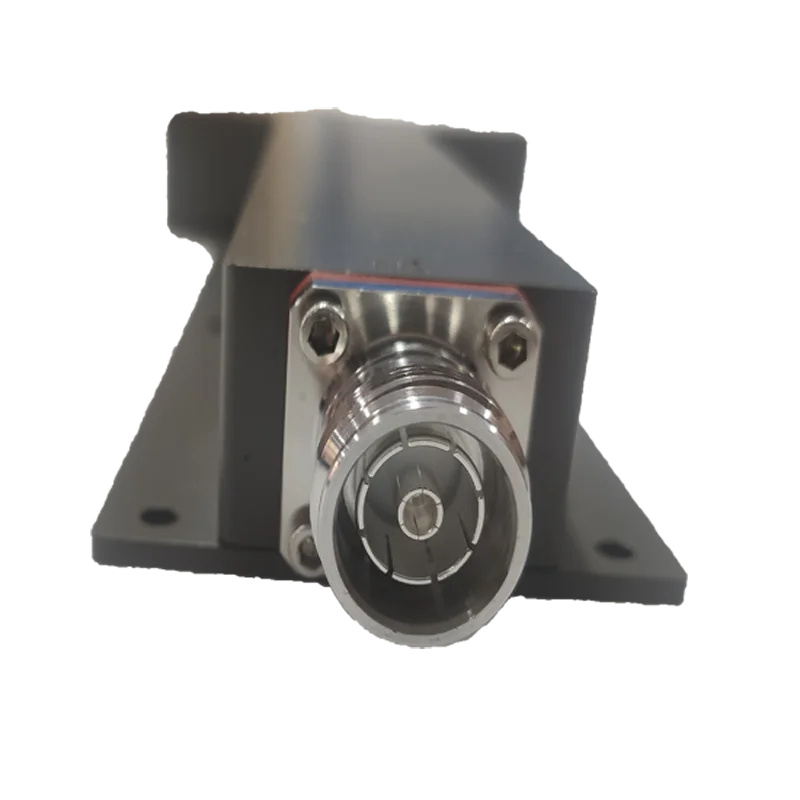

600 6000 MHz 50W indoor /outdoor application IP67 155dBc 2 way power splitter/divider with 4.3/10 female connector
- Category: Telecom Parts >>>
- Supplier: Hefei Maniron Electronic And Technology Co. Ltd.
Share on (1600767273200):
Product Overview
Description
Product Description

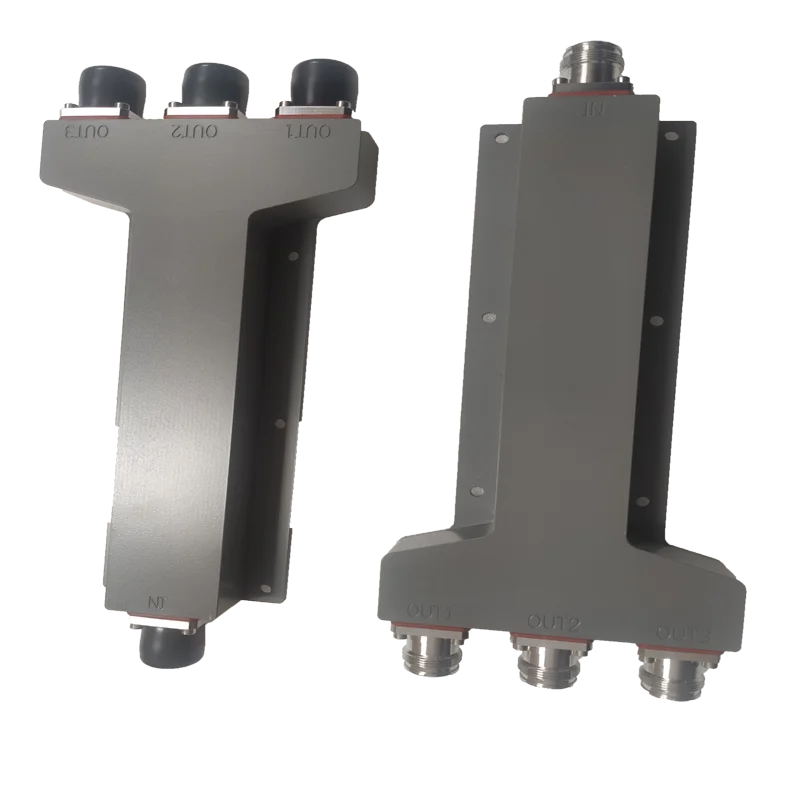

Power Splitter (Wilkinson Model, 600-6000MHz, 50W, IP67, -155dBc)
◆ Tetra/2G/3G/4G/LTE/5G Coverage
◆ Low Passive Intermodulation
◆ Low VSWR & Insertion Loss
◆ Indoor & Outdoor Application IP67
◆ Widely used for In-building Solutions
◆ Low Passive Intermodulation
◆ Low VSWR & Insertion Loss
◆ Indoor & Outdoor Application IP67
◆ Widely used for In-building Solutions
Specification
Model No. | MWPS-6060-02-41F-155 | MWPS-6060-03-41F-155 | MWPS-6060-03-41F-155 | |||
Frequency(MHz) | 600-6000 | 600-6000 | 1710-3800 | |||
Split Loss(dB) | 3.0 | 4.8 | 6.0 | Vertical | ||
Insertion Loss(dB) | ≤1.2 | ≤1.5 | ≤1.8 | 12 | ||
Isolation(dB) | ≤18 | ≤16 | ≤16 | 50 | ||
VSWR | ≤1.45 | ≤1.50 | ≤1.50 | 40 | ||
PIM (dBc) | ≤-155dBc@2*43dBm | ≤2.0 | ≤2.0 | |||
Power(W) | 50(average) | ≥15 | ≥18 | |||
Impedance | 50 ohm | |||||
Connector | 4.3/10-female | |||||
Color | Dark Grey(C466-C7088) | |||||
Operating Temperature [F] | -30~+70 | |||||
