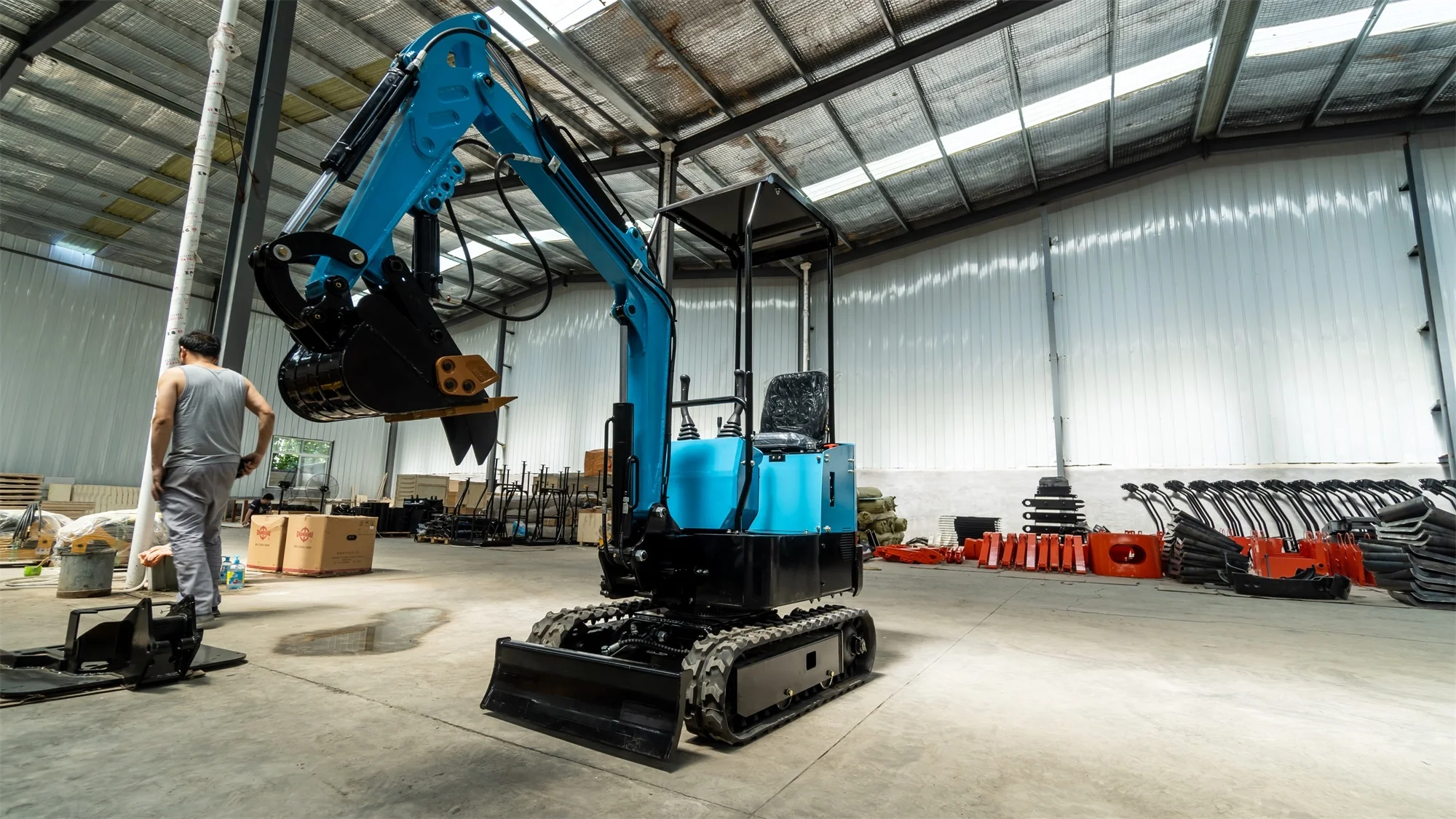

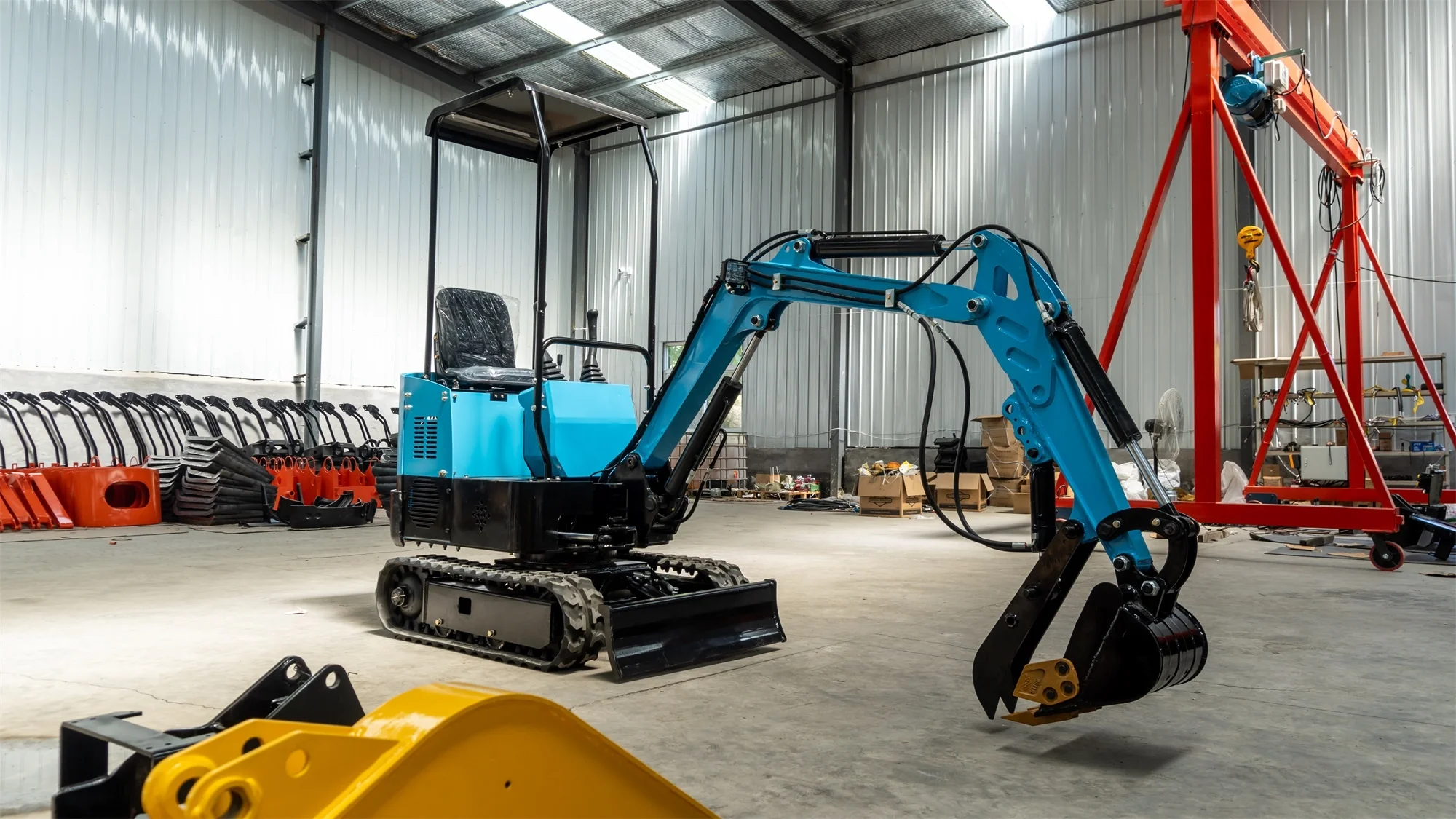

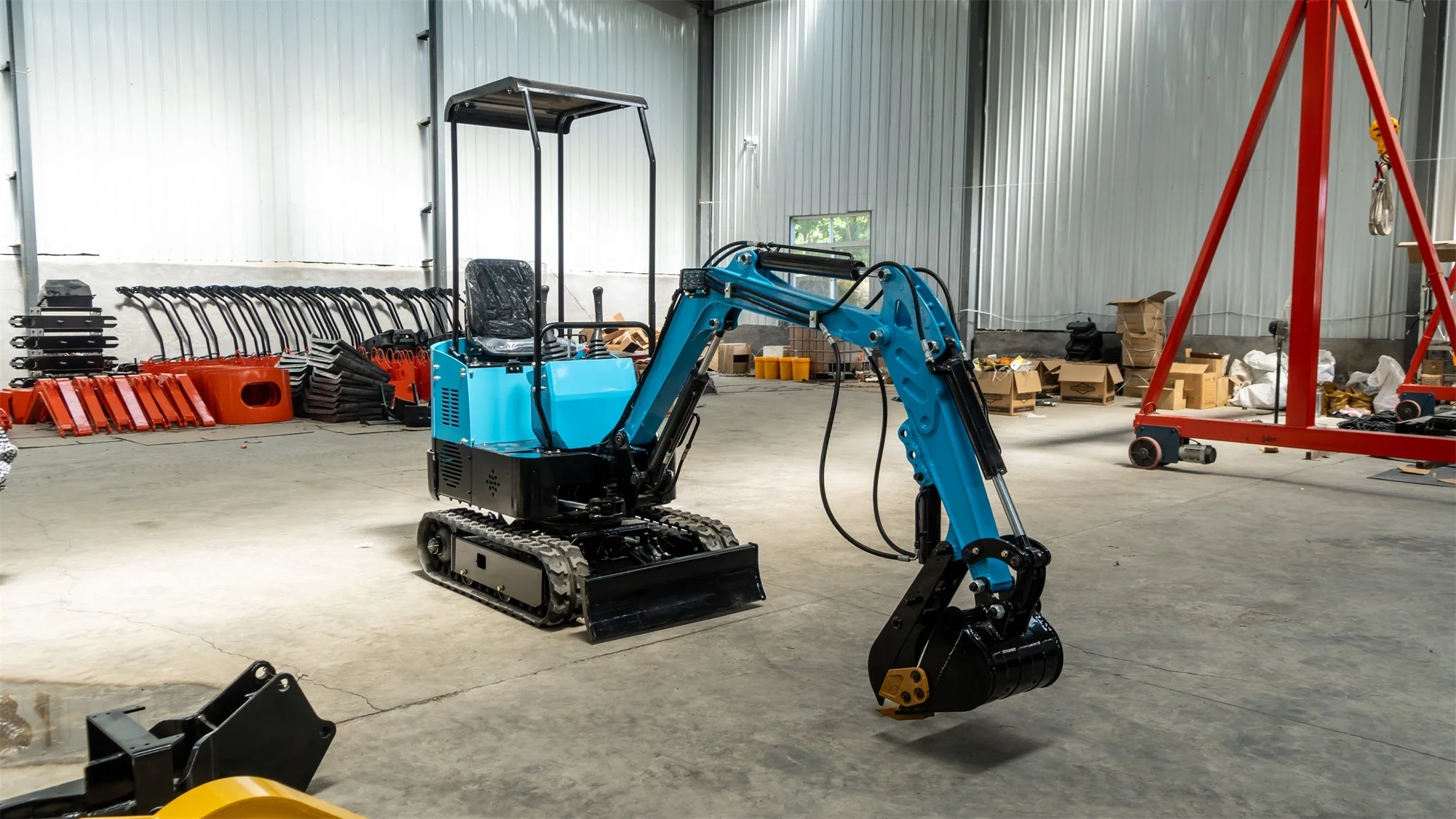

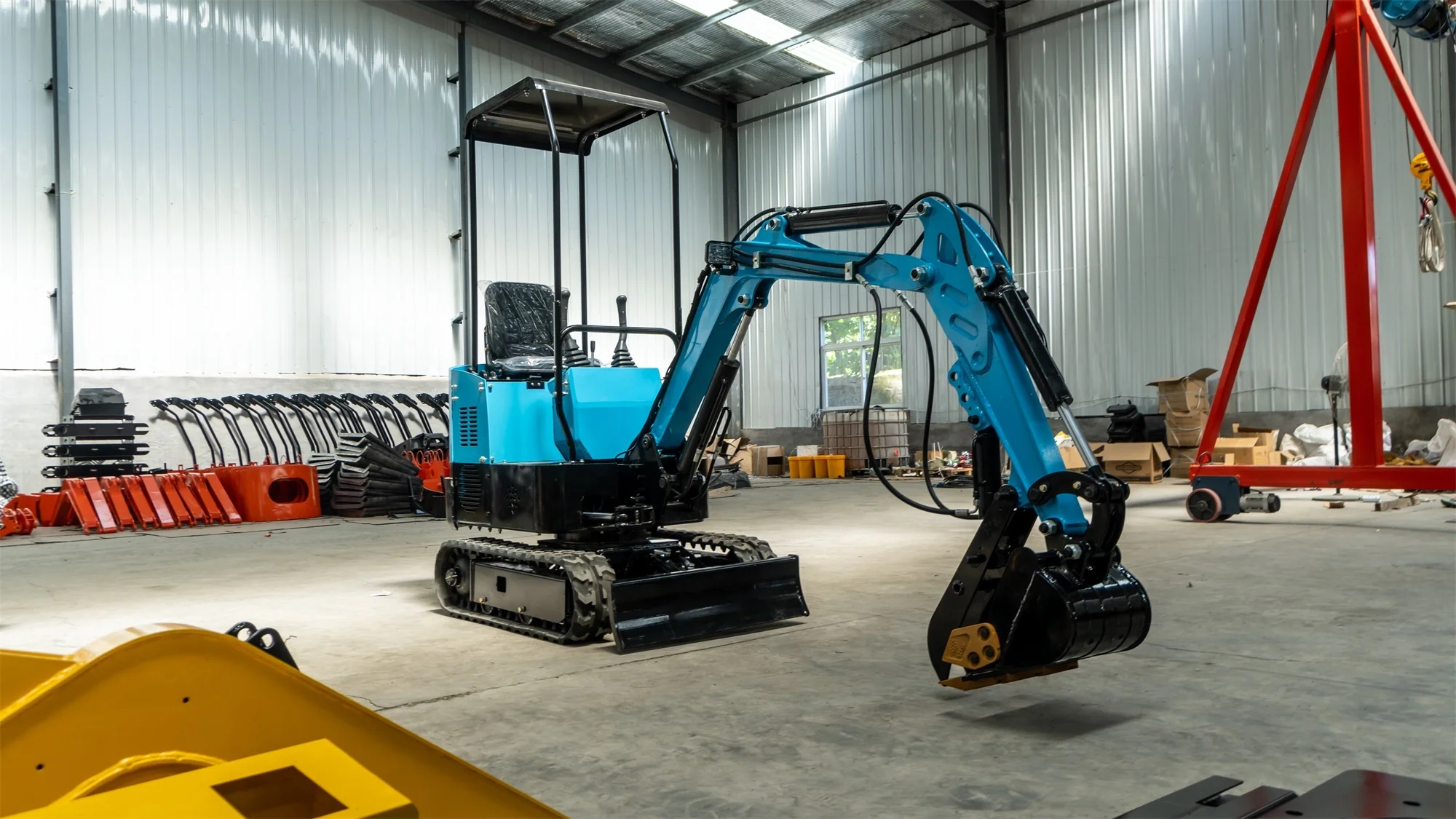

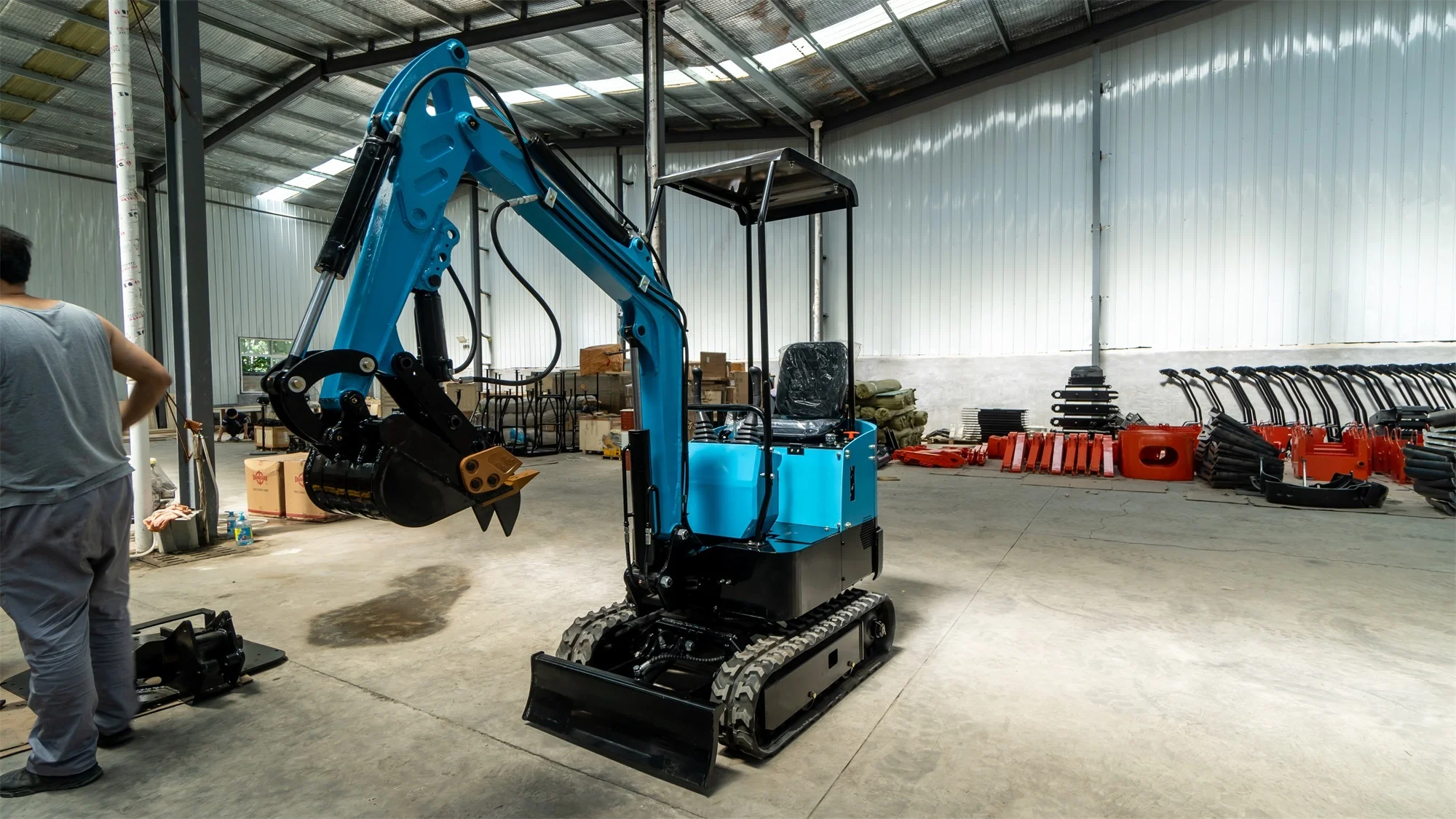

March Super EPA EURO5 1000kg Mini Crawler excavator with ROPS
- Category: >>>
- Supplier: Shandong Hightop Group
Share on (1600767508277):
Product Overview
Description
Product Description
Specification

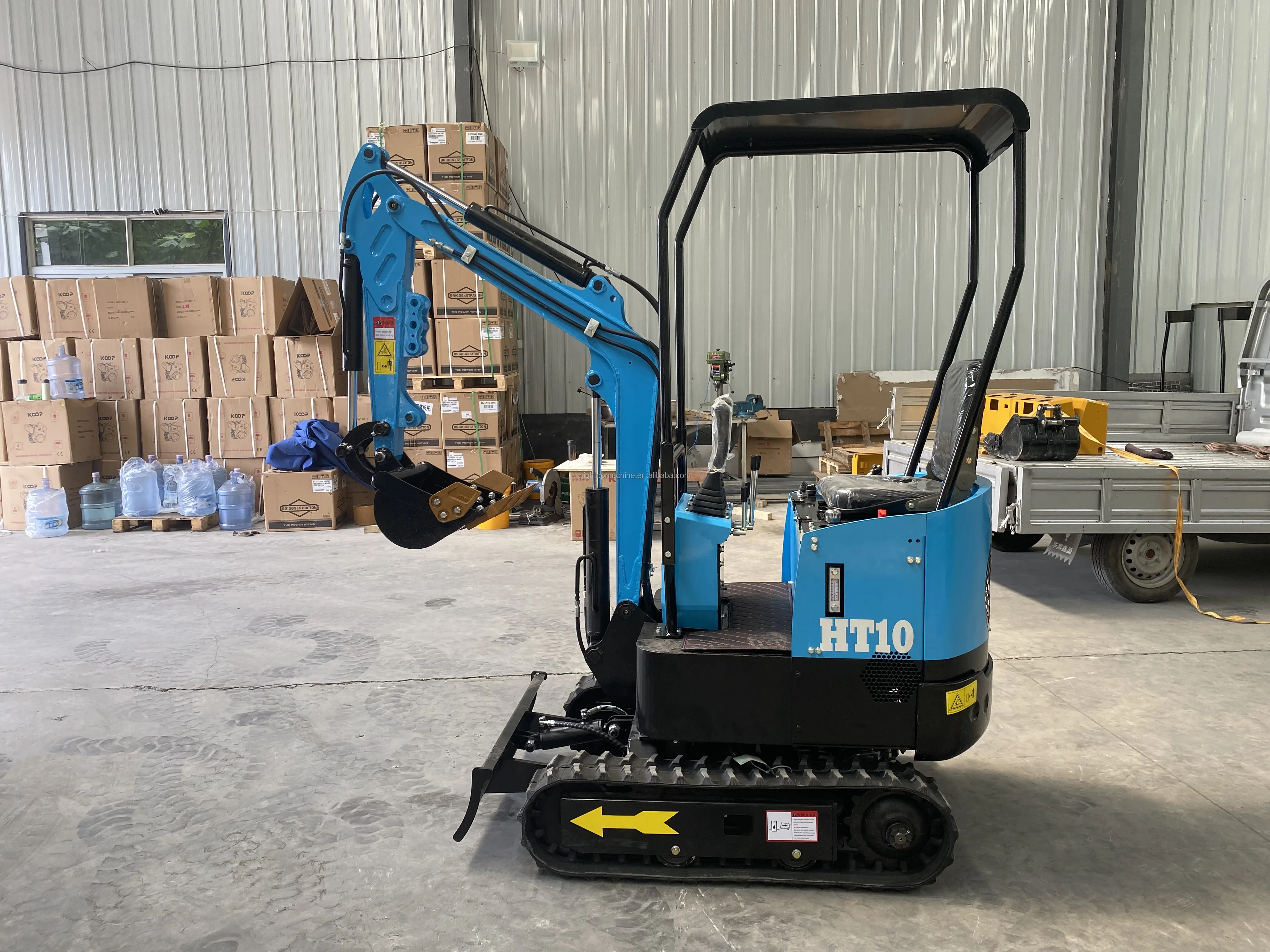

Model | HT10 | |
Operating Weight | 1000kg | |
Digging bucket capacity | 0.025cbm/120kg | |
Bucket width | 380mm | |
Engine | B&S | |
Bore stroke | Single cylinder, fan cool | |
Rated power | 13HP | |
Displacement | 0.211 L | |
Bore stroke | 70x55 | |
Main pump | CBK-F6.8 | |
Displacement | 6.8ml/r | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN(OMS-2450) | |
Travel speed | 1.5km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 2770x896x1490 mm | |
Wheelbase | 910 mm | |
Total length of track | 1230mm | |
Platform ground clearance | 380 mm | |
Platform back turning radius | 784 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |

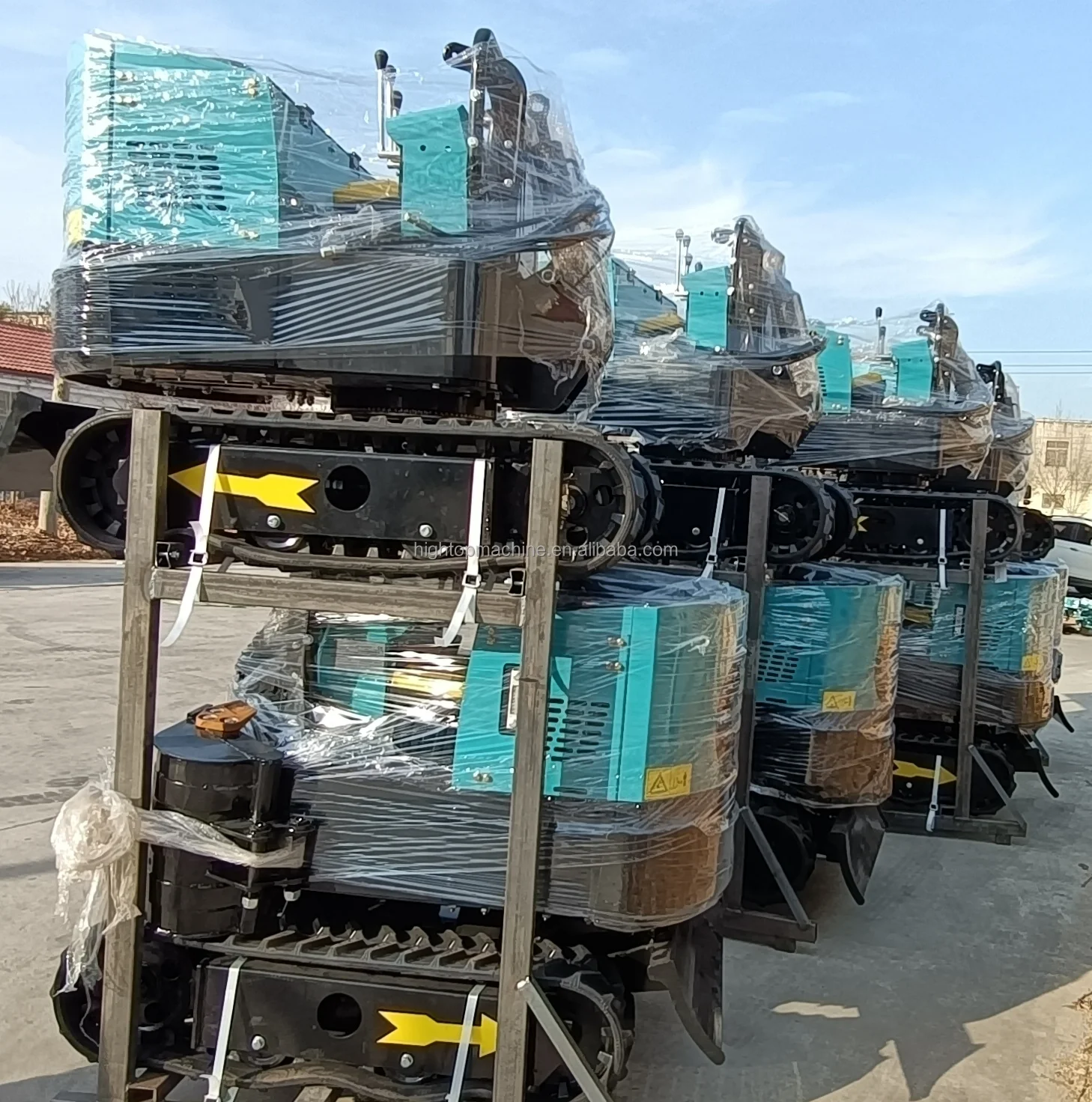

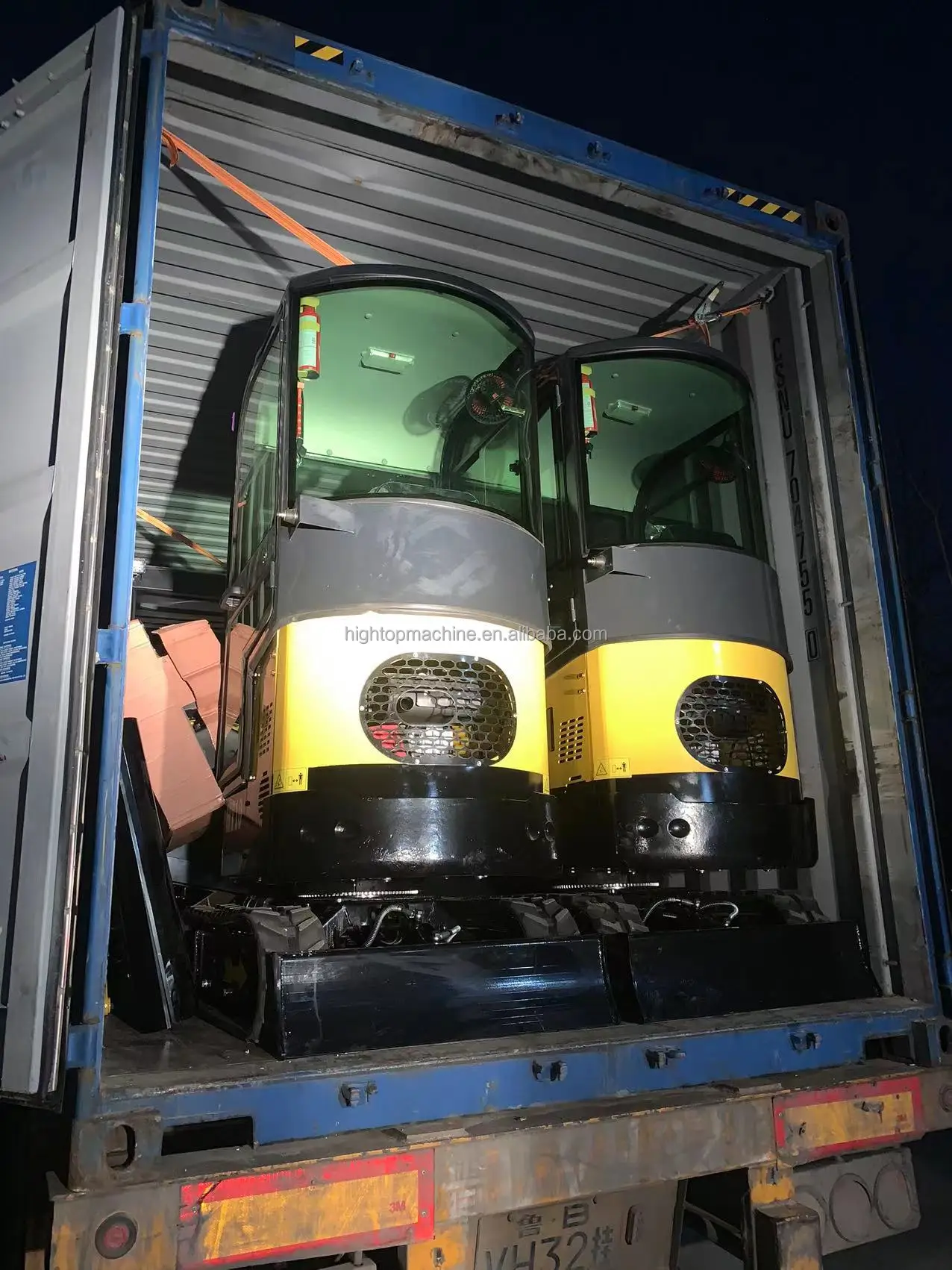

Packing & Delivery

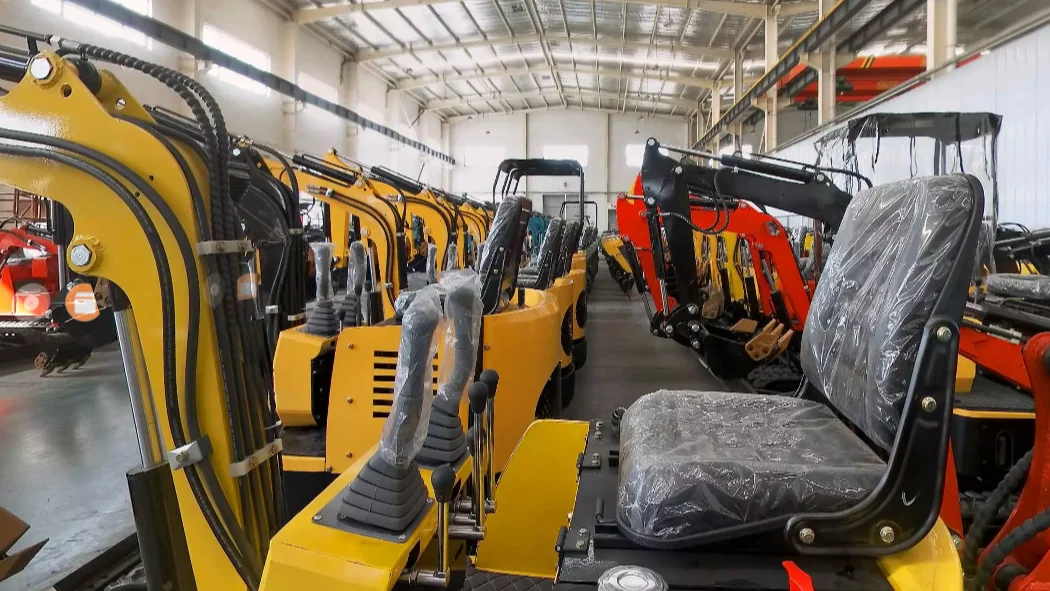

Company Profile
