Hot Sales PCB Repair Machine SMD Welding Rework Station Made In China
- Category: >>>
- Supplier: Max Innovate Technology (Shenzhen) Ltd.
Share on (1600768413072):
Product Overview
Description
Product Overview
Description:

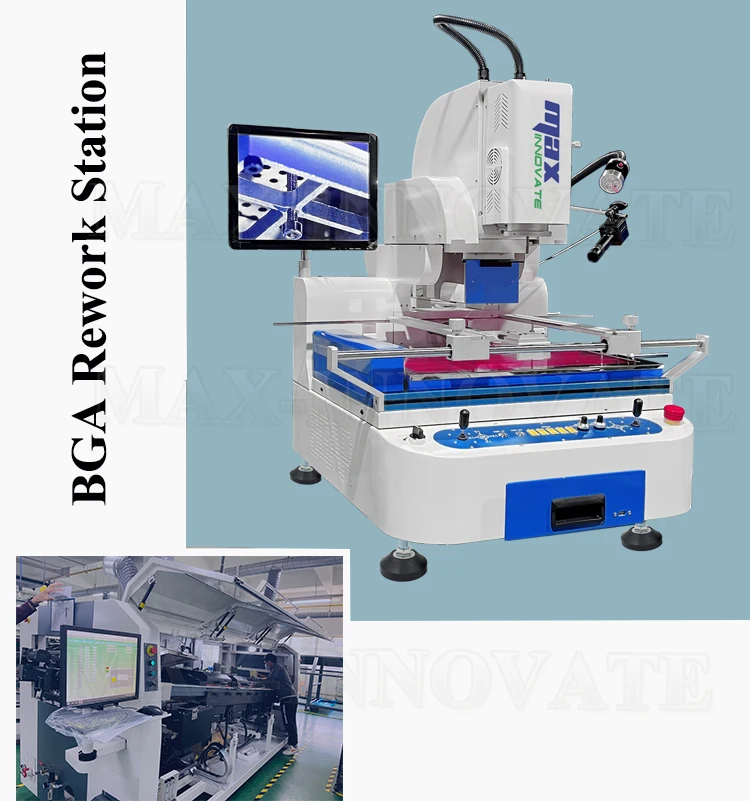

The BGA Rework Station Disassembly and welding of all kinds of wafer packaging (Application for LCD TV、game machine、STB、 vehicle data recorder、 server、 mobile phone、 security product、industrial control motherboard, SMT processing and so on..)

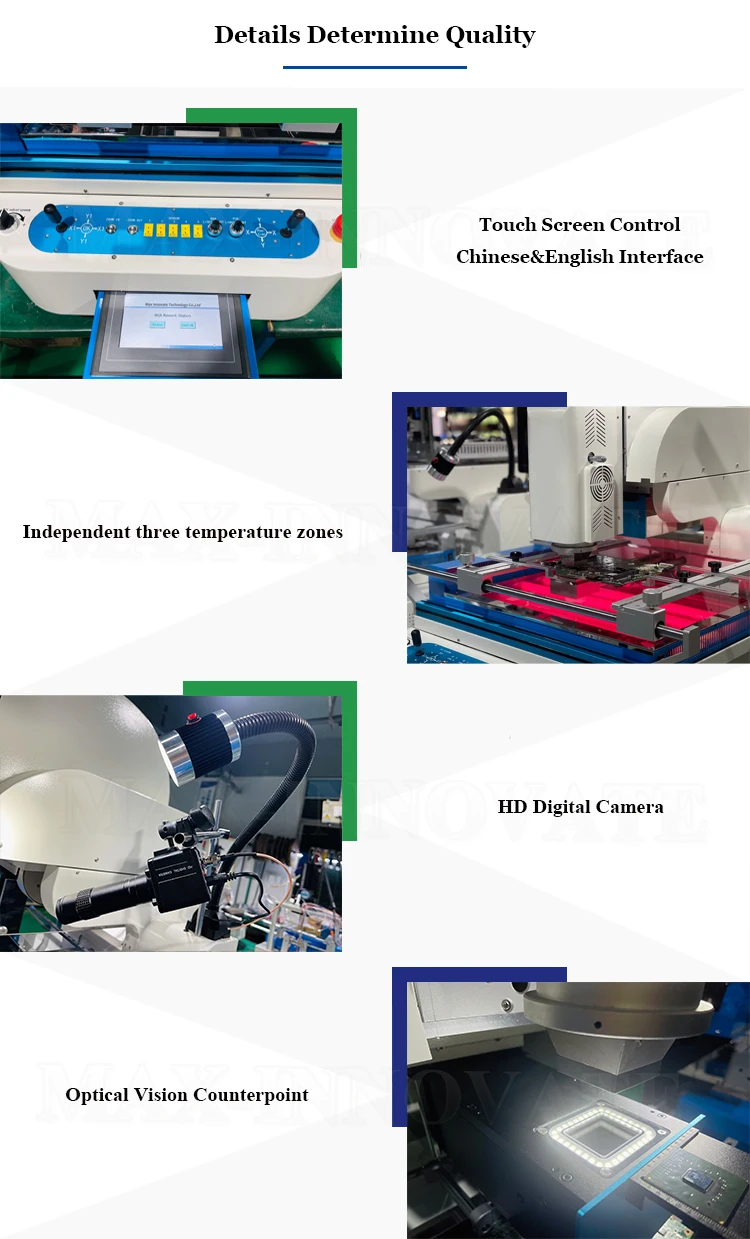

1.Touch screen +Panasonic PLC control, heating time, heating temperature, heating speed, cooling time, early warning, vacuum time,etc. can set on the touch screen, easy operation;
2.Three temperature zones are independently, and each temperature zone can be independently set for heating temperature, heating time, and heating slope; six heating temperature sections, which simulate the reflow soldering heating method, can be set [preheat, heat preservation, temperature rise, welding, return Welding, cooling];
3.Automatic feeding, suction and unloading; it can automatically identify the center position of the chip when it is aligned;
4.Multi-function mode selection, there are four modes [welding, unloading, mounting, manual], which can realize automatic and semi-automatic functions, and better meet the various needs of customers;
5.High-precision K-type thermocouple closed-loop control imported from the United States is selected, welding temperature accuracy is within ± 1 ℃;
6.Adopts imported optical alignment system and is equipped with 15-inch high-definition display; high-precision micrometer is used for X / Y / R axis adjustment; to ensure the alignment accuracy is controlled at 0.01-0.02mm;
7.Upper heating head and the placement head are integrated; the machine is equipped with a variety of BGA heating air nozzles to better meet the needs of customers' various chips. The heating air nozzle is easy to replace and special Requirements can be customized;
8.Automation and high precision, for lead-free processes and double-layer BGA, QFN, QFP, capacitor resistance and other components rework;
9.The side monitoring camera can be used to observe the melting of solder balls, which is convenient to determine the curve and welding effect; (This function is optional).
Model | RS-750 | ||||||
Dimensions | 670*780*900mm | ||||||
Total power | 6800W | ||||||
Upper heating power | 1200W | ||||||
Lower heating power | 1200W | ||||||
Lower infrared heating power | 4200W (2400W controlled) | ||||||
Power supply | AC 220V ± 10 50Hz | ||||||
Targeting | Optical lens + V-shaped card slot + laser positioning lamp for quick positioning | ||||||
Selection of electrical appliances | touch screen + temperature control module + PLC + stepper driver | ||||||
PCB size | 10*10-500*450mm | ||||||
Temperature measuring interfaces | 4 | ||||||
Chip magnification | 2-30 times | ||||||
PCB thickness | 0.5-8mm | ||||||
Applicable chip | 0.3*0.6mm-80*80mm | ||||||
Applicable chip minimum pitch | 0.15mm | ||||||
Mounting maximum load | 500G | ||||||
Mounting accuracy | ±0.01mm | ||||||
Optical alignment lens | The electric drive can move back and forth, left and right, and absolutely avoid dead angle | ||||||
Weight | Approx.92Kgs | ||||||
Products Description
Related Products
All kinds SMT&DIP Machine,welcome inquiry and discuss with us!
Packing&Shipping
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details :7-10days
Port:Shenzhen
Delivery Details :7-10days
Max Machine from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
Accept various modes of transportation, fast delivery time!
