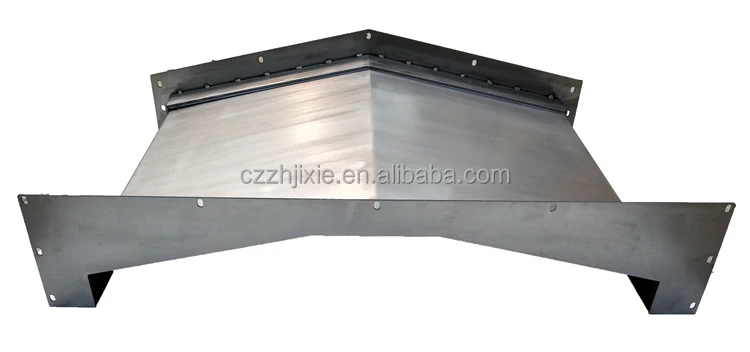

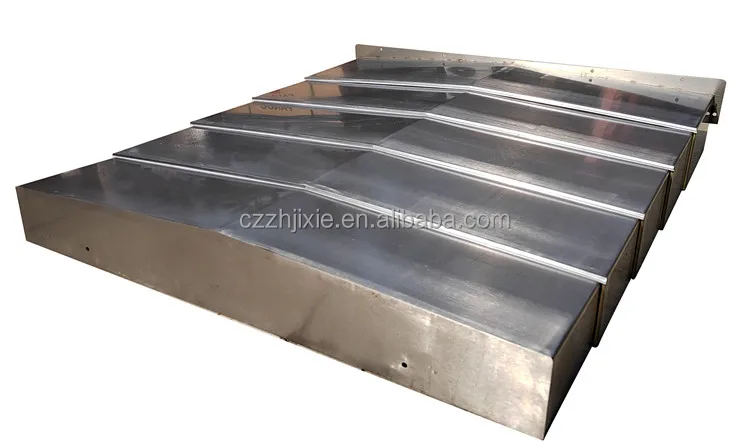

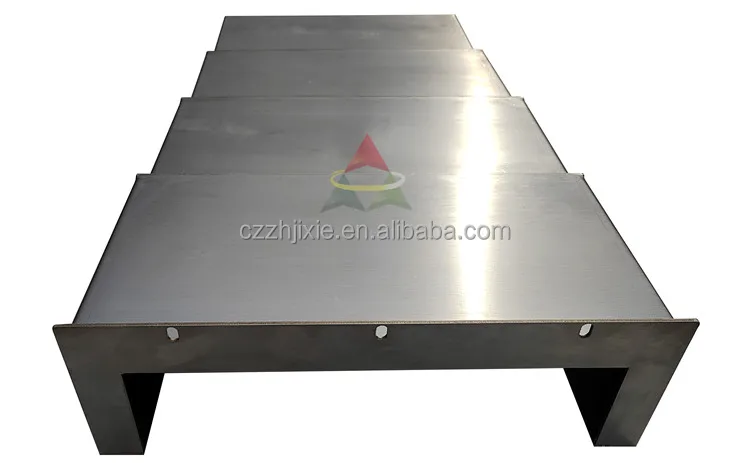

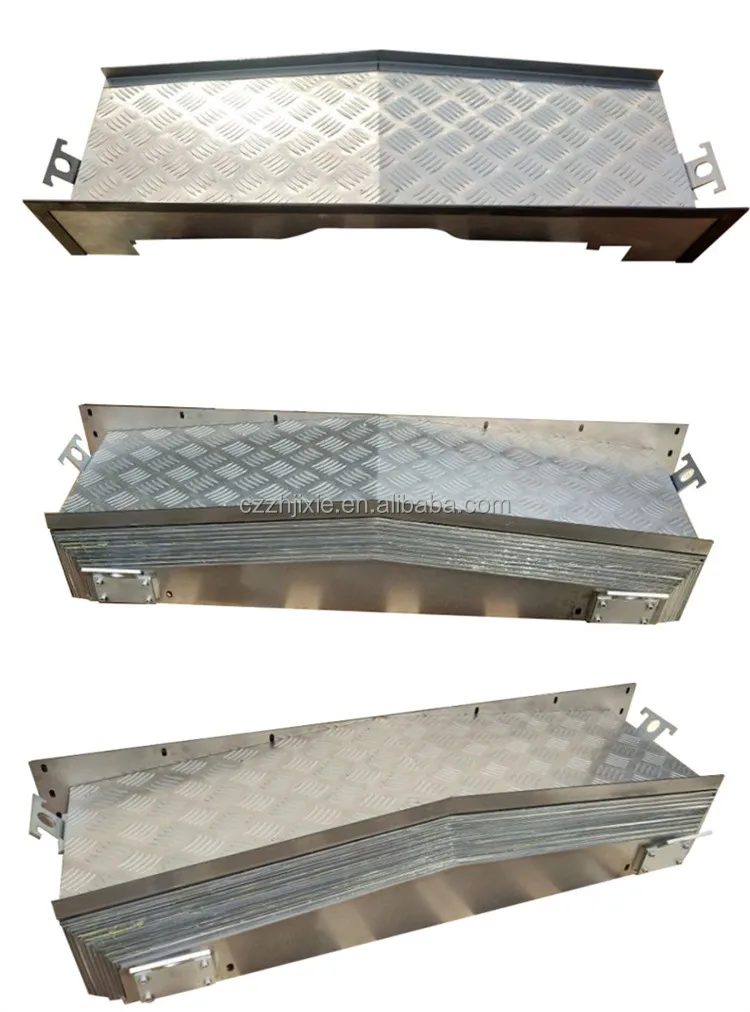

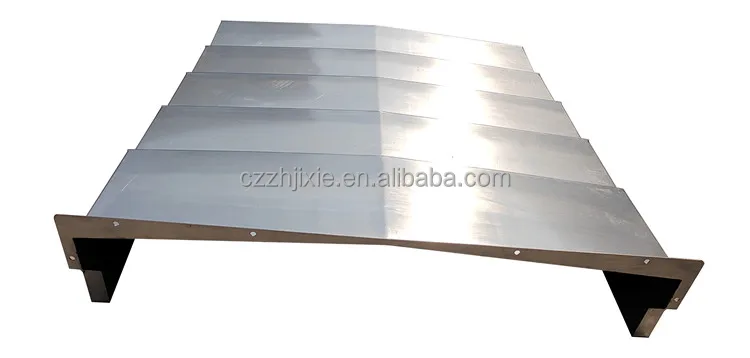

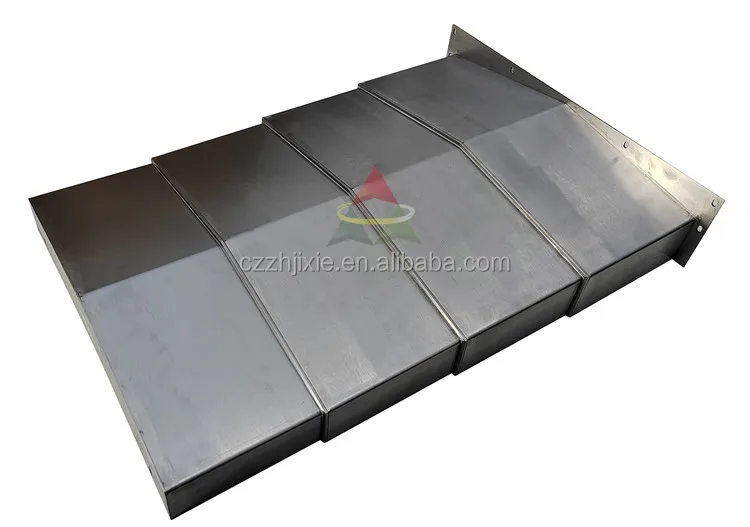

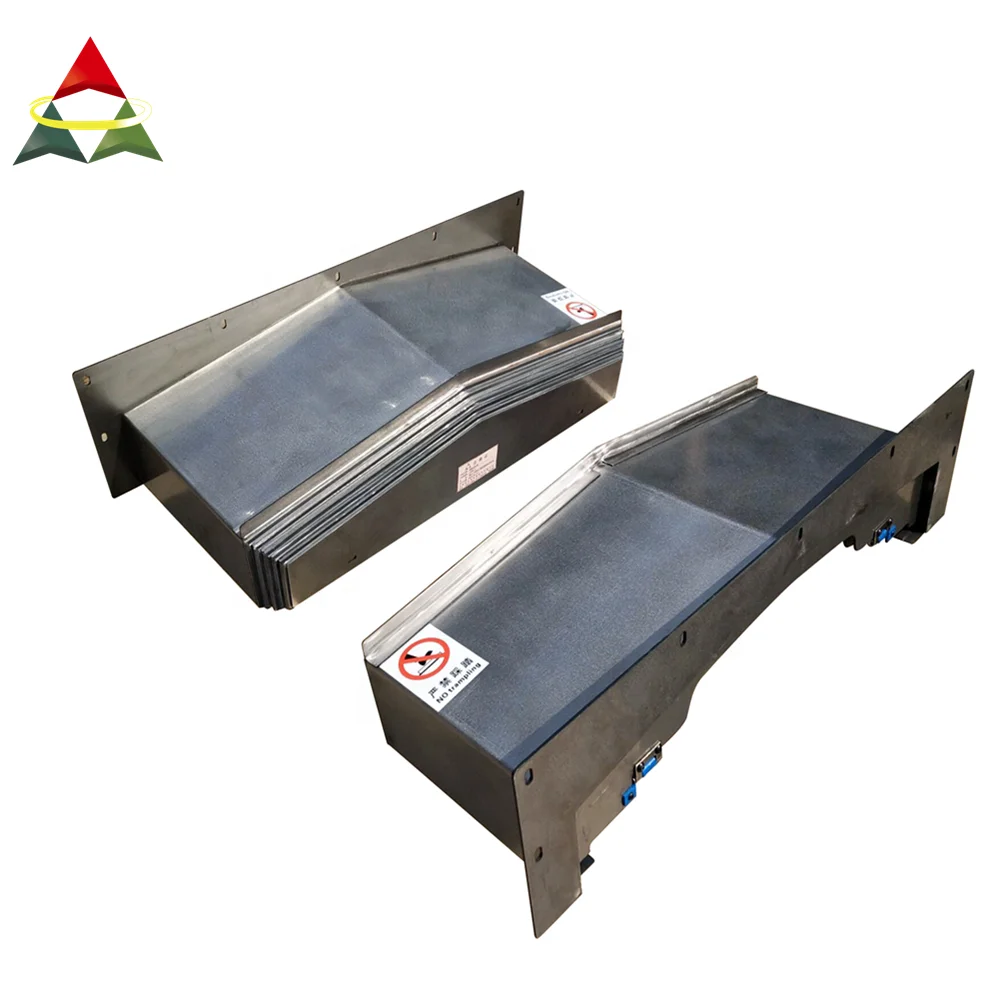

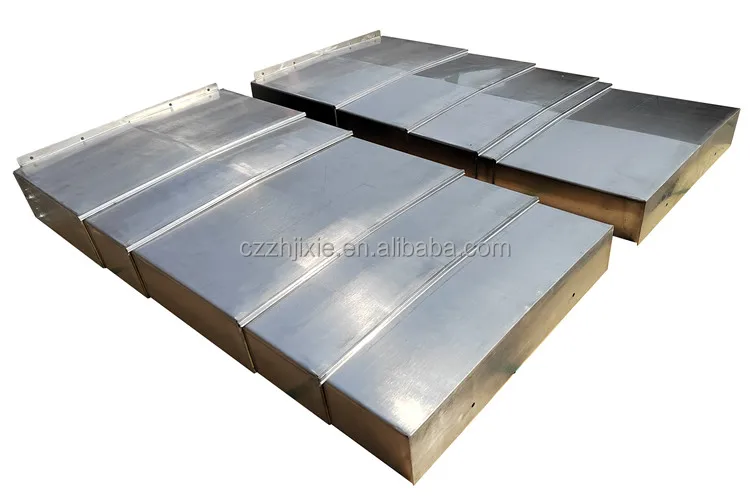

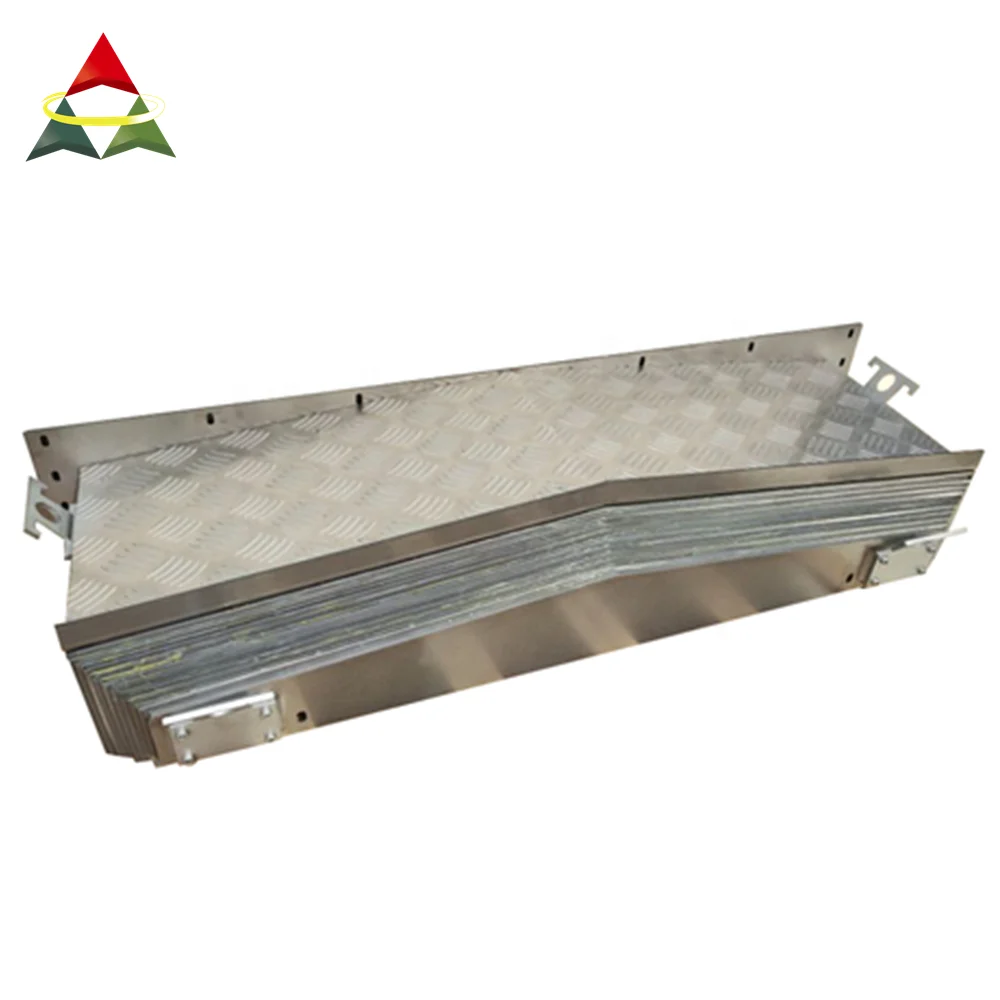

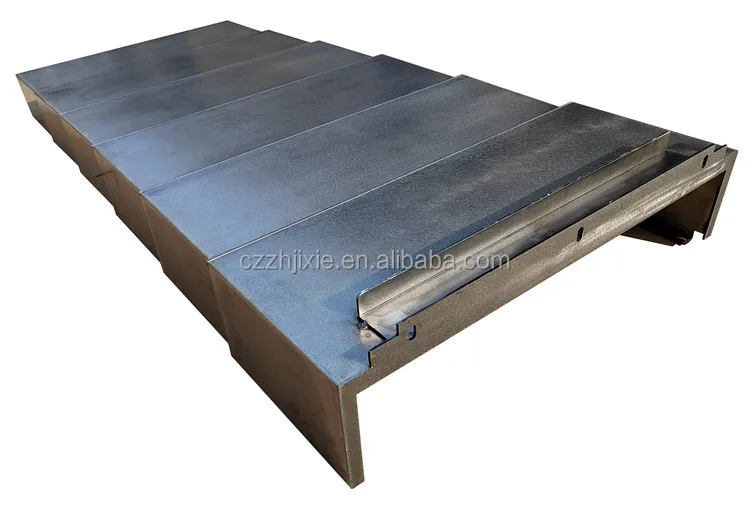

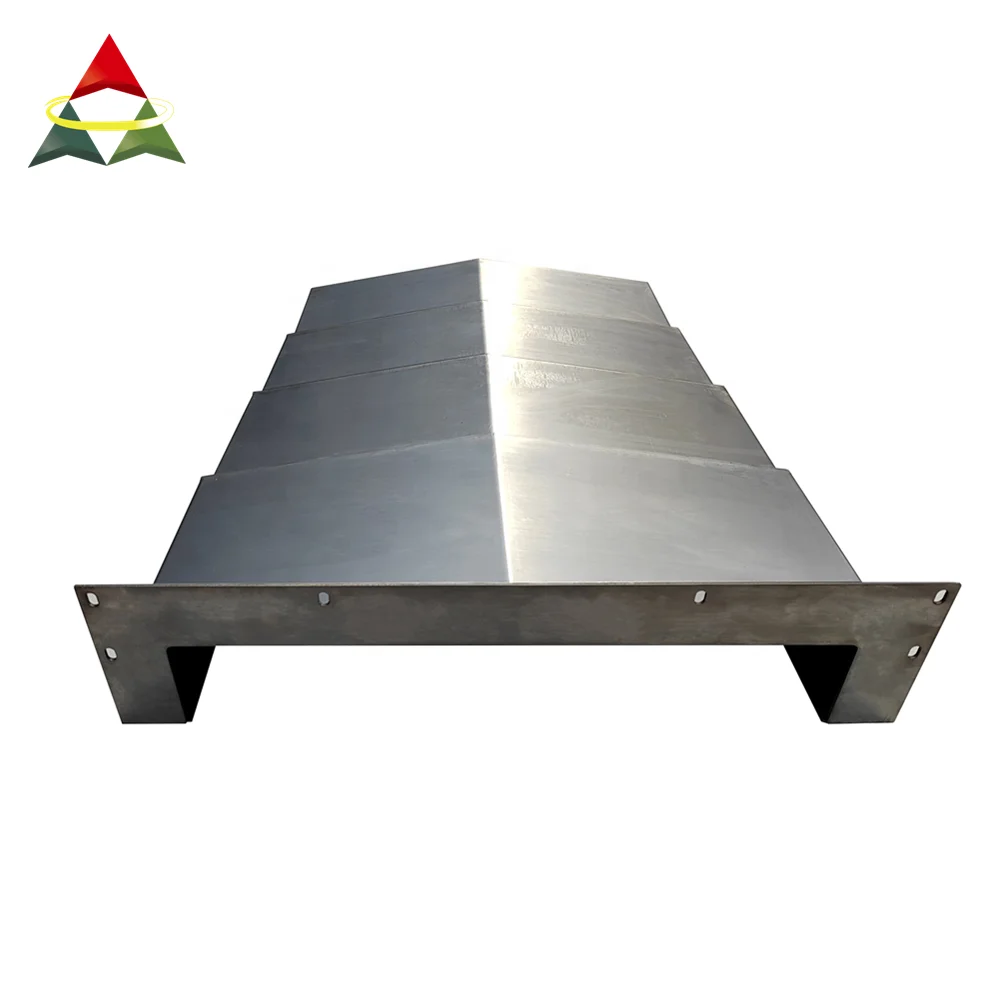

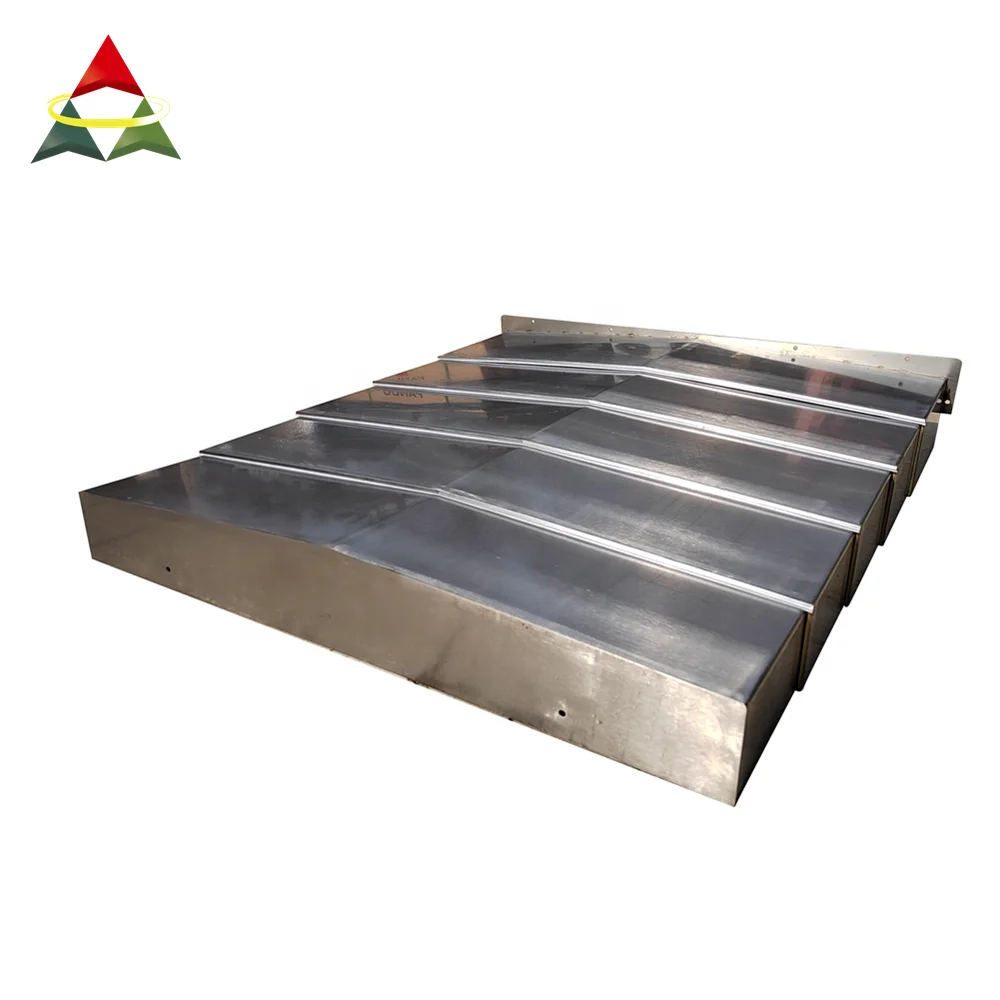

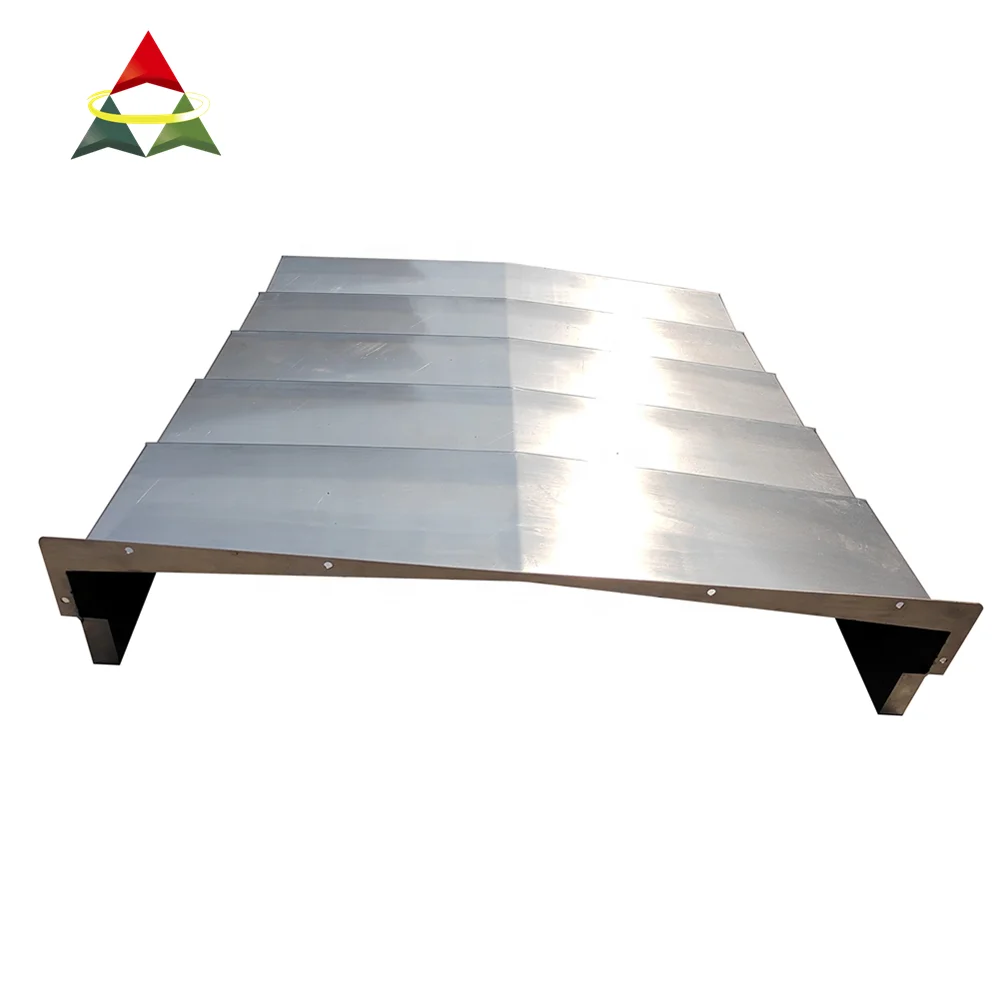

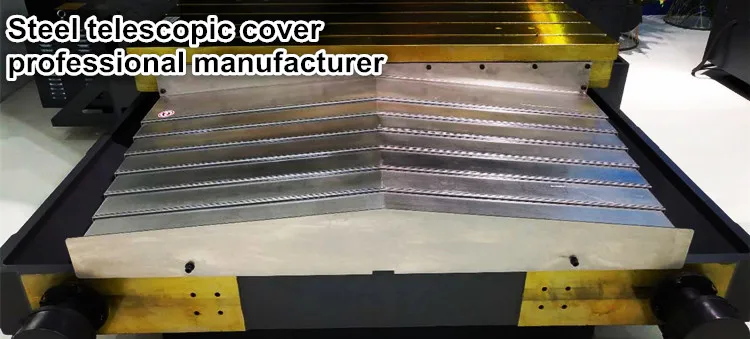

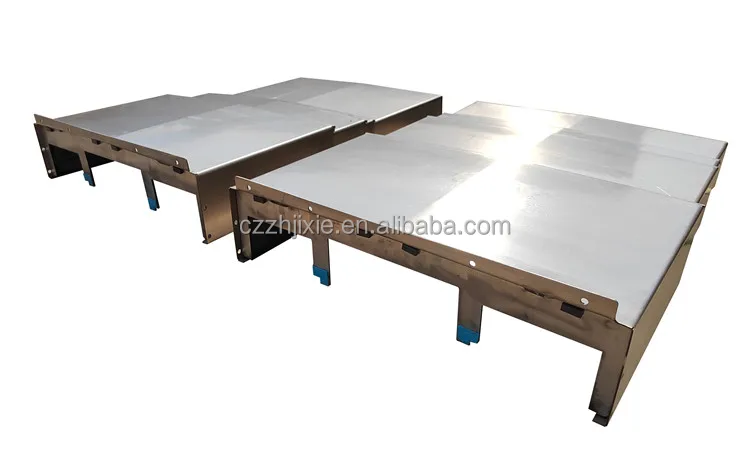

Telescopic steel guide way guard cover

Telescopic steel guide way guard cover, which reduce sideways wearing, thus maintaining the accuracy of the machines. The proposed selection is extremely popular for protecting columns, spindles, ball screws and shaft, by avoiding the accidental risk. Due to the rugged construction and longer functional Way .

Specifications:

· Type: High-speed telescopic covers.

· Travel length up to 30 m.

· Guide way width up to 3500 mm.

· Customized solutions.

· High-Speed Cover Material: Rollers, Nylon/ Brass shoes

Features:

· Corrosion resistance

· Tough in construction

· Longer service life

· Good tensile strength

· Durable

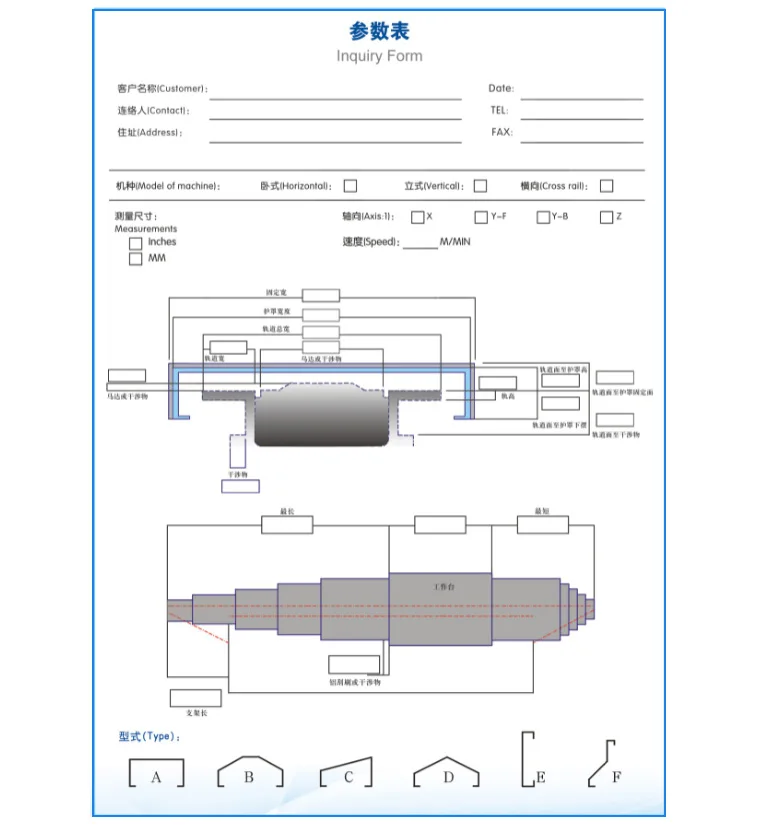

1 We can produce according to the drawings you provide.
2 If there is no drawing, we can also design the drawing for you according to the size you measured.
3 Or we provide drawings and you fill in the dimensions.

Design data for Steel telescopic cover



Code	Description	Date	Remarks	Code	Description	Date mm	Remarks
Le	Length after drawing			Bs	Contact supporting width
Lz	Length after compression			Bm	Slider supporting width
Lt	Travel range			α°β°	Bow-shaped dip
B	Width of guide			n	Estimated number of folds
Bc	Shield width			δ	Thickness of steel plate		Pre-selected by users
H	Toltal height of the shield				Assembing hole		By user
H1	Side height og guide			Steel plate mat’l	1Gr13	2Cr13	By user
H2	Upper part height of shield			Supporting manner	Pulley	Slidingpiece	By user
H3	Iustallation position width			Compount malline’s type
H4	Height of assembing plate			Entrusting party
H5	Height of contact rollar			Contact person		Tel
Note:1.The endusers select data and materials mentioned above and our company will talle care of the fabrication and dsign work. 2.If endusers have special requirements for shield type,please cet as know and we can achive for them. 3.One form for type of shield.

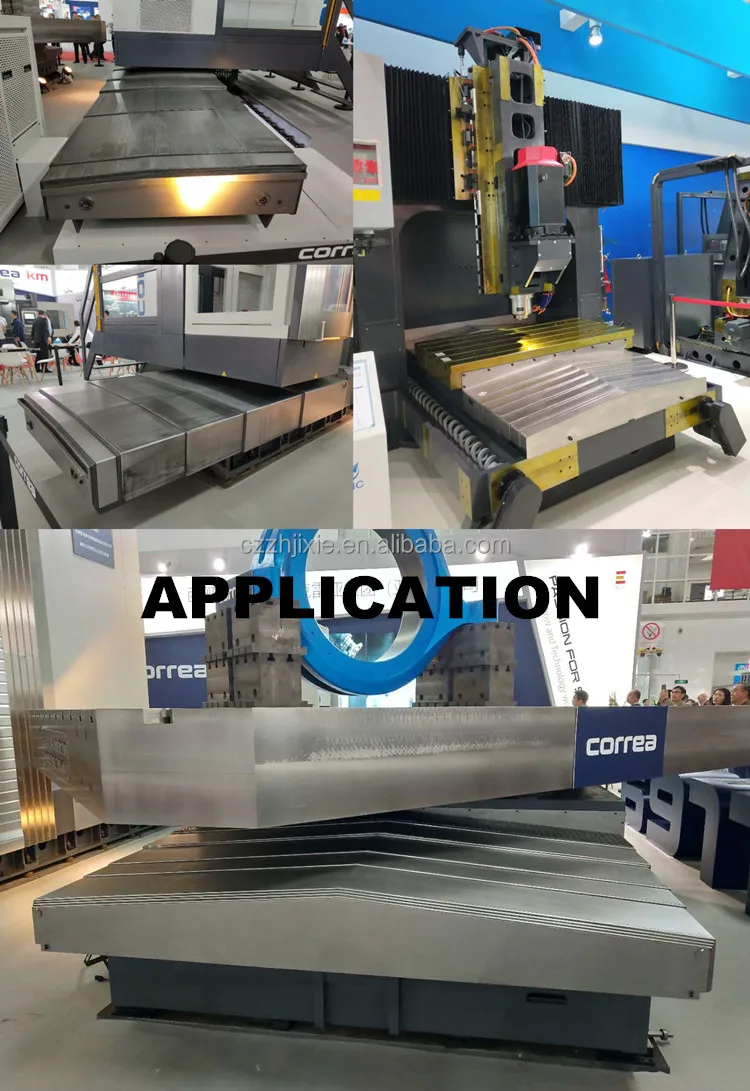

Telescopic steel guide way guard cover is mainly used in boring machine, milling machine, drilling machine, planer and other large-scale machine tools, effectively prevent iron filings.
