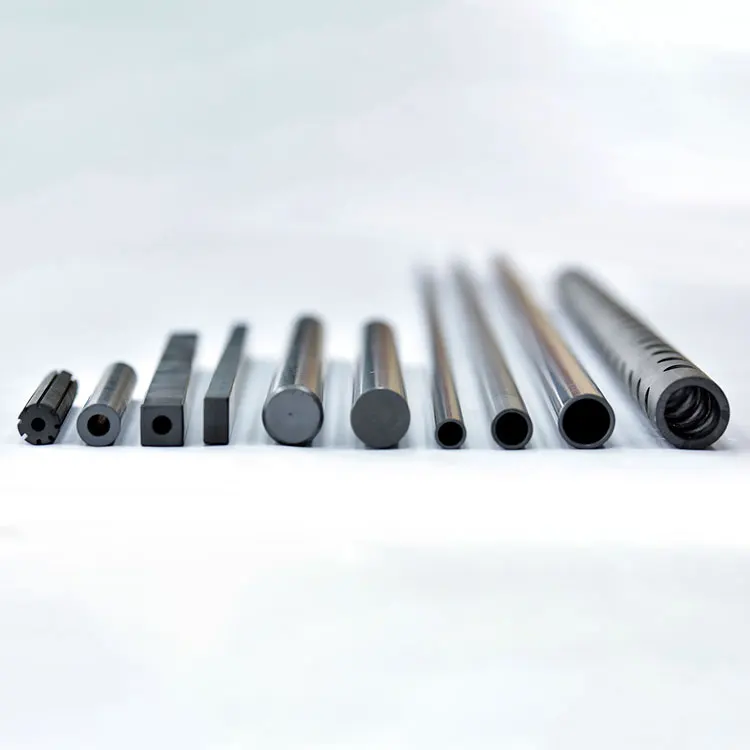

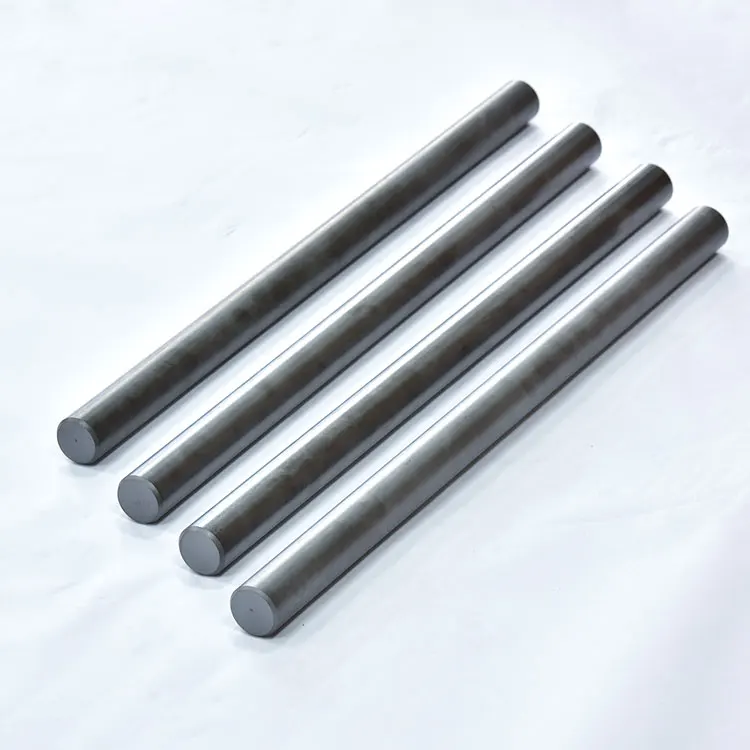

Customized High Temperature Refractory High Purity Sic Silicon Carbide Rod Pipe Tube

Customized High Temperature Refractory High Purity Sic Silicon Carbide Rod Pipe Tube

Category: Ceramics >>>
Supplier: Nantong,Sunshine,Graphite,Equipment,Technology,Co.,Ltd.

Price:$5.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

---banner

	OD	ID	Tolerances	Maximum Length
1	8	6	±0.2	1000
2	10	8	±0.2	2000
3	14	11	±0.3	4000
4	19	14	±0.3	4000
5	25	20	±0.4	4000
6	34	24	±0.5	4000
7	38	28	±0.5	4000
8	42	30	±0.5	4000

Preparation Process	Recrystallized	Reaction Sintering	SANZER Coresic	Pressureless Sintering	Hot Pressing Sintering
Density of sintered body(g/cm³)	2.6	3.08	3.14	3.20	3.15~3.20
Relative density of sintered body(%)	80~90	98	99	99	99
Sintering temperature(℃)	2300~2500	1600~1800	2100~2200	1800~2000	1800~2000
Sintering mechanism	Evaporative Condensation	Reactive Siliconizing	Solid Phase Diffusion	Dissolve Precipitation	Various
Use temperature(℃)	1400~1600	1100~1300	1300~1500	1300~1500	1300~1500
Flexural Strength(Mpa)	100	150~450	400~600	750~900	600~1000
Elastic Modulus(GPa)	240	300~400	400~470	400~500	42~450
Thermal conductivity(W/m·k)	20	100~140	120~160	80~100	110~180
Raw material powder	0.5-5μm 50-100μm	5-20μm 40-60μm	0.5μm	0.5μm	0.5-3μm

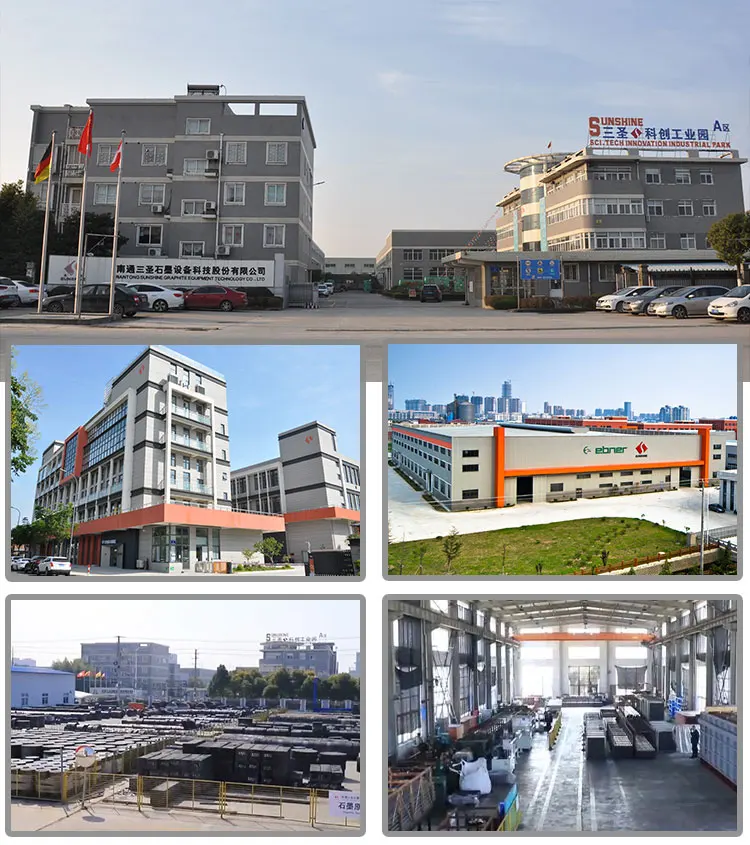

Company Information

our-Company

Nantong Sunshine Graphite Equipment Technology Co., Ltd. is one of the world’s majorsuppliers combined with the design and the manufacture of graphite equipment, silicon carbide heat exchanger and other non-metallic chemical equipment, and energy-saving chemical process including evaporation and crystallization.
Founded in 2001, Sunshine have provided equipment and system solutions for more than thousand enterprises around the world regarding with concentration, purification, rectification of waste or diluted sulfuric acid, hydrochloric acid, phosphoric acid in the industries of fine chemical industry, metallurgy, pesticide, pharmaceutical, chlor-alkali, steel pickling, phosphorus chemical industry, dye chemical industry, semiconductor and so on, and obtained more than one hundred national patents.

Sunshine owns the system certification of ISO 9001,14001 and 45001 certified by Intertek, and have supplied nearly 10 thousand sets of equipment designed as per China standard A4, AD 2000 code and ASME code which are capable to be approved by PED and U stamping to more than 20 countries and regions in North America, Europe, Middle East, and Southeast Asia. In Germany, Nantong Sunshine set up the R&D center and the sales office to provide more convenient service at abroad.

Besides the conventional equipment, Sunshine is capable to design and manufacture according to the customer’s process requirement and provide the technical solution which would be more economic and energy conservation.

Our Certifications
