Railway Digital rolling gauge Railway survey trolley
- Category: Railway Parts & Accessories >>>
- Supplier: Wuhan Linkage Track Equipment Co. Ltd.
Share on (1600775936696):
Product Overview
Description
Product Description

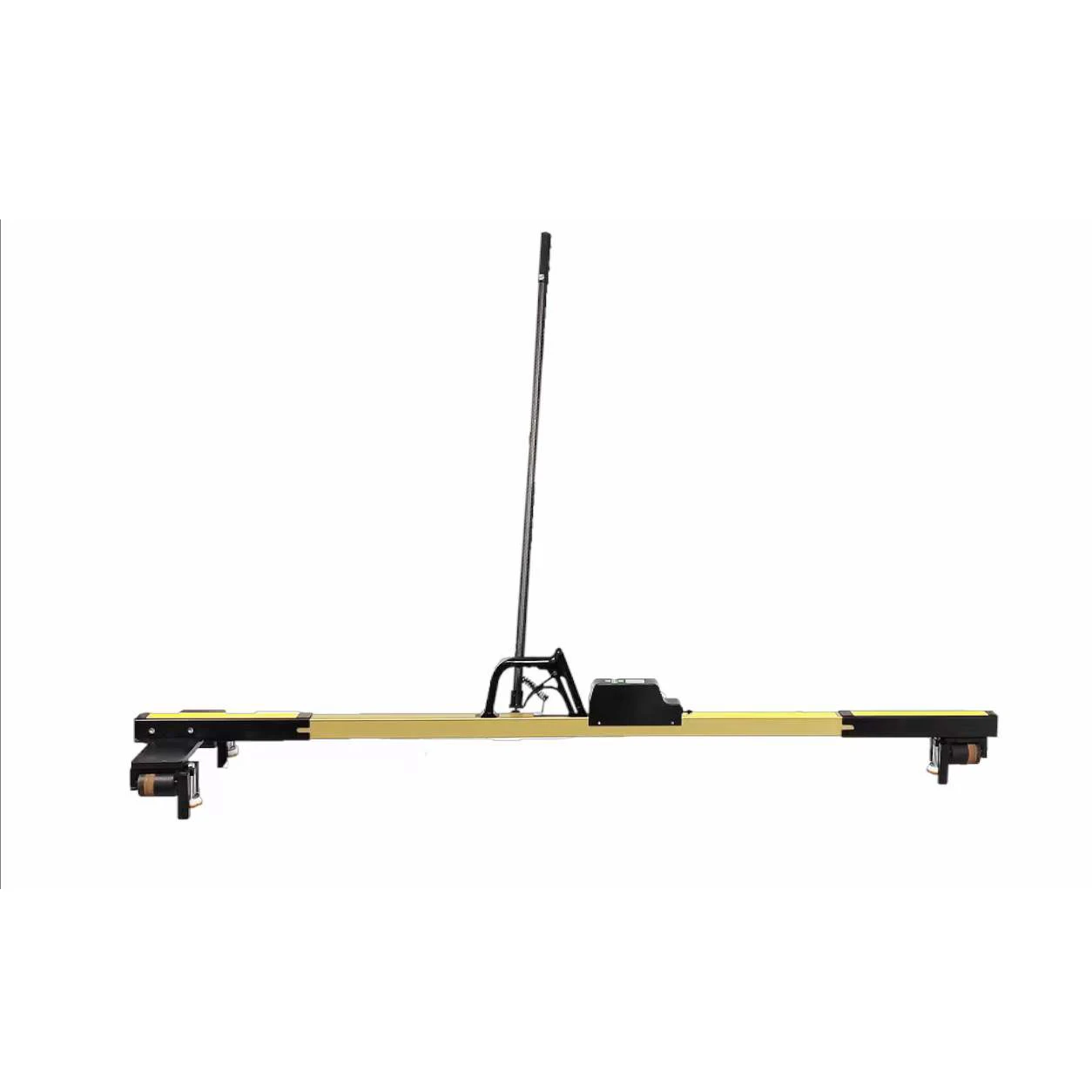

Digital Rolling Track Gauge

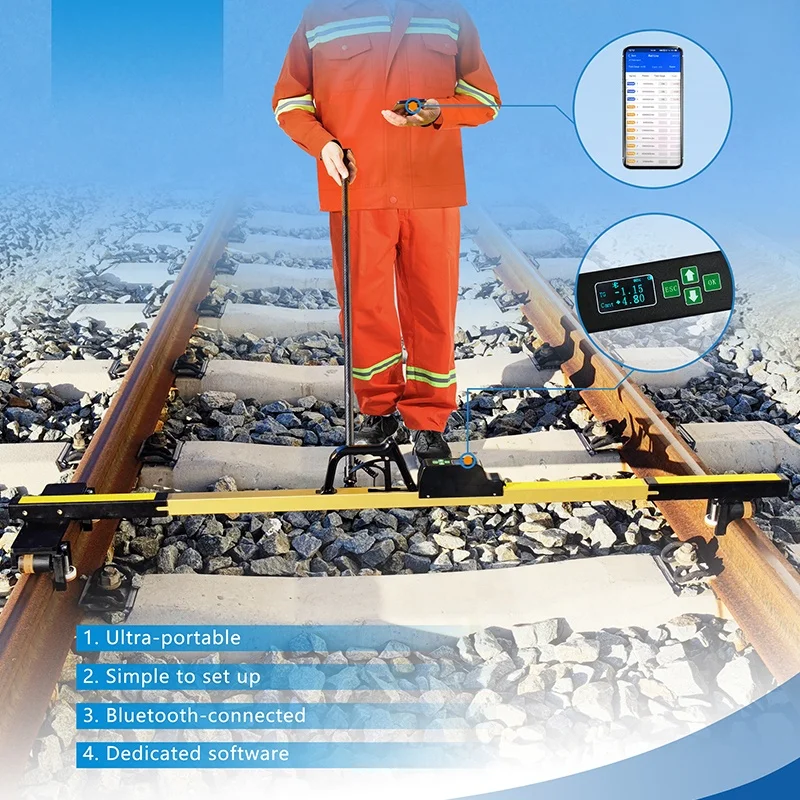

The portable rolling track gauge is designed for measuring the track gauge and super-elevation.The lightweight ,reliable and easy to use device offers unique measurement accuracy.
The software system support for storing and analyzing the measuring data. It can be used for track inspection and rail maintenace. It is easy to carry, and night-time and tunnelwork, legible even in direct sunlight are supported which is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying .
The software system support for storing and analyzing the measuring data. It can be used for track inspection and rail maintenace. It is easy to carry, and night-time and tunnelwork, legible even in direct sunlight are supported which is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying .
Features
1. Large LED backlit display: especially suitable for day outside and dark night
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
Specification
Model(1435mm) | GJC-JJG0 |
Track gauge(mm) | 1410-1470 |
Superelevation measuring range(mm) | -185~+185 |
Superelevation division value(mm) | 0.01 |
Track gauge division value(mm) | 0.01 |
Track gauge max indication error(mm) | ±0.25 |
Superelevation error(mm) | ±0.3 |
Details Images

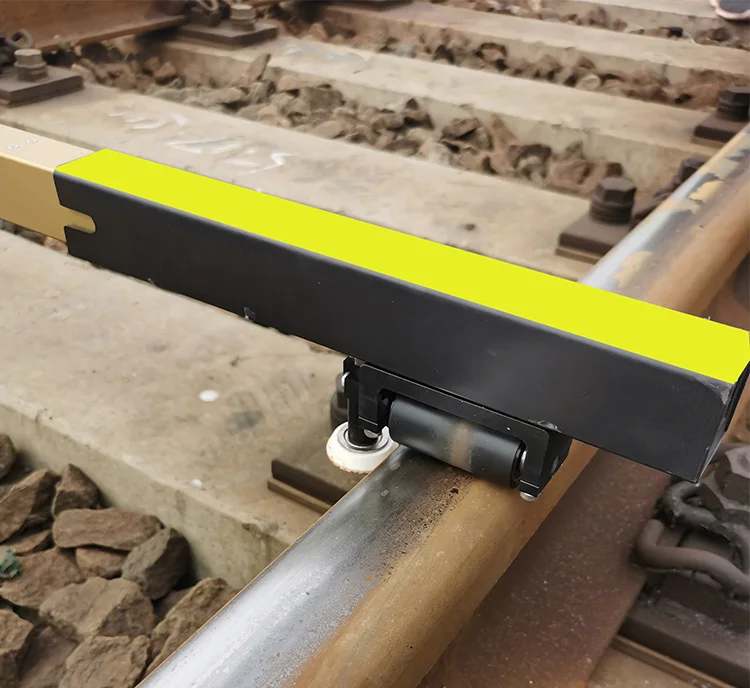

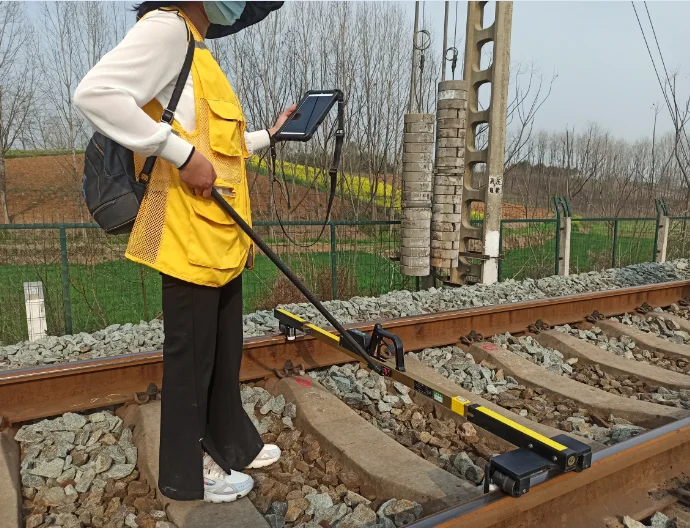

Digital rolling track gauge for maintenance

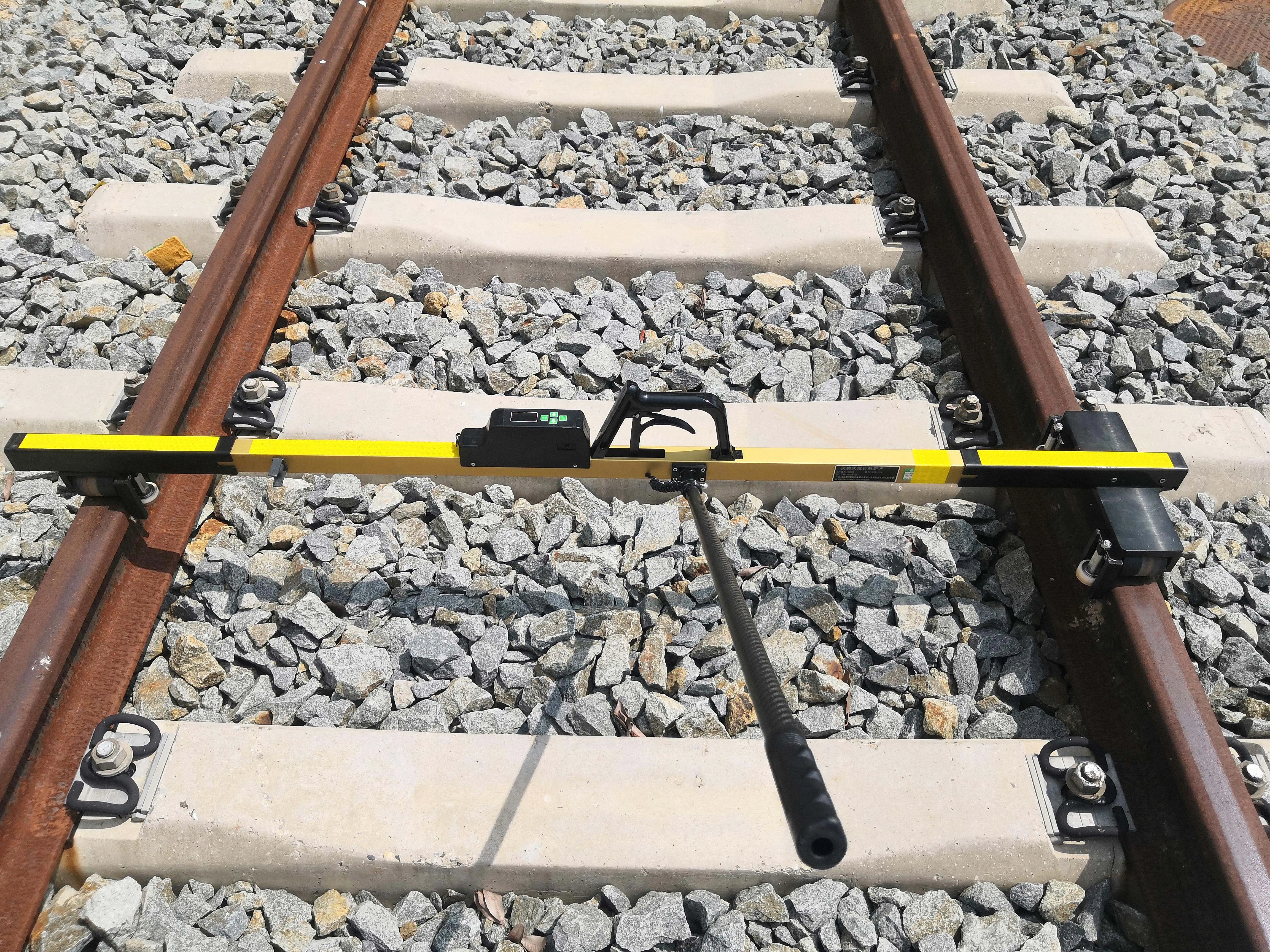

Digital rolling track gauge for track fine adjustment , track maintenance work

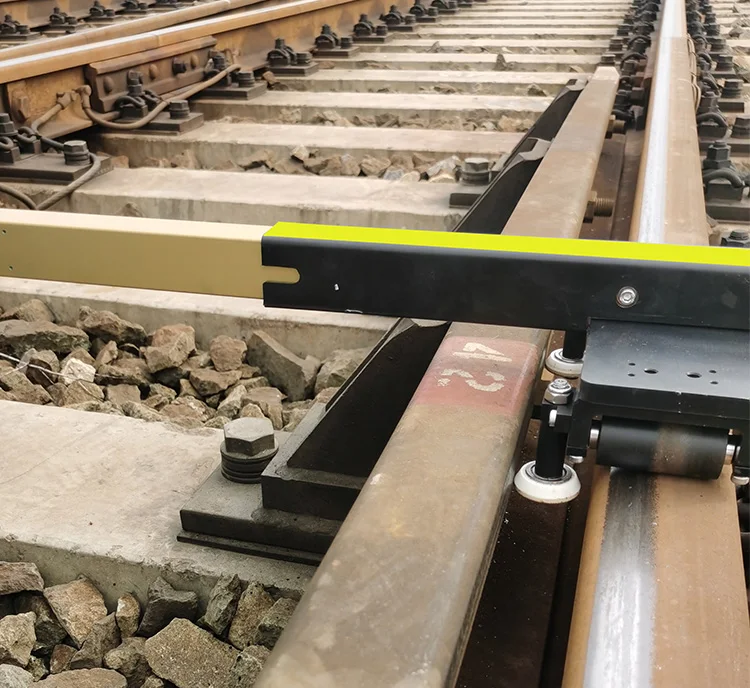

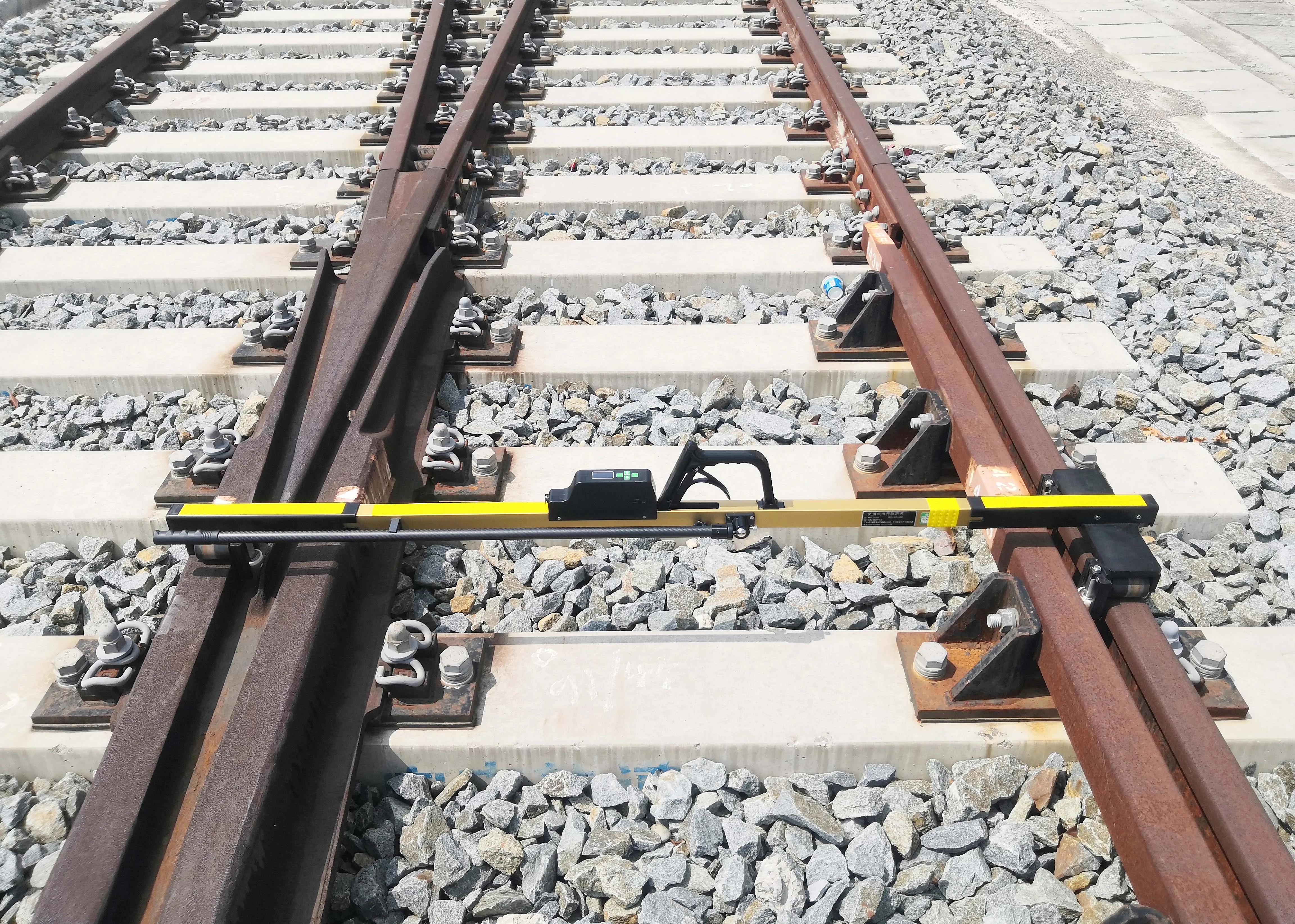

Digital rolling gauge work for rail yard
Rail yard have some special position like rail gap , rail wear ect , our rolling track gauge could keep accuracy., more convenient than geometry trolley

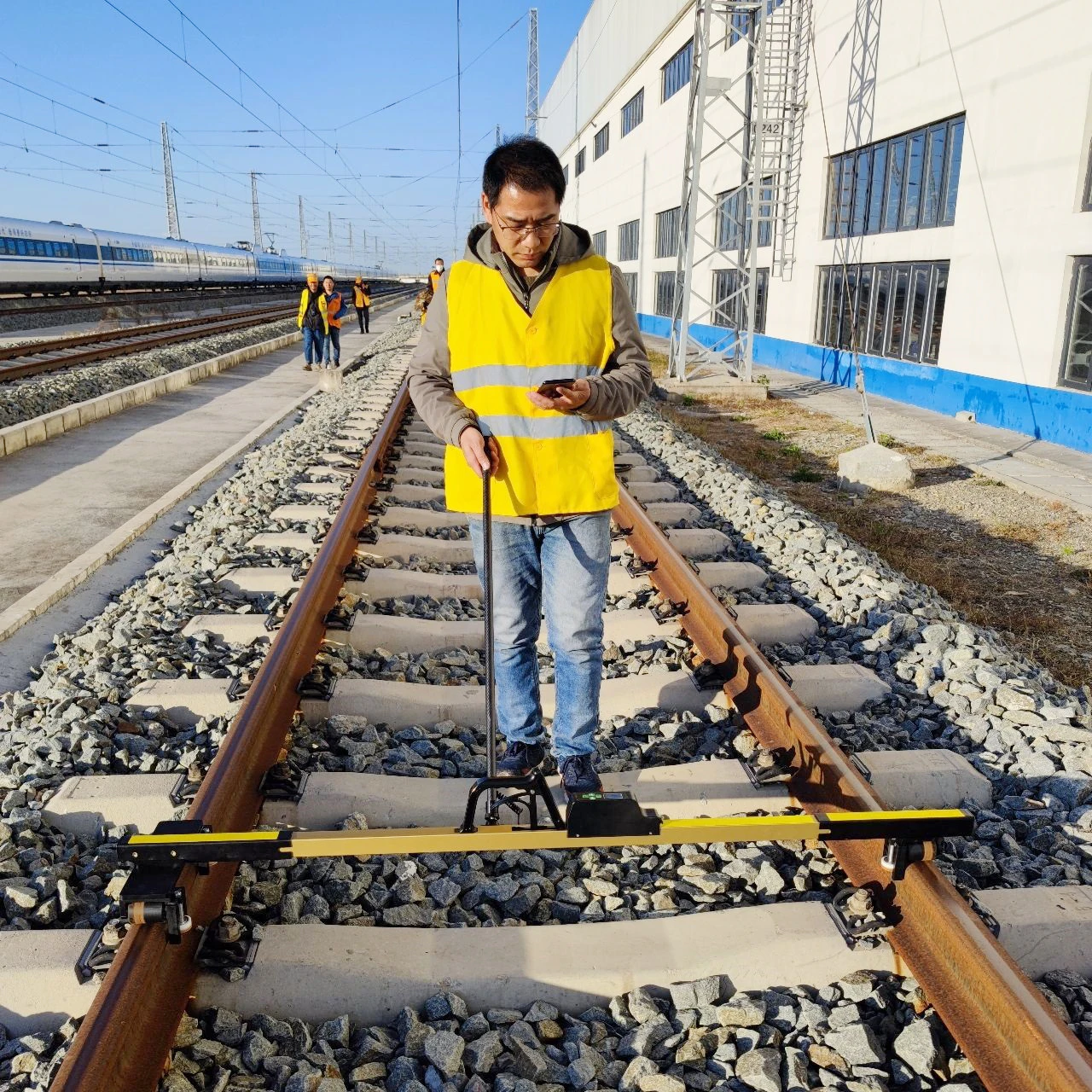

Show digital track gauge for customer
Show our digital rolling track gauge to our customer in beijing railway maintenance department. Compare to analogue track gauge or digital
track gauge , digital rolling gauge could save lots of work time.
track gauge , digital rolling gauge could save lots of work time.

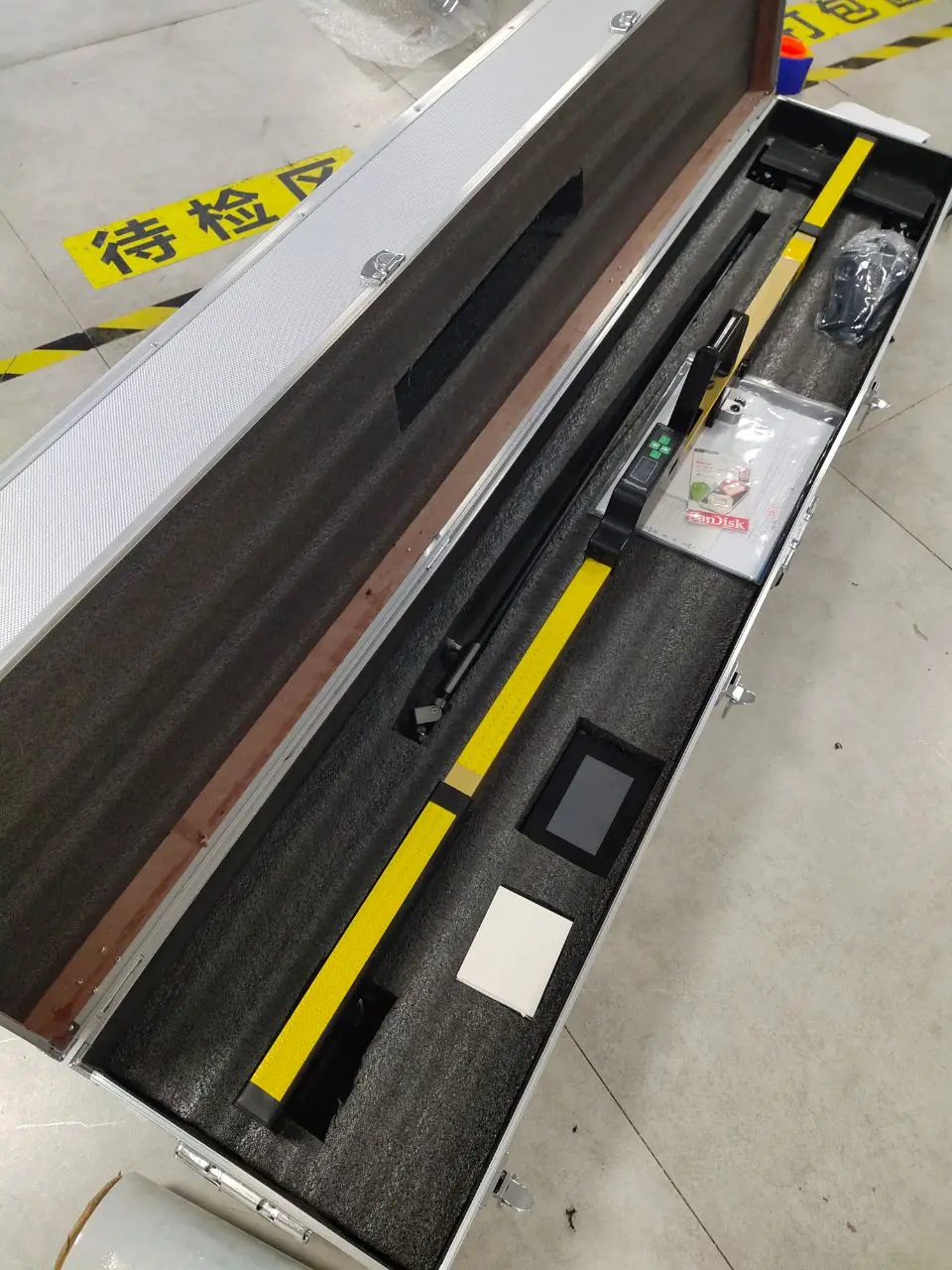

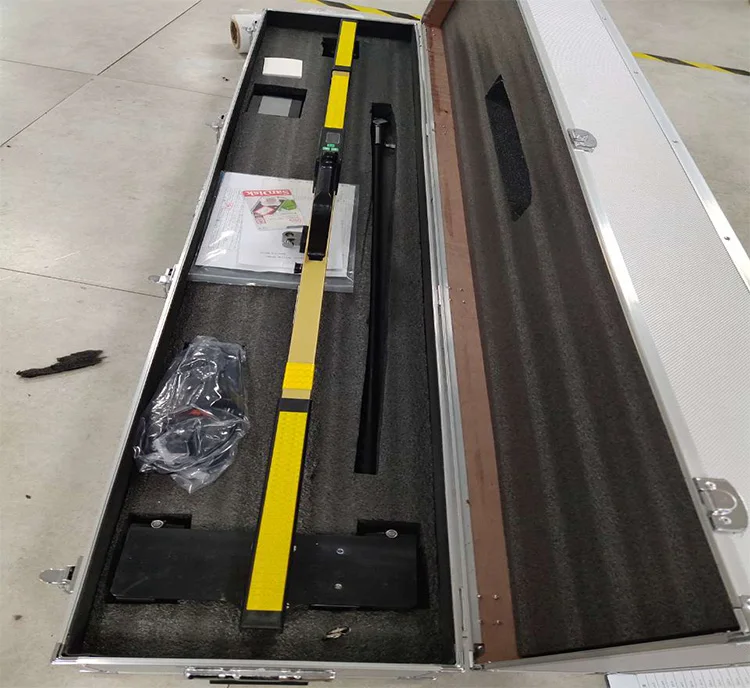

Packing & Delivery
pe bag+pe foam+paper carton,1unit/case
Company Profile
Wuhan Linkage Track Equipment Co.,Ltd Established in 2022,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
