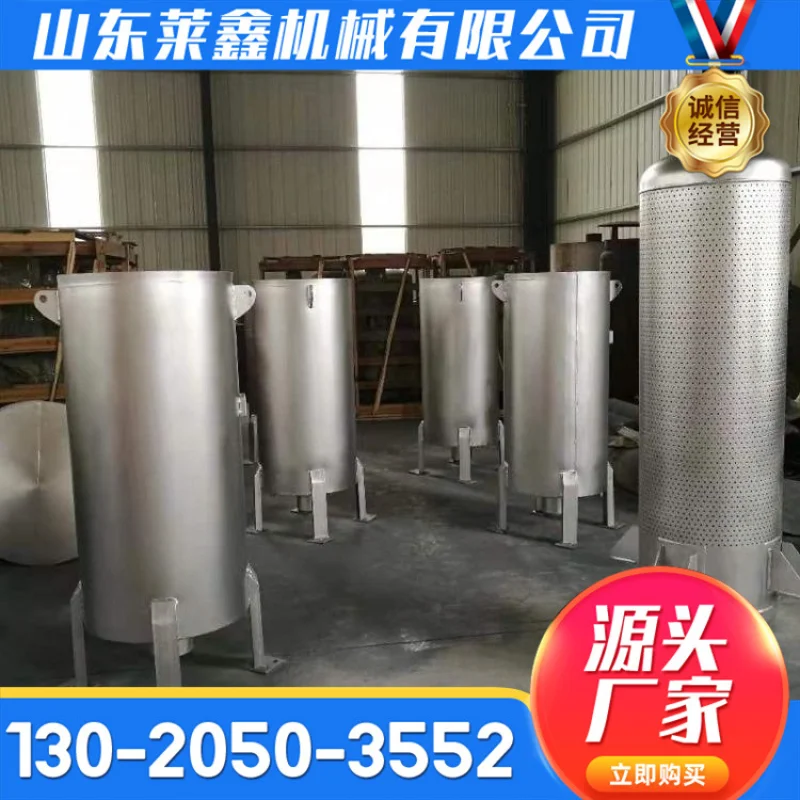

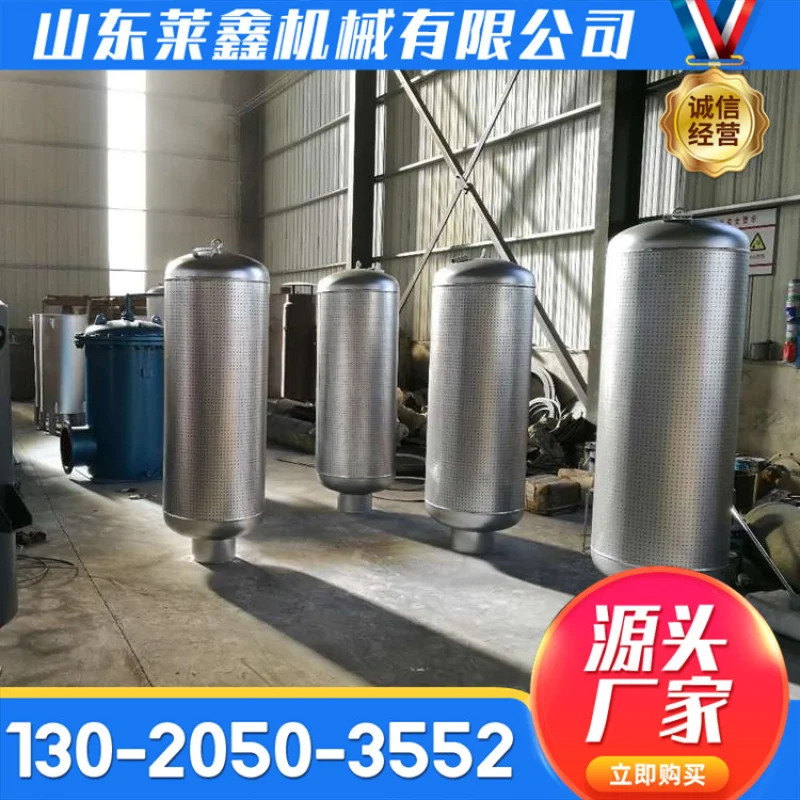

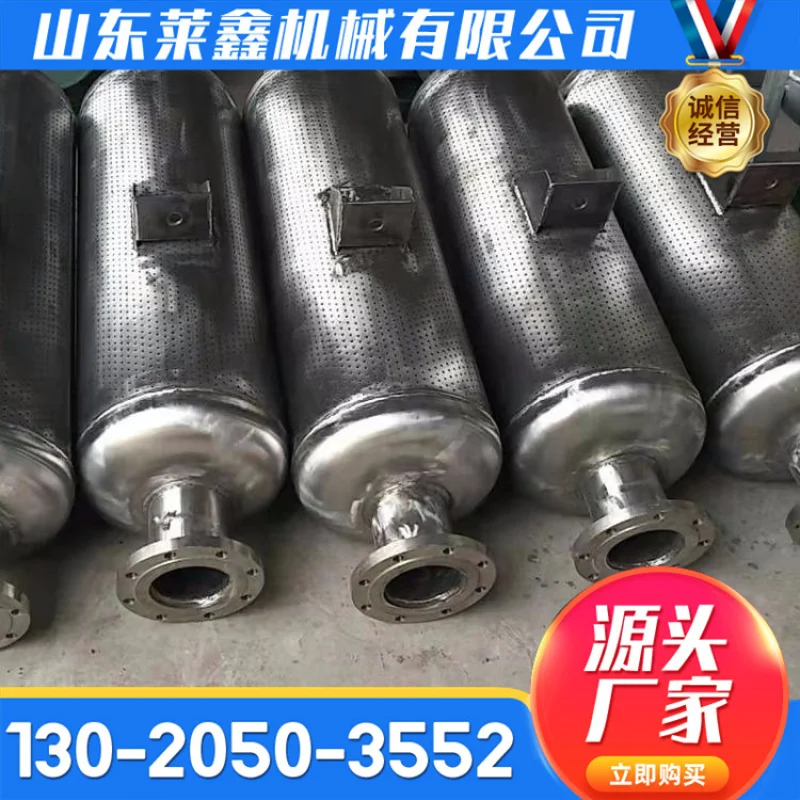

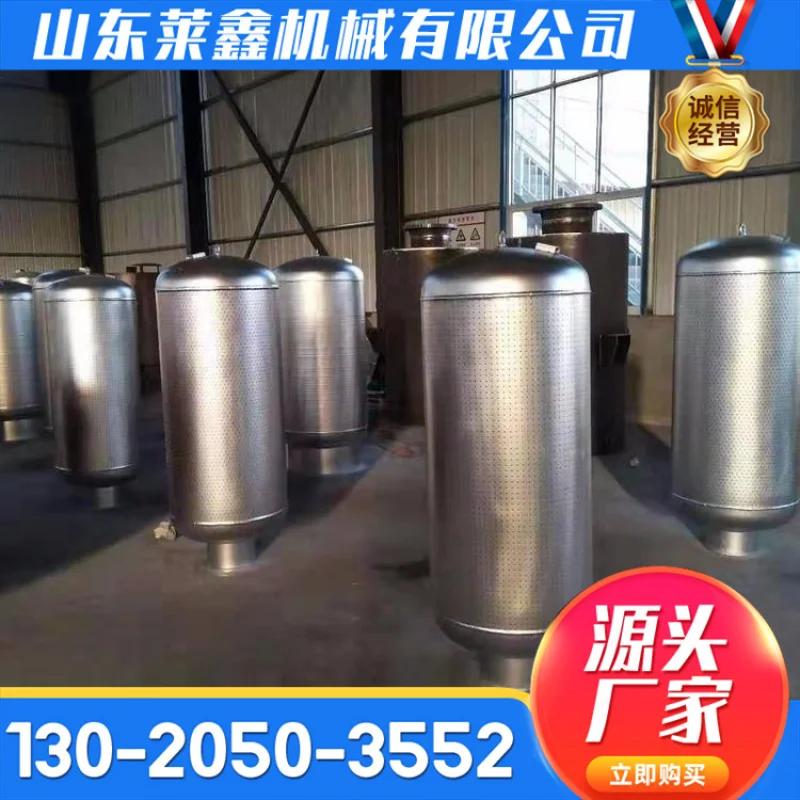

Safety exhaust silencer equipment nitrogen emission noise reduction portable convenient industrial small hole fan silencer

Product Overview

Description

Product Features
brand	lyxin
service life	10 to 20 years
Exhaust steam muffler	silencer
Temperature resistance characteristic	-50~540
Model number	Exhaust steam muffler
Order number	222
Noise reduction effect	35~55
material	Carbon steel/stainless steel
Anechoic frequency	2000~20000
Processing customization	no
Overall dimension	variety
Whether to export the goods exclusively across the border	no
Field of application	Electric power petrochemical cement plant metallurgical textile

Safety valve exhaust silencer equipment nitrogen emission noise reduction portable convenient industrial small-hole fan silencer

Steam heats the muffler

-\\ Steam Heating muffler Overview:

Steam heating muffler refers to a special muffler installed in a pool sink water tank water tank that uses high temperature and high pressure steam heating water and connected with the pipe outlet of high pressure and high temperature steam to eliminate the strong noise and vibration generated when steam and water are mixed. It can also be called: steam heating water muffler steam inlet muffler muffler hot water tank muffler hot water tank steam muffler

Principle and Characteristics of steam heating muffler:

The steam heating muffler is composed of a shell and a core. Large holes are distributed above and below the shell, and small diagonal holes are distributed around the core. Between the shell and the core is an efficient mixing heating zone. Steam heating muffler, working, steam from the core small oblique hole, high-speed injection into the mixer heating area, driving the heating area of water high speed rotation, at the same time to complete the soda water mixing heat transfer. At the same time, the heated water is continuously discharged from the upper hole of the shell in the process of rotation, and the lower hole is supplemented to heat the water circulation in the tank. Steam heating muffler is composed of orderly two-phase flow channel, heat exchange ring, muffler cavity, etc., by the whole raw material processing molding, small volume, light weight, large flow, long life. Good stirring kinetic energy. With the promotion of industrial application, its classification is increasingly refined and more perfect varieties.

Three \\ Steam heating muffler various categories:

Steam heating silencers are divided into: reactive silencers, buffer silencers, beam source silencers, etc

Buffer type of muffler, more like a kind of heat exchanger or radiator, it uses large contact surface, first the steam in a small part of the heat conduction to the water, is steam cooling and decompression, and then the low pressure of steam and condensate input water, in order to achieve the purpose of noise absorption, the defect is that the initial investment is large, high maintenance costs, short service life, muffler effect is poor. Frequent removal of scale and rust is required.

The steam heating silencers of the resistant silencing type mostly use small holes to disperse and release steam. It is hoped that the noise and vibration generated by multi-point sound sources can be offset and suppressed within a certain range on the basis of reducing and dispersing noise sources. However, this kind of silencers is very difficult to manufacture and is very easy to fail, Moreover, it is very sensitive to the impact of water temperature, steam pressure, scaling, etc. Most of these mufflers can only reduce vibration within a certain range

Four \\ Steam heating muffler main material classification

Steam heating muffler is divided into: 304 stainless steel type.
