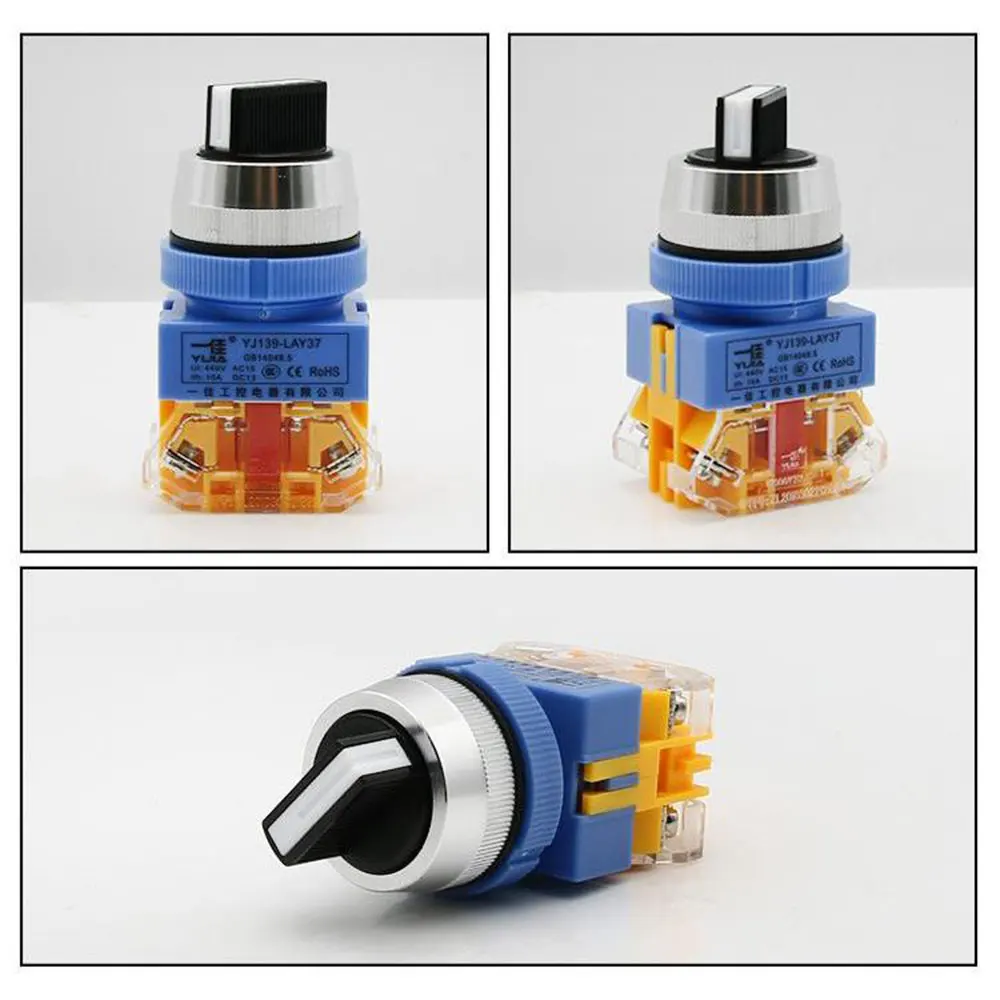

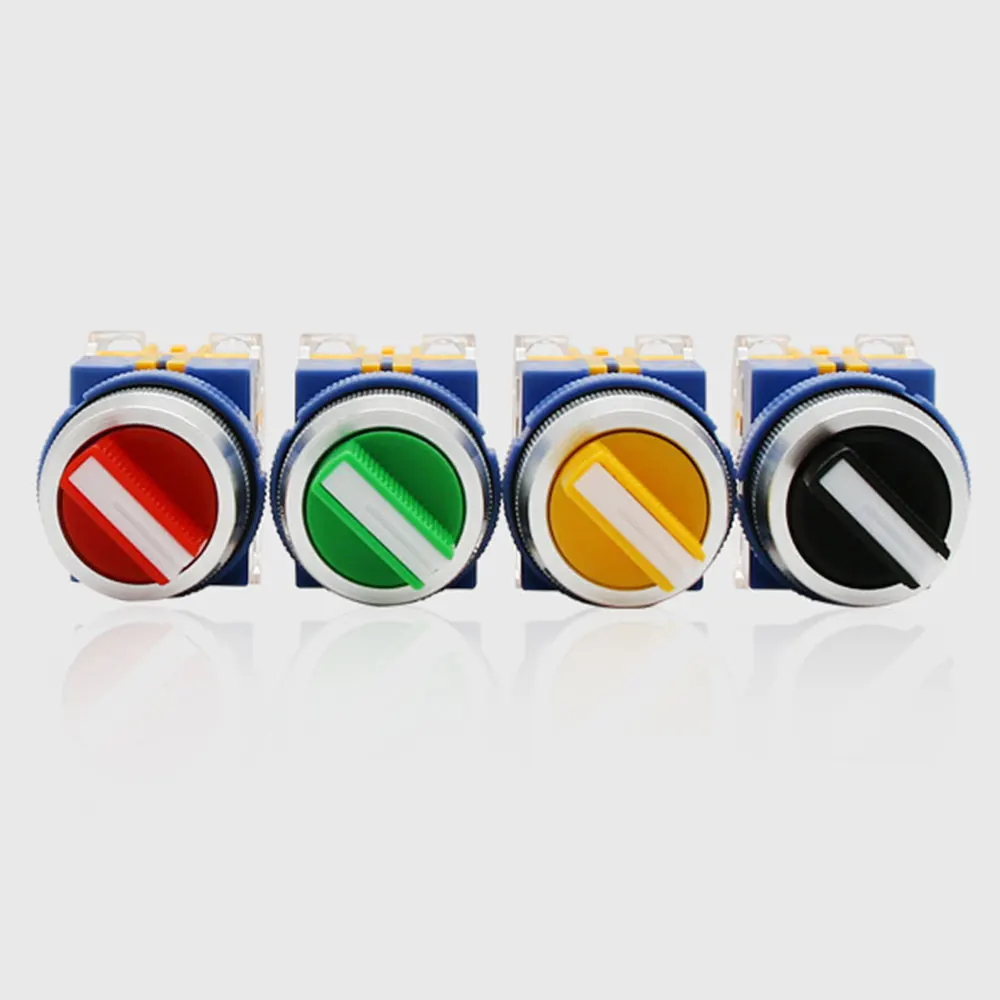

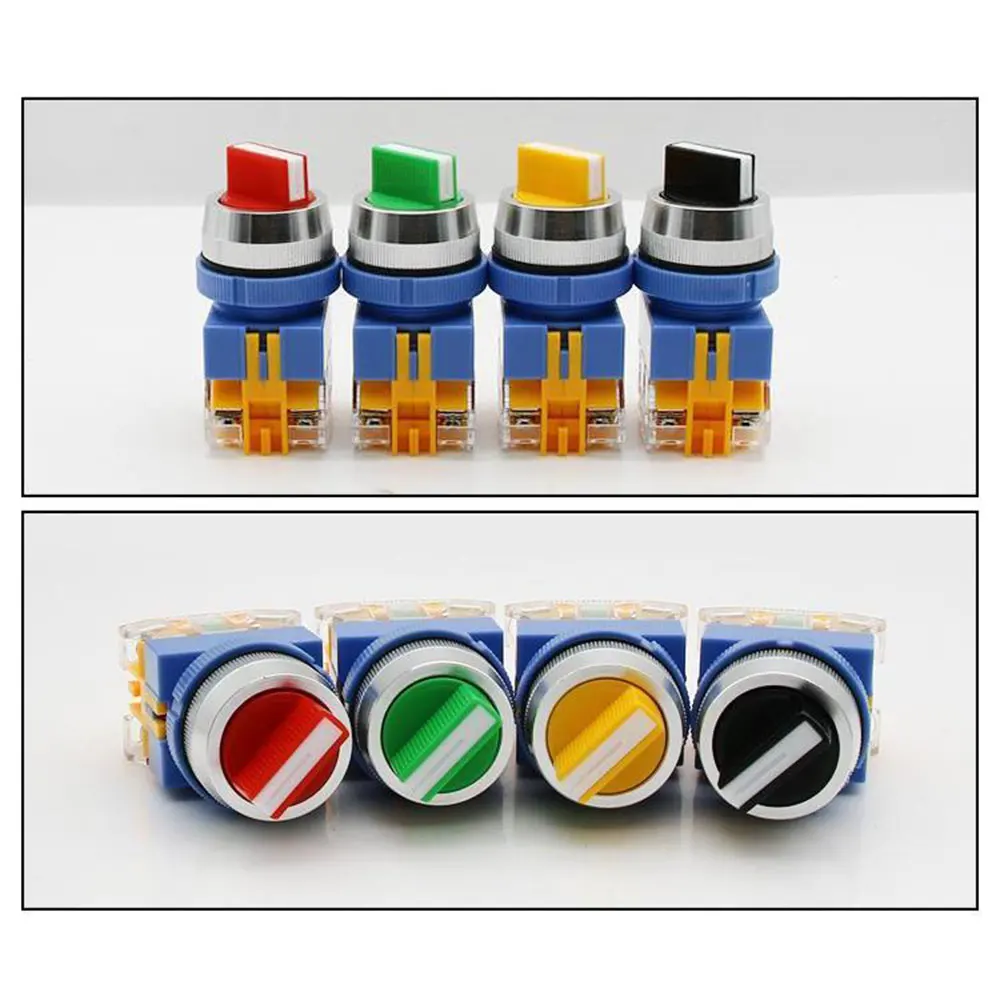

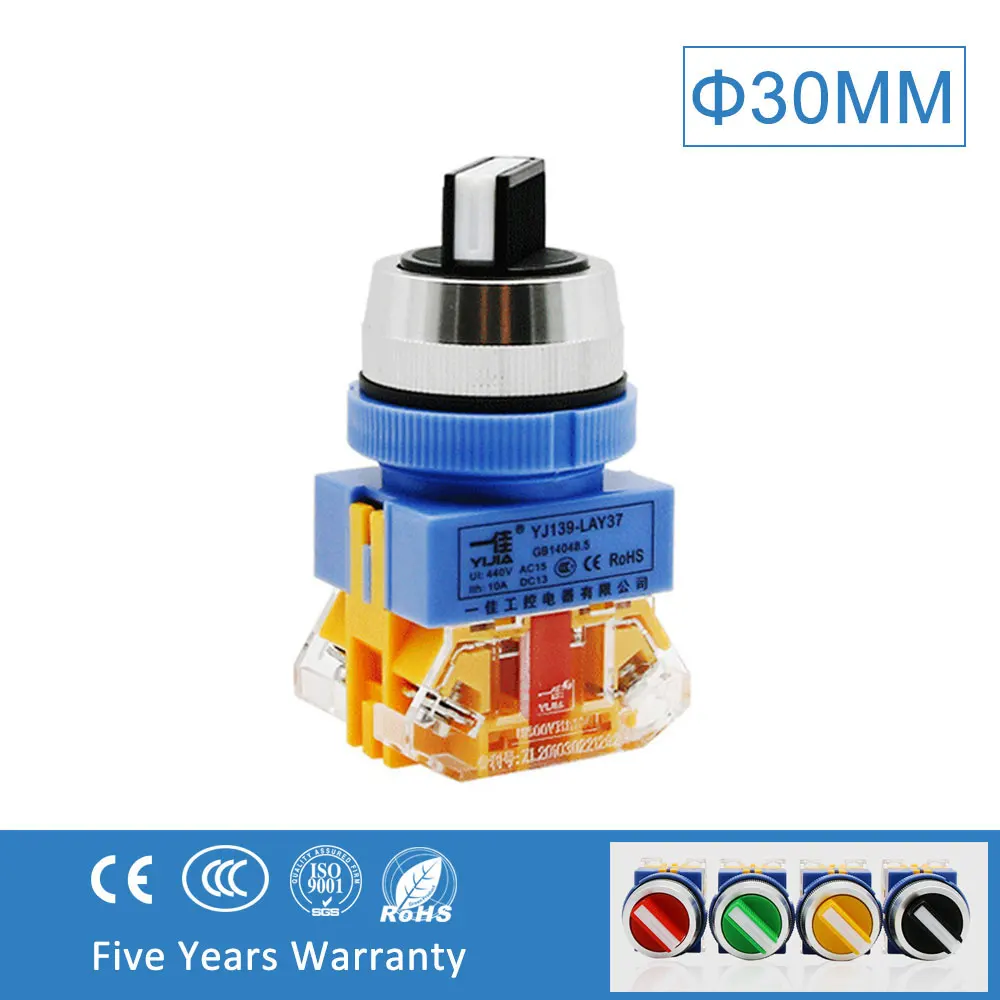

Rotary black second gear third gear lay37 series 30mm start stop plastic push button switch without led
- Category: Push Button Switches >>>
- Supplier: Yueqing Yueshun Electric Co. Ltd.
Share on (1600780264605):
Product Overview
Description
Product Model | LAY37-11X | ||

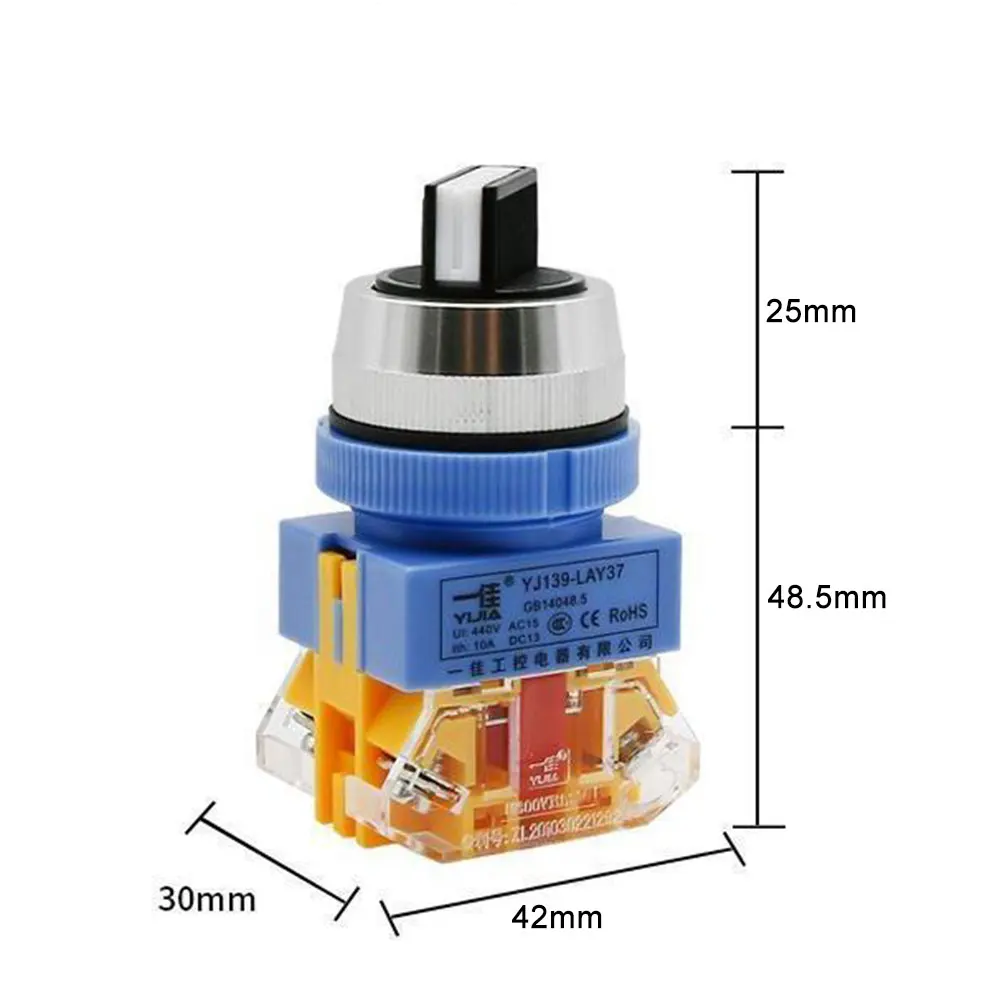

Mounting Hole Size | 30mm | ||
Max Switch Rating | 10A / 440VDC | ||

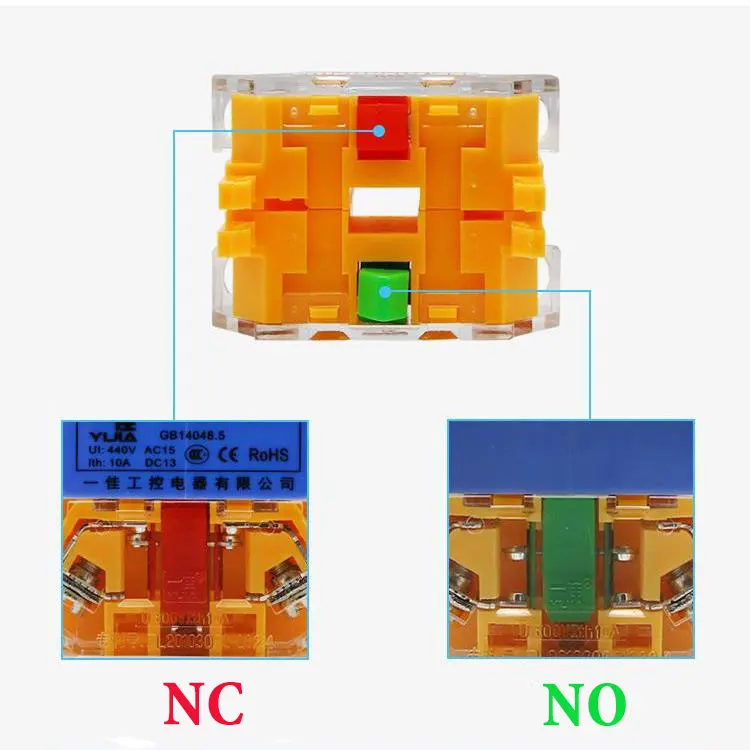

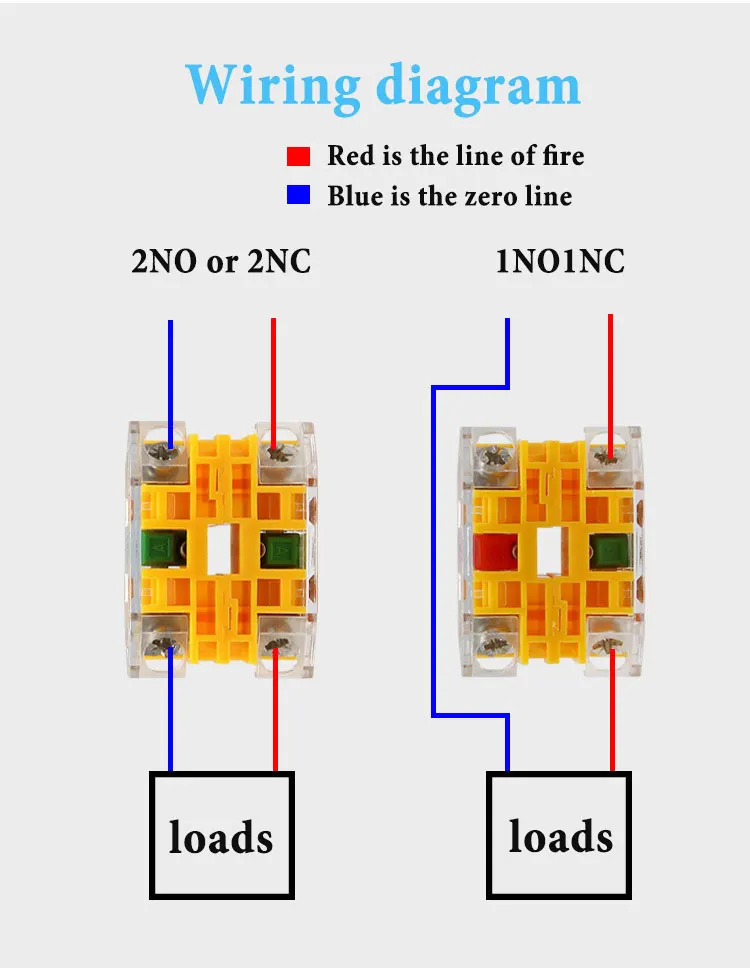

Contact Configuration | 1NO1NC; (2NO 1NO 2NC 1NC Can be customized) | ||
Operation Type | Momentary / LATCHING | ||
Head Shape | Flat round | ||
IP Degree | IP40 | ||
Universal parameter | Rated insulation voltage | 440V | ||||
Insulation resistance | ≥100ｍΩ | |||||
Power frequency withstand voltage | 2KV/55 | |||||
Operating frequency | 50Hz | |||||
Use Conditions | altitude | Service ambient temperature | Storage ambient temperature | Relative humidity of air |
≤2000ｍ | －25℃～+55℃ | -40℃～+70℃ | ≤90% |
Parameter | Conventional heating current | 10Ａ | ||||
Contact resistance | ≤50ｍΩ | |||||
Electrical life | 500,000 times | |||||
Mechanical life | 2,000,000 times | |||||
Connection mode | M3.5 Screw with square plate | |||||
LED lamp life | ≥40000ｈ | |||||

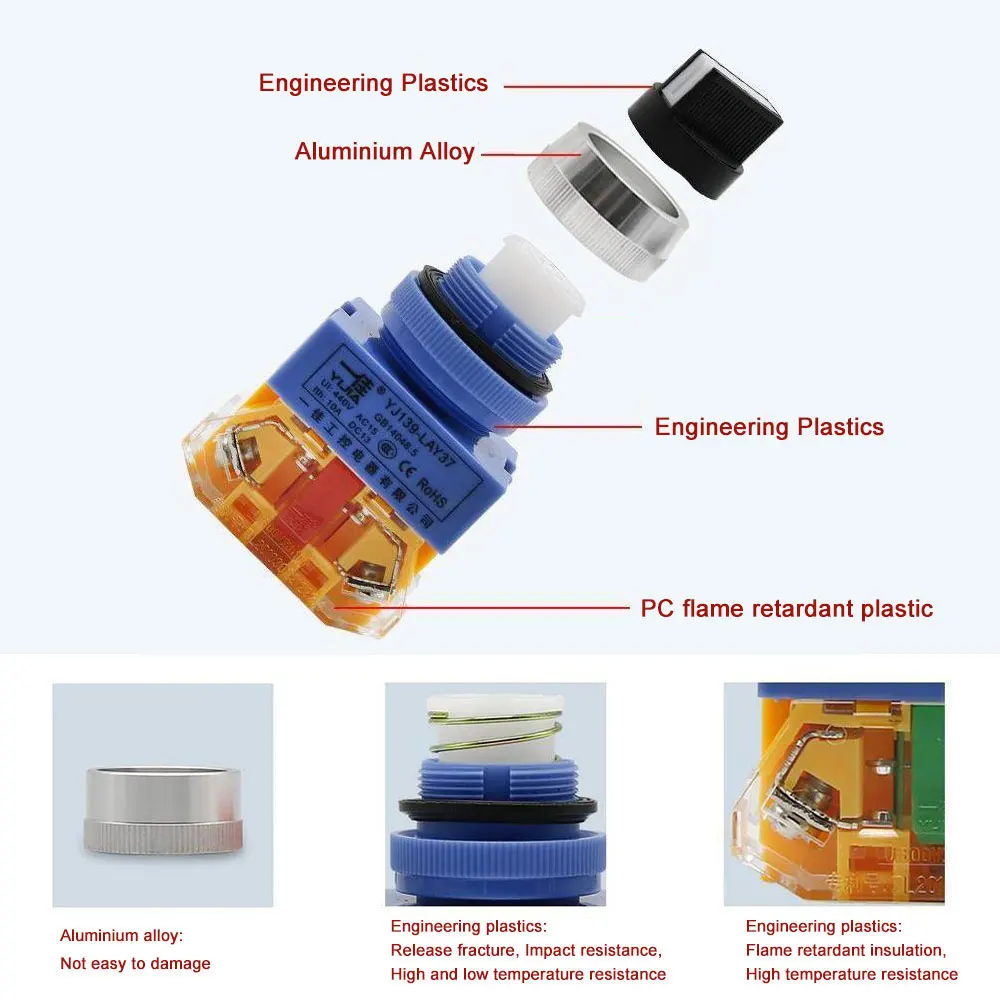

Main component material | contact | Silver alloy | ||||
button | Engineering plastics：ABS | |||||
shell | Engineering plastics: Reinforced nylon（PA66） | |||||
base | Engineering plastics: polycarbonate (PC) | |||||
Company Profile
Yueqing YueShun Electric Co., Ltd
Established in 2005, we focus on manufacturing high quality metal push button switches for more than 15years. We are one of thefamous domestic manufacturer in this area, and we have many stable customers overseas too, with cooperation for more than 10years.
We have professional engineers, workers, sales and service team to supply you with variety push button switches which are either
industry and market focused, as well as excellent quality and professional service.
industry and market focused, as well as excellent quality and professional service.
We enjoy a complete line of 8mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm 35mm 40mm push button switches and indicator.
