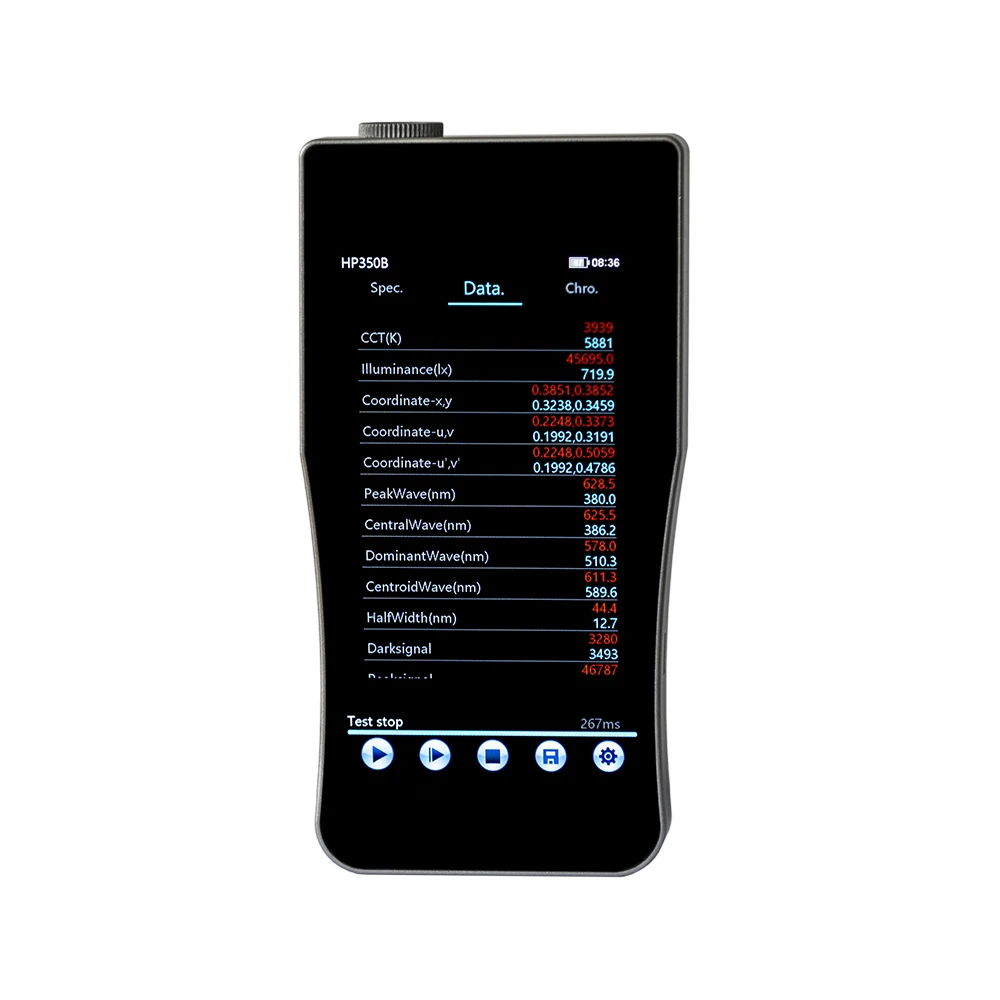

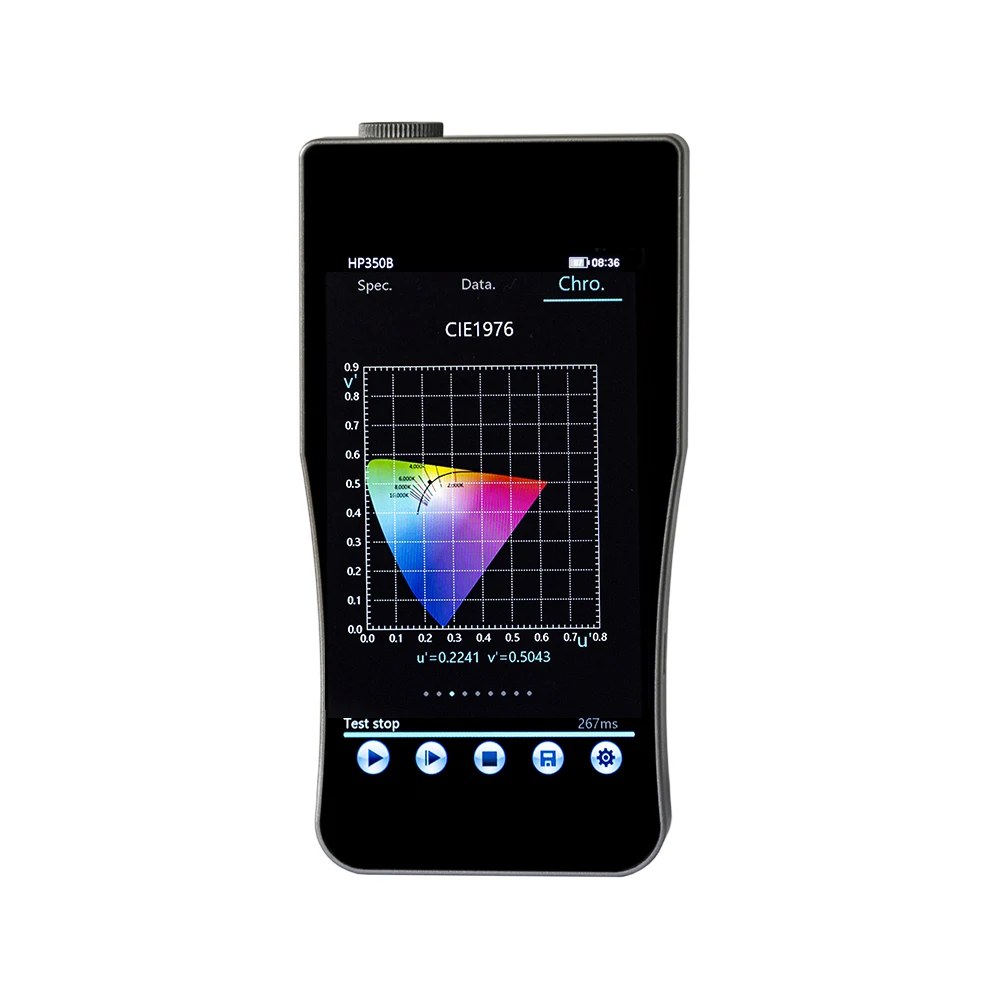

HP350B 380 780nm Handheld Blue Light Tester Portable Spectrometer for Filter Glasses Tester

Product Overview

Description

HP350B 380-780nm Hot Handheld spectral illuminance analyzer blue light tester spectrometer red and blue ray irradiance meter

HP350B blue light spectrum analyzer is a new generation of light source light color test instrument, 5 inch IPS touch screen, using advanced micro spectrometer, embedded operating system and microcomputer technology integration, convenient field testing, making the test more convenient and simple, more in line with the field application scenario of parameter test analysis and verification.
Main applications:
(1) (According to the standard:
Blue light: CIE S009, IEC/EN62471, IEC62471-2, IEC62778, GBT20145, etc.;
Lighting: GB55016-2021 architectural lighting CIE1931, CIE1960, CIE1976, GB/T5700-2008, GB/T 36979
(2) Basic measurement functions:
Main measurement parameters: retinal blue light hazard (300nm-700nm), retinal thermal hazard (380-800nm), weak visual stimulation retinal thermal hazard (780nm-800nm), color coordinates (x, y, u, v, u', v') wavelength, color temperature (CCT), illuminance (lx), color rendering index (Ra, Ravg), color tolerance (SDCM), color purity (Purity), color saturation (Rg), color fidelity (Rf), Color quality index (CQS), light to dark ratio (S/P), transmittance, etc



(1) Product advantages
1. Communication mode: USB
2. A variety of display methods: computer, IPS touch screen
3. The shape is in line with the ergonomic handheld design, which is convenient and convenient to use.
(2) Core devices
1. TCD1304DG CCD detector is coated with anti-reflection coating to achieve quantum efficiency curve in the illumination region with a band range of 350-800nm
2. Enhanced coating grating: number of lines: 1200 lines, shining wavelength 300nm, spectral response 200-1100nm
3. Enhance collimator and focusing mirror
4. 16-bit high-speed AD sampling
5. High-precision stable operation circuit
6. High-precision optical path, small stray light, elimination of high-order diffraction spectrum (with cloud spectrum filter system)
(3) Test advantages
1. Comparison test, transmittance test, parameter comparison (two modes: rocking and locking)
2. Timing test, timed storage (light attenuation test verification can be carried out)
3. Adjustable wavelength, convenient query (single band is more convenient to view and analyze)
4. APP, mini program one-click test one-click sharing (moments, Weibo, forums, etc.)
5. Test result correction (test result coefficient correction for different scenarios and environmental changes)



Model and name	HP350B Blue light Spectrum Analyzer
Wavelength range	380nm~780nm
Spectroscopic mode	Telephoto crossover asymmetric CT spectroscopic system
sensor	High precision CCD
Spectral bandwidth (FWHM)	2nm
Spectral resolution	0.1nm
x,y coordinate values	x,y accuracy ±0.0015 ;   x, y repeatability ± 0.0005
Wavelength accuracy	±0.5nm
Wavelength data output interval	1nm
Illuminance accuracy	Level 1 (±4% of readings ± 1 reading)
Color rendering accuracy	±1
Photosensitive surface	10mm
Screen type	Computer, 5 inch touch screen
Display type	PC software, touch screen
Color coordinate accuracy	±0.0015 (better stable than standard light source ±0.0005 traceable to NIM)
Color temperature range	1,000K~100,000K
Stray light	≤0.3%
Illuminance measurement range	0.1~500K lx
Measurement mode	Single test/continuous test
Language mode	Chinese and English can be switched

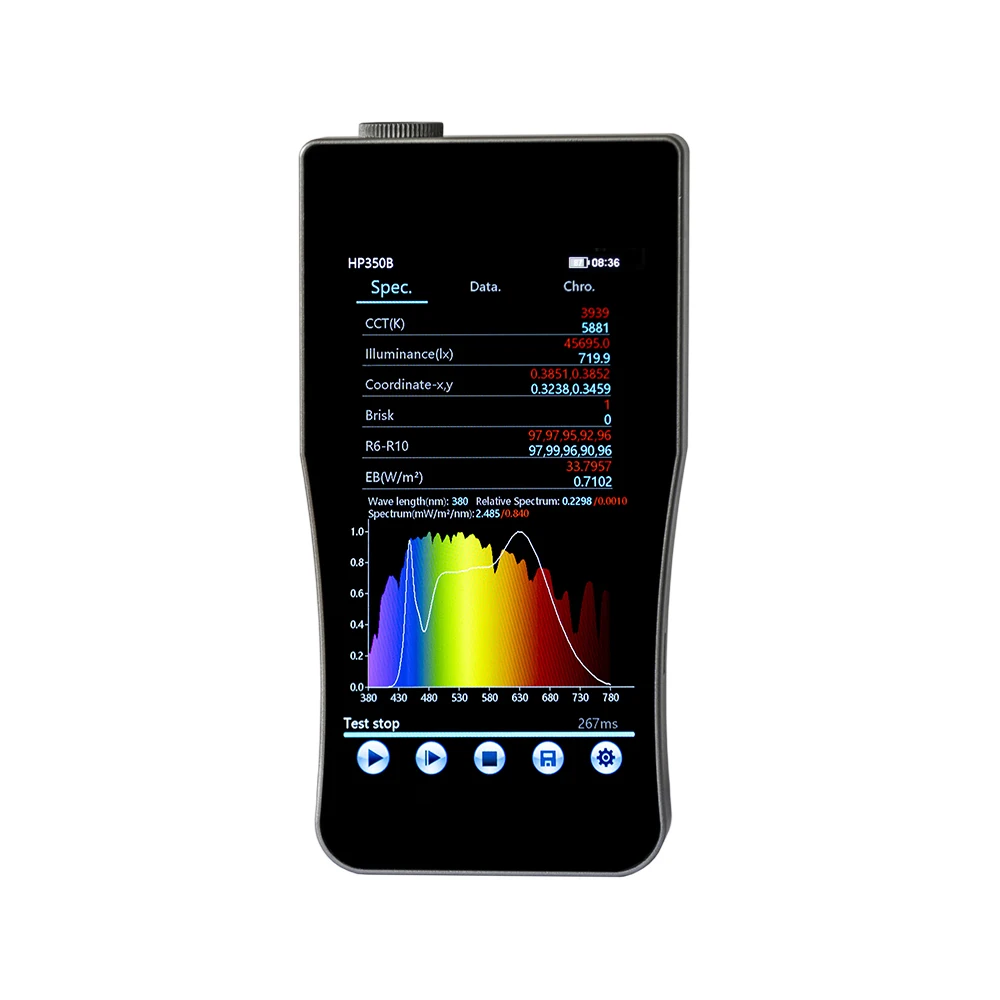

Spectral display mode	Spectral distribution map
Data display patterns	All parameters can be displayed by sliding up and down

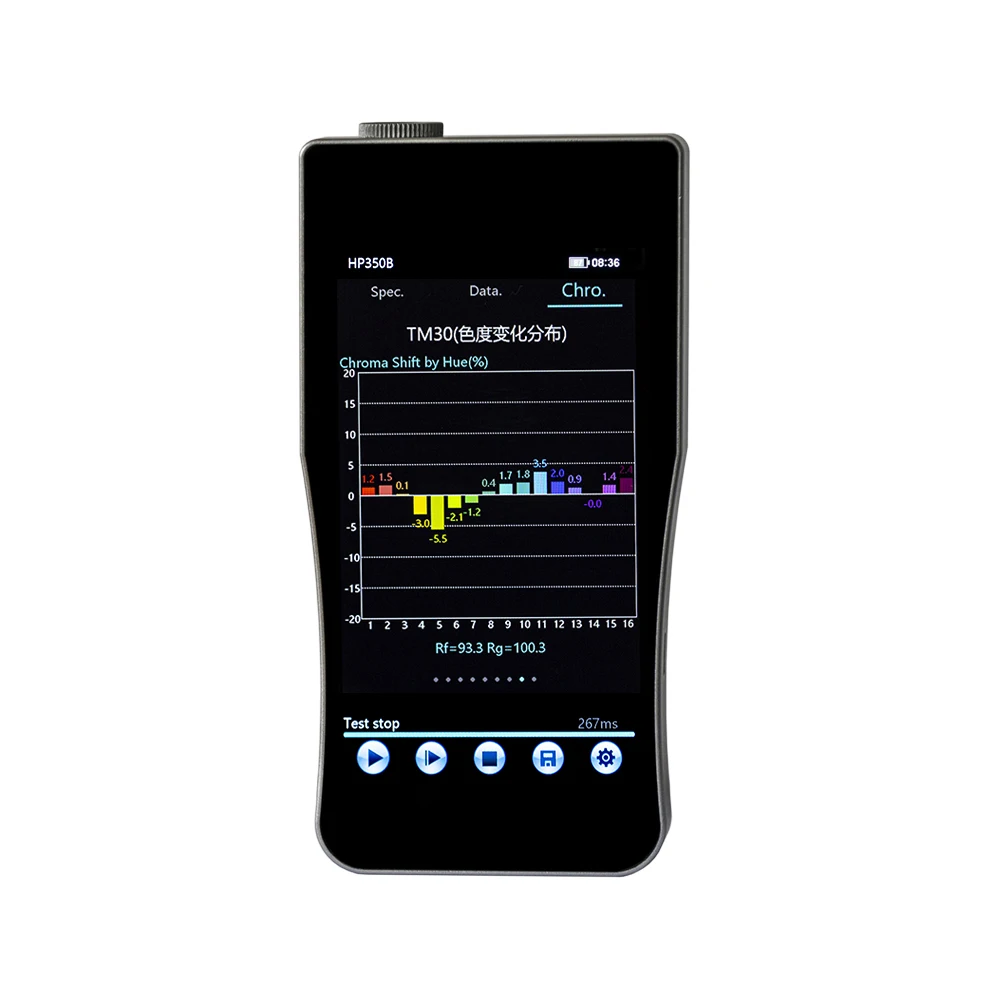

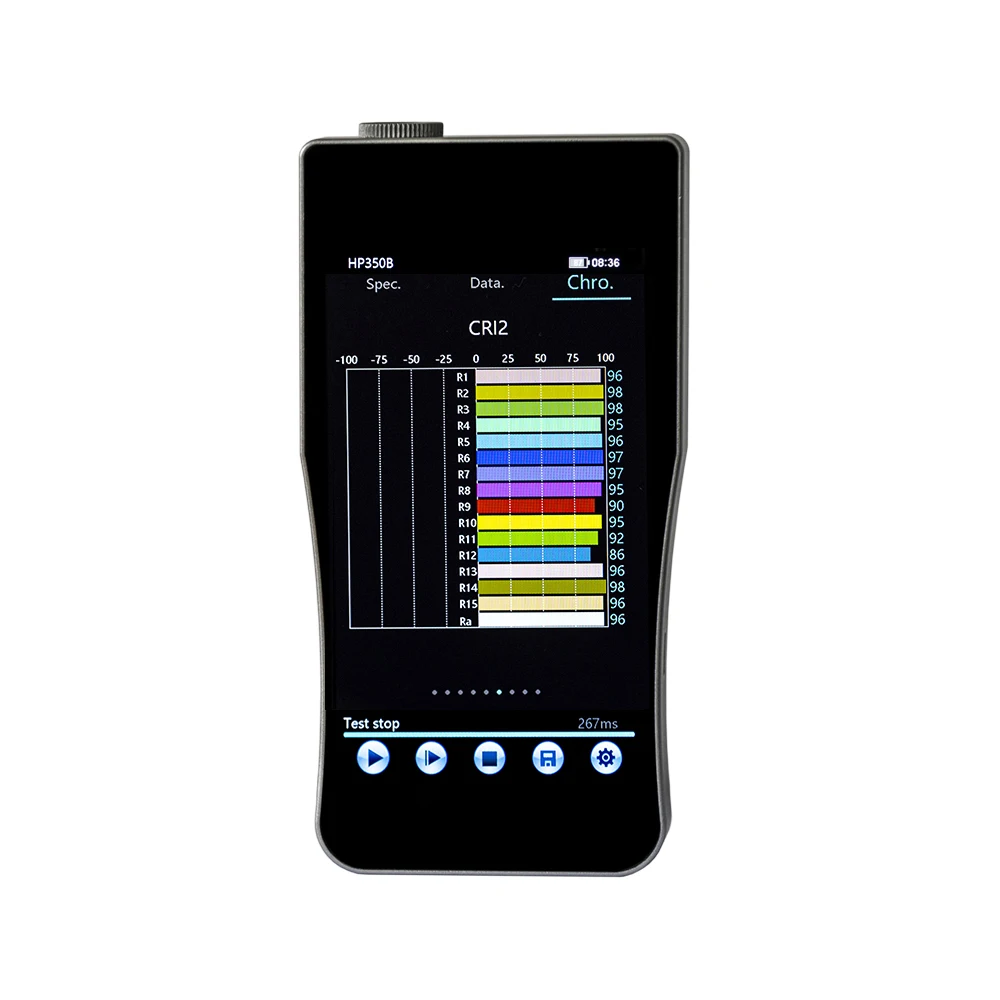

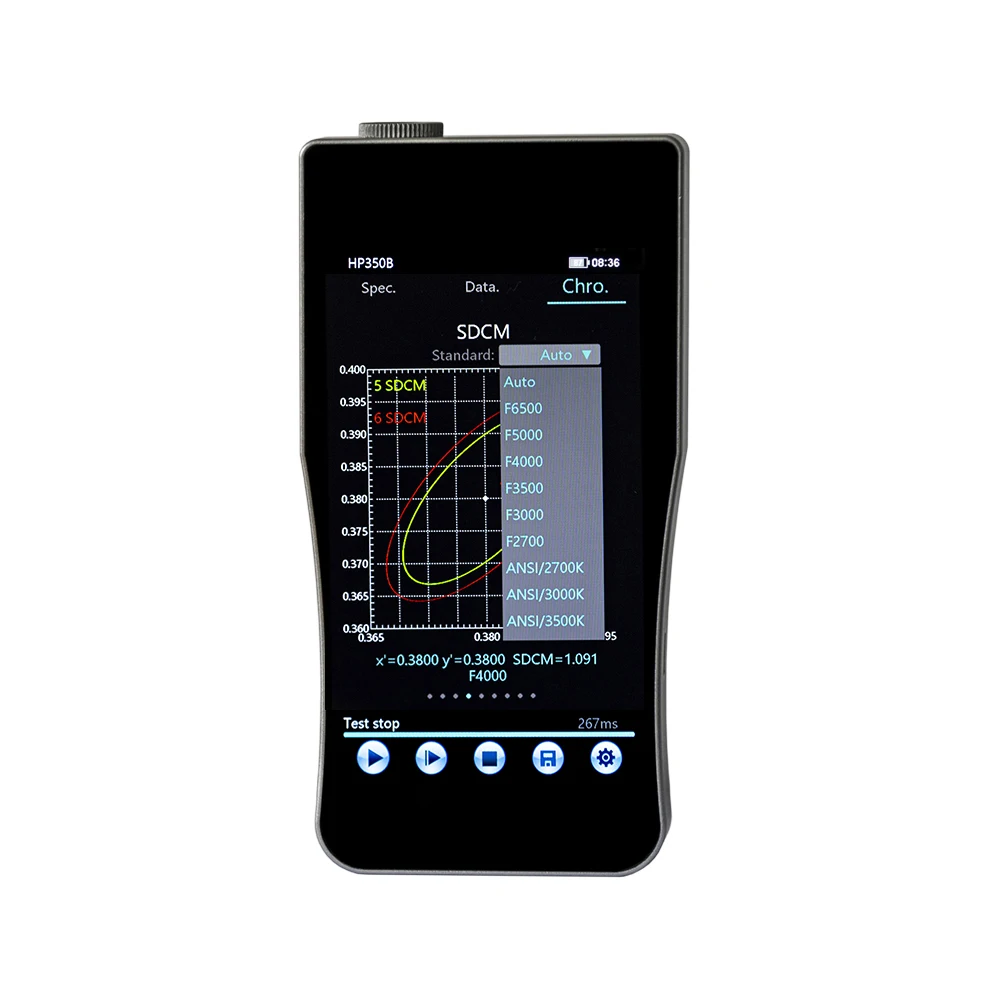

Graphical display mode	CIE1931 chromaticity diagram CIE1960 chromaticity diagram CIE1976 chromaticity diagram Color tolerance ellipse diagram Color rendering index circle chart Color rendering index histogram TM-30 fidelity distribution diagram TM-30 chromaticity change distribution diagram TM-30(Rg/Rf)
Integration time	50µs~10000ms

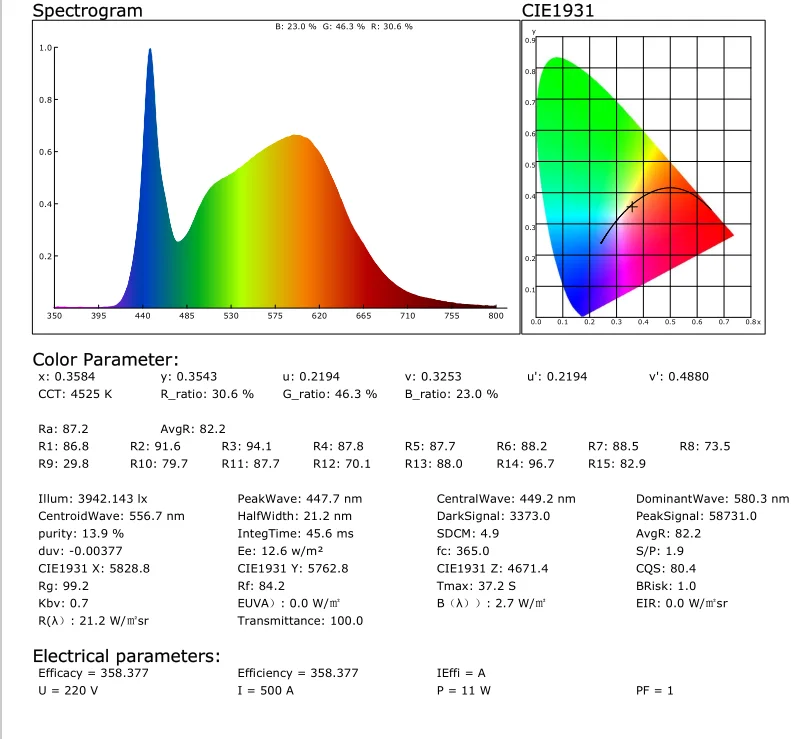

File save format	SOURCE FILES/PDF/EXCEL, ETC
Communication interface	Type-C, Bluetooth
Use temperature/humidity range	(-10~40)°C, relative humidity<70% (non -condensing)
Storage temperature/humidity range	(-20~45)°C, relative humidity<70% (non -condensing)
School zero way	Automatic zeroing

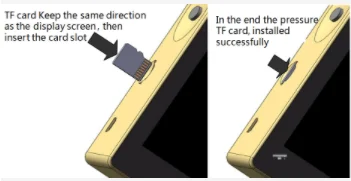

Storage capacity	4G comes standard with factory standard
Power supply mode	Built-in lithium battery/power adapter

       Special parameters:

Blue light harms the radiation coefficient Kbv Blue light harms the radiation coefficient Kbv Blue light source B(λ) EB  Infrared radiation eye EIR Skin heat exposure exposure limit EH Maximum radiation exposure time tmax (S) Blue light hazard level Near ultraviolet EUVA  Transmittance

CIE1931 CIE1960 CIE1976 Color tolerance SDCm Color rendering index CRI Color rendering index Ra TM-30 fidelity distribution map TM-30 chromaticity change distribution diagram TM-30(Rg/Rf)

ColorTemperature

Illuminance

Irradiance

Coordinates 1931

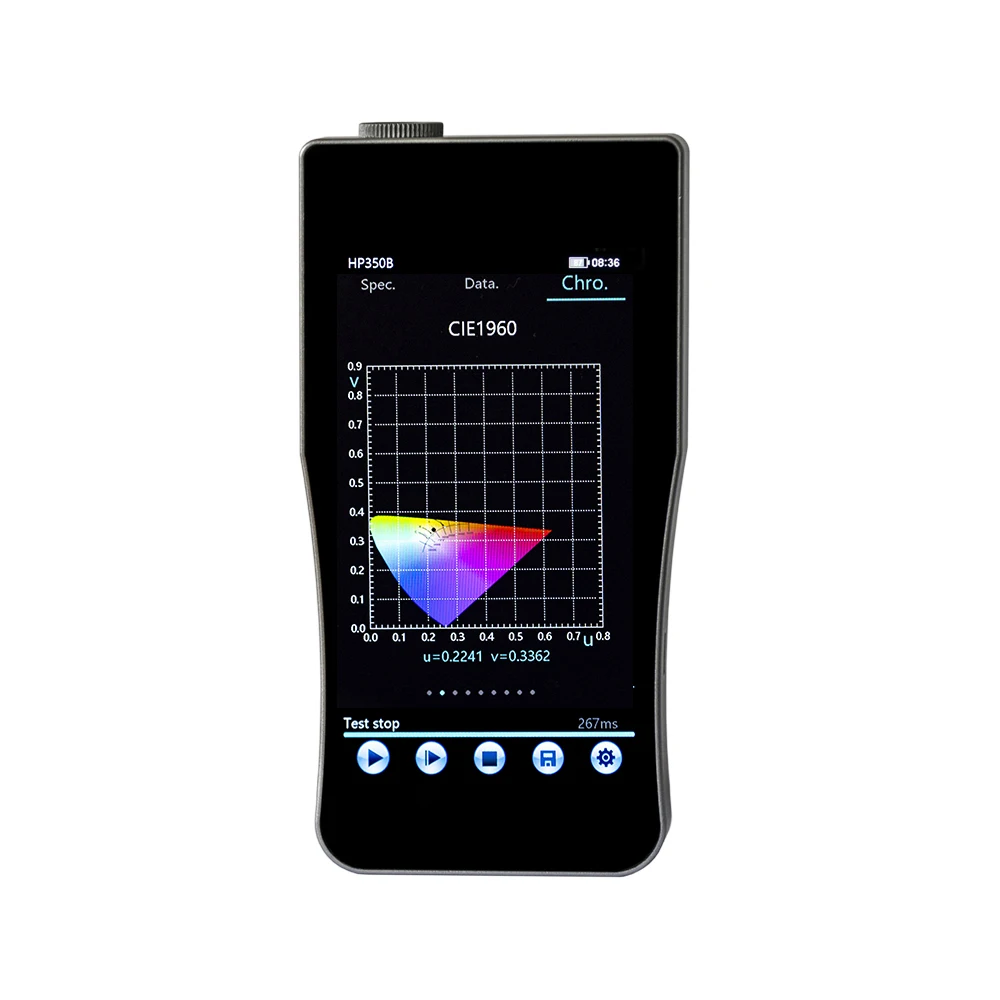

Coordinates 1960

Coordinates 1976

Color RenderingIndex

Color RenderingIndex

Relative Spectral Power Distribution

Color Tolerance

Peak Wavelength

Dominant Wavelength

Centre Wavelength

Centroid Wavelength

Half Width

Color Purity

Color Deviation

LightDarkVisualRatio

Candela ()

Red Ratio

Green Ratio

Blue Ratio

CIE1931 RGB Stimulus Value X,Y,Z
