450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real Time Remote Monitoring Rapid Shutdown
450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real-Time Remote Monitoring Rapid Shutdown
450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real-Time Remote Monitoring Rapid Shutdown
450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real-Time Remote Monitoring Rapid Shutdown
450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real-Time Remote Monitoring Rapid Shutdown
450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real-Time Remote Monitoring Rapid Shutdown
450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real-Time Remote Monitoring Rapid Shutdown

450w 650w 850w Solar PV Panel Optimizer Data Processing Device Swarm and Beehive with Real Time Remote Monitoring Rapid Shutdown

Share on (1600788974153):


Price:$24.00 - $29.00

Quantity:


Product Overview

Description



Product Description


Remark：Swarm and Beehive are used together with smartbee optimizers




Specification


Code
Honeybee400
Honeybee650
Honeybee850






INPUT
No. of Module Connected
1
Max. Input Power
450W
650W
850W
Max. Input Voltage
75V
75V
60V
Max. Input Current
13A
15A
21A
Working Voltage Range
12～75V
12～75V
14～60V
MPPT Voltage Range
12～70V
12～75V
14～60V
Short Current
15A
16A
23A



OUTPUT
Max. Output Power
450W
650W
850W
Max. Output Voltage
75V
75V
60V
Max. Output Current
13A
15A
21A
Max. Conversion Efficiency
99.6%
99.5%
99.5%


SYSTEM
Max. System Voltage
1500V
Communication Mode
RF(2.4G/915M) / PLC


Application
Working Temperature Range
-40～+85℃
Relative humidity range
0～100%
Ingress Protection
IP68 / NEMA Type6P


Certification
EMC
IEC61000-6-2 / IEC61000-6-3
Safety Regulations
IEC62109-1 (Class II safety)
Overvoltage Category
III



Structure

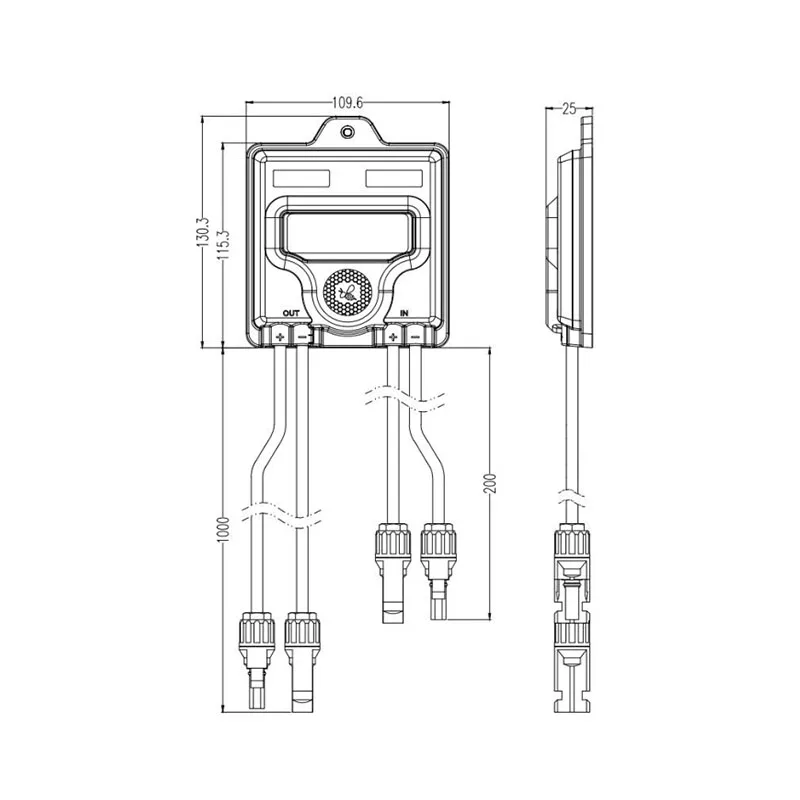

Dimension
130.3×109.6×25 mm
Weight
530g
Input Length
200mm/Customized
Output
1000mm/Customized
Connector
Compatible with MC4


Code

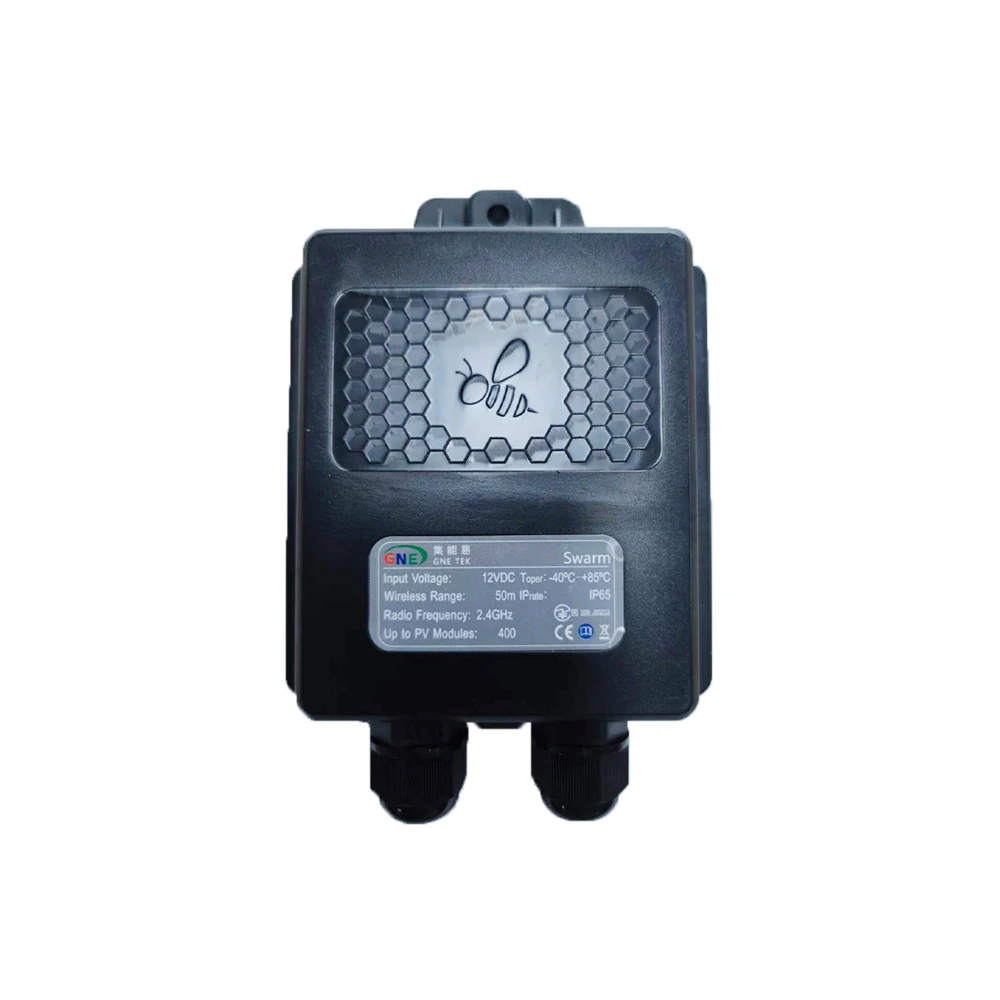

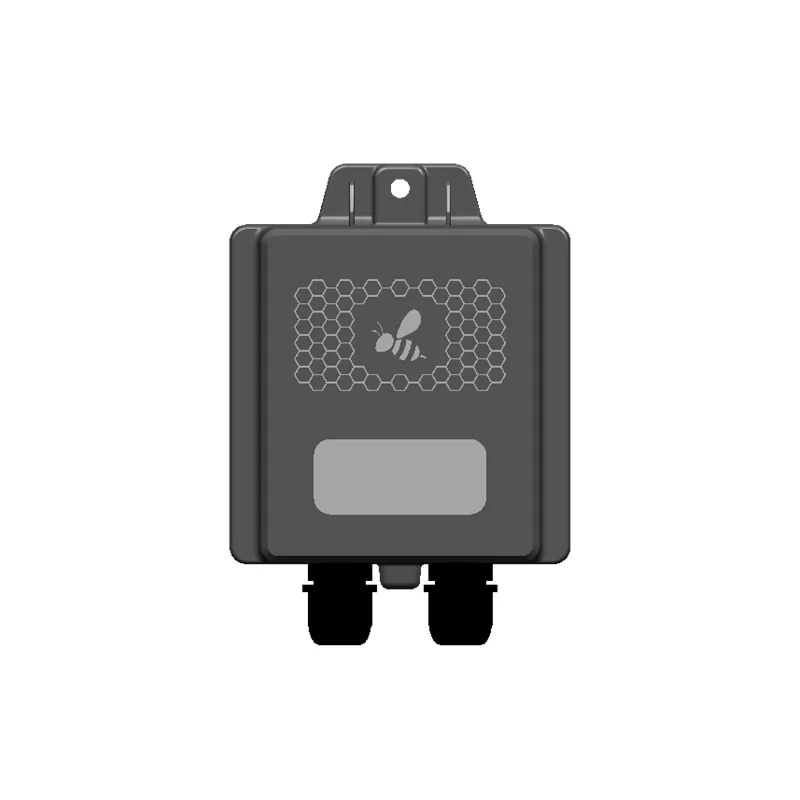

Swarm

INPUT
Working Voltage
12V
Working Current
25mA
Power Consumption
≤0.3W





 Installation
Specification
Connector Connector
RS485x2
Wireless Range
(Swarm to Honeybee) ≤30m
Wireless Band
915M / 2.4G Hz
Max. No. of Bees
≤200



OUTPUT
Dimension
124x99x32mm
Weight
155g
Working Temperature Range
-40～+85℃
Ingress Protection
IP65


Code

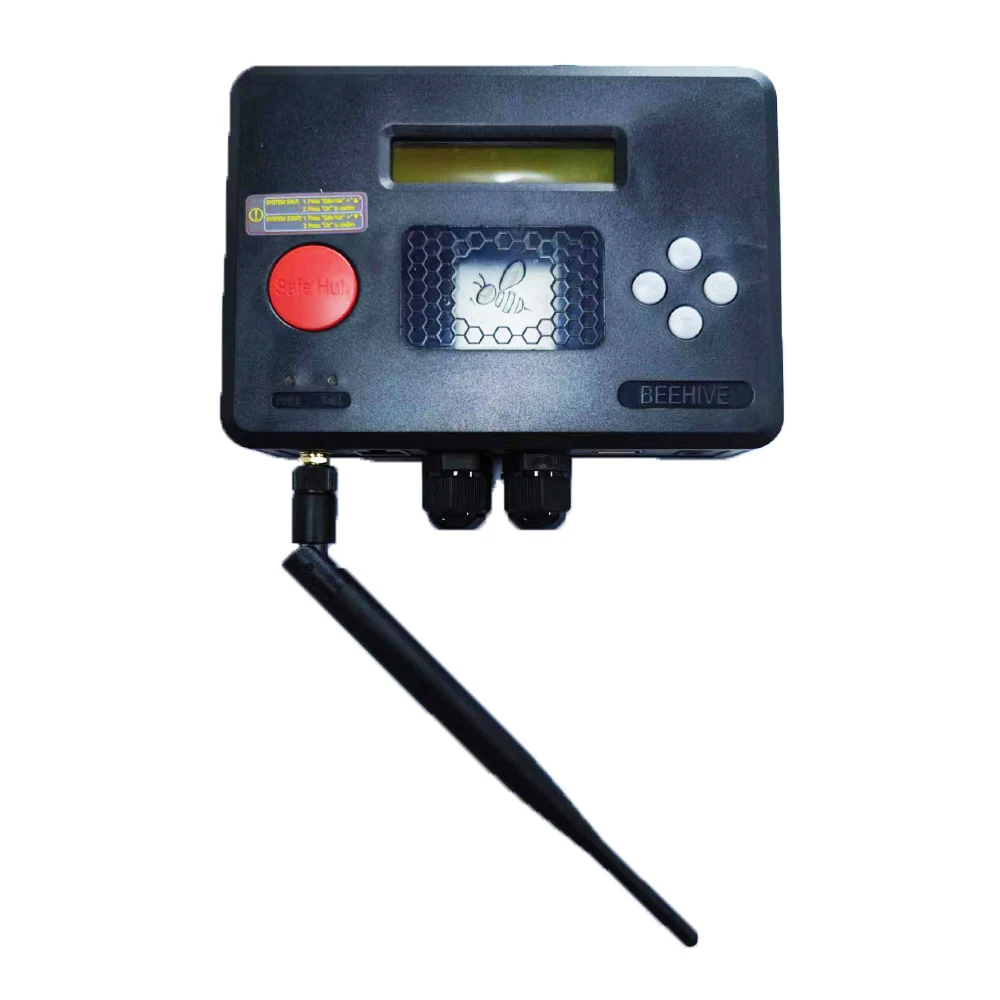

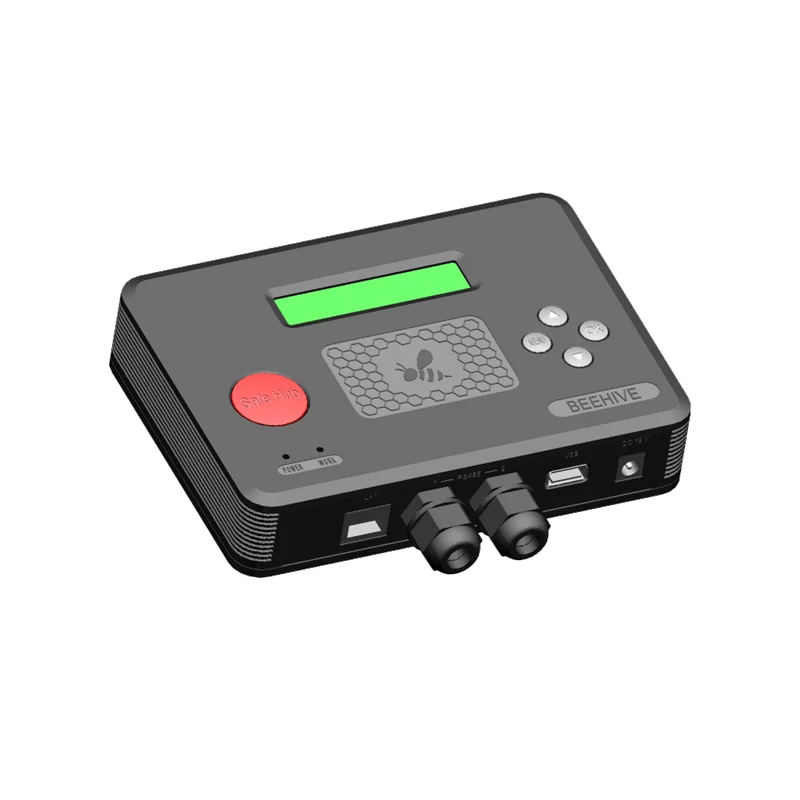

Beehive

INPUT
 Working Voltage
12V
 Working Current
250mA
 Power Consumption
 ≤3W




 Installation
Specification
 Connector
 RS485x2、RJ45、USB2.0
 No. of connectable Honeybees
 ≤1000
 No. of connectable Swarms
 ≤5
 Dimension
 124x99x32mm
Weight
300g
 WorkingTemperatureRange
 -40～+85℃
 Ingress Protection
IP20

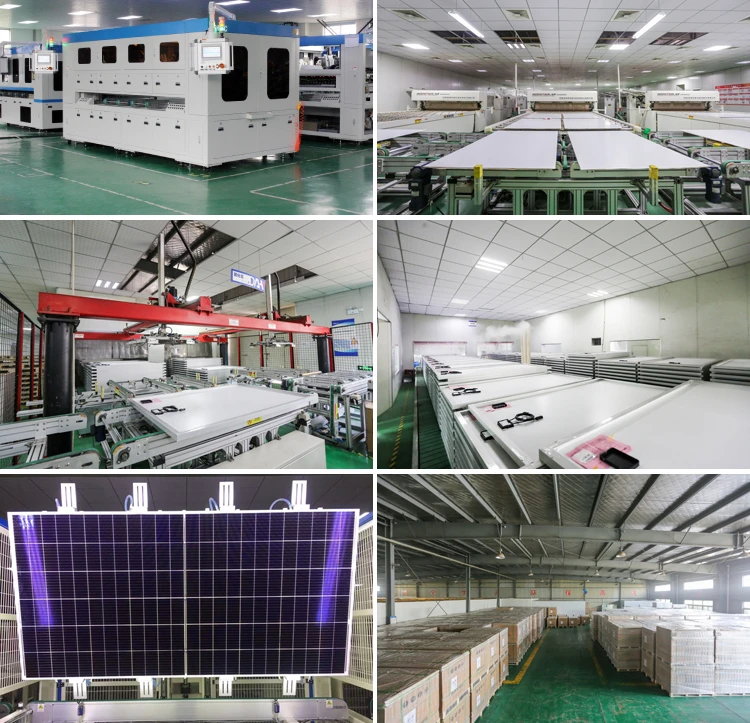

Company Profile






FAQ


1. What is your packing terms?
Generally, our goods will be packed in cardboard boxes with Lamsword logo.
2. What is your payment terms?
T/T 30% as deposit, and 70% before delivery, We'll show you the photos of the products and packages before you clear the blance.
3.What is your delivery terms?
EXW, FOB, CFR, CIF.
4. How about your delivery time?
Generally, we keep most of our products in stock for all seasons. Delivery takes about 7 to 10 days for order processing after receiving your advance payment. If the items are out of stock, the delivery time will depends on the item catagory and the quanlity of your order. Normaly it takes 30 to 60 days.
5. What is your sample policy?
We can supply the sample if we have the product in stock, be advised that customers have to pay for the sample and the delivery.
6.Do you inspect all your goods before delivery?
Yes, we inspect all of our product before delivery.
7.How do you make our business long-term and good relationship?
a: Meet small quanlity orders and seasonal orders by out sufficient safety stocl;
b: Assure best quality with our complete inspection system before shipment;
c: Ensure timely delivery to customer's designated site by our professional management of warehouse and van fleet;
d: Provide in time feedback tracking and after-sales services to maximize the customer's satisfactory.
8. If I want to be your distributor, what is the condition? What benefits and benefits can I get as your distributor?
When you can order more than 50,000 US dollars at a time, we can sign a distributor agreement with you. Being our distributor, we will give you a very favorable price (the specific price is determined according to the signing agreement); We can provide enough technical support, establish local service stations to provide repair equipment and components.
