Normal temperature fabric dyeing machine

SUNSKY OH series low liquor ratio,low power consumption,low maintenance cost,high-temperature high pressure overflow fabric dyeing machine is suitable for the scouring/bleaching/dyeing/washing of all types of knitted and woven fabrics :Cotton,Modal,Viscose,Tencel,Rayon,Wool,Acrylic,Lyocell,Nylon,Polyester blended and lycra blended,etc.

 Machine is designed and manufactured in accordance with pressure vessel standards GB 150, with maximum working temperature of 140 degrees and maximum working pressure of 0.36 Mpa. All parts in touch with dye liquor is made of corrosion-resistant stainless steel S31603 (316L) material. With a specially-designed nozzle structure, it enables the fabrics in loose and expanded conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the crease mark problem,which is usually seen in other dyeing machines. Meanwhile, the machine has two ropes loading capability.

1.  Low Liquor Ratio; 1:3.5~4.5 (100% cotton maximum in 1:4.5)



2. Operating Speed: 450M per minute


3. Maximum working temperature: 140'C


4. Maximum working pressure: 0.36Mpa


5. Temperature heating rate: 5'C per minute on average from 25 to 100'C, 2.50C per minute on average from 100 – 130'C (Pressure of dry saturated vapor: 0.7Mpa)


6. Temperature cooling rate: 3'C per minute on average from 130 to 100'C, 2'C per minute on average from 100 to 85'C (Cooling water pressure: 0.3Mpa, 25'C).

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.

Machine confirm to the PRESSURE VESSEL INTERNATIONAL STANDARDS with design temperature of 160'C for maximum working temperature of 140'C.All pressure-related parts of the machine,including heat-exchanger,are designed,manufactured,inspected,tested and certified according to the Pressure Vessel Codes GB150 and GB151 respectively of THE PEOPLE'S REPUBLIC OF CHINA.Additional certificates on pressure tests,welding seam x-ray,resistance calculations and any other test will be given before dispatch.Sunsky always places the product quality and customer's needs on the utimost position and strives to better serve our valued customers. We work to bring interests both to our customers and ourselves. We respect and treasure employees' hard work and share with them the value created by the whole team. We conform to the latest standards and emphasize on managerial, technical and technological innovation. We are looking forward to working with more customers worldwide and create more value together. Sunsky will be your best choice to cooperate!

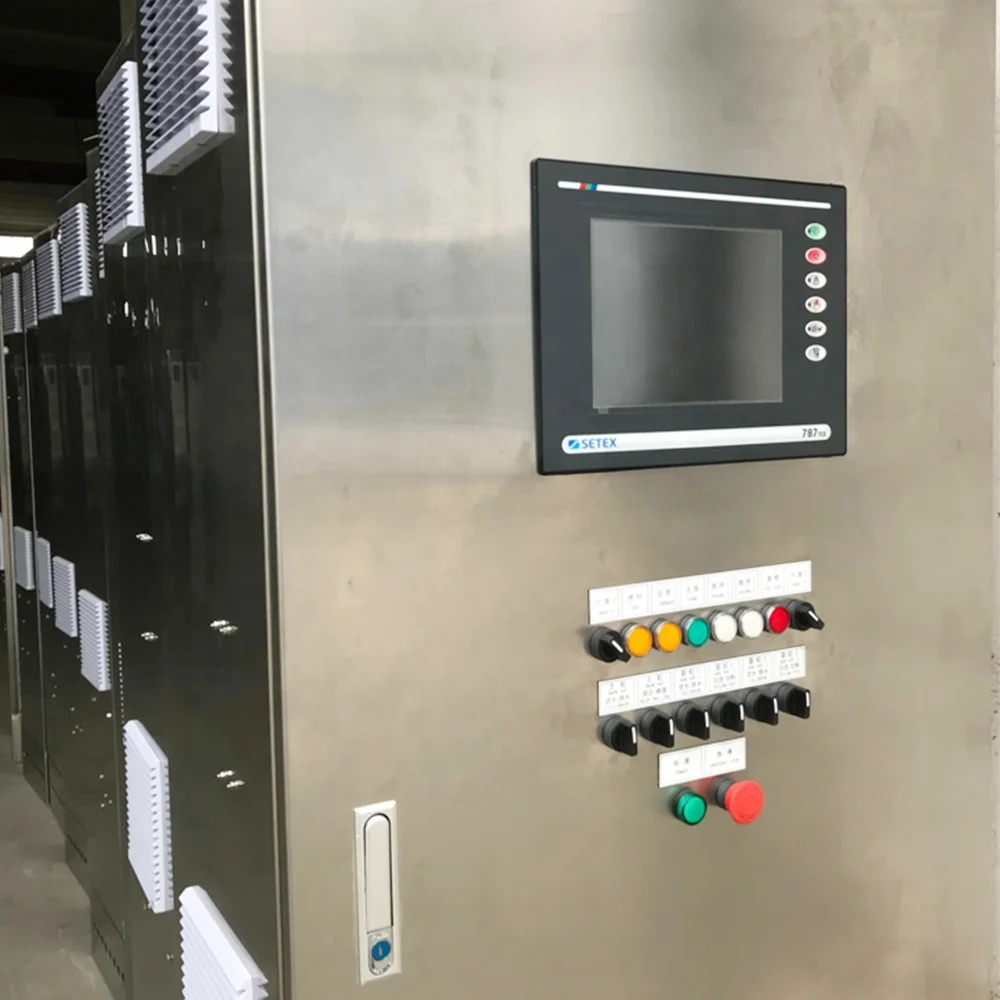

Packaging of Electrical Control Panel:

• Your any inquiries will be replied within 12 hours.


• We offer you professional services in fluent English.


• Quality: we have QC on each process in production.


• We will give the right schedule and quality machine.


• Without man-made faults,the warranty is 18months after commissioning,spare parts can be replaced within 3months since the delivery of dyeing machine.


• Engineers available to service machinery overseas,commissioning ,technical support and training,etc.


• Our factory is located in Wuxi,JiangSu Province(50mins by train from Shanghai)


• To contact us by email Dyeing(a)sunsky-machine.com Wechat:Cpa588
