Product Overview
Description
Product Description
WOLF WE18 excavator is our figured product with swing boom, and extra hose for attachments such as
hammer, auger. Swing motor and travelling motor are using American Eaton brand, which is more stable
and give strong power to the machine.This mini excavator has two versions: canopy or enclosed cabin,

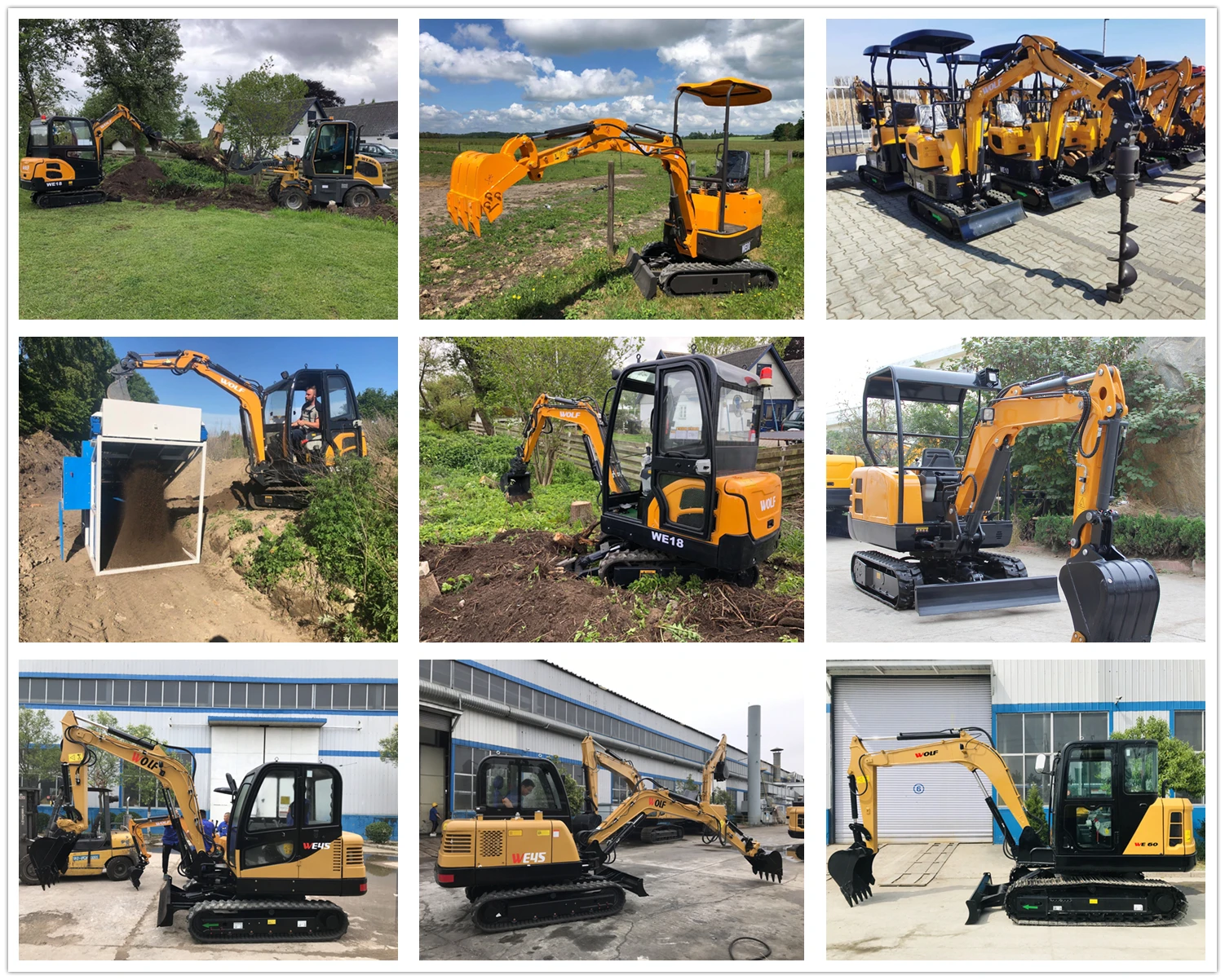

so you can choose according to your situation. It could be widely used in gardening, orchard, farming,
basement reconstruction, waste residue carrying in coal washing factory, paper-making factory etc. and
could replace 4~5 manpower.

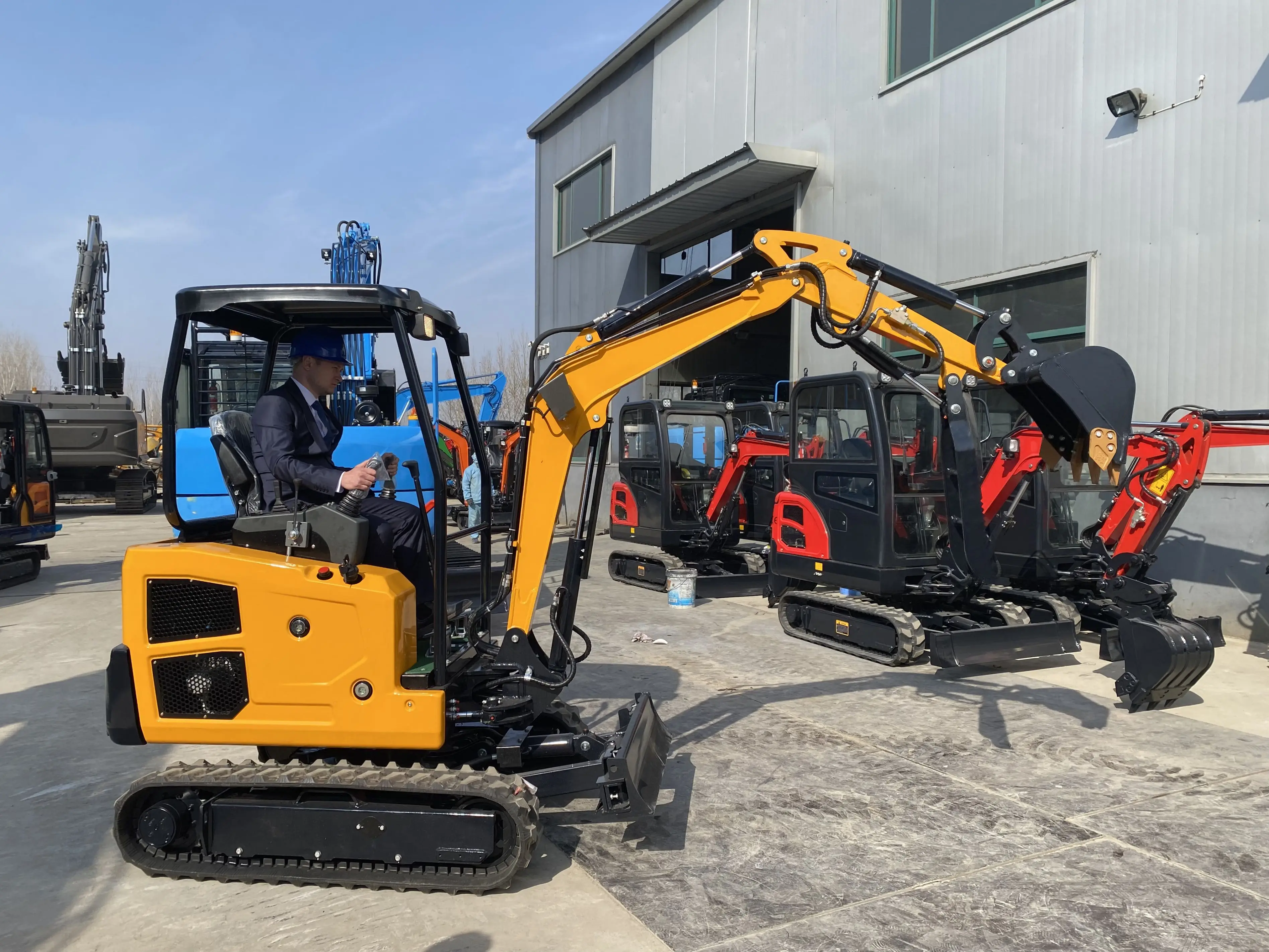

WE18 with canopy

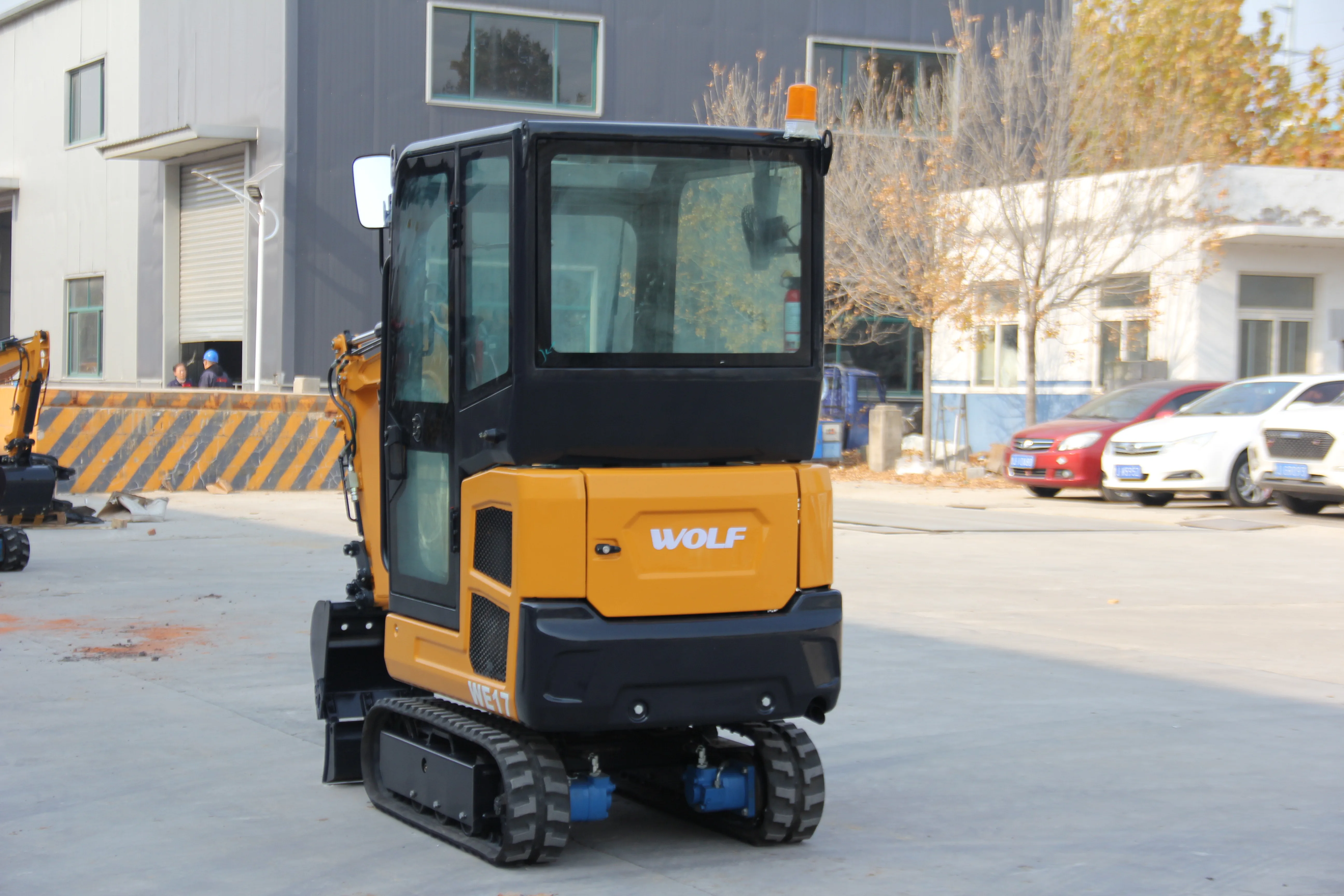

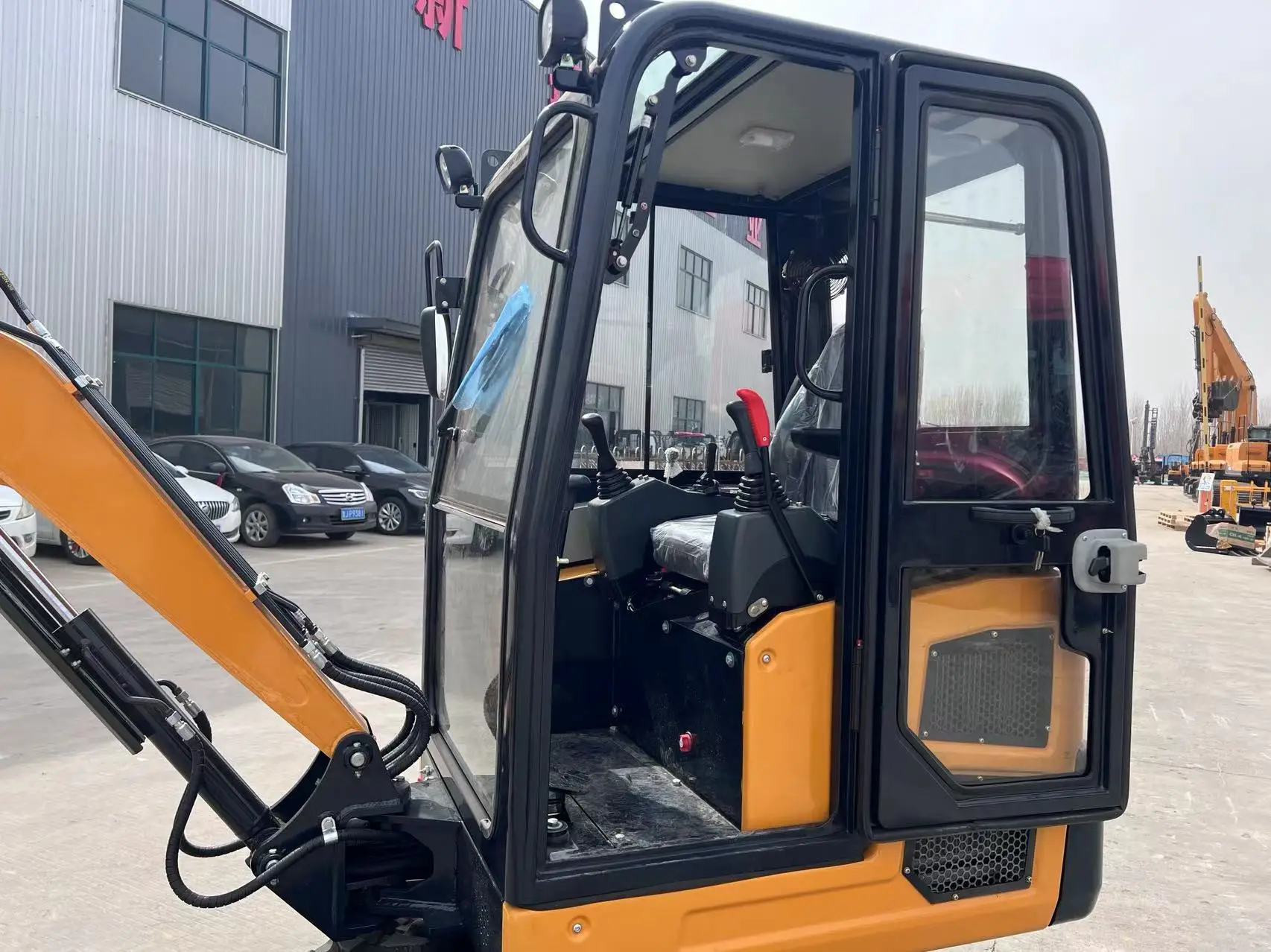

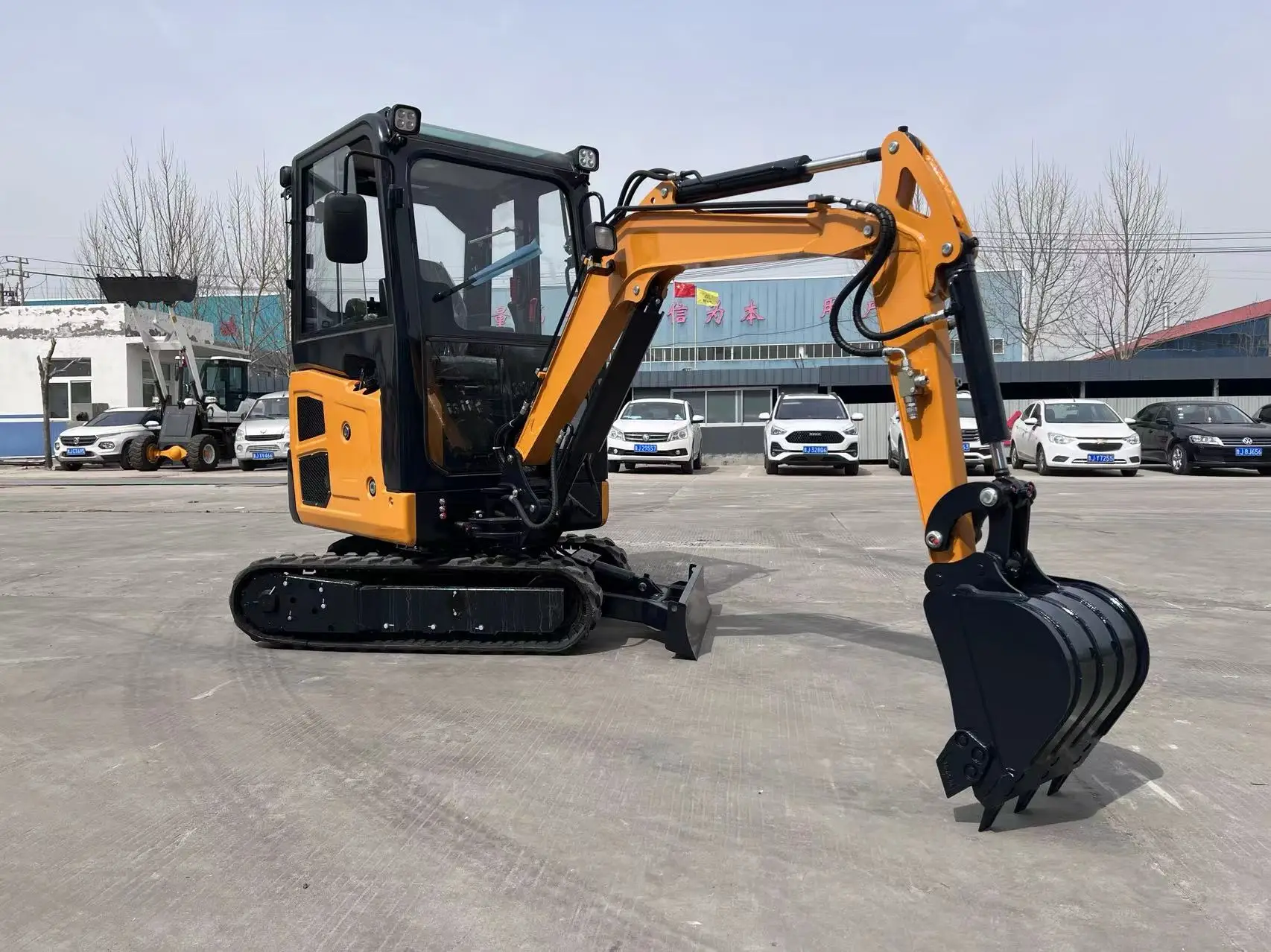

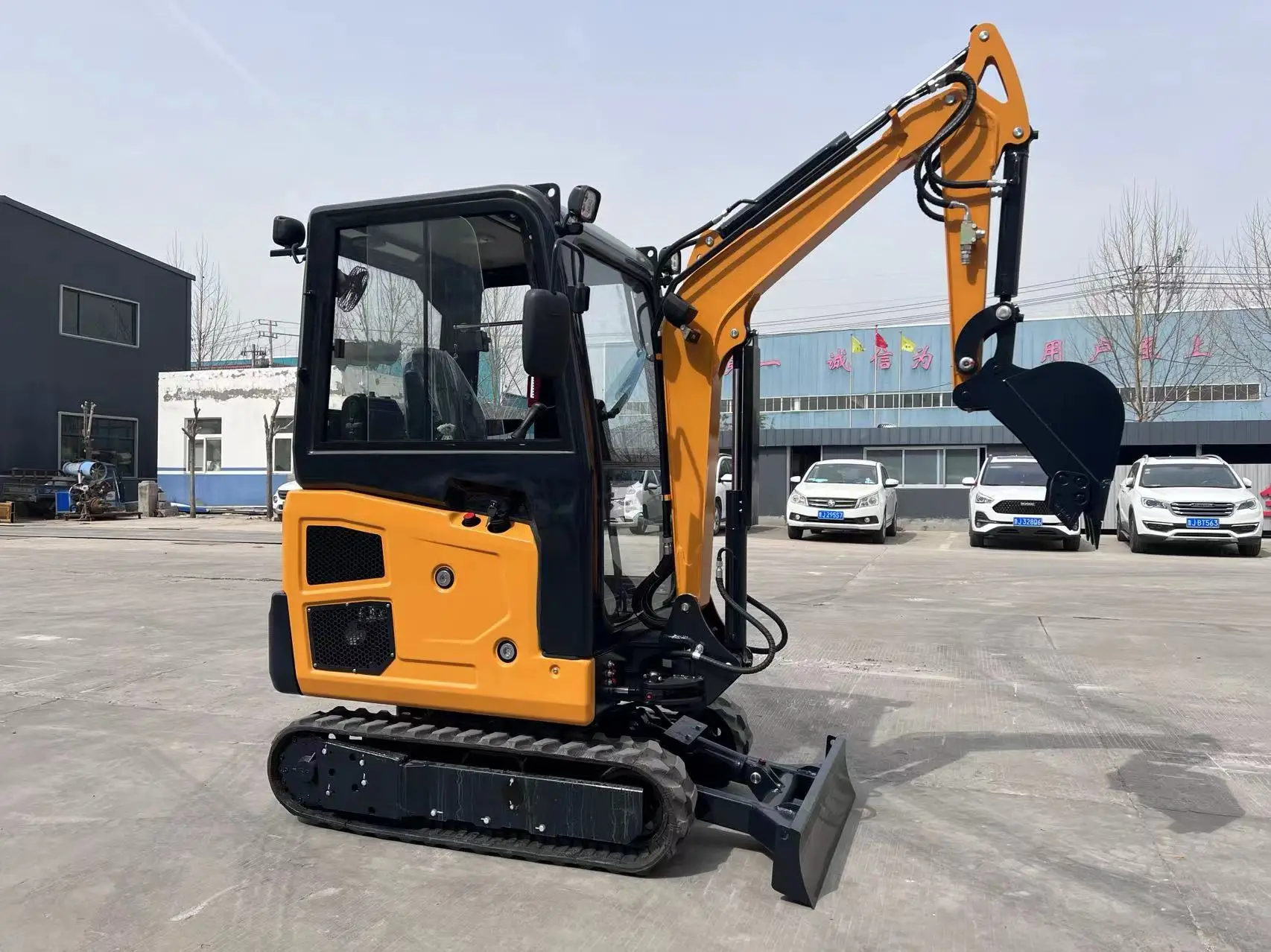

WE18 with enclosed cabin

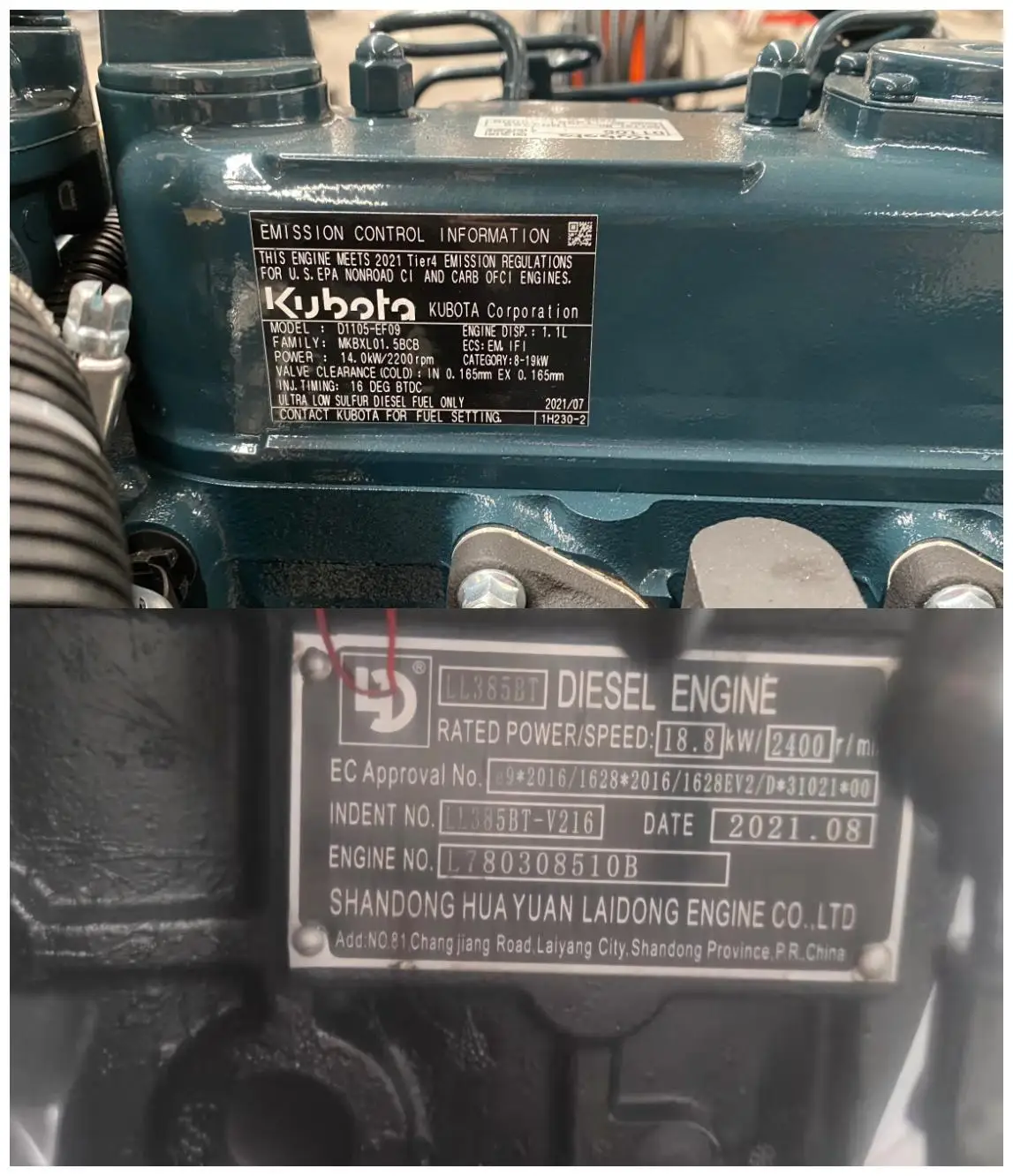

Engines:
The standard engine is Chinese famous brand Laidong KM385B engine 18.1 kw, optional engines
we have Laidong Euro 5 18.8kw engine or Kubota EuroV/EPA 14kw engine for different market requests.
Technical Specification
| Engine | Model | Laidong KM385B 18.1kW/2200rpm | |
| Type | Direct injection, water cooled, natural intake | ||
| No. of cylinder | 3 | ||
| Main Performance | Swing Speed | r/min | 10-12 |
| Traveling Speed | km/H | 2.8 | |
| Grade ability | % | 70(35°) | |
| Traveling Tracking Force | kN | 15 | |
| Bucket Digging Force | kN | 11.5 | |
| Arm Digging Force | kN | 9.3 | |
| Hydraulic System | Hydraulic system working pressure | Mpa | 16 |
| Hydraulic Pump | Gear Pump | TJHD | |
| Hydraulic pump flow | L/min | 2×22+8.8 | |
| Swing Motor | Eaton | ||
| Traveling Motor | Eaton | ||
| Fuel Tank Capacity | L | 26 | |
| Hydraulic Tank Capacity | L | 27 | |
| Overall Dimensions | Overall Length | mm | 3800 |
| Overall Width | mm | 1050 | |
| Overall Height | mm | 2280 | |
| Ground clearance | mm | 485 | |
| Track length | mm | 1630 | |
| Track width | mm | 230 | |
| Undercarriage width | mm | 1050 | |
| Undercarriage ground clearance | mm | 235 | |
| Dozer Blade | mm | 1050×240 | |
| Operation parameters | Operation Weight | KG | 1800 |
| Bucket Capacity | m3 | 0.06 | |
| Max. Digging Radius | mm | 3860 | |
| Max. Digging Depth | mm | 2050 | |
| Max. Digging Height | mm | 3370 | |
| Max. Dumping Height | mm | 2390 | |
| Max. Dozer Cutting | mm | 270 | |
| Max. Dozer Lifting | mm | 235 | |
| Boom Deflexion (Left/Right) | ° | 75/45 | |
| Tail Swing Radius | mm | 1125 | |
| Front Min. Swing Radius | mm | 1720 | |
You can rely on every detail of this WE18 excavator.
- Special design on engine and radiation space, enhanced cooling fan to increase cooling efficiency
- Famous brand hydraulic system parts ensure the stable quality.
- equipped with double fuel filter to guarantee fuel purity to protect engine
- Boom deflexion design meet narrow work condition, reinforced rubber track to protect road
- extend hydraulic line for various attachments.

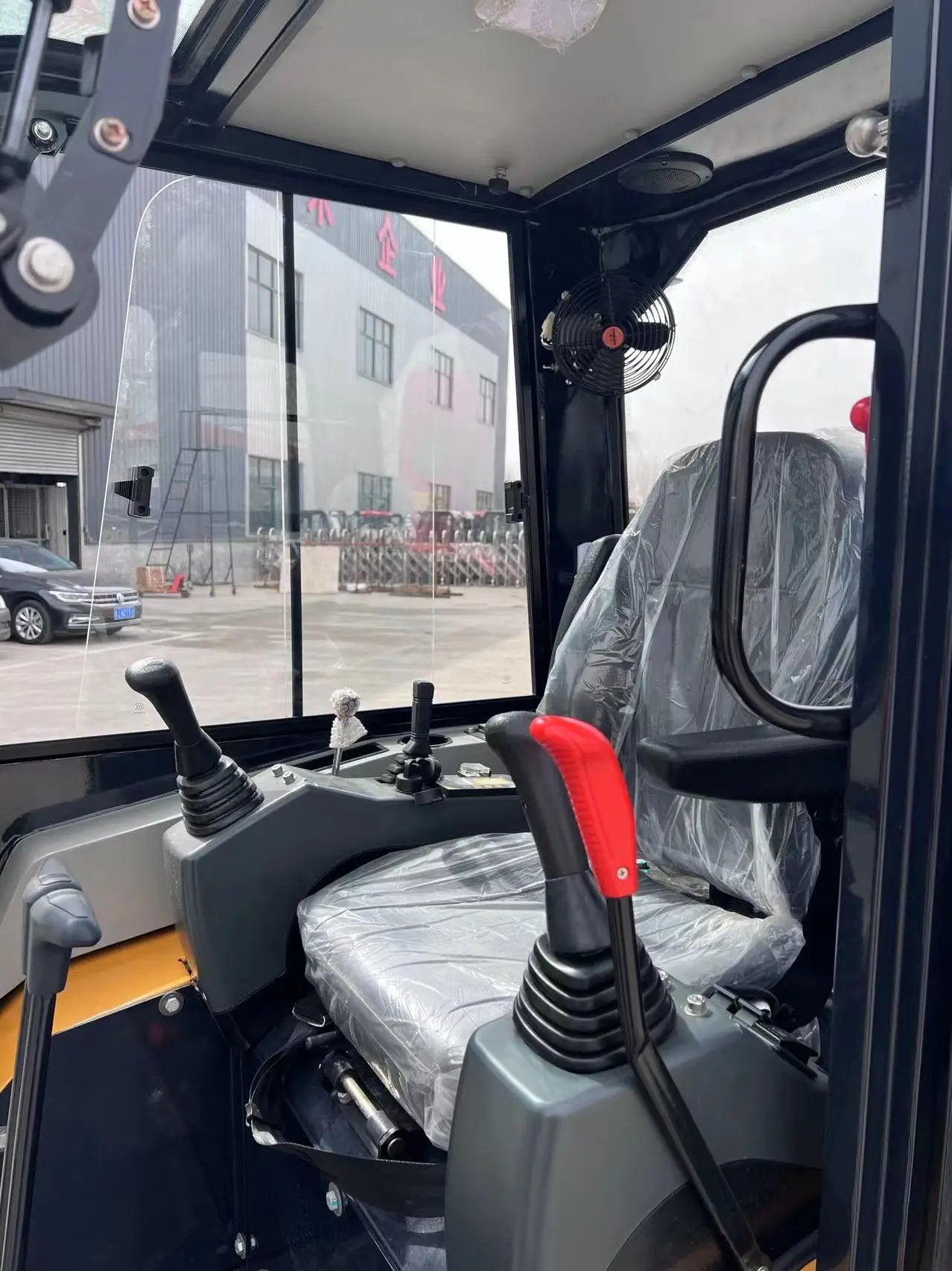

- comfort seat make operator easy to work.
- Cabin with heater, extendable track are optional.

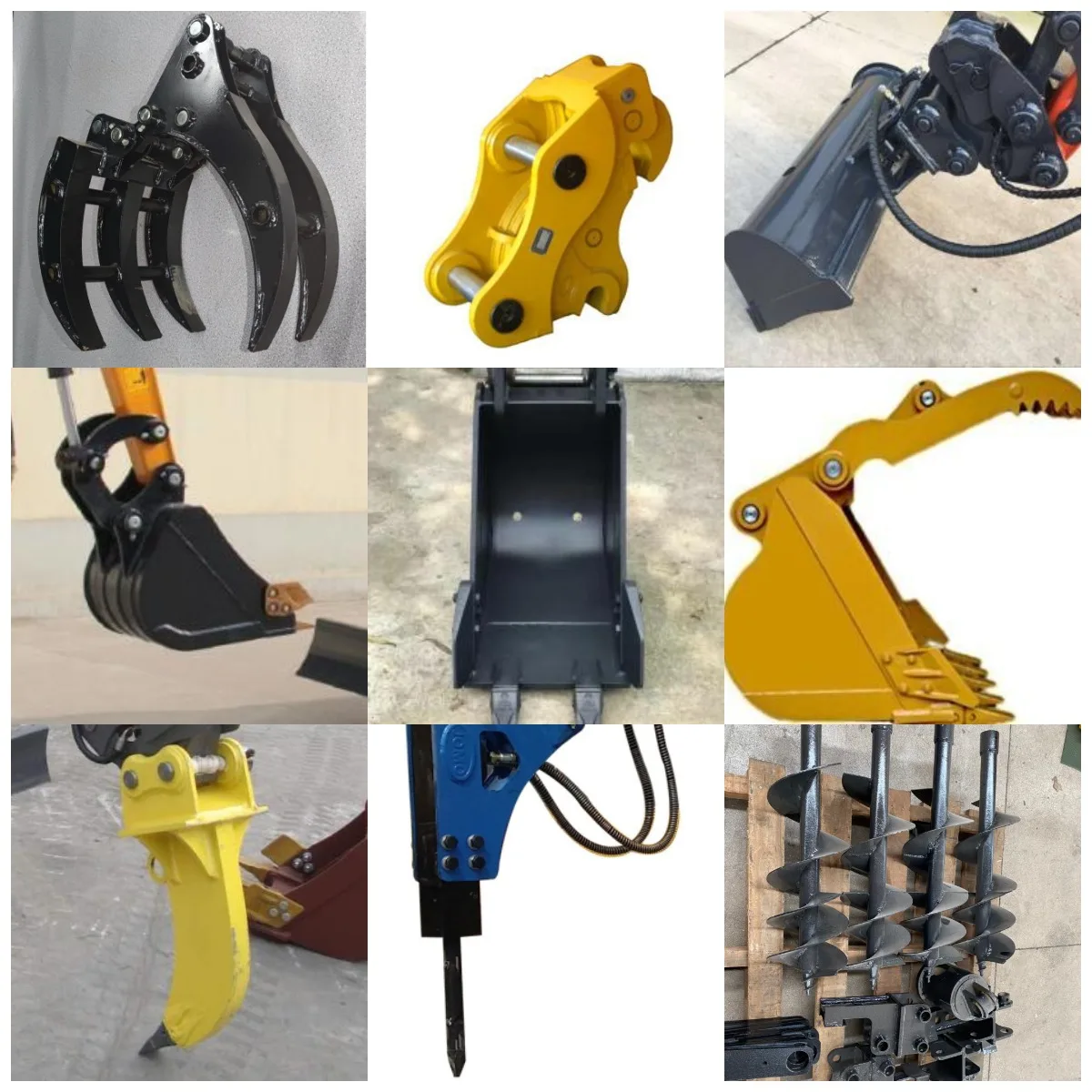

Various attachments can be used on the mini excavator.

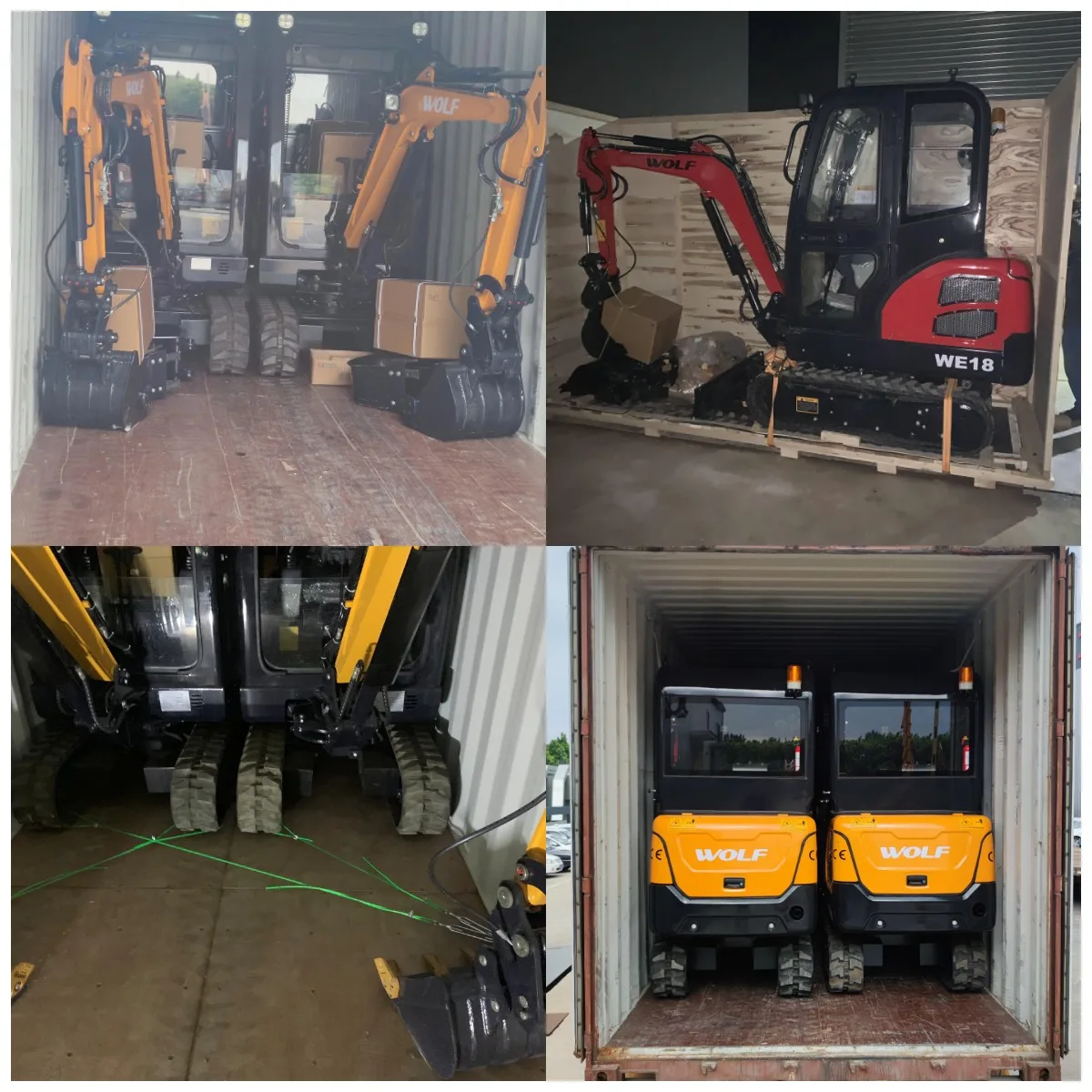

Shipping
4 sets of WE18 could be loaded in 20" container and 8 sets of WE18 could be shipped in 40" container.
If you only need 1 set, we could pack it in wood box and send by LCL.

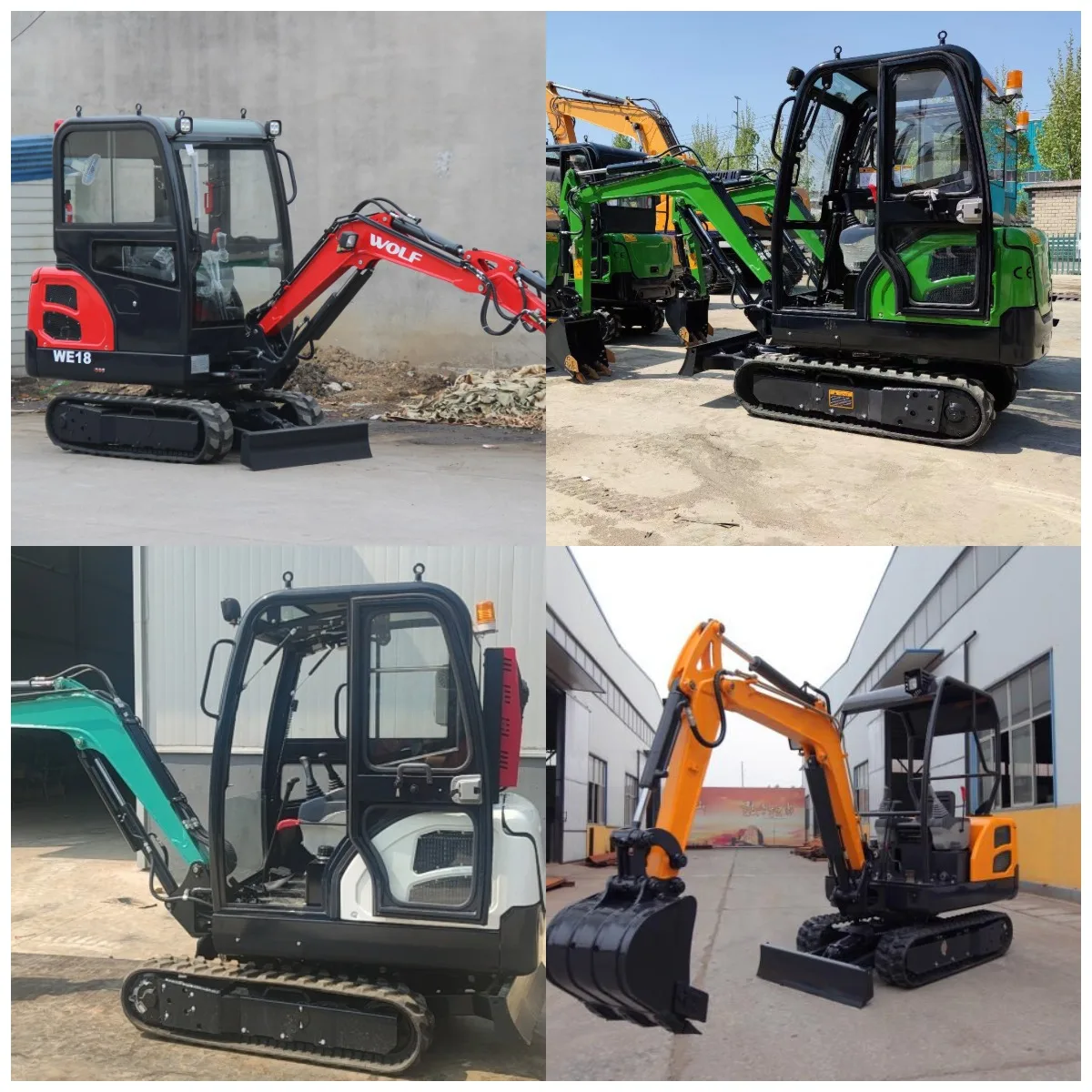

Colors:
We can do many different colors such as yellow, red, white etc., and also we can customize your
exclusive color based on your requirement.

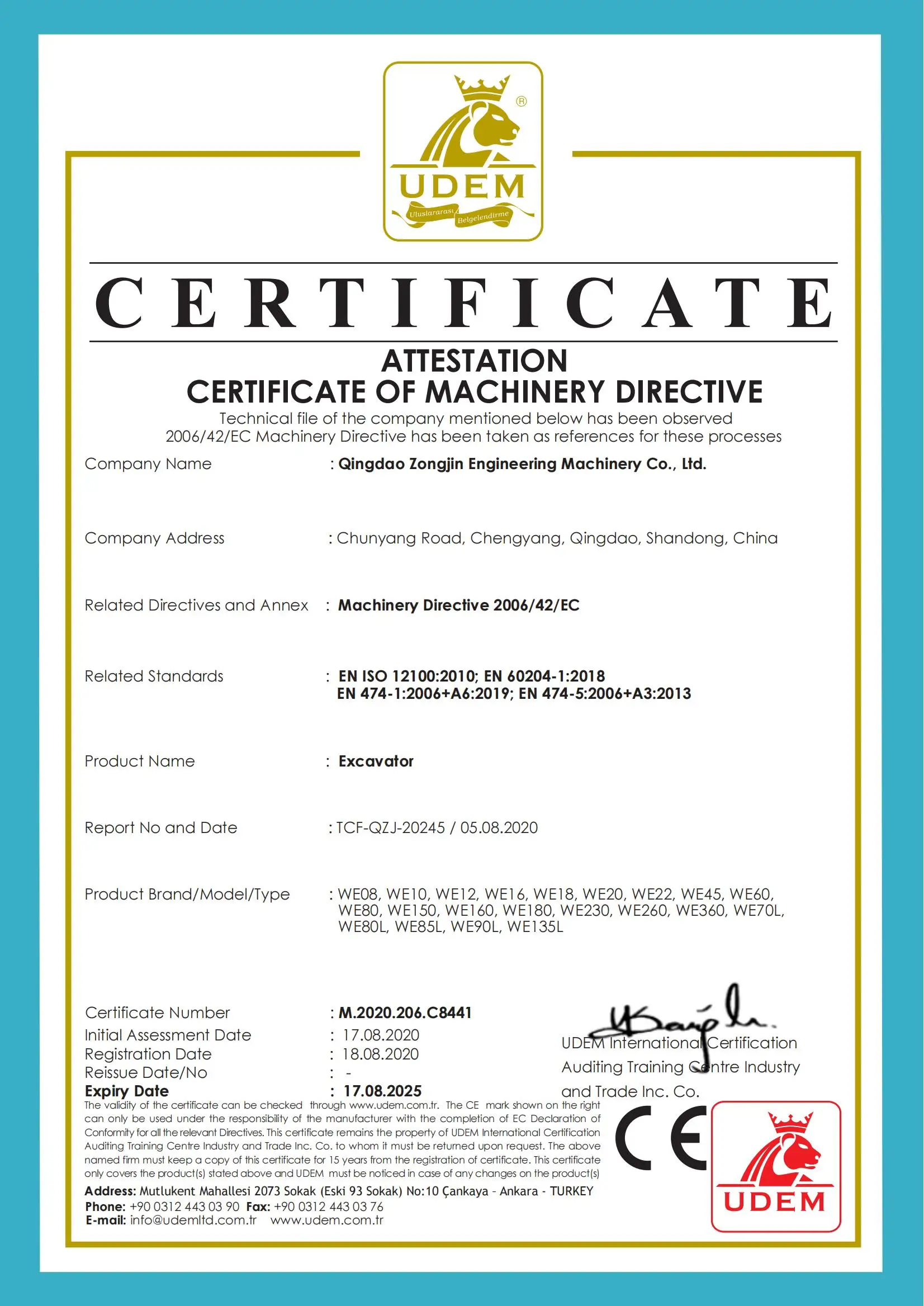

All of the excavators has been CE approved.
Now you can find WOLF excavators working in more than 70 countries of the world.
