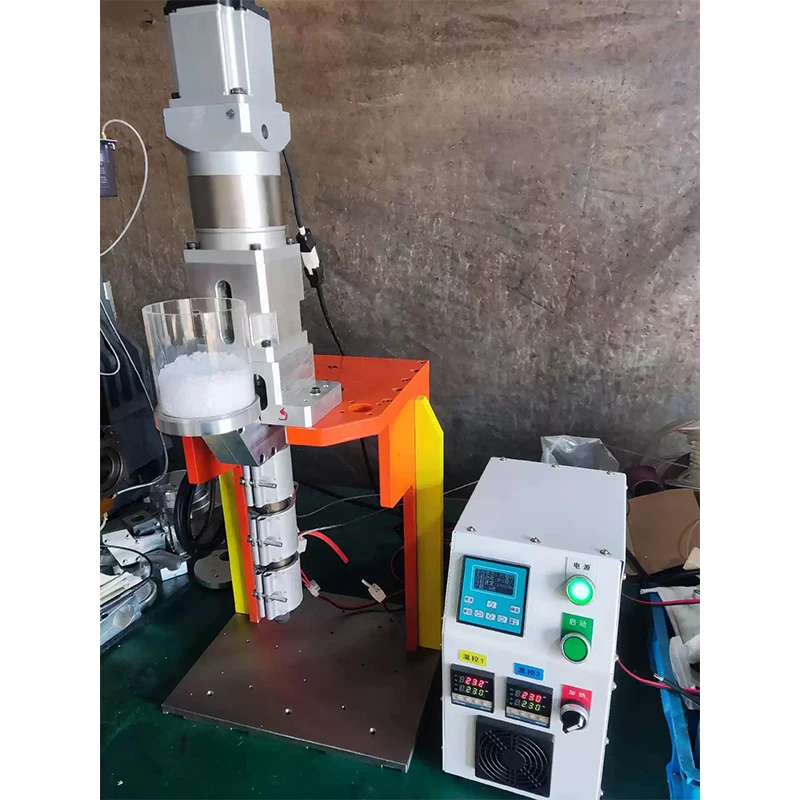

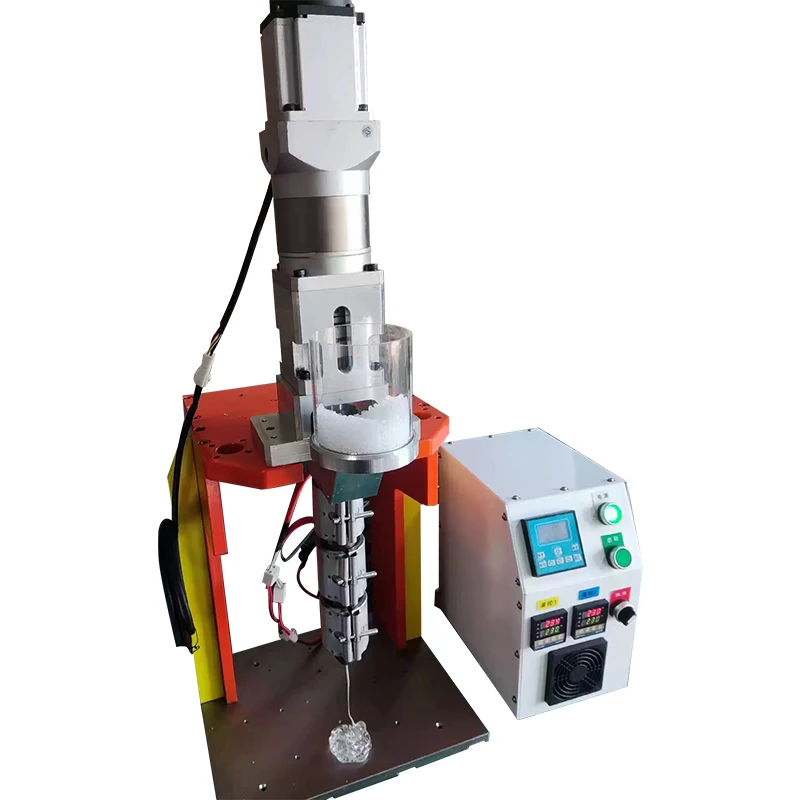

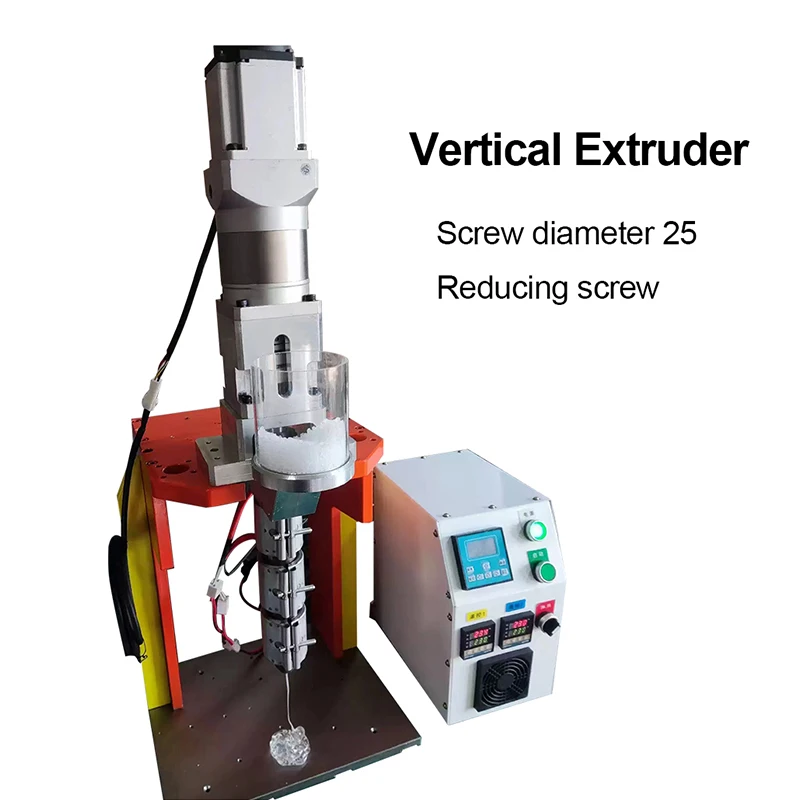

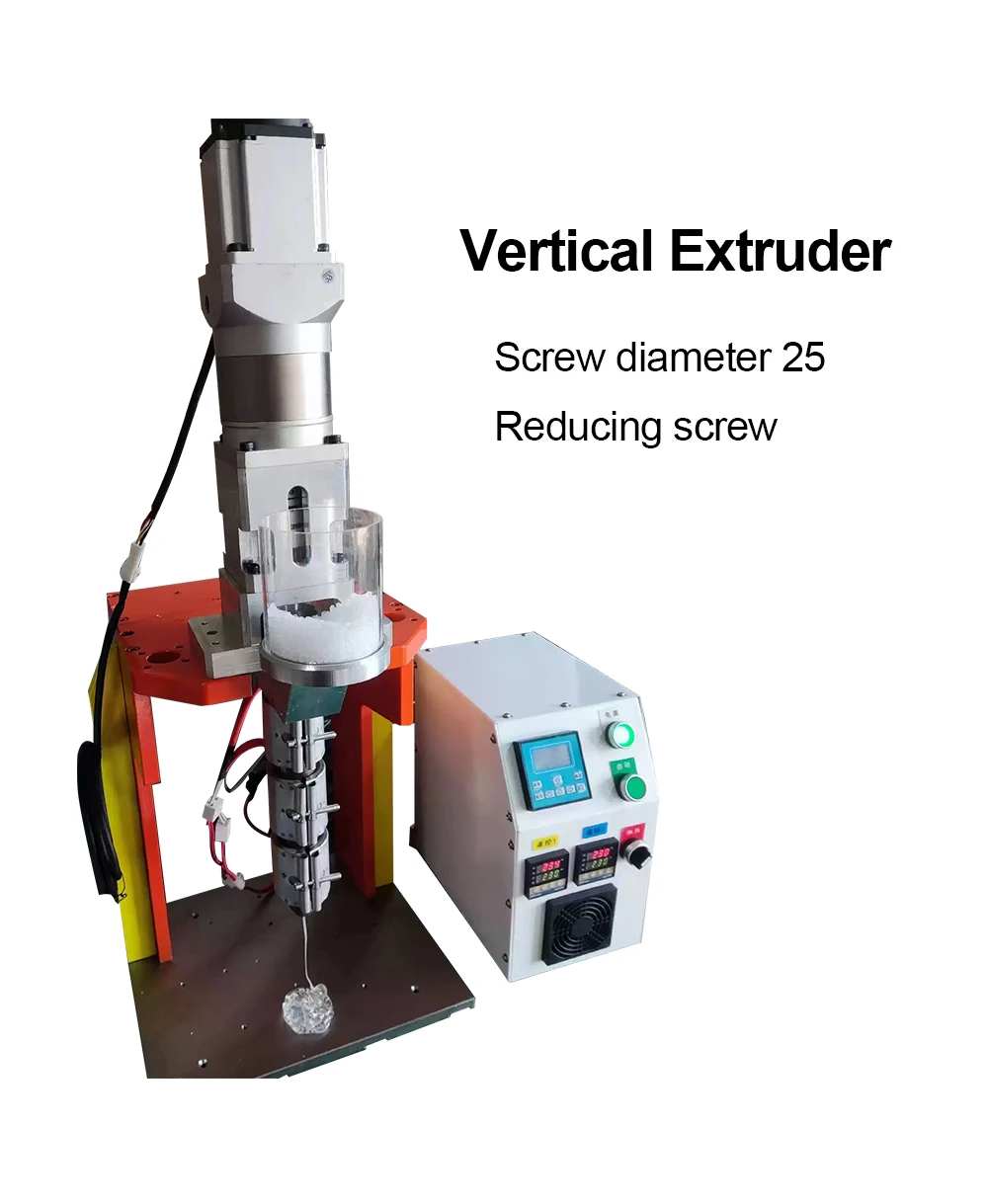

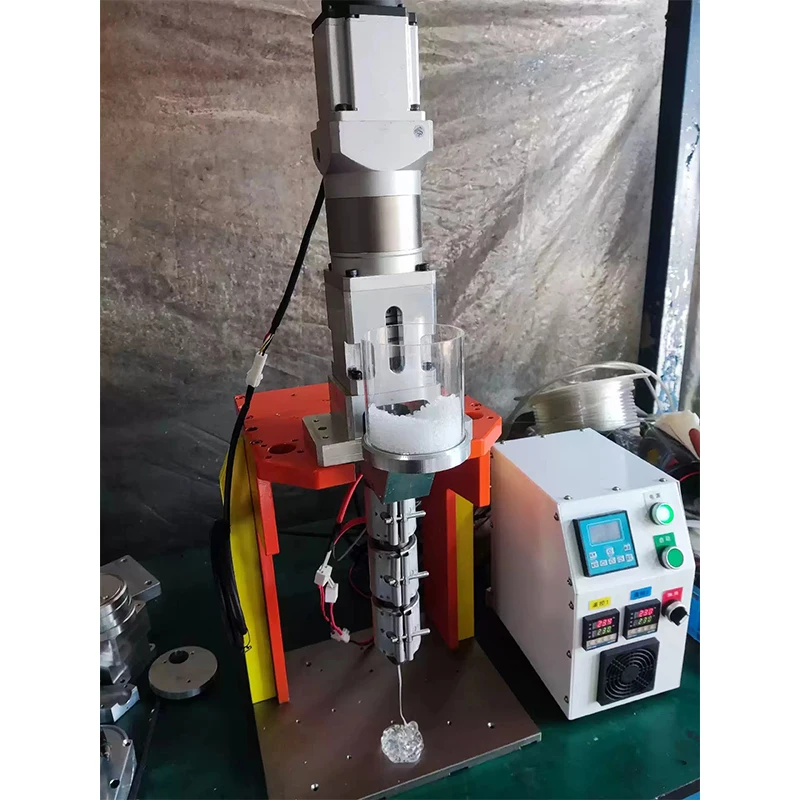

Electric 3D Printing Extruder Vertical Extruder 1200W Injection Molding Machine Desktop Laboratory Plastic ABS PP Extruder
- Category: Plastic Extruders >>>
- Supplier: Shenzhen Borx Technology Co. Ltd.
Share on (1600797805840):
Product Overview
Description
Product Specification
1. Screw diameter 25mm, output: 0.1-2KG/hour;
2, Length, width and height, 0.4*0.4*0.9 Weight: 30KG
3. Production line speed: 1-40 m/min (the actual production speed depends on the customer's line regulations);
4. Center height of extruder: 300mm;
5. Production direction: top feed → bottom feed, vertical feeding. the
6. Motor power: 0.25kw is equipped with a high temperature resistant gearbox, and the total installed power is 1200W.
7. Power supply voltage: conventionally 220V single-phase household voltage, or according to customer voltage;
8. Screw aspect ratio: 12:1
9. The maximum heating temperature is 300 degrees, heating element: stainless steel heating (the company also provides
high-temperature models, the maximum temperature can reach 500 degrees, and it needs to be customized)
10. The feeding port is equipped with a cooling device (to prevent the temperature of the feeding port from being too high,
causing the material to melt prematurely and causing blockage)
11, barrel screw 38CR nitriding treatment
2, Length, width and height, 0.4*0.4*0.9 Weight: 30KG
3. Production line speed: 1-40 m/min (the actual production speed depends on the customer's line regulations);
4. Center height of extruder: 300mm;
5. Production direction: top feed → bottom feed, vertical feeding. the
6. Motor power: 0.25kw is equipped with a high temperature resistant gearbox, and the total installed power is 1200W.
7. Power supply voltage: conventionally 220V single-phase household voltage, or according to customer voltage;
8. Screw aspect ratio: 12:1
9. The maximum heating temperature is 300 degrees, heating element: stainless steel heating (the company also provides
high-temperature models, the maximum temperature can reach 500 degrees, and it needs to be customized)
10. The feeding port is equipped with a cooling device (to prevent the temperature of the feeding port from being too high,
causing the material to melt prematurely and causing blockage)
11, barrel screw 38CR nitriding treatment
Product Name | BORX-JCJNEW |
Screw Material | 38CrMoAlA |
Screw Design | Single-screw |
Place of Origin | China |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Motor/Screw |
Screw L/D Ratio | 12:1 |
Company Introduction
About us
Shenzhen BORX Technology Co.,Ltd was found in 2003,expert on all cable & wire hardness processing solution. As a High-tech automation manufacturer specializing in OEMR&D,production, sales and in-time tech support.
Our main products including Terminal crimping machine, Wire stripping and cutting machine,Fully automatic multi function hamess making machine, Cable welding machine, Copper lugs crimping machine, Automatic heat shrinkable tube insertion ma- chine, Winding and bundle machine, Injection molding machine. Cable making machineStainless steel cutting machine.Tester and more automatic and semi-automatic equipment We can customized machine according your samples or production re quirement, and offer you one time technical support. With the fast development and higher requirement of cable wiring applica tion market growth, our products widely use for automotive in- dustry, home appliance, electronics, Medical, high speed-rail- way, communications,solar energy, New energy industry and more areas.
Our main products including Terminal crimping machine, Wire stripping and cutting machine,Fully automatic multi function hamess making machine, Cable welding machine, Copper lugs crimping machine, Automatic heat shrinkable tube insertion ma- chine, Winding and bundle machine, Injection molding machine. Cable making machineStainless steel cutting machine.Tester and more automatic and semi-automatic equipment We can customized machine according your samples or production re quirement, and offer you one time technical support. With the fast development and higher requirement of cable wiring applica tion market growth, our products widely use for automotive in- dustry, home appliance, electronics, Medical, high speed-rail- way, communications,solar energy, New energy industry and more areas.
