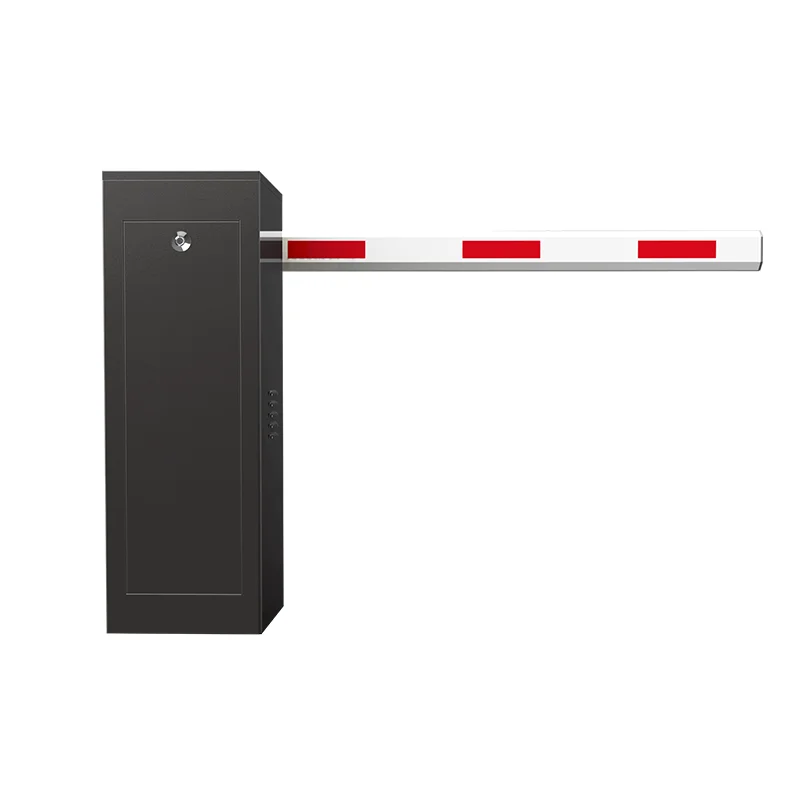

BS 9506 automatic parking gate traffic boom barrier gate
- Category: >>>
- Supplier: Bisen Smart Access Co. Ltd.
Share on (1600798707676):
Product Overview
Description
BS-9506 automatic security barrier gate system barrier gate 2022 automatic barrier gate price
Product Description
Features:
1.It is widely used for the facilities of parking, traffic or toll system.
2.Arms can be chosen from 3 meters to 5 meters.
3.BI-DIRECTION OF BOOM CLOSING, The arm could fall down on the left or the right direction.
4.Clutch key can be used to open the clutch when electricity is cut off.
5.All the process is soft without any noise and shaking.
6.This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.
ProductS Info:
Model NO.:BS-9506
Position:Vehicle Fence
Material:Aluminium
Function:Separation
Post Fixation:Expansion Bolts
Color:Optional
Type:Traffic Barrier
Application:Railway
Trademark:BS, Baisheng
Specification:CE Marks, ISO 9001, ISO2000
Origin:Jiangxi China
Technical Tarameters
Item name | BS-9506 |
Automatic Boom Barrier power supply | 220VAC 50HZ/110VAC 60HZ |
Motor's power | 90WAC/80WDC |
Max length of boom | 6M |
Time for up/down | 1.6S( for 1~2m),4S(3-4M)6S( for 5~6m) |
Environment temperatu | -20℃~50℃ |
Protection class | IP55 |
Automatic Boom Barrier Color | Optional |
Material of Barrier | Aluminum Alloy |
Certificate | ISO9001:2008 CE SGS |
Company Information
Bisen Smart Access co., Ltd. was established in 1999. This is the biggest professional manufacturer for automatic access equipment. Bisen has been awarded more than 200 patents in China and Europe.
In 2015, Bisen built the new factory and invested in new facilities , Steel plate flexible product line, Welding Robots, Automatic spraying equipment, to improve the quality control and capacity.
We are the biggest Professional manufacturer for Gate and Door Automatic Operators in China. More than 50 experienced engineers are engaged in R & D,and more than 500 employees are working in manufacture and service.
We can provide quality ODM/OEM service for customers in the world.BISEN SMART ACCESS CO.,LTD. was established in 1999, Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.
Our main products:Auto-barrier gate,Garage door opener,Roll up door opener, Swing gate opener, Sliding gate opener, Industrial sectional door opener,Anti-terrorism Road Blocker,Hydraulic Bollard,Pedestrian Gate,Entrance control system etc.
1.Our factory covers more than30,000 square meter .
2.We specialize in Automatic door& gate opener since 1998.
3.Our main products are traffic barrier,garage door opener,swing gate operator,sliding gate opener,industrial sectional door operator ,road blocker ,bollard and so on.
4.The certificate we got: CE,ISO9001:2008
5.We have formed 10 production lines.
6.Exhibition we attend:
a)The U.S. Guardrail Exhibition ,
b)Chinese Commodity Fair in Jordan ,
c)IDA Automatic Door Show ,
d) Italian Building Material Exhibition ,
e) Polish Building Materials Exhibition ,
f) The Canton Fair
7.Our big markets: main customers are from Europe ,the USA,Canada,Russia,Mexico ,middle east ,South Africa etc.
8.ODM/OEM service is welcome.
Packaging & Shipping
Packaging Details: standard export carton or wooden case
Delivery Details: 3~7 working days upon receipt of your deposit .
Shipping:If you do not have forwarder,we can arrange shipping by express,air and sea
Full set contains: 1 barrier, 1 straight boom with led 5m, 1 boom support, mounting plate, 1 control unit with 2 remotes.
In order to protect the goods, pls order barrier in even number, 4,6,8pcs per wooden pallet.(each pallet holds 8pcs at most)
Barrier's Packing Deatails: 1set /carton box, 4/6/8 sets/ pallet
Barrier's Shipping Details: For booms, 2 pcs/ 3 pcs/ bundle; For boom support: 5 pcs/ bundle
Exhibitions
Certifications
Our Services
1. OEM Manufacturing welcome: Product, Package...
2. MOQ: 1 piece
3. Car Parking System Warranty: 2 years for mechanism, 1 year for digital parts.
4. We will reply you for your inquiry in 24 hours.
We have our own overseas service department and professional technology team, can meet different requirements of customers in the shortest time and supply the best service when you back home.
Putting customer first is our principle all the time!
