Product Overview

Description

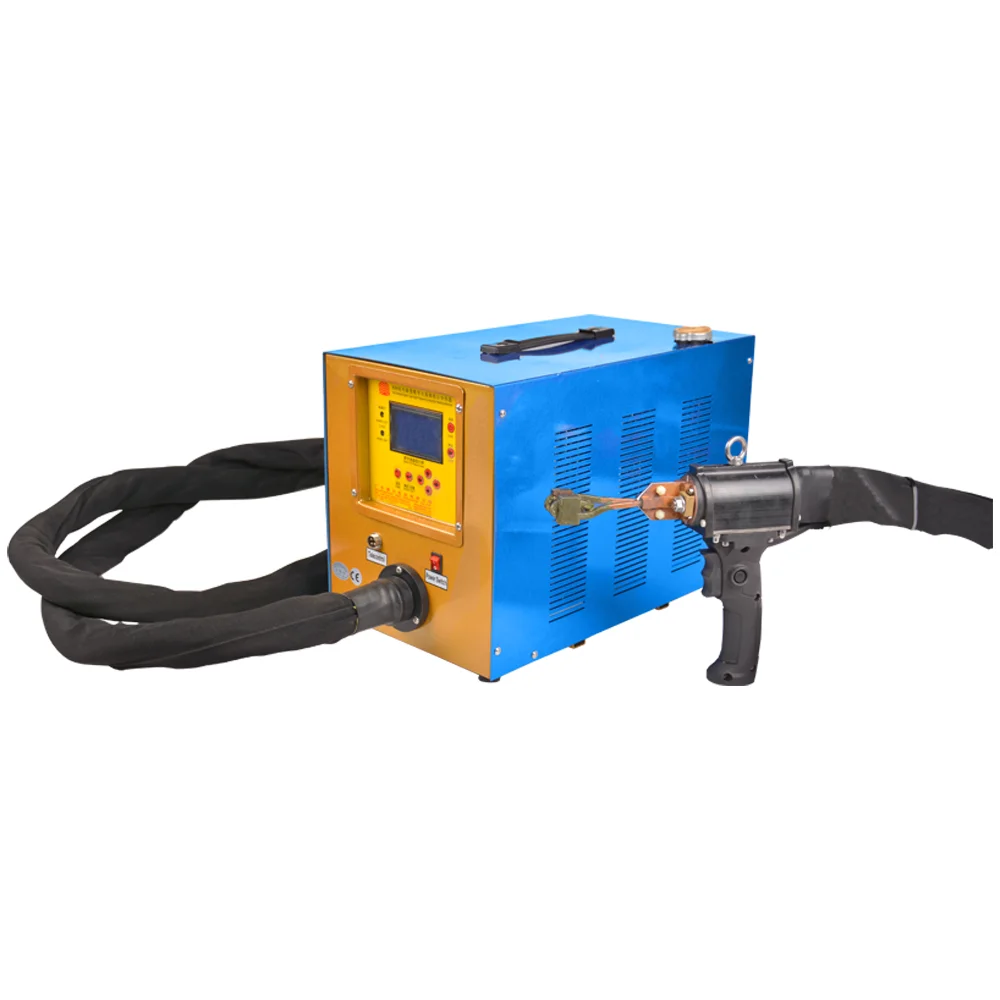

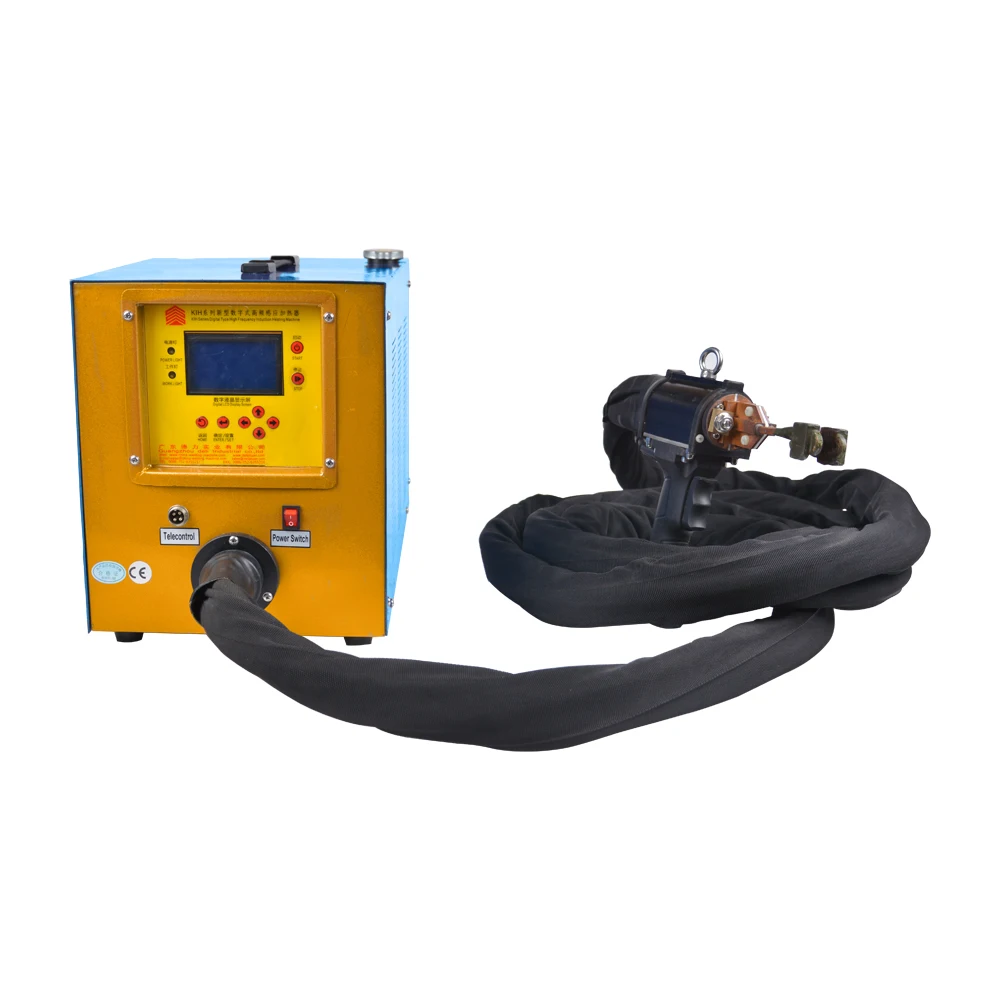

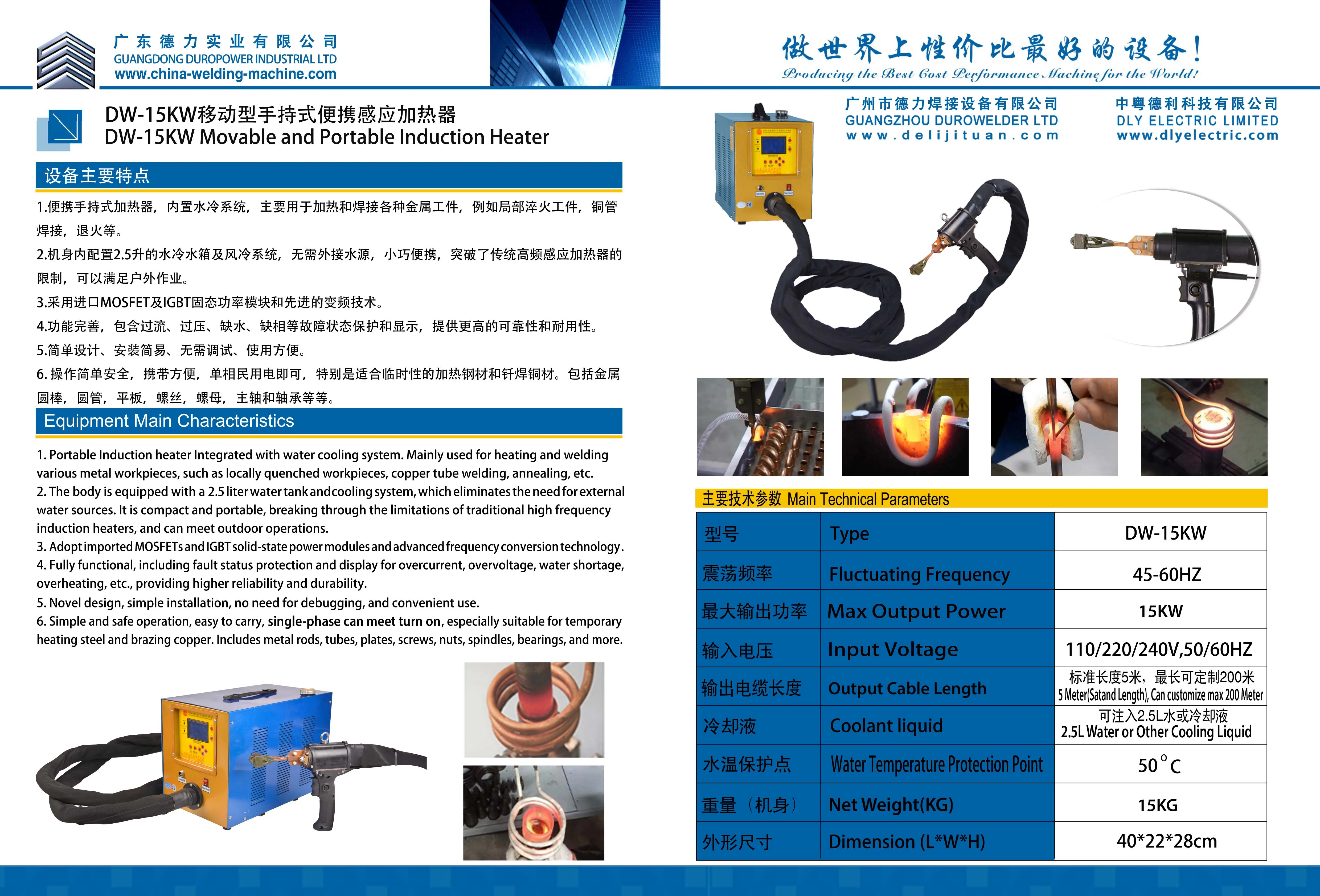

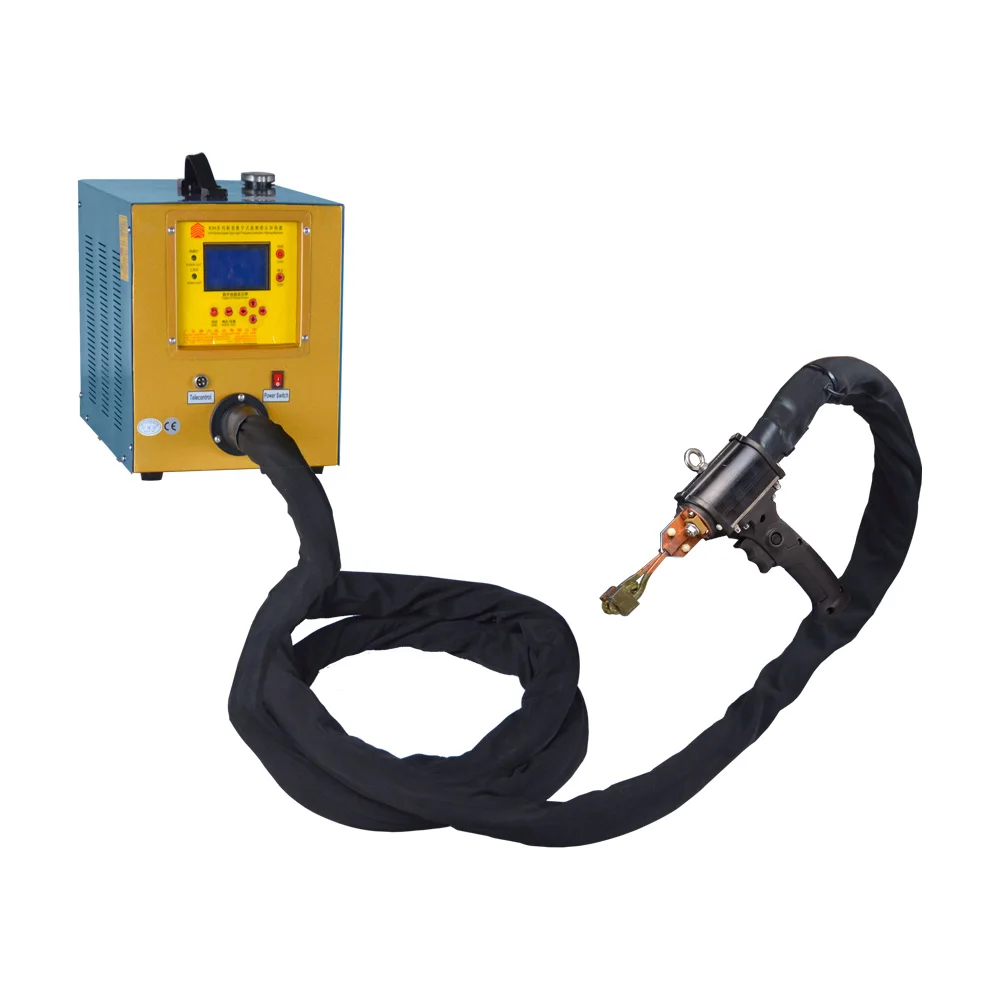

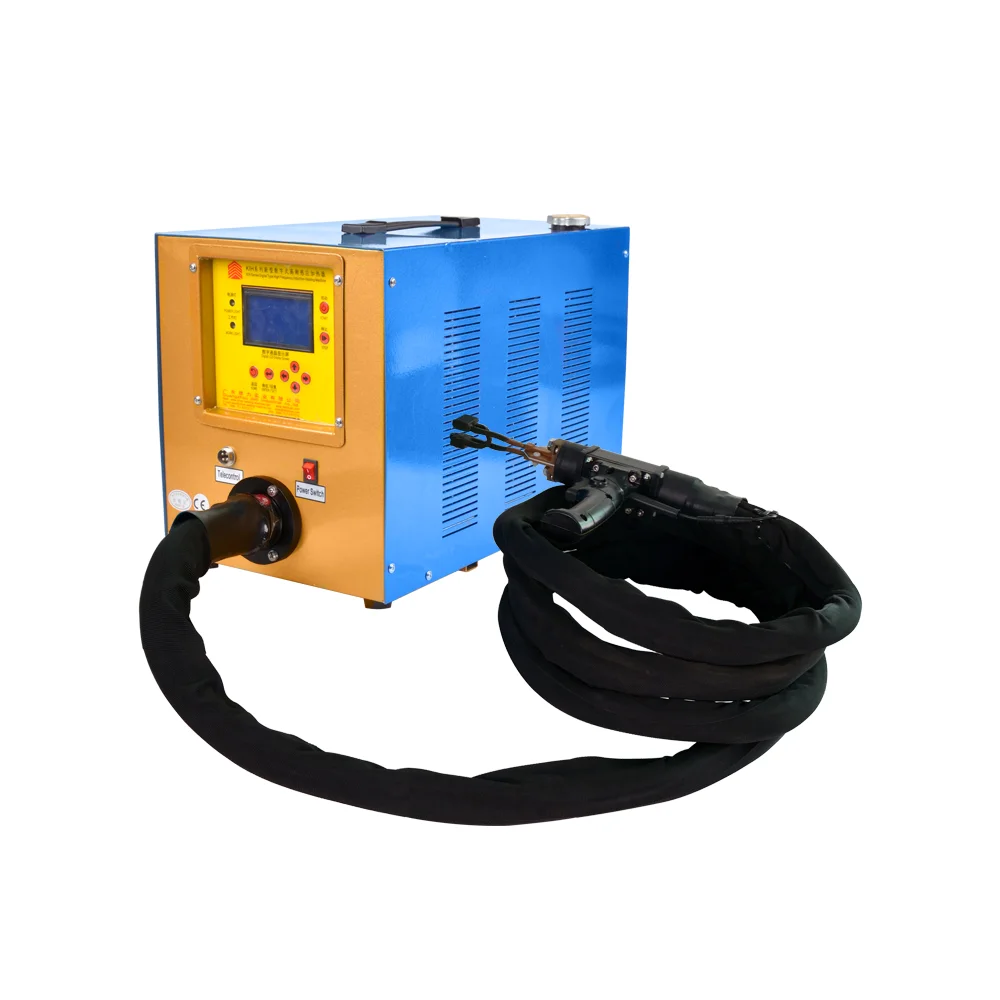

DW-15KW Movable and Portable Induction Heater

Equipment Main Characteristics

1.Portable induction heater integrated with water cooling system. Mainly used for heating and welding various meta work-pieces, such as locally quenched work-pieces, copper tube welding, annealing, etc.

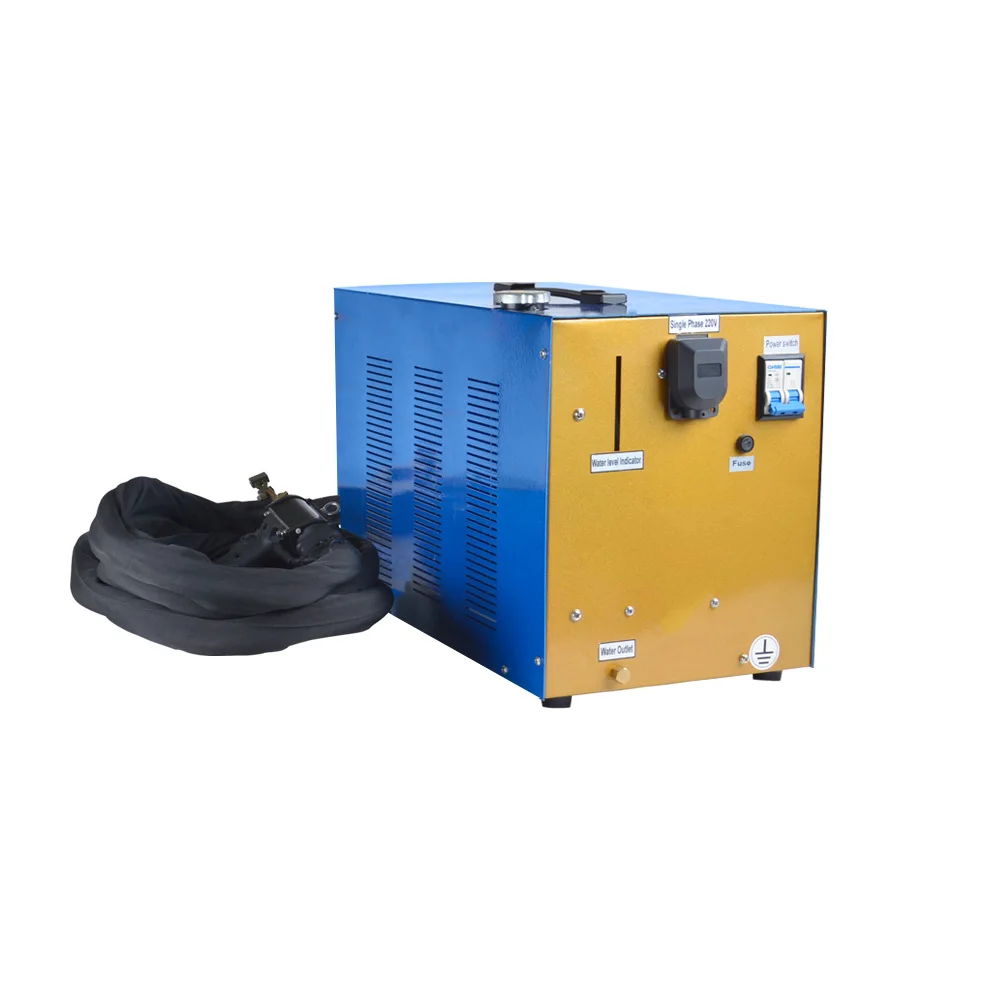

2.The body is equipped with a 2.5liter water tank and cooling system, which eliminates the need for external water sources, It is compact and portable, breaking through the limitations of traditional high frequency induction heaters. and can meet outdoor operations

3.Adopt imported MOSFETS and IGBT solid-state power modules and advanced frequency conversion technology.

4.Fully functional, including fault status protection and display for over current, over voltage, water shortage over heating etc... providing higher reliability and durability.

5.Novel design, simple installation, no need for debugging, and convenient use.

6.Simple and safe operation, easy to carry, single-phase civil motor housing, especially suitable for temporary heating steel and brazing copper. Includes metal rods, tubes, plates, screws, nuts, spindles, bearings, and more.

Main Technical Parameters

Type	DW-15KW
Fluctuating Frequency	45-60HZ
Heating Current	50A
Work Voltage	110/220/240V.50/60HZ
The Range of Operating Voltage	190V-245V
Coolant liquid	2.5L
Water Temperature Protection Point	50°c
Net Weight(kg)	15KG
Dimensions(L*W*H)	40*22*28cm
