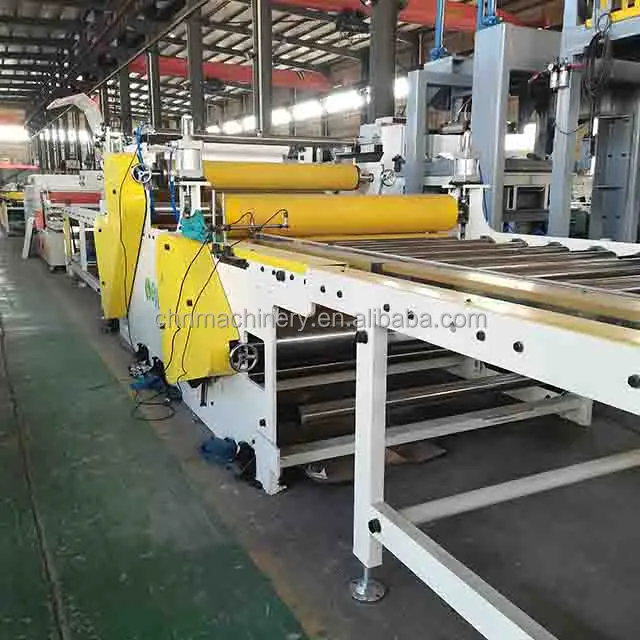

595*595 or 603*603 PVC film covered gypsum ceiling board production line

Product Overview

Description

PVC Laminated Gyspum Ceiling Board Making Machine

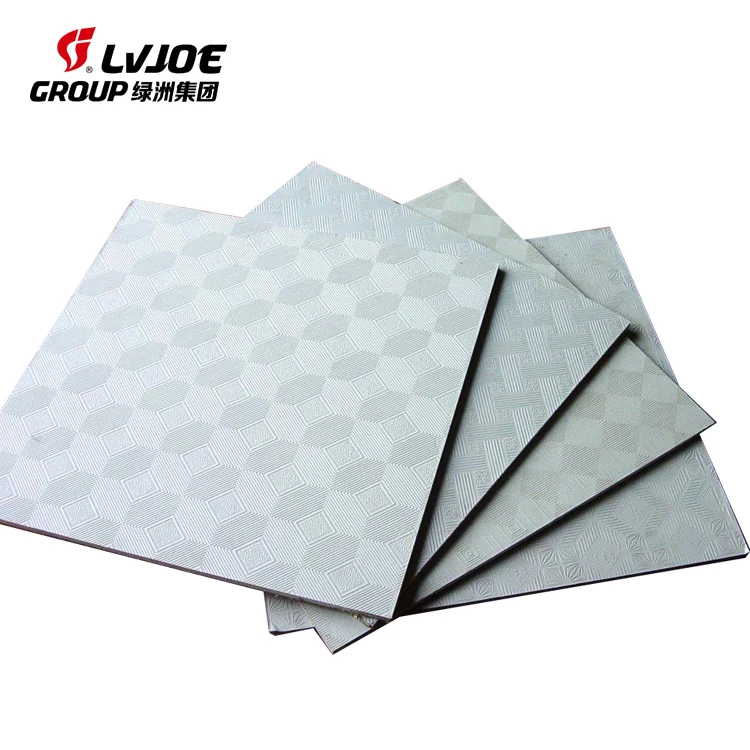

PVC gypsum ceiling tile is made of paper faced gypsum board with a layer of PVC on surface and aluminum foil on its back. It is environmental friendly, light weight, fireproof , waterproof and corrosion-resistant decorative ceiling board. It is easy to clean, and the pattern can be customized. It can be widely used in high fireproof and waterproof requirement environment, such as hotels, restaurants, shopping malls, theaters, stations, auditoriums, offices, living rooms, office buildings, electronic computer rooms, precision instrument rooms, and interior decoration of factories or houses.



PVC Gypsum Ceiling Tile Size

Size	595*595*8mm
	603*603*8mm
	600*1200*8mm







Our company is the professional manufacturer in China for automatic PVC gypsum ceiling tile production line, it has fully automatic line(single side type, double side type), semi automatic line and economic type for your option. As the production line uses modular combination, we can give appropriate solution according to your requirement and budget.



LV-1300FMZ01 type Fully Automatic PVC Gypsum Ceiling Production Line

Flowchart:

Automatic feeding- dust cleaning- PVC film and aluminium foil laminating- film cutting(manual/automatic)-conveying-vertical cutting(dust collecting)-horizontal cutting(dust collecting)-small board stacking- edge sealing--packing- finished products stacking.



Technical parameters:

Effective lamination width: 1300mm max

Thickness of sheet: 5-30mm

Board feeding mode: automatic push type or suction type

Board releasing mode: stacking  transportation

Stacking mode: 10 layers (4 packages/layer)

Laminating mode: laminate front side and back side at one time

Cutting mode: 3 blades vertical, 5 blades horizontal

Packing quantity: adjustable

Speed of production line: 15m/min

Total power: 100KW

Overall size: Length 56m, width 9.2m

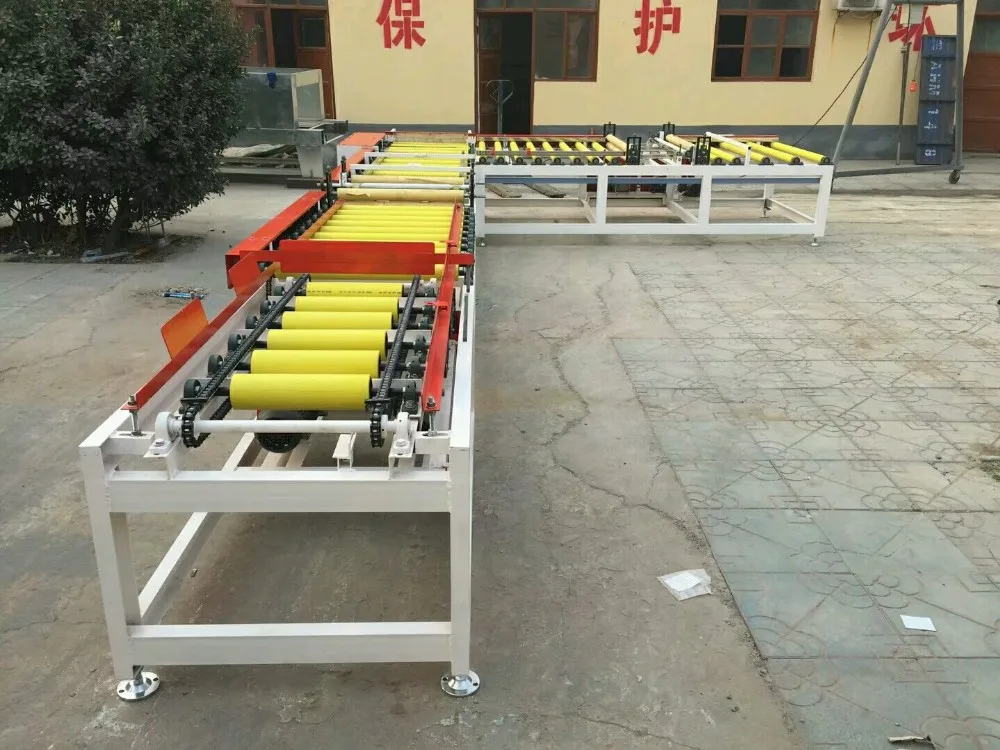

Automatic gypsum board feeding

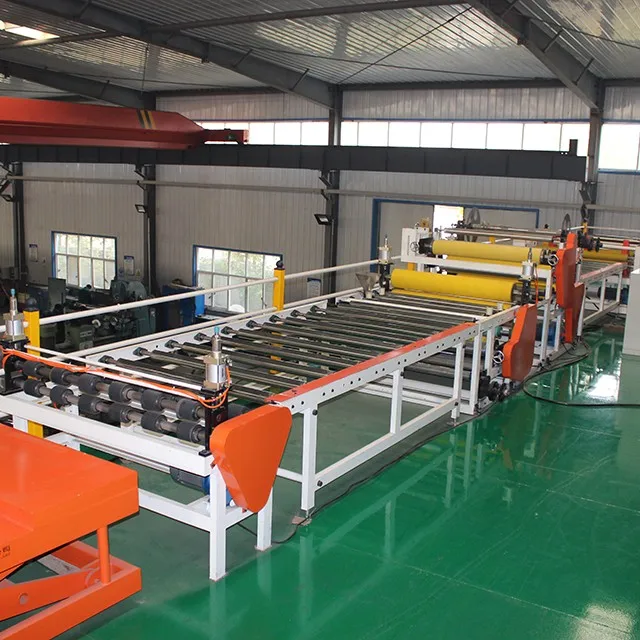

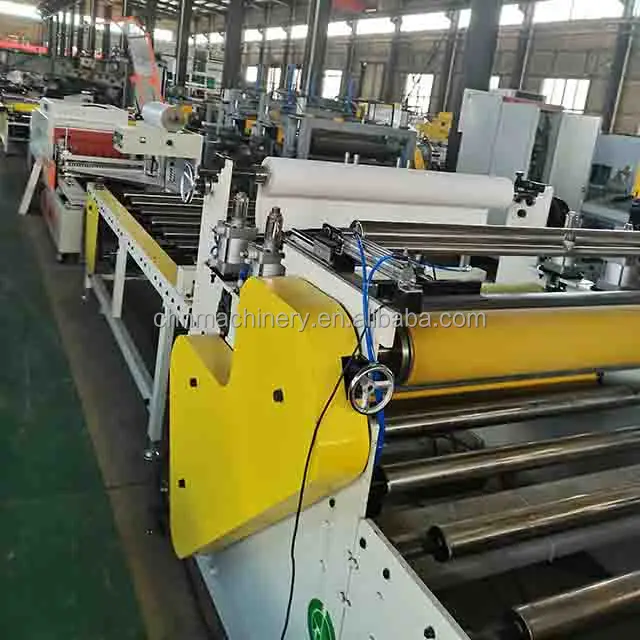

Double Side Lamination Machine

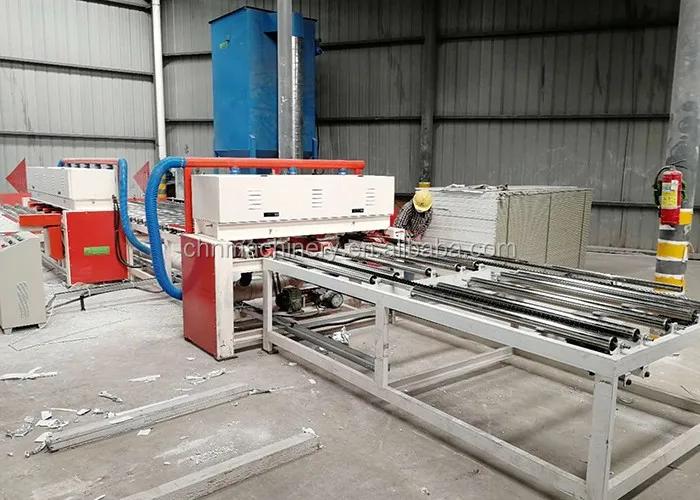

Laminated Board Cutting Machine





Edge Sealing Machine

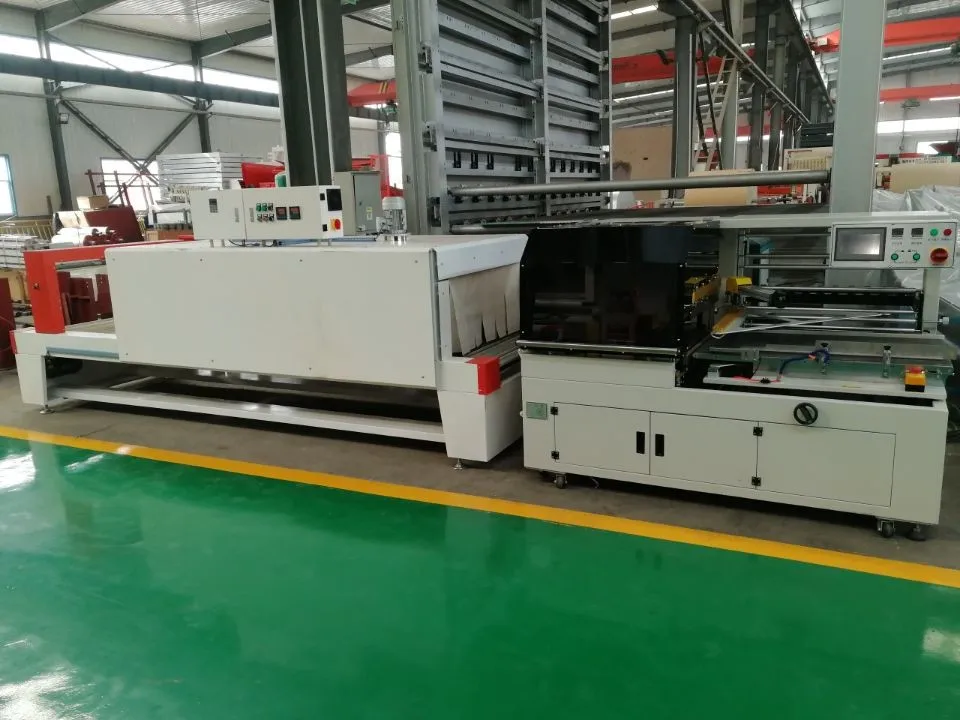

Packing machine

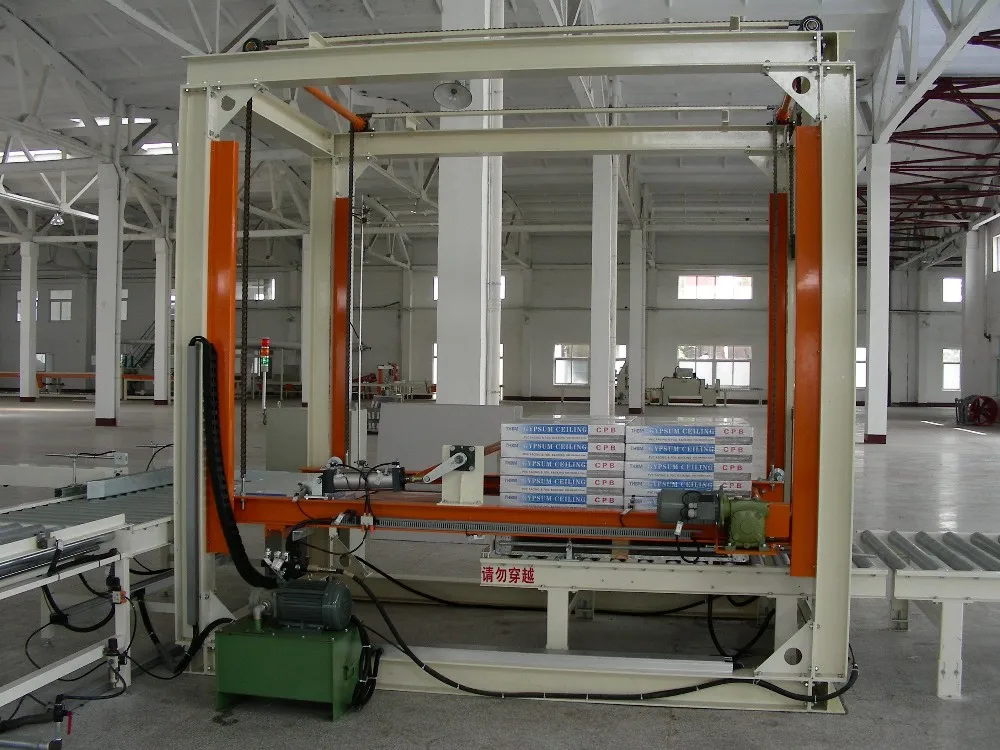

Finished Products Stacking System
