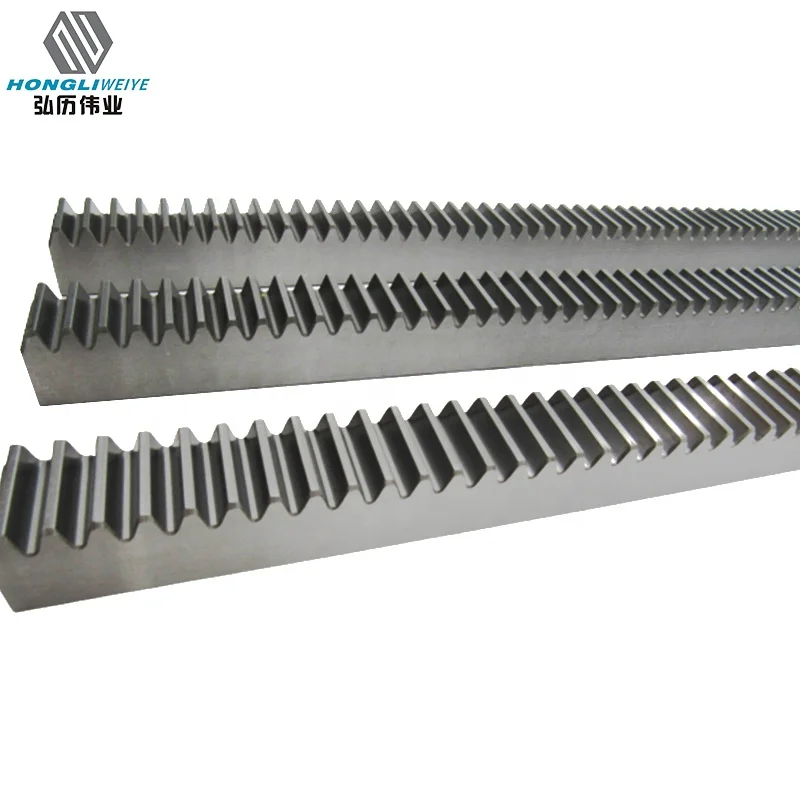

Module 1.5 gear cnc helical rack and pinion round helical gear rack
Module 1.5 gear cnc helical rack and pinion round helical gear rack
Module 1.5 gear cnc helical rack and pinion round helical gear rack
Module 1.5 gear cnc helical rack and pinion round helical gear rack
Module 1.5 gear cnc helical rack and pinion round helical gear rack
Module 1.5 gear cnc helical rack and pinion round helical gear rack
Module 1.5 gear cnc helical rack and pinion round helical gear rack

Module 1.5 gear cnc helical rack and pinion round helical gear rack

Share on (1600814148665):


Price:

Quantity:


Product Overview

Description



Gear rack


Module
Mod1, Mod1.5, Mod2, Mod3, Mod4, Mod5, Mod6, Mod8, Mod10
Precision grade
DIN5, DIN6, DIN7, DIN8, DIN10
Material
C45 steel, 304SS, 316SS, 40CrMo, nylon, POM
Heat treatment of teeth
Induction hardened，case hardened，quenched and tempered，soft
Surface treatment
Zinc-plated,Nickle-plated,Chrome-plated,Black oxide or as you need
Application Machine
machine tools,lifting axes,multiple pinion contact,laser cutting,wood,plastic,composite,aluminium working machined,water cutting
machine,plasma cutting machine,linear axes,welding robots

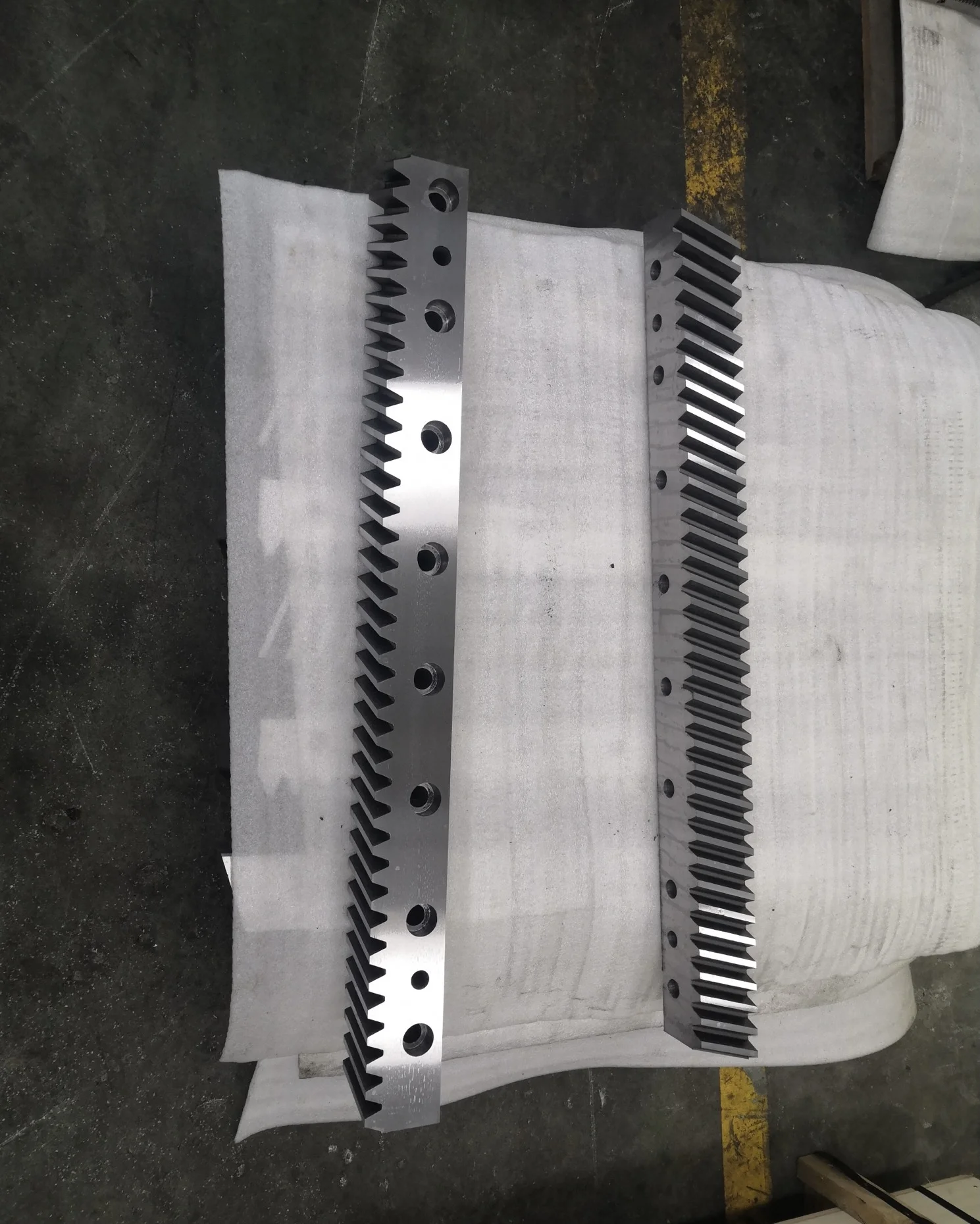

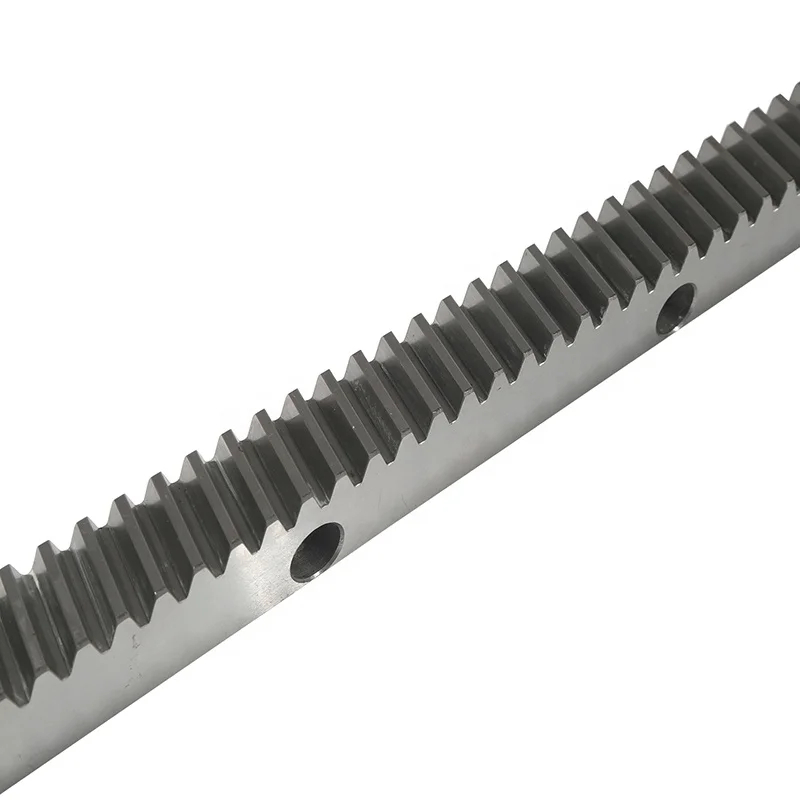

Helical gear rack
Straight gear rack






Goods in stock


Teeth
Size
Helical
M1 15*15*1000mm
M1.5 19*19*1000mm
M2 24*24*1000mm
M3 29*29*1000mm
M4 39x39x1000mm
Straight
M1 15*15*1000mm
M1 15*15*1000mm
M1 15*15*1000mm
M1 15*15*1000mm
M4 39x39x1000mm


Assembly

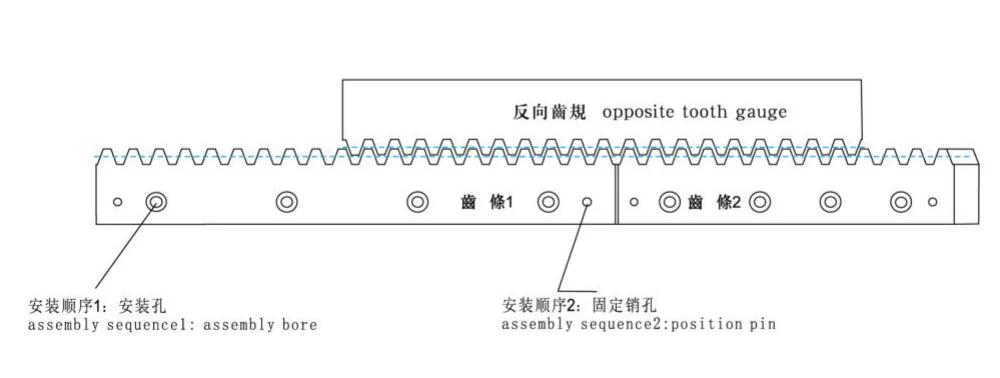

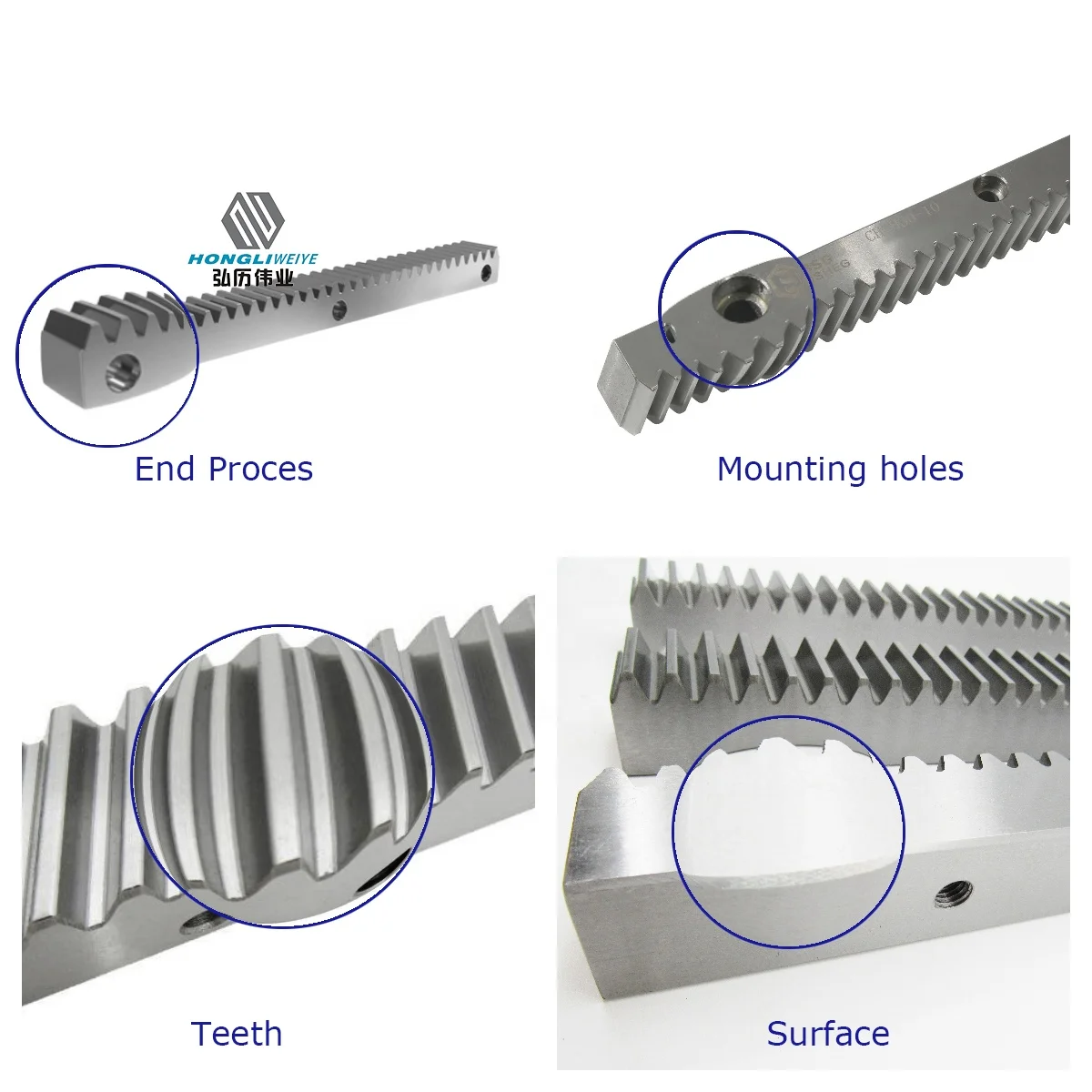

In order to install and connect the rack more smoothly，the end faces of two ends of the standard rack will be processed into half-tooth bottoms.it's convenient to connect with the half tooth bottoms of the next rack to form a full tooth.the figure below shows how the two racks are connected,and the gear gauge can have an accurate pitch position.regarding the connection of helical gear rack,the accuracy can be adjusted by the reverse gear gauge,so that the rack can be connected accurately.
1.When connecting racks,we recommend lock bores on the sides of rack first,and lock bores by the sequence of the foundation.with assembling the tooth gauge,pitch position of racks can be assembled accurately and completely.
2.Last,lock the position pinson 2 sides of rack.the assembly is completed.

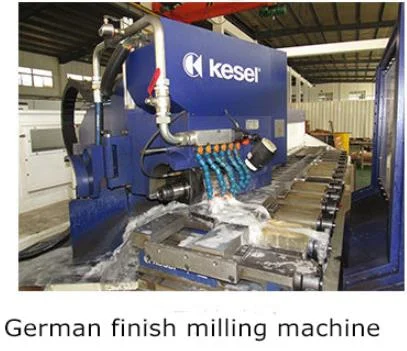

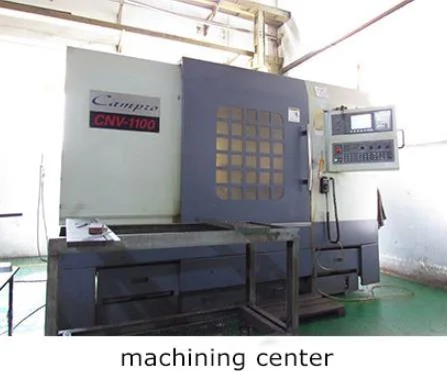

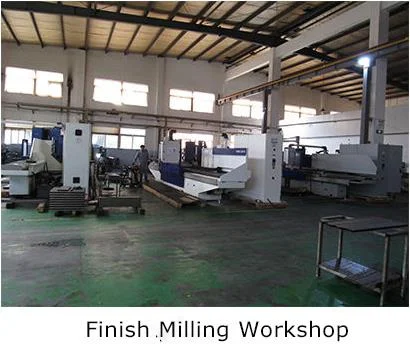

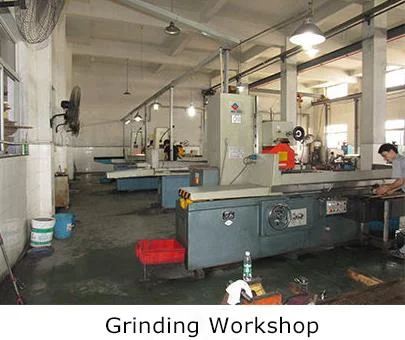

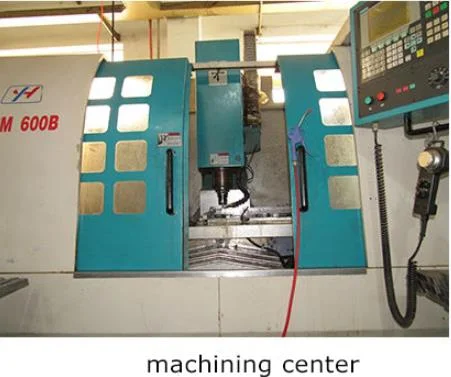

Our Factory
