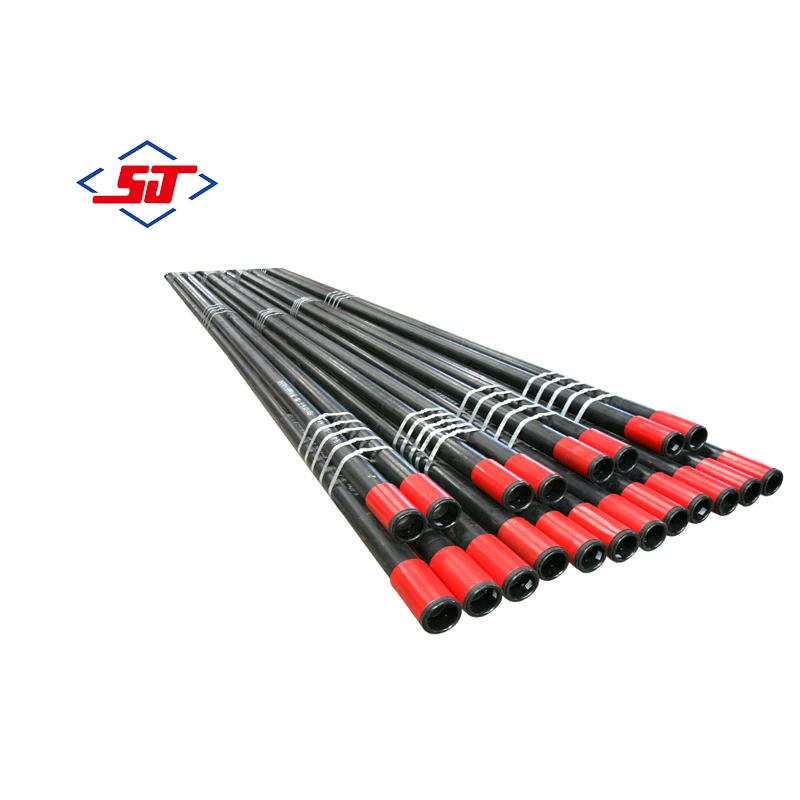

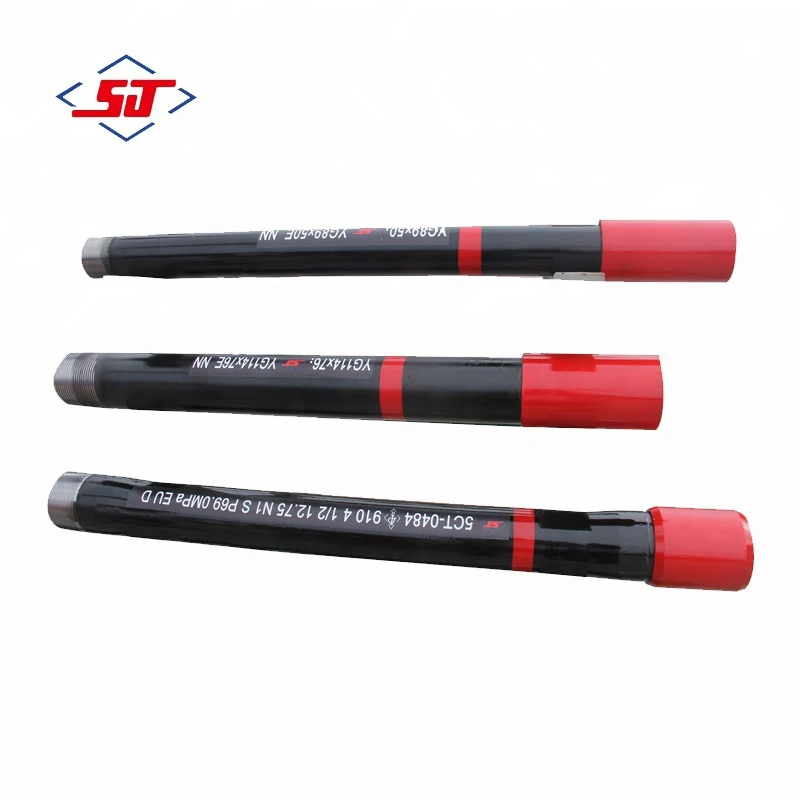

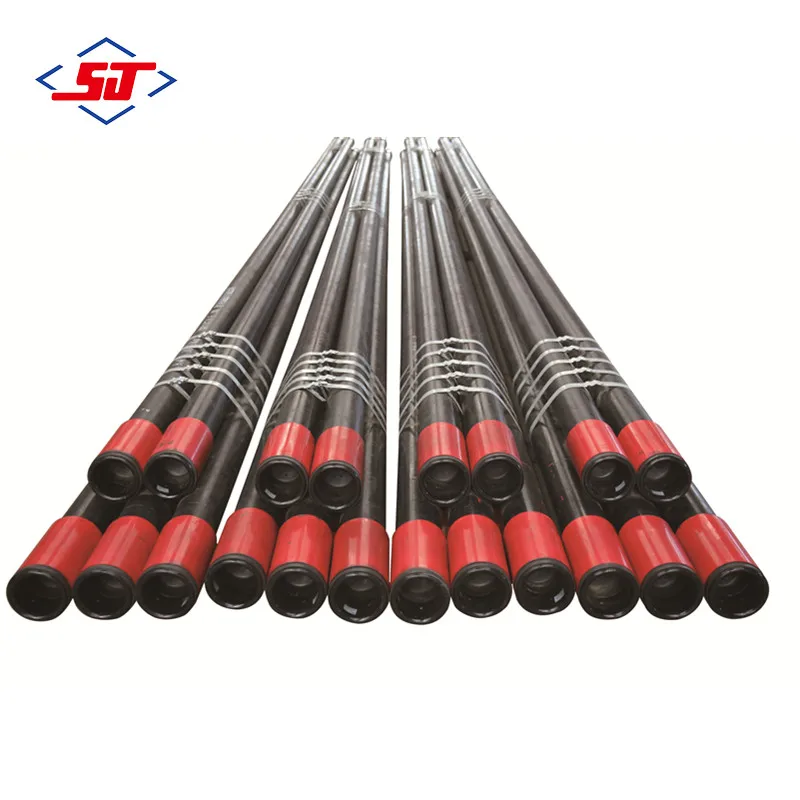

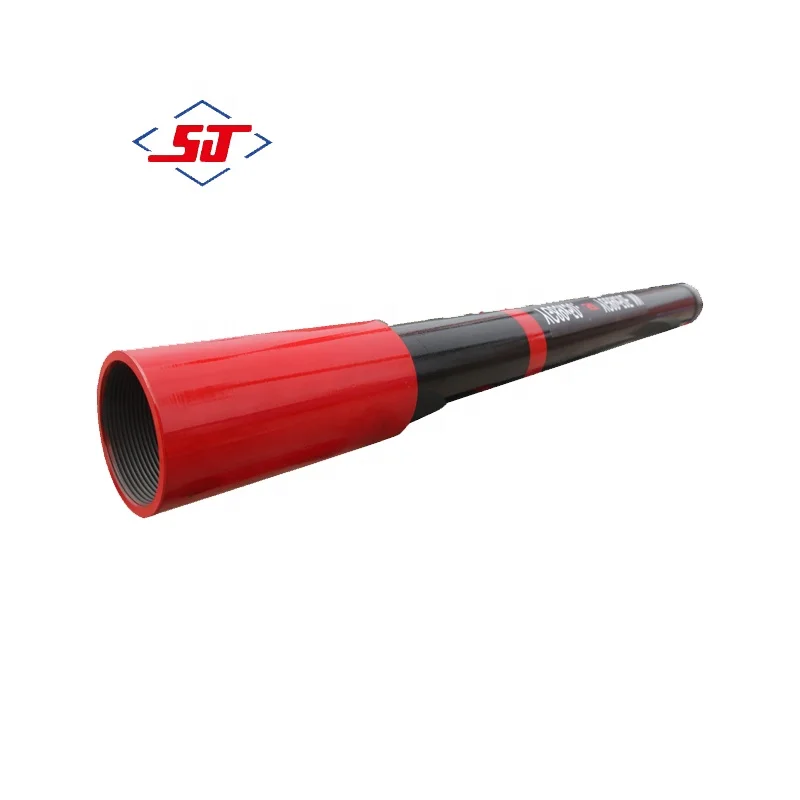

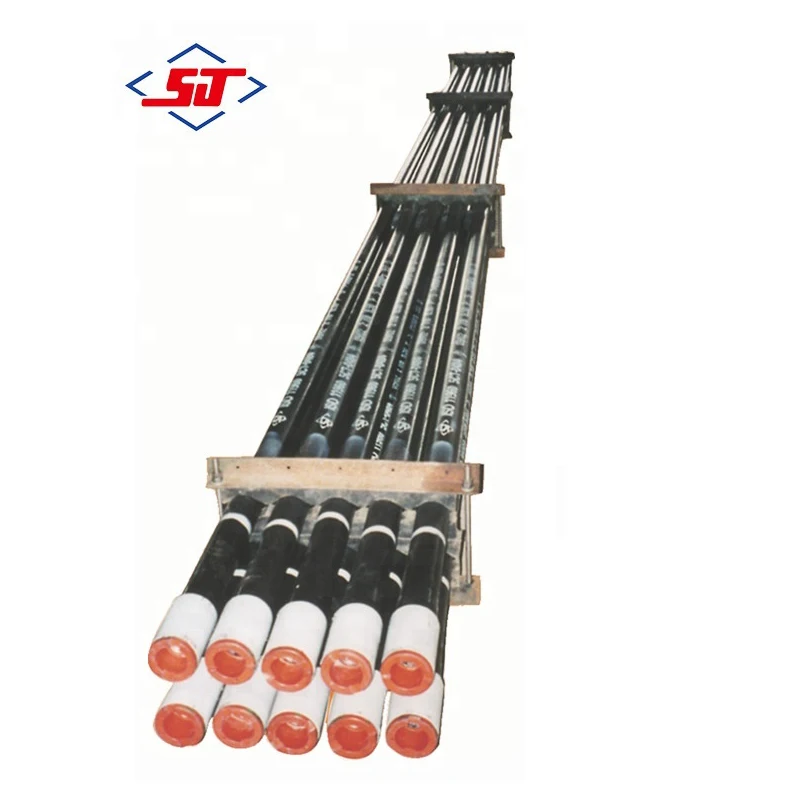

API 5CT vacuum insulated tubing pipe VIT pipe made in China
- Category: >>>
- Supplier: Shengli Oilfield Shengji Petroleum Equipment Co. Ltd.
Share on (1600814769172):
Product Overview
Description
Product Description
Shengji vacuum insulated casing uses water-based fiber cloth material with a three grade vacuum pump equipment, automatic welding machine and MT. These guarantees a high degree of vacuum level that meets the insulation grades D and E.
These vacuum insulated casing use an effective getter to ensure the tubing insulation grade do not decrease after a long time of outdoor storage. Shengji vacuum insulated casing are reusable. They retain desired insulation properties after being used several times. Shengji people are dedicated to the development of new products. Our products constitute almost 40% market share in Shengli Oilfield VIT market at the moment.
The pre-stressed insulated tubing is mainly consist of inner tube, outer tube, heat insulation material, coupling, etc. In its structure, put pre-stress on the inner tube to make up the different thermal elongation of the inner and outer tube. At normal temperature, the inner tube is in tension condition. When the temperature increases gradually, the tensile stress decreases. When the temperature increases constantly, the tension condition of the inner tube turns to its bearing condition. The pre-elongation of the inner tube decreases the compression stress after the heated elongation. As a result, the insulated tubing run and maintain in good condition.
Specifications
A. VIT Performance Level
| Heat-insulating property level | Heat conductivity coefficient,W/(m·℃) |
| A | 0.06≤λ<0.08 |
| B | 0.04≤λ<0.06 |
| C | 0.02≤λ<0.04 |
| D | 0.006≤λ<0.02 |
| E | 0.002≤λ<0.006 |
B. VIT Specification
Specification | Basic parameter | ||
Outer tube OD x Inner Tube ID(in x in) | Steel grade | Connection | Thread |
3 1/2 x 2 3/8 |
N80 L80 P110
| Inner connection Outer connection Extreme line connection
| 3 1/2 USS |
4 1/2 x 2 7/8 | 4 1/2 BC | ||
4 1/2 x 3 1/2 | 4 1/2 BC | ||
5 x 3 1/2 | 5BC | ||
5 1/2 x 4 1/2 | 5 1/2 BC | ||
7 x 5 1/2 | 7 BC | ||
Inspection

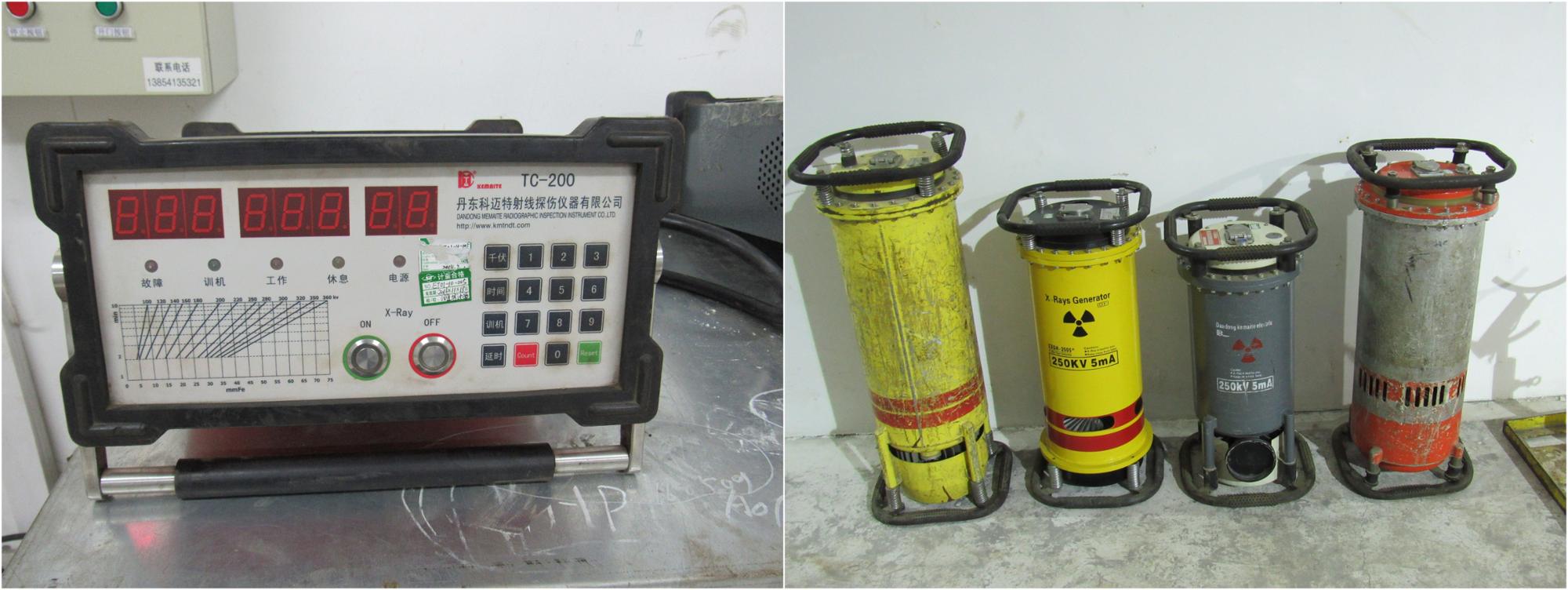

A. X-ray flaw detection
X-ray flaw detection equipment carry out the testing on the welding seam to guarantee the welding effect and insulating capability.

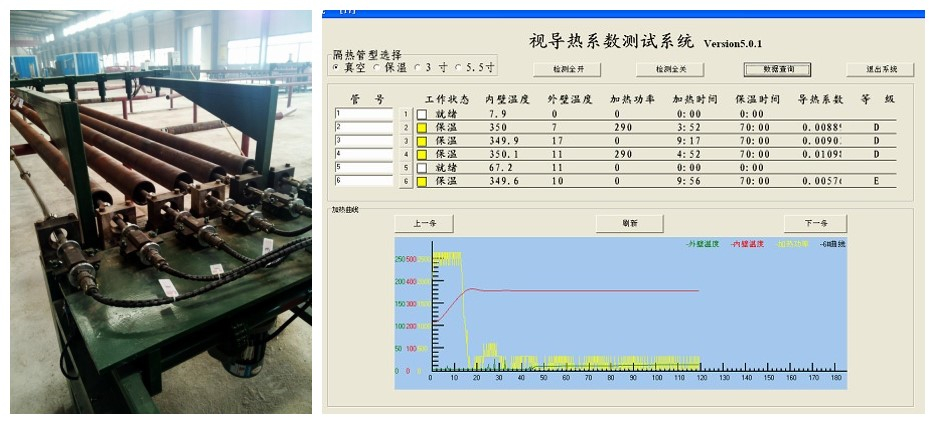

B. Heat conductivity coefficient test
Heat conductivity coefficient 100% test, record the performance parameter and the index curve for each piece of insulated tube.
