AT240 тканевая швейная Текстильная швейная промышленность одинарная машина для определения размеров пряжи
- Category: Spinning Machines >>>
- Supplier: Anytester (hefei) Co. Ltd.
Share on (1600816308742):
Product Overview
Description
Product Description

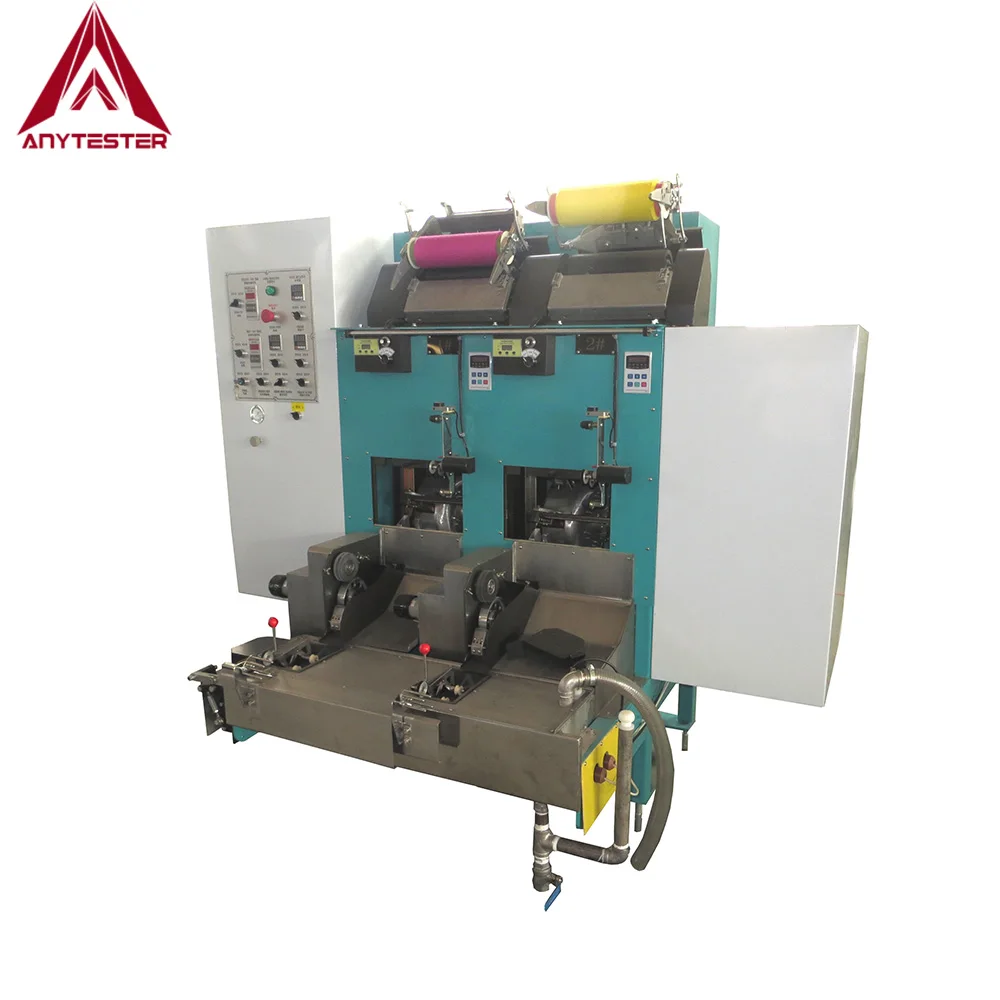

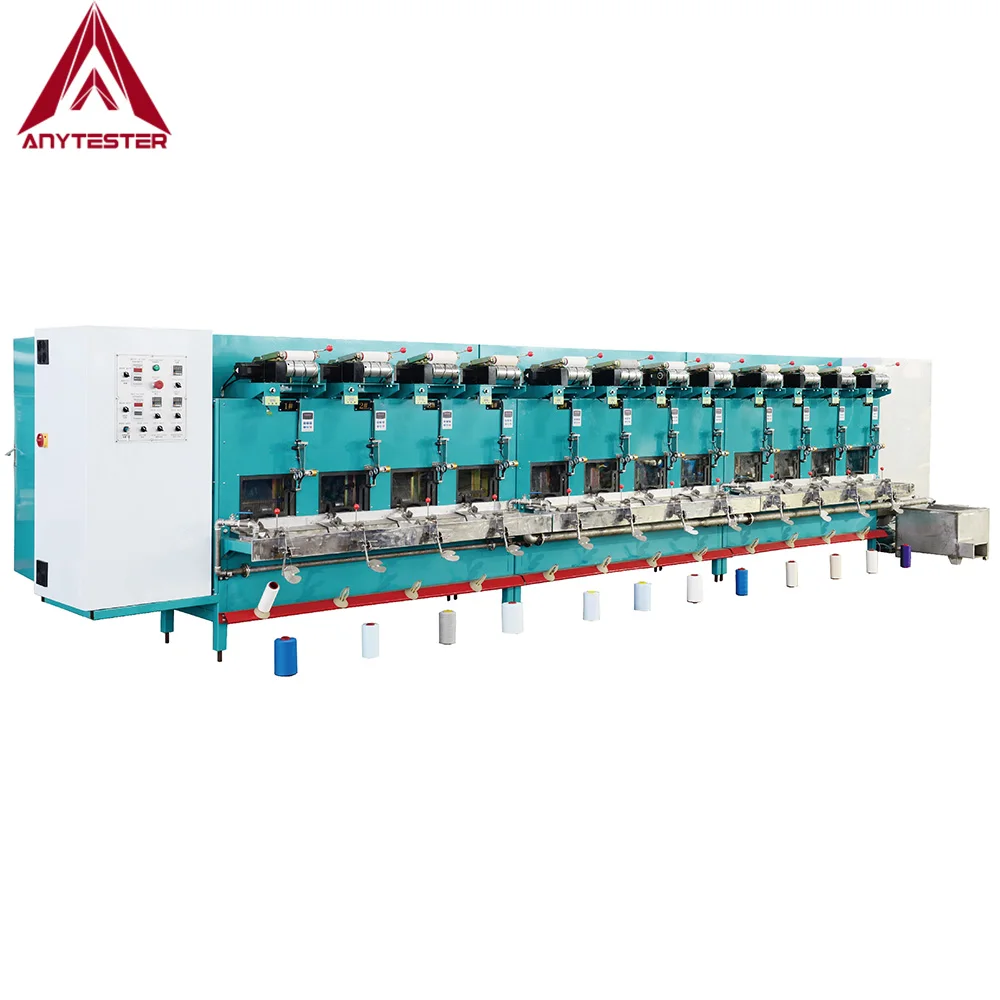

AT240 Series Single Yarn Sizing Machine is suitable for yarn sizing of cotton, flax, silk, wool, synthetic filament, etc.
As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specification
Model | AT240 Series Single Yarn Sizing Machine AT240 Fabric Garment Textile Clothing Industry Single Yarn Sizing Machine |
Number of spindles | 2, 4, 8, 12 or customized |
Sizing speed | 20~300m/min controlled by invertor and adjustable according to yarn kind |
Heating method | Steam heating or electric heating (optional) |
Drying temperature | Max. 120℃ (a little different, depending on heating method) |
Sizing temperature (optional) | Max. 80℃ |
Sizing method | Dipping |
Applicable yarn density | 5~500tex, cotton, wool silk or chemical fiber |
Motor power of rotation frame | 0.18KW per spindle |
Motor power of grooved drum | 0.75KW per spindle |
Heating power of oast | 1.8KW per spindle |
Motor power of heat circulation | Approx.1.lKW |
Power supply | AC380V 50Hz, three-phase |
Dimensions | 2100*1200*1750mm (2 spindles) 3100*850*1750mm (4 spindles), adding 1,900 mm for each additional 4 spindles, no change for width and height. |
Weight | 800kg (2 spindles) N. T1000Kg. G.T 1100Kg (6 spindles) |
Details & Features
Overview of AT240 Series Single Yarn Sizing Machine
AT240 Fabric Garment Textile Clothing Industry Single Yarn Sizing Machine

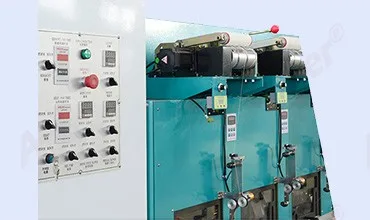

★Independent control of each spindle, digital display of tension index and digital display of speed of rotating frame and counting of length. And rotating frame storing 160 turns of yarn on it to increase the drying time
★Independent control of each spindle, digital display of tension index and digital display of speed of rotating frame and counting of length. And rotating frame storing 160 turns of yarn on it to increase the drying time

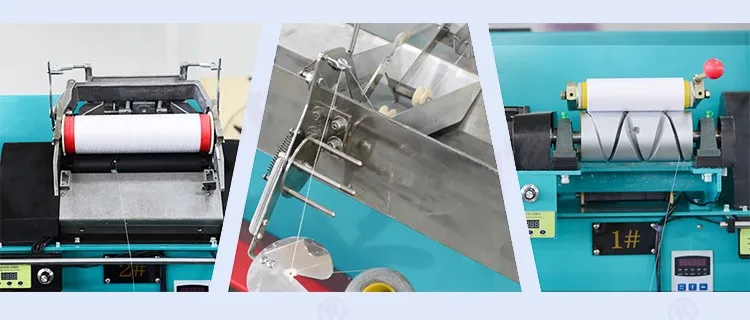

Automatic Tension Control
★single spindle control, the frequency controller or steeples controller is used for cabbage rotational motor in drying room. The yarn guide cylinder is traced by the servo.
Automatic Speed Control
★Grooved drum controlled by servo motor and its rotation speed is automatically adjusted according to the speed of rotating frame to control the yarn tension
★Independent control of each spindle with digital display of speed and length;
★Motor of rotating frame controlled by interver or stepless-adjustable speed controller and grooved drum controlled by servo motor tracing the speed of rotating frame for automatic tension control;
★Motor of rotating frame controlled by interver or stepless-adjustable speed controller and grooved drum controlled by servo motor tracing the speed of rotating frame for automatic tension control;
Packing & Delivery
Packaging AT240 Fabric Garment Textile Clothing Industry Single Yarn Sizing Machine | ||
Dimensions | 3100×850×1750mm(L×W×H) | |
Weight | Approx.1000kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
