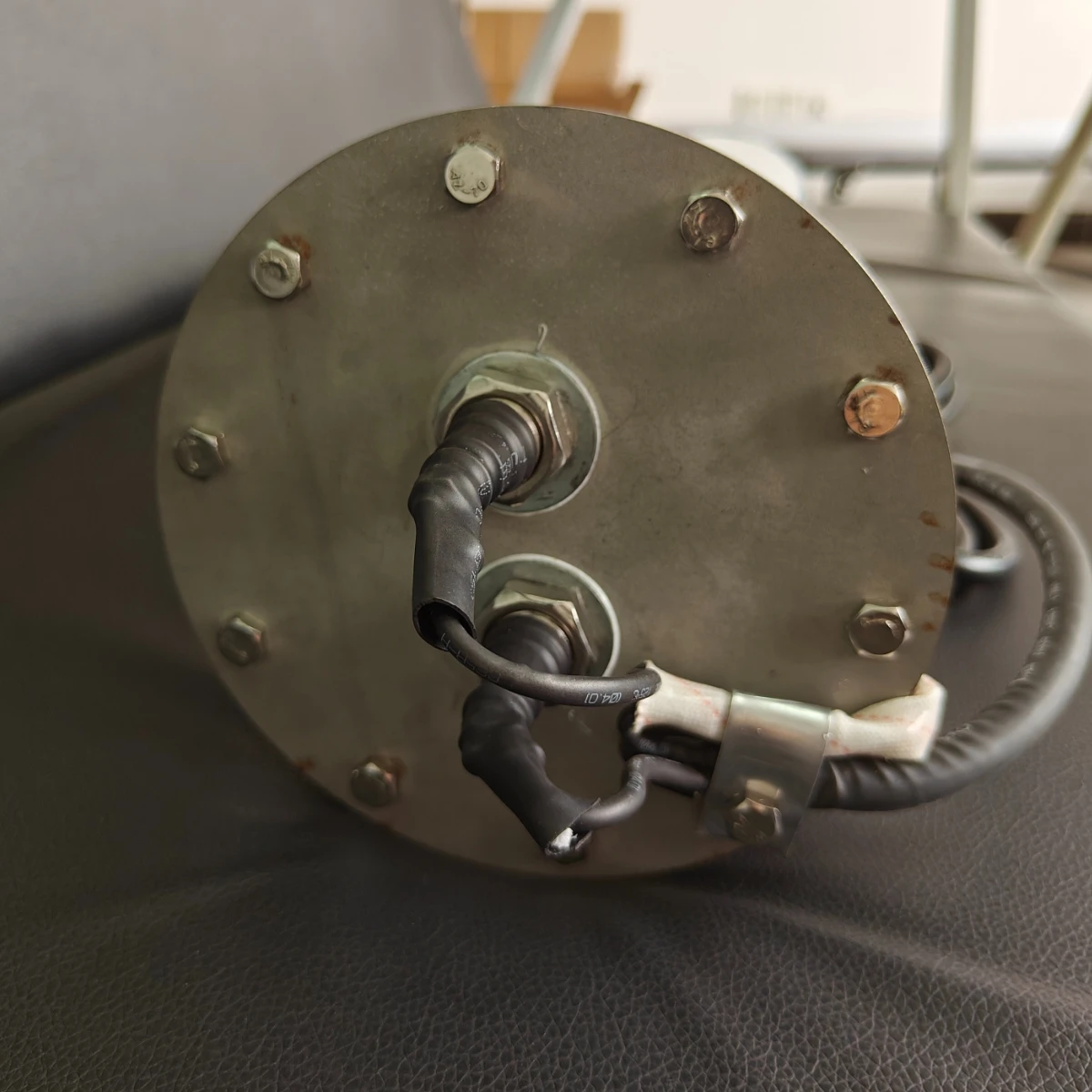

220/110V Ozone gas treatment device ozone destructor for ozone generator
- Category: >>>
- Supplier: Guangzhou KQ Environmental Tech Co. Ltd.
Share on (1600818527349):
Product Overview
Description
Product Overview

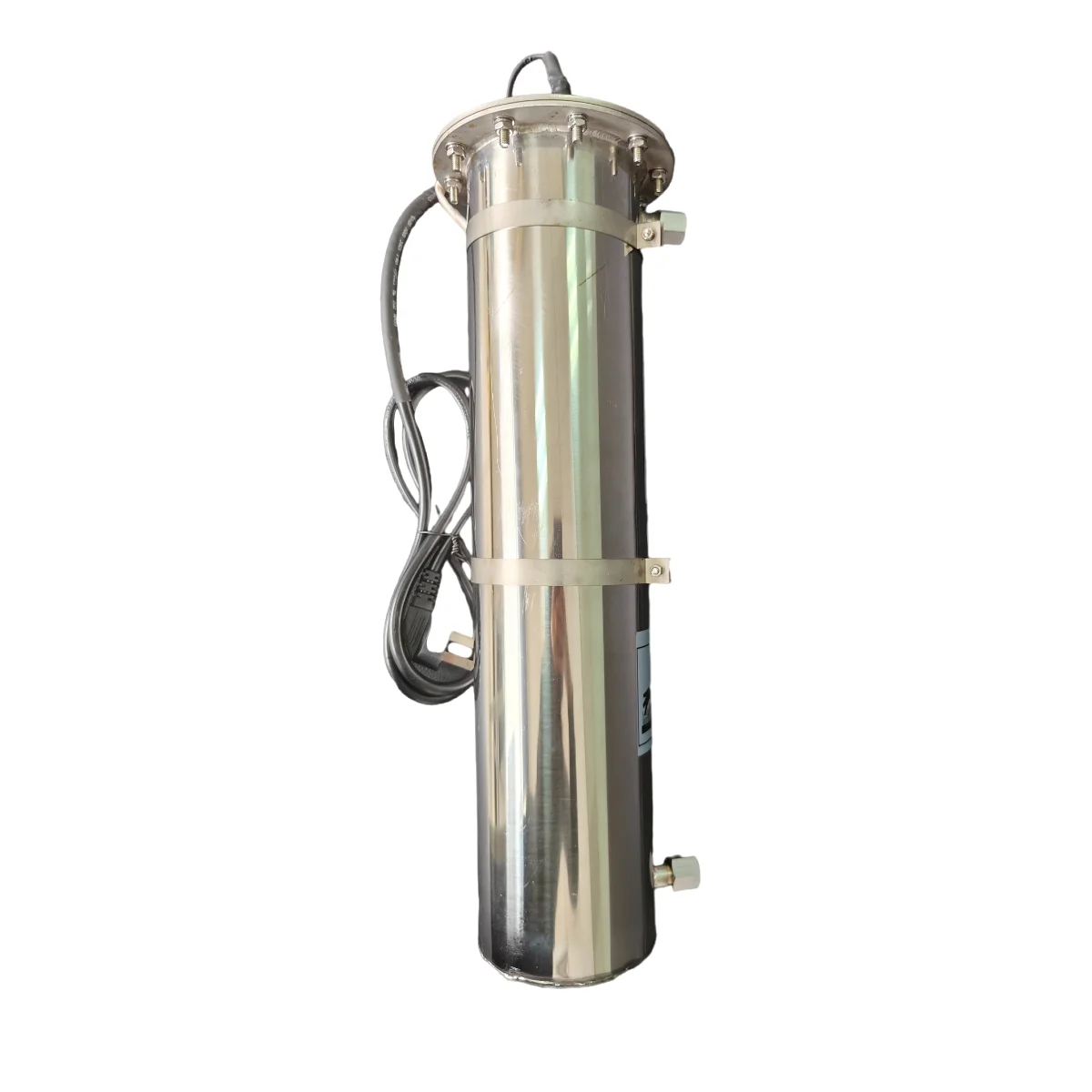

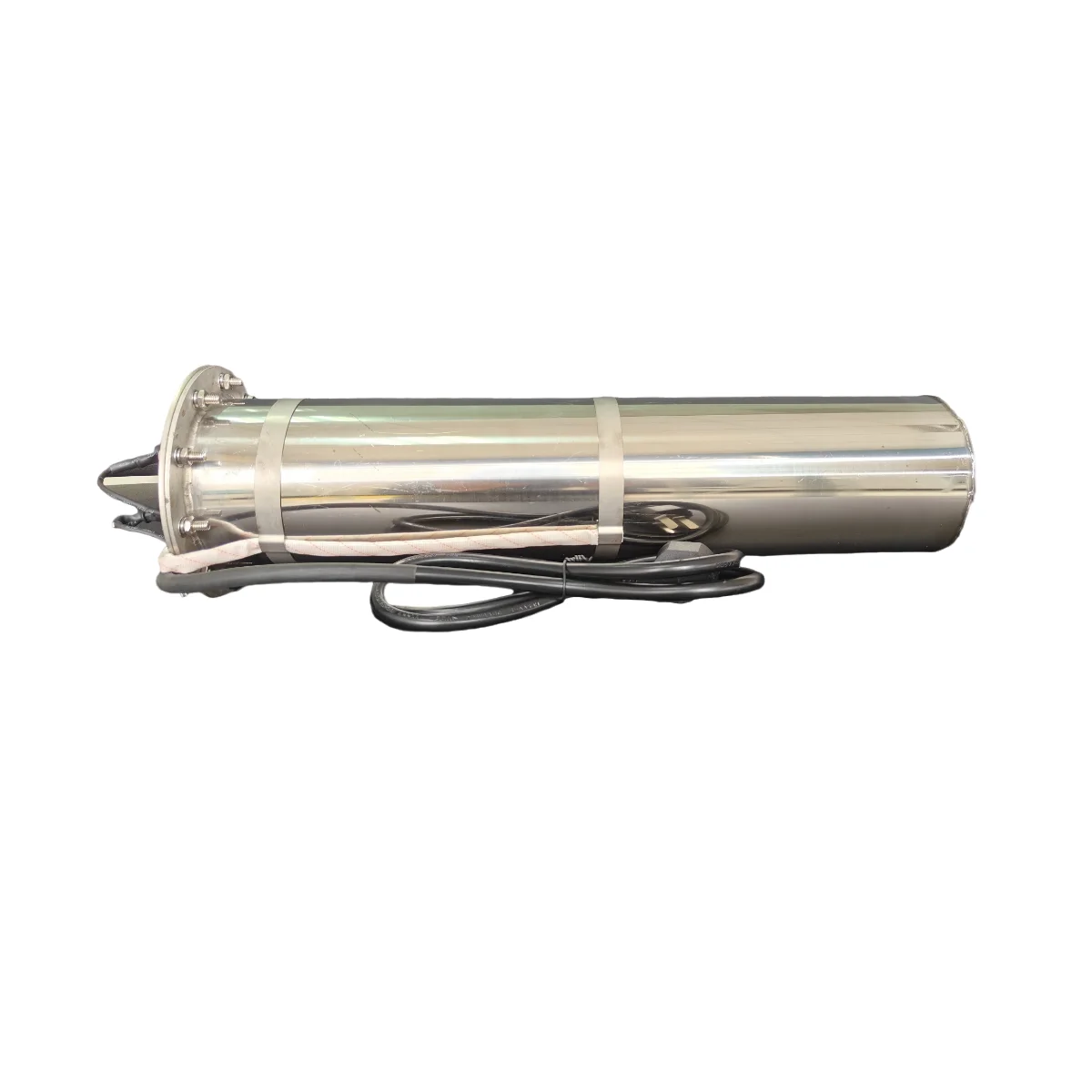

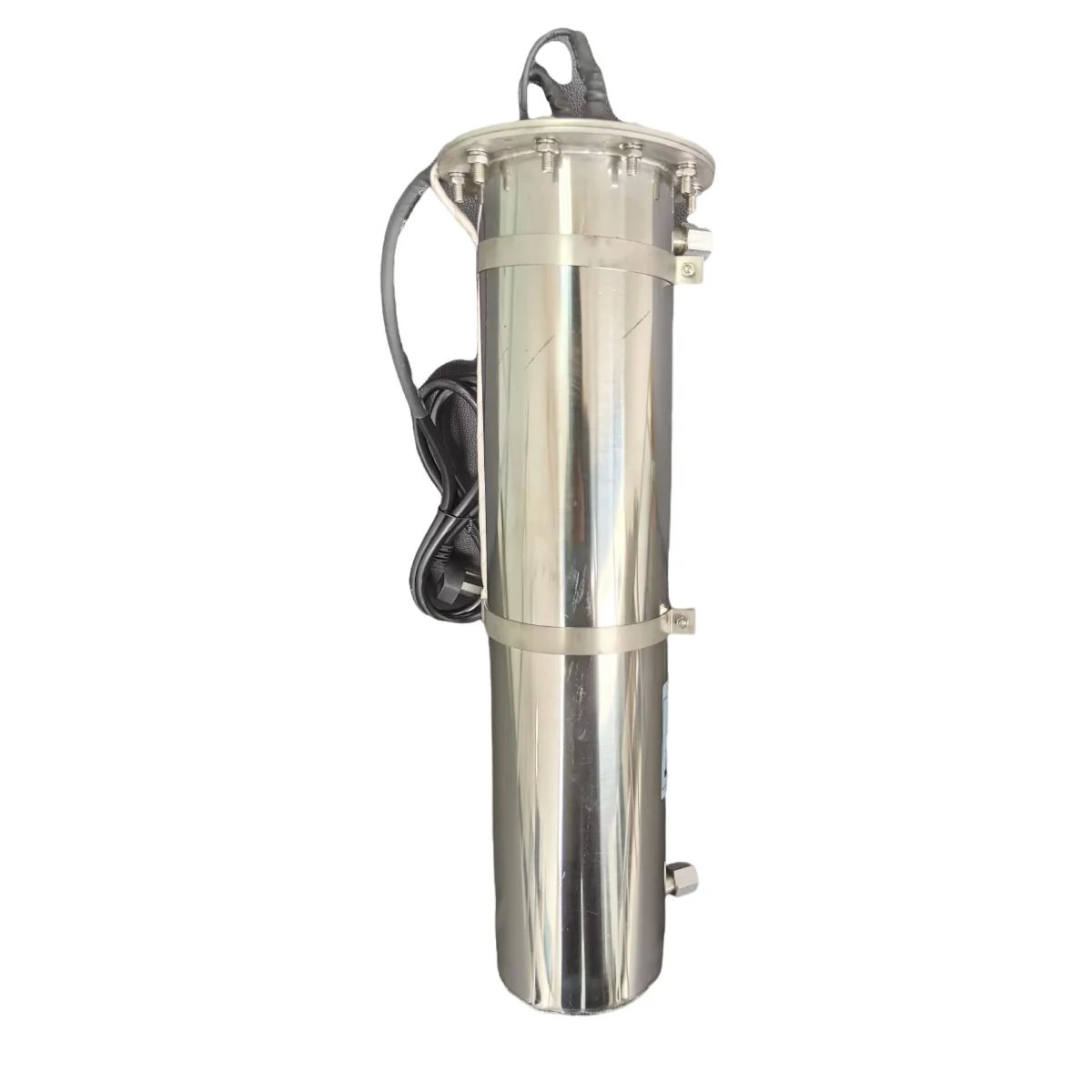

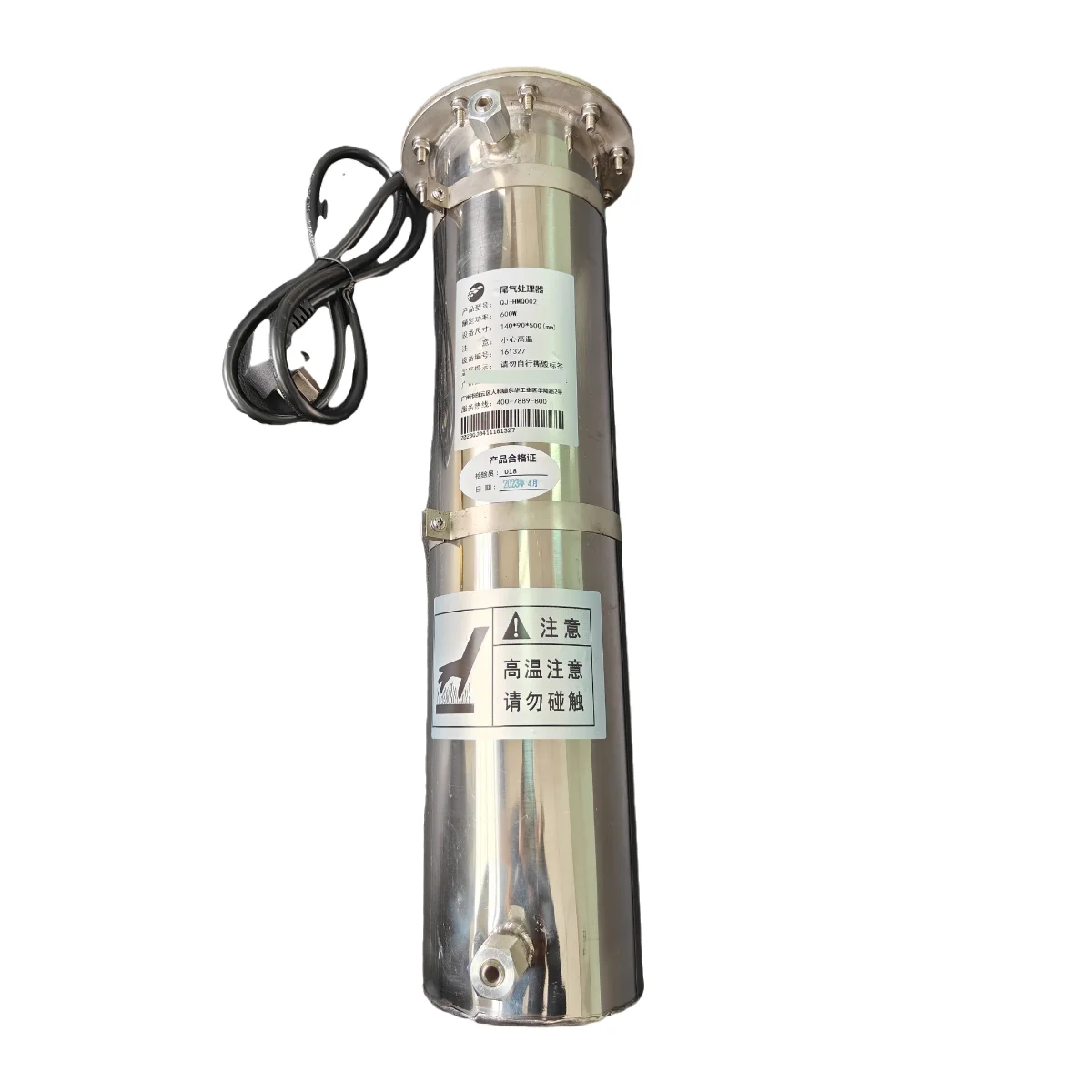

Ozone destructor for 3-200g ozone generator
Ozone exhaust processor heating type
The exhaust gas destroyer is designed as a heating type. The equipment operates automatically and is protected by double-layer stainless steel. The initial investment and operating costs are lower than those of activated carbon catalytic type and contact oxidation type. After the exhaust gas enters the reaction chamber, the ozone molecules are broken down as they pass through a heated catalyst. A destroyer consists of the following elements:
The catalytic tube includes: 1 piece of 304L stainless steel tube, 1 piece of 304L stainless steel mesh grid and supporting grid
The heater includes: 304L stainless steel shell, heating element 1 stainless steel jacket
The exhaust gas destroyer is designed as a heating type. The equipment operates automatically and is protected by double-layer stainless steel. The initial investment and operating costs are lower than those of activated carbon catalytic type and contact oxidation type. After the exhaust gas enters the reaction chamber, the ozone molecules are broken down as they pass through a heated catalyst. A destroyer consists of the following elements:
The catalytic tube includes: 1 piece of 304L stainless steel tube, 1 piece of 304L stainless steel mesh grid and supporting grid
The heater includes: 304L stainless steel shell, heating element 1 stainless steel jacket
FEATURES AT A GLANCE
Ozone generators suitable for treatment: (3-200 grams)
parameter:
Size: Length 14*9*50cm
Power: 600 watts
The amount of gas to be processed: the general exhaust gas will not exceed 200 grams (general purpose)
Install temperature control: surface temperature > 28°C will stop working
Inside temperature: 100-180°C
parameter:
Size: Length 14*9*50cm
Power: 600 watts
The amount of gas to be processed: the general exhaust gas will not exceed 200 grams (general purpose)
Install temperature control: surface temperature > 28°C will stop working
Inside temperature: 100-180°C
No | Item | Data |
1 | Model | KQ |
3 | Size | 14*9*50cm |
PRODUCT SPECIFICATIONS
Ozone exhaust processor
1. The ozone destroyer has the characteristics of small size, low power consumption, long life and good effect. The main purpose is to eliminate ozone tail gas. In actual use, the ozone tail gas treated by this product fully complies with the air pollution indicators stipulated by the state. At the same time, the effect of this product on treating ozone tail gas is not affected by humid gas and moisture, and absolutely does not need "regeneration" treatment, which cannot be achieved by ozone destroyers using catalysts, molecular sieves, activated carbon and other fillers.
Second, the necessity of dealing with ozone tail gas:
Due to the strong oxidizing properties of ozone gas, in addition to causing damage to some items, it will also pollute the environment, stimulate the human respiratory system, and be harmful to human health. Therefore, the ozone index in the air is restricted both at home and abroad. Our government stipulates that the ozone concentration in the air shall not exceed 0.2ppm in the workplace and 0.15ppm in the living place.

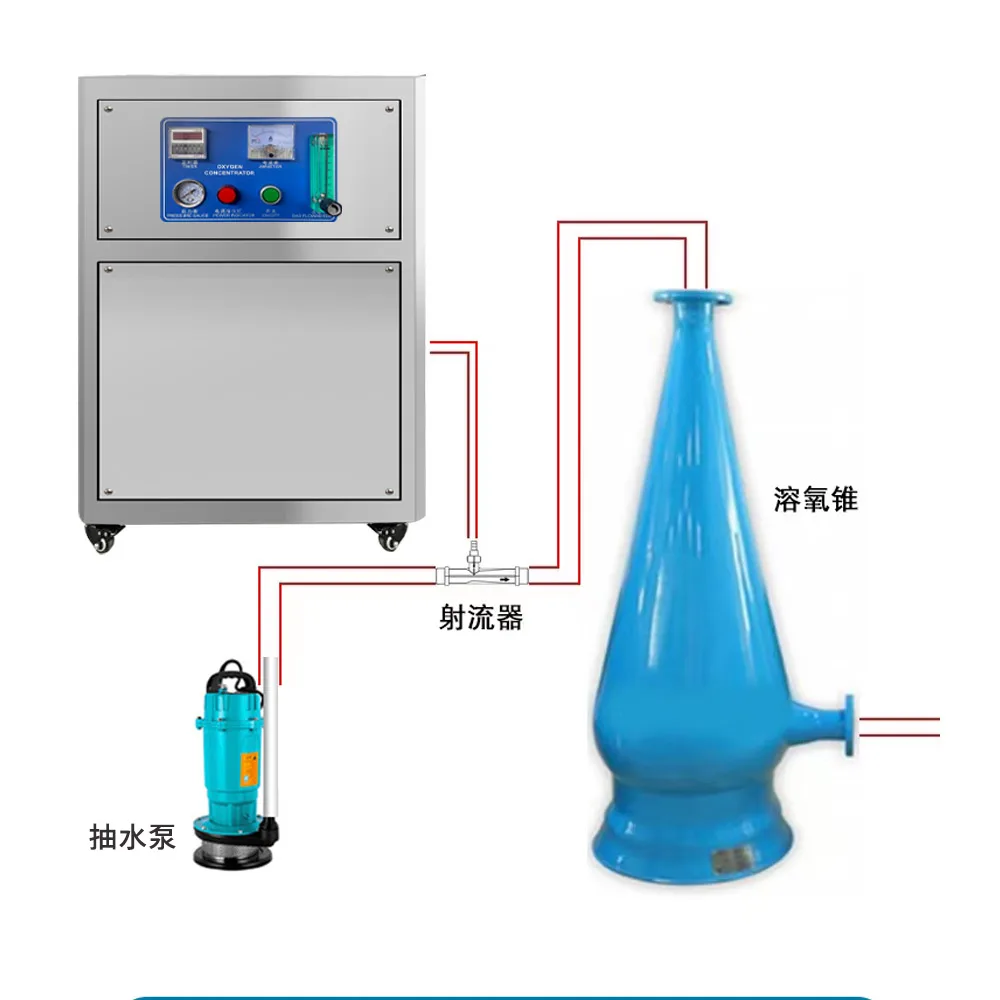

When using ozone to treat various types of water, such as drinking water, swimming pool water, and sewage, no matter which gas-liquid contact device is used, ozone gas will escape from the water and become ozone tail gas. If this part of ozone is directly discharged into the atmosphere or kept indoors, it will cause environmental pollution. In the above cases, it is necessary to use an ozone destroyer to treat the ozone tail gas, so that the residual ozone gas can be decomposed immediately, and then discharged into the atmosphere.
Scope of application of the product: Ozone escaping from water during water treatment, residual ozone in object disinfection cabinet/disinfection room, residual ozone after environmental disinfection, etc.
1. The ozone destroyer has the characteristics of small size, low power consumption, long life and good effect. The main purpose is to eliminate ozone tail gas. In actual use, the ozone tail gas treated by this product fully complies with the air pollution indicators stipulated by the state. At the same time, the effect of this product on treating ozone tail gas is not affected by humid gas and moisture, and absolutely does not need "regeneration" treatment, which cannot be achieved by ozone destroyers using catalysts, molecular sieves, activated carbon and other fillers.
Second, the necessity of dealing with ozone tail gas:
Due to the strong oxidizing properties of ozone gas, in addition to causing damage to some items, it will also pollute the environment, stimulate the human respiratory system, and be harmful to human health. Therefore, the ozone index in the air is restricted both at home and abroad. Our government stipulates that the ozone concentration in the air shall not exceed 0.2ppm in the workplace and 0.15ppm in the living place.
When using ozone to treat various types of water, such as drinking water, swimming pool water, and sewage, no matter which gas-liquid contact device is used, ozone gas will escape from the water and become ozone tail gas. If this part of ozone is directly discharged into the atmosphere or kept indoors, it will cause environmental pollution. In the above cases, it is necessary to use an ozone destroyer to treat the ozone tail gas, so that the residual ozone gas can be decomposed immediately, and then discharged into the atmosphere.
Scope of application of the product: Ozone escaping from water during water treatment, residual ozone in object disinfection cabinet/disinfection room, residual ozone after environmental disinfection, etc.
