Product Overview

Description



Products Description

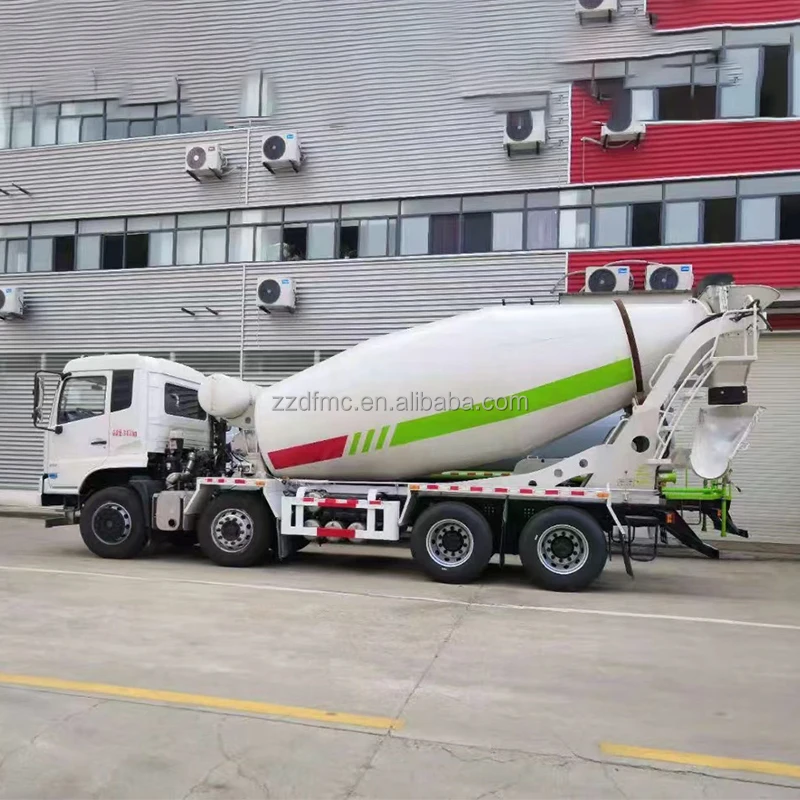

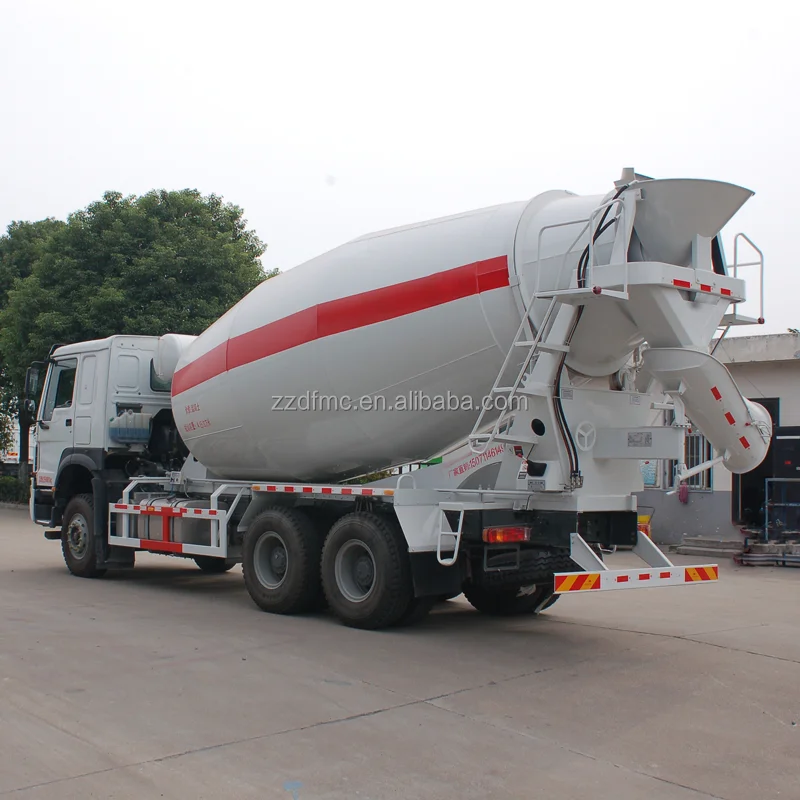

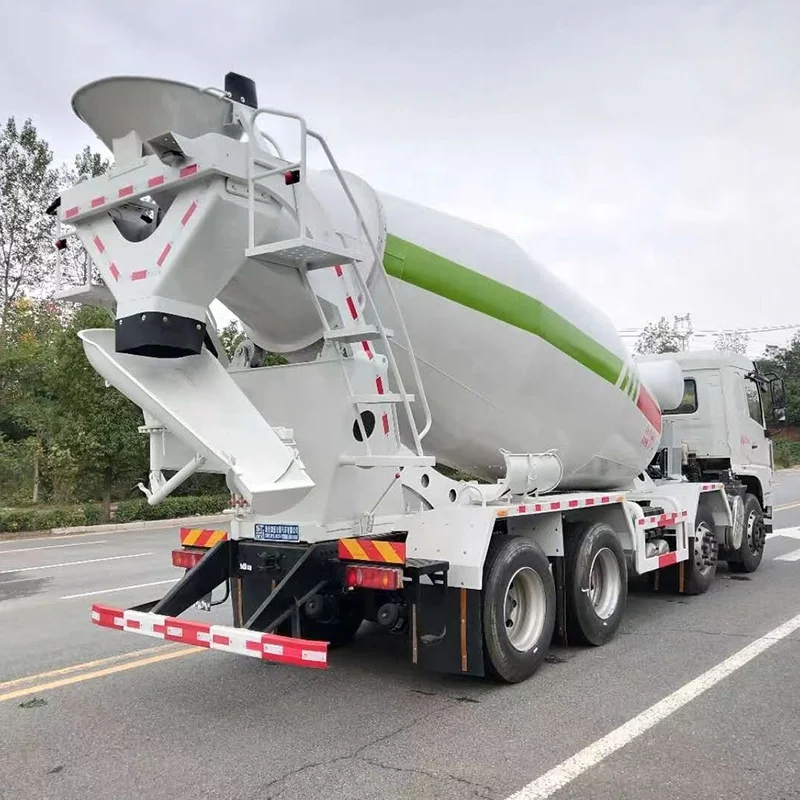

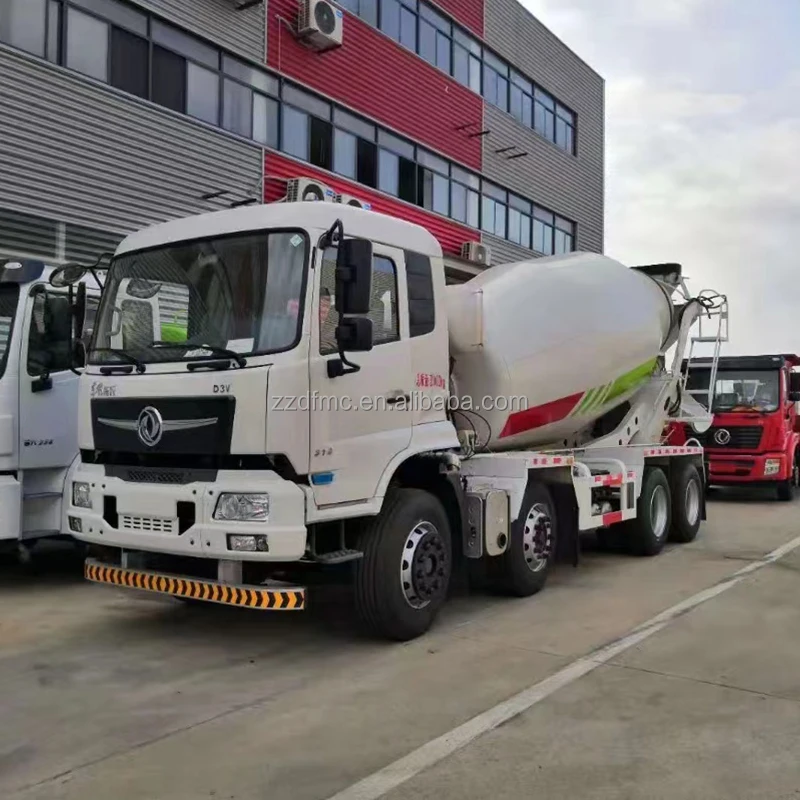

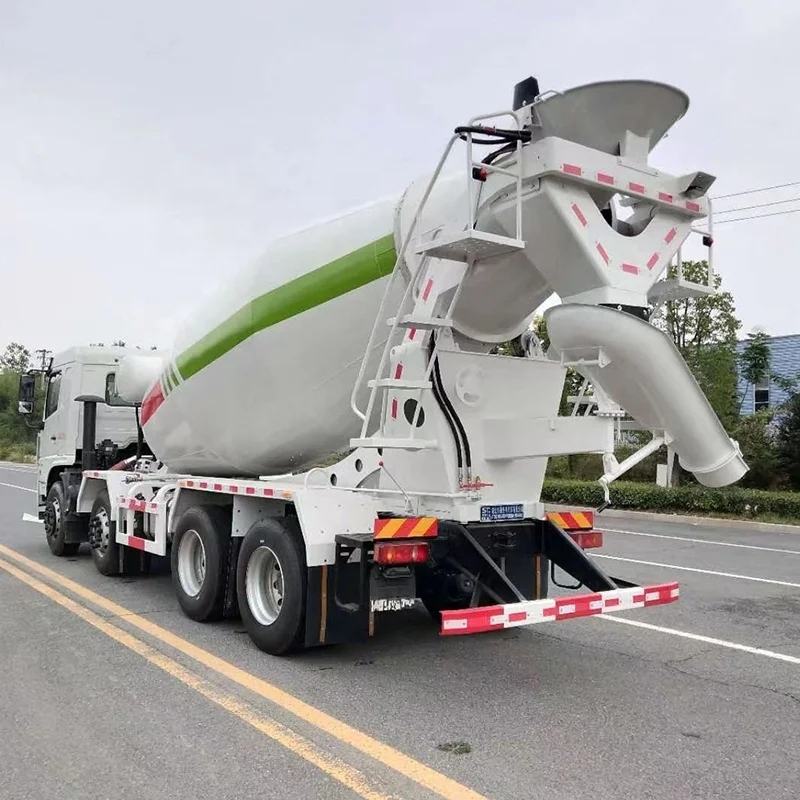

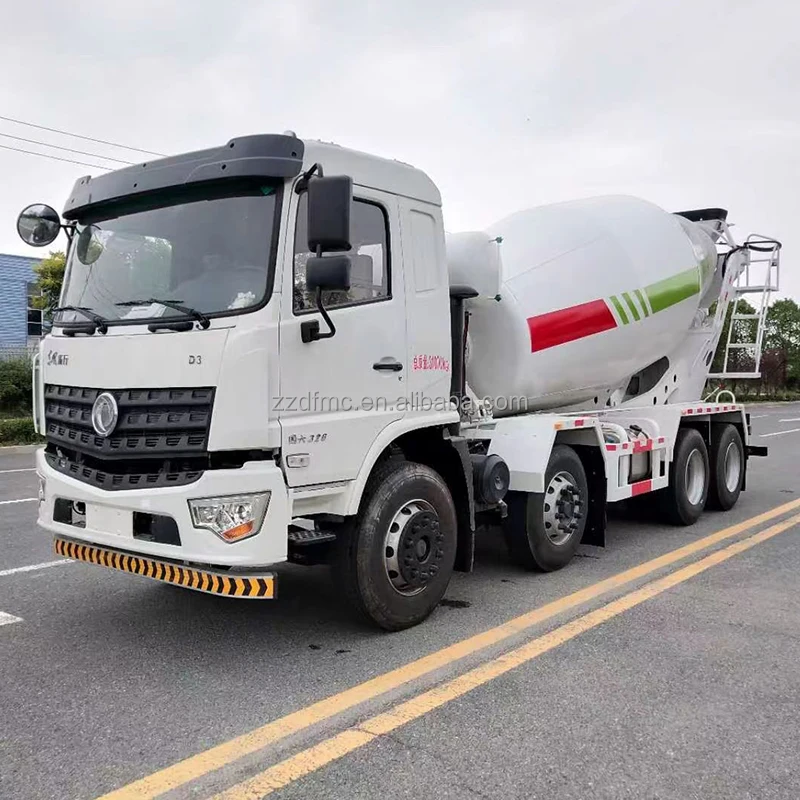

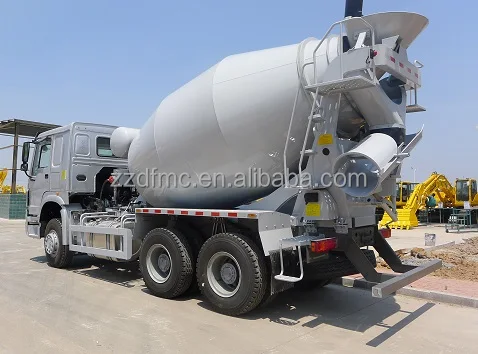

8x4 Dongfeng Concrete Mixer Truck

The special purpose vehicle to keep mixing the concrete while transporting the concrete or in the construction site to
maintain the concrete consistent.

Truck Chassis Brand :Dongfeng  or can be optional

 Mixer Drum volume: 12-16 CBM

Engine : Cummins  Engine

Emission Standard : EURO III

Transmission:Manual gear box, 10 forward + 1 reverse





Details Images








Product Paramenters


Item
Unit
Description
Model
DongFeng brand Concrete Mixer Truck
Dimension
mm
10200*2550*3990
Mixer drum
m3
12 m3 valid mixer drum
Curb Weight
kg
13565
Wheel Base
mm
1850 +3200 +1350
Ground Clearance
mm
450
F/R track base
mm
2040 / 2040 /1850 / 1850
F/R Axled-Load
Kg
5000 / 5000 / 22000 / 22000
Approach/Departure angle
.
20 / 14
Tire Specification
Model
12.00R20, 12 +1 Spare Unit
Traction system
Type
6*4
Max speed
Km/h
89
Engine
Model
CUMMINS ENGINE
Emission/Kw
11120 cc, 309 Kw / 1800 r
Horse Power
375 Hp
Power
2000 N.m - 1000~1400 r/min
Type
Diesel, 6 cylinder, turbocharge, Inter-cooling
Brand
Dongfeng Cummins Engine Power Co.,Ltd
Standard
Euro 0
Gearbox
model
12F&2R, Manual, 12JSD200TA OD
Brand
Fast Brand
Electric system
V
24
Cab
Person
2
Type
Reversable, Manual
Steering
Powering , LHD or RHD
Installing


Truck Details Introduction

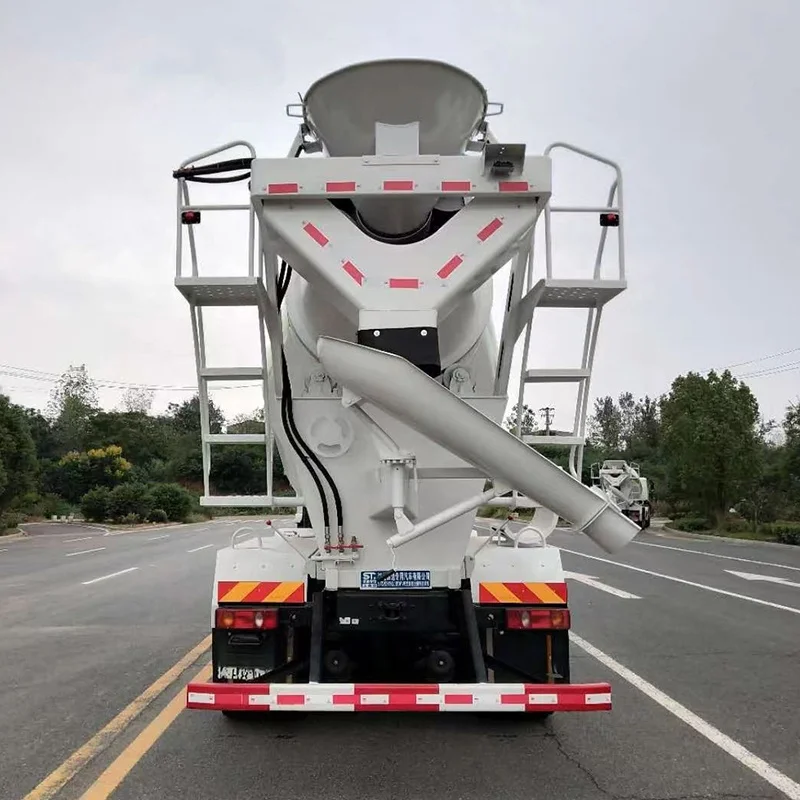

Mixer Tanker Body details 1.
The mixing tank body is made of high strength wear-resistant steel plate, cage type mold are integrally formed to ensure that the flange, sections of the cylinder body and rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.
The tank body adopts the double helix blade, moderate density and taper before the gateball symmetric stirring plate and tank mouth at the installation of blades and a material guide vanes, resorted to materials to be more even faster. Our mixer truck using import hydraulic system, such as America Pump and motor, Italy brand reducer. Easy to repair and maintainance.


Thickness
End plate
6mm in high tensile strength steel
Mixer body
6mm in high tensile strength steel
Mixer body Volume
M3
10M3

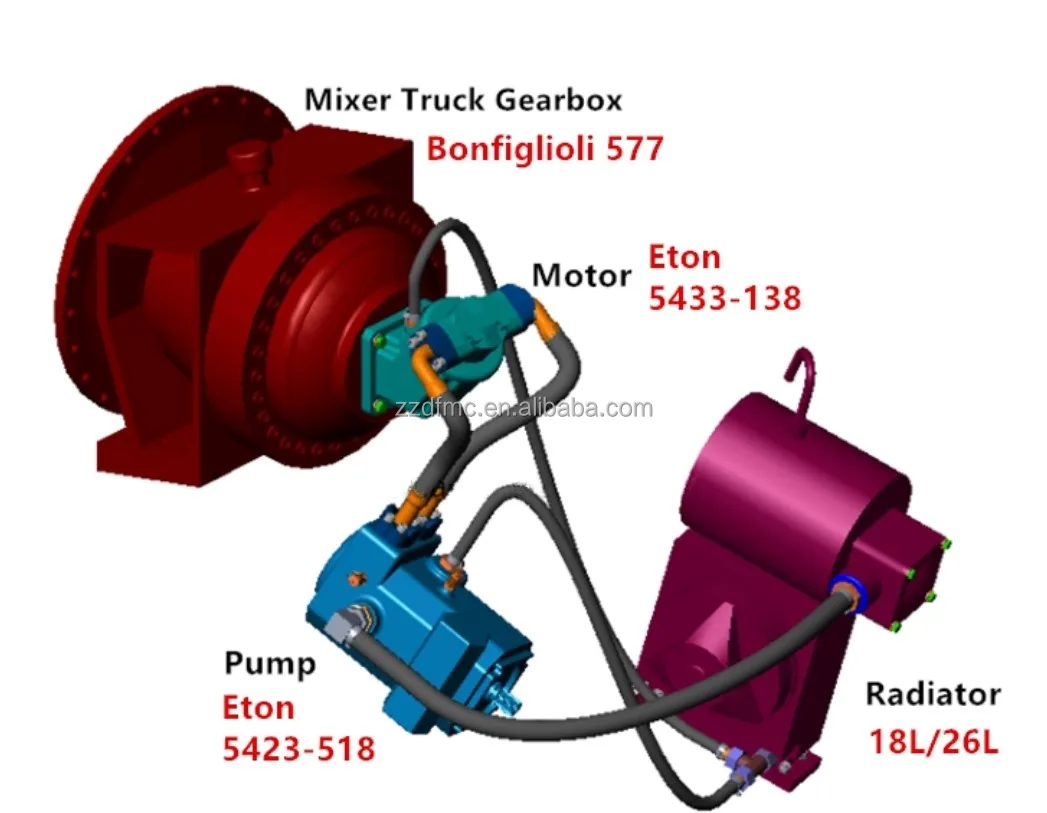

Hydraulics
Motor
ETON brand
Gear box
BONFIGLIOLI Brand
Pump
ETON brand


Tanker Body details 2
The mixing tank body is made of high strength wear-resistant steel plate, cage type mold are integrally formed to ensure that the
flange, sections of the cylinder body and rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.
The tank body adopts the double helix blade, moderate density and taper before the gateball symmetric stirring plate and tank
mouth at the installation of blades and a material guide vanes, resorted to materials to be more even faster. Our mixer truck
using import hydraulic system, such as America Pump and motor, Italy brand reducer. Easy to repair and maintainance.

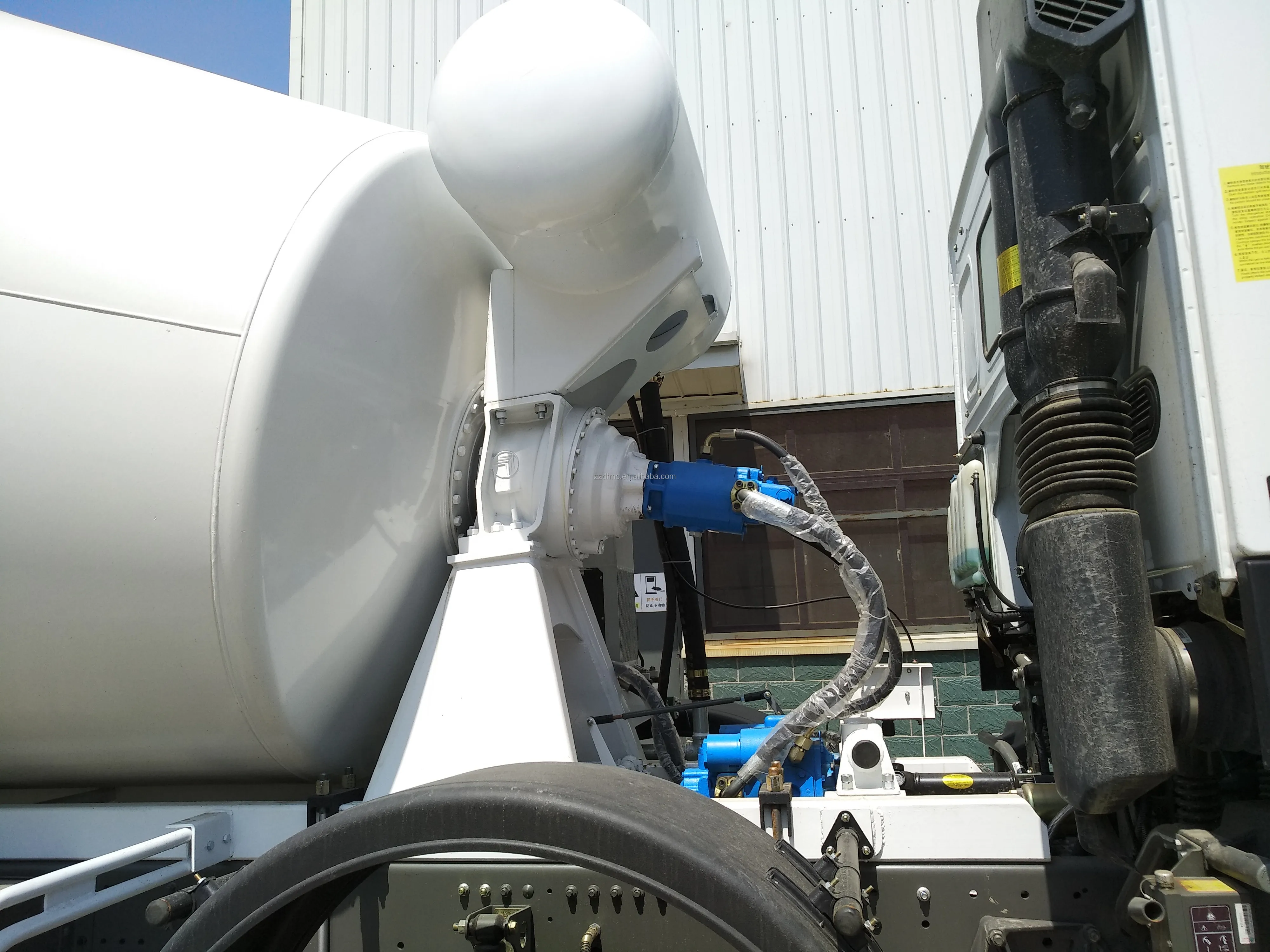

Pump System
