WB-4B Automatic High Speed Mattress Tape Edge Machine
Technical characteristics

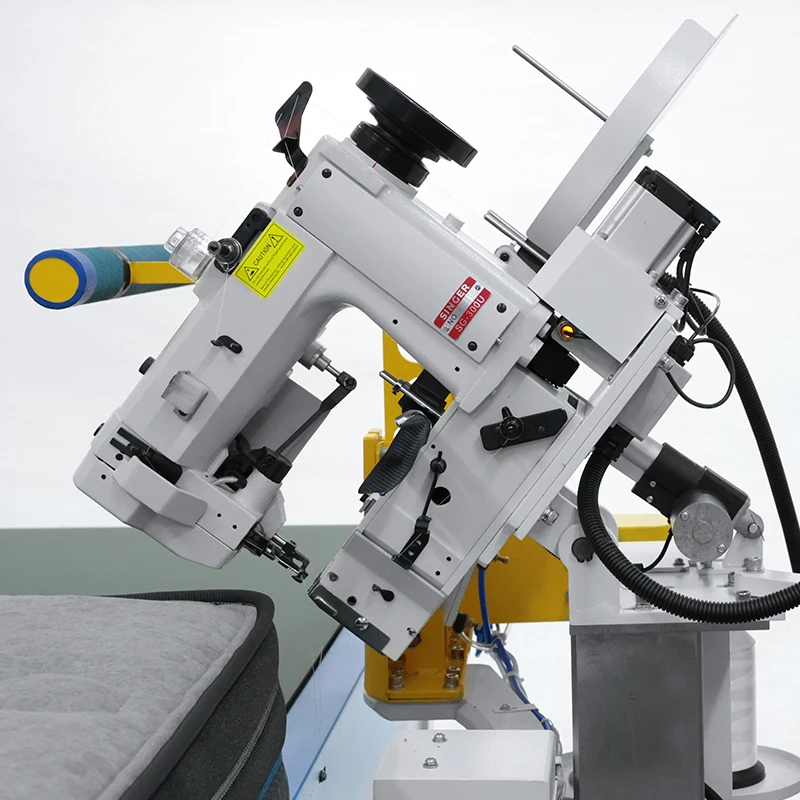

1.The head can move up and down to adapt to different height of mattress. The obliquity of the head is adjustable.

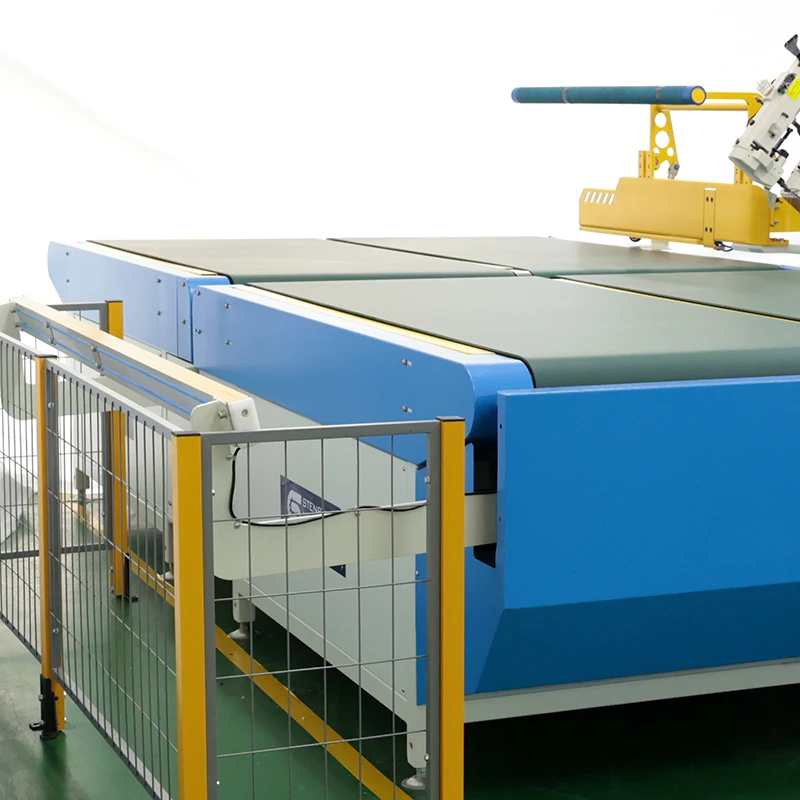

2.When working, the conveying belt drives the mattress to proceed, When one side is finished, the machine can swerve
90°automatically to start taping another side. The taping of the corner is finished while swerving.

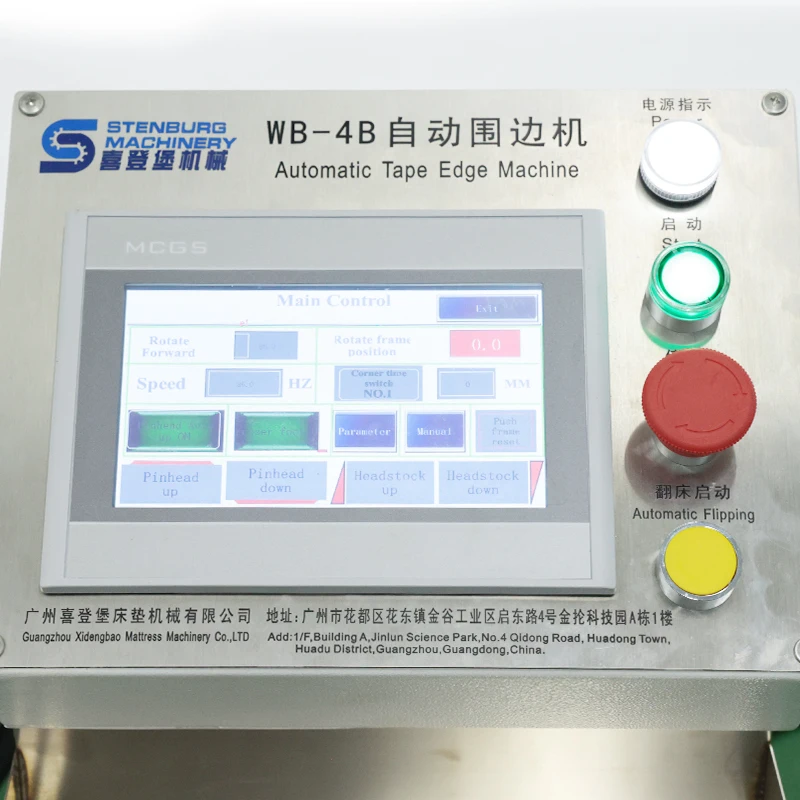

3.Adopt PLC program control and artificial intelligence operation
4.When the top four sides are completed, the machine can overturn the mattress for taping the other four sides.
5. The operator remains in a stationary sewing position while wide controlled conveyor belts move the mattress. The patented
compression and turning devices built into the machine bring the mattress to the sewing head.
6.This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher
efficiency and less labor is realized.


Productivity
18 pcs/h
Mattress thickness
45-450mm
Table lifting range
140mm
Table size
2000*1600mm
Sewing thickness range of mattress
50-300mm, 150-400mm, 250-500mm
Machine size
2380×1400×1650mm
Motor type
3-Phase, 220V/380V, 50-60HZ(can be customized)
Total power
3KW
Weight
300KGS
