Китайский поставщик, небольшое оборудование для производства леденцов, самая популярная линия производства конфет, формовочная машина для леденцов
- Category: Food & Beverage Machinery >>>
- Supplier: Shanghai Target Industry Co. Ltd.
Share on (1600820668468):
Product Overview
Description
GDB series Complete Lollipop Depositing Line with PLC control
Call us for your private proposal
whatsApp:+86 189 1813 6817
Product Description

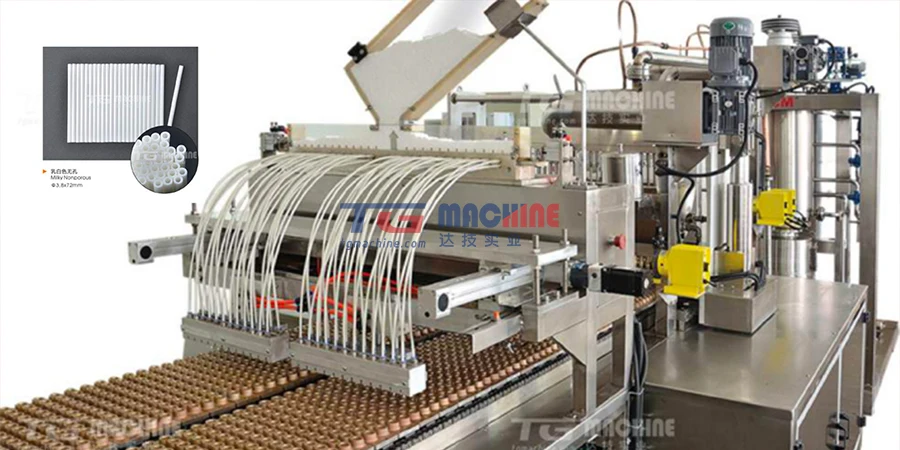

GD150B/300B/450B/600B/1200B Automatic Lollipop Depositing Line
This production line for lollipop candy the whole production line 22meters at length, and only 1000pcs moulds required for this line.
The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies. It is an idealequipment which can produce out good quality products with the saving of both the manpower and the space occupied.
model | GD150B | GD300B | GD450B | GD600B | GD1200B |
capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h | 1200kg/h |
Total length | 17m | 19m | 19m | 22m | 40m |
weight | 4000kg | 5000kg | 6000kg | 7000kg | 12000kg |

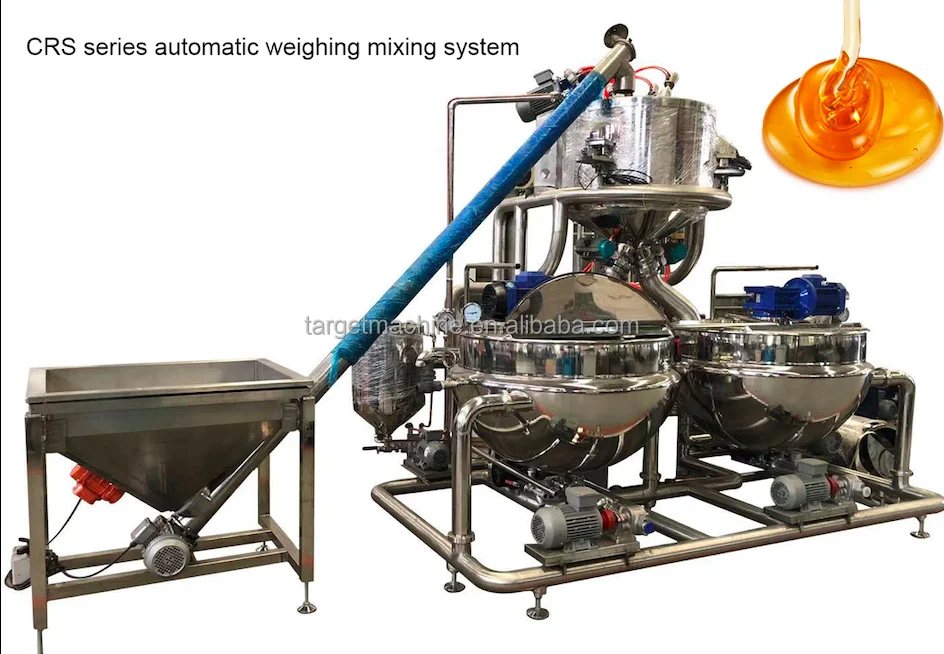

Automatic weighing and mixing system
Weighs and mixes up to dry and liquid confectionery ingredients into a homogeneous slurry. Individual ingredients are fed via a weigh hopper into the mixer and mixed during the fill cycle to produce a consistent slurry. Batches are fed from the Auto feed mixing tank to two reservoir tanks to facilitate a continuous feed to the cooker.
Weighs and mixes up to dry and liquid confectionery ingredients into a homogeneous slurry. Individual ingredients are fed via a weigh hopper into the mixer and mixed during the fill cycle to produce a consistent slurry. Batches are fed from the Auto feed mixing tank to two reservoir tanks to facilitate a continuous feed to the cooker.

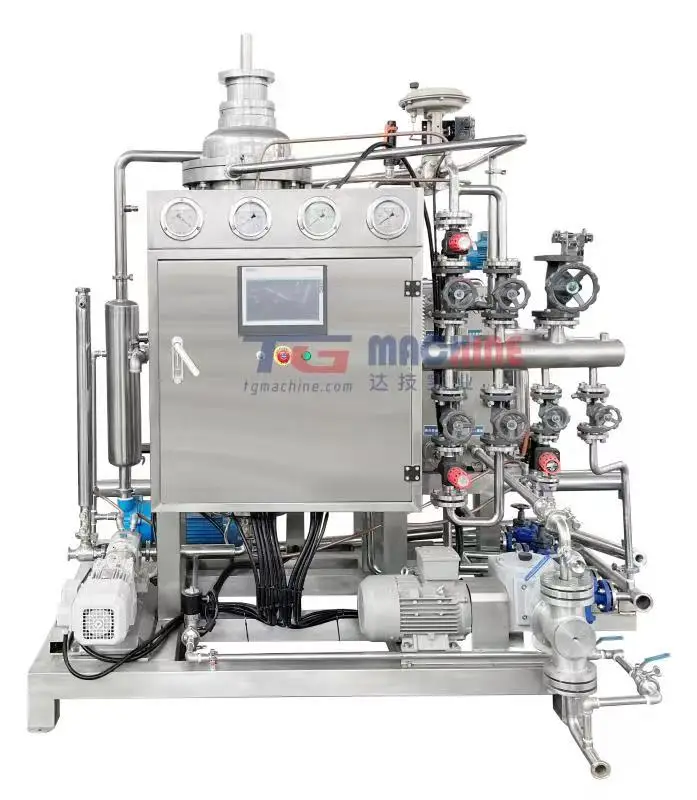

Micro-film cooker
VCC1200 vacuum micro-film cooker is composed of one set of syrup dosing pump, one set of preheating equipment, two sets of vacuum micro-film evaporator, two groups of vacuum pumps with water circulation system, two sets of unloading pumps and some other devices like temperature and pressure gauges and electrical control box and so on. All of the parts and devices are installed on the same frame and connected through a variety of pipes and valves. The unit features high yield,
good quality of syrup, high transparency and easy operation, etc.
Capacity:1200kg/h
Steam Consumption:1000kg/h
Dimensions:2400*2000*2400mm
good quality of syrup, high transparency and easy operation, etc.
Capacity:1200kg/h
Steam Consumption:1000kg/h
Dimensions:2400*2000*2400mm

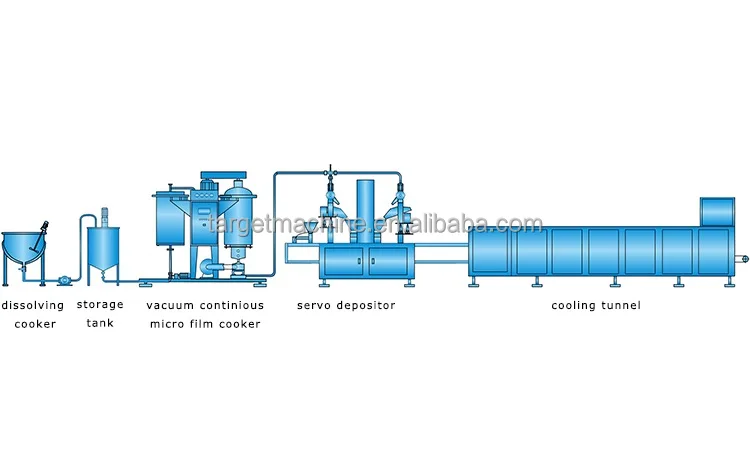

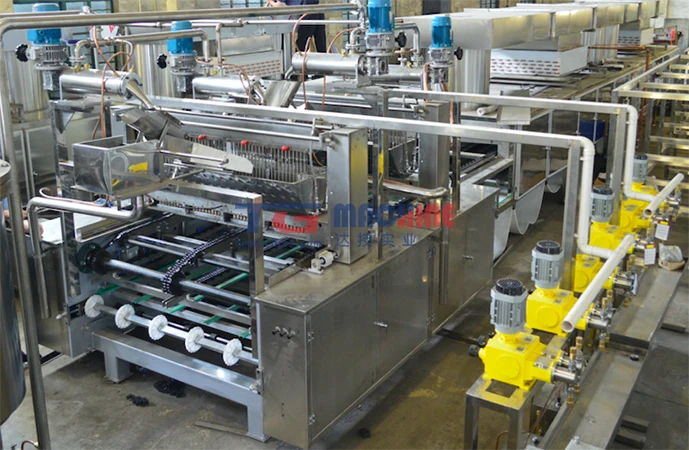

The processing line is a compact unit which can continuously produce various kinds of lollipop under a
strict sanitary condition. It is also an ideal equipment which can produce good-quality products by saving the manpower and reducing the space occupied.
* PLC /computer process control available;
* An LED touch panel for easy operating;
* The standard production capacity is from 150kg/h to 600kg/h;
* The main parts are made of hygienic Stainless Steel;
* Mass flowing controlled by Frequency inverters ;
* In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
* Dosing pumps for the automatic injection of colors, flavors and acids;
* Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
* “two-color stripe depositing”, “two–color double layers depositing”, “central filling”, “clear” lollipop and etc. can be made;
* Moulds can be customized.
strict sanitary condition. It is also an ideal equipment which can produce good-quality products by saving the manpower and reducing the space occupied.
* PLC /computer process control available;
* An LED touch panel for easy operating;
* The standard production capacity is from 150kg/h to 600kg/h;
* The main parts are made of hygienic Stainless Steel;
* Mass flowing controlled by Frequency inverters ;
* In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
* Dosing pumps for the automatic injection of colors, flavors and acids;
* Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
* “two-color stripe depositing”, “two–color double layers depositing”, “central filling”, “clear” lollipop and etc. can be made;
* Moulds can be customized.

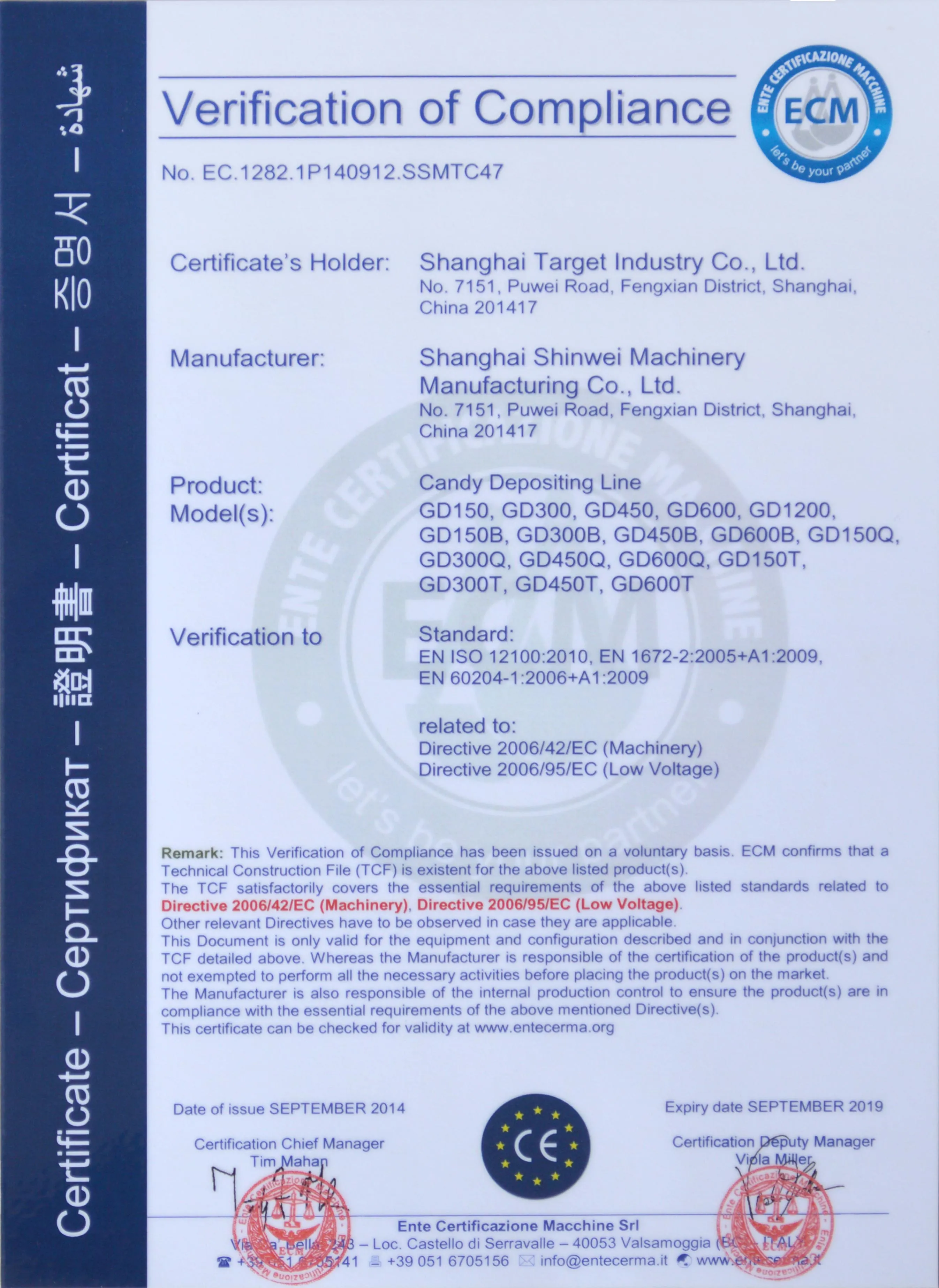

Certifications
Packing&Shipping
Wooden Case
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrapc. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrapc. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
After Sales Service
Our Services & Strength
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular
customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular
customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.

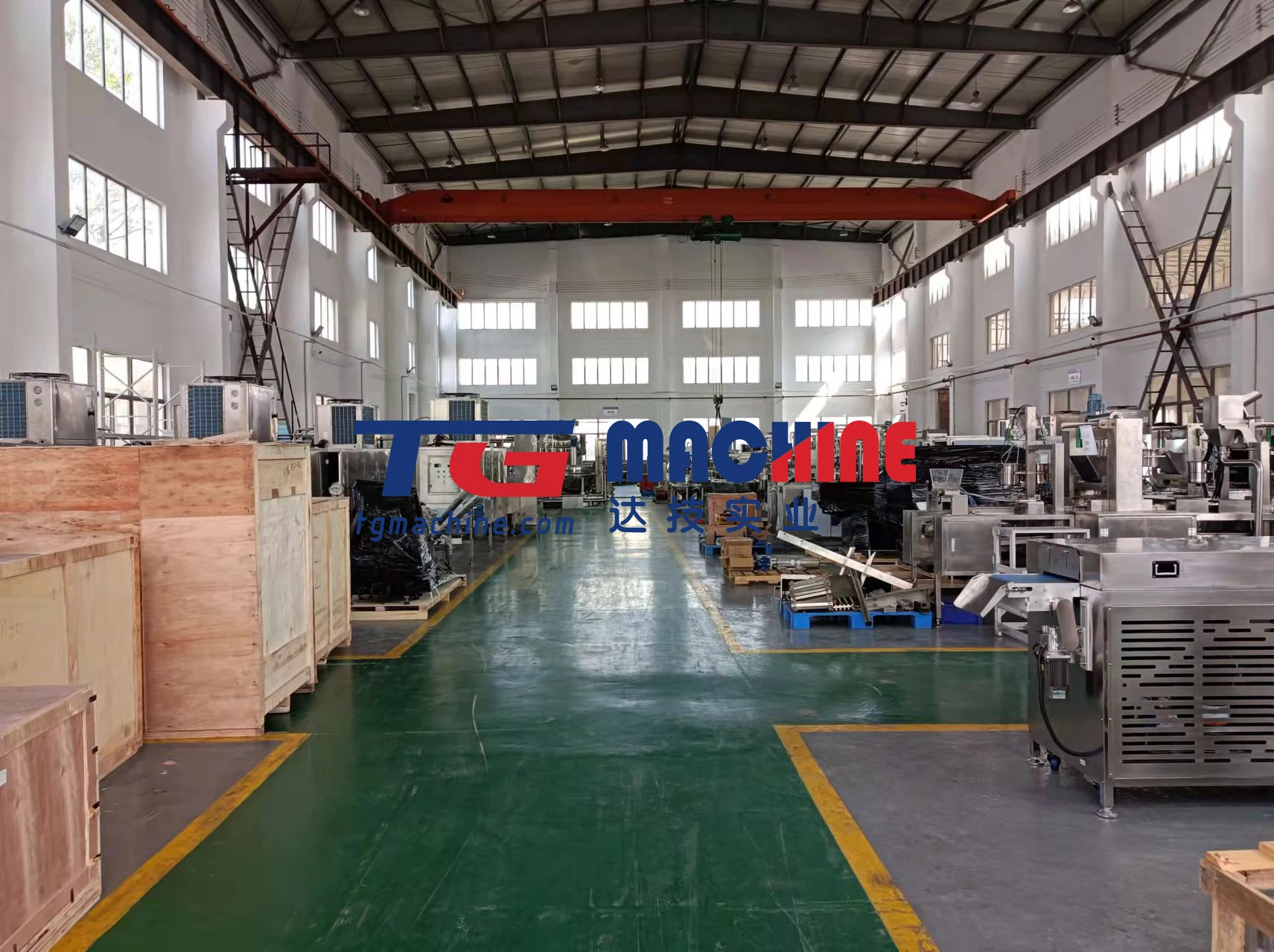

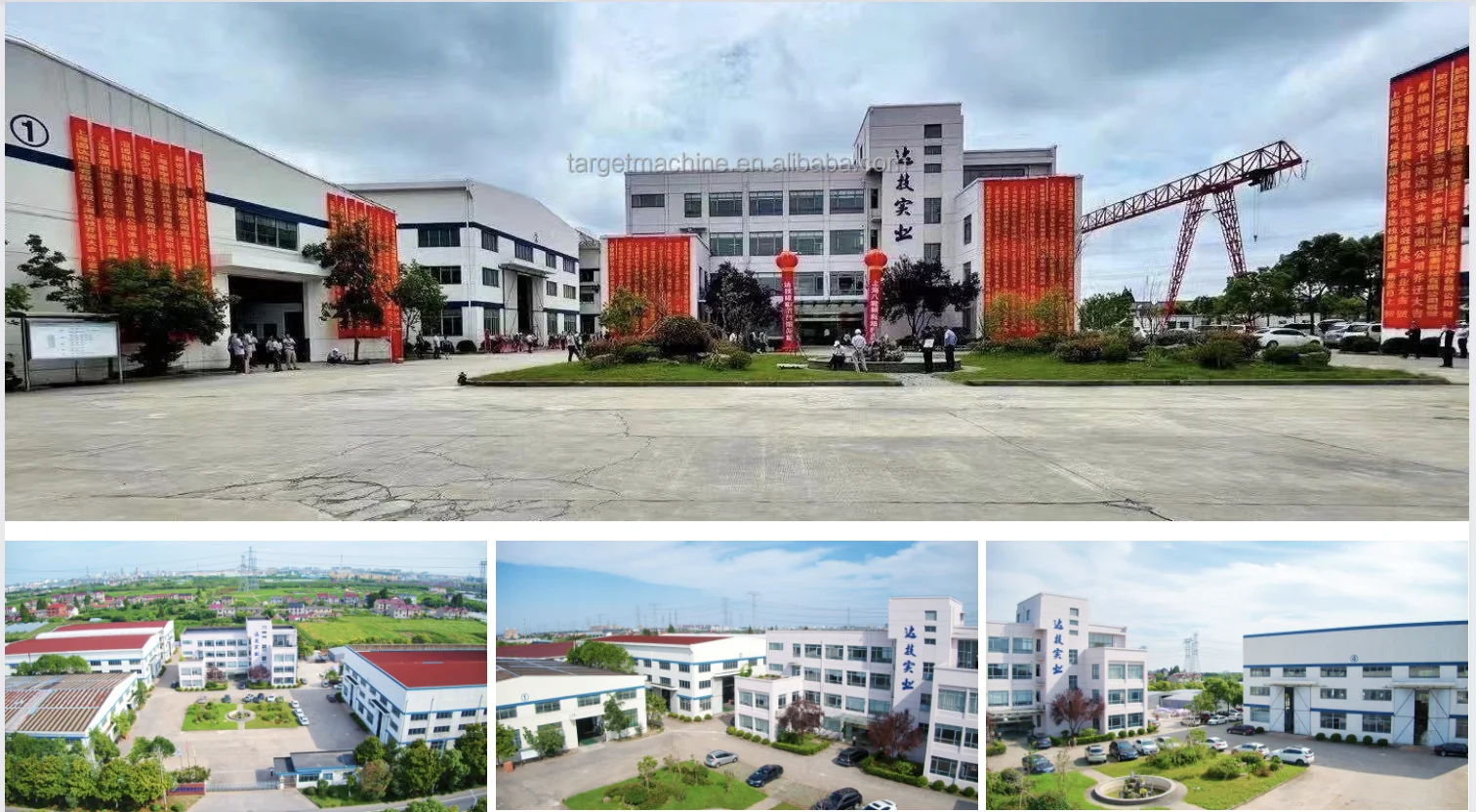

Company Introduction
Shanghai Target Industry Co., Ltd is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years’ fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.
As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry
offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.
As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry
offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.
