Concrete Pumping Delivery Cylinder/Material Cylinder for Putzmeister Concrete Pump Spare Parts Manufacturer Zhuzhou Jian Da
- Category: >>>
- Supplier: Zhuzhou Jian Da Co. Ltd.
Share on (1600820740637):
Product Overview
Description

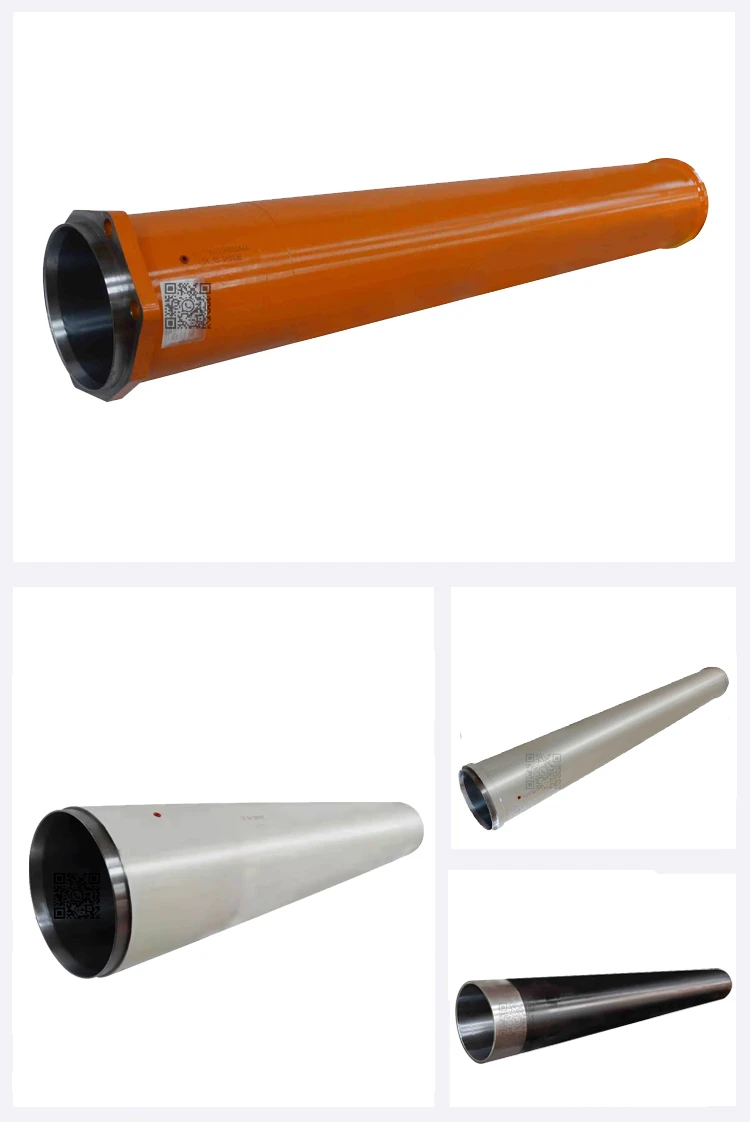

Concrete Pumping Delivery Cylinder/Material Cylinder for Putzmeister Concrete Pump Spare Parts Manufacturer Zhuzhou Jian Da
Product Overviews

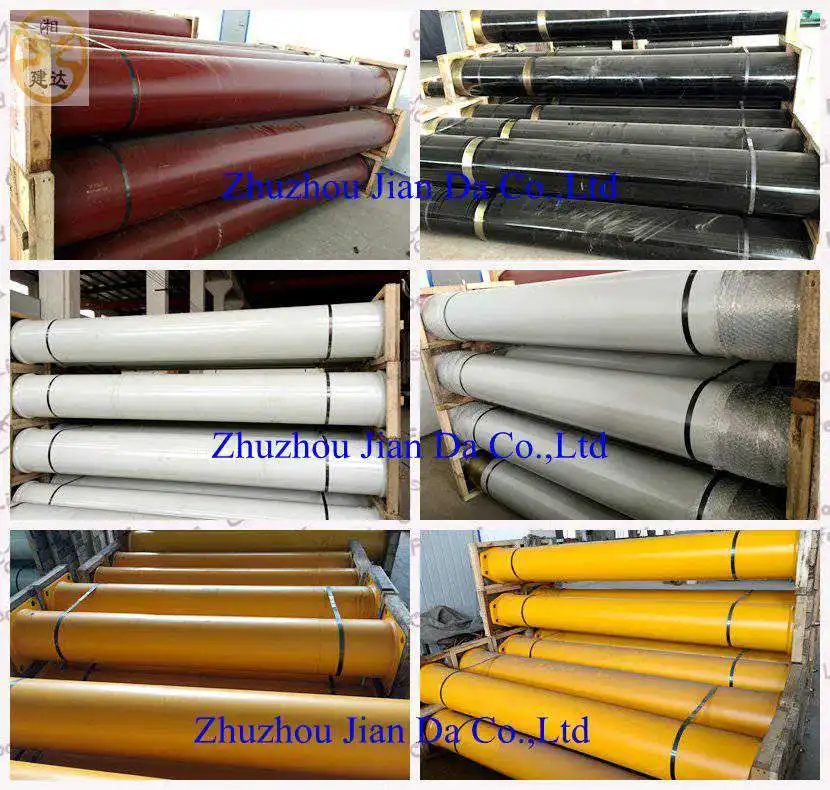

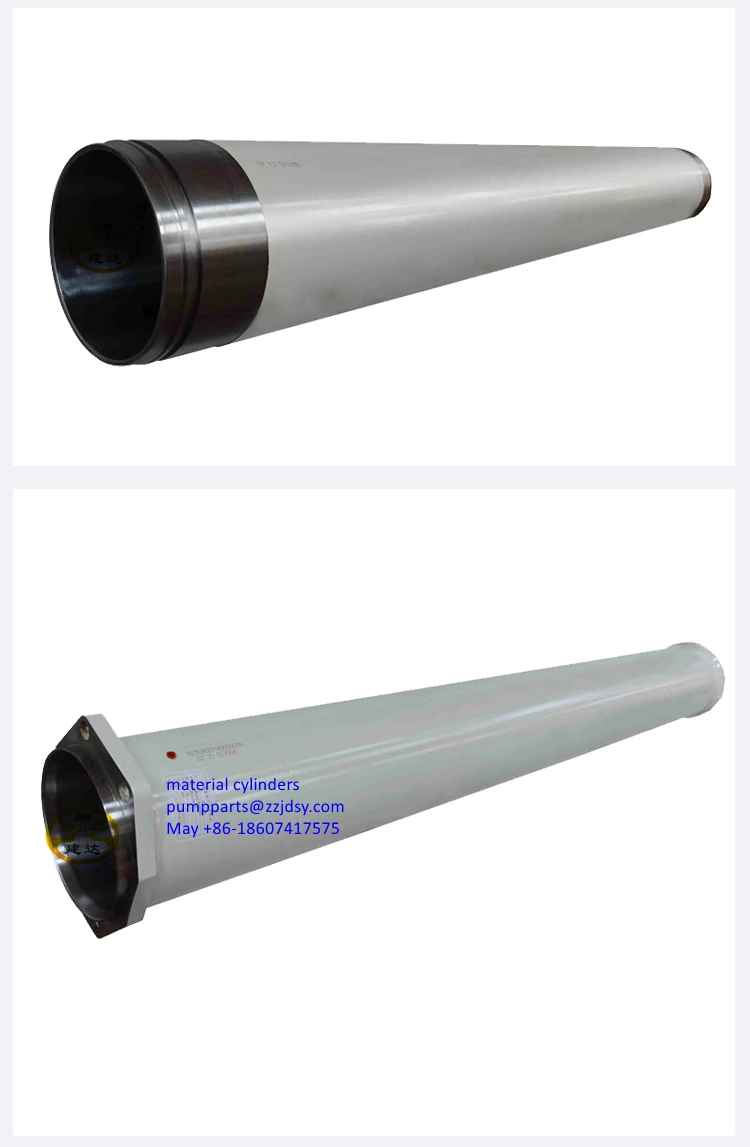

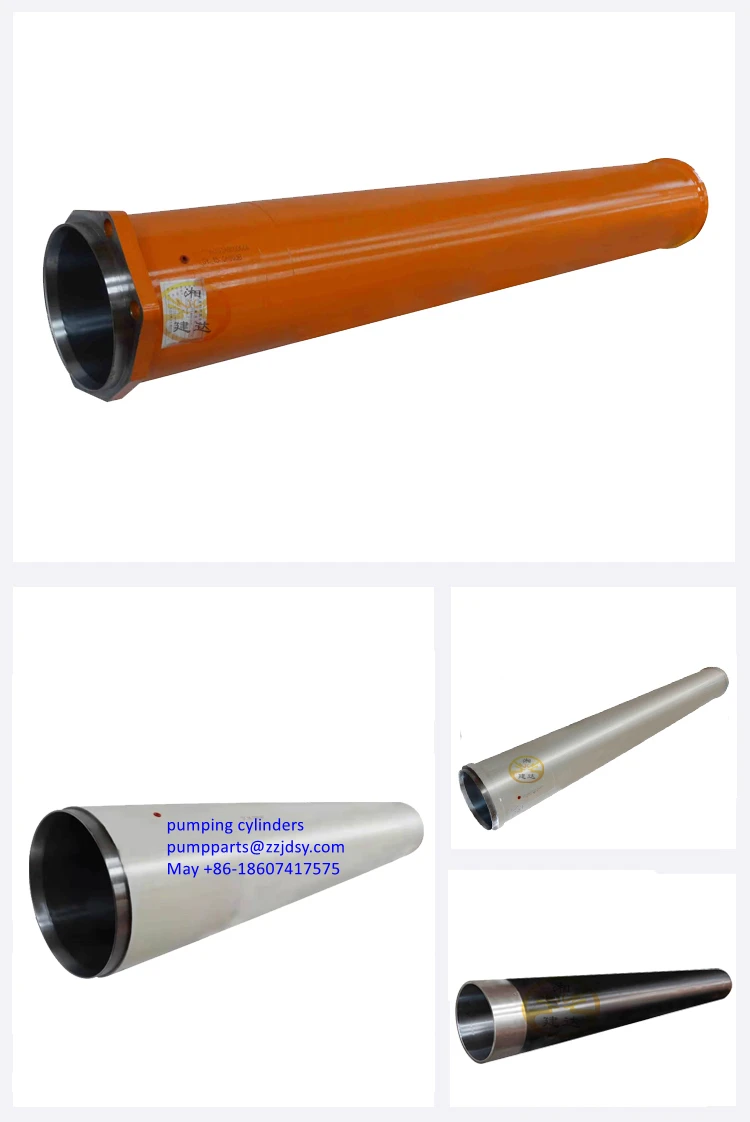

Concrete pumping material cylinders, delivery cylinders chromed plated liner with 1 year lifetime guarantee
ZHUZHOU JIAN DA CO.,LTD
| Product name | Material cylinder, concrete cylinder, mud cylinder, delivery cylinder, chrome plated liner |
| Material | #45 steel/ASTM1045/DIN C45 |
| Models | 5"-12"(DN125-DN300) |
| Application machines | Concrete pumps and shotcrete pumps of Putzmeister/Schwing/Sani/Zoomlion/Cifa/Sermac/Kyokuto/Kcp/Junjin/IHI/Mitsubishi/Niigata |
| Part numbers | 240112004, 274883008, 261520002, 081123003,088358004, 022051008 etc |
| Hardness | HV820-900 after tempered |
| Chrome thickness | 0.20-0.30mm as request |
| Pumping lifetime | 80,000-100,000 cbm(1 year guarantee) |
| Surface treatment | Painting to prevent rusted |
| Color | Any color you like |

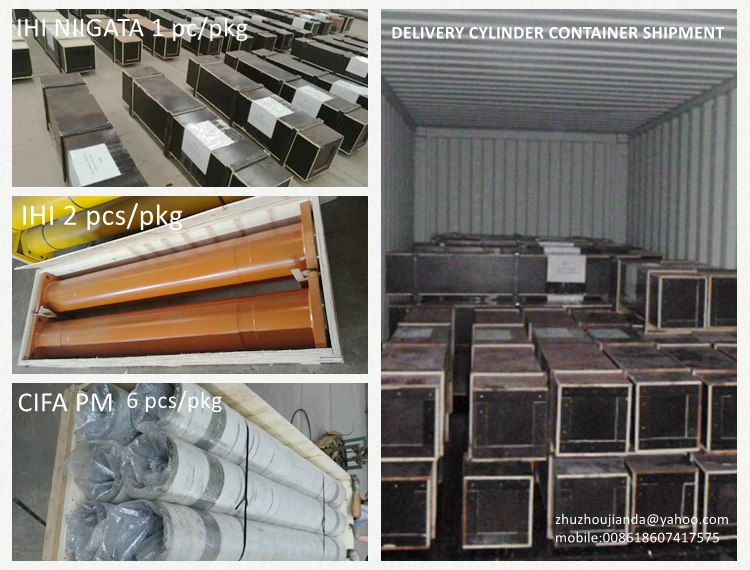

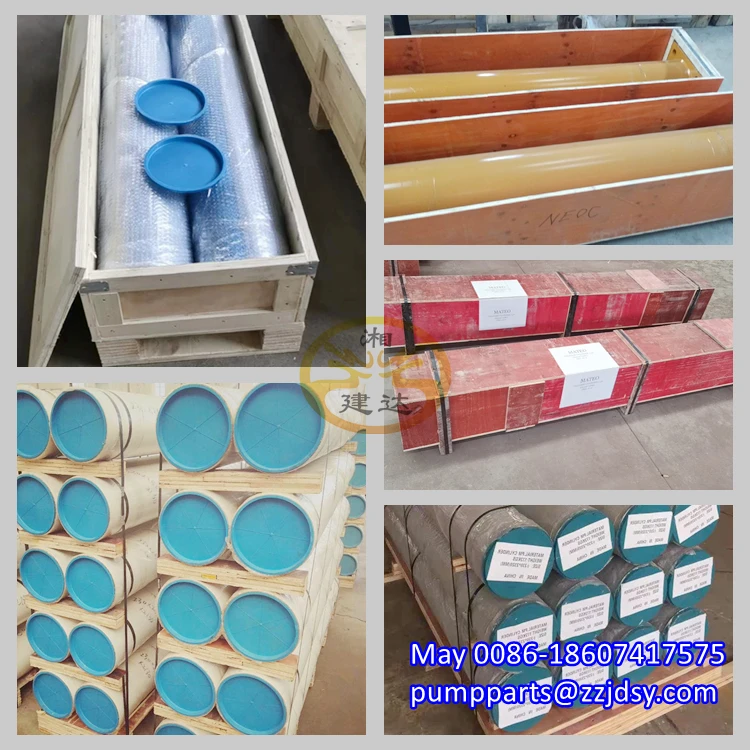

| Packing | Plywood case |
| Delivery time | 7-15 days depending on specification and qty |
| Contact | May +86-18607417575 |
Reference specifications for the concrete cylinders/material cylinders/delivery cylinders
| Brand | Inner diameter | Stroke/Length(mm) |
| Putzmeister | 150mm(6 inch) | 700/1000 |
| Putzmeister | 180mm(7 inch) | 700/1000/2100 |
| Putzmeister/Kcp/Junjin | 200mm(8 inch) | 700/1000/1400/2100 |
| Putzmeister/Kcp/Junjin | 230mm(9 inch) | 700/1400/2100 |
| Putzmeister/Kcp/Junjin | 250mm(10 inch) | 2100/2500 |
| Putzmeister/Kcp/Junjin | 280mm | 2200mm |
| Schwing | 125mm(5 inch) | |
| Schwing | 150mm(6 inch) | |
| Schwing | 180mm(7 inch) | 1000/1200/1400/1600/2000 |
| Schwing | 200mm(8 inch) | 1600/2000 |
| Schwing | 230mm(9 inch) | 1000/2000 |
| Schwing | 250mm(10 inch) | 2000/2500 |
| Cifa | 180mm(7 inch) | 1000 |
| Cifa | 200mm(8 inch) | 1000/1500 |
| Cifa | 230mm(9 inch) | 2000 |
| Sermac | 230mm(9 inch) | 2000 |
| Sani | 200mm | 1400/1600/1800 |
| Sani | 230mm | 1600/1800/2000 |
| Sani | 260mm | 1900/2000/2100/2200 |
| Zoomlion | 200mm | 1400/1600/1800 |
| Zoomlion | 230mm | 1600/2100 |
| Zoomlion | 260mm | 2100 |
| Kyokuto | 205mm(8B) | 1228/1768/1840/2218 |
| Kyokuto | 225mm(9B) | 1768/1840/2218 |
| IHI | 205mm | 1537/1737/1700 |
| IHI | 220mm | 1700/1900/2302 |
| Mitsubishi | 205mm | 1390/1938/2190 |
| Niigata | 210mm | 1230/1730/1930 |
| Niigata | 220mm | 2330 |
Related Products
Putzmeister concrete pump spare parts manufacturer:
1.S valve unit: spectacle wear plate, wear ring, s pipe, wear sleeve, upper housing, outer housing, wear sleeve
2. Driving unit: swing lever, ball socket, plunger cylinder, securing plate
3. Agitator unit: mixer shaft, mixer blade, bearing flange assembly, agitator motor
4. Hopper unit: hopper, grill, slide
5. Pumping unit: delivery cylinder, intermediate ring, piston seals and piston rams, flange, hydraulic cylinder, water tank
5. Pipelines: pipe, elbow, reducer, rubber hose, clamp coupling, sponge ball, rubber gasket, u bolt
6. Others: hydraulic valve, remote controller, jhydraulic filter element, bladder, seal kits etc
Company Information
Packaging & Shipping
FAQ
Our Services
We manufacture & supply concrete pump spare parts for:
1.S valve concrete pumps adaptable to Putzmeister, Kcp, Junjin, Everdigm, Sermac, Cifa, Sani, Zoomlion, Kyokuto, Jacon etc
2.Rock valve concrete pumps adaptable to Schwing
3.Sliding gate valve concrete pumps adaptable to IHI, Sani, Zoomlion
