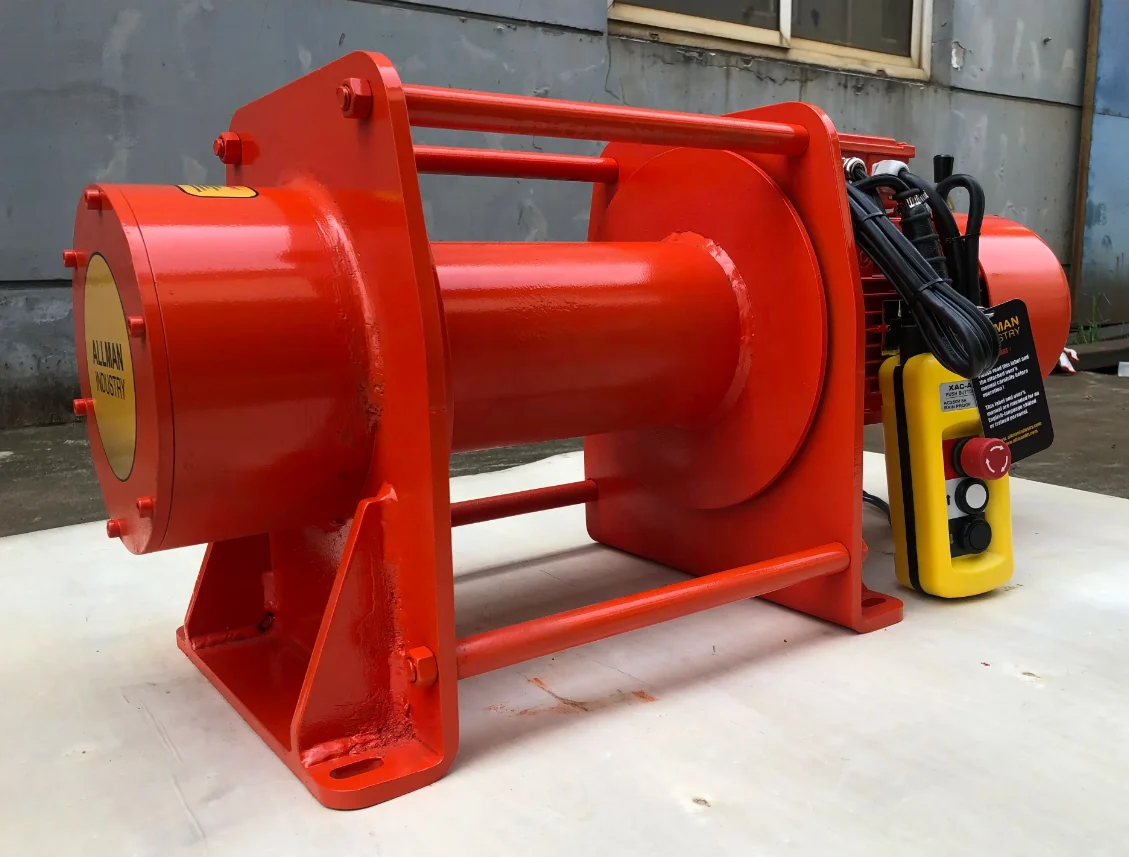

New Design 2 ton 220V 3phase Heavy Duty Wire Rope Electric Winch
- Category: Winches >>>
- Supplier: Toptech Machinery Wuxi Co. Ltd.
Share on (1600822845399):
Product Overview
Description
Products Description

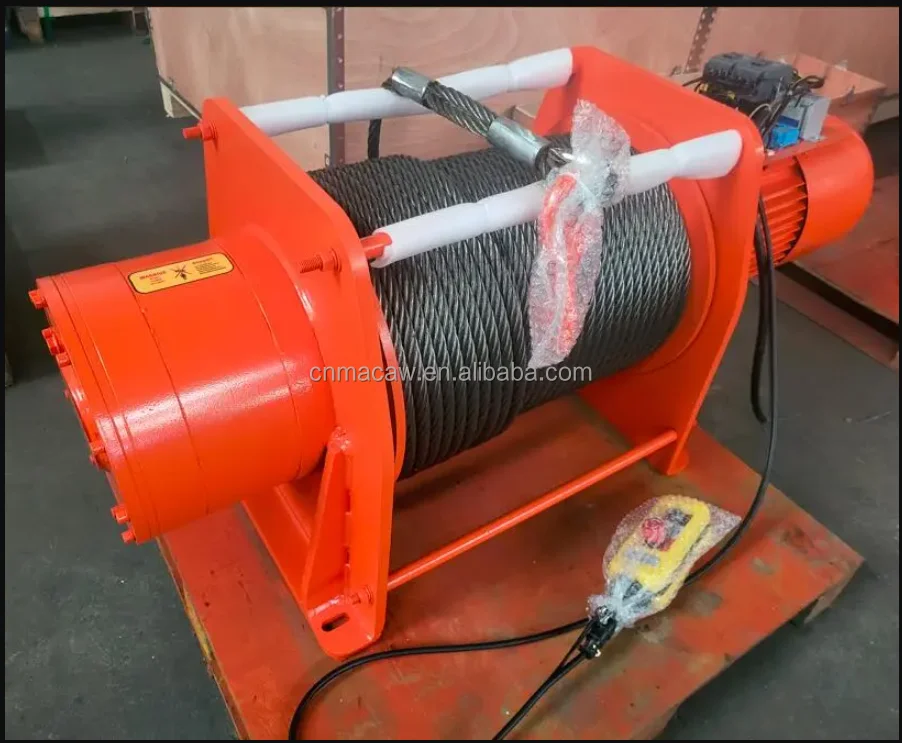

Multi-function electric hoist, electric winch
Winch is a light and small hoisting equipment, which is used to hoist or pull heavy objects by winding steel wire rope or chain with winding drum, also known as winch. The winch can lift vertically, horizontally or obliquely. It can be used alone or as a component of hoisting, road building, mine hoisting and other machinery. It is widely used because of its simple operation, large amount of rope winding and convenient displacement. Mainly used in building, water conservancy engineering, forestry, mining, wharf and other materials lift or level drag.
Product Information
Product Name | Industrial Electric Power Winch for Sale |
Brand | MACAW |
Model | 500E , 1000E , 2000E , 3000E , 5000E |
Capacity | 500kg , 1Ton , 2Ton , 3Ton, 5Ton |
Power Supply | 220V - 480v , 3 Phase , 50/60Hz |
Control Voltage | 24V |
Cable Length | standard 60m , 100m , can be customized |
Winch Motor | Chinese brand , 2 years warranty |
Wire Rope | Ungalvanized , high strength |
Hook | Forged and heat treated , with safty latch |
Gears | CNC machined with high precise , superior quality alloy and heat treated . |
Winch Installation | installation mounting plate with holes |
Certificate | CE |
Technical Paramenters
Rated Capacity (Kg) | Rated Speed (min/m) | Motor (Kw) | Pole | Phase | Voltage (v) | Frequency (Hz) | Work Level | Rope Diameter (mm) | Wire Rope Capacity (M) |
500 | 13~19 | 1.5 | 4 | 3 | 220-480 | 50/60 | M4 | 9 | 60 |
1000 | 13~19 | 3.0 | 4 | 3 | 220-480 | 50/60 | M4 | 10 | 60 |
2000 | 8~14 | 5.5 | 4 | 3 | 220-480 | 50/60 | M4 | 13 | 100 |
3000 | 8~14 | 7.5 | 4 | 3 | 220-480 | 50/60 | M4 | 16 | 100 |
5000 | 8~14 | 15 | 4 | 3 | 220-480 | 50/60 | M4 | 20 | 100 |
Recommend Products
Feature
* Electric winch mounting plate : using welded channel steel , with fixed holes , very easy for the wire rope winch
installation.
installation.
* Winch frame structure and gear box : using high quality ductile cast iron FCD-45# steel , with good extension and
strong .
* Transmission gear : using superior quality steel and heat treated , processed by CNC machine to reach high precise level ,wearable , low noise and drive smoothly .

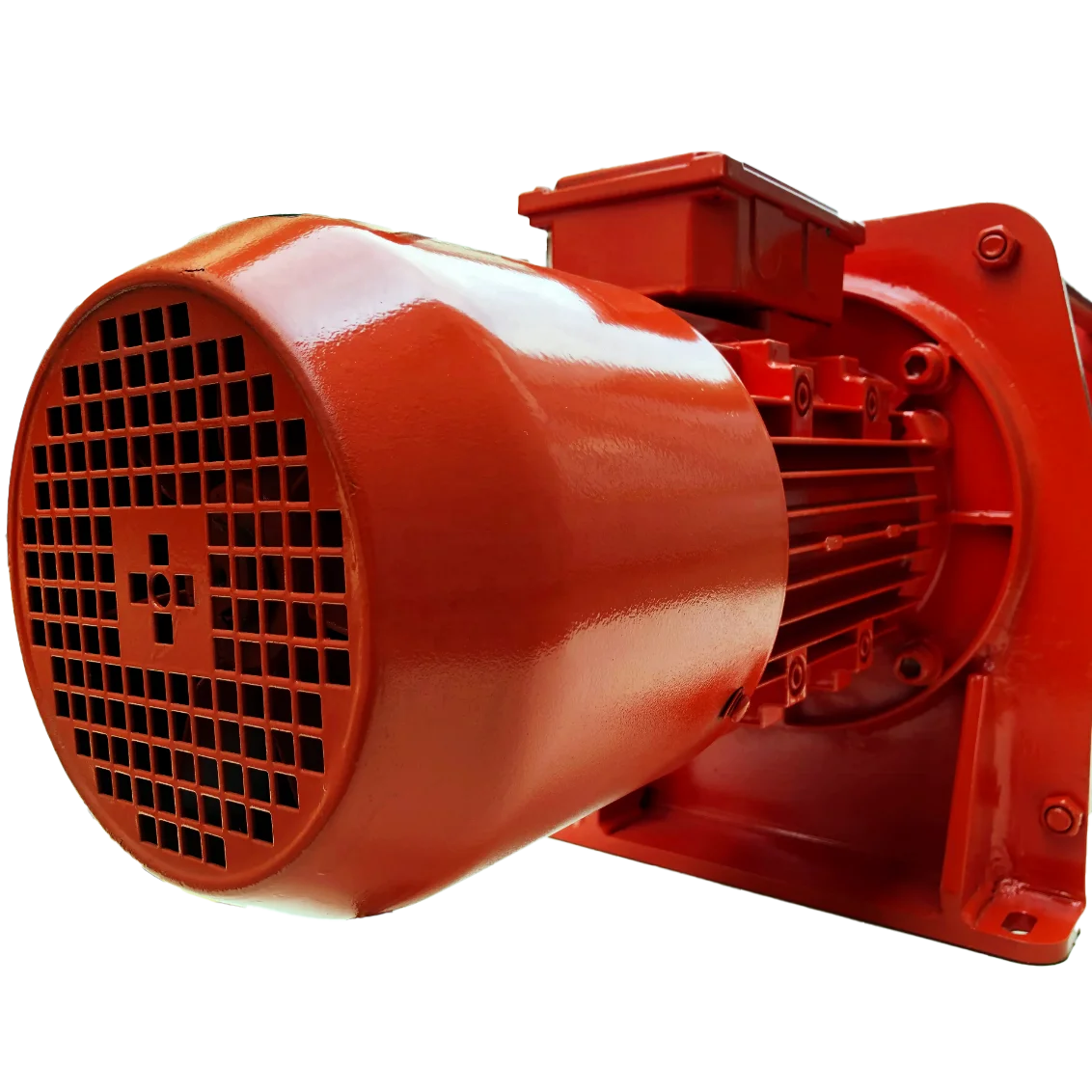

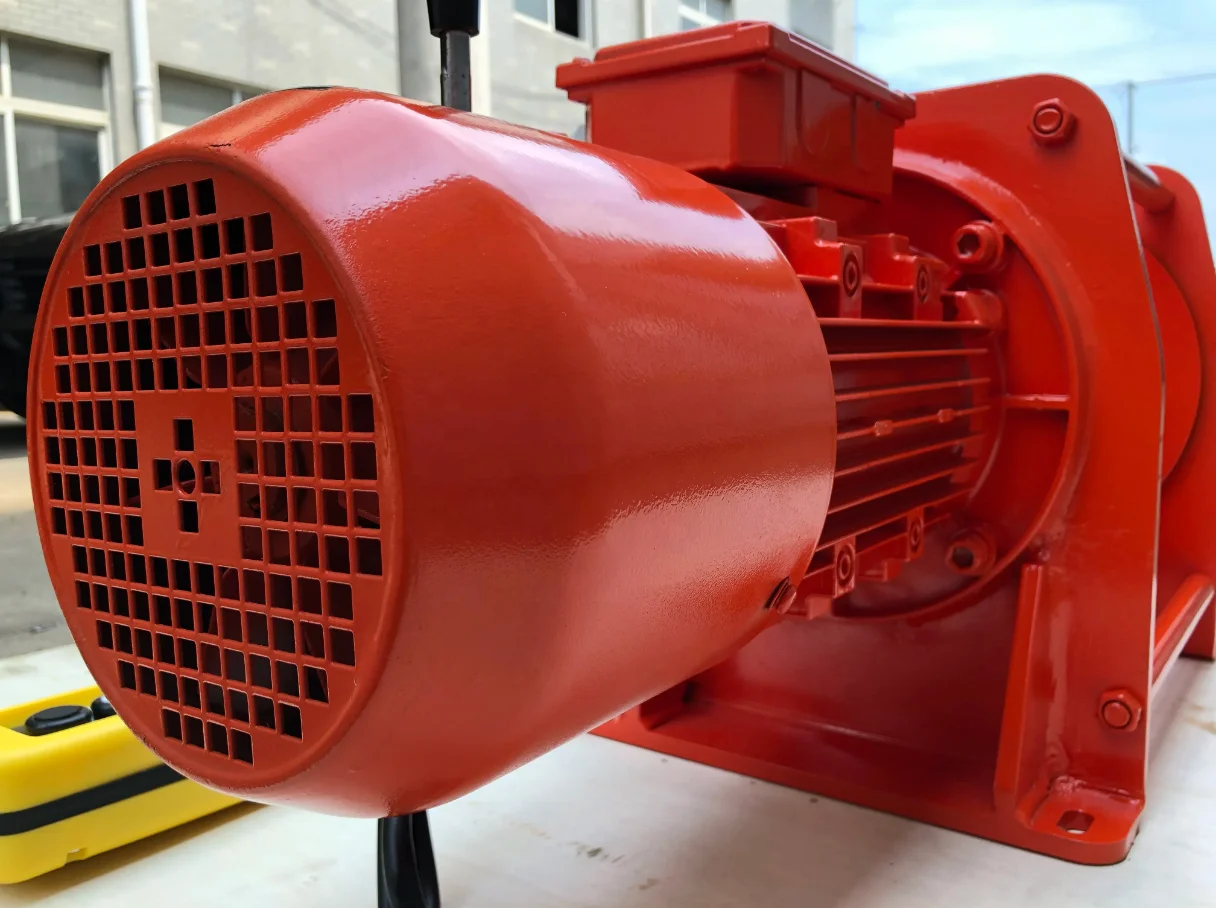

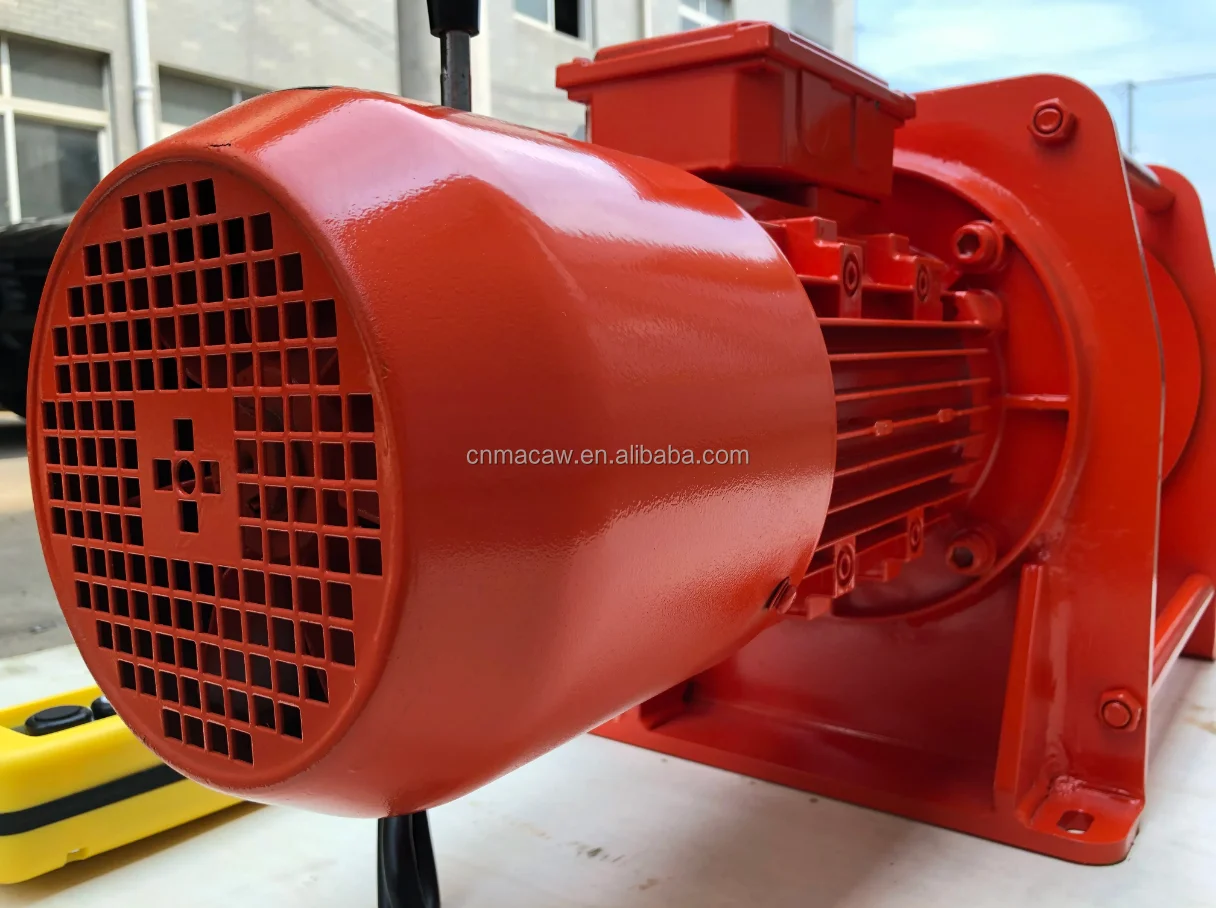

* The electric winch motor : Equipped with Chinese top quality level motor , protection grade IP55 , warranty 2 years .
* Brake type : Using electromagnetic brake , which can automatic braking once power off .
* The drum driving mechanism : electric heavy duty wire rope electric winch drum driving adopts planetary gear transmission mode. Which make the winch drum small in size,light in weight, compact in structure and high in carrying capacity.
* Brake type : Using electromagnetic brake , which can automatic braking once power off .
* The drum driving mechanism : electric heavy duty wire rope electric winch drum driving adopts planetary gear transmission mode. Which make the winch drum small in size,light in weight, compact in structure and high in carrying capacity.
* Wire rope : electrical winches use high strength hemp core wire rope. The function of the hemp core is to store
lubricating oil, so that the oil on the surface of the steel wire rope can be replenished permanently,make the wire rope durable and anti-corrosion .
lubricating oil, so that the oil on the surface of the steel wire rope can be replenished permanently,make the wire rope durable and anti-corrosion .

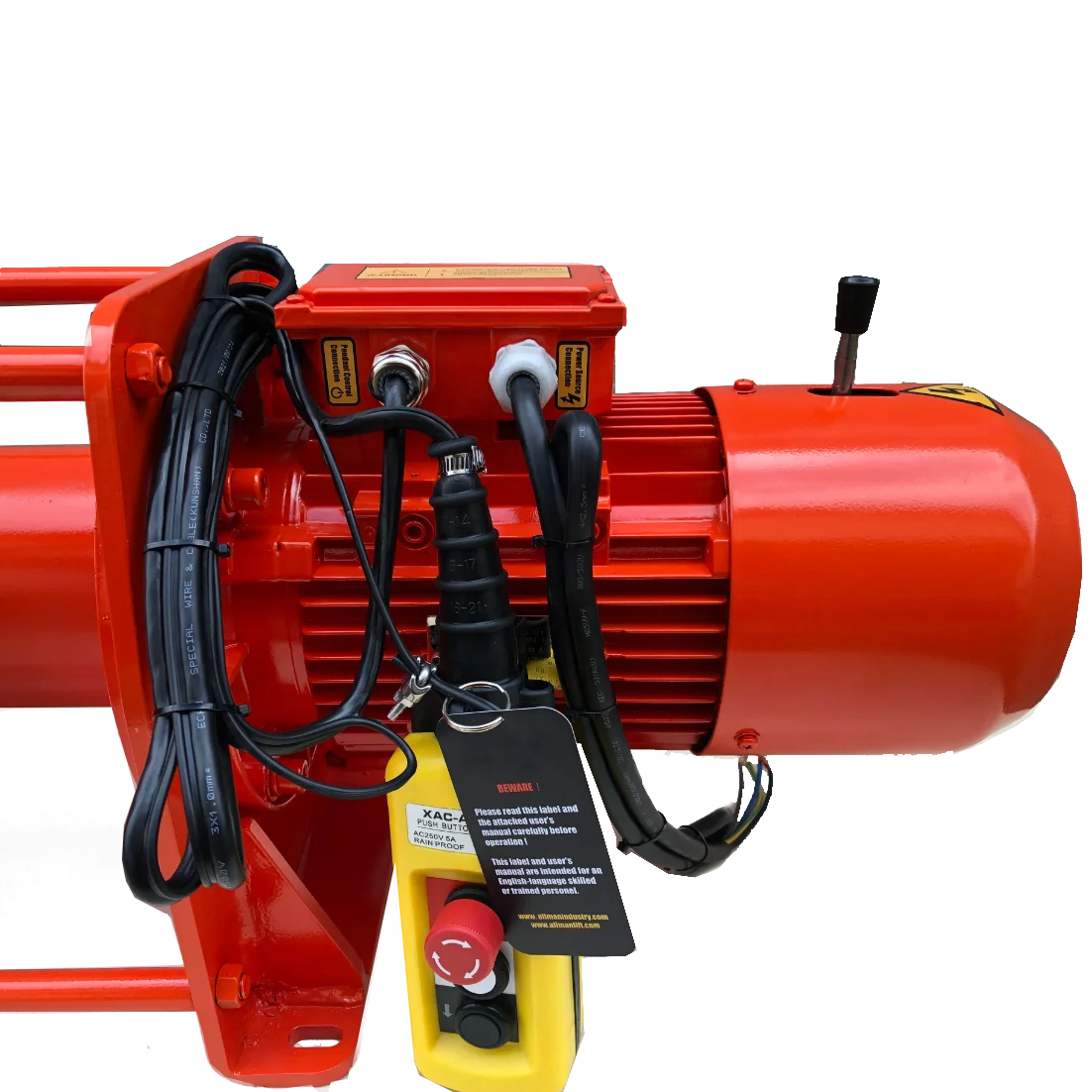

* Electrical components : Using world famous brand Schneider contactor . Hand Switch IP 65 .
Packaging & Delivery
FAQ
1. Q : How about your product quality ?
A : " Quality is our company's life , Safety always comes first ." It's our business principle and our promise to customers .
Based on this , we focus on every details about the products , from the raw material to the procession till the complete products finishing , we have strictly quality control system . At least 5 steps inspection during the whole procession .
2. Q: How about the warranty ?
A : Usually for the electrical wearing parts , 1 years warranty . Others parts 3 years for the winch.
3. Q : Any after-sales service ?
A: Sure , our trained team including the sales and technicians will provide you with strong after-sales service at any time .
4. Q: Can we have our OWN brand on the products ?
A : Sure , OEM is totally acceptable .
5. Q : What’s the MOQ ?
A : Sample order is acceptable , MOQ is 1 set .
6. Q : How about the lead time ?
A : Lead time depends on the order quantity , If less than 10 units ,it will about 10 days . If one container , it will take
around 20 days .
7. Q : Which sea port is the nearest ?
A : Shanghai Port is the nearest for us , But we can ship the products as your request .
8. Q : How about the payment term ?
A : For new customers , the first order amount less than $5000.00, 100% by TT before production . Amount over $5000,00 , 30% in advance , 70% before delivery .
A : " Quality is our company's life , Safety always comes first ." It's our business principle and our promise to customers .
Based on this , we focus on every details about the products , from the raw material to the procession till the complete products finishing , we have strictly quality control system . At least 5 steps inspection during the whole procession .
2. Q: How about the warranty ?
A : Usually for the electrical wearing parts , 1 years warranty . Others parts 3 years for the winch.
3. Q : Any after-sales service ?
A: Sure , our trained team including the sales and technicians will provide you with strong after-sales service at any time .
4. Q: Can we have our OWN brand on the products ?
A : Sure , OEM is totally acceptable .
5. Q : What’s the MOQ ?
A : Sample order is acceptable , MOQ is 1 set .
6. Q : How about the lead time ?
A : Lead time depends on the order quantity , If less than 10 units ,it will about 10 days . If one container , it will take
around 20 days .
7. Q : Which sea port is the nearest ?
A : Shanghai Port is the nearest for us , But we can ship the products as your request .
8. Q : How about the payment term ?
A : For new customers , the first order amount less than $5000.00, 100% by TT before production . Amount over $5000,00 , 30% in advance , 70% before delivery .
