ANENG 622B Digital Smart Multimeter 10A Tester Meter Auto Range True RMS DC/AC 9999 Multitester With Laser Lamp Capacitance Ohm
- Category: Multimeters >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600823857397):
Product Overview
Description
ANENG 622B Digital Smart Multimeter With Laser Lamp 10A Tester Meter Auto Range True RMS DC/AC Voltage 9999 Analog Display Multitester Capacitance REL Ohm Diode NCV Hz DMM Measure Tools
Features:

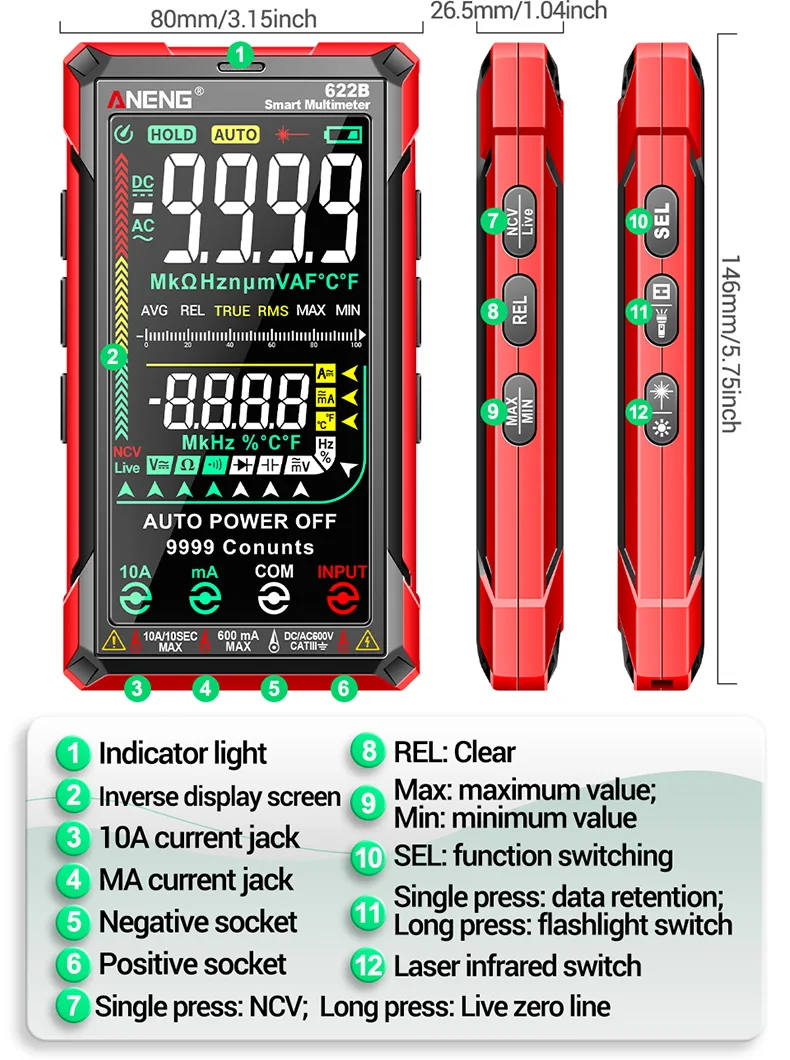

1.Automatic selection of measuring function and range.
2.It is a stable performance, high precision, high reliability clear readings, and overload protection.
3.The maximum voltage between the measuring end and the ground is 1000V DC or 750V AC.

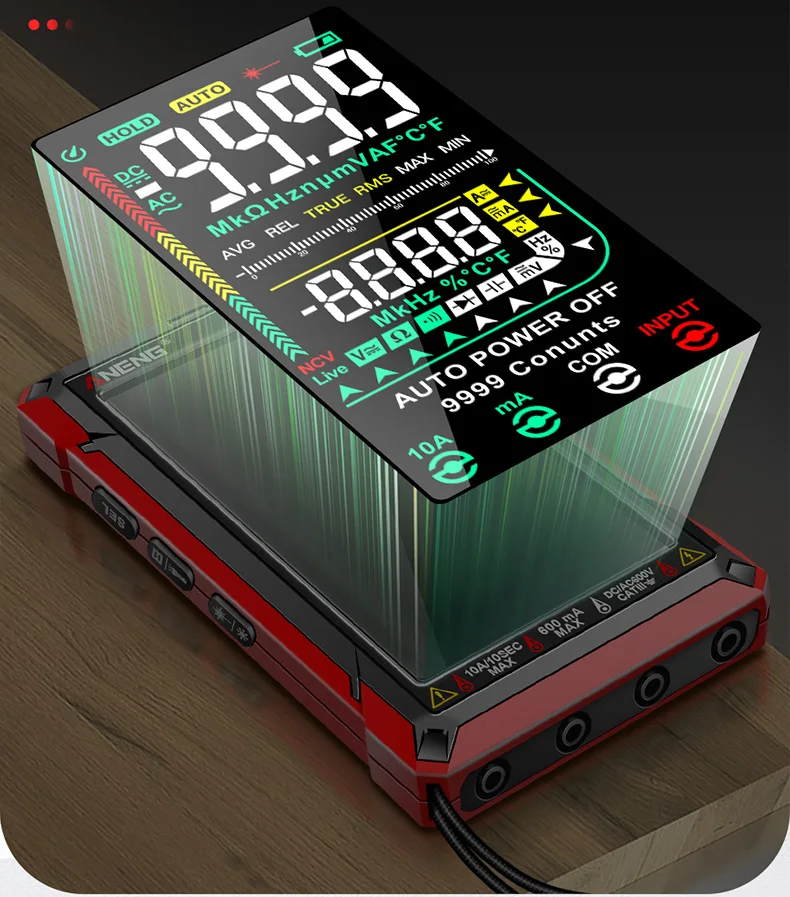

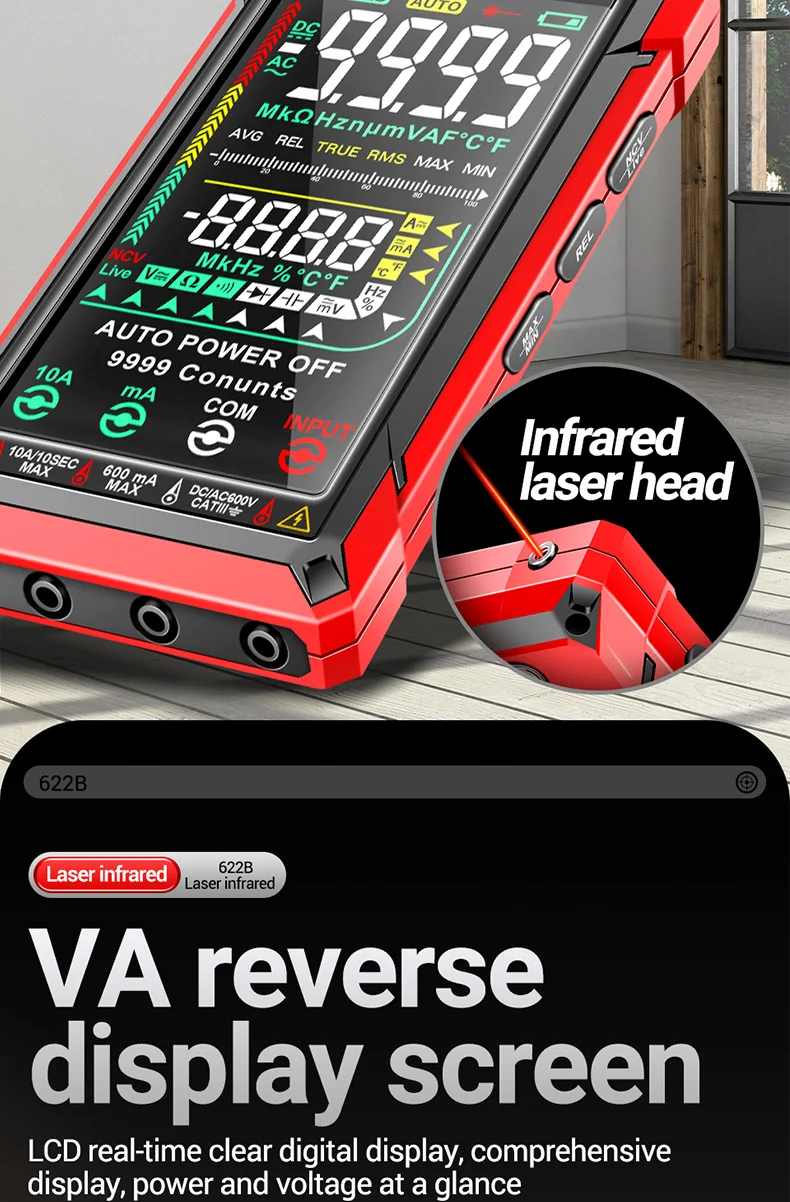

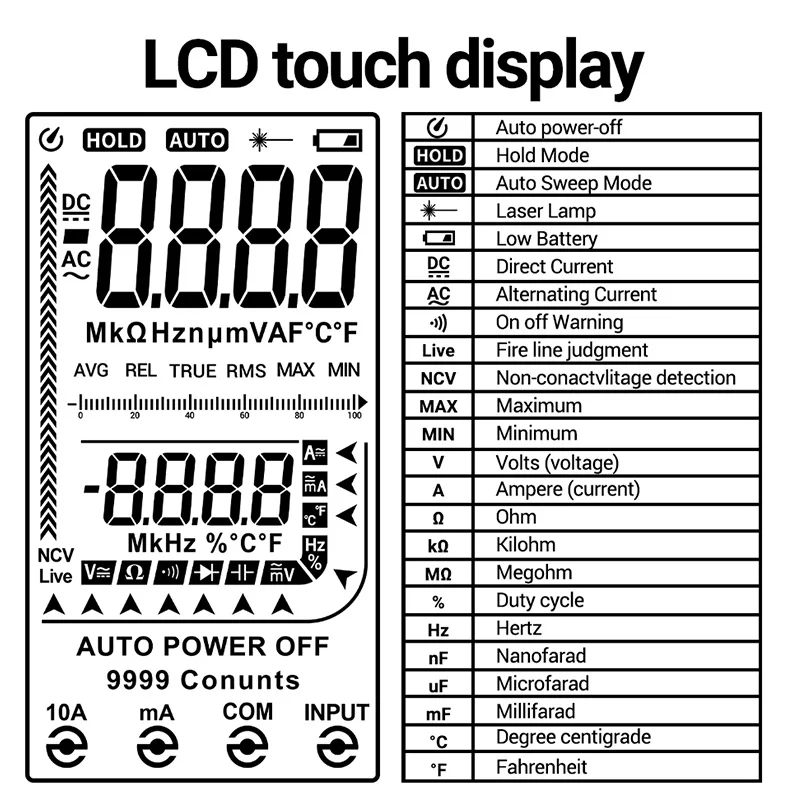

4.Display: VA Colour Larger HD LCD Display.
5.The maximum display value is 9999 digits.

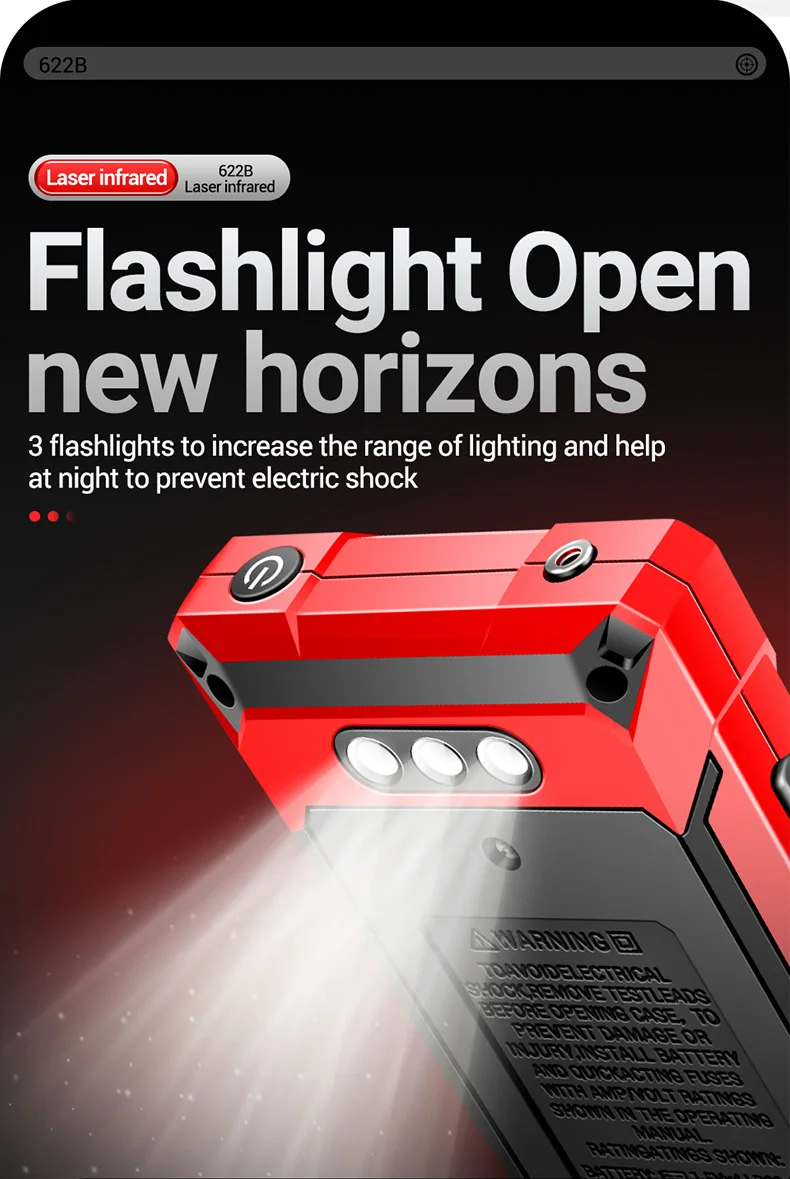

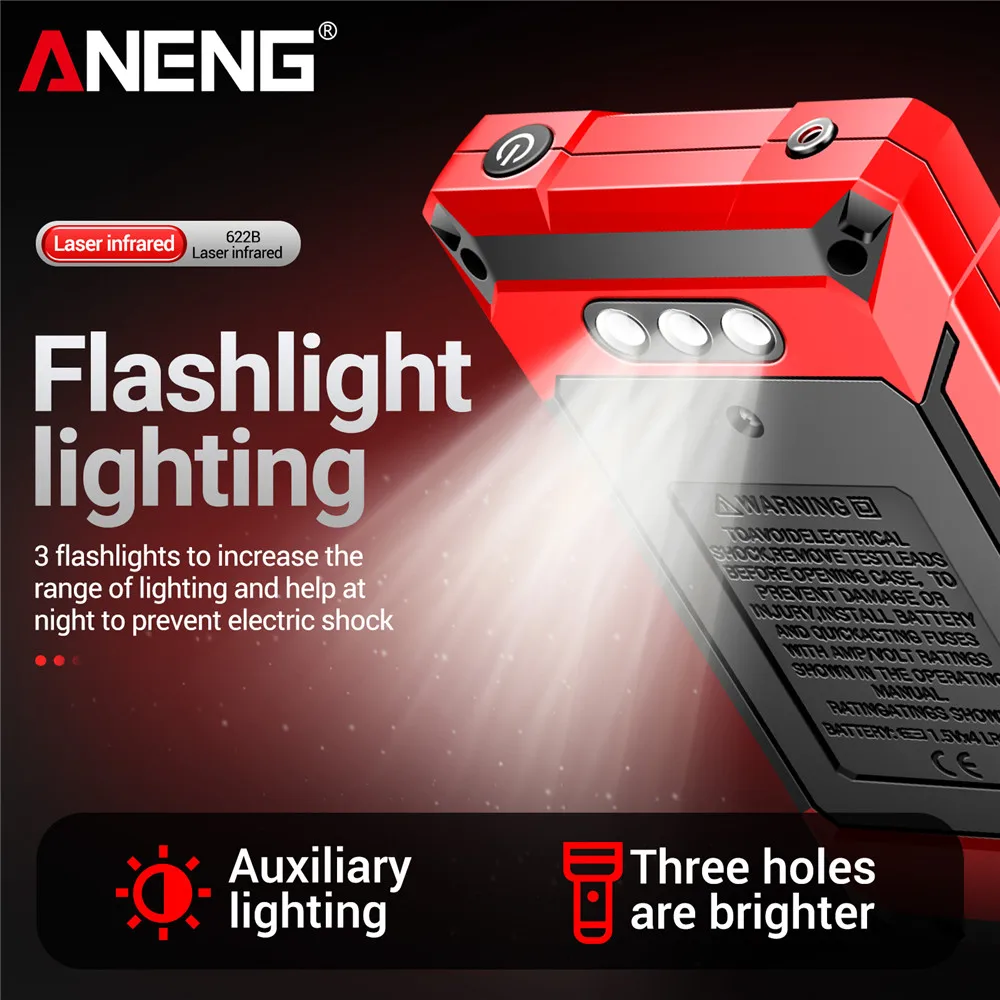

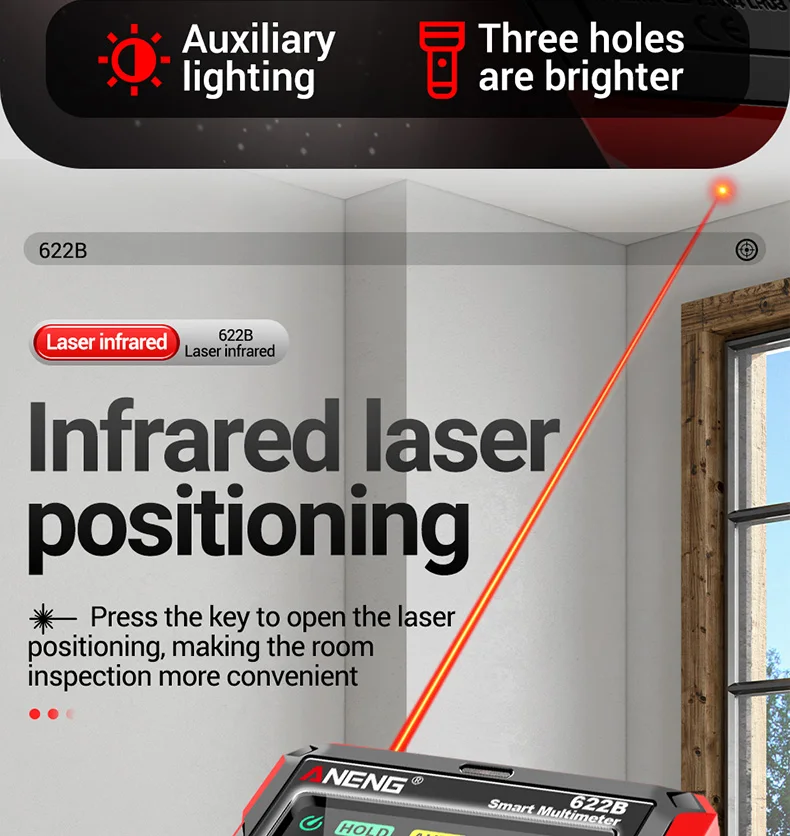

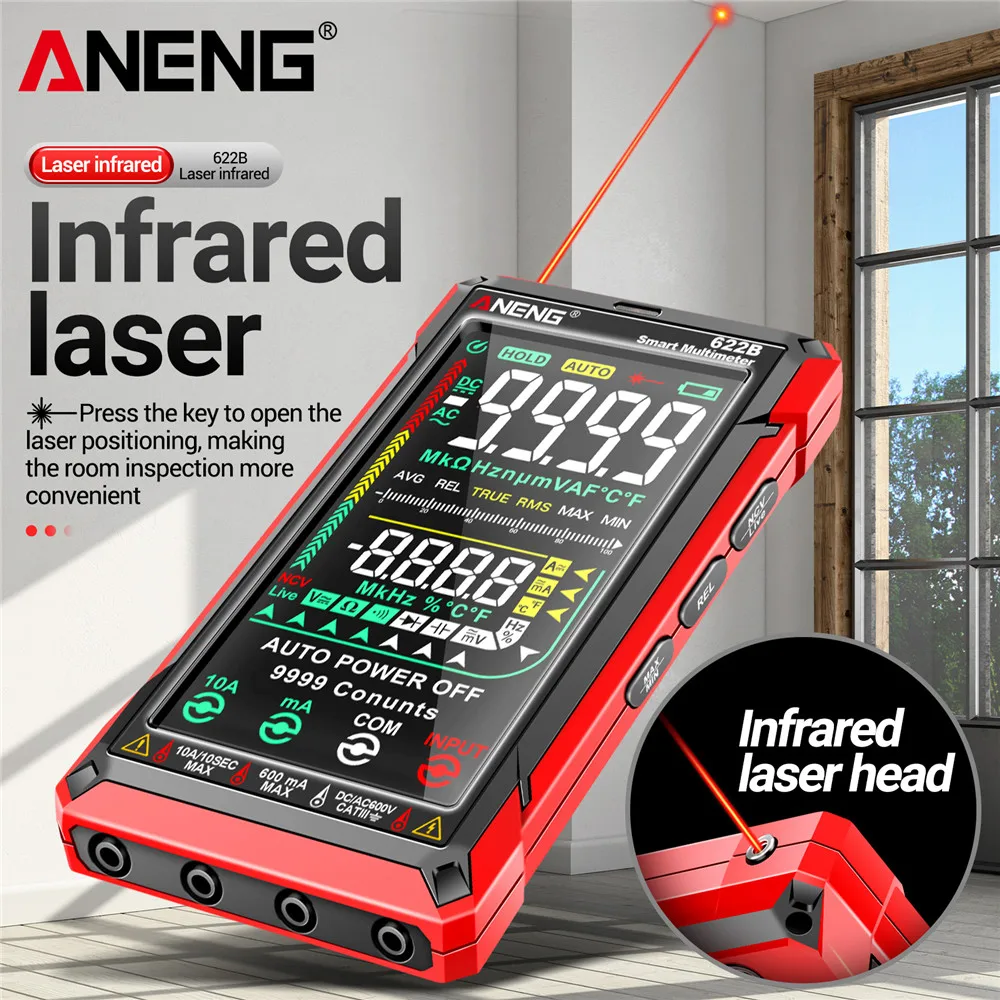

6.Multimeter with Laser Lamp .
7.Superview display: 'OL' or '-OL'.
8.Sampling time: about 3 times/second.
9.Input Jack LCD Indication.
10.Automatic shutdown time: 15 minutes
11.Power Supply :1.5V AAA battery x 4 (not included).

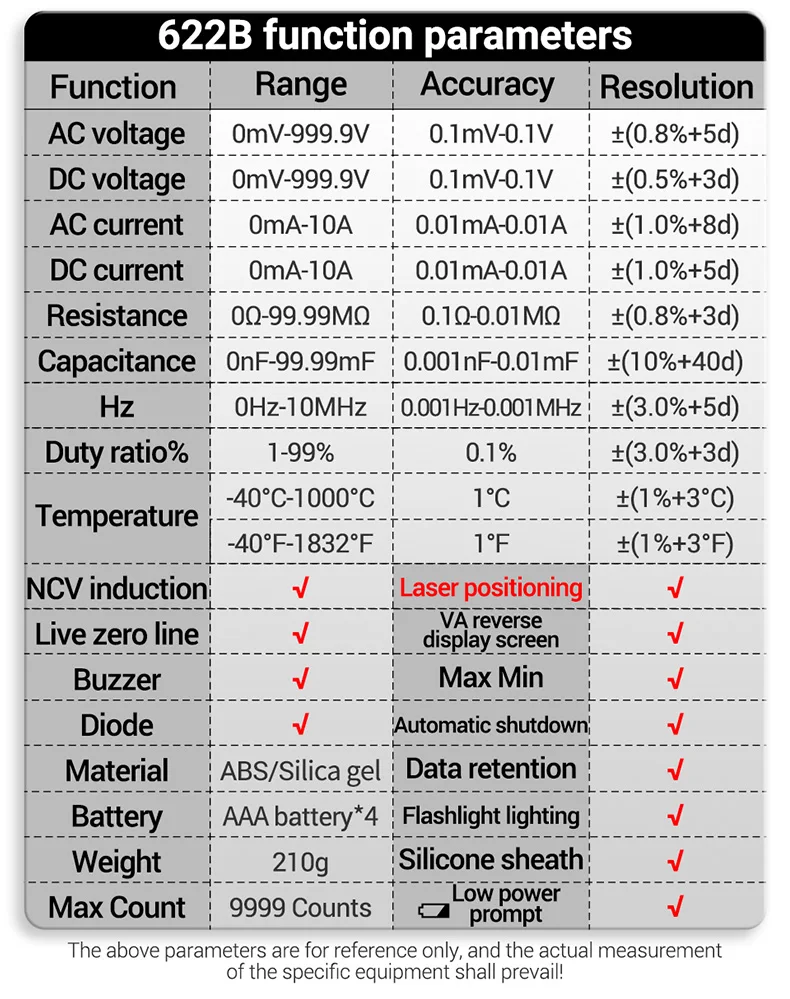

Specifications:
Brand | ANENG | Model | 622B |
Display (LCD) | 9999 Counts | Ranging | Auto/Manual |
Material | ABS+TPE | Ture RMS | YES |
Laser pointing lamp | YES | Data Hold | YES |
Auto Power Off | YES | Low Battery Indication | YES |
Function | Range | Accuracy |

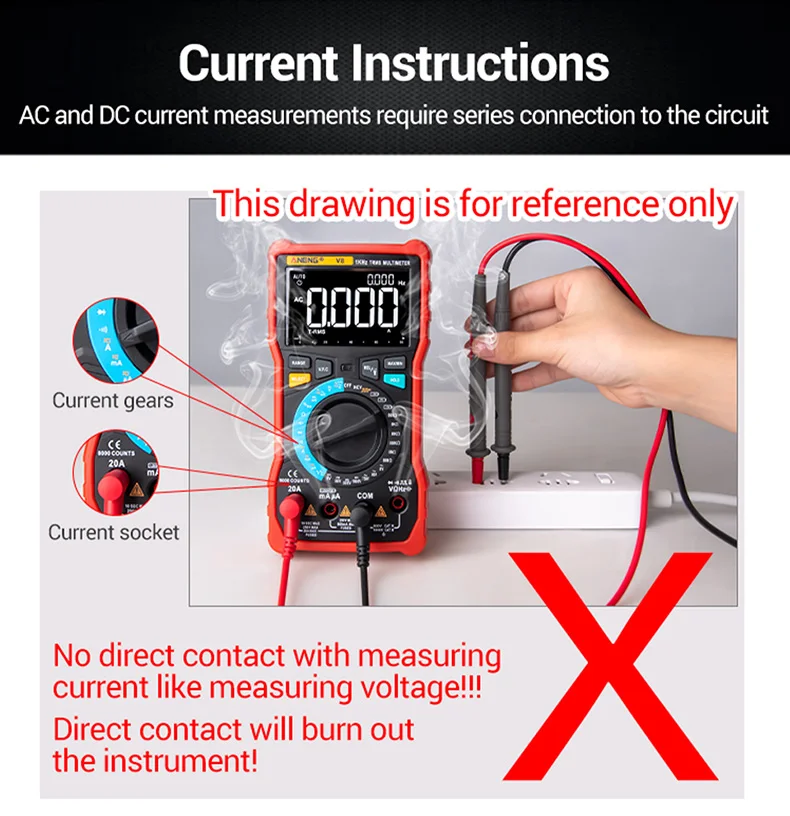

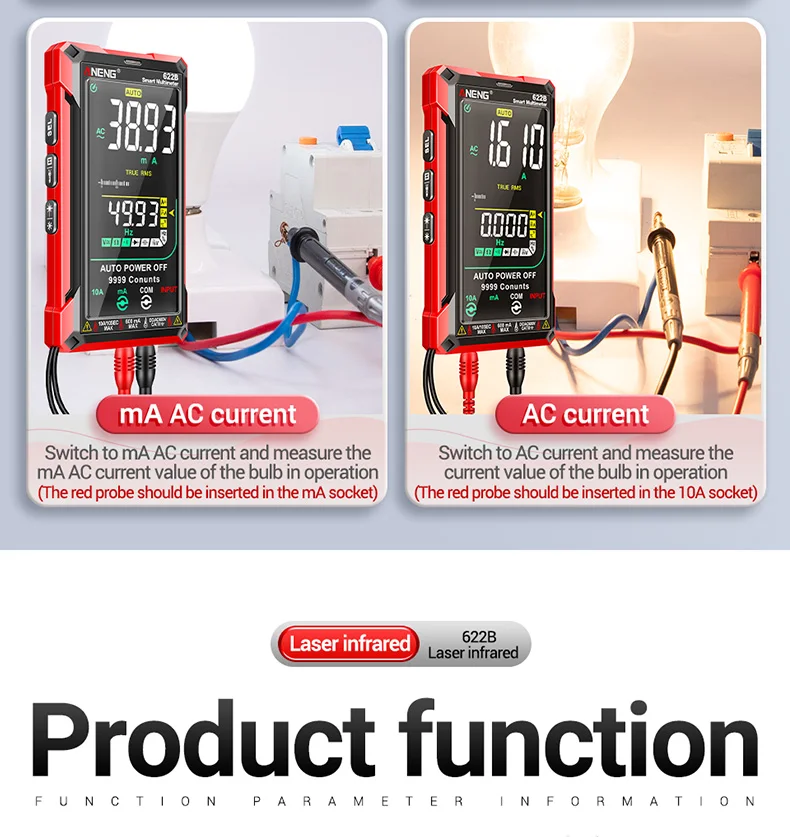

AC current | 60.00mA/600.0mA/6.000A/10.00A | ± (1.0% + 8) |
DC current | 60.00mA/600.0mA/6.000A/10.00A | ± (1.0% + 5) |

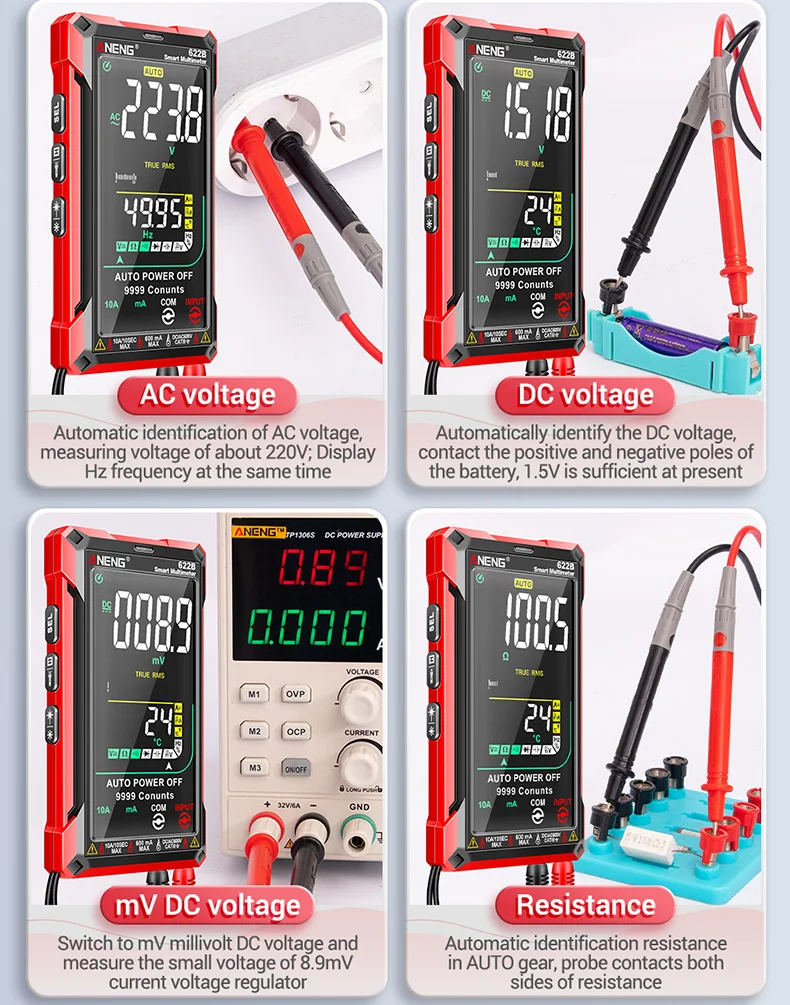

Ac voltage | 600.0mV/9.999V/99.99V/750.0V | ±( 0.8% + 5) |
Dc voltage | 600.0mV/9.999V/99.99V/999.9V | ± (0.5% + 3) |
Resistance | 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ | ± (0.8% + 3) |

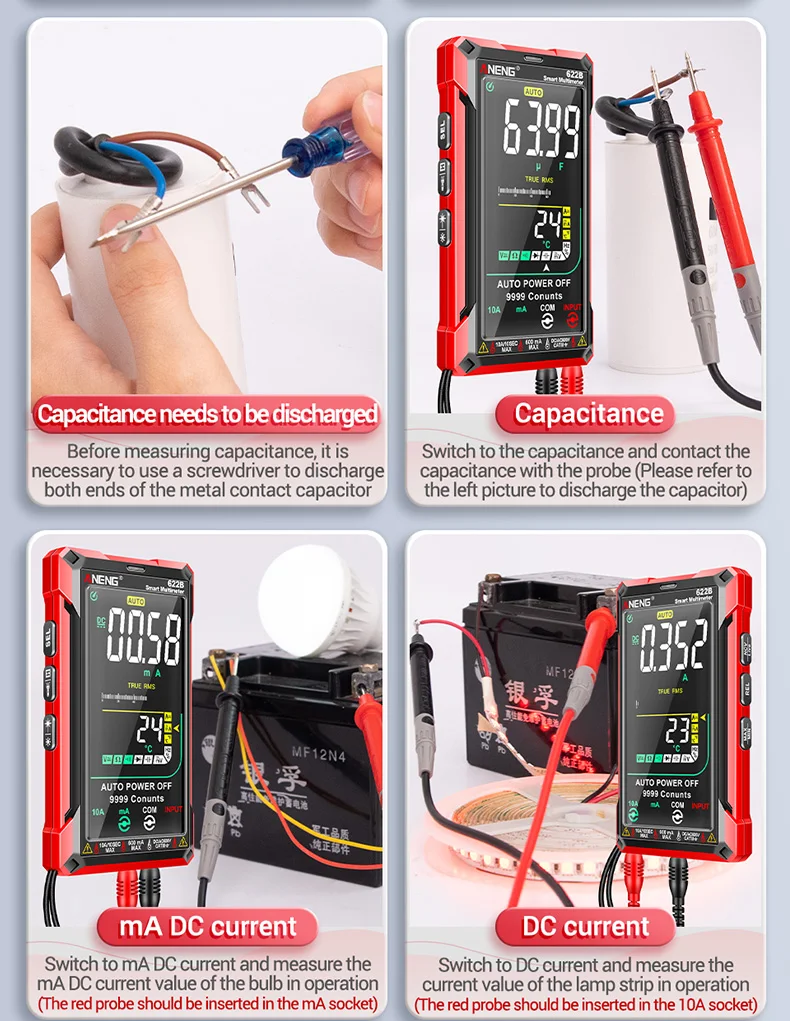

Capacitance | 9.999nF/ | ± (10% + 40) |
999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF | ±( 2.5% +20) | |
Temperature | -40℃~1000℃/-40℉~1832℉ | ±( 1% +3℃/℉) |
Frequency | 10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/ | ± (1.0% + 5) |
10MHz | ± (3.0% + 5) | |
duty cycle | 1~99% | ± (3.0% + 3) |
Diode | 1V | 0.001 |

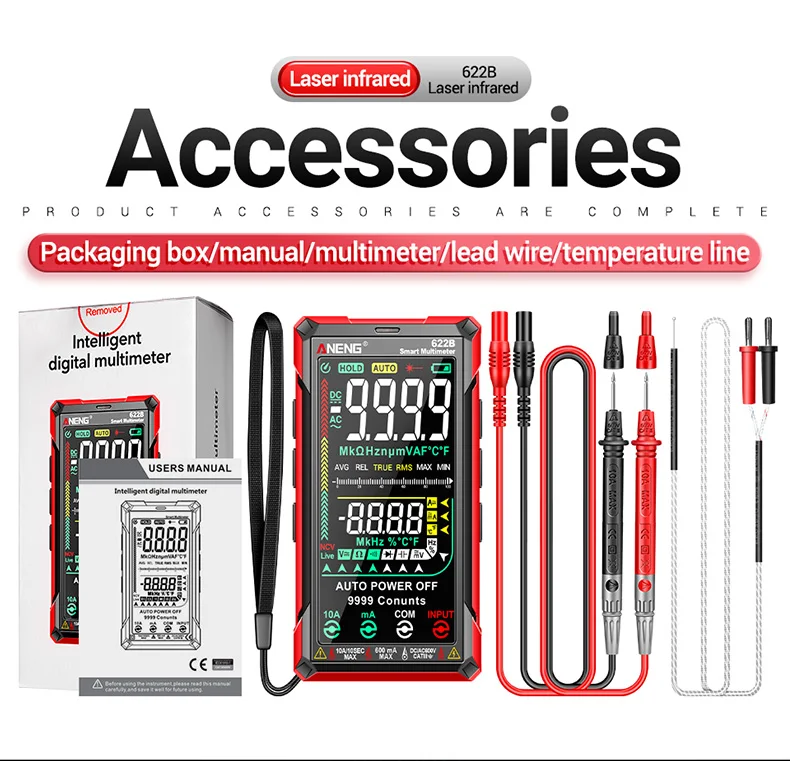

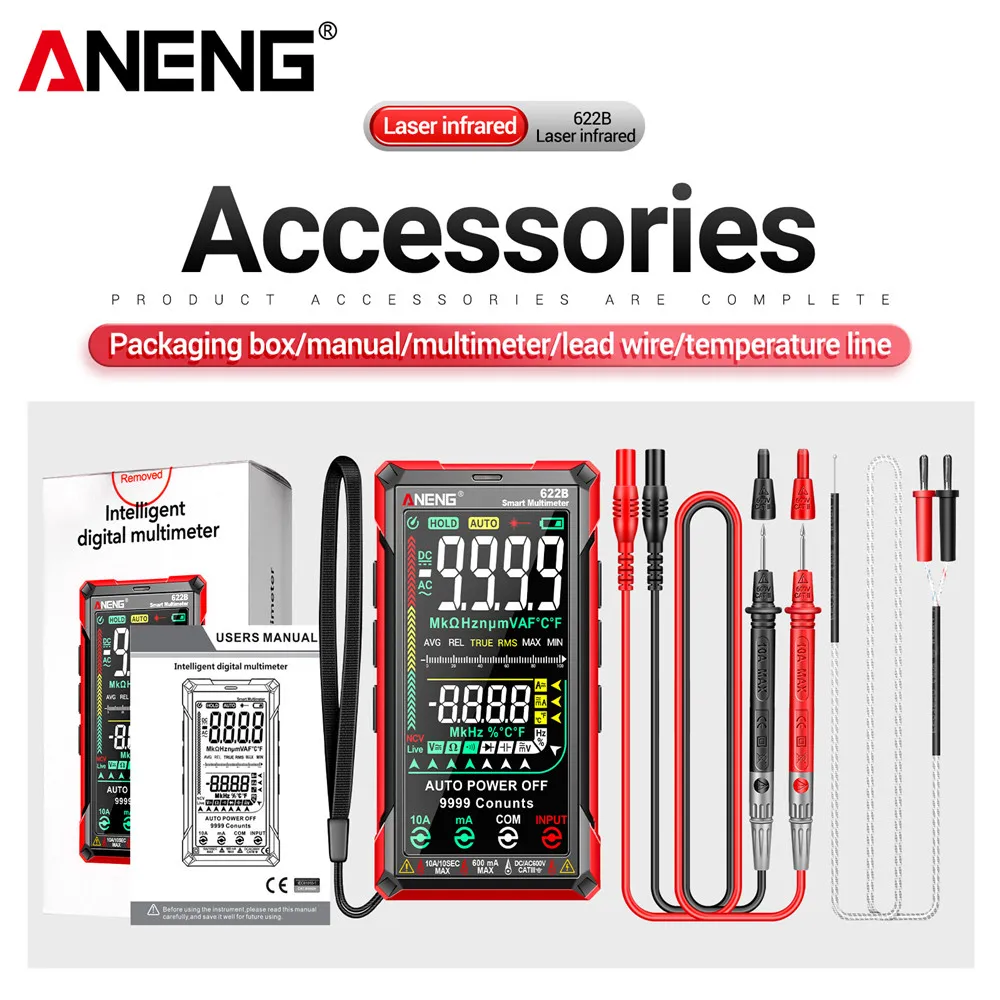

Package Include:
1 X 622B Multimeter
2 X Test Lead
1 X Temperature Lead
1 X User Manual
1 X Packing Box
