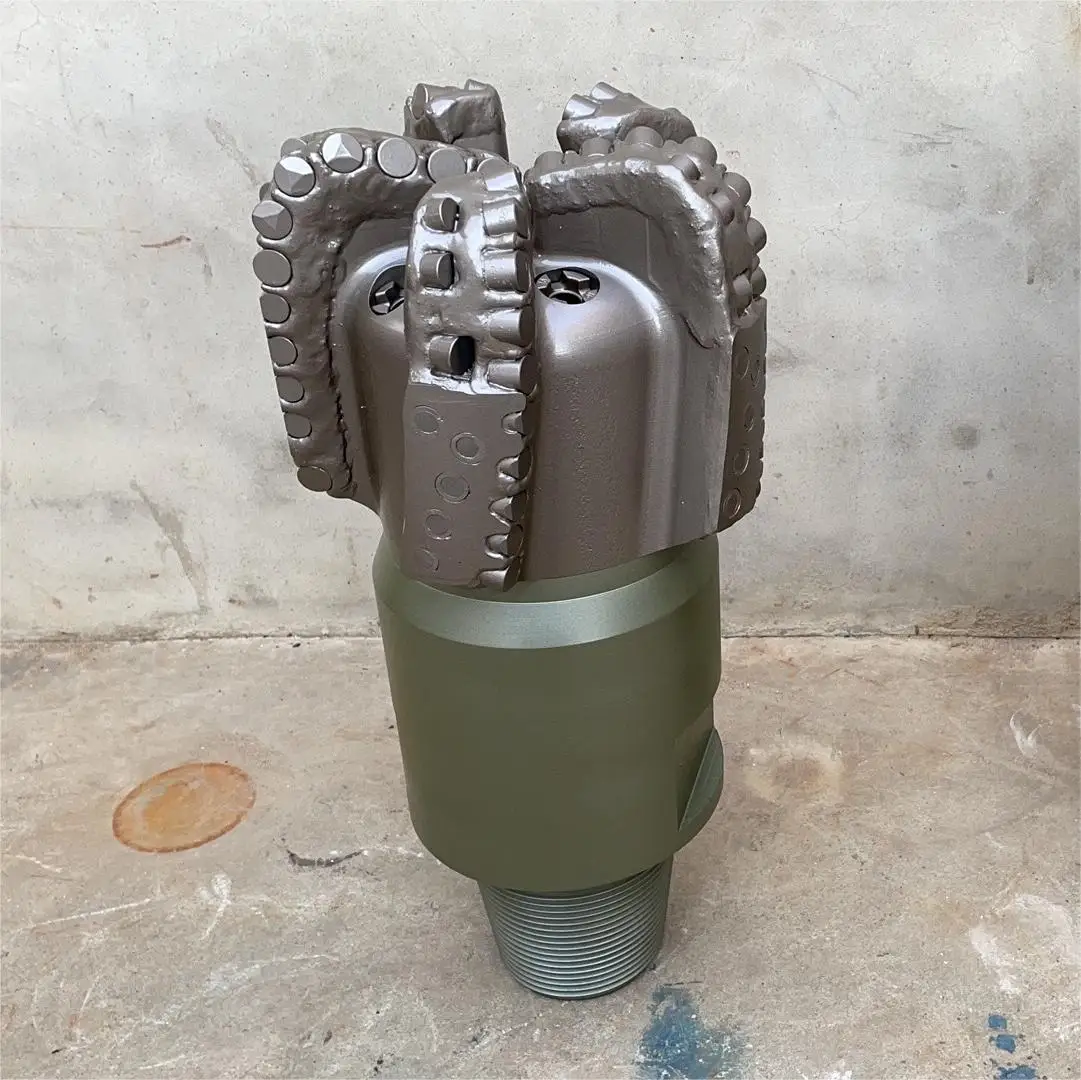

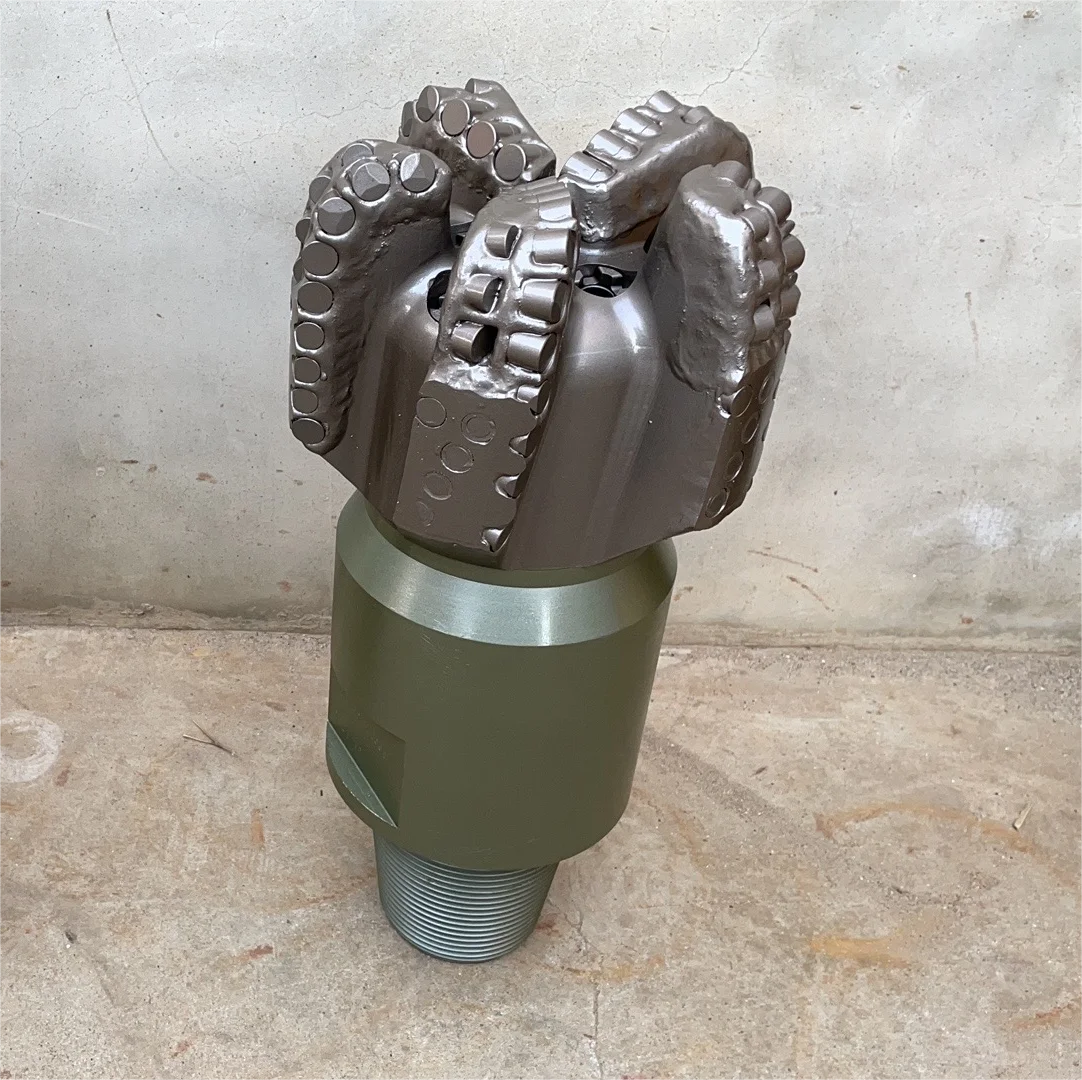

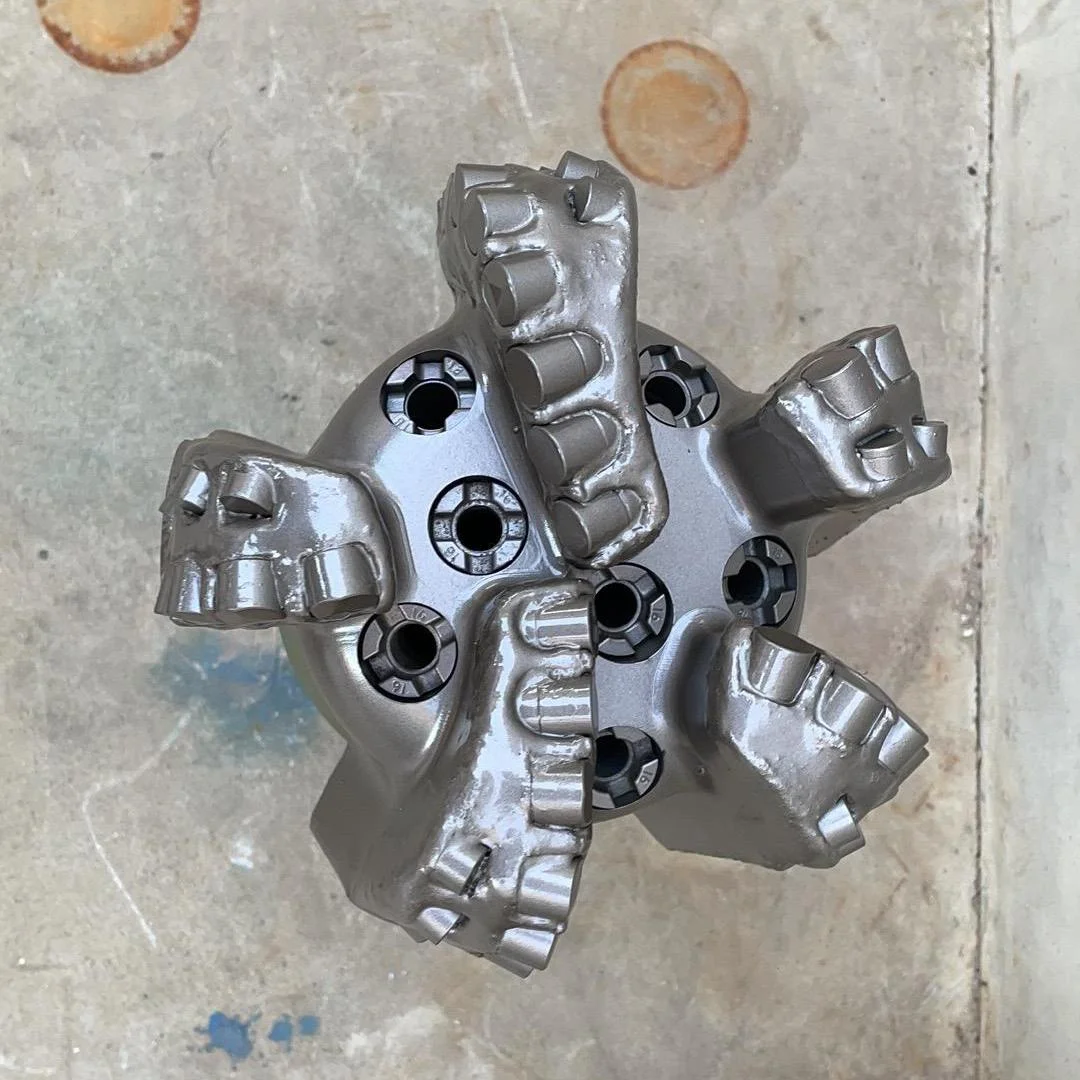

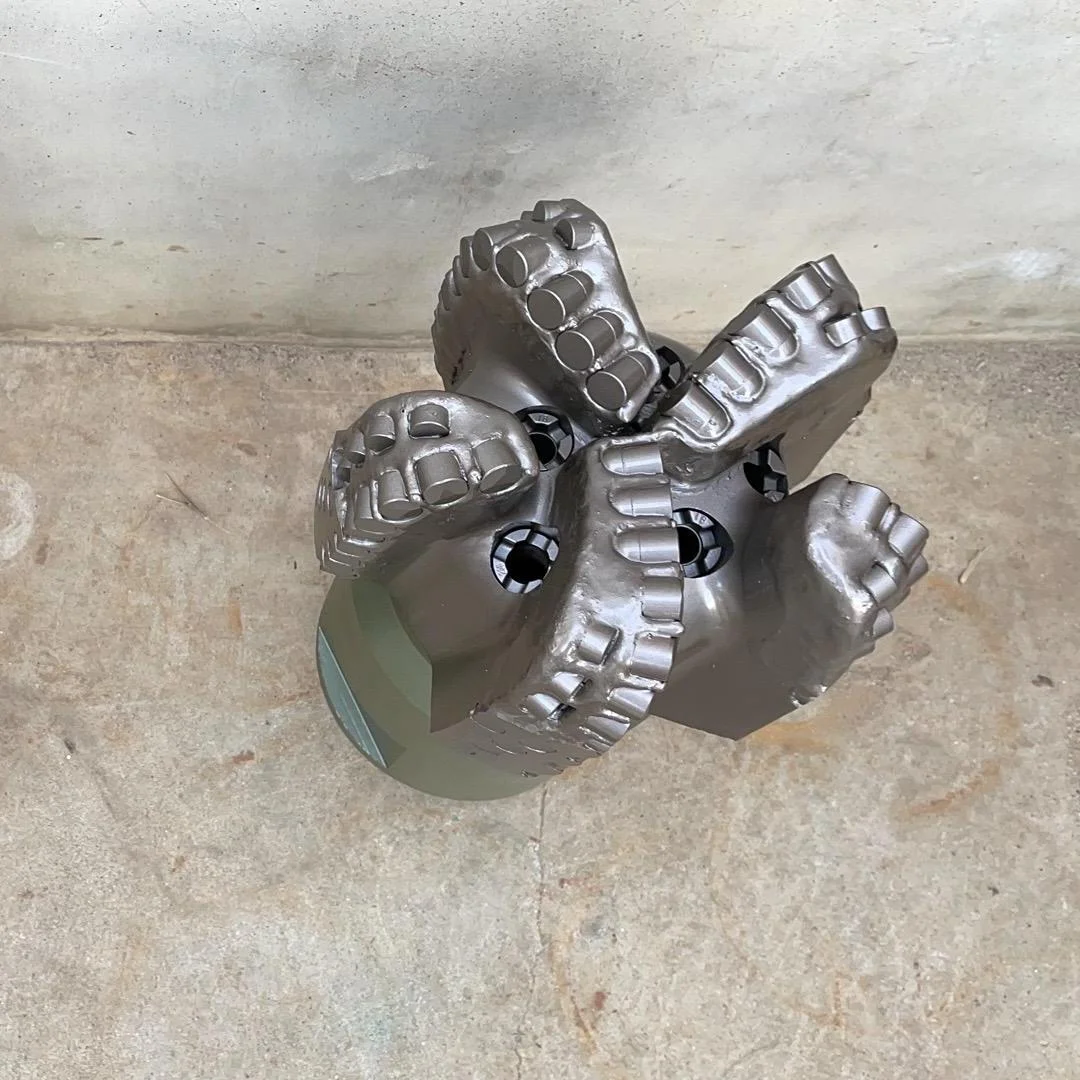

price of pdc bit manufacturer 8 1/2' steel body PDC drill bit for oil water well rigs
- Category: >>>
- Supplier: Hejian Deris Petroleum Drilling Equipment Co. Ltd.
Share on (1600824416599):
Product Overview
Description
Product Overview
PDC Drill Bit With Extremely Fast Penetration Rates And Very Long Working Life
About PDC Drill Bit
Polycrystalline diamond compact (PDC) bits deliver premium performance and durability for a wide range of standard drilling applications. These matrix- and steel-bodied bits incorporate the latest cutter technology, computational fluid dynamics (CFD), enhanced hydraulics, and various structure geometries to maximize ROP.
Mainly used to drill the roof and side supporting hole, the gas drainage, water infusion, geological exploration hole and grouting hole and so on for the coal mine seam, water conservancy and hydro-power, dam and roadway construction of bolt-mesh support.
Polycrystalline diamond compact (PDC) bits deliver premium performance and durability for a wide range of standard drilling applications. These matrix- and steel-bodied bits incorporate the latest cutter technology, computational fluid dynamics (CFD), enhanced hydraulics, and various structure geometries to maximize ROP.
Mainly used to drill the roof and side supporting hole, the gas drainage, water infusion, geological exploration hole and grouting hole and so on for the coal mine seam, water conservancy and hydro-power, dam and roadway construction of bolt-mesh support.
Product Description
PDC bits are designed and manufactured in two structurally dissimilar styles ,Matrix Body Bits & Steel Body Bits. The two provide significantly different capabilities, and, because both types have certain advantages, a choice between them would be decided by the needs of the application.It is now widely known as PDC drill bits are available in both matrix as well as steel bodies. Those who are new to the drilling industry may often get confused when it comes to deciding which one should be used when. Here is some information that might come in handy.
Polycrystalline diamond compact (PDC) drill bits are made with synthetic diamond cutters in either steel or matrix body material. PDC drill bits revolutionized the drilling industry with a wide application range and high rate of penetration (ROP) potential. Unlike roller cones, these polycrystalline diamond compact (PDC) drill bits are one piece bodies with no moving parts. The fixed-cutters shave away the rock, making it possible to operate with higher rotation speeds more efficiently in consolidated formations.
What Does Polycrystalline Diamond Compact Bit Mean?
A polycrystalline diamond compact (PDC) bit is a bit that uses synthetic diamond disks, called "cutters." to shear its way through rock with an ongoing scraping motion. The PDC bit is particularly suited to drilling throuah shale formations. which present some specific problems with reard to borehole instabillitv. such as borehole narrowing.
A polycrystalline diamond compact (PDC) bit is a bit that uses synthetic diamond disks, called "cutters." to shear its way through rock with an ongoing scraping motion. The PDC bit is particularly suited to drilling throuah shale formations. which present some specific problems with reard to borehole instabillitv. such as borehole narrowing.
Item | PDC BIT |
Size | 8 1/2'' |
No. of Blade | 5 |
Primary Cutter Size | 16mm |
Nozzle Qty | 5 |
Guage Length | 2''~3.5'' |

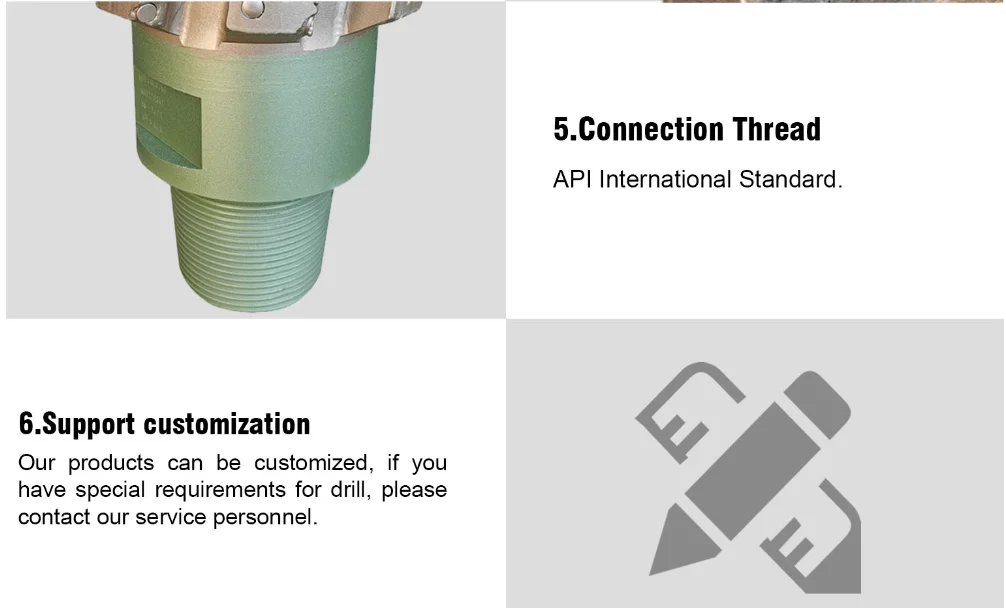

Connection | 4 1/2'' API REG |
Rotary Speed (rpm) | 60~250 |
Weight on bit (KN) | 10~100 |
Flow Rate OPS | 25~36 |
Type and Features | PDC bit can be customized for oil well,water well, mining, explorer well drilling. |
Suitable Formation | Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. |
Main Type | Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc. Body Type: Matrix or Steel Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. Blades:2~9 Wings. |
How to choose the right PDC drill bit?
What is the diameter of hole do you want to drill ? Then we can know which item drill bit is suitable you.
What is the layer do you want to drill ? Then we can know which PDC tip is right for you.
What is the layer do you want to drill ? Then we can know which PDC tip is right for you.
According to the formation lithology data, hydraulic and drilling parameters, select the appropriate type of drill bit. Select the corresponding nozzle according to the hydraulic parameters, and the size difference of the nozzle hole should not be too large to avoid erosion of the flow channel. Before the drill bit goes down hole, check whether the size and model of the drill bit meet the requirements for use, whether the nozzle is installed properly, whether the size is correct, and whether the specification of the drill bit link thread matches the joint. The drill bit should go down in accordance with the prescribed operating procedures.
After the drill bit is in contact with the bottom of the well, it must be lightly pressed and turned slowly (the WOB is 10~20KN, and the rotational speed is 60r/min) for 30 minutes. Up to normal WOB drilling. If there is abnormal damage to the drill bit, please communicate with our factory, and keep the packaging box, qualification certificate and original trial data of the drill bit, and the drill bit after use (do not remove the nozzle). During the drilling process, the operation should be stable, and the drilling should be sent evenly to avoid drilling. The storage and transportation of drill bits should be placed in wooden boxes and packaging boxes of soft materials to avoid damage. The drill bit should be stored indoors at 10~30℃, kept dry, ventilated, and protected from sunlight and rain. Stored under these conditions, the shelf life is five years. .
After the drill bit is in contact with the bottom of the well, it must be lightly pressed and turned slowly (the WOB is 10~20KN, and the rotational speed is 60r/min) for 30 minutes. Up to normal WOB drilling. If there is abnormal damage to the drill bit, please communicate with our factory, and keep the packaging box, qualification certificate and original trial data of the drill bit, and the drill bit after use (do not remove the nozzle). During the drilling process, the operation should be stable, and the drilling should be sent evenly to avoid drilling. The storage and transportation of drill bits should be placed in wooden boxes and packaging boxes of soft materials to avoid damage. The drill bit should be stored indoors at 10~30℃, kept dry, ventilated, and protected from sunlight and rain. Stored under these conditions, the shelf life is five years. .
SPECIFICATIONS PDC driling drag bits
PDC drilling drag bit is made by PDC cutters and steel. It is one of the steel body PDC bit and belong to non core diamond pdc bit. Having the feature of long service life and wear resistance. Widely used in coal mining and water well drilling.
SPECIFICATIONS PDC driling drag bits | ||||
Cutting teeth | Material | PDC cutters | ||
Wings | 4~5 | |||
PDC quantity | 14 pieces | |||
Body | Material | 45# steel | ||
Feature | Impact toughness | |||
Connect thread | AW, BW, API and customized | |||
Gauge | Material | Tungsten carbide blanks | ||
Feature | Wear resistant and hard | |||
Function | Protect drill bit reducing diameter | |||

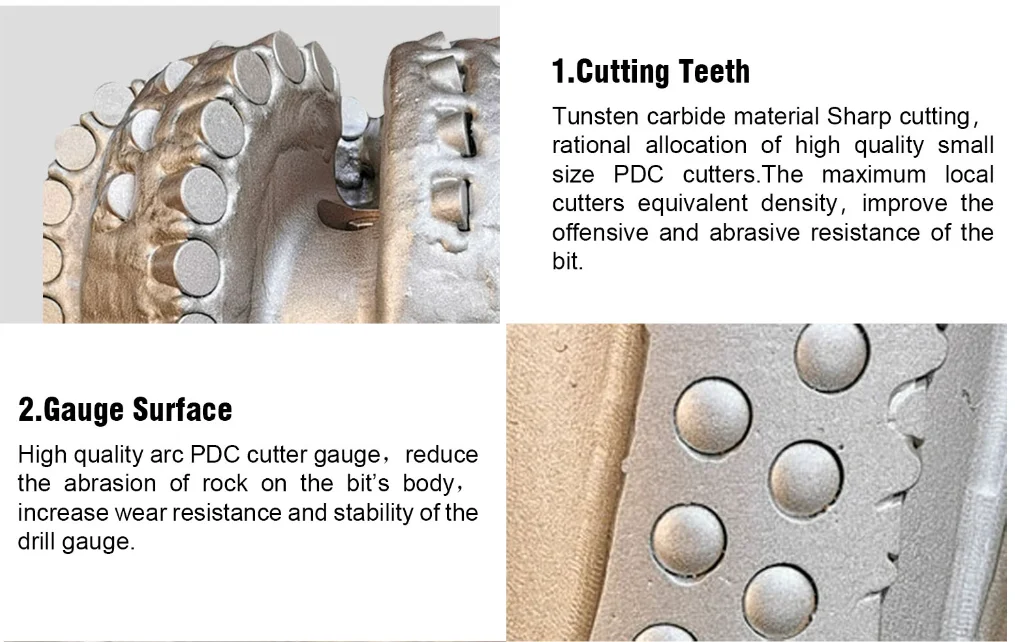

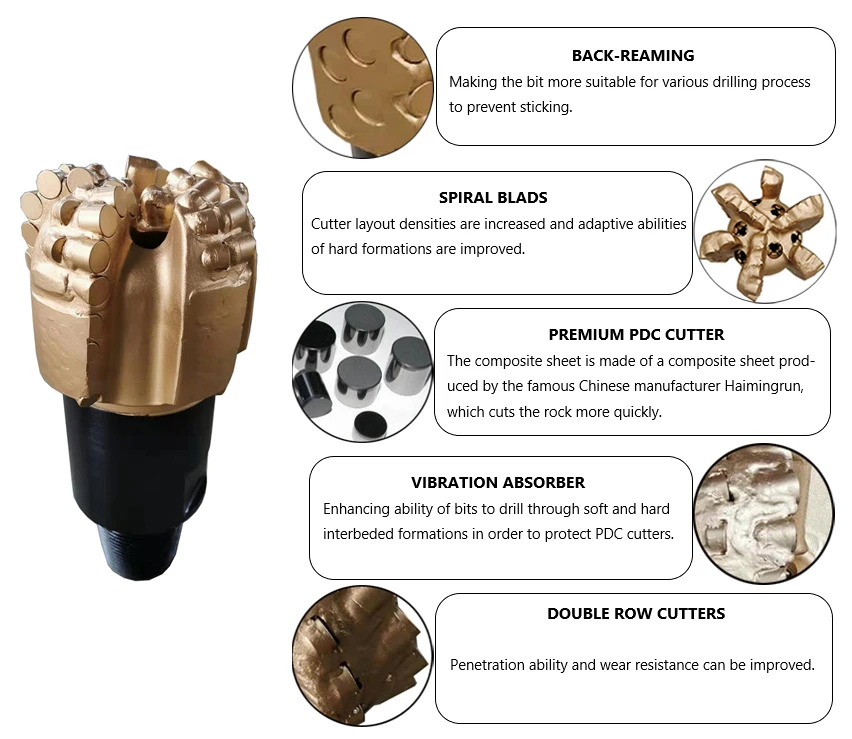

Cutting Structure of this series PDC bit :
1. PDC cutter size 13mm*16mm and 13mm*10mm
2. PDC bit blades number is six
3. The crown part of PDC bit is a long parabolic crown
4. PDC cutter is double row in each blade
5. Each blade has teeth to protect the diameter of the PDC bit
6. The surface of each blade is designed with tungsten carbide welding to enhance the wear resistance of
the blade and improve the service life the PDC bit.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
Tag: diamond oil drill bit, well drilling tools, oil well drill bit
2. PDC bit blades number is six
3. The crown part of PDC bit is a long parabolic crown
4. PDC cutter is double row in each blade
5. Each blade has teeth to protect the diameter of the PDC bit
6. The surface of each blade is designed with tungsten carbide welding to enhance the wear resistance of
the blade and improve the service life the PDC bit.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
Tag: diamond oil drill bit, well drilling tools, oil well drill bit
1. PDC Matrix Body bit
Type and Features
PDC bit can be customized for oil well,water well, mining, explorer well drilling.
Suitable Formation
Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Main Type
Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc.
Body Type: Matrix or Steel
Cutter Sizes: 5/16"(8mm), 1/2"(13mm), 5/8"(16mm), 3/4"(19mm),etc.
Blades:2~9 Wings
2. PDC Matrix Body Core Bit
Type and Features
PDC core bit can be customized for oil well,water well, mining, explorer well drilling.
Suitable Formation
Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Main Type
75/54mm, 94/74mm, 113/89mm, 113/109mm, 153/129mm, 215/105mm, etc.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
PDC bit can be customized for oil well,water well, mining, explorer well drilling.
Suitable Formation
Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Main Type
Bit Diameters: 5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc.
Body Type: Matrix or Steel
Cutter Sizes: 5/16"(8mm), 1/2"(13mm), 5/8"(16mm), 3/4"(19mm),etc.
Blades:2~9 Wings
2. PDC Matrix Body Core Bit
Type and Features
PDC core bit can be customized for oil well,water well, mining, explorer well drilling.
Suitable Formation
Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Main Type
75/54mm, 94/74mm, 113/89mm, 113/109mm, 153/129mm, 215/105mm, etc.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
Tag: diamond oil drill bit, well drilling tools, oil well drill bit
Types of PDC Bits
1. Matrix Body PDC Bits
“Matrix” is a very hard, rather brittle composite material comprising tungsten carbide grains metallurgical bonded with a softer, tougher, metallic binder. Matrix is desirable as a bit material, because its hardness is resistant to abrasion and
erosion. It is capable of withstanding relatively high compressive loads, but, compared with steel, has low resistance to impact loading. Matrix is relatively heterogeneous, because it is a composite material. Because the size and placement of the particles of tungsten carbide it contains vary (by both design and circumstances, its physical properties are slightly less predictable than steel. Matrix-body PDC bits are commonly preferred over steel-body bits for environments in which body erosion is likely to cause a bit to fail. For diamond-impregnated bits, only matrix-body construction can be used.
2. Steel Body PDC Bits
Steel is the opposite of matrix. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance. Steel bodies are considerably stronger than matrix bodies. A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn on damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
“Matrix” is a very hard, rather brittle composite material comprising tungsten carbide grains metallurgical bonded with a softer, tougher, metallic binder. Matrix is desirable as a bit material, because its hardness is resistant to abrasion and
erosion. It is capable of withstanding relatively high compressive loads, but, compared with steel, has low resistance to impact loading. Matrix is relatively heterogeneous, because it is a composite material. Because the size and placement of the particles of tungsten carbide it contains vary (by both design and circumstances, its physical properties are slightly less predictable than steel. Matrix-body PDC bits are commonly preferred over steel-body bits for environments in which body erosion is likely to cause a bit to fail. For diamond-impregnated bits, only matrix-body construction can be used.
2. Steel Body PDC Bits
Steel is the opposite of matrix. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance. Steel bodies are considerably stronger than matrix bodies. A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn on damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Our Services
(1)Produce PDC bits and other drilling accessories.
(2)All model drag bits are available,
(2)All model drag bits are available,
MOQ is only 1 set.
Many sizes in stock.
OEM,ODM.
Export to USA,Europe,Asia,Africa,America and Australia.
(3)Fast production for big orders, delivery by sea, truck, air, express. Works on FOB, CFR, CIF.
(3)Fast production for big orders, delivery by sea, truck, air, express. Works on FOB, CFR, CIF.
what king of PDC bit is suitable
WELL DRILL PDC BIT TYPES | ||||||||
Steel Body PDC bit | Tadvanced blades that significantly increase ROP The bits are specifically designed to increase productivity in sandstone and shale formations. They are customizable with flushing holes and fixed or adjustable nozzles along with blade count and diamond cutter size configuration options. | |||||||
Matrix Body PDC bit | The matrix body PDC bits provide a stronger wear resistance due to the matrix powder that is applied to the body. The matrix body style is able to with stands harder compositions,such as dolomite and limestone. Bits are fully customizable with flushing holes and fixed or adjustable nozzles,along with blade count and diamond cutter size configuration options. | |||||||
Features and Applications
Matrix body PDC bit using tiny arc-type double rows five spiral blades asymmetric and Medium parabolic crown design with different structure patent cutters are laid out at different location of the bit to ensure its high aggressiveness and long bit life.
Effectively improve the rate of speed .Dynamic flow simulating technology is used for hydraulic design to ensure optimum bottom hole flow patters and anti-balling . Medium soft to hard formations with high compressive strength and abrasive. such as Mudstone, Limestone, Anhydrite, Sandstone and so on.
Feature
Deep blade and medium parabolic configuration design,ensures optimal bottom hole flow pattern and anti-balling. Optimize the cutting structure and places hiahauality cutters at different points. increases wear resistance and offensive of the bit.
Anti-whirl design improves ROP and enhances drilling stability. Additional Row Double rows five blades design, maximized enhances wear resistance and stability of the bit. Deepened Blade Unique deep blade design lessens the torque, increases the footage capability and rate of penetration of the bit. High Density Cutters High density PDC cutting structure design, ensures efficient reaming and drilling while extending the application and performance range of casing running operation.
Deep blade and medium parabolic configuration design,ensures optimal bottom hole flow pattern and anti-balling. Optimize the cutting structure and places hiahauality cutters at different points. increases wear resistance and offensive of the bit.
Anti-whirl design improves ROP and enhances drilling stability. Additional Row Double rows five blades design, maximized enhances wear resistance and stability of the bit. Deepened Blade Unique deep blade design lessens the torque, increases the footage capability and rate of penetration of the bit. High Density Cutters High density PDC cutting structure design, ensures efficient reaming and drilling while extending the application and performance range of casing running operation.
Features of S series comprehensive and fast drilling steel body PDC bits:
1> According to different formation rock characteristics, optimize the crown profile and select composite sheets with different functions to meet the needs of drilling in soft to medium hard formations without hydrogen sulfide.
2>The cutting structure adopts
force balance design, asymmetric thin blade, deep chip flute design, etc., so that the drill has a higher ROP.
3> Steel is used as the base material of the drill bit, and the surface of the blade is surfacing with high-performance
wear-resistant materials to prevent erosion of the base material.
4> The dynamic flow field simulation technology is adopted to optimize the hydraulic design, enhance the cleaning and cooling effect of the drill bit, and prevent the drill bit from being muddy. 5>Using high-performance five-axis milling center and high-speed milling technology to ensure the machining accuracy and fixing force of the drill bit.
GMD/GSD series, matrix/steel body PDC bits suitable for directional drilling Features:
1>The design of shallow inner cone and short gauge makes the drill bit have good control performance and meets the needs of directional drilling.
2>Optimize the profile design of the drill bit and strengthen the tooth density on the shoulder. Make sure
the drill has a high sidecutting capability.
3>The oblique diameter-gauge design enhances the stability of the drill bit in the
process of orientation.
4>Strengthen the diameter-gauge design and strengthen the drill's diameter-gauge ability. 5>Optimize the
water conservancy design, enhance the cleaning and cooling effect of the drill bit in the horizontal and directional sections, prevent the drill bit from being muddy, and improve the ROP of the drill bit.

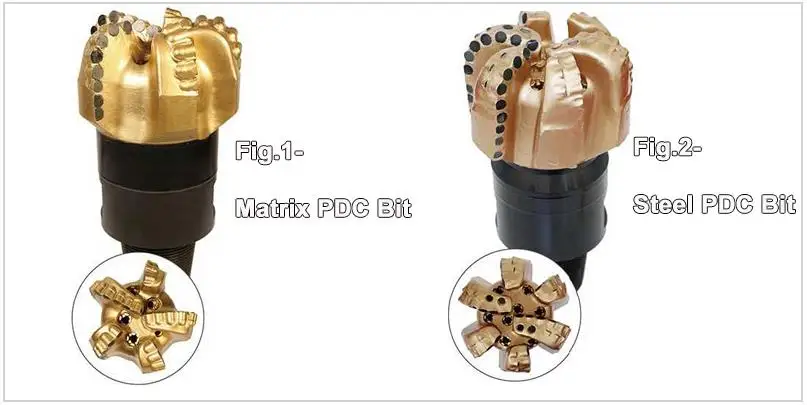

The difference between the matrix PDC bit and the steel PDC bit:
1> Matrix-type diamond compact (PDC) drill is a cutting-type drill that welds the diamond compact to the drill matrix by brazing. The matrix bit is sintered with tungsten carbide powder, and brazed on the tungsten carbide matrix with synthetic polycrystalline diamond composite sheet.

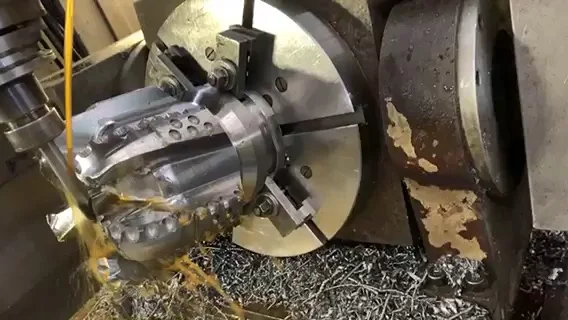

2>Steel body PDC drill bits are machined and formed using nickel, chromium and molybdenum alloys. After
heat treatment, the drill bit body is drilled, and the artificial polycrystalline diamond composite sheet is welded to the tooth
cavity of the drill bit base body by brazing.
1> According to different formation rock characteristics, optimize the crown profile and select composite sheets with different functions to meet the needs of drilling in soft to medium hard formations without hydrogen sulfide.
2>The cutting structure adopts
force balance design, asymmetric thin blade, deep chip flute design, etc., so that the drill has a higher ROP.
3> Steel is used as the base material of the drill bit, and the surface of the blade is surfacing with high-performance
wear-resistant materials to prevent erosion of the base material.
4> The dynamic flow field simulation technology is adopted to optimize the hydraulic design, enhance the cleaning and cooling effect of the drill bit, and prevent the drill bit from being muddy. 5>Using high-performance five-axis milling center and high-speed milling technology to ensure the machining accuracy and fixing force of the drill bit.
GMD/GSD series, matrix/steel body PDC bits suitable for directional drilling Features:
1>The design of shallow inner cone and short gauge makes the drill bit have good control performance and meets the needs of directional drilling.
2>Optimize the profile design of the drill bit and strengthen the tooth density on the shoulder. Make sure
the drill has a high sidecutting capability.
3>The oblique diameter-gauge design enhances the stability of the drill bit in the
process of orientation.
4>Strengthen the diameter-gauge design and strengthen the drill's diameter-gauge ability. 5>Optimize the
water conservancy design, enhance the cleaning and cooling effect of the drill bit in the horizontal and directional sections, prevent the drill bit from being muddy, and improve the ROP of the drill bit.
The difference between the matrix PDC bit and the steel PDC bit:
1> Matrix-type diamond compact (PDC) drill is a cutting-type drill that welds the diamond compact to the drill matrix by brazing. The matrix bit is sintered with tungsten carbide powder, and brazed on the tungsten carbide matrix with synthetic polycrystalline diamond composite sheet.
2>Steel body PDC drill bits are machined and formed using nickel, chromium and molybdenum alloys. After
heat treatment, the drill bit body is drilled, and the artificial polycrystalline diamond composite sheet is welded to the tooth
cavity of the drill bit base body by brazing.
Advantages
(1)drilling fast
(2) more safer
(3)Long service life
(4)Repairable and recycling
(5)Cutter breaks in high impact formation
The solidity and strength of PDC bits lends them many advantages that a tricone bit can’t match.Most significantly, PDC bits have a longer lifespan which means they don’t need to be replaced as often as tricone bits. That reason alone explains much of the shift towards PDC bits for large scale projects.Additionally PDC bits can achieve a higher Rate Of Penetration than tricone bits under optimal circumstances. These factors combined mean that in formations where the rock type is established and the correct PDC bit is selected you can drill faster and further with a single PDC bit, bringing the cost per foot down below that of a tricone.
Even though tricone bits may be cheaper up front, in the right kind of project that can take full advantage of the features of a PDC bit, you will wind up saving money in the long run by going with PDC bits. Lastly as tricone bits consist of several different moving parts, it is possible to lose part of the tricone in the borehole, a danger that does not exist with PDC bits.
Advantage of matrix-body PDC bits
Matrix-body PDC bits are commonly preferred over steel-body bits for environments in which body erosion is likely to cause a bit to fail. For diamond-impregnated bits, only matrix-body construction can be used.
Advantage of steel-body PDC bits
The strength and ductility of steel give steel-bit bodies high resistance to impact loading. Steel bodies are considerably
stronger than matrix bodies. Because of steel material capabilities, complex bit profiles and hydraulic designs are possible and relatively easy to construct on a multi-axis, computer-numerically-controlled milling machine. A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Considering the fact that cost is a major aspect in drilling and that tungsten carbide is more expensive than high alloy steel, steel body PDC drill bits have a larger market share.
The solidity and strength of PDC bits lends them many advantages that a tricone bit can’t match.Most significantly, PDC bits have a longer lifespan which means they don’t need to be replaced as often as tricone bits. That reason alone explains much of the shift towards PDC bits for large scale projects.Additionally PDC bits can achieve a higher Rate Of Penetration than tricone bits under optimal circumstances. These factors combined mean that in formations where the rock type is established and the correct PDC bit is selected you can drill faster and further with a single PDC bit, bringing the cost per foot down below that of a tricone.
Even though tricone bits may be cheaper up front, in the right kind of project that can take full advantage of the features of a PDC bit, you will wind up saving money in the long run by going with PDC bits. Lastly as tricone bits consist of several different moving parts, it is possible to lose part of the tricone in the borehole, a danger that does not exist with PDC bits.
Advantage of matrix-body PDC bits
Matrix-body PDC bits are commonly preferred over steel-body bits for environments in which body erosion is likely to cause a bit to fail. For diamond-impregnated bits, only matrix-body construction can be used.
Advantage of steel-body PDC bits
The strength and ductility of steel give steel-bit bodies high resistance to impact loading. Steel bodies are considerably
stronger than matrix bodies. Because of steel material capabilities, complex bit profiles and hydraulic designs are possible and relatively easy to construct on a multi-axis, computer-numerically-controlled milling machine. A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Considering the fact that cost is a major aspect in drilling and that tungsten carbide is more expensive than high alloy steel, steel body PDC drill bits have a larger market share.
Development of PDC bits
Fortunately, both steels and matrix are rapidly evolving, and their limitations are diminishing. As hard-facing materials improve, steel bits are becoming extremely well protected with materials that are highly resistant to abrasion and erosion. At the same time, the structural and wear-resisting properties of matrix materials are also rapidly improving, and the range of economic applications suitable for both types is growing.
Today’s matrix has little resemblance to that of even a few years ago. Tensile strengths and impact resistance have increased by at least 33%, and cutter braze strength has increased by ≈80%. At the same time, geometries and the technology of supporting structures have improved, resulting in strong, productive matrix products.
PDC bit cost is becoming less & less,while quality is going up a lots with this relative new technology mature. In right formation and application, PDC rock bit can drill as twice fast as a tricone bit or even more. You can save tons of time & money.PDC is idea choice for some formation condition. It works well in consolidated, homogeneous rock, such as shale, sandstone, limestone, sand, clay. When your rock as about mentioned, you can try out PDC bit as a fast, safe, rebultable ( low cost in long run) solution.
Today’s matrix has little resemblance to that of even a few years ago. Tensile strengths and impact resistance have increased by at least 33%, and cutter braze strength has increased by ≈80%. At the same time, geometries and the technology of supporting structures have improved, resulting in strong, productive matrix products.
PDC bit cost is becoming less & less,while quality is going up a lots with this relative new technology mature. In right formation and application, PDC rock bit can drill as twice fast as a tricone bit or even more. You can save tons of time & money.PDC is idea choice for some formation condition. It works well in consolidated, homogeneous rock, such as shale, sandstone, limestone, sand, clay. When your rock as about mentioned, you can try out PDC bit as a fast, safe, rebultable ( low cost in long run) solution.
Company Profile
Our company established in 2000.
Our company have been grown into a leading manufacturer of drilling bit and a supplier of high quality drilling tools. We are good at designing, manufacturing, and distributing Oil well , gas well, deep water well, crossing ,mine, pile foundation ,Geological exploration, construction industry drilling tools as well as finding customer
solutions for complex problems. Our company is committed to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop.
solutions for complex problems. Our company is committed to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop.
Hejian Deris owns a high reputation in the construction, exploration, water well, geothermal, mining, and oil & gas industries owe to we can provide dependability and high quality products at excellent value. Products include: Tricone bit (steel tooth & TCI bit), PDC drill bit (matrix & steel body), step drag bit, HDD Reamer bit (Hole opener), tricone bit cutters, replacement roller cones, stabilizer, Drill pipe, drill collar and so on. We offer a dynamic range of products and solutions. Our diverse products can meet your industry various demands. Our company has a professional team of core technical personnel，from Drilling tool designers drafting drawing ,implementation to machining fabrication, assembly and distribution, we are ready to meet any of your industry drilling challenge. We know that it is important to work closely with our customers and to develop a Win-win relationship based on trust.
Packing and Shiping
Package Type : wooden case ,also be packaged according to customers requirement Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit, we have stock.If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.
FAQ
The information you may like to know before order:
1. Does your company have its own factory?
A: Yes , we are local famous company with a professional drill bit manufacturer Deris in China.
2. Are product quality and customer service good?
A: Company tent of Deris: Quality first, after-sales service first. All of our are certified to ISO 9001. We insist : customer supremacy of credibility. Advanced technology and equipment ensuring the quality satisfy international standards.
3 . How about the packing & Delivery?
A: We used high quality export carton container and wooden case in order to ensure that product reaches its destination safely.
4. About lead time and shipping time?
A: The lead time depend on quantity of order. Usually choose seaworthy packing , urgent order or small order are sent by air parcel after received your agreement.
5. How to order our product?
A: Send the inquiry detail item description or with Model number. If there is no packing demand we take it as shipping. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a accurate understanding.
6. How can I access your company website?
Our website is : https://hjdrs.en.alibaba.com/
A: Yes , we are local famous company with a professional drill bit manufacturer Deris in China.
2. Are product quality and customer service good?
A: Company tent of Deris: Quality first, after-sales service first. All of our are certified to ISO 9001. We insist : customer supremacy of credibility. Advanced technology and equipment ensuring the quality satisfy international standards.
3 . How about the packing & Delivery?
A: We used high quality export carton container and wooden case in order to ensure that product reaches its destination safely.
4. About lead time and shipping time?
A: The lead time depend on quantity of order. Usually choose seaworthy packing , urgent order or small order are sent by air parcel after received your agreement.
5. How to order our product?
A: Send the inquiry detail item description or with Model number. If there is no packing demand we take it as shipping. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a accurate understanding.
6. How can I access your company website?
Our website is : https://hjdrs.en.alibaba.com/
Contact
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
