LS172 smart touch screen colorimeter color analyzer is used for color measurement of coating ceramic plastic coatings
- Category: Other Physical Measuring Instruments >>>
- Supplier: Shenzhen Aermanda Technology Co. Ltd.
Share on (1600824969447):
Product Overview
Description
LS172 smart touch screen colorimeter color analyzer is used for color measurement of coating ceramic plastic coatings
I. Product introduction

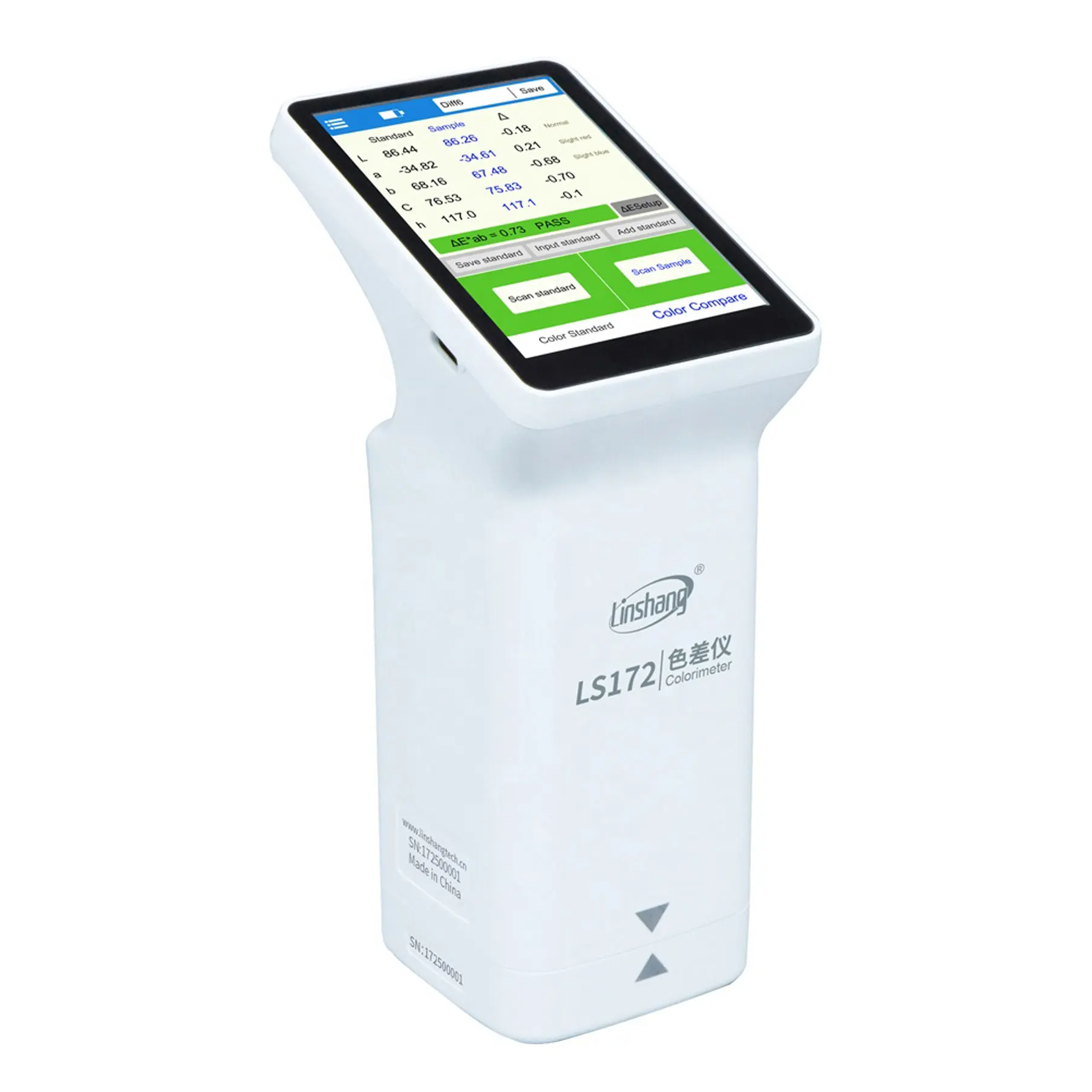

LS172 is a handheld multifunctional colorimeter designed with a 45°/0° optical geometric structure. It uses a 3.5-inch IPS color screen and a capacitive touch screen to provide an excellent operating experience. The color analyzer integrates multiple color charts, which can quickly match the three closest color codes. At the same time, it has a color difference comparison function, support multiple standard color addition methods, color difference thresholds can be set, color difference formulas can be flexibly selected. QC testing can be achieved.
Colorimeter Application
LS172 color analyzer is designed with a 45°/0° optical geometric structure and has a wide range of applications. It is usually used in product color measurement and management, product color difference quality control in paint, paper printing, decorations, leather and cotton, textile printing, plastics and other industries.
Features
1. Touch screen control, perfect viewing angle

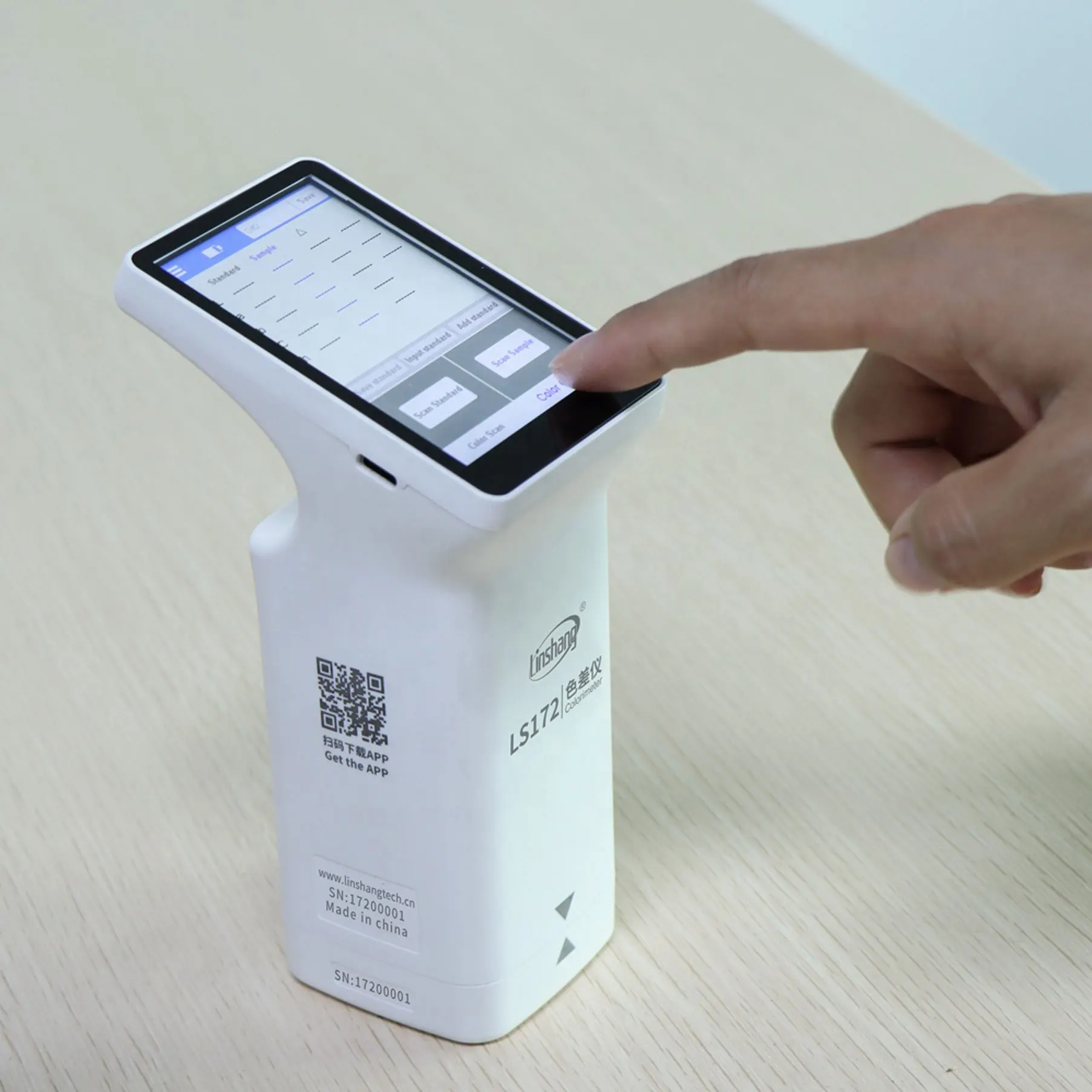

The instrument uses a 3.5-inch IPS color capacitive touch screen, no button settings are required; the screen is tilted at 20 degrees and has a perfect viewing angle, which has a good user experience and human-computer interaction interface.
2. Portable color analyzer, easy to carry
Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.
3. Refusing to be burdensome and simple to choose

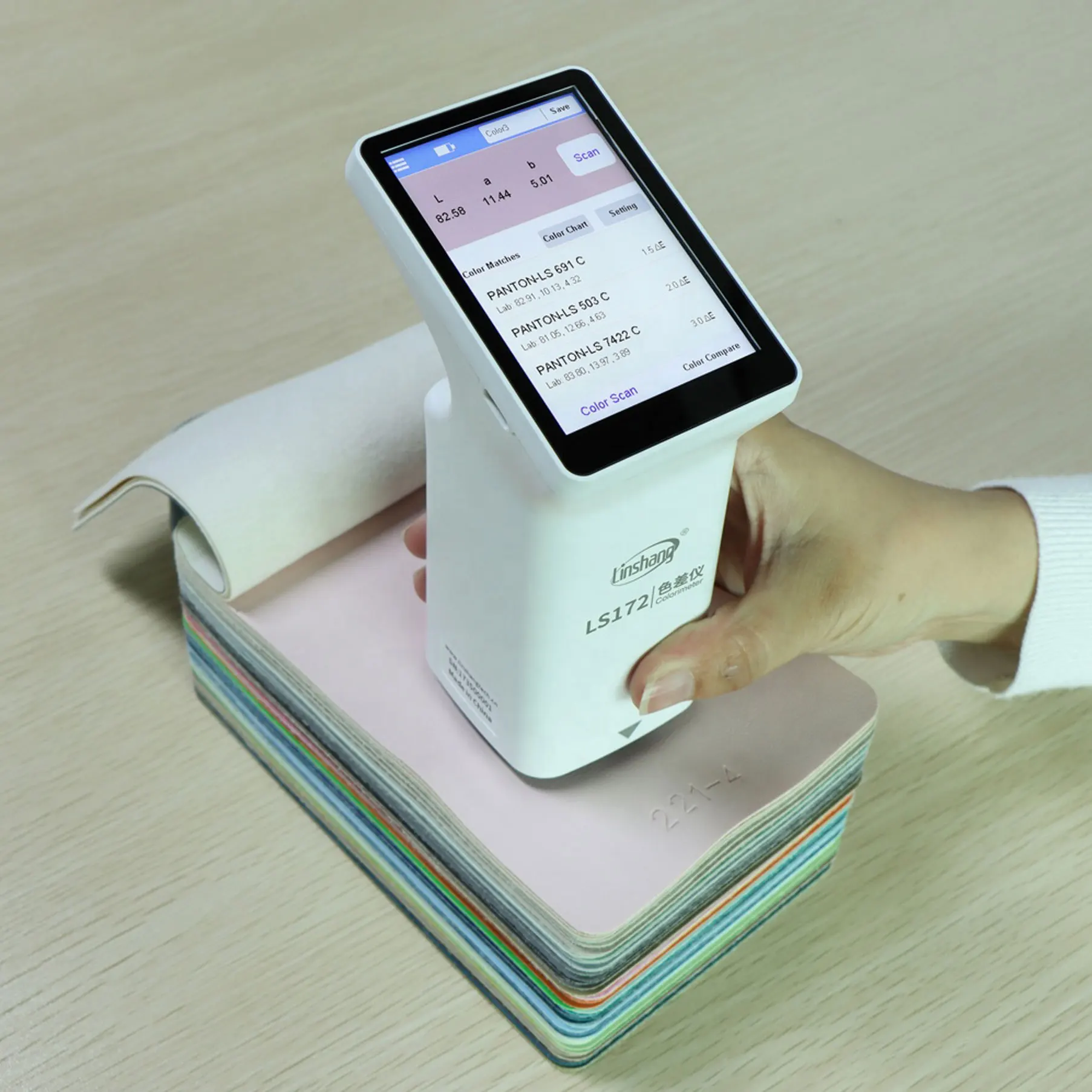

Built-in multiple electronic color charts, quickly matching the closest 3 color codes, the accuracy rate is as high as 90%.
4. Color measurement and color difference comparison
Reject complex operations and make the measurement simpler. The color difference meter can be used in 5 seconds to get started. Color measurement can be achieved by touching the screen button or pressing the power button. The color values can be quickly measured in 1 second.

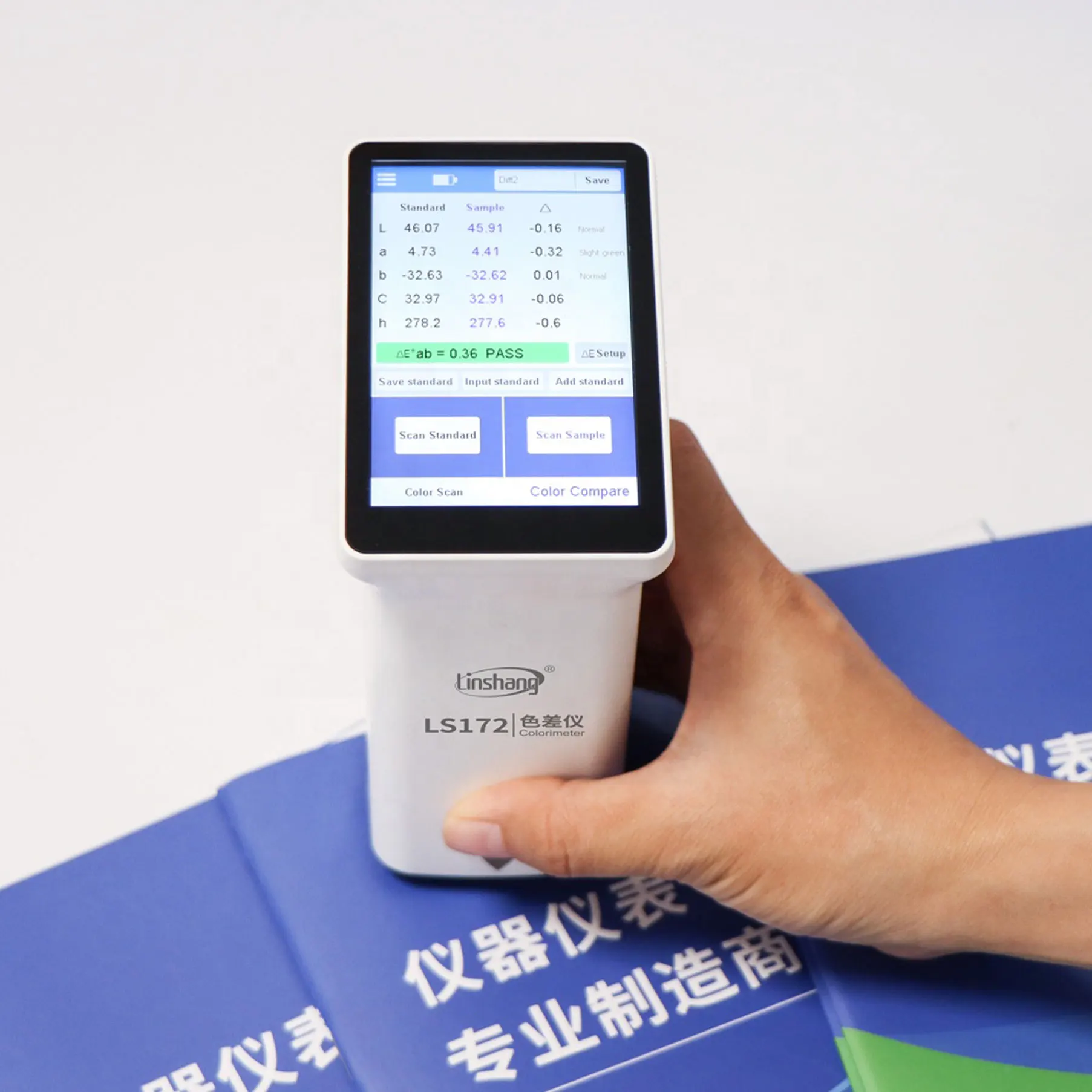

Two clicks can complete the color difference comparison, turn on the QC testing function, batch testing can be performed. The color difference threshold can be set to quickly achieve color quality control. And provide the color deviation indicator of Lab values, making color adjustment easier and more convenient.
5. Seven color spaces and six color difference formulas
The color meter has a variety of color spaces such as Lab\\RGB\\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.
6. Large storage space
The instrument has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively.
7. Compensation optical path technology
The color difference meter has a built-in compensation optical path with stable values and allows long-period calibration.
8. Whiteboard calibration, simple operation
The bottom cap integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious operations.
9. Locating plate makes color measurement more accurate

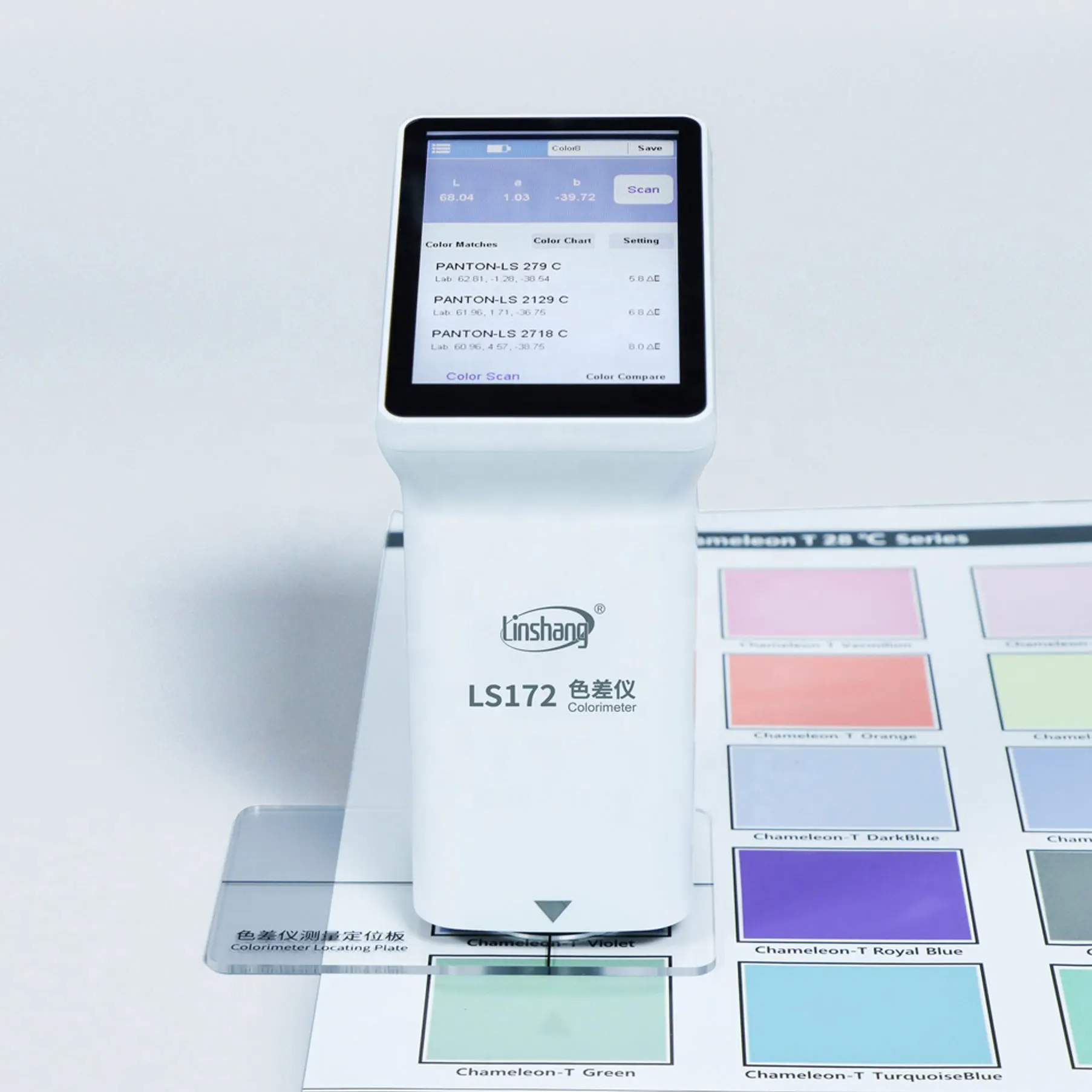

The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.
10. Energy saving, low power consumption
Built-in lithium battery, can be used 10,000 times continuously under full charge. The default auto off time can be set.
Parameters
Illumination geometry | 45/0 (45°annular illumination, 0° viewing angle) |
Illumination light source | Full spectrum LED light source |
Measuring aperture | 8mm |
Measurement conditions | Light source D65, field of view 10° |
Measuring time | About 1s |
Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), |
Repeatability | Standard deviation ΔE*ab is within 0.03 |
Dimension | 86mm×62.5mm×158mm |
Weight | About 225g |
Power supply | Rechargeable lithium battery |
Display | 480×320 dot matrix IPS color screen |
Language | Simplified Chinese, English |
Charging port | USB (Type-C) |
Data transmission | USB |
Operating temperature range | 0~45℃, 0~85%RH (no condensation) |
Storage temperature range | -25~55℃, 0~85%RH (no condensation) |
