Product Overview
Description
LS125-UVCLED-X0 UV Probe UV Light Meter 230nm-315nm suitable intensity and energy detection of 260nm-285nm LED germicidal lamp

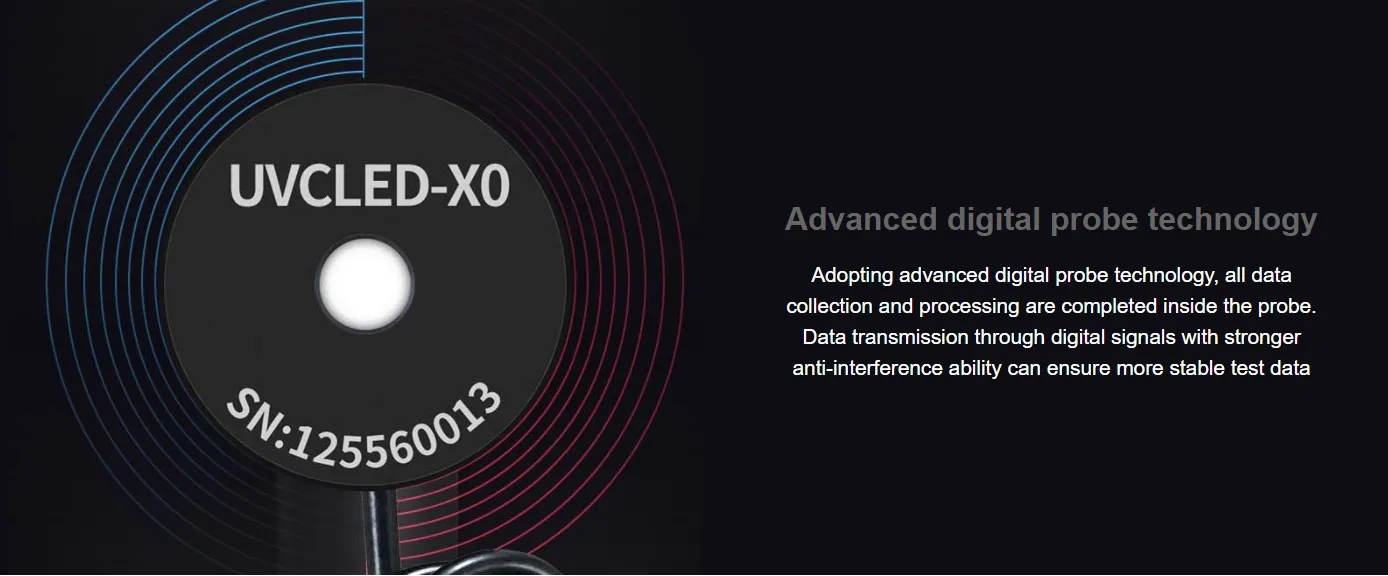

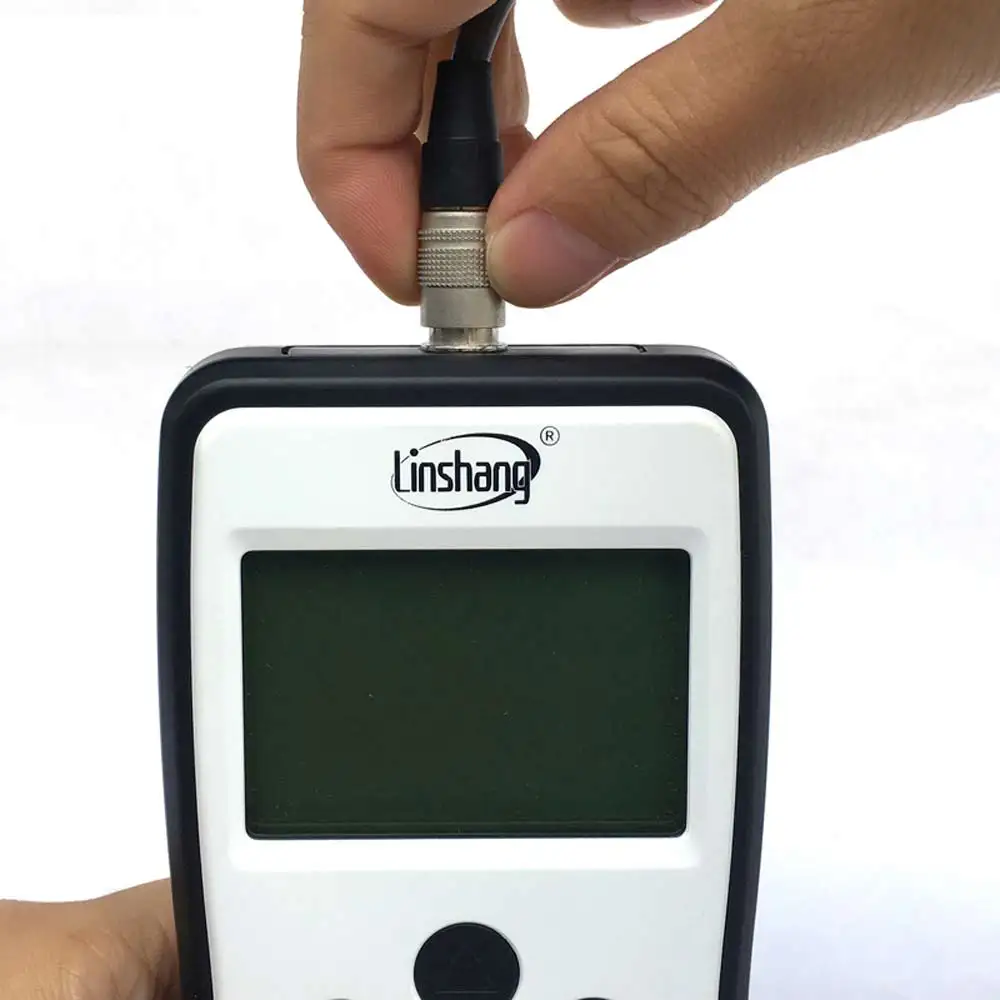

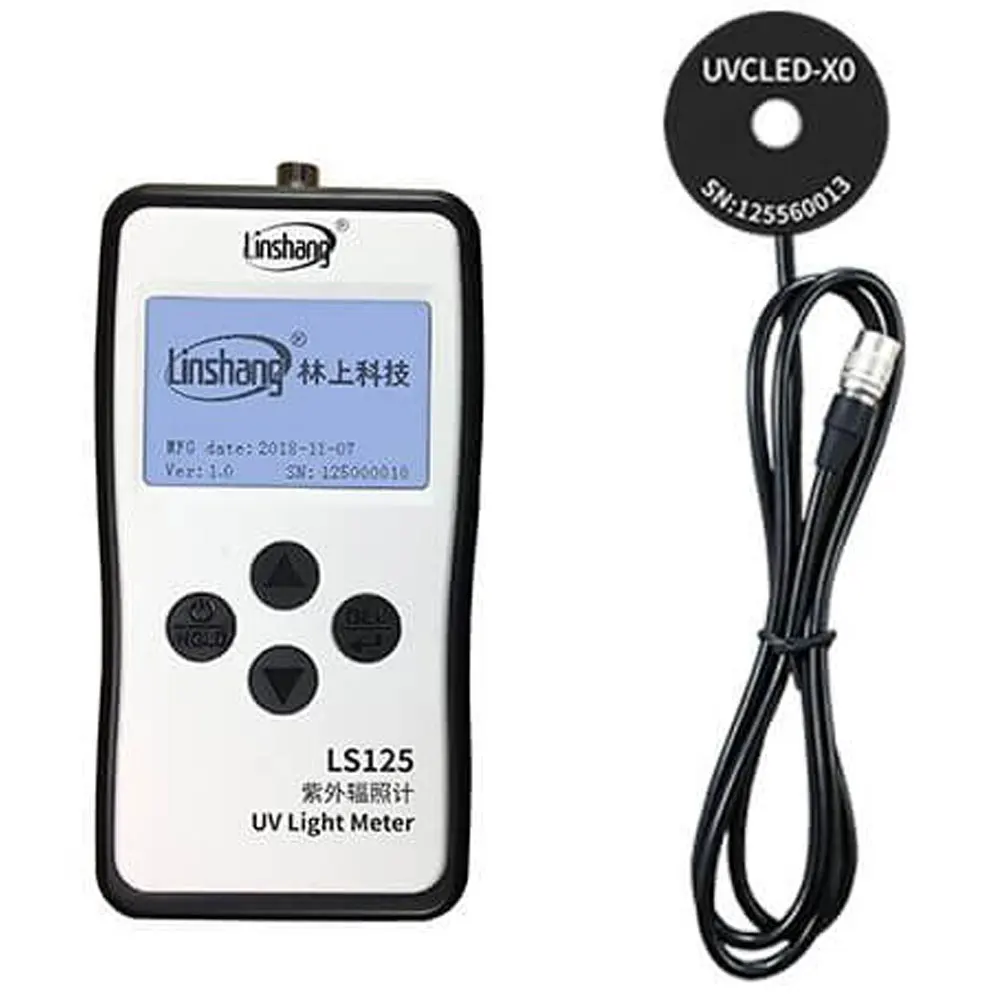

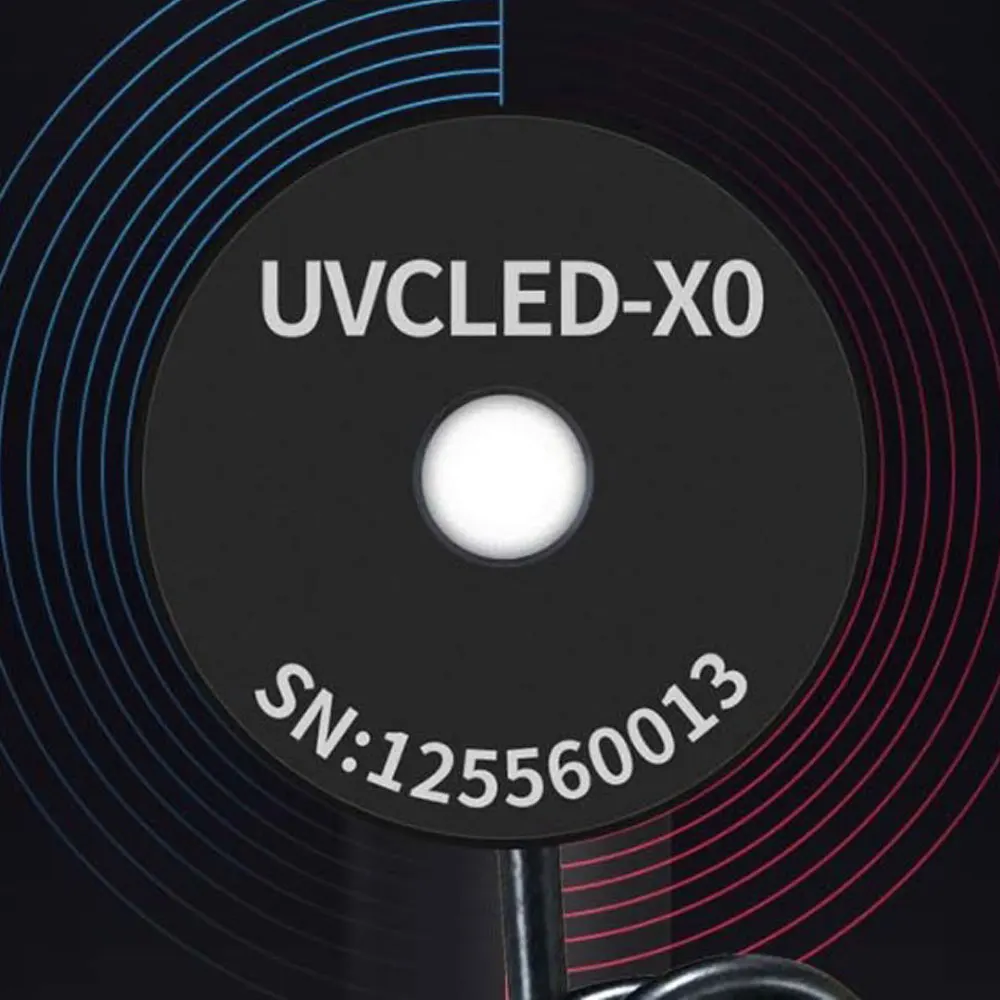

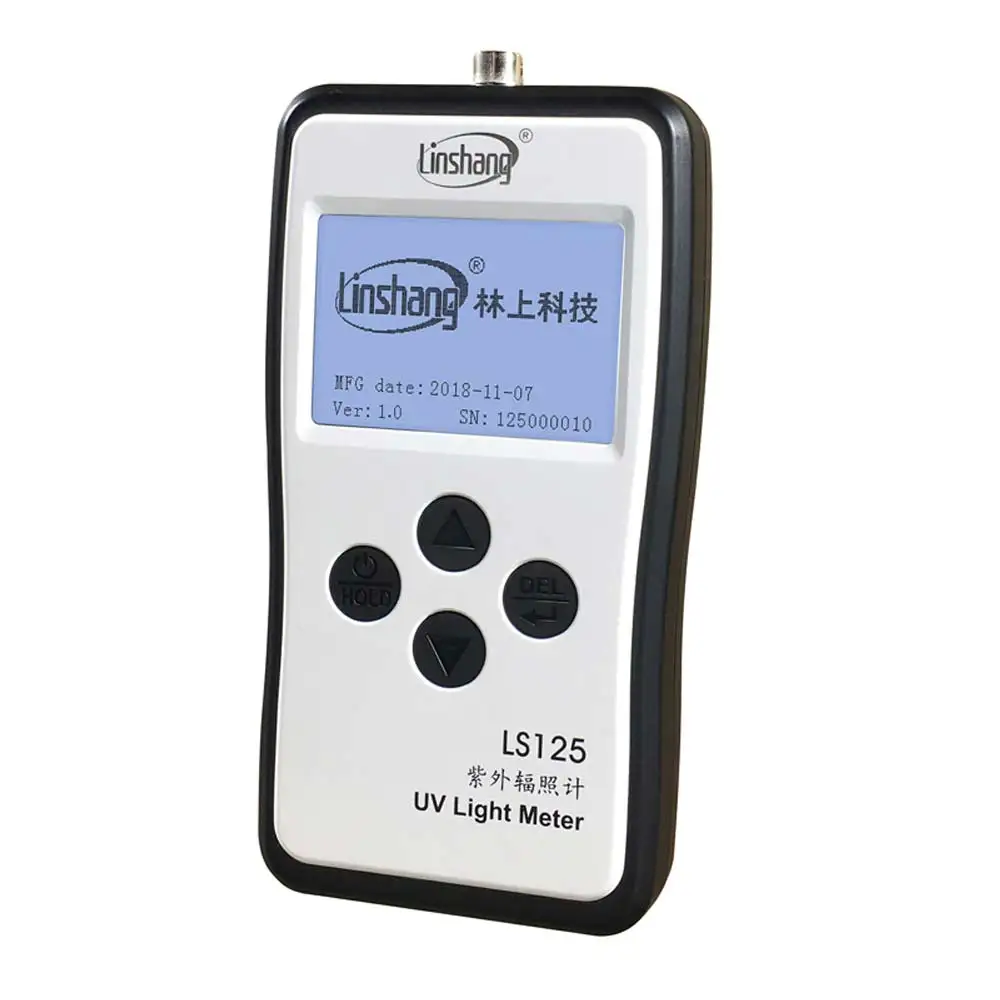

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVCLED-X0 probe is one of the 9 probes equipped with the LS125 host. The probe's spectral response range is 230nm-315nm, suitable for intensity and energy detection of 260nm-285nm high power LED germicidal lamp, such as 275nm, 285nm LED light source.
Parameters
| Parameters | UVCLED-X0 Probe |
|---|---|

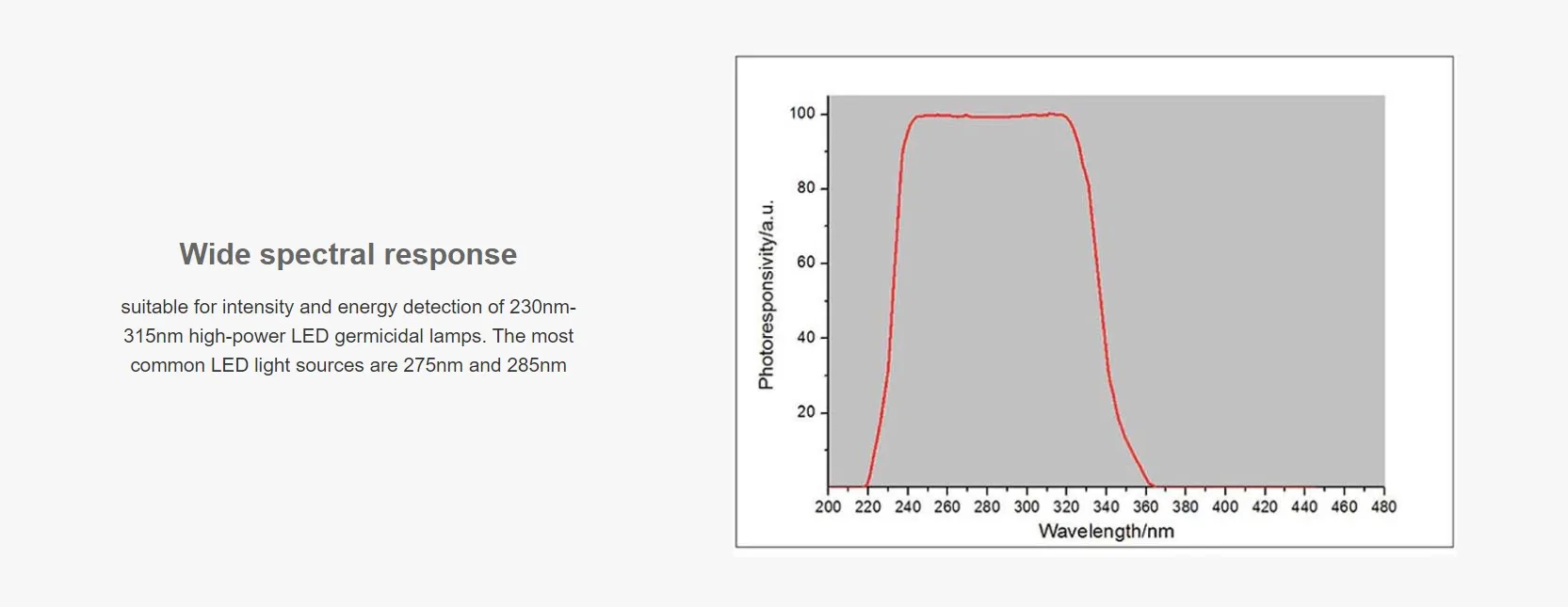

| Spectral response | 230nm-315nm, suitable for testing 260nm-285nm sterilization UV LED |

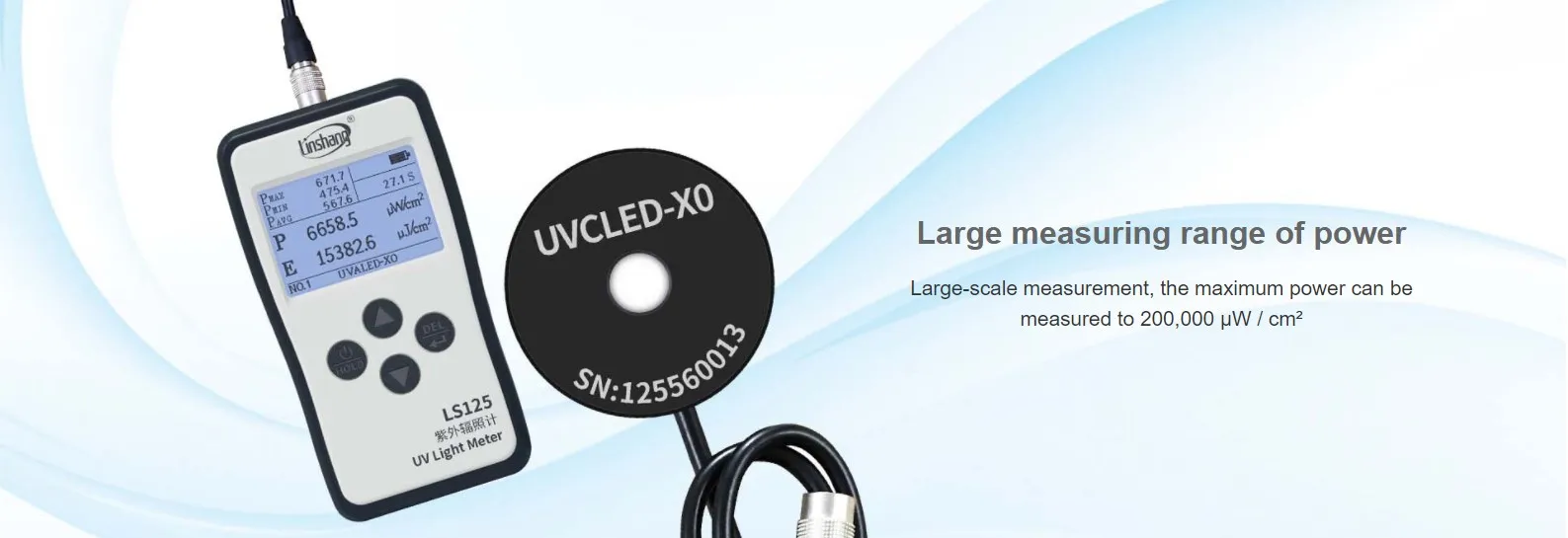

| Power measuring range | 0 - 200000μW / cm² |
| Resolution | 0.1μW / cm² |
| Energy measuring range | 0-9999999μJ/cm² |
| Record time | 0-99999s |
| Measuring accuracy | ±10% |
| Sampling speed | 6 times/second |
| Unit | μW / cm² (default), mW / cm², W / m² |
| Test Hole Diameter | 10mm |

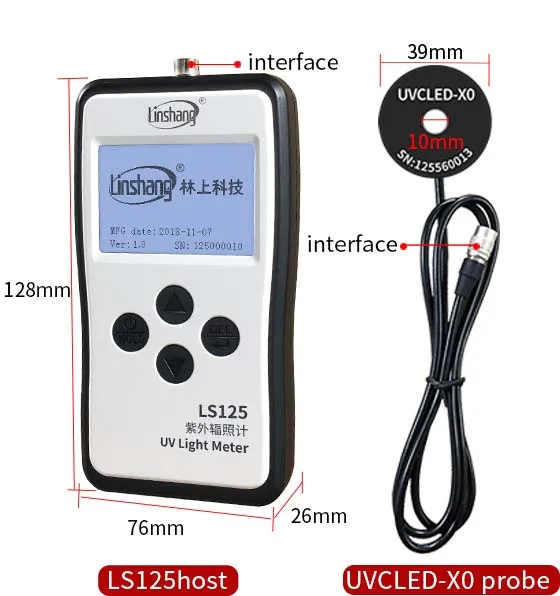

| Probe size | Diameter 39mm × thickness 15mm |
| Packing box dimension | 24*6*5cm (L * W * H) |
Statistics function

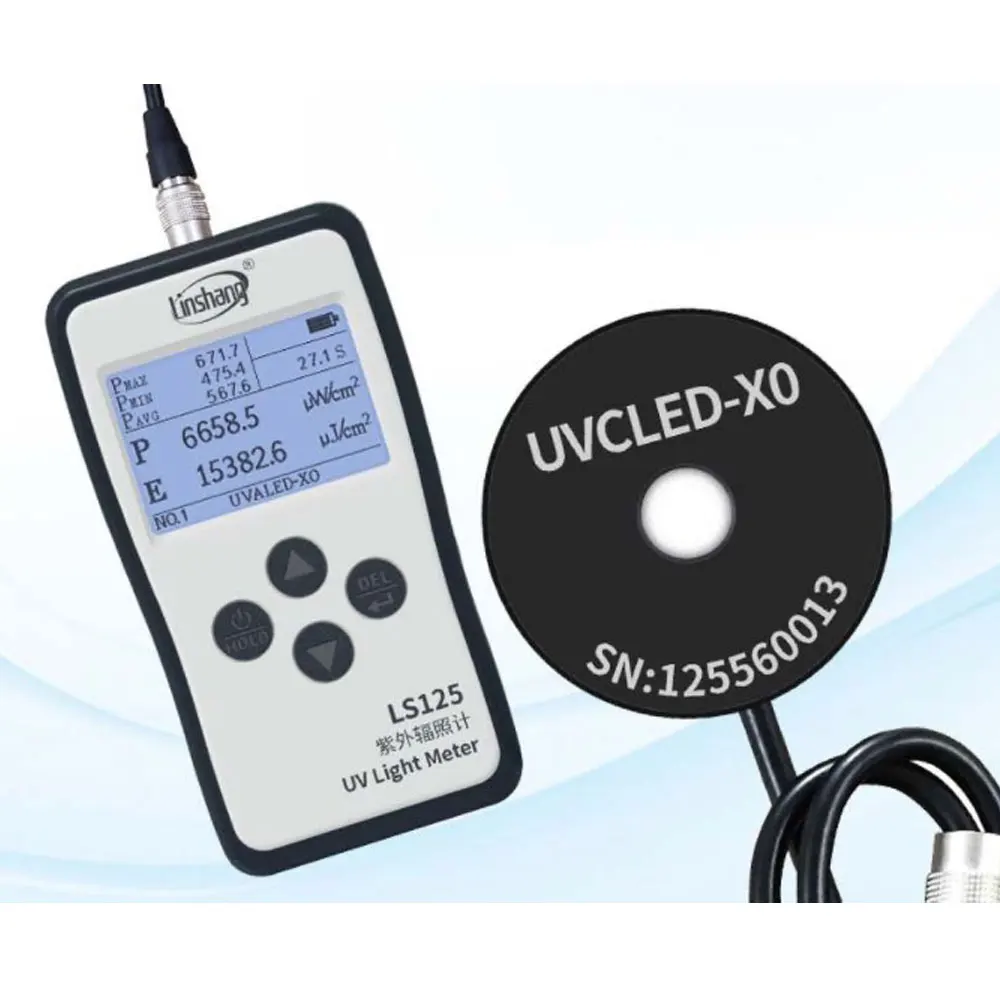

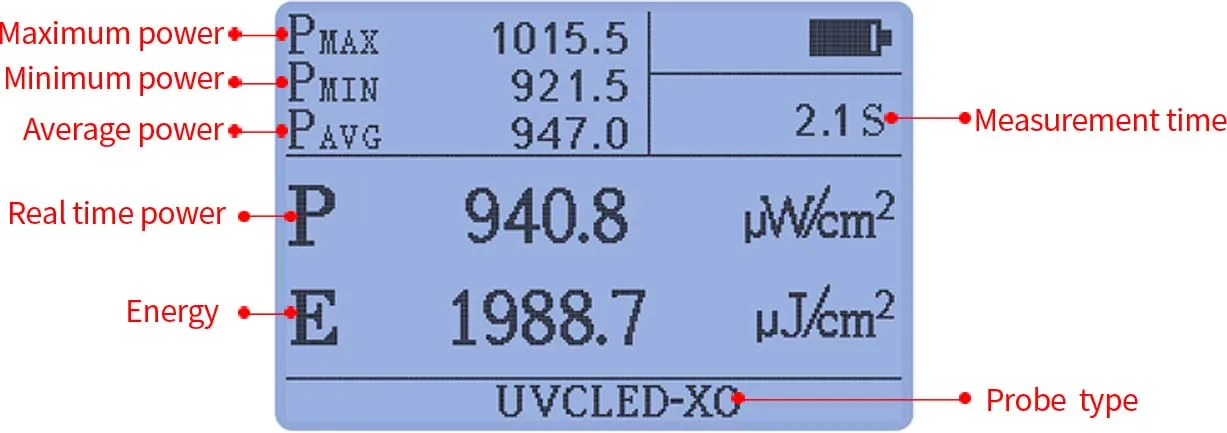

LS125 UV radiometer + UVCLED-X0 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time

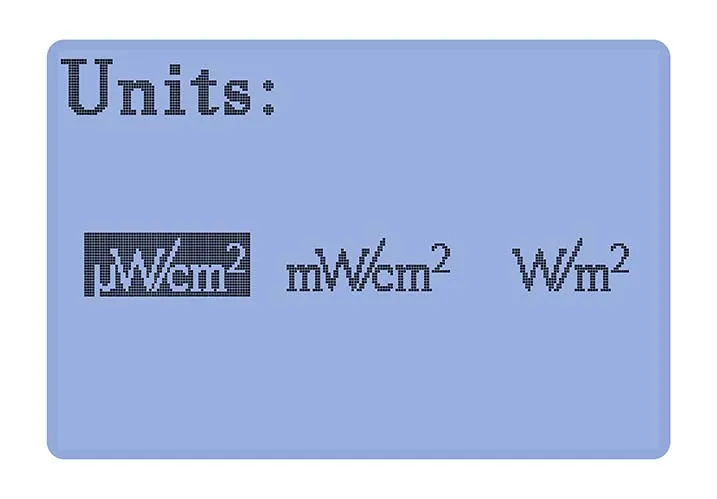

Units switchable freely
Three measurement units can be switched, namely μW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation
