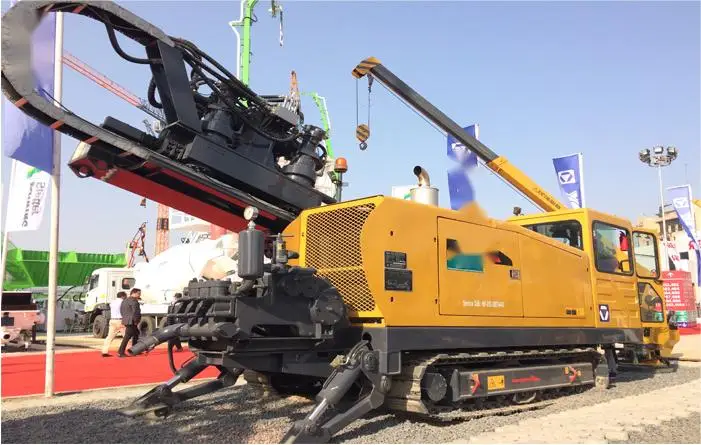

Б/у горизонтальный сверлильный станок Подержанный строительный станок инженерный станок Направленное бурение
- Category: Other Used Cranes >>>
- Supplier: Adl Power (zhenjiang) Limited
Share on (1600825840496):
Product Overview
Description
Product Overview

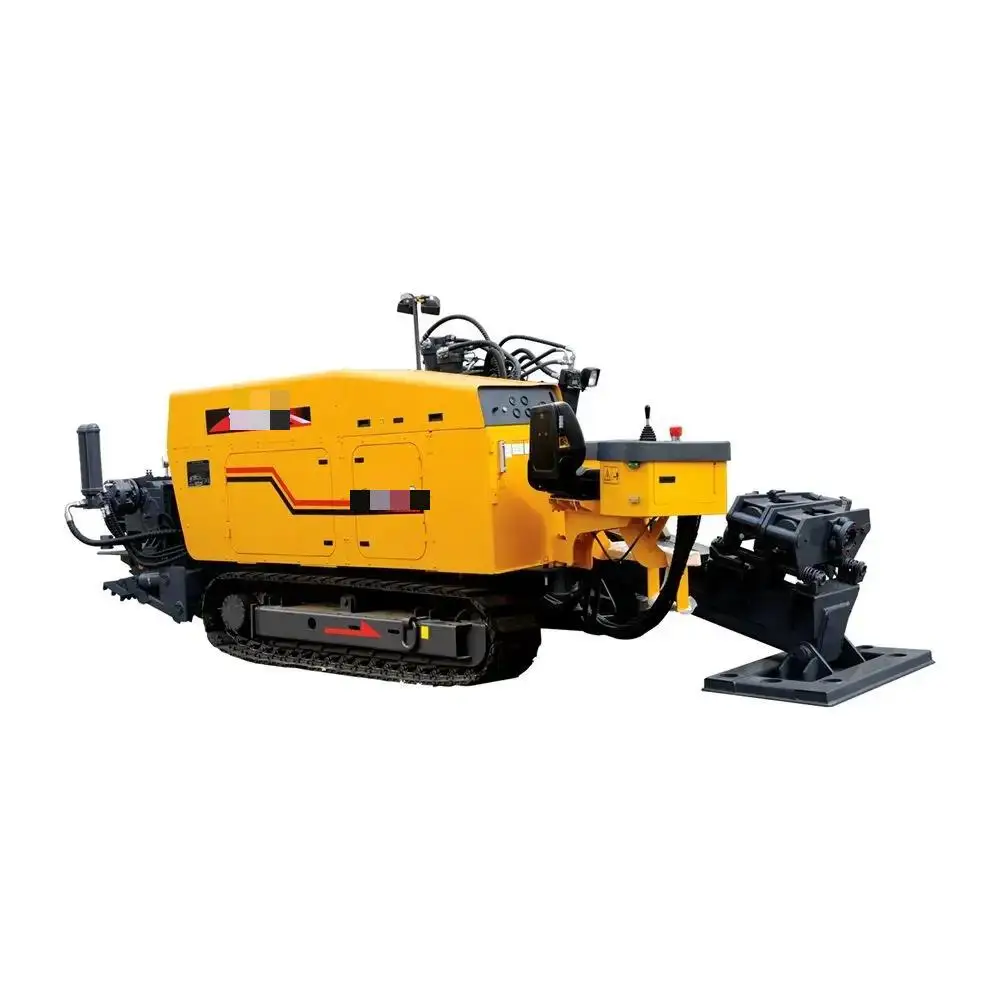

420E use drilling machine construction machine engineering machine
FEATURES AT A GLANCE
The single handle hydraulic control pilot system provides comfortable operating
performance and flexible adjustment performance for the entire machine, and selects first-class brand hydraulic components to ensure reliable operation of the entire hydraulic system.
The configuration is flexible and diverse, and the entire machine can be equipped with
automatic (semi-automatic) drill pipe loading and unloading device, automatic anchoring device, mud antifreeze, mud cleaning and
other devices.
automatic (semi-automatic) drill pipe loading and unloading device, automatic anchoring device, mud antifreeze, mud cleaning and
other devices.
Right elevation
Left elevation
Front elevation
Optional automatic loading and unloading drill pipe device, the drill pipe box can
accommodate 40 drill pipes (73), ensuring about 120 meters of construction, achieving automatic and efficient construction,
effectively reducing construction costs and labor intensity;
accommodate 40 drill pipes (73), ensuring about 120 meters of construction, achieving automatic and efficient construction,
effectively reducing construction costs and labor intensity;
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Power | 179KW | ||
2 | Max thrust-pull force kN | 420/500 | ||
Max thrust-pull speed m/min | 42 | |||
4 | Torque N·m | 18500 | ||
5 | Max spindle speed r/min | 145 | ||
6 | Max inclination angle | 20° | ||
7 | Pipe:Diameter × Length: | φ83mm×3000mm | ||
8 | Machine weight kg | 11000 |
PRODUCT CONFIGURATION
The patented technology of dual floating power head and vice can greatly protect the
threads of drill pipes and extend their service life;
threads of drill pipes and extend their service life;
Guide instrument
Reamer
Drilling rod

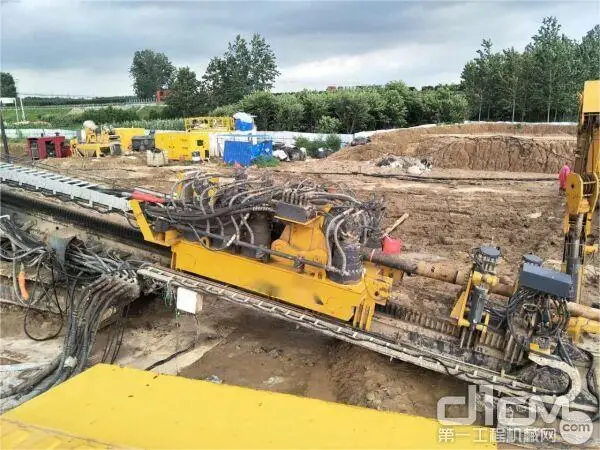

Successful Project
High and low speed push pull rotation system, plunger variable motor to achieve power head
push pull high and low speed, increase the adaptability of drilling rig working conditions, and improve drilling rig construction
efficiency;
push pull high and low speed, increase the adaptability of drilling rig working conditions, and improve drilling rig construction
efficiency;
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
This is used machine, second machine, not new machine, please notice.
