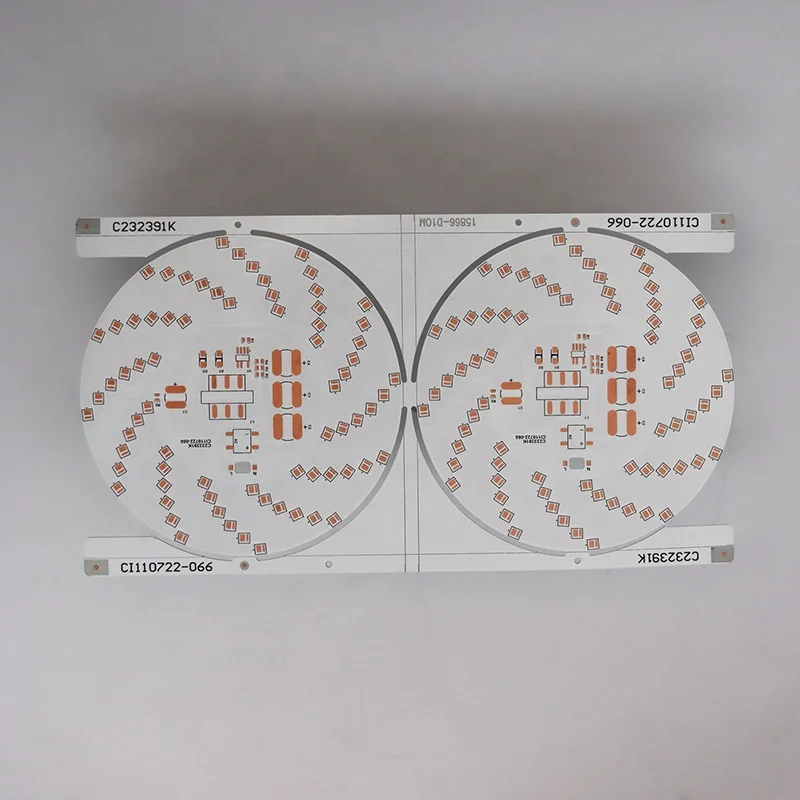

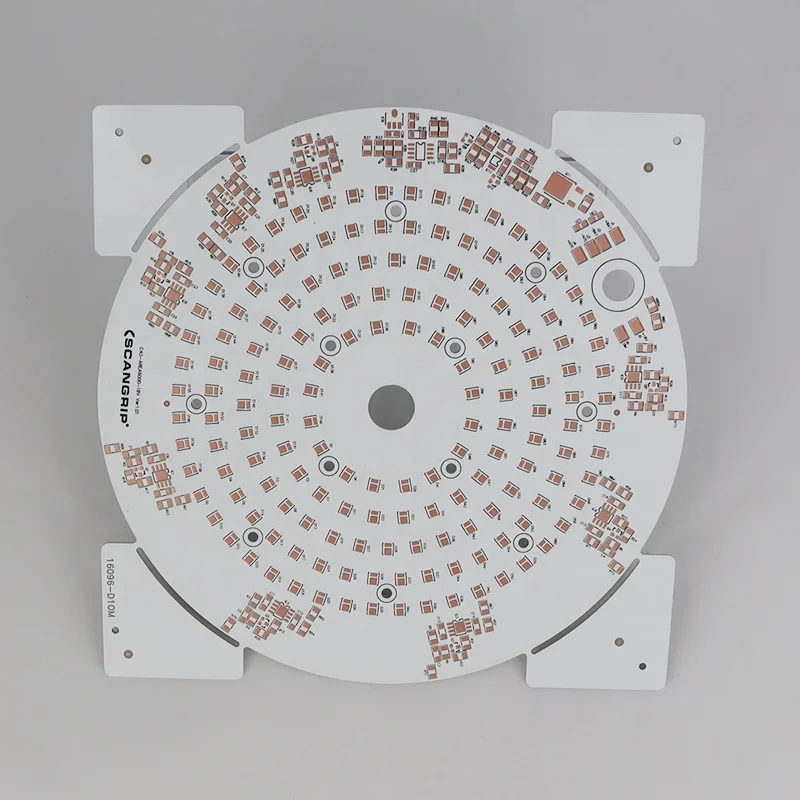

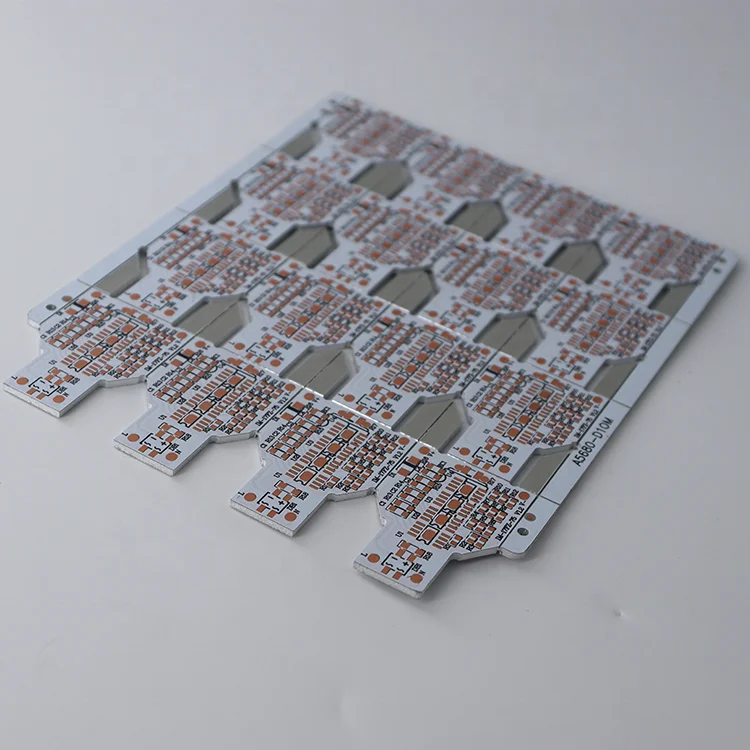

Single Layer MCPCB LED Aluminium Circuit Board Lead Free HASL high quality pcb for led light




Benefit of Aluminum base Pcb:
* Faster heat removal from high power density devices
* Lower peak temperature compared with standard PCB substrates
* Superior heat dissipation beyond the capability of standard PCB substrates
* 2 W/mK thermal conductivity, 6-8 times higher than FR4
* Uniform conductivity in vertical and horizontal axes as dielectric contains no glass layer
* Extends life expectancy of power devices by reducing device temperature


Recommend Products




Company Profile


 ZhongPei Capacity
Layers
FPC, Single layer PCB, Double Layers PCB, PCBA
Daily production
2000-4000sqm per day, 60,000sqm to 80,000sqm per month.
Material can process
FR4, 94V0, Aluminum substrates , CEM-1,CEM-3,FR1,22F,FPC,etc
Surface treatment
OSP, HASL Lead Free, Soldermask
Board thickness
0.5-3.0mm
Cooper foil thickness
18-105um, 0.5-3oz
Finished Size
Rigid Board:Min 3*3mm, max 500*1500mm
FPC: max width245mm, max coverlay length 600mm
Min line width for rigid board
0.2mm for single rigid board, 0.4mm for single fpc, 0.3 mm for double fpc, 8mil for multi-layer rigid board.
Quality Controlling
IQC, IPQC,FQC to ensure quality meet IPC 610J, IPS calss 2.
Certification
UL, ISO9001,ROHS,CQC
Application
Power supplies, Relays (automotive and industrial),Timing circuits,Sensor products,LED light, linear Light, Pool Light, Garden Light, Street Light, Floor Light, spot light, indoor light , outdoor light, Radio and stereo equipment,· Packaging equipment,· Surveillance,· Calculators,· Printers,· Coffee makers,· Vending machines,· Solid state drives,· Camera systems.




Exhibition




Certifications




Product packaging




FAQ


Q:How can I get a price?
A: As long as you can offer gerber file or detail requirement (Layer count, board thickness, cooper foil thickness, product size, surface treatment way,packing requirement,etc) we can offer price in 24 hours.

Q: Are you trading company or manufacturer ?
A: We are a PCB factory with 13 years experience in this area,We have self desinging team and sales team, we have both auto pcb production ling and traditional line available in our factory.

Q:What is your minimum order quantity?
A: For mass production, our min order amount is USD300.If less than this, it will be considered as a sample order. Sample order cost will depends on the pcb or pcba.

Q:What is your advandage than other supplier ?
A: 1.Located in Mid-China causing low labor cost.
2.We have IPC, IPQC, FQC controlling quality in the factory, ensuring our products meet IPC Class 2.
3. We can process both rigid board and fpc, also copper base board.

Q:How about your supply capacity?
A: Our supply capacity is around 2000sqm to 6000sqm each day. For rigid board(Aluminum base, copper base, FR-4 base),The min size we can process is 3*3mm, and the max size is 500*1500mm. For the FPC, due to film limit,max length is 600mm.

Q:What 's the lead time for an order?
A:Normally,it will take 3 to 15 days depends on the order volume.If you need urgent, please contact our sales people.

For other details, Please Contact Alice!
