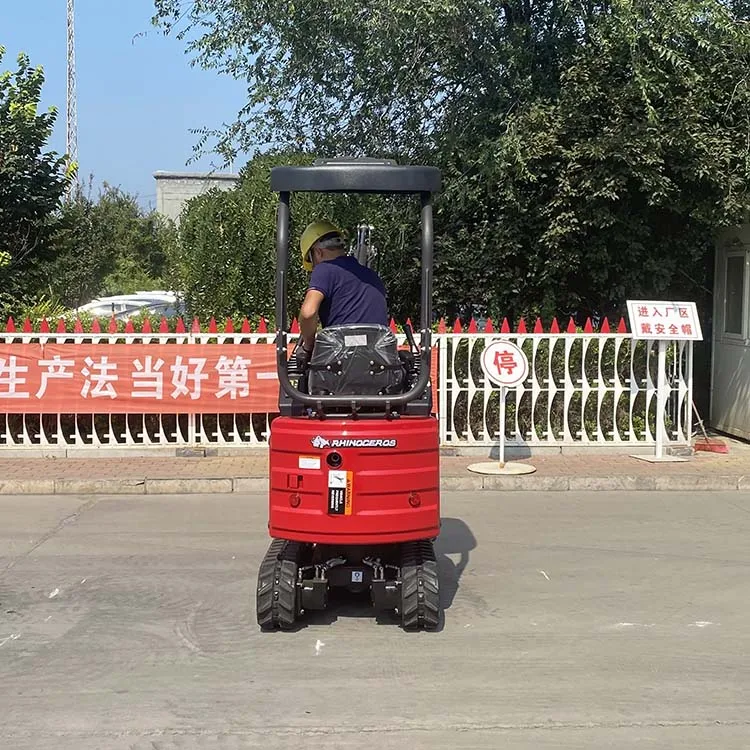

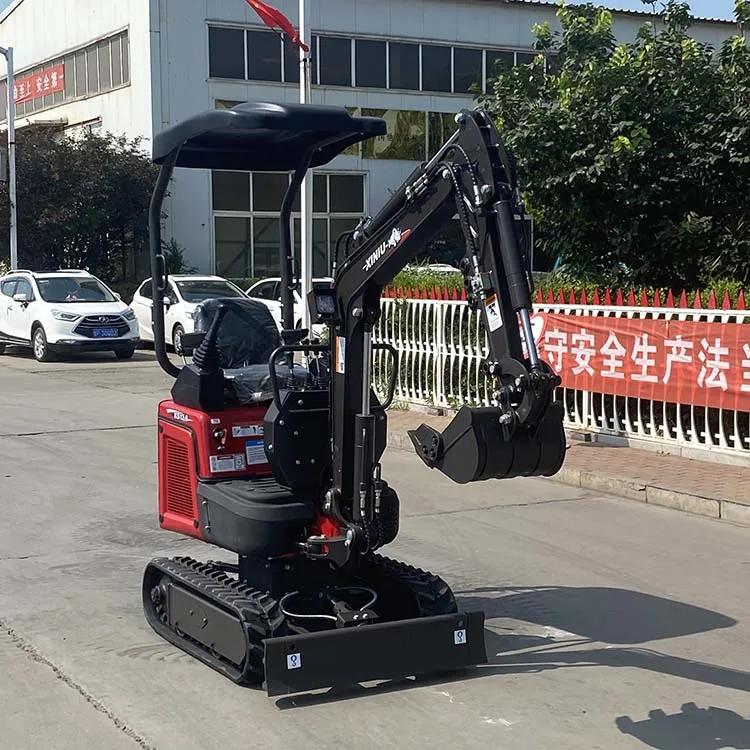

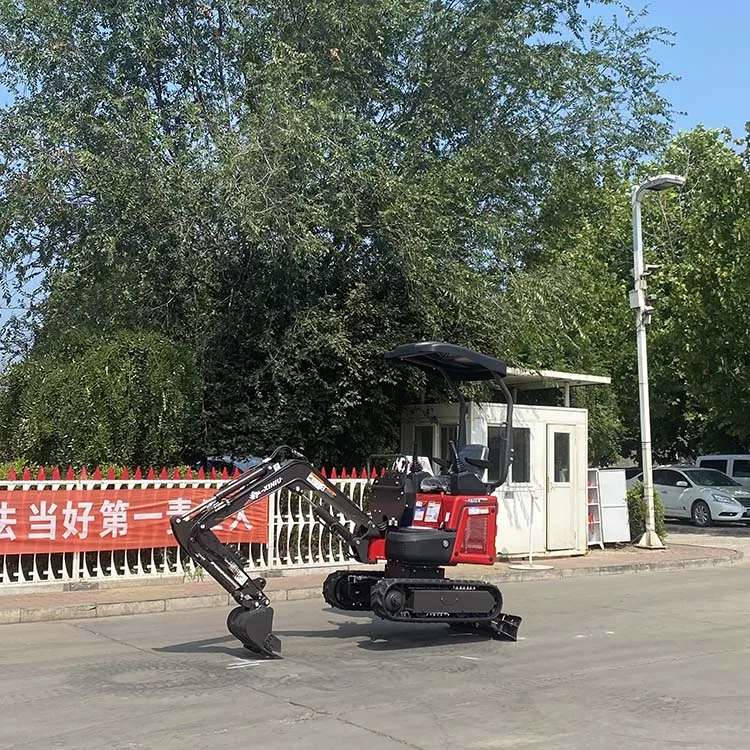

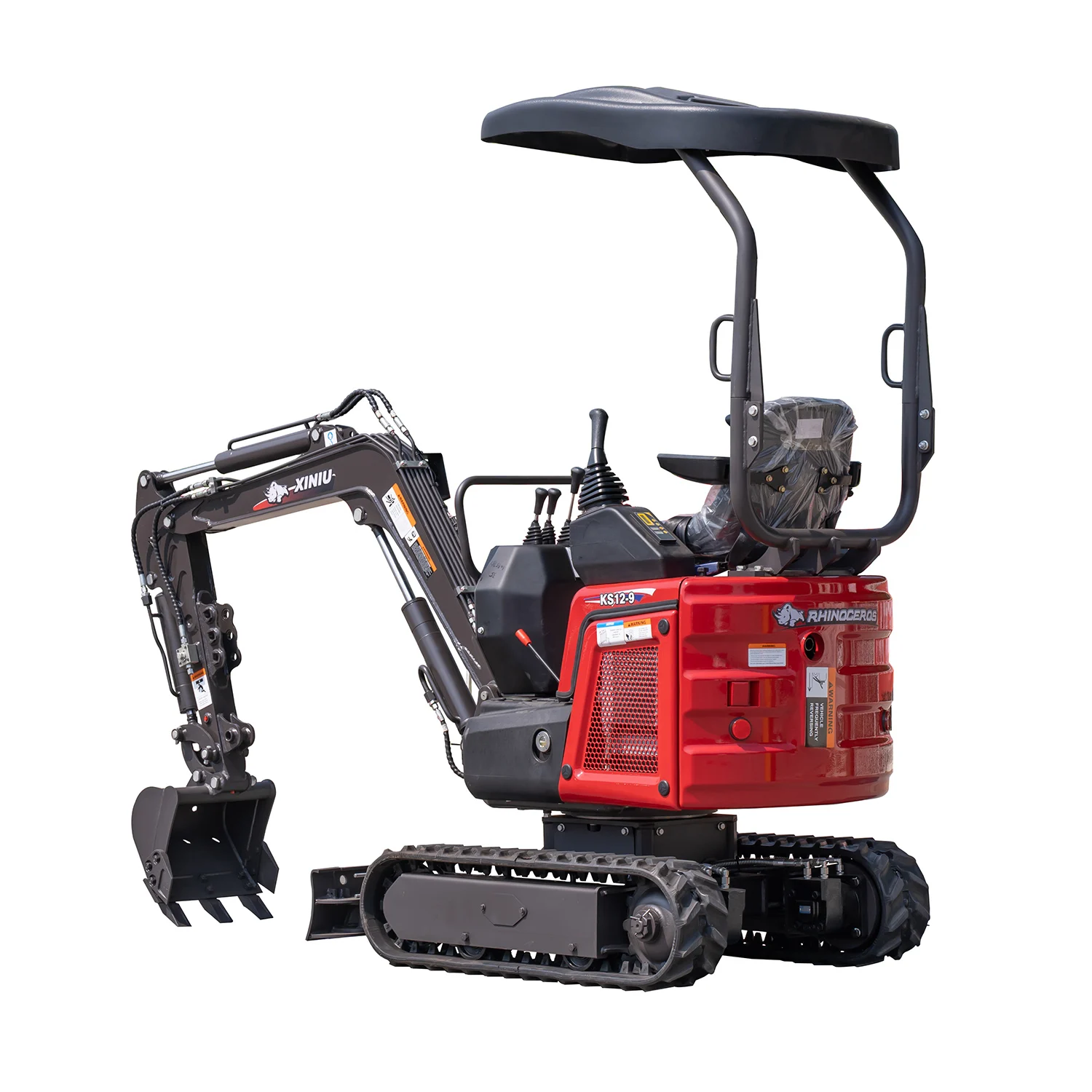

Rhinoceros KS12 9 CE kid mini excavator 1t miniature excavator mini excavator
- Category: >>>
- Supplier: Shandong Kenstone Heavy Machinery Co. Ltd.
Share on (1600828009477):
Product Overview
Description
VR
Specification

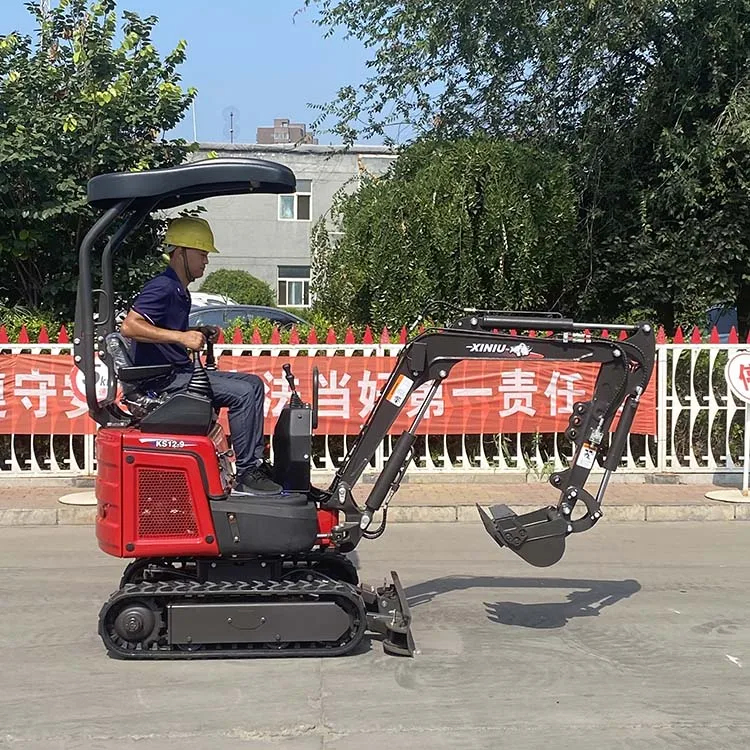

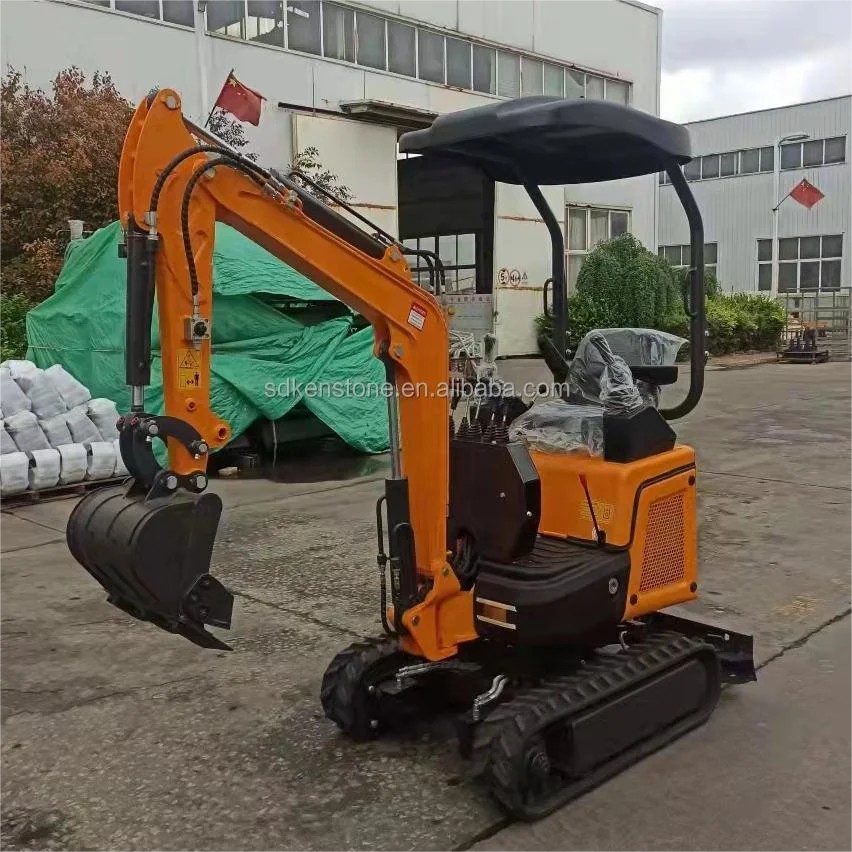

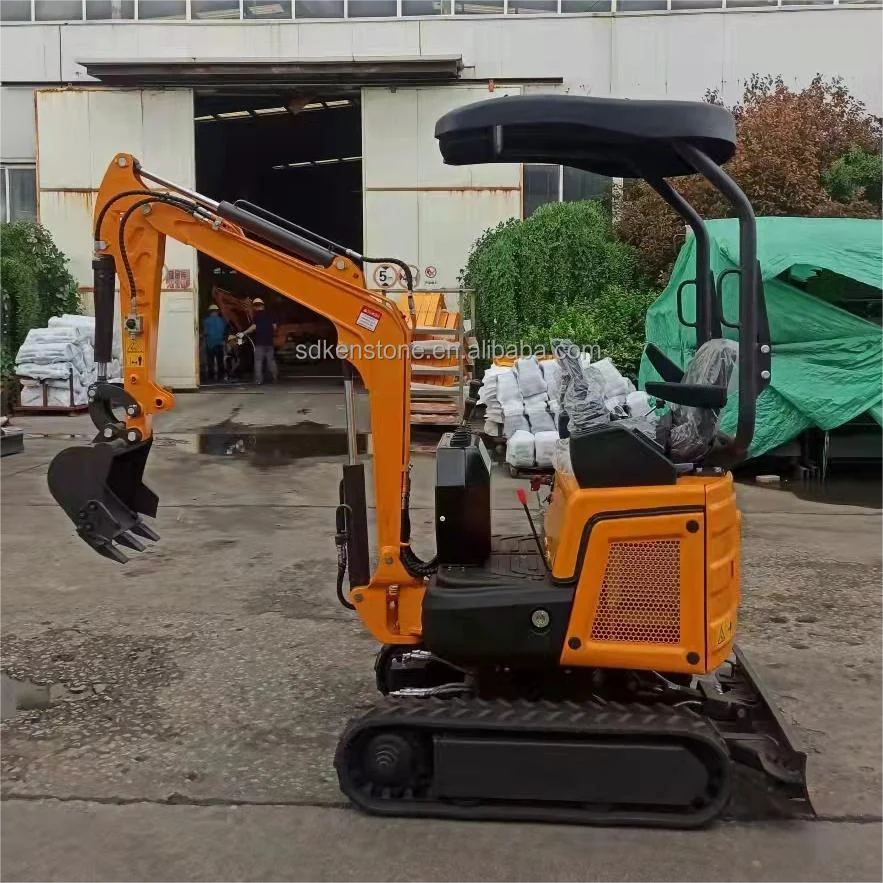

KS12-9 Mini Excavator
1. Kubota Engine:11.8KW/2000r/min,0.898L
Gear pump,16 Mpa, 18.4L/min

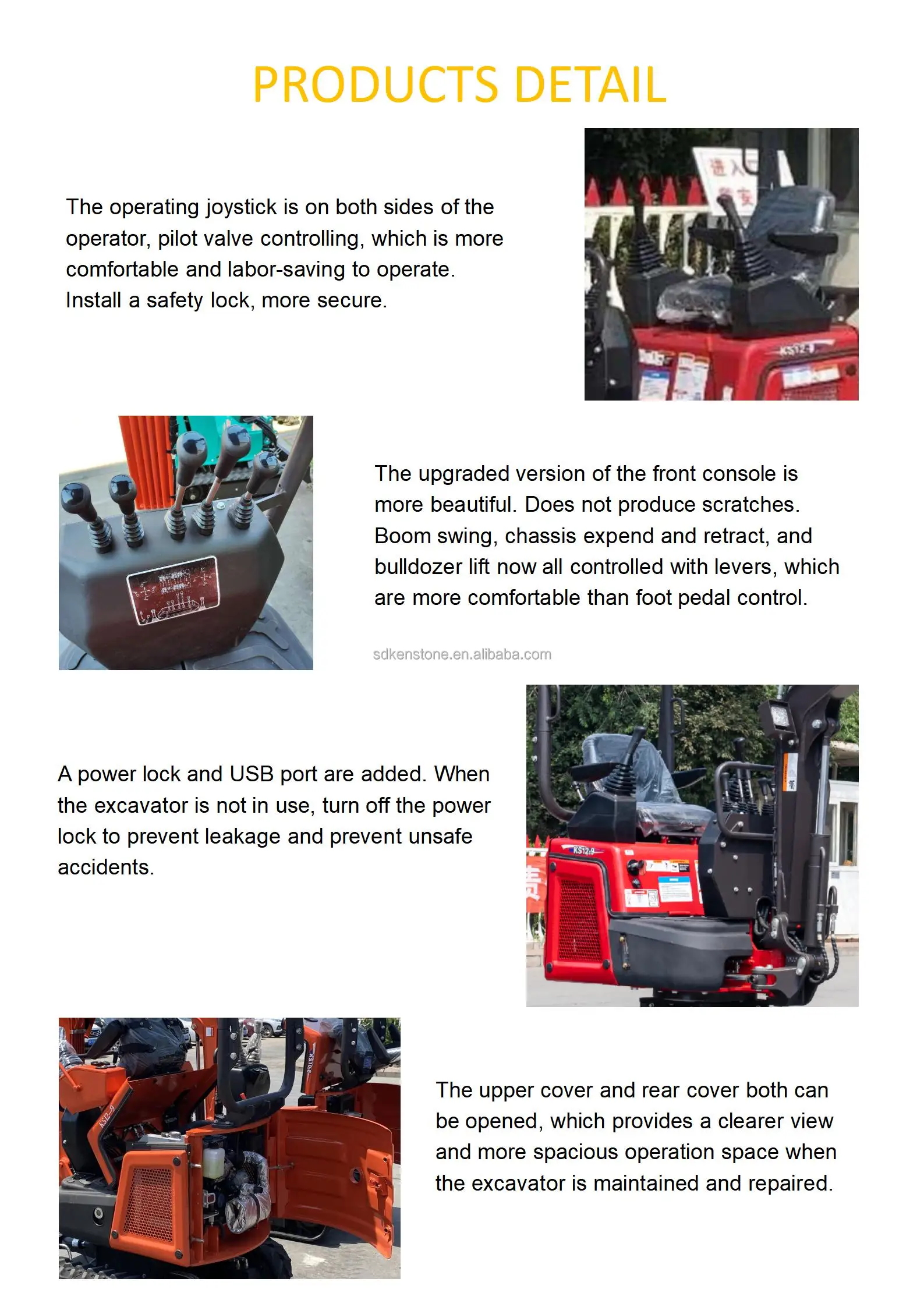

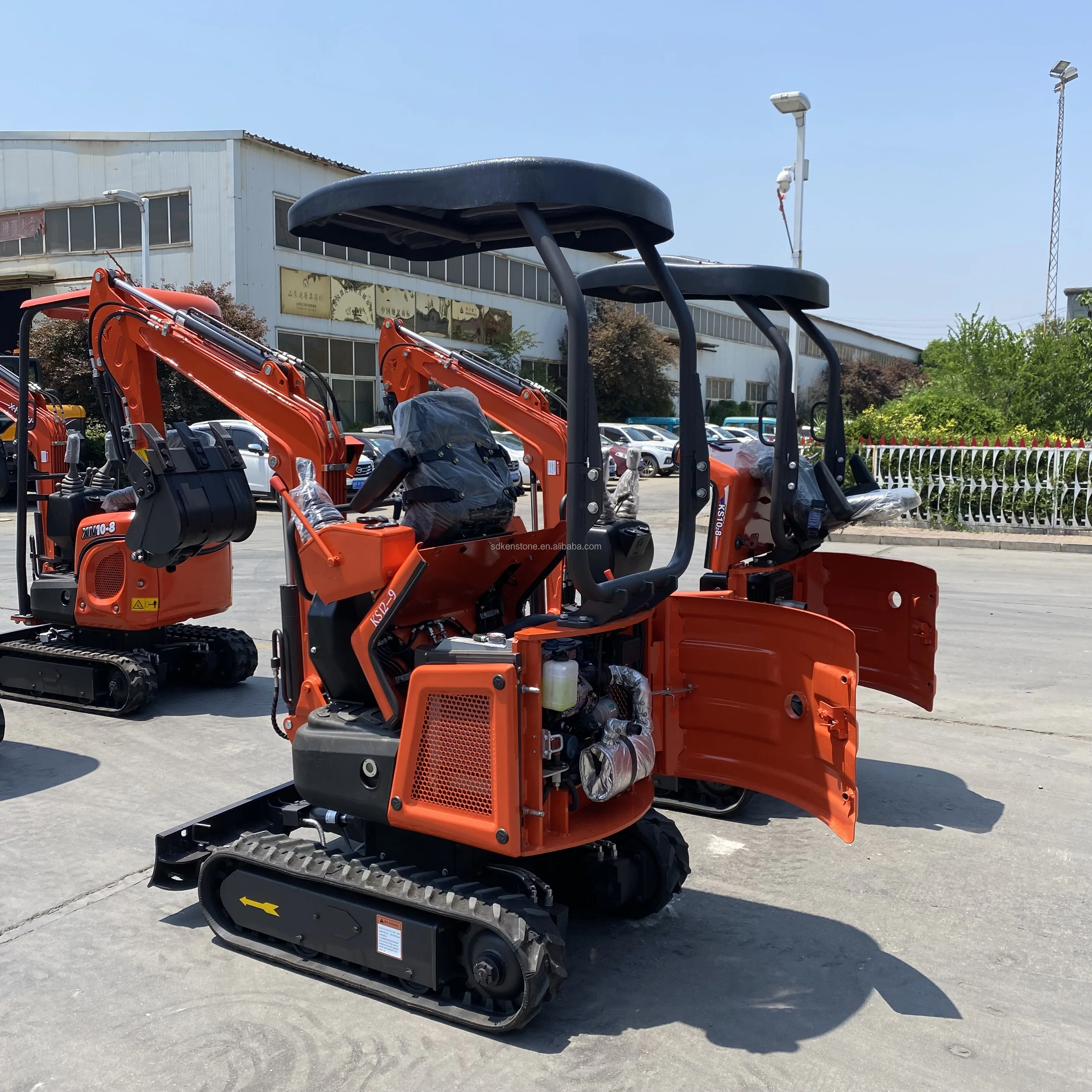

2.The seat can be turned over, the rear door design, maintenance is very convenient
3. Optional swing boom,more flexible for narrow space operation excavator hydraulic joystick For more details, please contact us
Brand | RHINOCEROS/RHINO/XINIU | |
Operating Weight | 1080kg | |
Digging bucket capacity | 0.025cbm/120kg | |
Digging bucket width | 380mm, can add narrow bucket is 200mm | |
Engine | Kubota | |
Rated power | 11.8kw/2000r/min | |
Displacement | 11ml/r | |
Bore stroke | three cylinders, water cool | |
Main pump | SAISIDA | |
Valve | BEIFANG | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN (OMS-2450) | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | ||
Wheelbase | 910 mm | |
Total length of track on land | 1235mm | |
Platform ground clearance | 460mm | |
Platform back turning radius | 660 mm | |
Chassis width | 950/800 mm | |
Track width | 180 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1580 mm | |
Max. Vertical digging depth | 1340 mm | |
Max. Digging height | 2620 mm | |
Max. Dumping height | 2000mm | |
Max. Digging radius on ground | 3040mm | |
Min. Rotation radius | 1510 mm | |
Max. Upgrade height of bulldozer blade | 140 mm | |
Max. Digging depth of bulldozer blade | 200 mm | |
Product Description
Inquiries are welcome. , will answer any questions you may have.
Company Profile

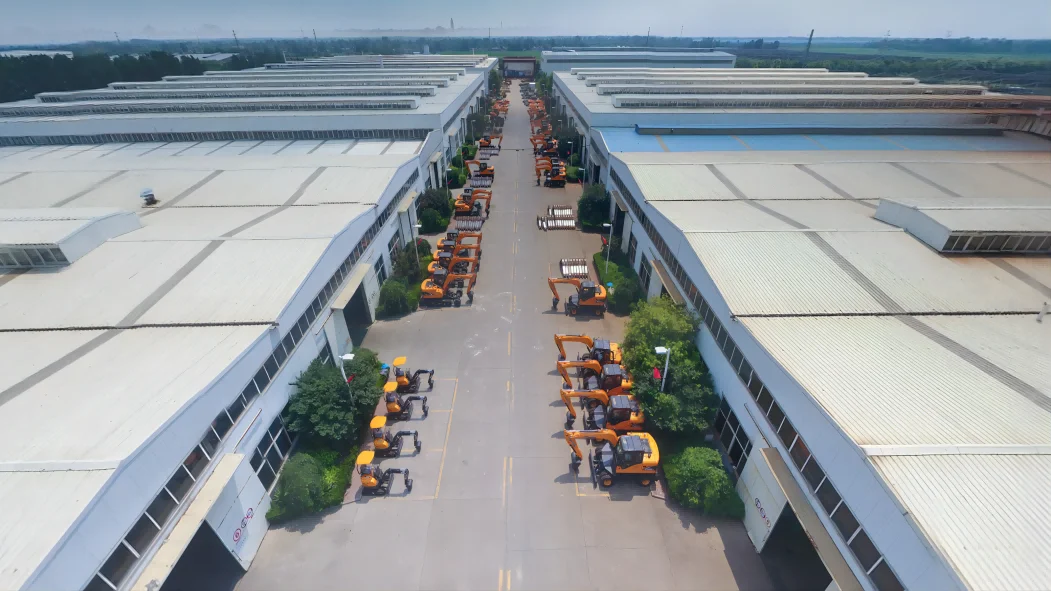

Shandong KENSTONE established in 1995, is one of China's leading manufacturers and seller of construction machinery and Engineering machinery. The business scope are in crawler excavator, wheel excavator, backhoe loader, concrete pump, Annual production amount reach 30000 units. Company gets ISO management system certification. The brand name "RHINOCEROS" is honored as the Chinese well-known trademark. Now all the excavators are with CE certified.
Exhibition
Certifications

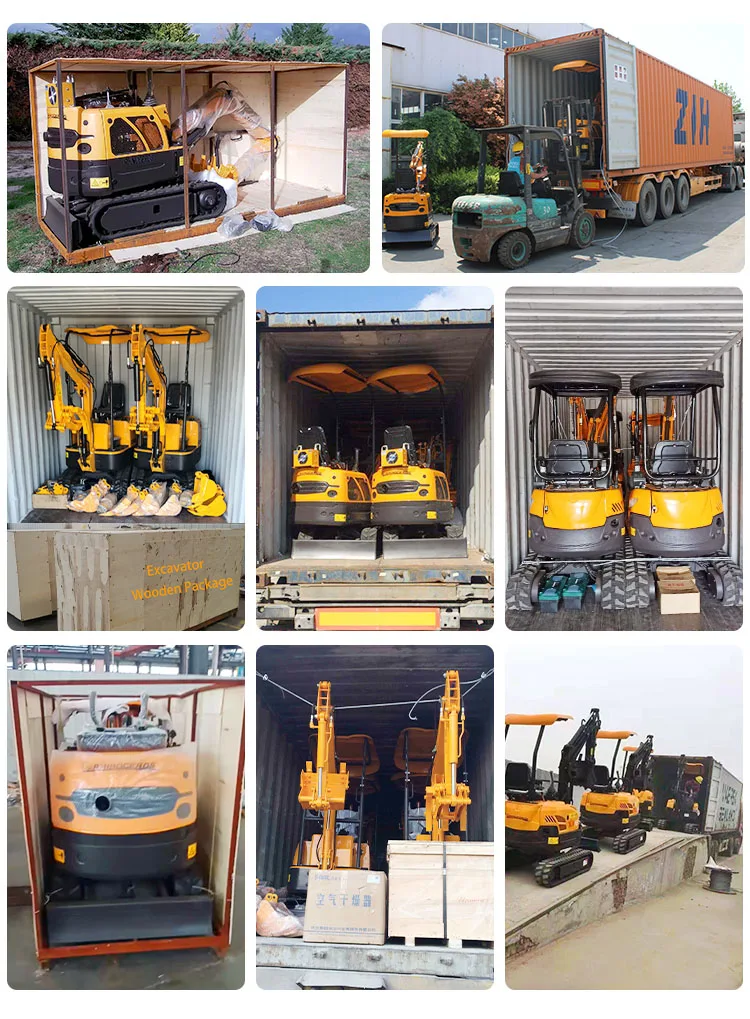

Packing & Delivery
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: without package, 20 ft container 6 units can be loaded; 40 HQ container, 13 units can be loaded.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or 1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: without package, 20 ft container 6 units can be loaded; 40 HQ container, 13 units can be loaded.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or 1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
