XCMG Official 67 Meter Concrete Pump Machine HB67V Truck mounted Concrete Pump Price
- Category: >>>
- Supplier: Xuzhou Construction Machinery Group Import & Export Co. Ltd.
Share on (1600828528419):
Product Overview
Description

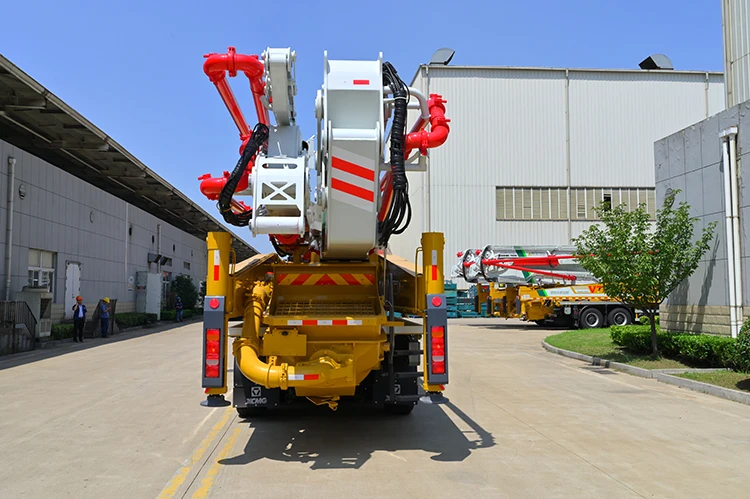

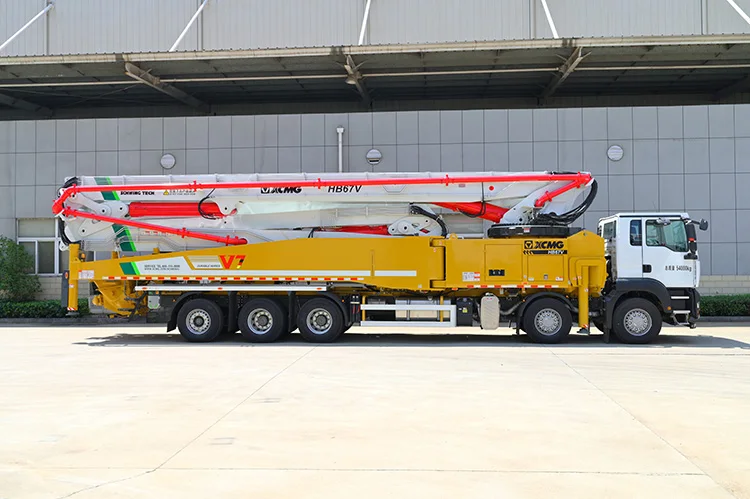

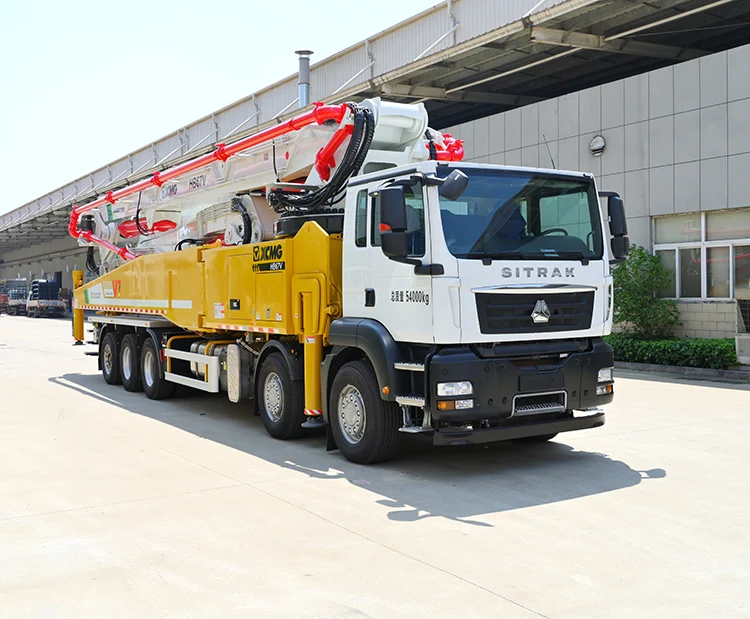

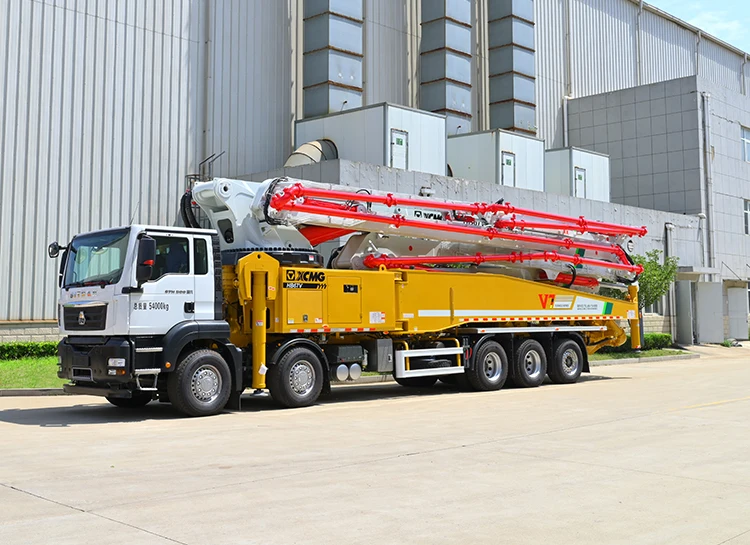

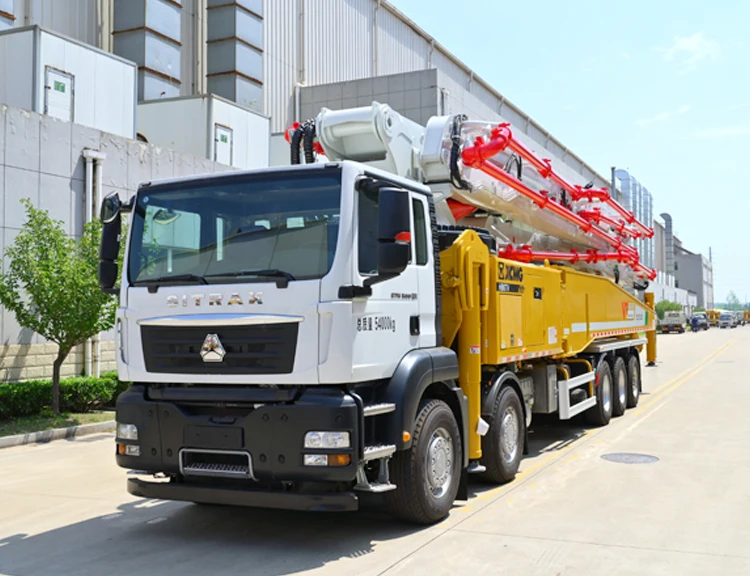

XCMG Official 67 Meter Concrete Pump Machine HB67V Truck-mounted Concrete Pump.
1, XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2, It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Performance advantages:
* Large diameter (230 mm) Φ, large displacement (130 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
2, It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Performance advantages:
* Large diameter (230 mm) Φ, large displacement (130 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Product Description
Specification
Category | Item | Unit | HB67V |
Overall | Outline dimension | mm | 15780*2500*4000 |
Overall weight | kg | 53000 | |
Chassis | Model | - | Actros 5046E5 |
Wheelbase | mm | 2020+5180+1350+1450 | |
Max.power | kW | 335 | |
Emission standard | - | China V | |
Pumping system | Theoretical | m³/h | 170 |
Concrete pumping pressure | MPa | 8 | |
Theoretical pumping times | Times/min | 21~23 | |
Delivery cylinder diameter x stroke | mm | φ260×2000 | |
Placing boom | Reach height | m | 66.1 |
Reach depth | m | 48.6 | |
Slewing radius | m | 60.9 | |
Slewing angle | ° | ±270 | |
Others | Transfer tuble | - | Rock valve |
