Product Overview

Description

Product Introduction

250MW Solar Panel Production Line is best optional beginner with fully automated and acceptable by majority of customer.

It provides a higher throughput supported by more automatic machines and keeps most of its machines but it can do more based on 3 work shifts of 8 hours. Witha compact and flexible setup, it can fit any factory.

Features

-Compatible with whole cell&half cutting solar cell production.

-With cell laser cutting unit for half-cut cells.

-Production fully compatible with bigger solar cells: M6 (166mm), M10 (182mm), M12 (210mm) in full, half and third cut(with different Jigs)

-Works with 9,10,11,12 bus bar and wires.

-Flexible with automatic bussing or manual bussing.

-Works with solar panel dimension up to 2400*1400mm.

-Power of single solar panel can reach 600w+.

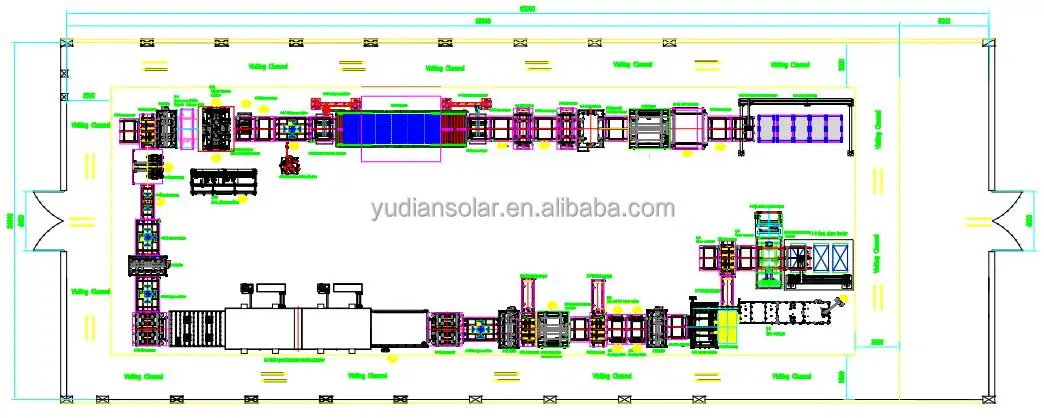

Reference lay out drawing for 250mw Solar Panel Production Line

Main machine list

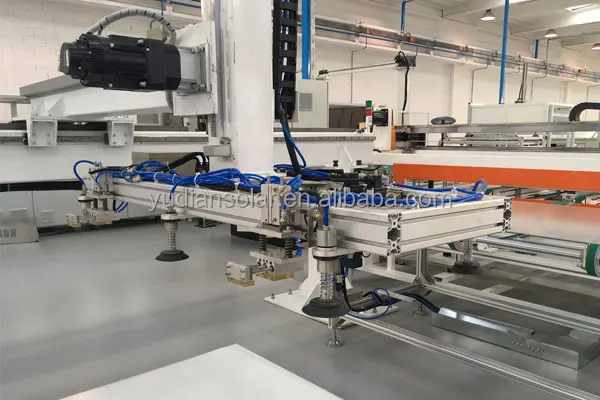

Auto glass loader*1set

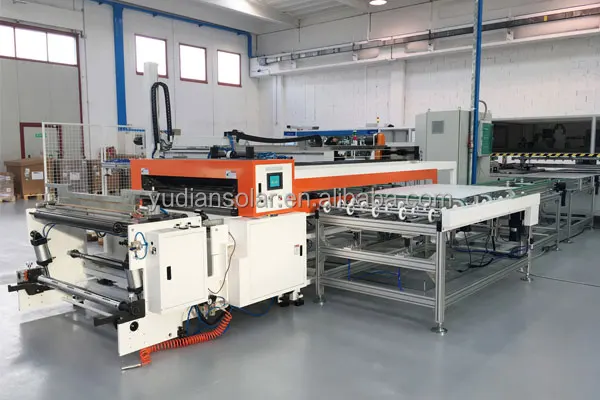

1^st Eva cutting&laying machine*1set

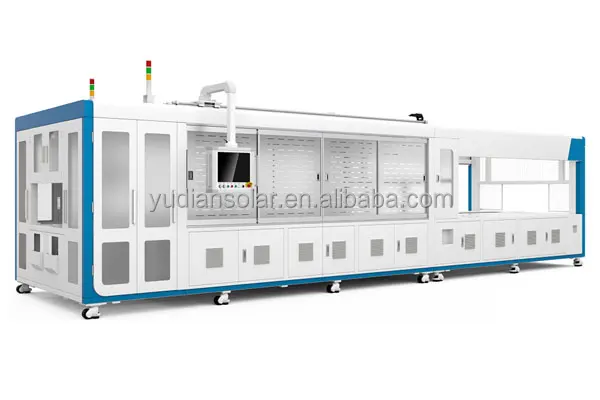

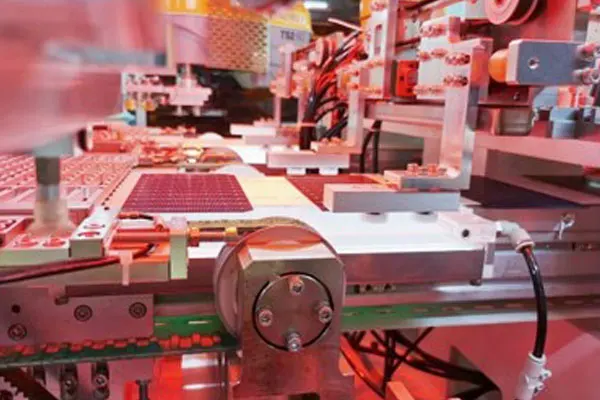

Auto solar stringer*set

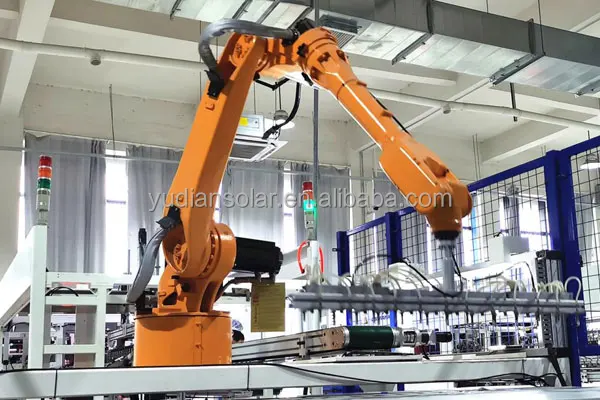

Auto layup machine*1set

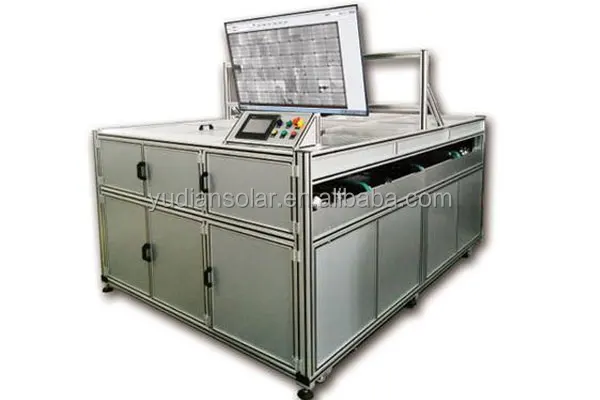

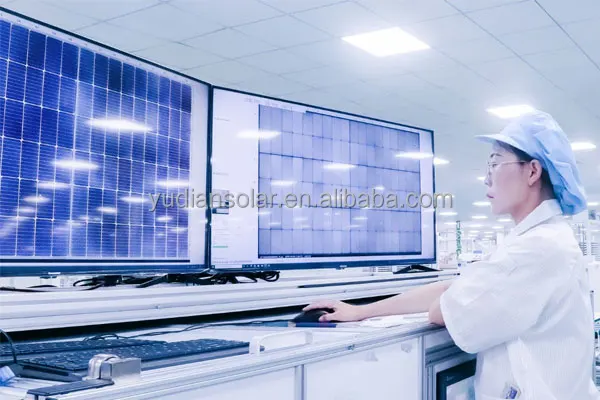

Online EL*VI tester*1set

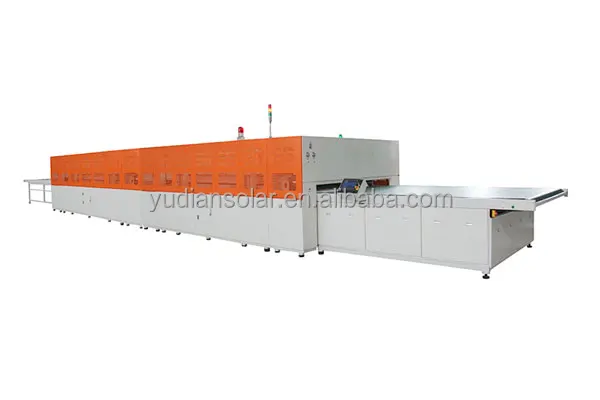

Auto Solar Panel Laminator*1set

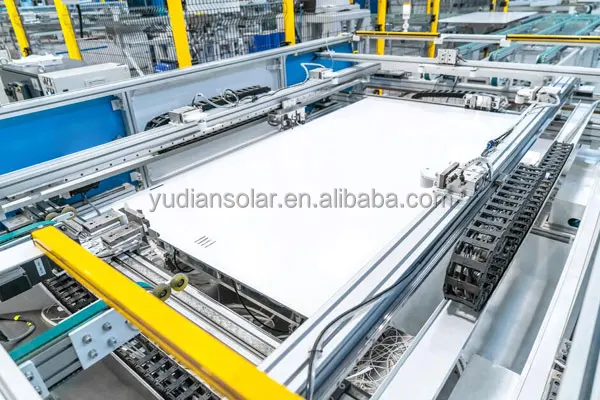

Auto trimming machine*1set



Flipped tester*1set





Auto framing machine*1set

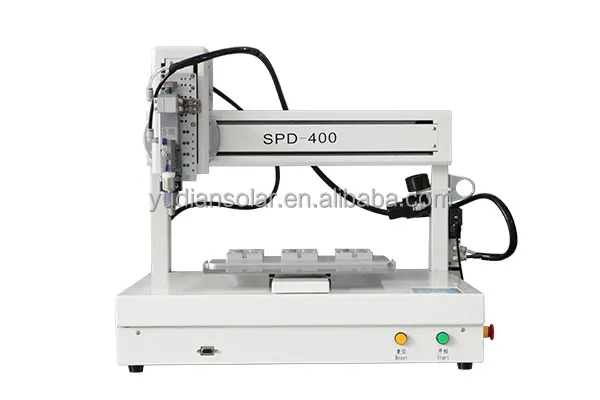

J-box gluing machine*1set

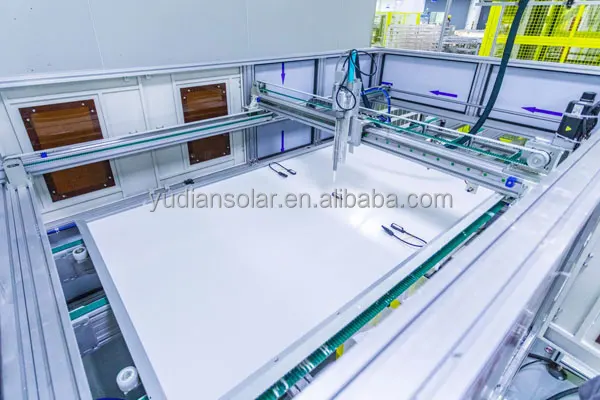

J-box potting machine*1set

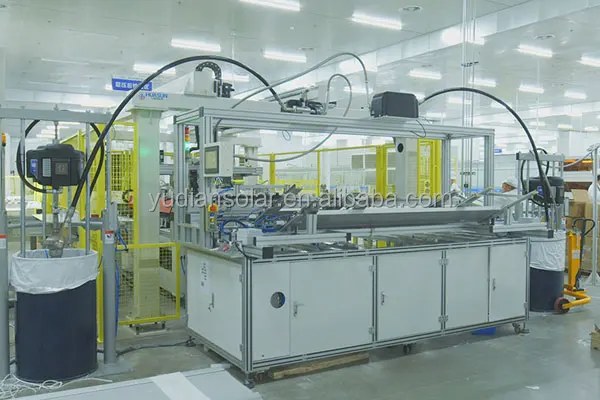

Auto frame gluing machine*1set

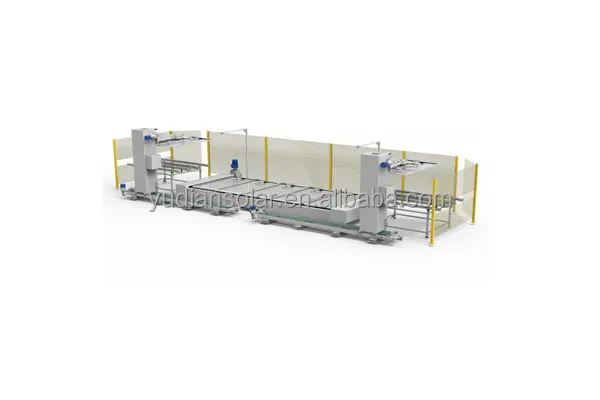

Curving line&manipulators*1set

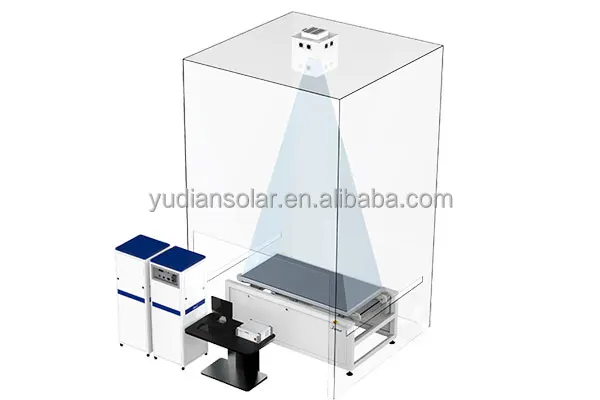

Iv tester*1set









EL after lamination*1set

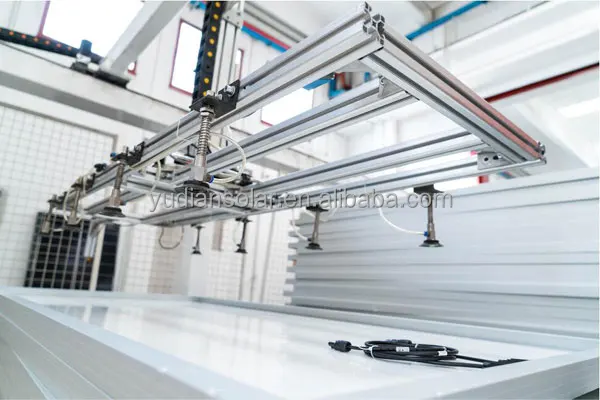

Auto sorter*1set

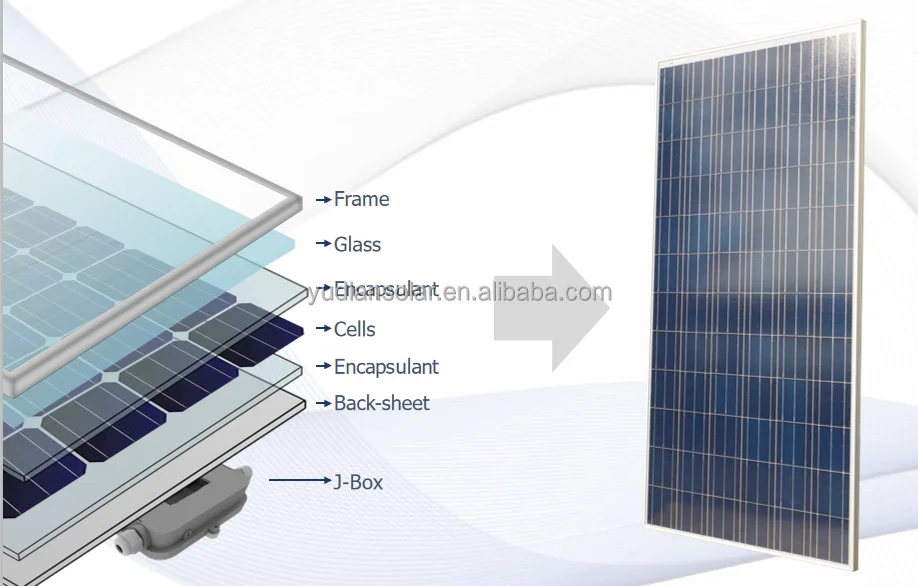

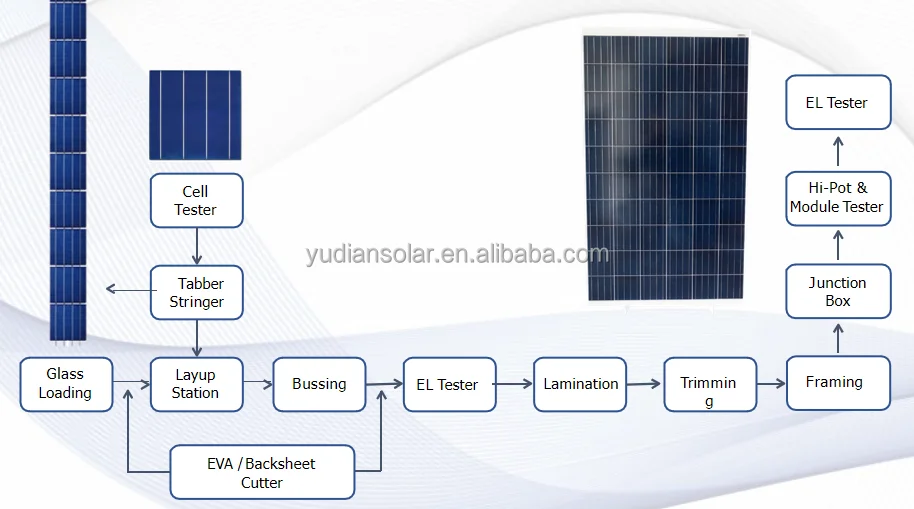

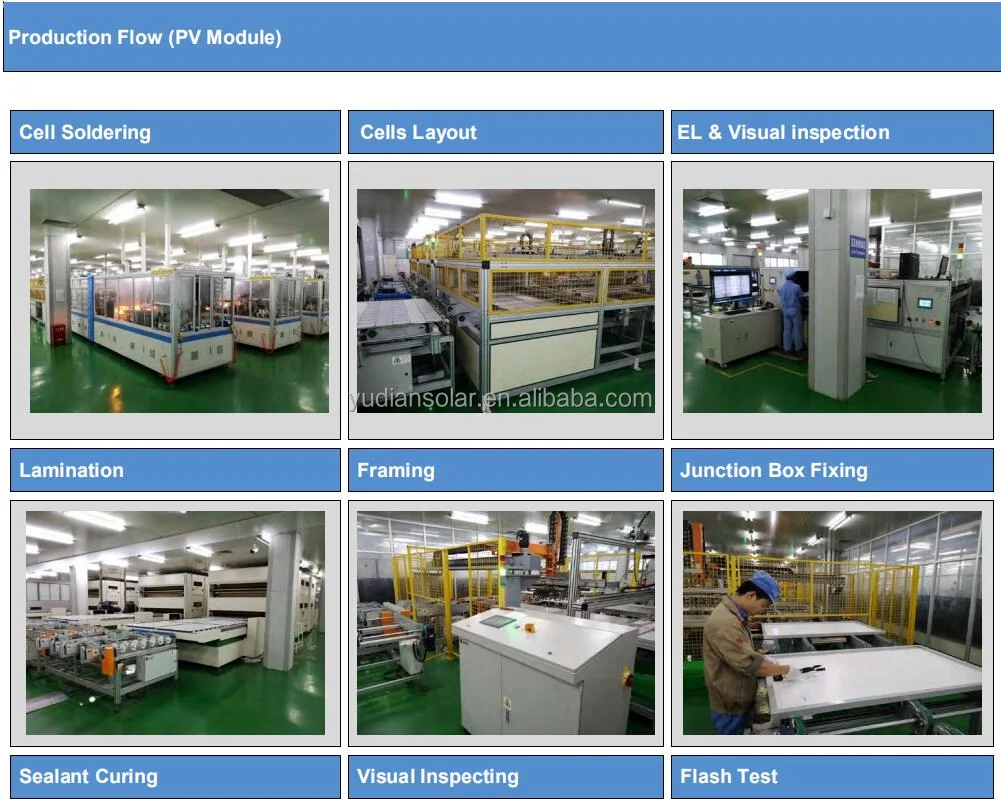

Solar Panel Production Process
