High precision multi axis PTA plasma welding/cladding/surfacing machine
High precision multi-axis PTA plasma welding/cladding/surfacing machine
High precision multi-axis PTA plasma welding/cladding/surfacing machine
High precision multi-axis PTA plasma welding/cladding/surfacing machine
High precision multi-axis PTA plasma welding/cladding/surfacing machine

High precision multi axis PTA plasma welding/cladding/surfacing machine

Share on (1600829582821):


Price:$30,000.00 - $43,000.00

Quantity:


Product Overview

Description



Product Description

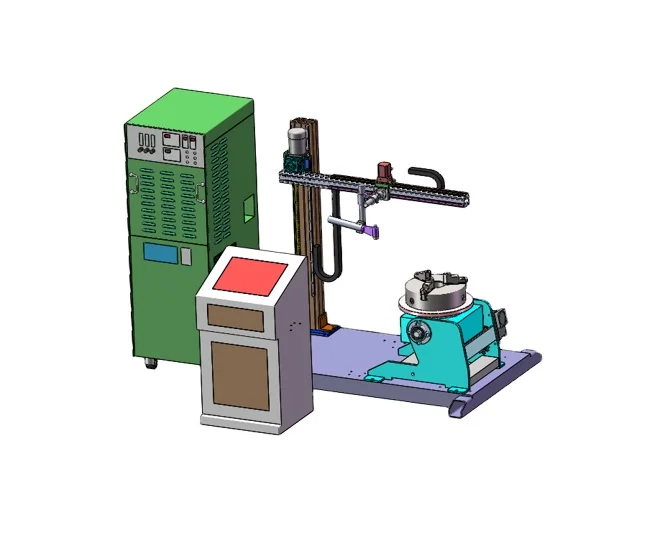

H1200 Integrated stockpile welding tooling
Equipment features:
■The walking mechanism adopts straight guide rail, precision gear box and stepping motor to drive walking. The whole machine has small transmission clearance, high rigidity and flat operation
The overall integrated structure, convenient transportation, moving.
Applicable Products:

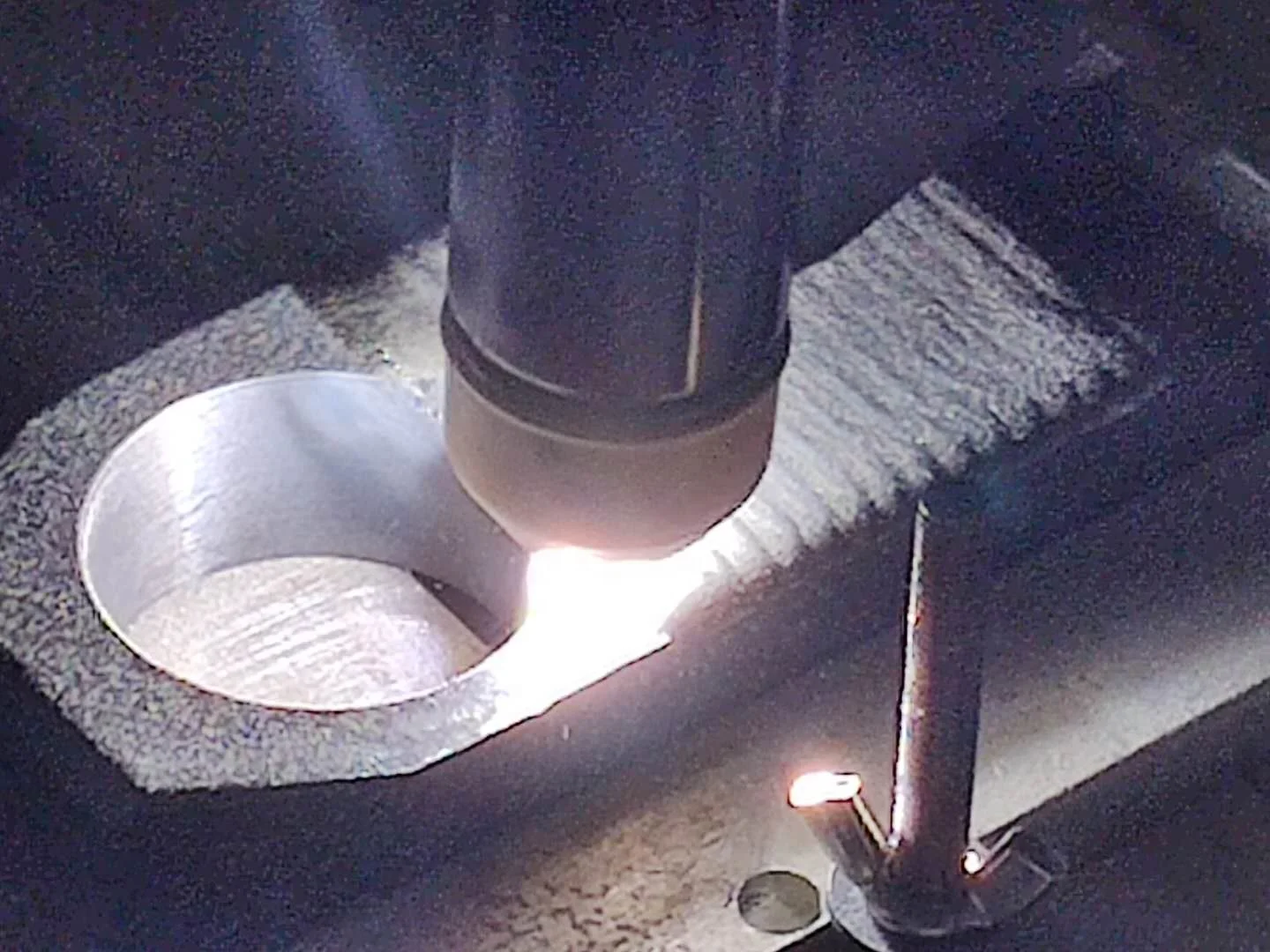

■Suitable for layer stacking welding and damage surface repair of outer circle, inner hole and end surface of general shaft parts and pipe parts.It can also be used for surface overwelding and repair of disc parts.

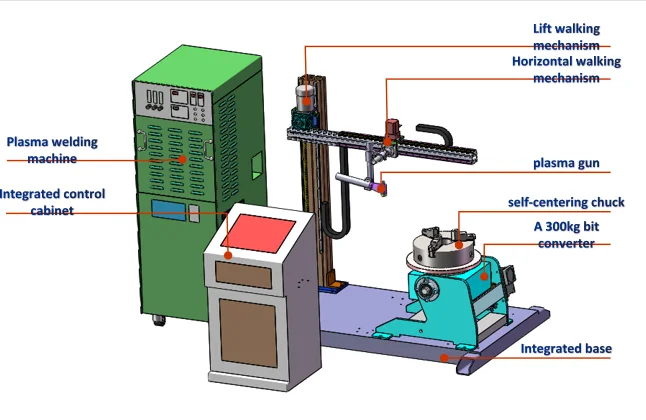

Configure the project
Model brand
Main parameter description
Configure the project
Model brand
Main parameter description
Horizontal institutions
Research and control step-in motor
Effective travel trip of 600 mm
Arc pressure tracking
Multi-wood integration
Plus additional 2000 yuan
elevating
a-c dynamo
Effective travel trip of 500 mm
Current communication
485 Communication
An additional 1,000 yuan is optional
Spindle motor
Research and control step-in motor
The rotational speed is 0.01 r/min ~2.5r / min
touch screen
Weilun tong
A 7-inch screen with a TK6071IQ
positioner
HBT-3S
Rated load of 300 KG
navar
Mitsubishi, Japan
The FX-Series PLC
cam-ring chuck
K11-320C
Clip range25～320 mm
console
Multi-wood manufacturing
Integrated and integrated control cabinet
Reference occupation, ground size
Length 2000 mm width 1400 mmHigh height 1500 mm.


Specification


item
value
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Printing Shops, Construction works , Energy & Mining, Other
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2023
Warranty of core components
1 Year
Core Components
PLC, Plasma
Condition
New
Place of Origin
China
Shanghai
Brand Name
Duo mu
Warranty
1 Year
Key Selling Points
Famous brand PLC
Weight (KG)
500KG
Input Voltage
380V
Rated Current
3-500A
Usage
Plasma surfacing
Product name
H1200
Function
Plasma surfacing
Color
Customizable


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






Shanghai Duomu Industry Co., Ltd. is an equipment manufacturer engaging in the research, production and sales with high performance, low consumption, and pragmatic aspect. Our PTA machine, plasma welding machine, micro-plasma arc welding machine and other series of products have reached the industry leading level.
The philosophy of our company is: "science and technology - the soul of the enterprise, integrity - the future of the enterprise, quality - the life of the enterprise".
We strive to improve our core competitiveness and Meticulously create a "honest Duomu, professional Duomu". We have provided so many products and related services to different corporations and created a good reputation yet.


FAQ


1. who are we?
We are based in Shanghai, China, start from 2011,sell to Eastern Asia(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Mid East(10.00%),North America(9.00%),South Asia(8.00%),Western Europe(7.00%),Southern Europe(6.00%),South America(5.00%),Africa(5.00%),Oceania(5.00%),Central America(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PTA Cladding machine,Plasma welding machine,Welding equipment,Welding machine accessories,S-TIG

4. why should you buy from us not from other suppliers?
Shanghai Duomu Industry Co., Ltd. is an equipment manufacturer engaging in the research, production and sales with high performance, low consumption, and pragmatic aspect.

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
