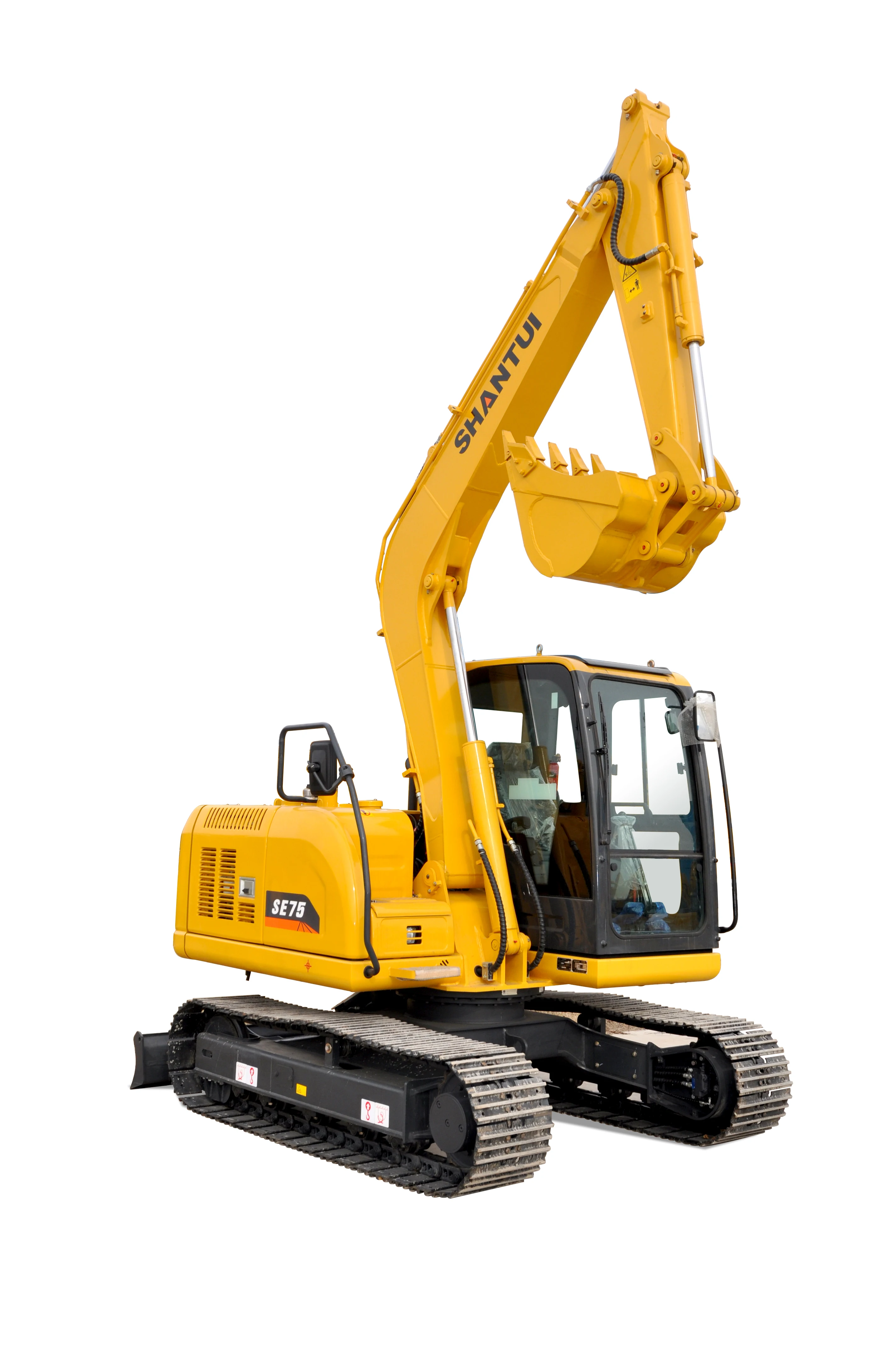

2022 New High Quality Small Excavator High Efficiency Digging Machine Excavator 7 Ton
- Category: >>>
- Supplier: Sinolation Heavy Machinery Co. Limited
Share on (1600829693745):
Product Overview
Description
Product Description
Product Description
1. The extended and widened wheel tread and track gauge, the enhanced working device,and the reasonably arranged parts guarantee the user’s safety, stability, and reliability of the machine.
2. The structural parts are optimized and the key bearing parts are reinforced to resist the harsh working conditions.
3. Various specifications of the lifting arm, bucket arm, bucket can be easily combined to adapt to a variety of working conditions.
4. The streamline appearance design and the coordinated matching between colors and markings forge the China's first-class appearance of machine.5. The world's leading highly adaptable turbocharged engine.
Specification
Comparative item | SE75 |
Model | Kubota V3307T |
Type | Water-cooling. turbo charging |
Quantity of cylinders | 4 |
Bore x stroke (mm) | 94 x 120 |
Displacement (L) | 3.3L |
Power output (KW/rpm) | 48.9/2000 |
Maximum torque (NM/rpm) | 263.1/1400 |
Minimum ground clearance (mm) | 385 |
Operating weight (t) | 7.65 |
Ground pressure (kPa) | 34 |
Overall length (mm) | 6240 |
Overall height (mm) | 2680 |
Overall width (mm) | 2260 |
Pump | Imported |
Type | Variable piston pump |
Maximum discharge flow (L/min) | 160 |
Control circuit (MPa) | 3.5 |
Travel circuit (MPa) | 28 |
Swing circuit (MPa) | 23.5 |
Travel motor | Variable axial piston motor |
Travel brakes | Lubricated double-disc |
Parking brake | Pressure release |
Fuel tank (L) | 120 |
Cooling system (L) | 11 |
Engine oil (L) | 11 |
Hydraulic oil tank (L) | 140 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q:Are you an agency?
A:We are an agent of Shantui, and have close cooperation with world-renowned brands such as SANY, XCMG, ZOOMLION, and the quality is guaranteed.
2. Q:How long is the offer valid for?
A:Generally, our prices are valid for one month from the date of quotation. The price will be adjusted appropriately according to raw material price fluctuations and market changes.
3. Q:What is your delivery time?
A:Usually, we will do goods inventory, if we have products in stock, the delivery time is 5-10 days after receiving the goods deposit. If we don't have products in stock, we will arrange production immediately, and the lead time is 30-45 days, depending on the order quantity.
4.Q: Do you have CE certificate?
A: Yes, most of our products have CE certificate
5.Q: How can we guarantee the quality?
A:Final inspection is always done before shipment.
6. Q:What is your MOQ?
A:1 set
7.Q: Can you accommodate my special request?
A:Yes! We represent factories of well-known brands, with strong production capacity and research and development capabilities!
8.Q: How about the package?
A:Packed in pallets or wooden cases or as required
9.Q:How is it usually transported?
A:We ship vehicles in bulk or in containers. Our company cooperates with freight forwarders and can provide you with the lowest freight.
Certifications
Our Advantages
1. All-around champion
The body of SE75-9 hydraulic excavator is newly designed, and the whole machine is beautiful and generous. Equipped with a high-efficiency and environmentally friendly engine, the power system is highly matched with the hydraulic system. The machine has strong performance and smooth operation. The maximum digging force of the bucket is 66N, and the maximum digging force of the stick is 44N.
The body of SE75-9 hydraulic excavator is newly designed, and the whole machine is beautiful and generous. Equipped with a high-efficiency and environmentally friendly engine, the power system is highly matched with the hydraulic system. The machine has strong performance and smooth operation. The maximum digging force of the bucket is 66N, and the maximum digging force of the stick is 44N.
2. High-end system configuration
Load-sensitive, constant power, electric proportional control hydraulic system can provide appropriate pressure and constant current according to the demand of the load, with small energy loss, rich power and large torque, and can adapt to the turbocharged engine under harsh working conditions to flow in proportion Distribution, compound action coordination is good in the world - first-class hydraulic configuration.
Load-sensitive, constant power, electric proportional control hydraulic system can provide appropriate pressure and constant current according to the demand of the load, with small energy loss, rich power and large torque, and can adapt to the turbocharged engine under harsh working conditions to flow in proportion Distribution, compound action coordination is good in the world - first-class hydraulic configuration.
3. Spacious and comfortable operating environment
The interior is fully injection molded, and the interior color is effectively matched according to ergonomics, which is not easy to cause visual fatigue of the operator
Large space, wide field of view, reasonable arrangement of control devices, convenient and comfortable operation, high-power air-conditioning, suspension seat, comfortable driving.
The interior is fully injection molded, and the interior color is effectively matched according to ergonomics, which is not easy to cause visual fatigue of the operator
Large space, wide field of view, reasonable arrangement of control devices, convenient and comfortable operation, high-power air-conditioning, suspension seat, comfortable driving.
