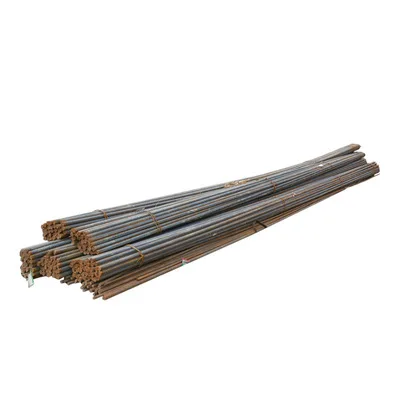

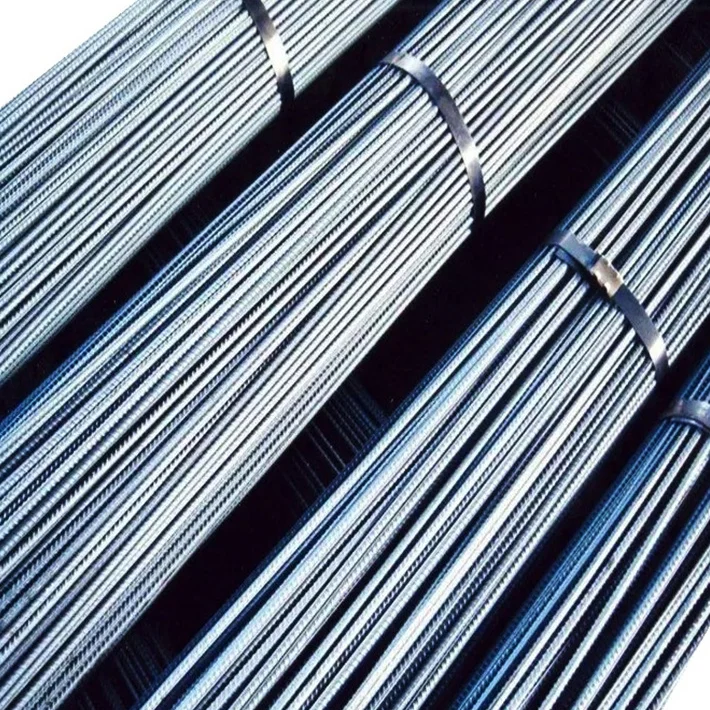

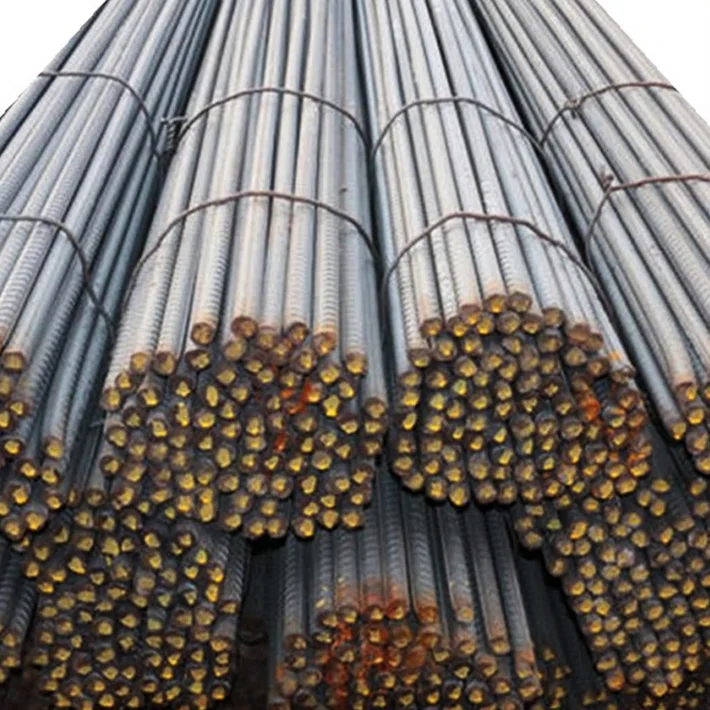

China Manufacture Steel Rebars Deformed Steel Bars,Building Material Deformed Steel Rebar/rebar Steel/iron Rod Construction
- Category: Steel Rebars >>>
- Supplier: Shandong Liaocheng Jinzheng Steel Pipe Co. Ltd.
Share on (1600829794308):
Product Overview
Description

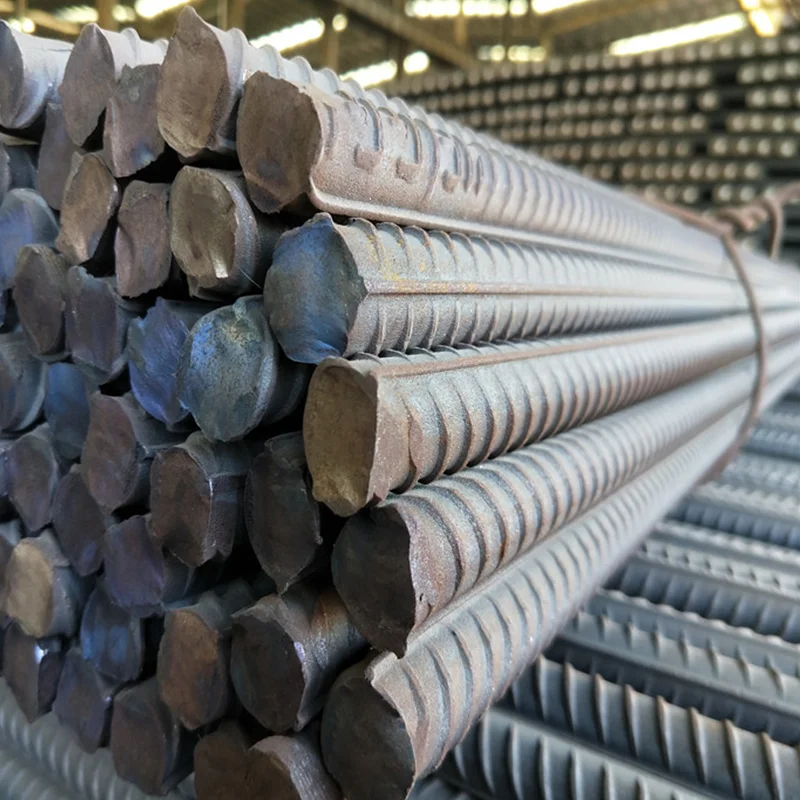

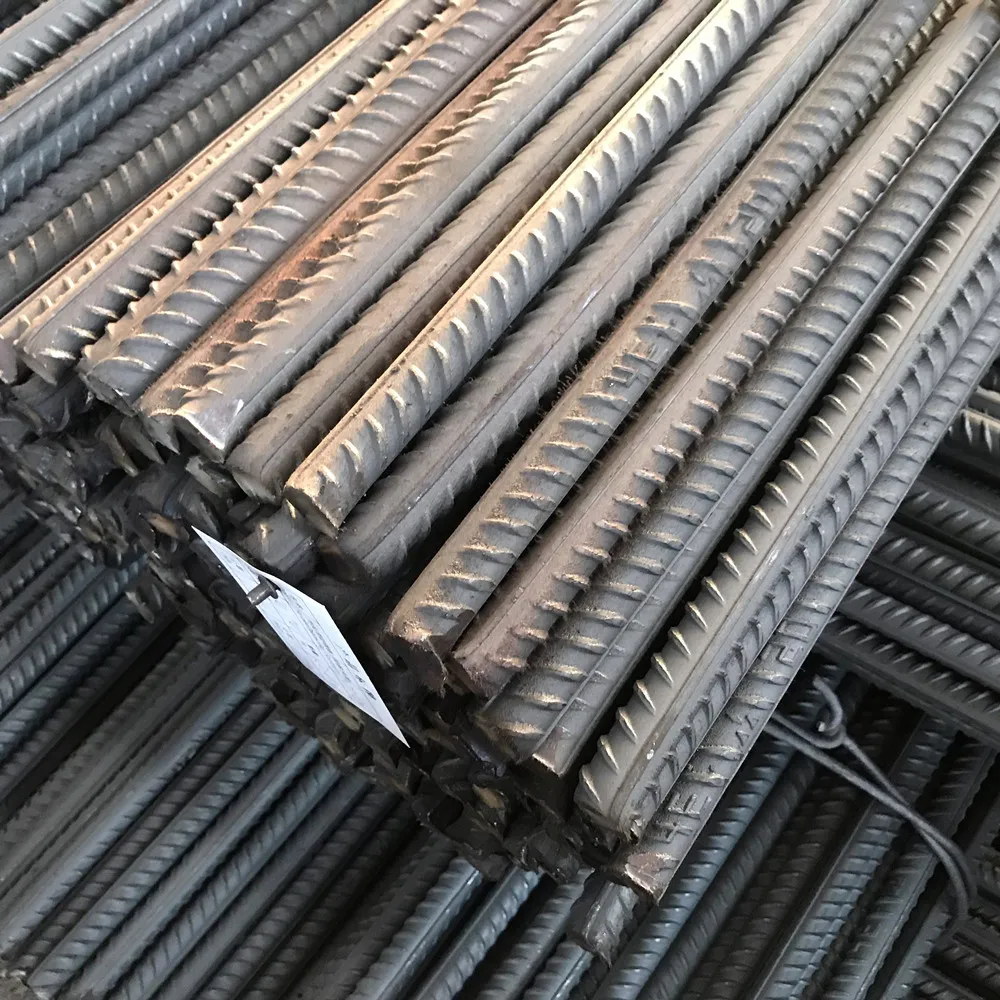

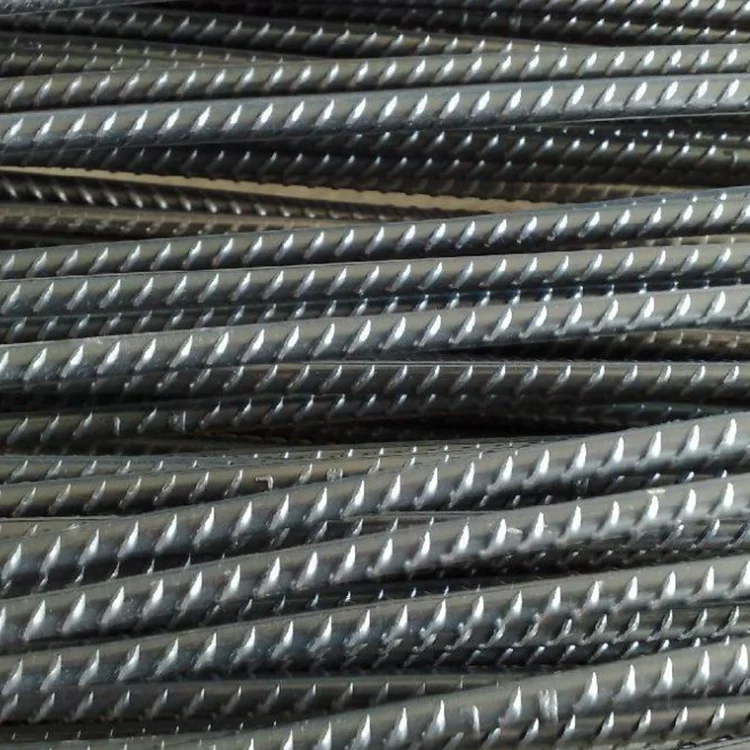

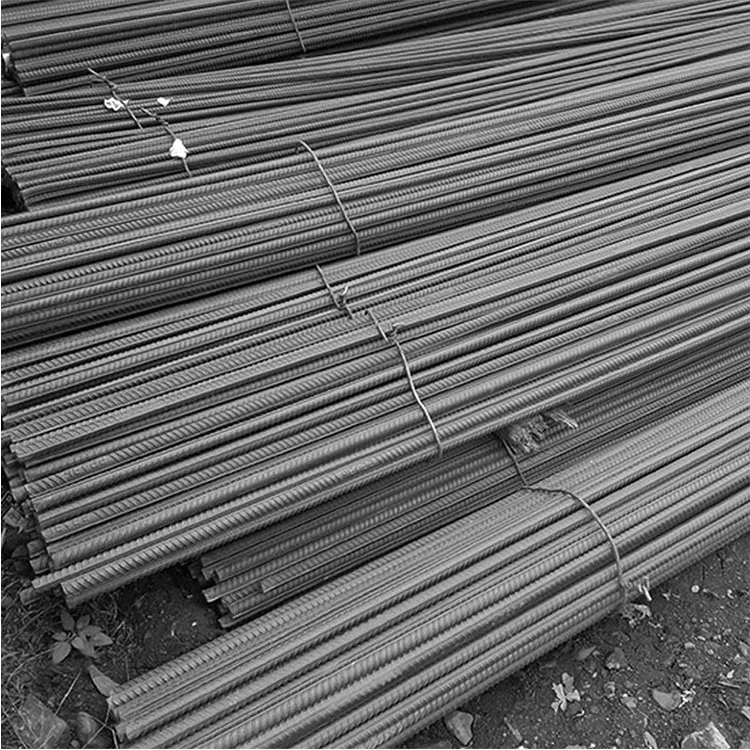

Products | Deformed steel bar |
Material | SD390/490/400,B500B/GR460B,HRB400/500,ASTM A615 GR40/60 |
Grade | HRB335/HRB400 |
Standard | BS4449,JIS,ASTM/A615 |
Diameter | 0.5-50mm |
Length | 6m,12m |
Application | Building/construction |
Packing | Standard export packing or as customers required |
Payment Terms | T/T ，Western Union，etc |
Diameter(mm) | Cross sectional area (mm²) | Theorectical weight (kgm) | Weight of 12m bar (kg) | One ton contains 12m bar (pcs) |
6 | 28.27 | 0.222 | 2.664 | 375.38 |
8 | 50.27 | 0.395 | 4.74 | 210.97 |
10 | 78.54 | 0.617 | 7.404 | 135.06 |
12 | 113.1 | 0.888 | 10.656 | 93.84 |
14 | 153.9 | 1.21 | 14.52 | 68.87 |
16 | 201.1 | 1.58 | 18.96 | 52.74 |
18 | 254.5 | 2 | 24 | 41.67 |
20 | 314.2 | 2.47 | 29.64 | 33.74 |
22 | 380.1 | 2.98 | 35.76 | 27.96 |
25 | 490.9 | 3.85 | 46.2 | 21.65 |
28 | 615.8 | 4.83 | 57.96 | 17.25 |
32 | 804.2 | 6.31 | 75.72 | 13.21 |
36 | 1018 | 7.99 | 98.88 | 10.43 |
40 | 1257 | 9.87 | 118.44 | 8.44 |

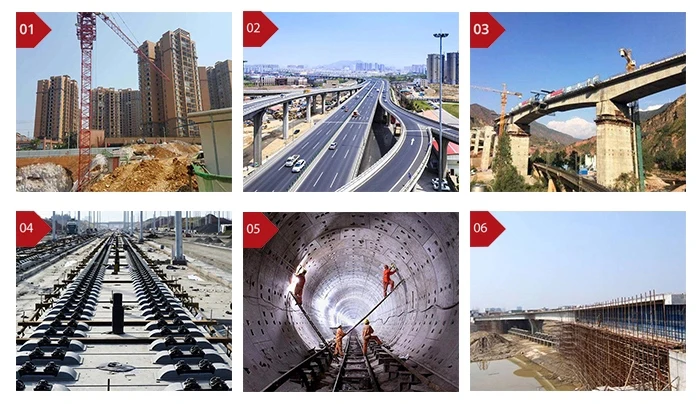

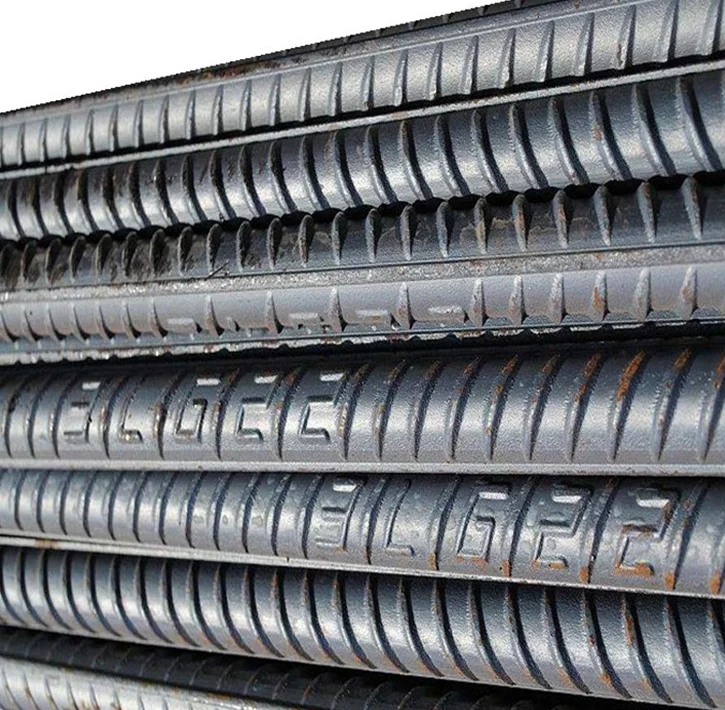

Steel rebar are mainly subjected to tensile stress in concrete. The deformed steel bar has a greater bonding ability with concrete due to the action of the ribs, and thus can better withstand the external force. Rebar is widely used in various building structures. Especially large, heavy, lightweight thin-walled and high-rise buildings.
