Macor micalex микрокристаллическое керамическое кольцо цилиндра по индивидуальному заказу
- Category: >>>
- Supplier: Shenzhen Hard Precision Ceramic Co. Ltd.
Share on (1600830959876):
Product Overview
Description

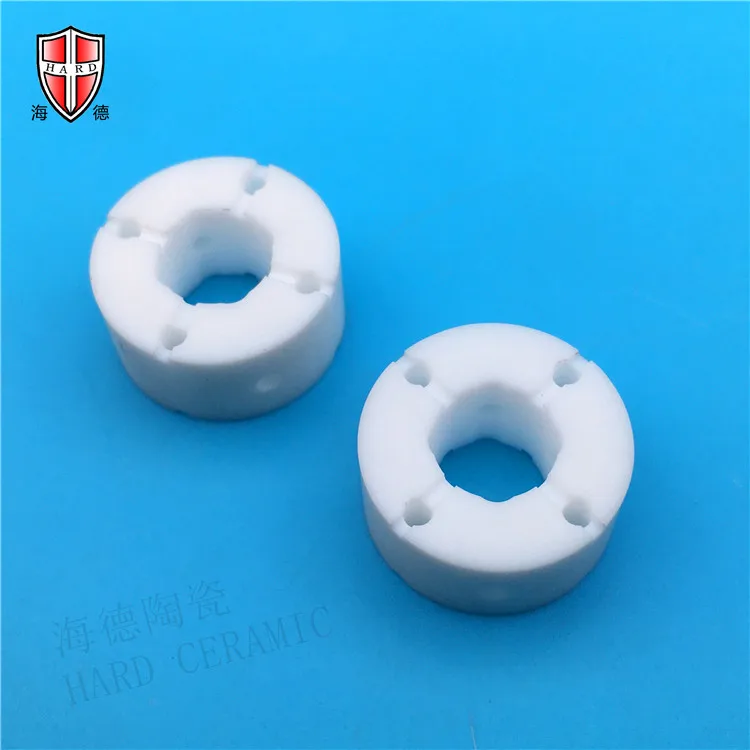

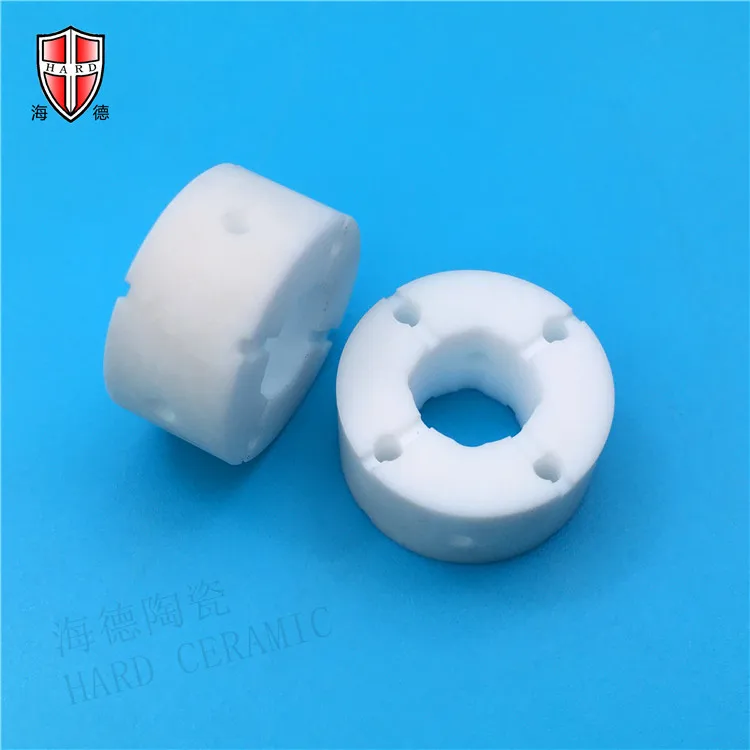

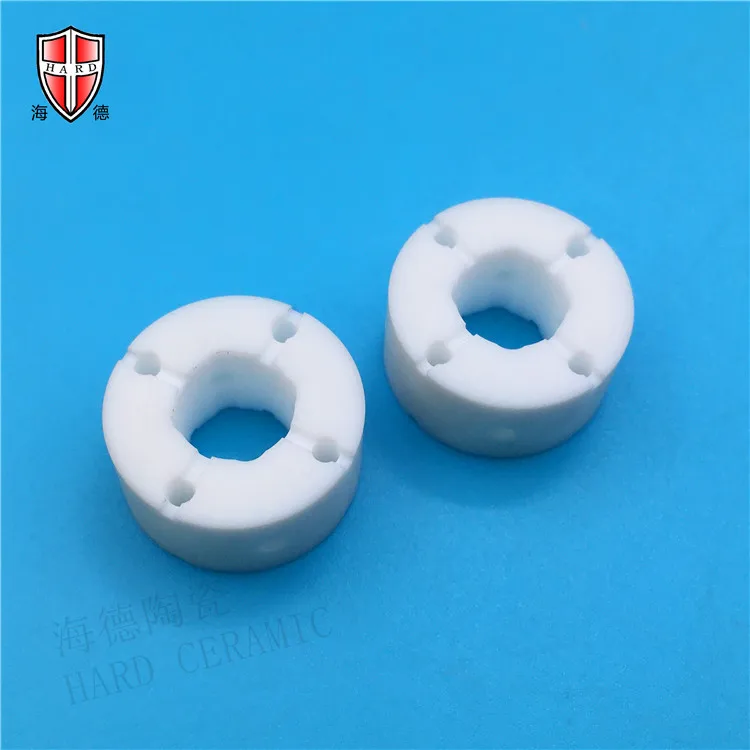

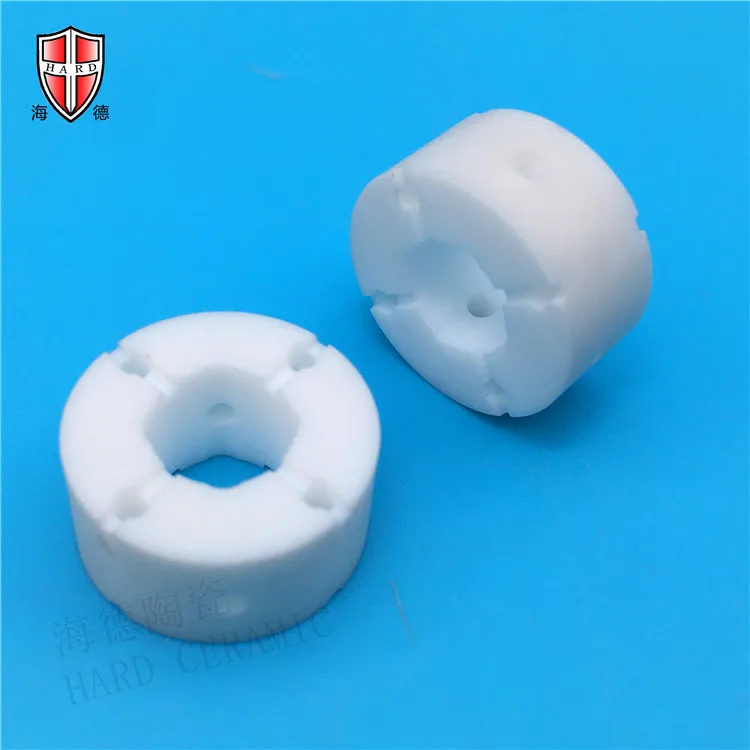

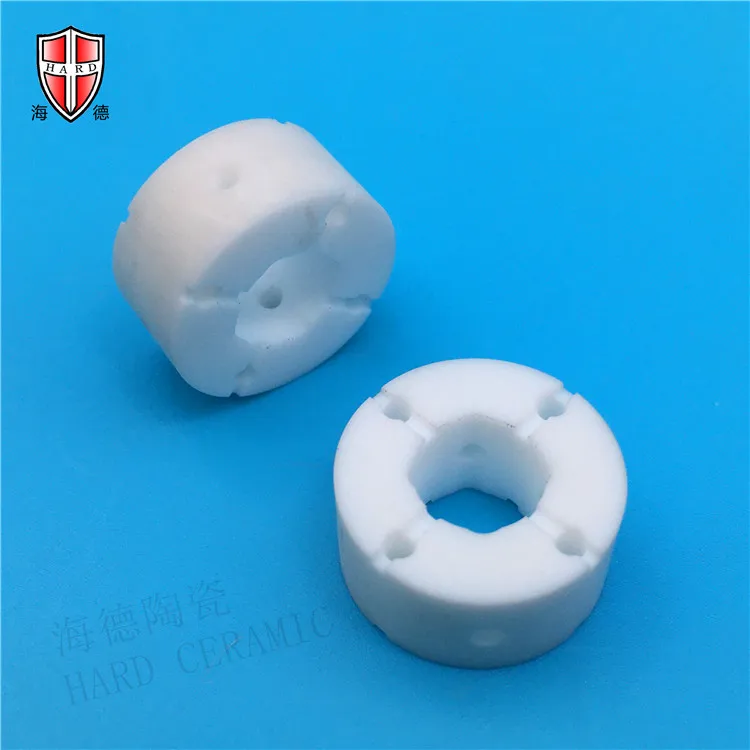

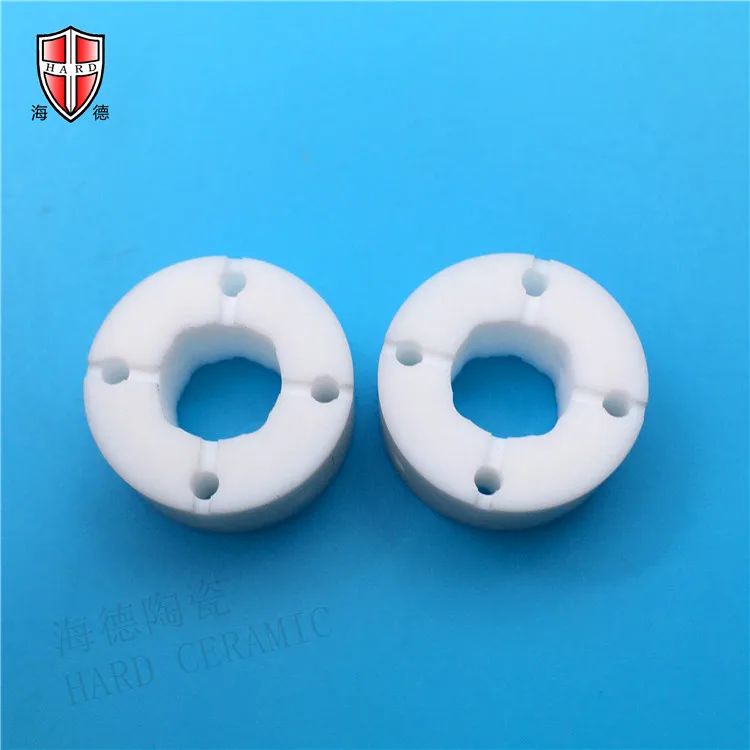

Macor micalex microcrystalline ceramic cylinder ring customized
Reputation depends on quality, quality comes from Hard!
Product Description
Macor Glass machinable Ceramics:
Microcrystalline glass ceramics, also known as machinable ceramics, are mica glass-ceramics with synthetic mica as the main crystalline phase, and are ceramic materials that can be machined. Microcrystalline glass ceramics have excellent processing properties, vacuum properties, electrical insulation properties, and high temperature and chemical resistance. Glass-ceramics with high mechanical strength, glass-ceramics, machinable glass-ceramics and bioactive glass-ceramics
Properties
High hardness, high strength, wear resistance, corrosion resistance, high temperacture (1600°), good thermal diffusivity, good insulativity, low cost etc.
Data Sheet↓
| Machinable Glass (Macor) Ceramic Properties | ||
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | White | |
| Main Composition | Mg3K[AlF2O(SiO3)3],SiO2 | |
| Density | g/cm3 | 2.60 |
| Apparent Porosity | 0.07% | |
| Water Absorption | 0 | |
| Normal Temperature Outlet Rate | ml/S·cm2 | 8.8*10-9 |
| Helium Transmission Rate | ml/S | 1*10-10 |
| Mechanical Properties | ||
| Rockwell Hardness(45N) | R45N | 40 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm2) | 11.5(1175) |
| Flexural Strength (20°C) | Mpa | >108 |
| Compressive Strength (20°C) | Mpa | >508 |
| Modulus of Elasticity (25°C) | Gpa | 65 |
| Impact Toughness | KJ/m2 | >2.56 |
| Thermal Properties | ||
| Thermal Conductivity (25°C) | W/m.K | 1.71 |
| Thermal Expansion Coefficient | 10-7/°C | 72 |
| Thermal Shock Resistance | T°C | 200 |
| Perennial Temperature | °C | 800 |
| Electric Properties | ||
| Dielectric Strength | KV/mm | >40 |
| Volume Resistivity(25°C) | Ω.cm | 1.08*1016 |
| Volume Resistivity(200°C) | Ω.cm | 1.5*1012 |
| Volume Resistivity(500°C) | Ω.cm | 1.1*109 |
| Dielectric Loss | 1-4*10-3 | |
| Dielectric Constant | Er | 6-7 |
Application industry:
Machinery, electronic, limitary, aerospace etc.
Specific application: Machined equipment high temperature insulated parts, electronic equipment high temperature insulated parts.
Company Information
Shenzhen Hard Precision Ceramic CO.,Ltd founded in 2007, located in Shenzhen of China.
We are a company that integrates development, design, molding, sintering, production and sales of precision ceramic products. After 10 years of development, we have cooperated with more than 2000 customers and 60 universities; Our factory covers an area of 2000 square meters, 50 employees, and annual production value of nearly 20 million. We have a higher visibility and better reputation in the same industry.Our products include ceramic rods, tubes, plates, blocks and precision parts for industrial. We have all-line high precision equipments from ceramic forming, sintering to precision machining. Hope for a wide range of sincere cooperation with customers at home and abroad.
Why Choose Us?
1.12 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.
7.MOQ is not limited, small quantity is welcome.
8.Vigorous team and good after-sales service
Product Show
Factory Show
Packaging & Shipping
Our Team
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
