OD8.0*6.0mm 12k pultruded carbon fiber tube for octocopter shaft, carbon fiber pipes for rc tail shaft (1600832531964)

Share on:


Price:$2.50
Price in USD:Details

Quantity:


Product Overview

Description


OD8.0*6.0mm 12k pultruded carbon fiber tube for octocopter shaft, carbon fiber pipes for rc tail shaft








Welcome



Product Description

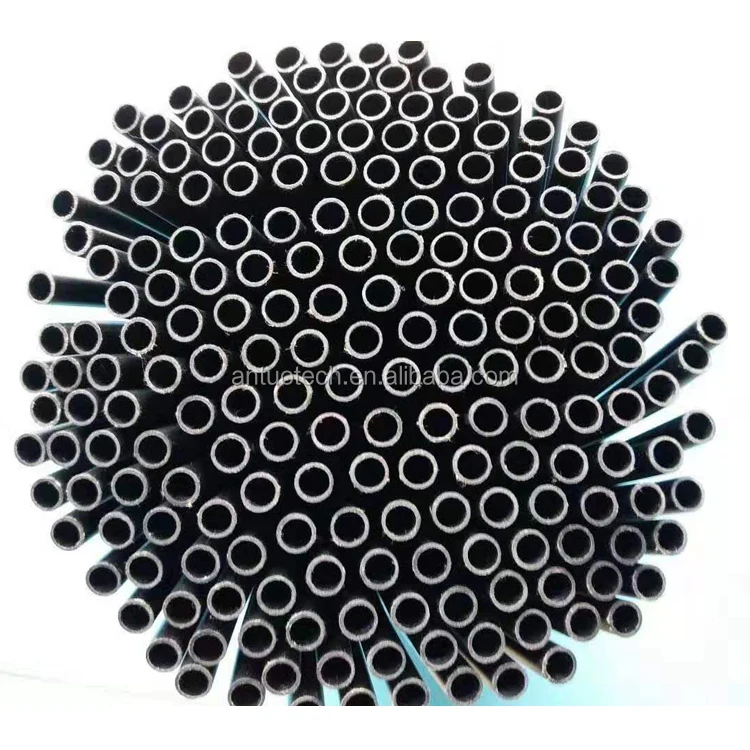

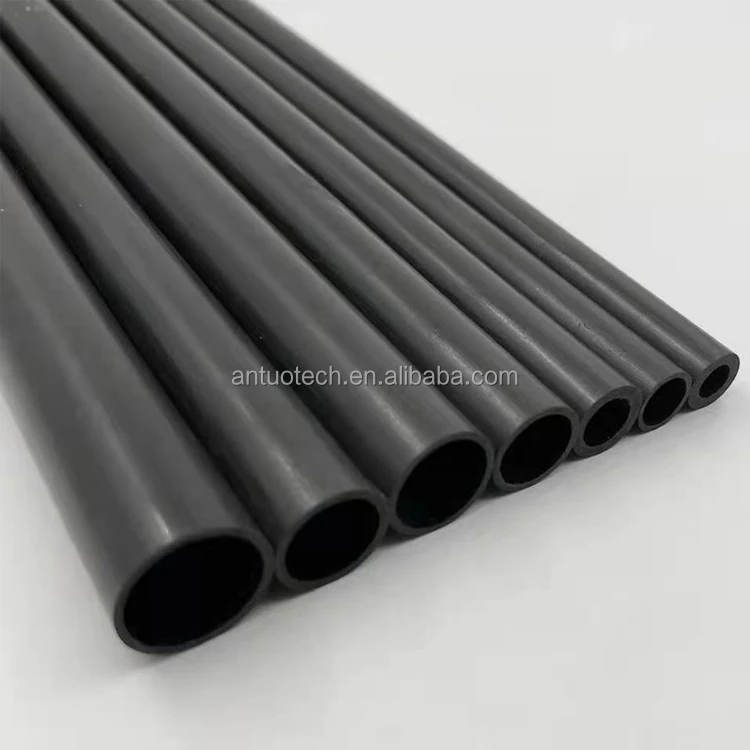

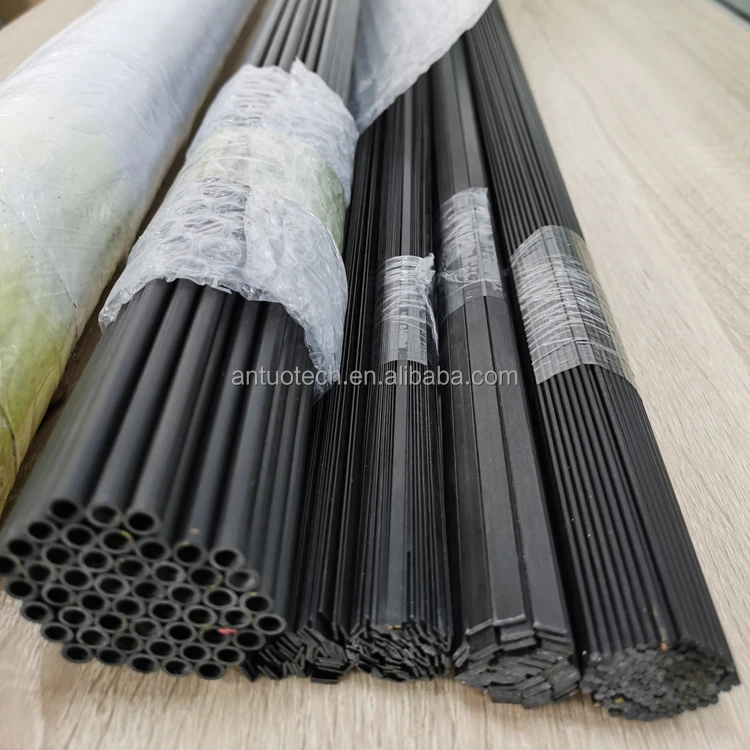

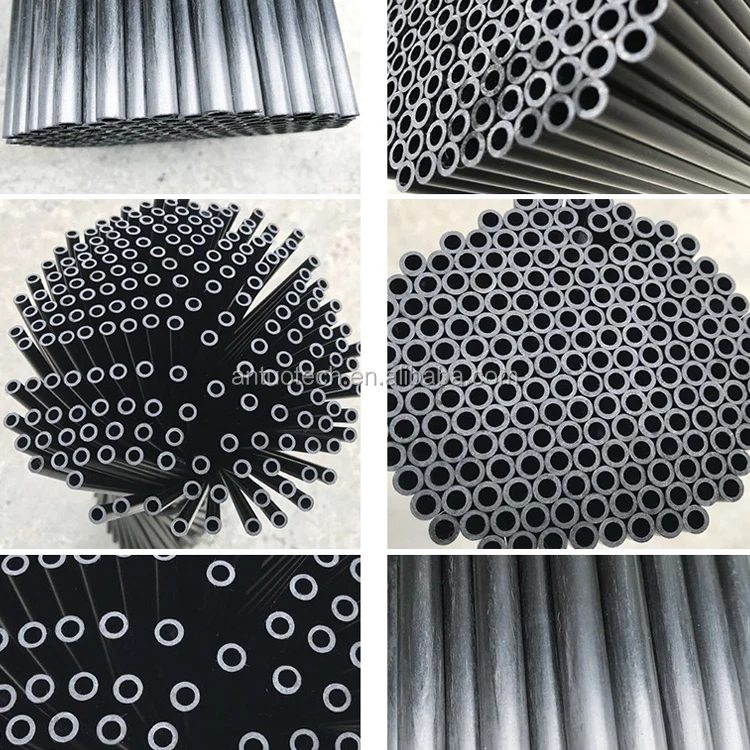

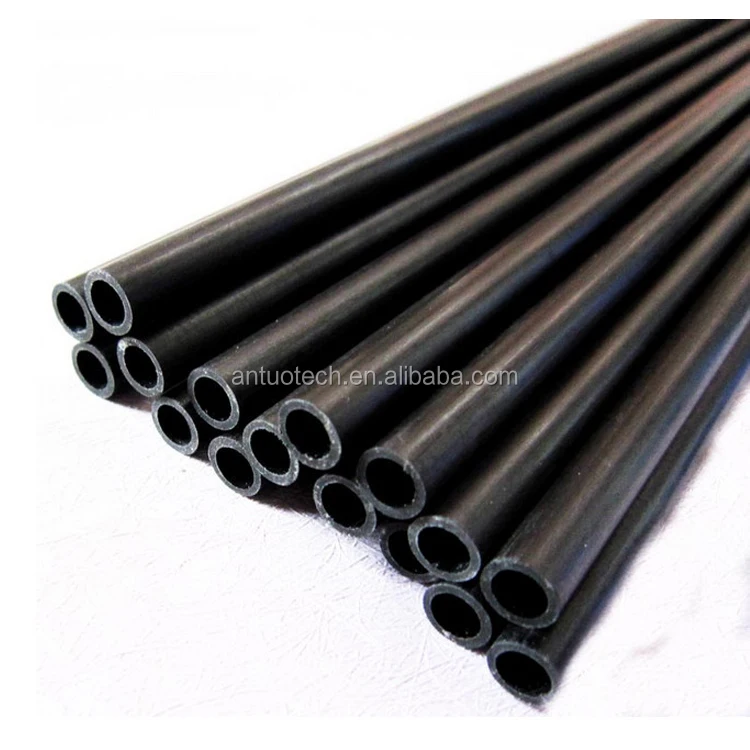

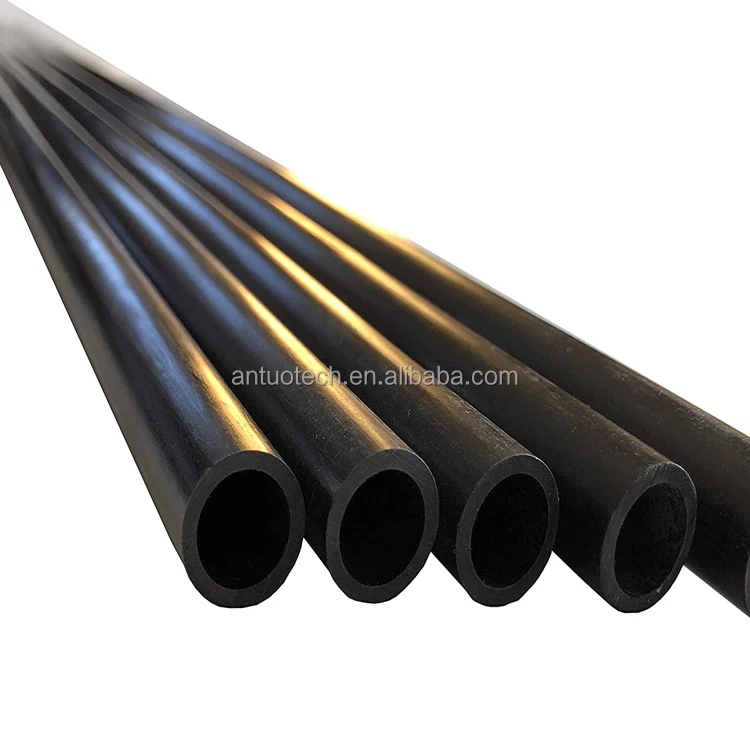

crp pipes (1)crp pipes (2)12k crp pipe tubing 312k crp pipe tubing 9crp hollow tubes12k crp tubing12k crp tube pole (3)12k crp tube pole (1)12k crp tube pole (5)12k crp tube pole (11)12k crp tube pole (12)


factory room





Heat resistant pultrusion 12k carbon fiber tubing tubes poles:
Material: Imported Taiwan TAIRYFIL or Japan TORAY Carbon fiber fabric


               Carbon Fiber Roving + Thermosetting Vinylester/Epoxy resin


Pultrusion line








    Our pultruded carbon sections offer the ultimate cost-effective carbon solution. Manufactured to high tolerances using either vinlyester or epoxy resins combined with carbon fiber in a continuous process our pultruded profiles offer extremely high strength and stiffness.


   The products are suitable for Tent, kites, toys, model, planes, tool handle, golf bags, golf training nets; other sports apparatuses play a supporting role.


 crp pipe tubes (1)





Characteristic:














































Name



12k pultrusion carbon fiber round tubes



Material



 Unidirectional Carbon Fiber Roving + Thermosetting polyester resin  (UL94 Compliant)



OD


Customized
ID Customized

Length



Customized and maximum length



Finish



Glossy or matte, with threads or without threads



Surface



 With 3k/6k/12k weaving pattern or without (black UD surface)



Tolerance



 +/-0.05mm for diameter, +/-0.5mm for length



Technical



 Pultrusion



Advantage of our tube



High strength;


Light weight;


Tight tolerances;


Anti-corrosion;


Low Coefficient of thermal expansion;


Customized according to your load requests;


Print simple logo free for you;


CNC cutting service;


Accessories available;


Durable and nice luxury surface









Applications:
1. Automobiles, body, parts, inside decoration etc;
2. Bike Motorbicycle, body and parts;
3. Aerospace and navigation, plane, barge, freighter, boat, ship, vessel;
4. Sports and entertainment, golf, ski pole, hockey pole, badminton pole;
5. Hunting bow and arrows archery stabilizer tennis pole, snooker pole, trekking pole ski pole;
6. Billiards cues protecting equipment etc;
7. RC hobby, UAV Drone, Copter, FPV frame parts, Tools, model;
8. Construction and Bridge reinforcement and strengthening;
9. Energy, wind turbine blades, oil driller etc;
10. Telescopic tubes/poles;
11. Music equipment, Camera support tripod pole;
12. Mobile or Jewelry electronic production decoration;
13. Medical X-ray machine Carbon devices,toys,telescopic tube;
14. Industrial mechanical parts sports products parts;


12k crp tube pole (14)crp pipes


12k crp tubes


Application 01Application





Specifications:


Product Item:  Unidirectional 12K pultrusion carbon fiber round tubes poles pipes


Surface: Matte
Color: Black, customized















































































































Diameter ( mm )
Outside DiameterInside DiameterWall Thickness
3.00 1.50 0.75
4.00 2.50 0.75
5.00 2.50 1.25
6.00 4.50 0.75
7.50 5.00 1.25
8.00 6.00 1.00
9.50 4.20 2.65
10.00 8.00 1.00
11.00 4.00 3.50
12.70 6.00 3.35
14.00 12.00 1.00
16.00 12.00 2.00
18.00 16.00 1.00
25.40 21.40 2.00
27.80 21.80 3.00
30.00 26.00 2.00
37.00 33.00 2.00
44.00 40.00 2.00
51.00 47.00 2.00



Any shapes can available by CNC processing as your requirement :-)








Advantages of our carbon fiber tubes:


With more than 10 years’ experiences, we are very professional in making pultrusion carbon fiber tubes. We use Toray carbon fiber as raw material. As you known, Tairyfil carbon fiber is the first-rate around the world. We can also make tubes according to your requests. So that we can make sure the tube can work well for your application. Also, our tubes have tight tolerances. Tolerances are important but not all manufacturers can supply the carbon fiber tubes with the tight tolerances. So, it's better to let us know your specifications of your tubes, then we you can get your customized carbon fiber tubes soon!








Company Information


Company profilefactory (1)crp, grp production (1)











Our Services


 Factory














Packaging & Shipping

Shipping time: samples will be avaialble within 3~5days, bulk order will depend on the bulk production.
Shipping method: express, air transportation, by sea.
Packaging: poles will be packed in plastic or wrapped with plastic film and then be put in the carton.
We also can pac the goods according to your request.

Shipping





FAQ





Q: Are you trading company or manufacturer ?
A: We are factory.





Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. Or it will be about 15days to prepare the goods, and it's also depend on the purchase quantity.





Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but do not pay the cost of freight.





Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , the balance before shippment.
