Voltage and current data logger 8 modbus rs485 interface water pressure 4g meter monitoring system ethernet

Product Overview

Description

Voltage and current data logger 8 modbus rs485 interface water pressure 4g meter monitoring system ethernet

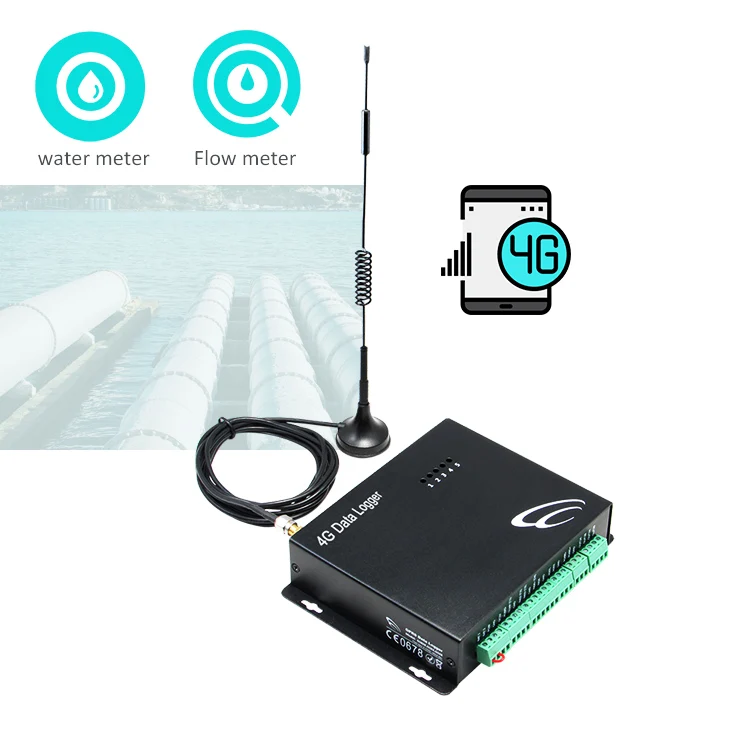

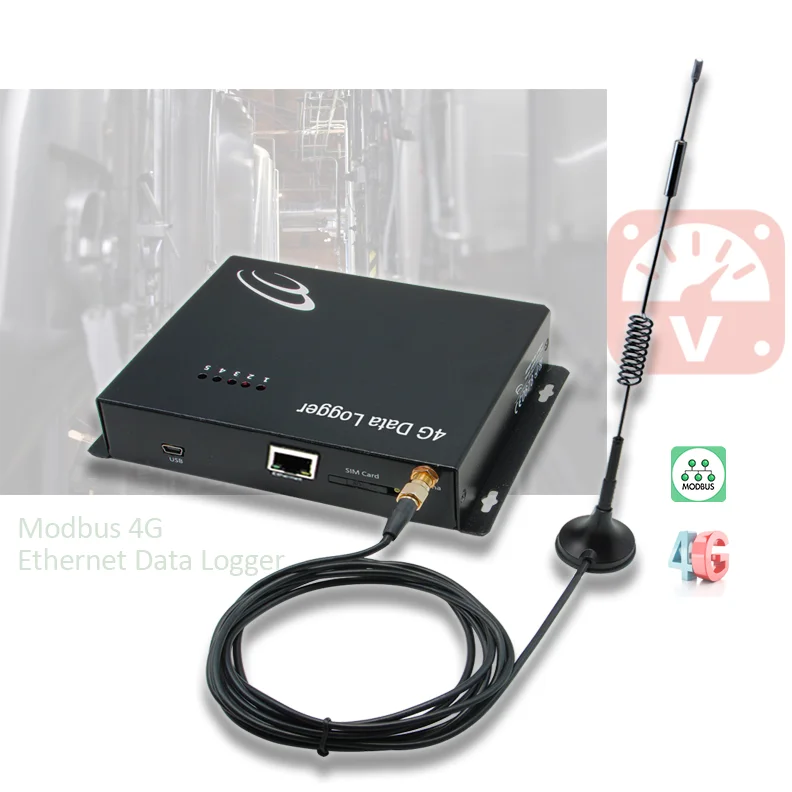

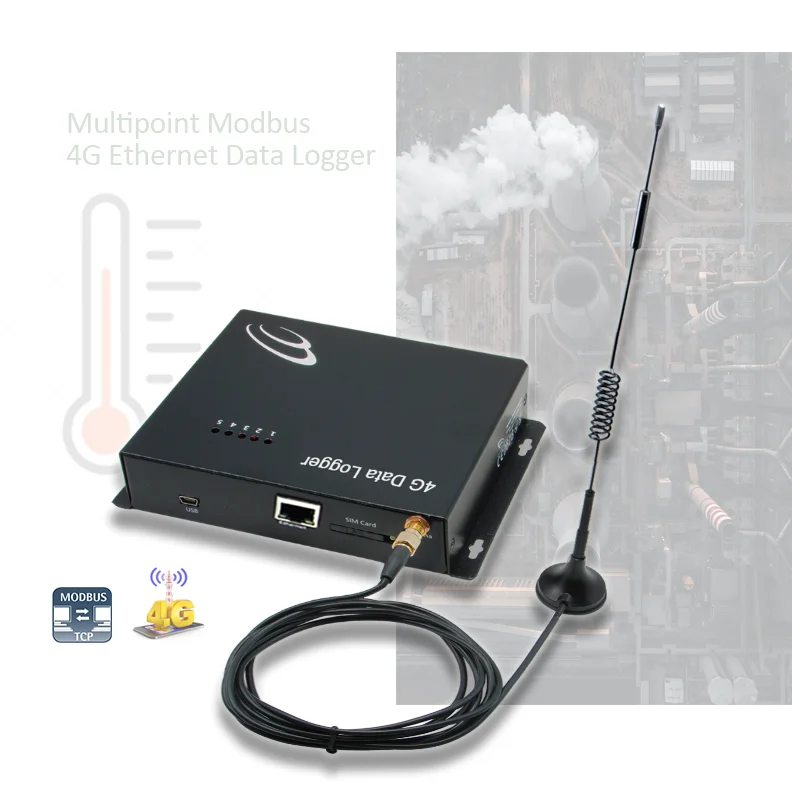

GSN4-MS-4G is a Modbus and Ethernet Data Logger.
It uploads sensors data, Modbus meter reading via 4G network.

GSN4-MS-4G is a wireless datalogger supporting 16 Modbus data registers.
It supports 4G mobile and Ethernet network.

GSN4-MS-4G is featured with analog and Modbus channels.
It provides data logging and tranmission over 4G and Ethernet network.





detail

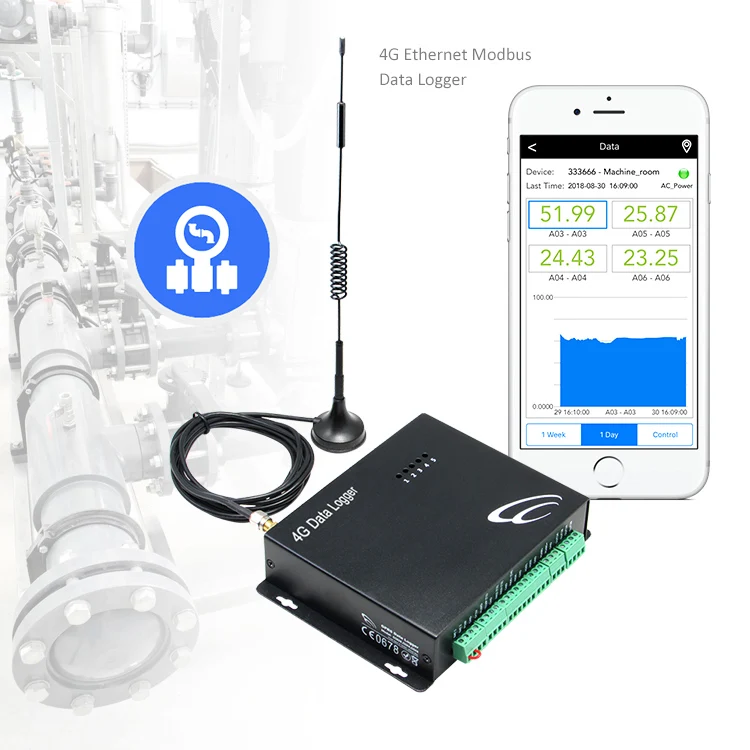

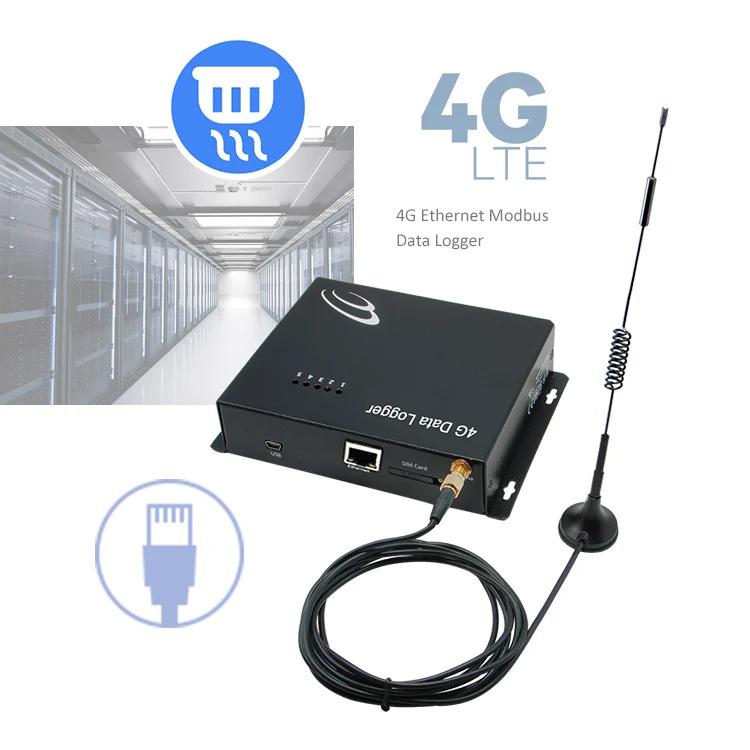

It is a 4G Ethernet Modbus Data Logger with programmable I/O.
4G Ethernet Data Logger provides faster wireless connection in a more secure and reliable 4G mobile and Ethernet network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.

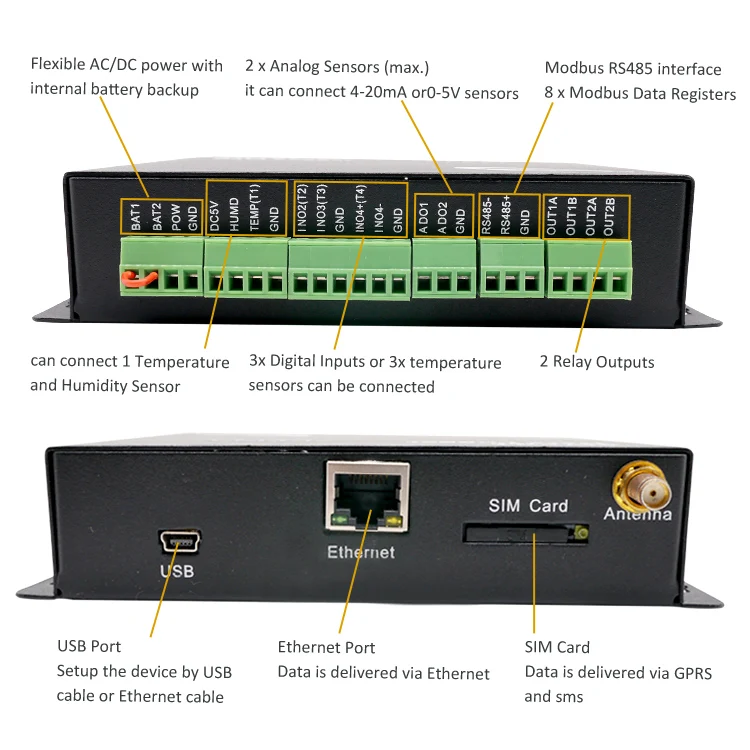

Overview:
* 2 Temperature Sensors (max.)
* 1 Humidity Sensor
* 2 Analog Channels (max.)
* 3 Digital Inputs
* 3 Pulse Channels
* 2 Relay Outputs
* Modbus RS485 Interface
* 8 Modbus Data Registers



Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.





Product specifications
Product  Model	GSN4-MS-4G
Multipoint Temperature	2 x temperature sensor	Communication Protocol	4G SMS
Humidity Sensor	1 Humidity Sensor	Operation Rating	80mA (data transmission)
Digital Inputs	3 Digital Inputs	Operating Voltage	2.6~3.6V DC
Temperature range	-55 ~ 125 C	Analog Channel	4~20mA, 0~5VDC
Humidity Range	0 - 100%RH	Power	Electronic



Features

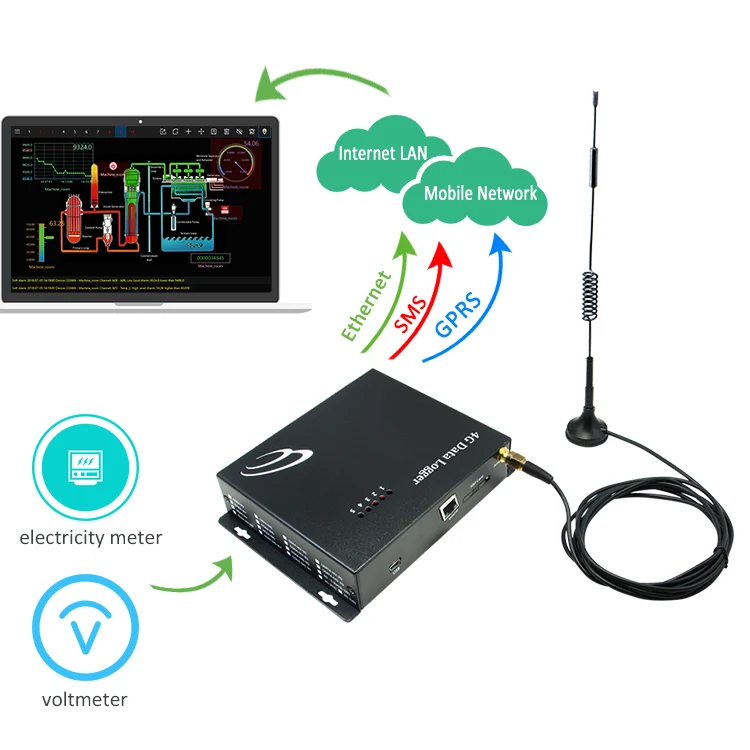

1) Real Time 4G and SMS Data Upload
2) Integrated 16 bit MCU & Siemens 4G and Ethernet Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup







Free Software:
[1] Setup software is bundled for routine configuration via USB port locally
[2] Centre software is also provided for receiving data via 4G mobile network.

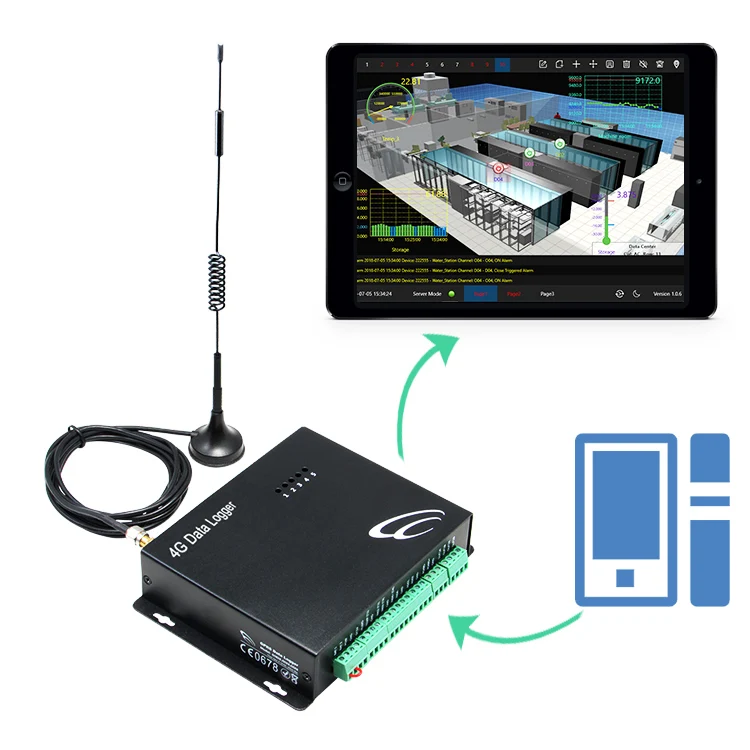

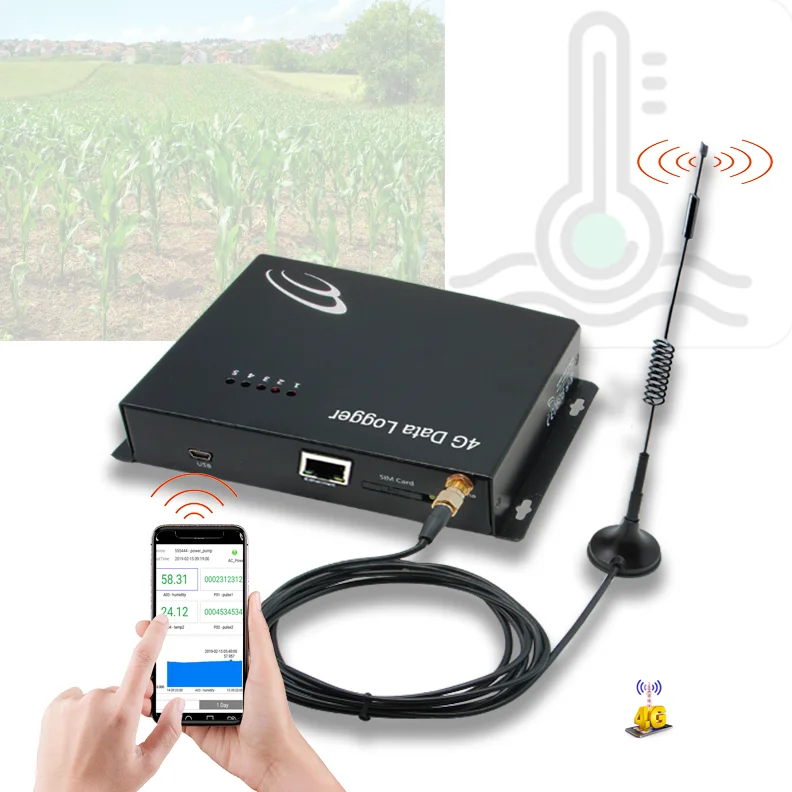

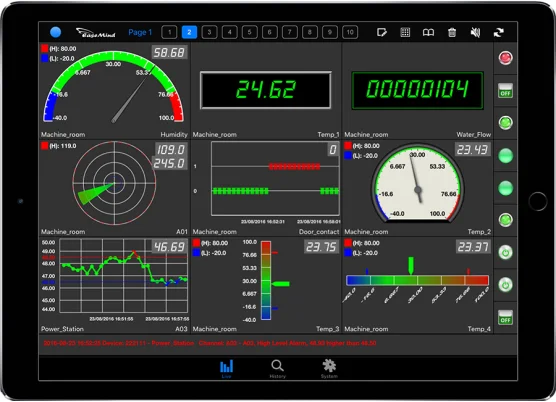

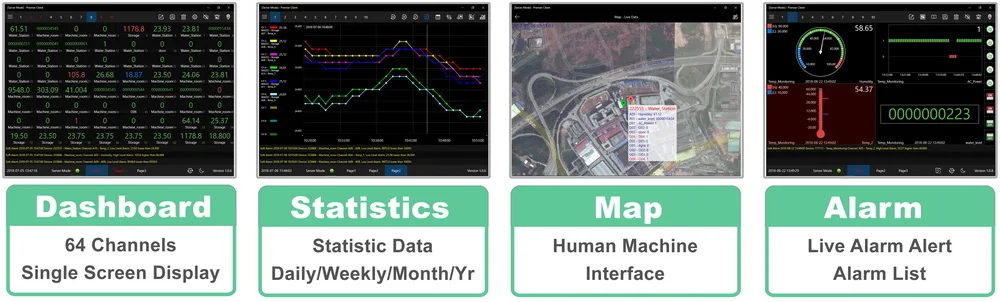

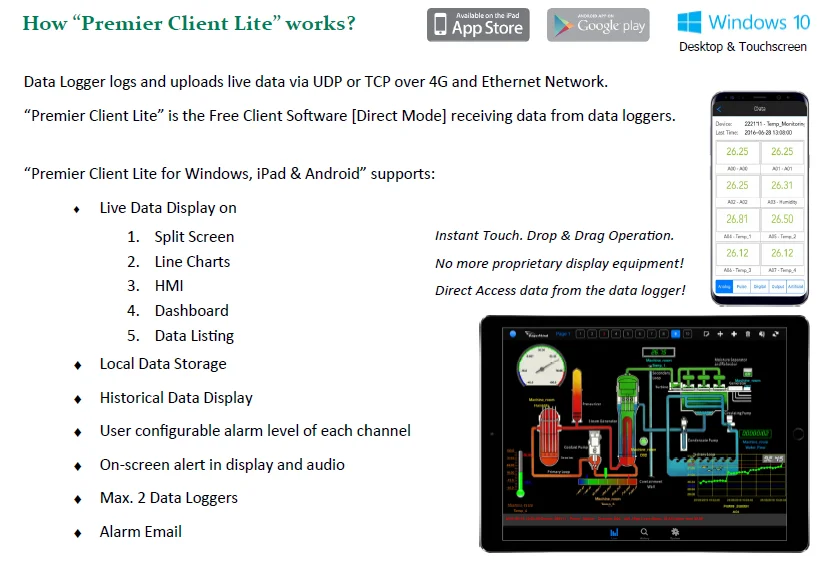

[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display

























Applications
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile and Ethernet network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
