Product Overview
Description
Product Overview

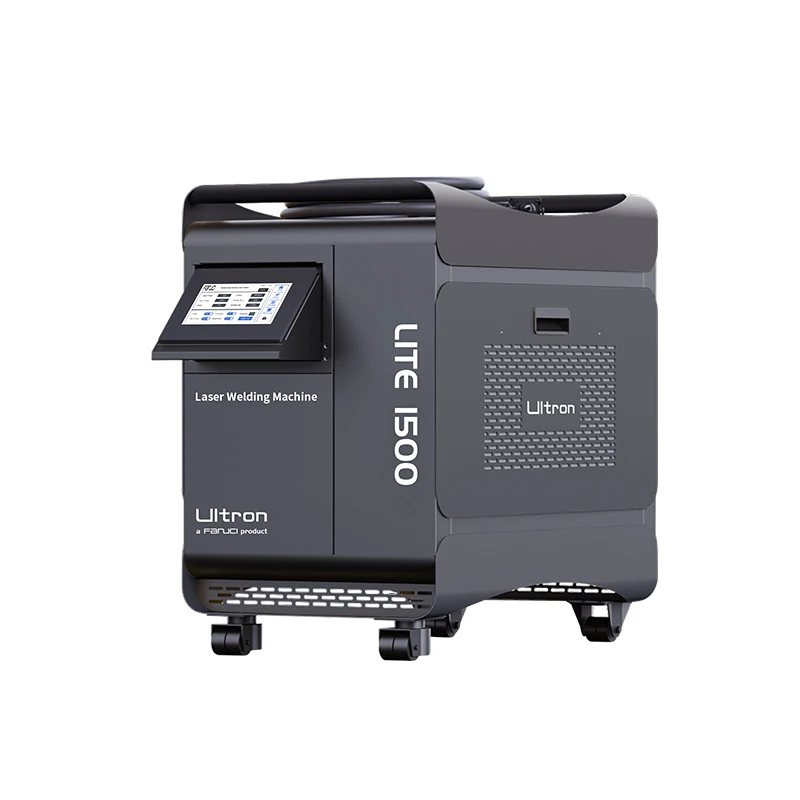

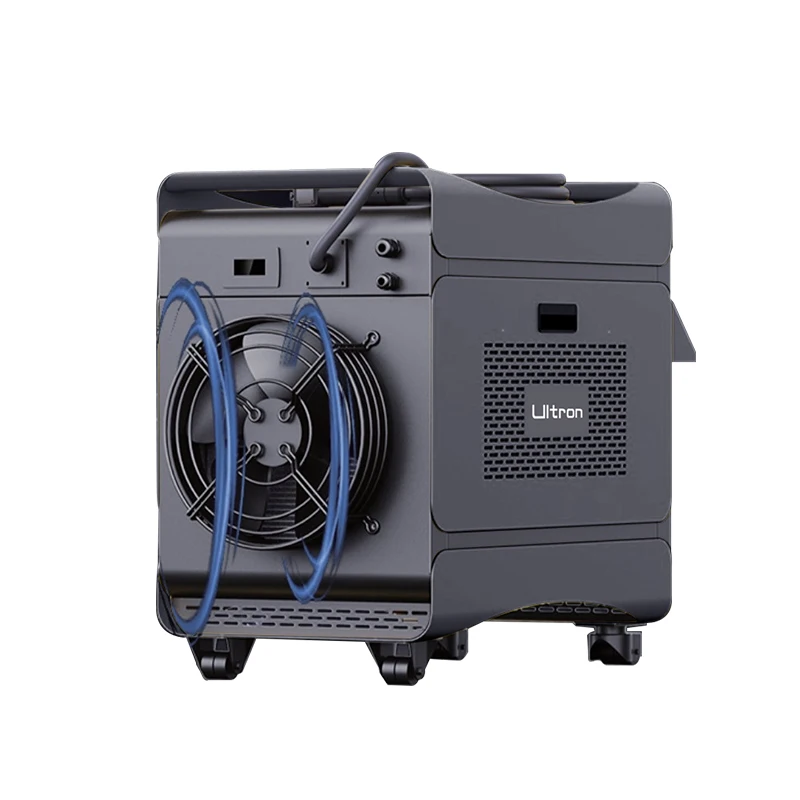

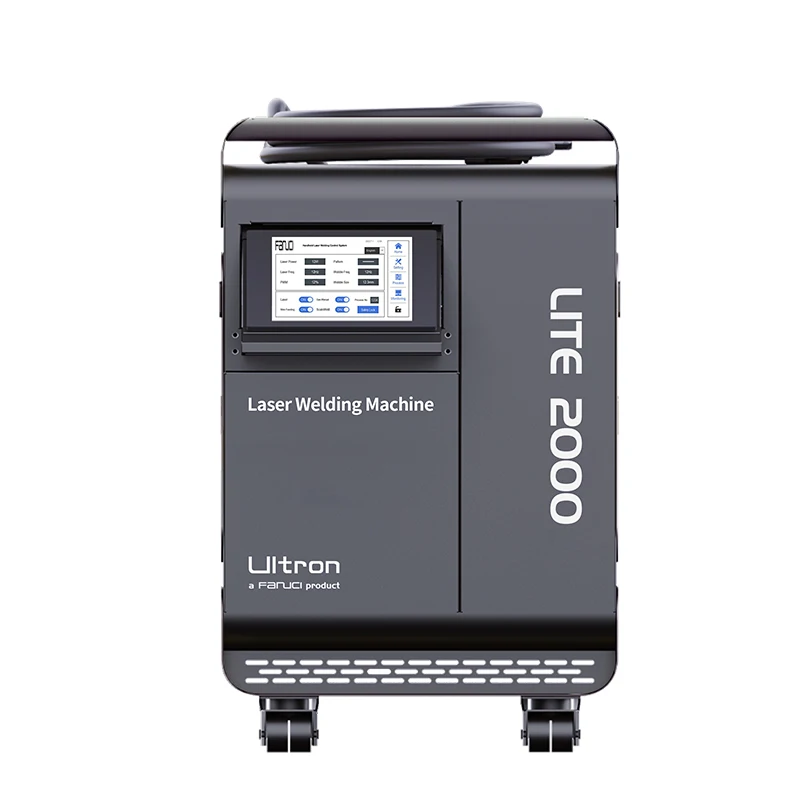

FANUCI Ultron Handheld Laser Welding System
1. 3 in 1 handheld laser processing head for welding/cutting/weld seam cleaning
2. Includes a 3-in-1 laser control system(cutting/welding/weld cleaning/) and HMI panel.
3. The laser head swings uniaxially, and the line spot is adjustable from 0-5mm.
4. Multiple safety protections with the function of automatically closing the beam after the nozzle leaves the workpiece.
4. Multiple safety protections with the function of automatically closing the beam after the nozzle leaves the workpiece.
5.Various tip components are included in the standard kit to complete the cutting, welding and seam cleaning. Assembly of remote cleaning is optional.
6. Wide weld seam, small porosity, and best molten pool protection.
Laser Power | 1000W | 1500W | 2000W | ||||
Laser Wavelength | 1070 NM | 1070 NM | 1070 NM | ||||
Fiber Length | 10 m | 10 m/15m | 10 m/15m | ||||
Operation Model | continuous/modulated | continuous/modulated | continuous/modulated | ||||
Positioning | red laser dot | red laser dot | red laser dot | ||||
Air Pressure | 5-15L/min | 10-15L/min | 10-15L/min | ||||
Voltage | 220V | 220V | 220V | ||||
Power Consumption | 5KW | 7KW | 9KW | ||||
Frequency | 50/60 HZ | 50/60 HZ | 50/60 HZ | ||||
Currency | 25A | 32A | 40A(Ultron-1Phase) | 32A(Ultron-3Phase) | |||
Laser Head Weight | 760g | 760g | 760g | ||||
Laser Head Operation Mode | Oscillation / Spot / Line | Oscillation / Spot / Line | Oscillation / Spot / Line | ||||
Focus Length | 150mm | 150mm | 150mm | ||||
Welding Speed | 0-160mm/s | 0-190mm/s | 0-215mm/s | ||||
Cooling | Distilled Water | ||||||
laser Control Method | laser enable + security lock + metal switch/safety clamp | ||||||
Touch Screen | PLC screen and board | ||||||
Wire Feeder | Auto feeding and drawback | ||||||
Welding Wire Diameter | 0.8mm, 1.0mm, 1.2mm, 1.6mm | ||||||
FEATURES AT A GLANCE

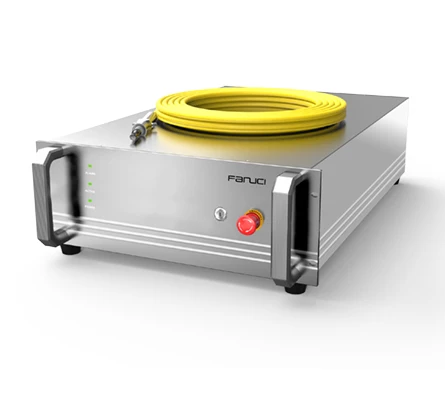

1. FANUCI PowerON
976nm laser pump technology.
*Same core laser pump tech and components as IPG *Electro-optical conversion efficiency is as high as 48%. Saving 15% compare to
915nm.*Provide capability of welding/cutting high reflective materials *Up to 85% laser problem could be solved remotely,
significantly saving timeHigh brightness: Gaussian spot, M-<1.3, limit output cable 10um.Fast response: 0 to maximum power <5us,
response frequency 50kHzProgrammable: customized outout curve, 64 sets of parameters stored and recalled at any timeFlexible:
Modular design, easier and fast change modular to repair or upgrade power (for high power source)
*Same core laser pump tech and components as IPG *Electro-optical conversion efficiency is as high as 48%. Saving 15% compare to
915nm.*Provide capability of welding/cutting high reflective materials *Up to 85% laser problem could be solved remotely,
significantly saving timeHigh brightness: Gaussian spot, M-<1.3, limit output cable 10um.Fast response: 0 to maximum power <5us,
response frequency 50kHzProgrammable: customized outout curve, 64 sets of parameters stored and recalled at any timeFlexible:
Modular design, easier and fast change modular to repair or upgrade power (for high power source)

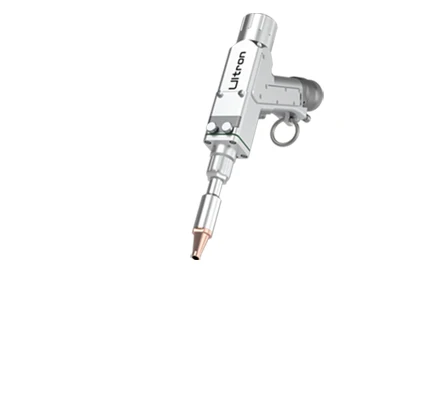

2.Fanuci Wobble 3 in 1 head
1. Handheld Laser Processing Head-Cut/Weld
2.Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
3.Various tip assemblies in standard kit to fulfill cutting, welding .
4. Wide welding seam, low porosity and excellent melting pool protection.
2.Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
3.Various tip assemblies in standard kit to fulfill cutting, welding .
4. Wide welding seam, low porosity and excellent melting pool protection.
3. Fanuci PRO EasyWire 3.0 GenX automatic wire feeder
The offered device is equipped with a fully automatic Fanuci PRO EasyWire wire feeder integrated with the software. The system allows you to work with 0.8-1.6mm filling in "push" or "pull" mode.
4. Control System Fanuci Laser WELD 3 in 1 System
The operation system combines high performance with intuitiveness and ease of use. The control is placed on a color touch screen that allows you to set all the necessary parameters depending on the user’s needs.
✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
✦ What about after-sales problems?
Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region.You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
✦: What payment terms can you accept?
Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc
