Factory supply cleaner and opener waste cotton machine
US $2600-$4100
auto fabric garment cloth laying spreader machine with 1 year warranty
- Category: Other Textile Machines >>>
- Supplier: Wuhan,Yi,Neng,Taike,CNC,Technology,Co.,Ltd.
Share on:
Product Overview
Description

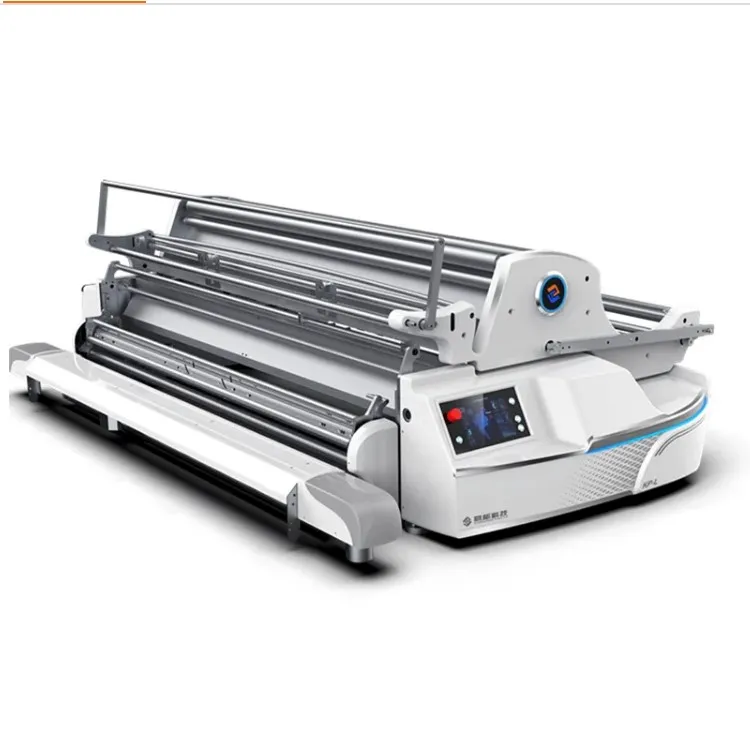

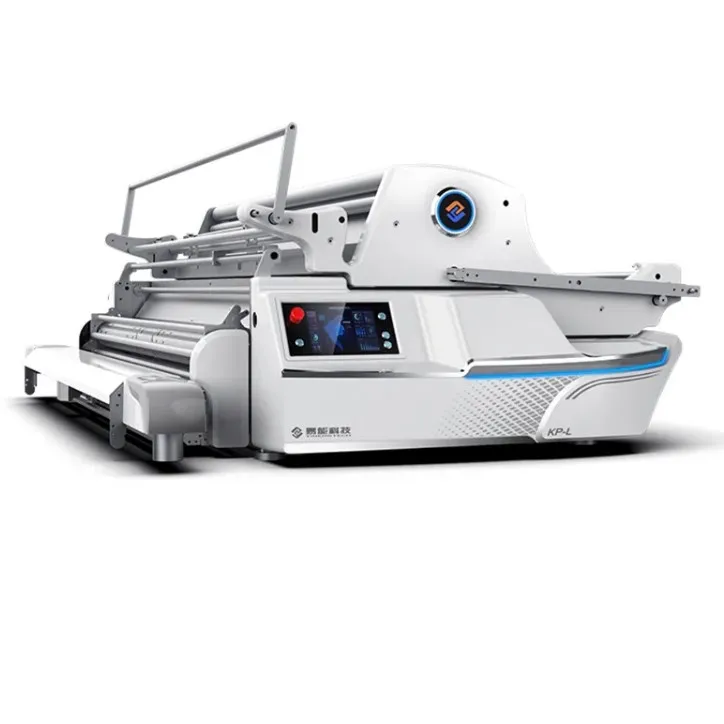

auto fabric garment cloth laying spreader machine with 1 year warranty
Details Images

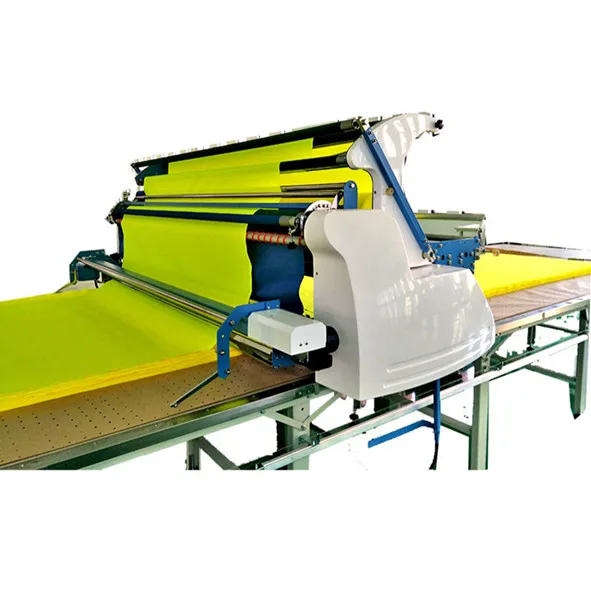

1. YINENG CNC Fabric Spreading Machine are widely used in almost whole textile industrial, include knitted and woven garments, such as T-shirt, jackets, suit, shirts, pants, children's wear, and also used in home textiles.
2. Use with the spreading machine, save time and cost, and also improve the working efficiency.
2. Use with the spreading machine, save time and cost, and also improve the working efficiency.
Machine parameter
Model.NO | KP-L160 | KP-L190 | KP-L210 | KP-L300 |
Fabric width(mm) | 1600 | 1900 | 2100 | 3000 |
Voltage(v/hz) | 220V 1ph 50/60 | 220V 1ph 50/60 | 220V 1ph 50/60 | 220V 1ph 50/60 |
Motor Power(kw) | 1.5 | 1.5 | 2.2 | 2.5 |
Working Speed(m/min) | 96 | 96 | 100 | 100 |
Single Pull Height | 200 | 200 | 200 | 200 |
Double Pull Height | 180 | 180 | 180 | 180 |
Fabric Weight(kg) | 75 | 75 | 80 | 80 |
Diameter of Cloth(mm) | 600 | 600 | 600 | 600 |
Spreading method | Single /Zigzag | Single /Zigzag | Single /Zigzag | Single /Zigzag |
Machine Dimensions(mm) | 2150*1850*850 | 3016*2000*1215 | 3250*2000*1215 | 3930*1640*1240 |
Package Size(L*W*H/mm) | 2716*2000*1215 | 3016*2000*1215 | 3250*2000*1215 | 3930*1640*1240 |
Machine weight (kgs ) | 680 | 720 | 750 | 860 |
1. Automatic stop and return back to original position once cloth spreading finished.
2. Machine will auto shutdown once more than 5 minutes no operation/working on it.
3. When any emergency brake happen, the machine won’t drag the cloth.
4. Adopt Taiwan imported PLC touch LCD screen operation system, easy and convenient to operate.
2. Machine will auto shutdown once more than 5 minutes no operation/working on it.
3. When any emergency brake happen, the machine won’t drag the cloth.
4. Adopt Taiwan imported PLC touch LCD screen operation system, easy and convenient to operate.
5. Automatic spreading cloth system, cloth spreading very smoothly and non-tension spreading through roller convey belt. no pull and no size change to cloth.
6. Double and single pull split structure
7. Automatic sharpening function and adjustable knife row distance.
8. Streamline shape, which can reduce wind resistance, reduce noise, reduce vibration.
6. Double and single pull split structure
7. Automatic sharpening function and adjustable knife row distance.
8. Streamline shape, which can reduce wind resistance, reduce noise, reduce vibration.
Machine Advantages

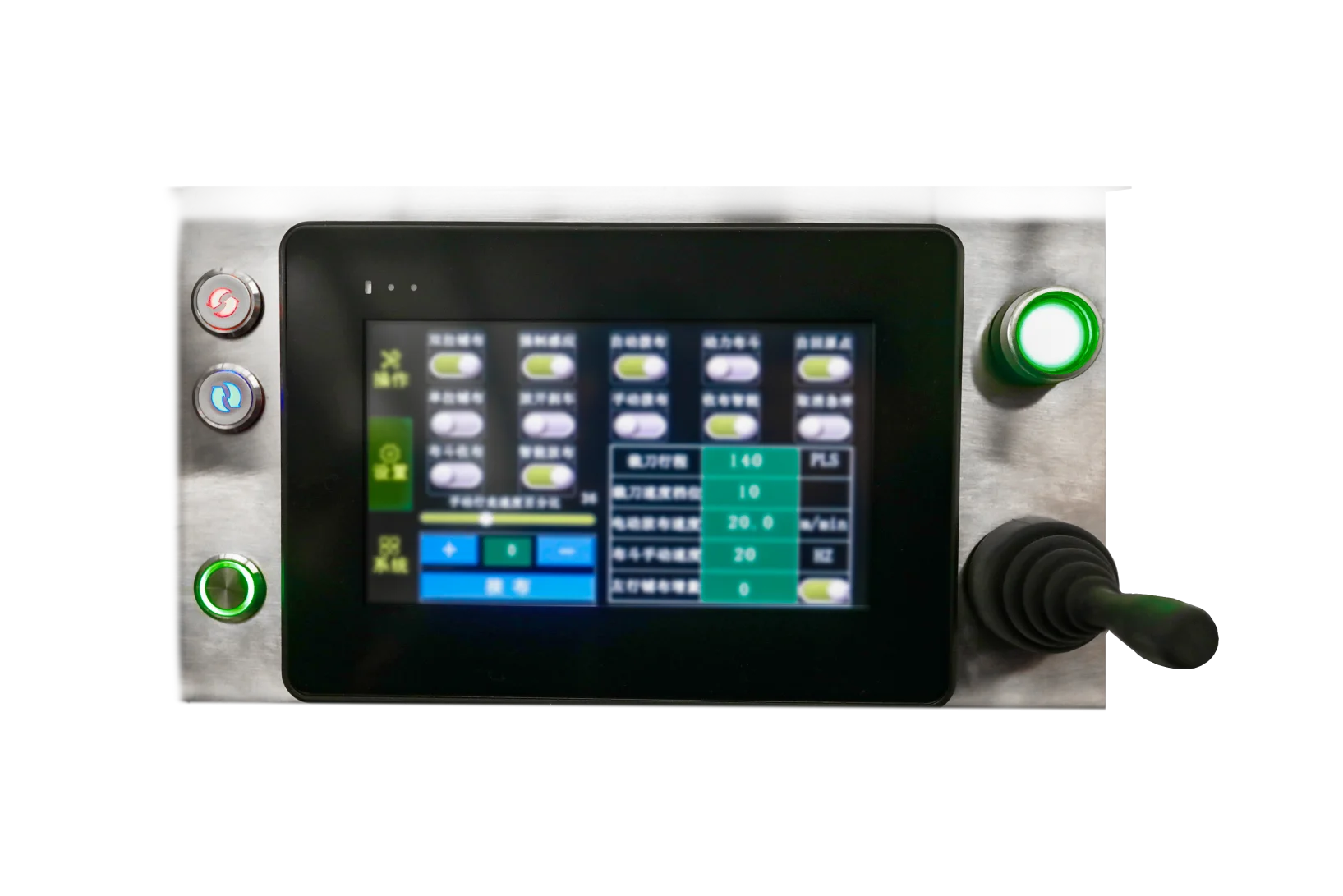

LCD touch control device
Easy to set the length of cloth, manner, quantity, speed and paragraphs.

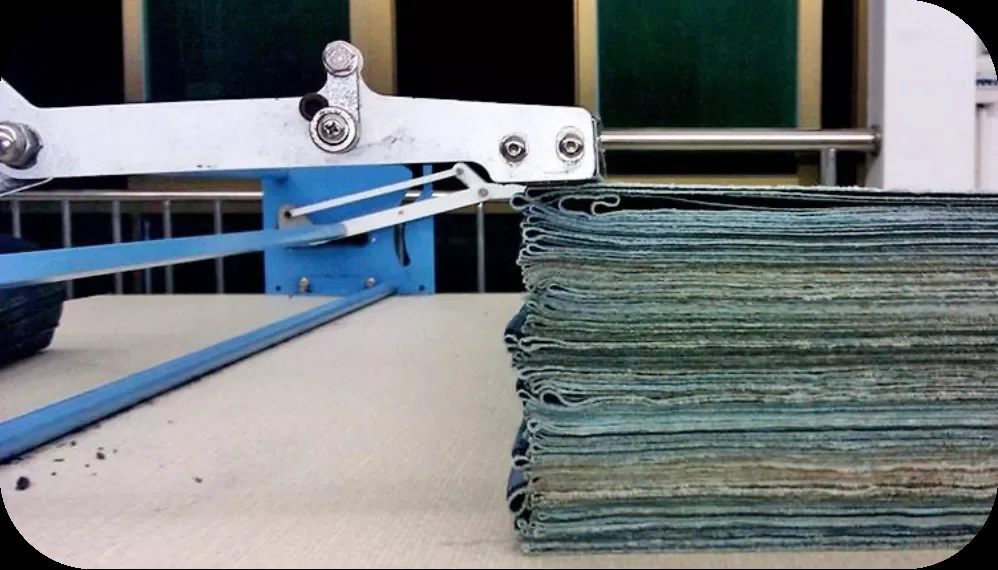

Cutting device
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Folding device
Can be used for round-trip cloth.

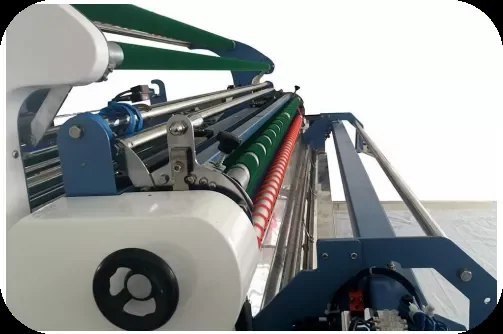

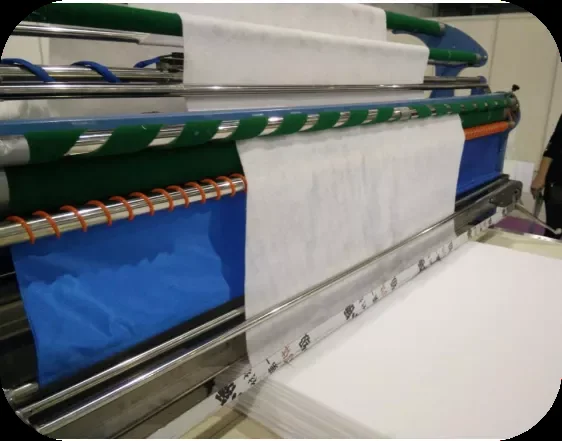

Automatic fabric pre -loosening device
The first loose cloth and then auxiliary release, that eliminate the tension of pulling cloth and protect the cloth quality.
Automatic lifting device
According to the thickness of cloth to set the amount of increase, with the cloth.

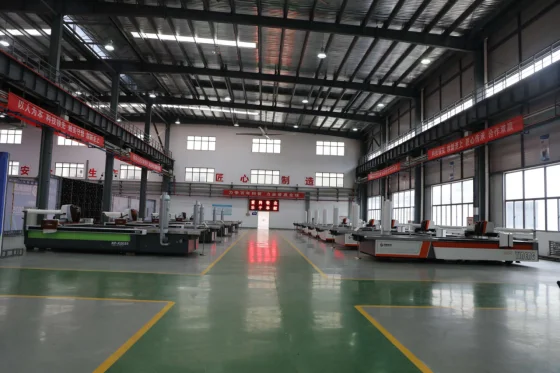

Company Introduction
Wuhan King Suntime CNC Equipment Co., LTD is established in 2002, we are professional in researching,manufacturing full set of automatic cutting system, the production include automatic multiply fabric cutting machine & Mono layer cutter &spreading machine.We are striving to provide you the machine based on our several years of practical production experience.
Our main product is automatic fabric cutter, the sales volume has reached the top five in the world till 2007, we will try our best to reach top 3 in future 3years.
Now our whole heart is commted to solve the cutting system for all kinds of software materials, to make it intelligent, simplicity and worldwide.
Our main product is automatic fabric cutter, the sales volume has reached the top five in the world till 2007, we will try our best to reach top 3 in future 3years.
Now our whole heart is commted to solve the cutting system for all kinds of software materials, to make it intelligent, simplicity and worldwide.
Certifications
YINENGTECH Market in the world
After Sales Service
1.Pre-sales service -- professional individual consultation :
A. Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China.Try before you buy.
B. Progressing solution design According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2. After-sales service – professional qualification and training One-year after-sales service includes:
A. Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China.Try before you buy.
B. Progressing solution design According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2. After-sales service – professional qualification and training One-year after-sales service includes:
A. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need.
B. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
C. We will offer our service through email and phones if the buyer needs any help on technical problems.
3. Installation and technical training includes :
We will send our engineers to customer’s factory for the local training and the installation, and this is free. The buyer needs to pay hotel and meals for the engineers in the local. In-time golden services Responsive within 24 hours technical support provided for peace of mind.
4.Customer-orient maintenance cost control guide
A. Parts supply in time we produce on order, Parts in warehouse for over 30 sets to guarantee the delivery of order and maintenance.
B.Release clients worry about big equipment service; supply the part with bare cost.
5. Sales service management system
Standardized service management system, including: customer contact management, customer troubleshooting management, customer equipment regular maintenance, inspections management, customer records management and other accessories reviews.
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: How to install and run the machine?
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed. For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone
else. We will response within 24 hours as quickly as we can to solve it for you.
else. We will response within 24 hours as quickly as we can to solve it for you.
