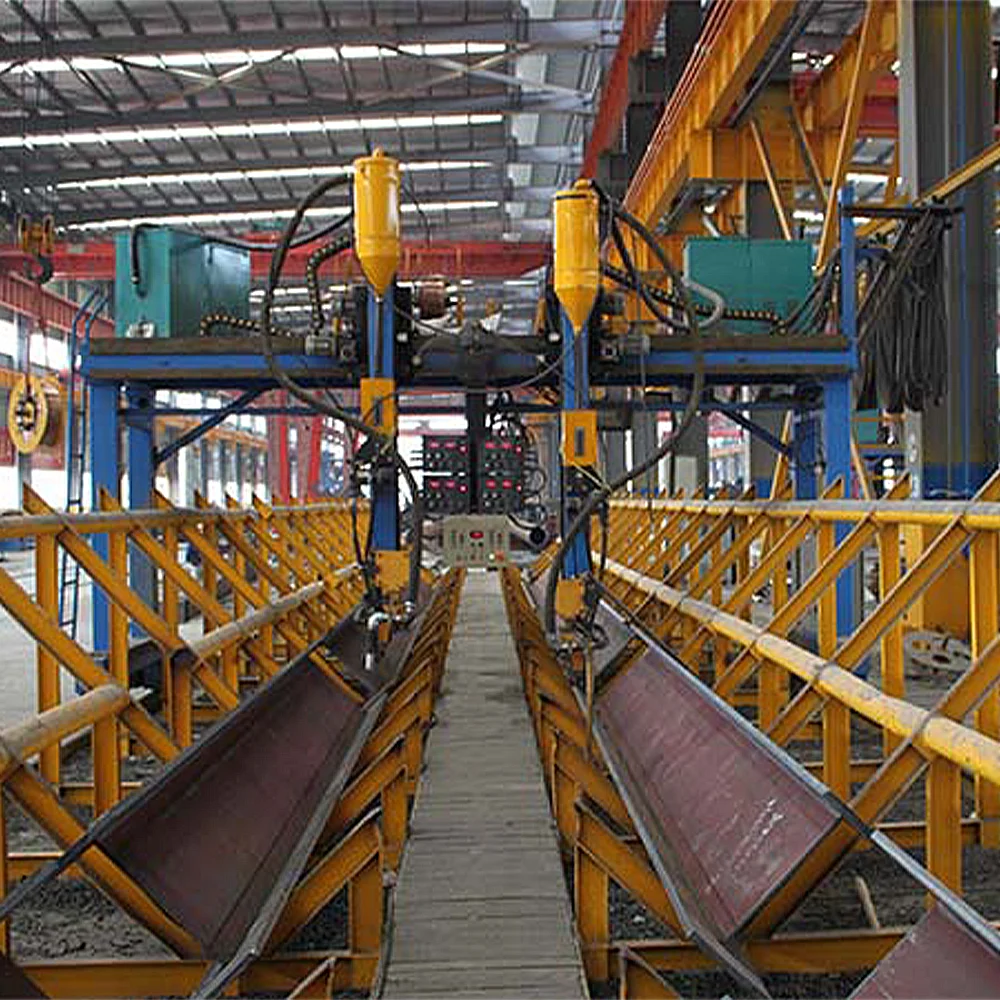

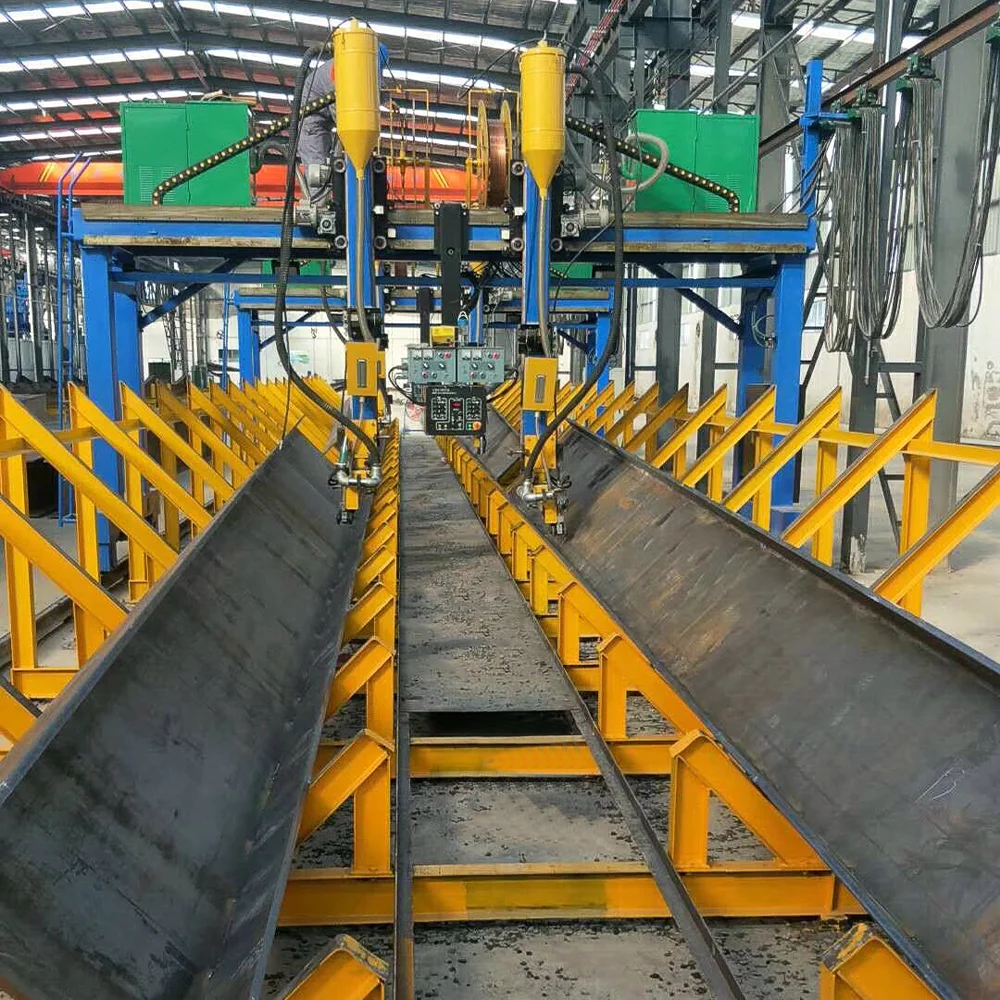

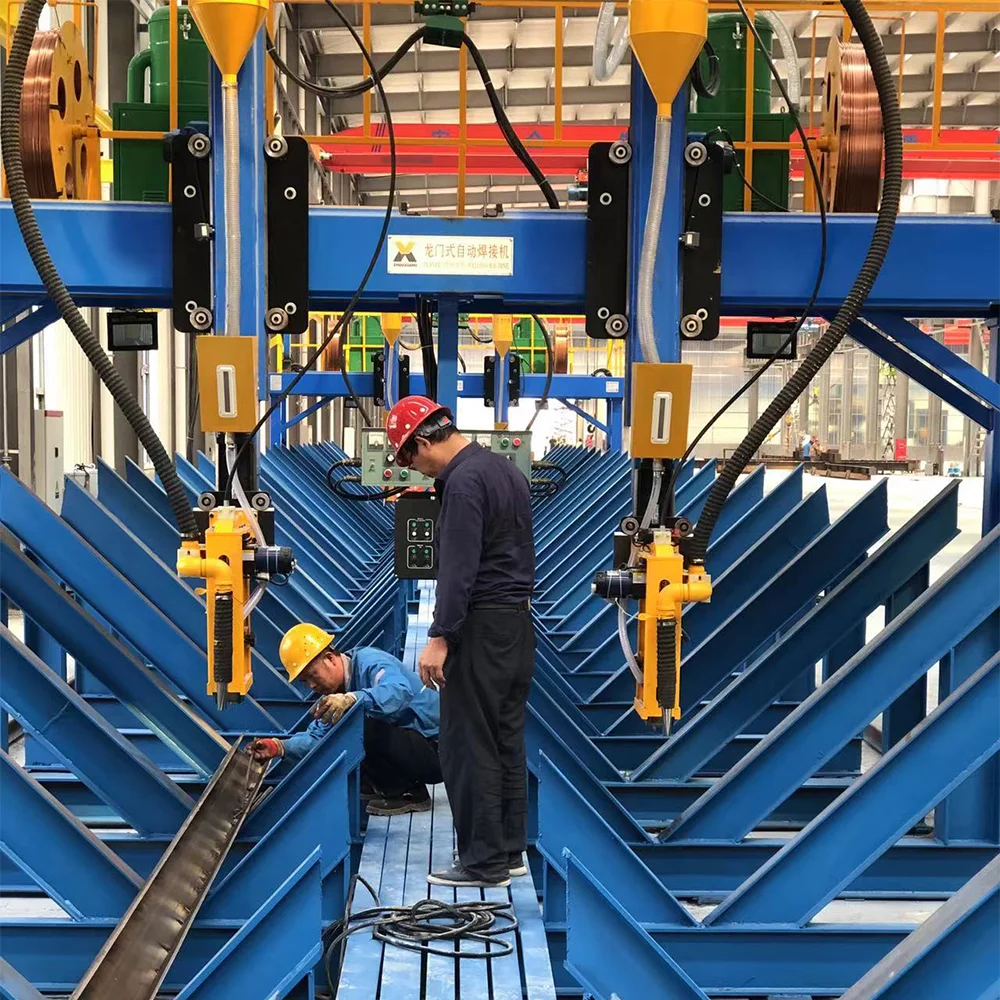

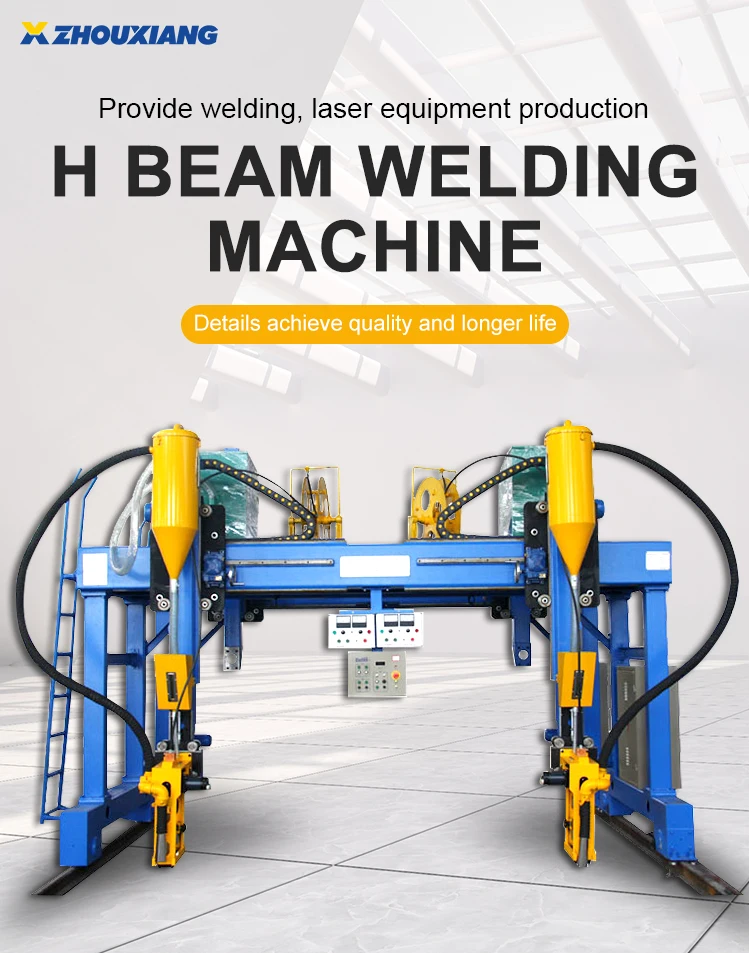

This machine is mainly used for submerged arc welding of assembled H beam, the working principle is as following:

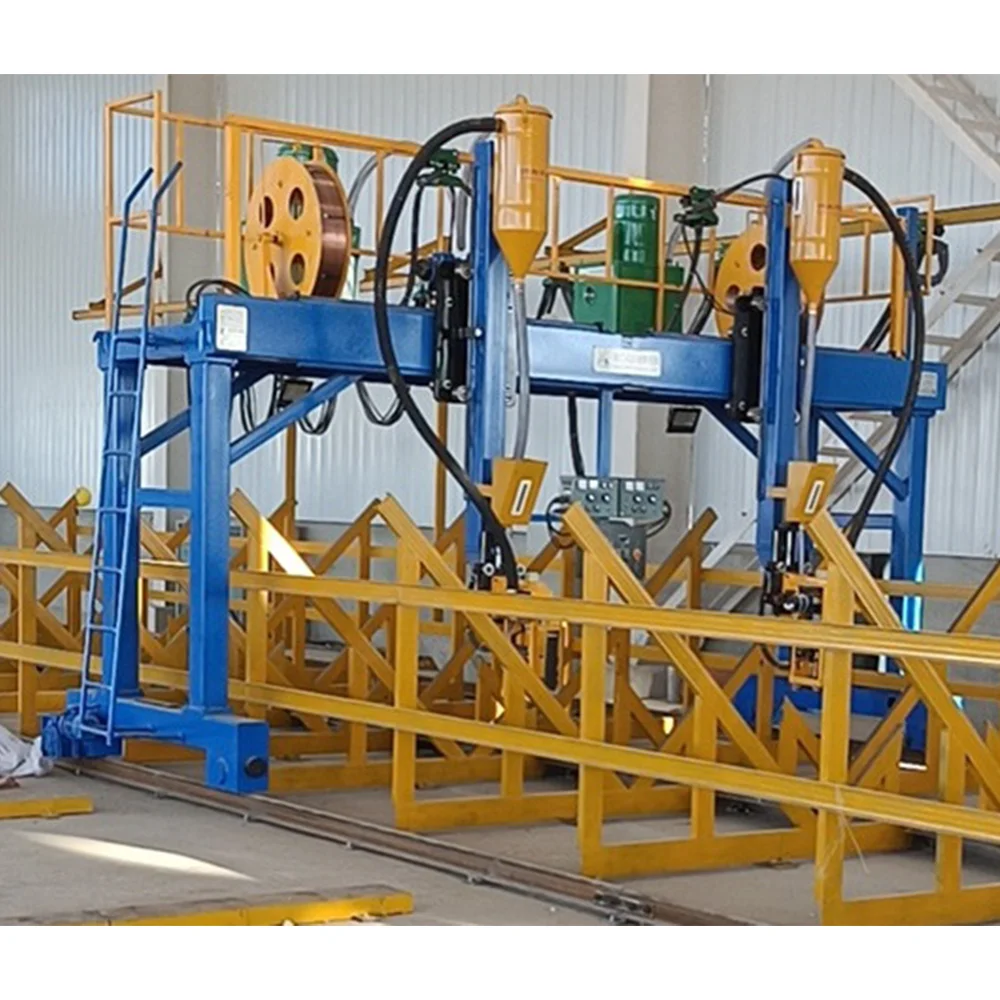

1.One H-beam steel placed on workpiece support frame with 45°, which is suitable for boat welding
2.Gantry welding machine walks on rails at adjusted welding speed
3. Use SAW welding to weld two seam
4. Arc-guide frame automatic seam tracking
5. Flux automatic feed and recovery system




Model
LHM-4000/LMH5000
Rail gauge
4000mm/5000mm
Web height
200-1500mm/200-2000mm
Flange width
200-800mm
Work-piece length
4000-15000mm or as user’s request
Model of welding machine
Zhouxiang ZX5-1000/ Zhouxiang MZ-1250/ American Lincoln DC-1000
Welding type
Boat-type welding
Welding speed
0.15-1m/min
Returning speed
3m/min
Overall power
9.6kW
Automatic Gantry Type H Beam Submerged Arc Welding Machine Equipment For Steel Structure


Product Advantages

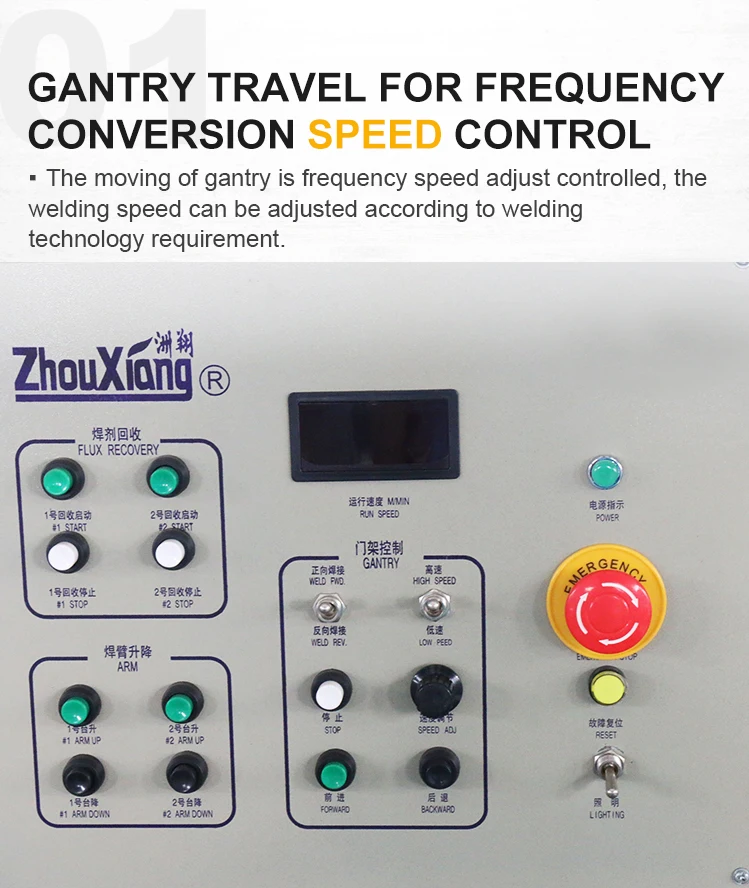

A1:The moving of gantry is frequency speed adjust controlled, the welding speed can be adjusted according to welding technology requirement.

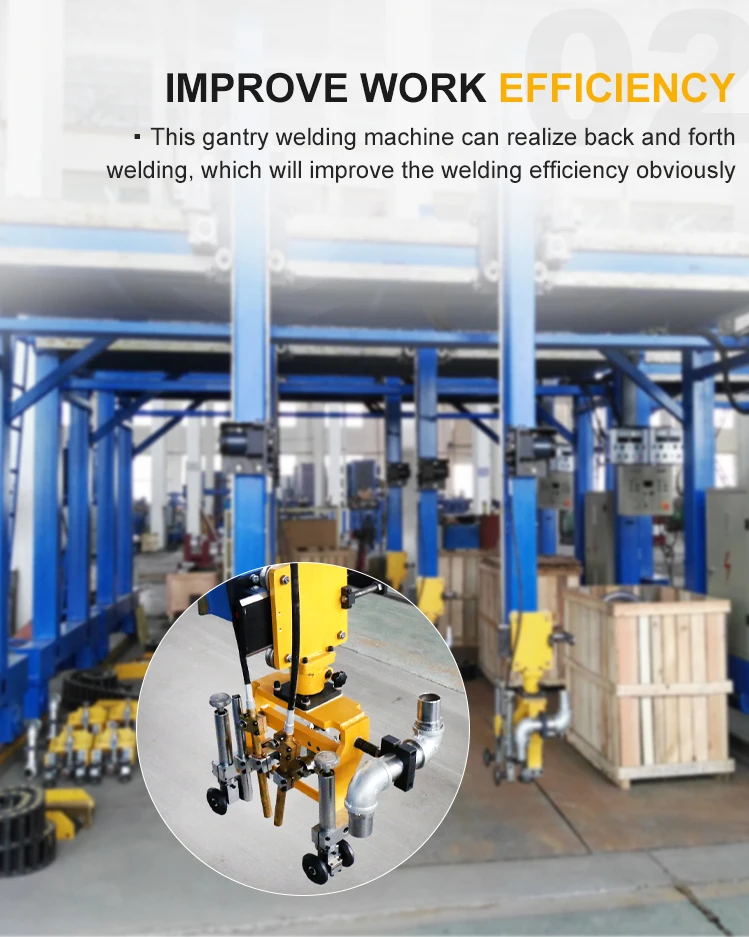

A2: This gantry welding machine can realize back and forth welding, which will improve the welding efficiency obviously.

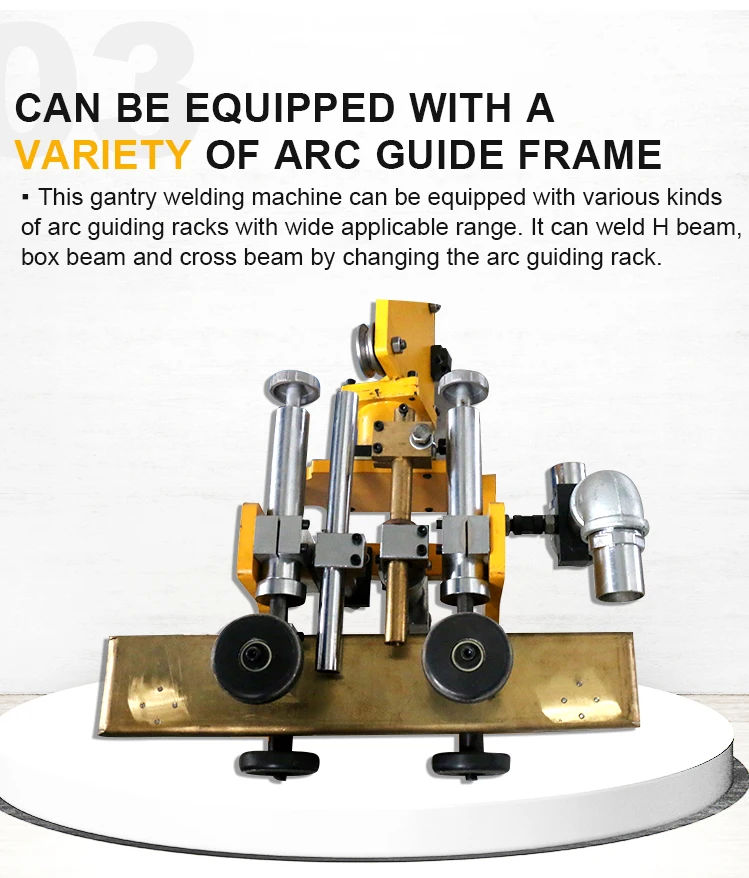

A3:This gantry welding machine can be equipped with various kinds of arc guiding racks with wide applicable range. It can weld H beam, box beam and cross beam by changing the arc guiding rack.

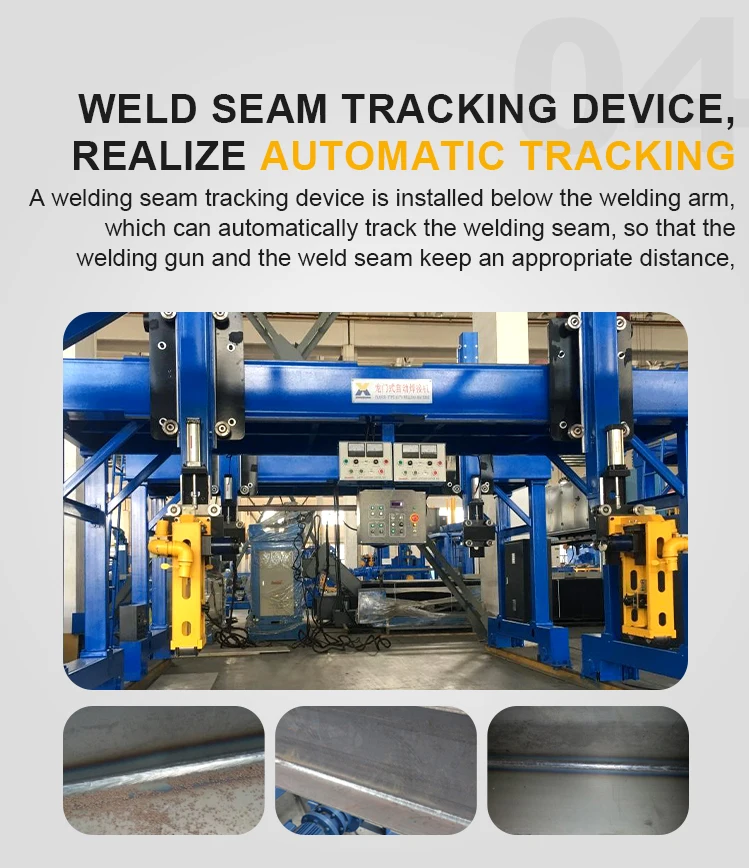

A3:There’s seam tracking device fixed under welding beam, it has the function of automatic tracking, which can keep suitable distance between welding gun and welding seam, it has auto compensation function for H-beam deformation.


Packaging & Shipping

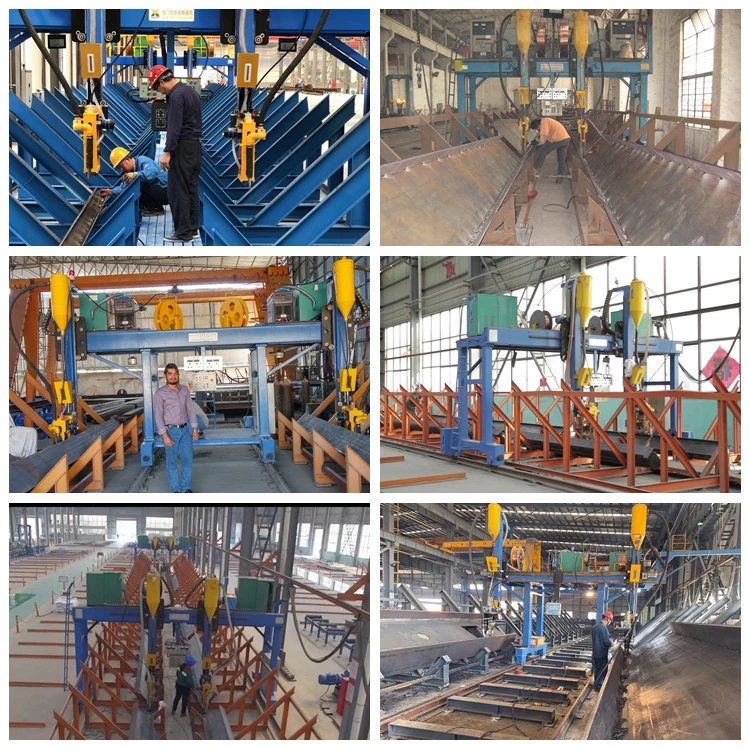

Customer Cases




About Us




Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.








Our Services




FAQ


1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Years.
