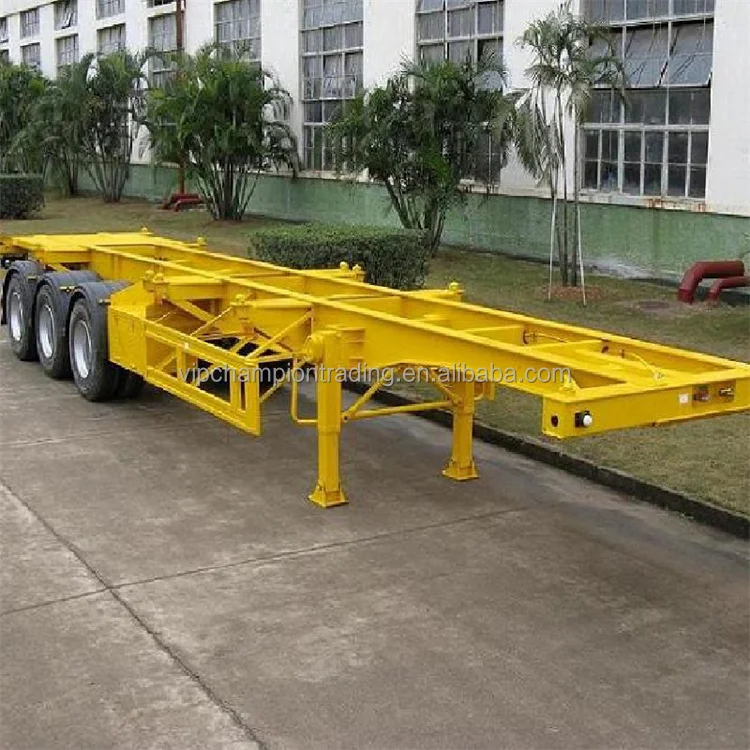

3 Axle Shipping Container Skeleton 40 Foot/feet Gooseneck Skeletal Chassis Semi Truck Trailer
- Category: >>>
- Supplier: Shandong Champion Trade Co. Ltd.
Share on (1600836675983):
Product Overview
Description
Shandong Champion Trade Co.,Ltd. is one subsidiary of Champion vehicle group.Champion Vehicle Group has more than 20 years of experience in trailer production, with main products including oil tank semi trailer, powder material semi trailer, dump semi trailer, flatbed semi trailers, lowbed semi trailer,sidewall semi trailer etc.Our factory has passed ISO9001 quality system certification. Our cooperation can be ODM or OEM mode. please contact us.
Product Paramenters
Specification | ||||||
20FT | 40FT | 53FT | ||||
Dimension | 6.1m×2.5m×1.55m | 12.5m×2.5m×1.55m | 16.2m×2.5m×1.55m | |||
Payload | 40T | 50T | 60T | |||
Tare weight | About 4.5T | About 7T | About 8T | |||
Twist lock | 4uints | 12uints | 12uints | |||
Axle | 2 axles | 2 axles/3 axles/4 axles | 3 axles/4 axles | |||
Chassis | ||||||
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. | |||||
Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 480mm | |||||
Axle | 13ton Fuwa,BPW, etc. | |||||
Landing Gear | 28T lifting capacity with two speed | |||||
King Pin | 2.00 or 3.5 inch bolt-in king pin ;Optional brand:JOST | |||||
Suspension | Mechanical suspension reinforced type | |||||
Leaf Spring | 90mm(W)*13mm(T)*10 Layer | |||||
Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve | |||||
Rim | 9.0-20*12 pcs | |||||
Tire | 12R22.5*12 pcs | |||||
Accessories | One standard tool box | |||||
Spare tire rack | One | |||||
Electrical system | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors | |||||
Packing and shipping | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||||

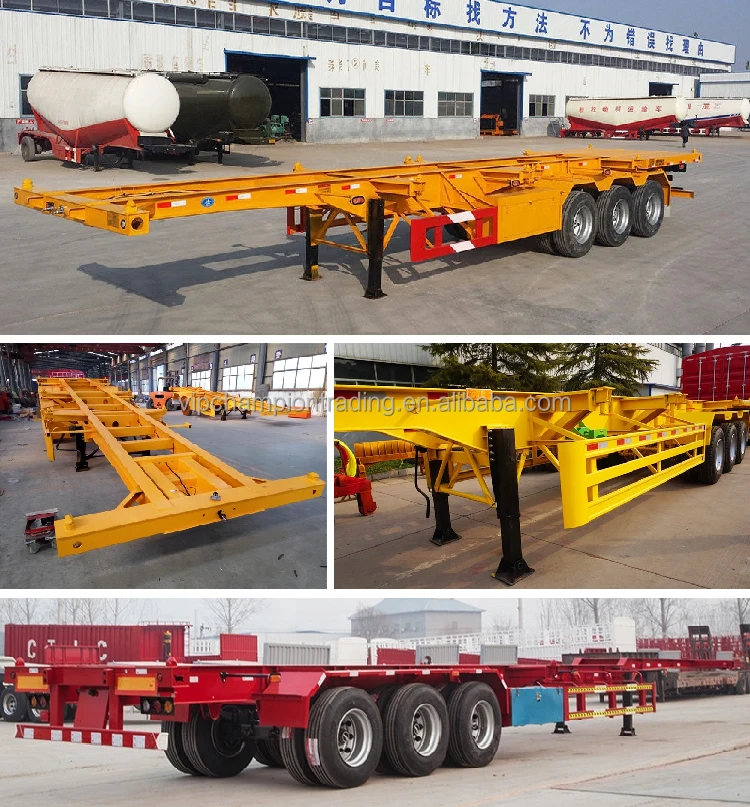

Details Images
Company Profile
Shandong Champion Special Vehicle Manufacturing Co., Ltd. is a comprehensive enterprise specializing in all kinds of semi-trailer special vehicles, R & D and production, sales in one. Shandong Champion Trading Co., Ltd., as a subsidiary of Champion Group, was established in 2015, mainly engaged in the import and export trade, retail and wholesale business of the group company. The company's main products: blue semi-trailer, dump semi-trailer, low flat transporter, bulk cement tanker, garbage truck, container semi-trailer and various special export vehicles, unique design, reasonable structure, strong and durable and light weight, large bearing capacity, good fatigue resistance, more stable and cost-effective concept combined with the Internet + trailer, the implementation of flexible personalized customization, the products sell well at home and abroad, widely favored by customers.
Certifications
Packing & Shipping
Shipping methods generally use the sea. Packaging methods generally use containers, bulk cargo, and other methods. Shipping details: 20 days shipped after received the down payment.
