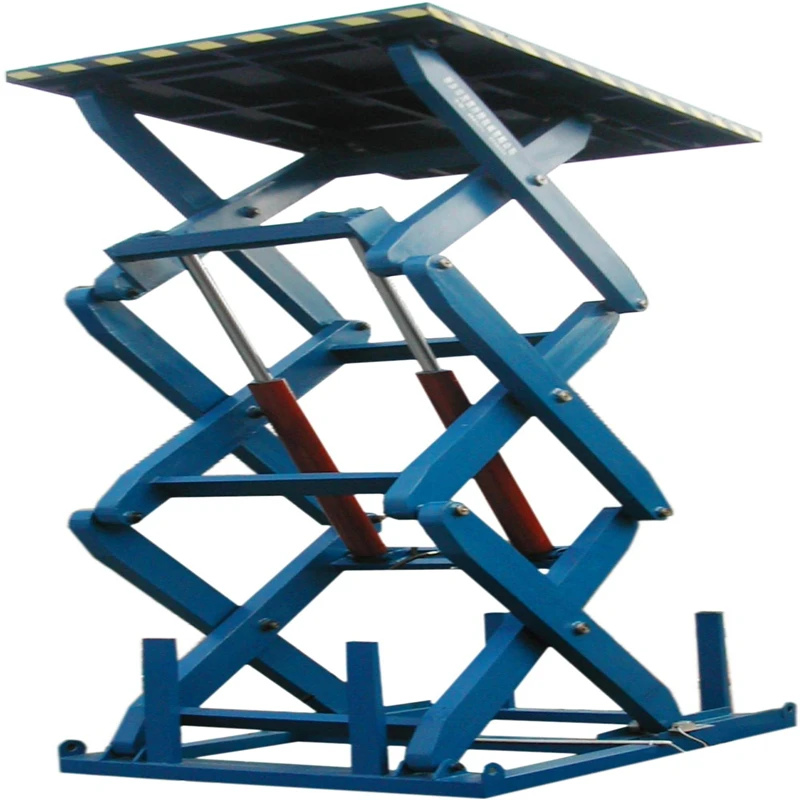

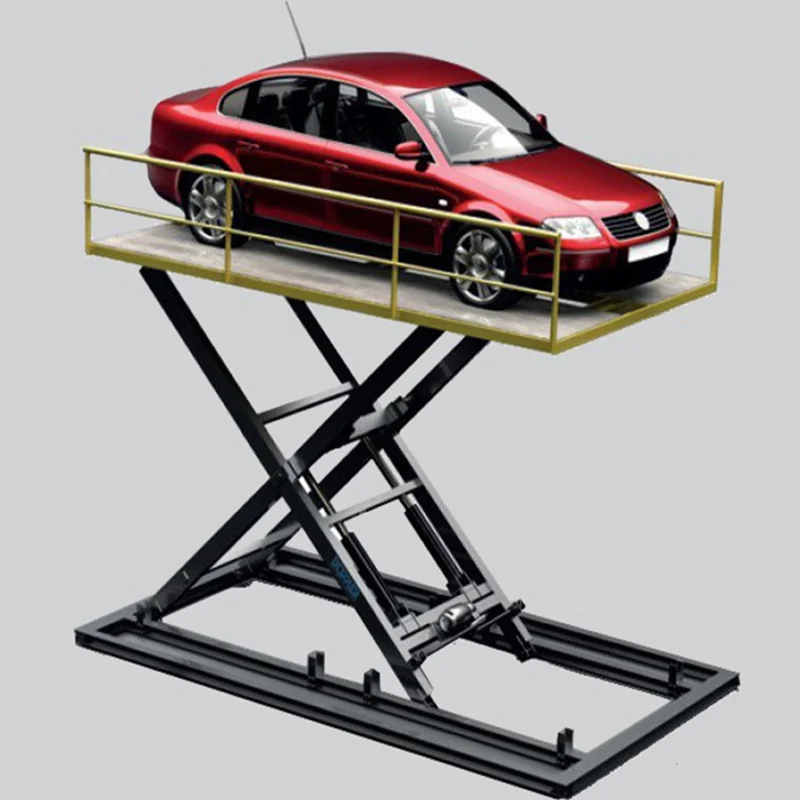

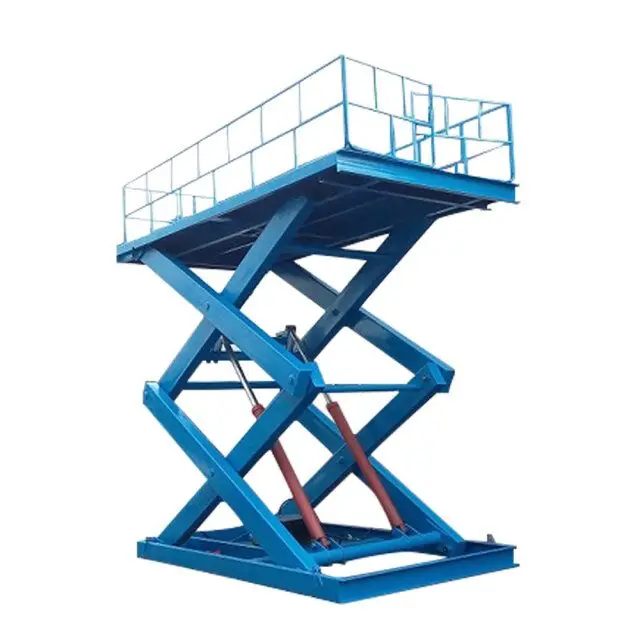

Customized 3ton 5ton Stationary Scissor Lift Hydraulic Freight Elevator Lifting Platform On Sale
- Category: Lift Tables >>>
- Supplier: Shandong Tavol Machinery Co. Ltd.
Share on (1600837998738):
Product Overview
Description
Welcome to contact with me as below:
Ms. Ivy Lu
Email: sls55@tavolgroup.com
Phone:+86 17863879946(Wechat/Whats)
Email: sls55@tavolgroup.com
Phone:+86 17863879946(Wechat/Whats)
Product Overview

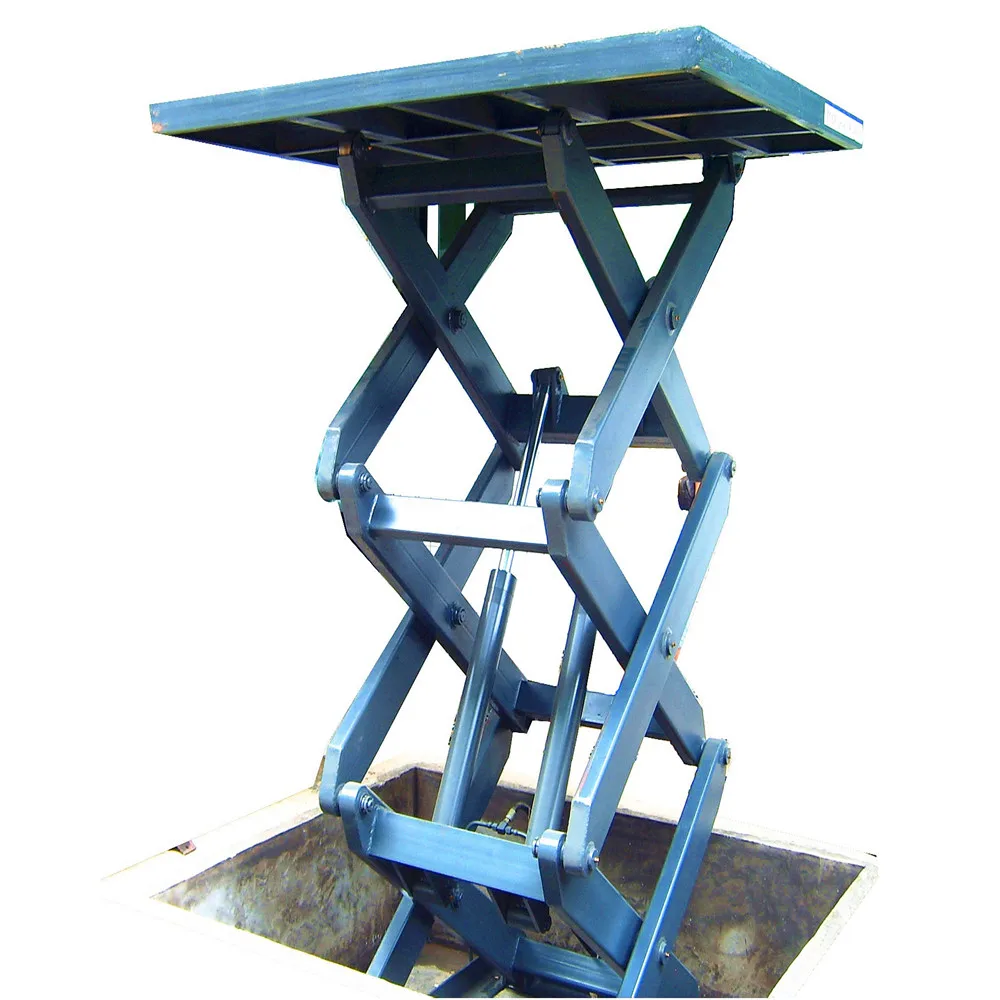

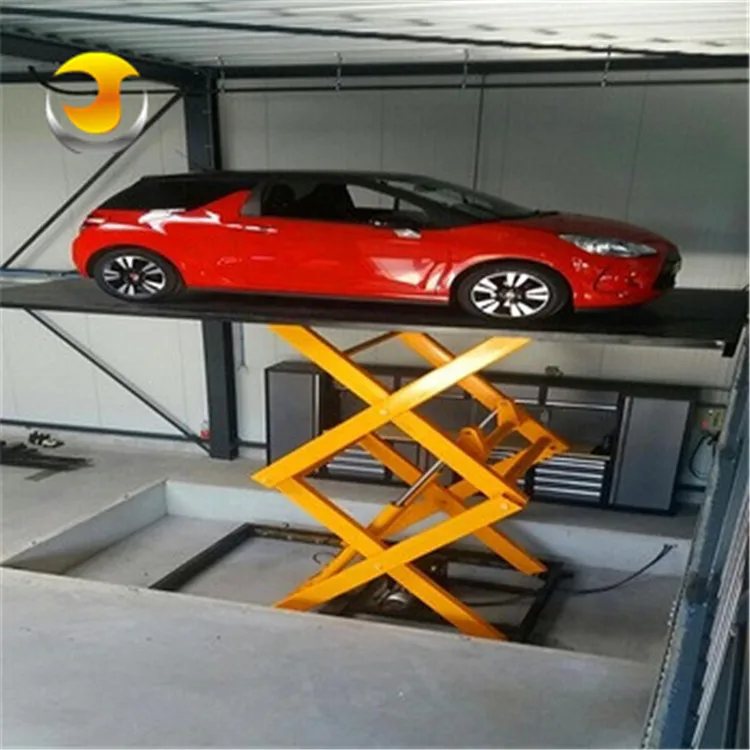

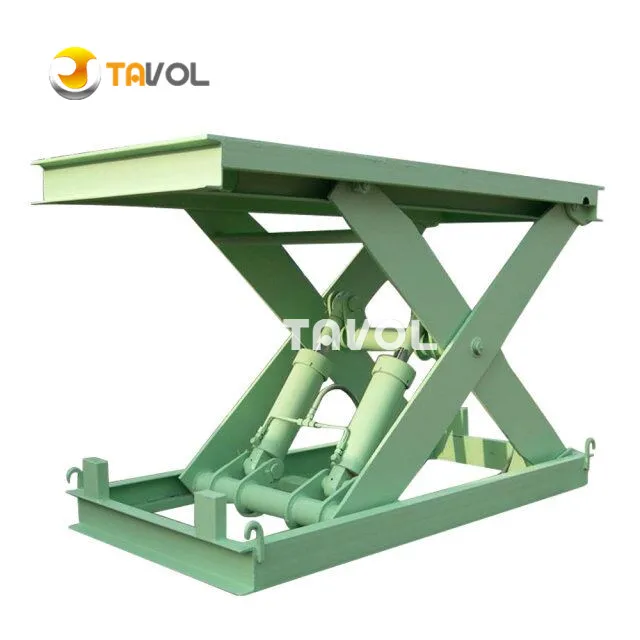

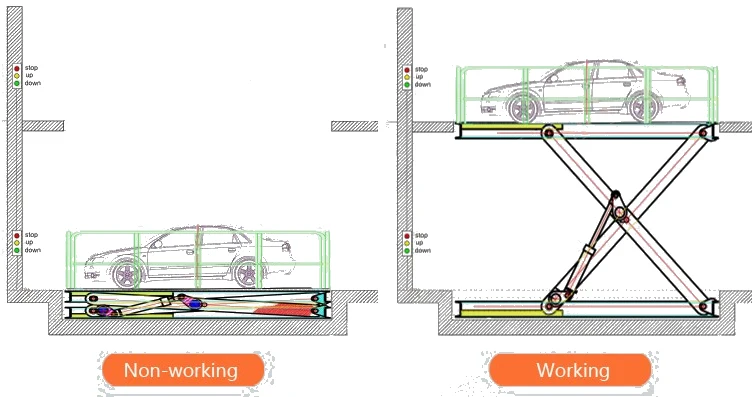

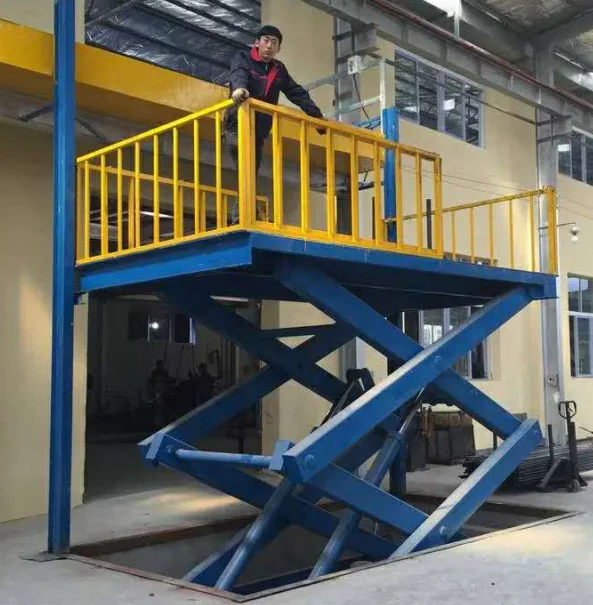

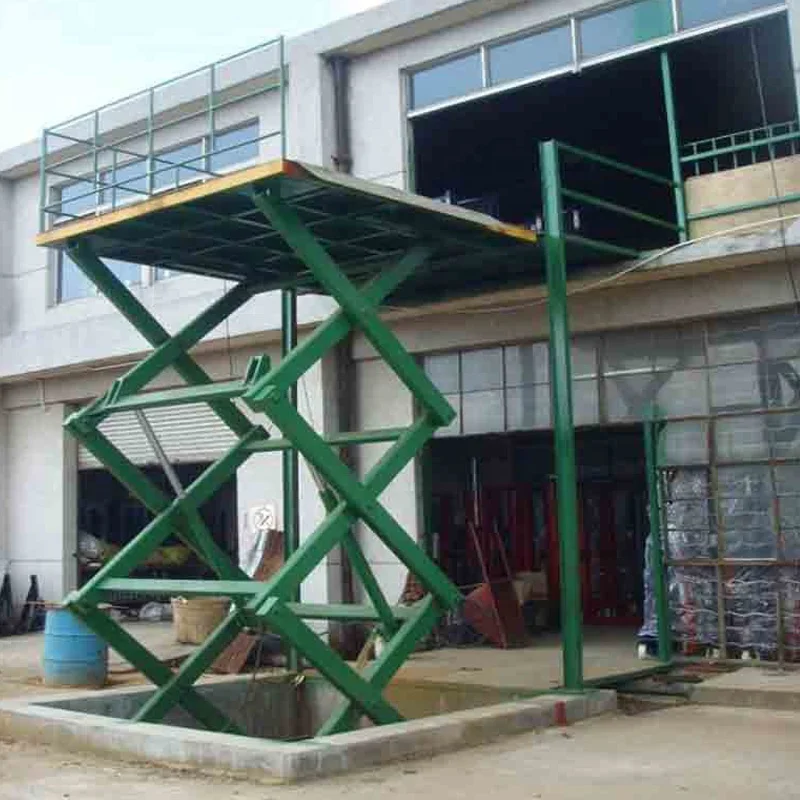

Stationary scissor lift is a special hydraulic lift for transporting goods between building floors. Products are mainly transported up and down with various working layers of goods; Stereo garage and underground garage story car lift. The hydraulic system of the Stationary scissor lift is equipped with anti-falling and overload safety protection device, and the operation buttons can be set on each floor and the working table of lifting platform to achieve multi-point control.

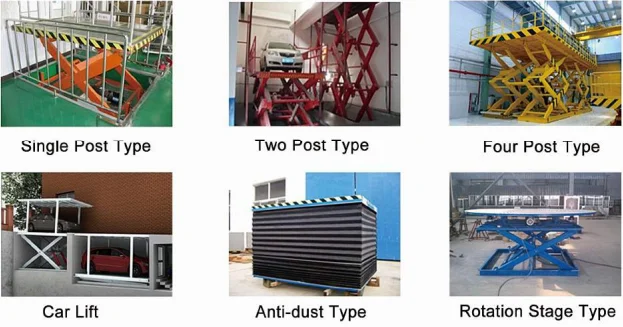

The Stationary scissor lift has strong structure, large bearing capacity, stable lifting, easy installation and maintenance, and is economical and practical ideal cargo transportation equipment for replacing elevators between low floors. According to the installation environment and operating requirements of the lift, different optional configurations can be selected to achieve better operating results.
PRODUCT SPECIFICATIONS
Model | Loading Capacity(kg) | Lifting Height (m) | Platform Size(mm) | Motor Power(kw) | ||||
SJG0.5-1.5 | 500 | 1.5 | 1500*1200 | 2.2 | ||||
SJG1-3 | 1000 | 3.0 | 1500*2000 | 3.0 | ||||
SJG2-4.5 | 2000 | 4.5 | 2000*2500 | 4.0 | ||||
SJG3-3.5 | 3000 | 3.5 | 2500*5500 | 5.5 | ||||
SJG3-5 | 3000 | 5.0 | 2500*5800 | 5.5 | ||||
SJG5-3 | 5000 | 3.0 | 2500*5800 | 7.5 | ||||
Platform size,load capacity,lifting height and power input etc.can be customized as site request. | ||||||||
Product Advantages
Features for Stationary Scissor Lift
1. Hydraulic lifting system, the remote control and multi-control points at the different floors could be realized.
2. Lift Up, Stop and Lower could be realized at each control point. The fixed hydraulic scissor lift could stop at the accurate
location point.
3. Smooth working condition, high load capacity, safe and reliable. stop at the accurate location point.
4. There are optional sensitive overload protection devices and safety trip bar. rate location point.
5. Power Supply is from local power sources.
Safety for Scissor Lift
1.Platform with anti-akid, which can aviode the material falling down
2.Control panel :It is with UP, DOWN and E-stop buttons, when there is any emergency, you can press the E-stop down, then the
table will stop working
3.Explosion-proof value: protect hydraulic pipe , anti-hydraulic pipe rupture
4.Spillover value:It can prevent high pressure when the machine moves up. Adjust the pressure
5.Emergency decline value:It can go down when you meet an emergency
6.Safety sensor: When the platform decline , if it touch anything , it will be stop , so it can protect goods or
operators7.Maintenance bar, when the engineer maintain the stationary scissor lift under the platform, it is hold to protect the
engineer.
8.Others:phase lack & phase dislocation protection
1. Hydraulic lifting system, the remote control and multi-control points at the different floors could be realized.
2. Lift Up, Stop and Lower could be realized at each control point. The fixed hydraulic scissor lift could stop at the accurate
location point.
3. Smooth working condition, high load capacity, safe and reliable. stop at the accurate location point.
4. There are optional sensitive overload protection devices and safety trip bar. rate location point.
5. Power Supply is from local power sources.
Safety for Scissor Lift
1.Platform with anti-akid, which can aviode the material falling down
2.Control panel :It is with UP, DOWN and E-stop buttons, when there is any emergency, you can press the E-stop down, then the
table will stop working
3.Explosion-proof value: protect hydraulic pipe , anti-hydraulic pipe rupture
4.Spillover value:It can prevent high pressure when the machine moves up. Adjust the pressure
5.Emergency decline value:It can go down when you meet an emergency
6.Safety sensor: When the platform decline , if it touch anything , it will be stop , so it can protect goods or
operators7.Maintenance bar, when the engineer maintain the stationary scissor lift under the platform, it is hold to protect the
engineer.
8.Others:phase lack & phase dislocation protection

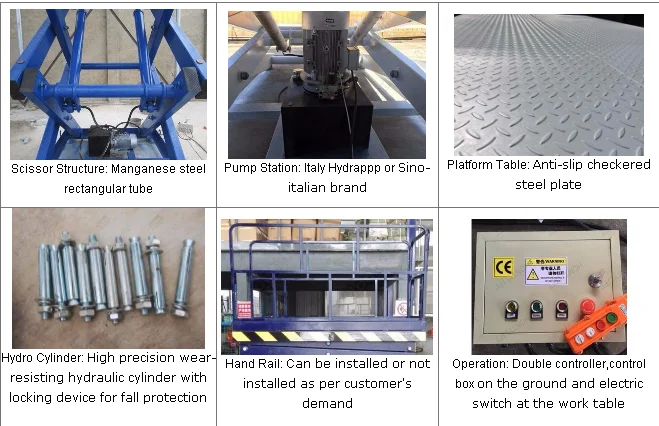

Product Details

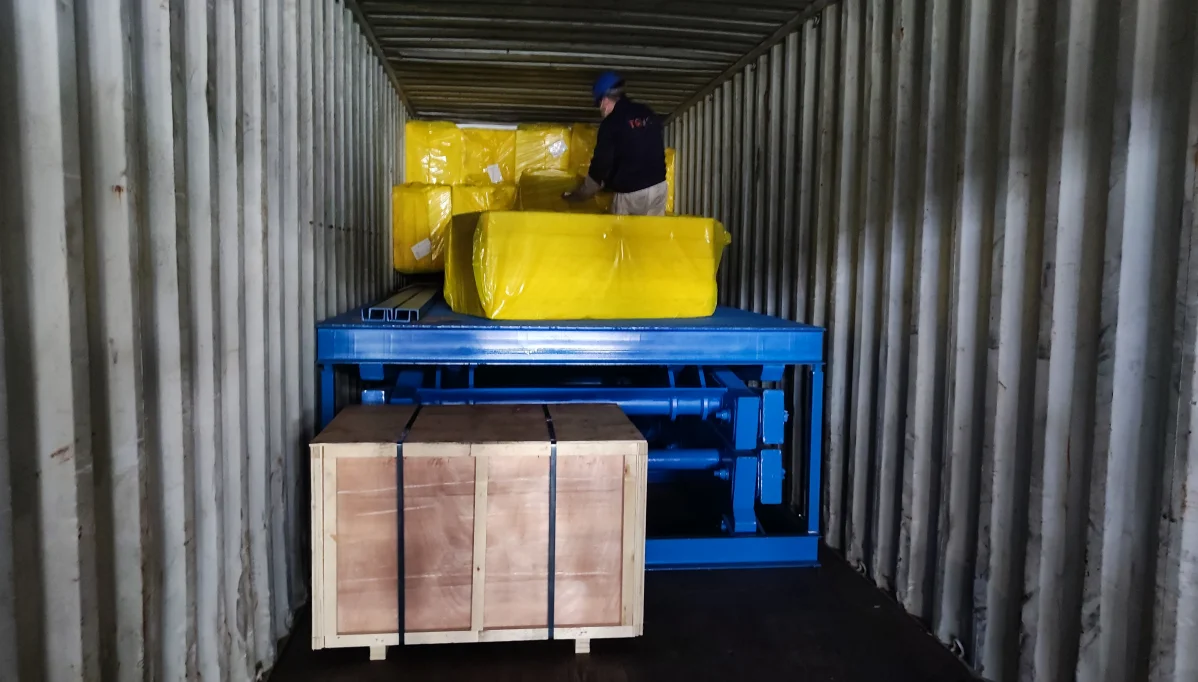

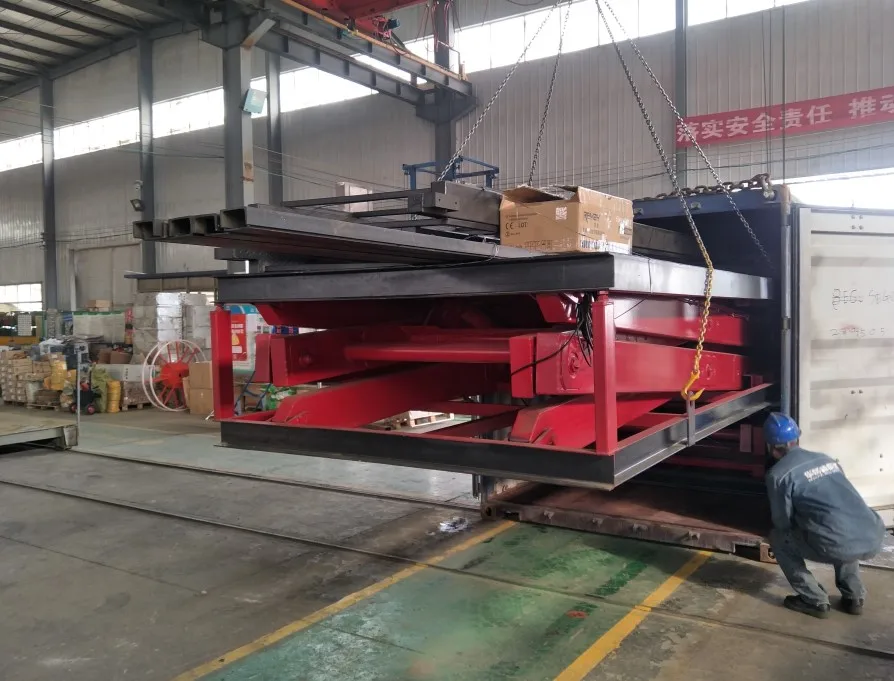

Product packaging
1. The inside of the container is fixed with steel wire rope to prevent damage to the equipment during transportation.
2. The electronic control components are packed in high quality plywood crates to prevent dampness, sun exposure and rust.
2. The electronic control components are packed in high quality plywood crates to prevent dampness, sun exposure and rust.
Company Profile
Tavol Group is the professional Lift Platform ,Crane ,Forklift and Tractor manufacturer in China .
>>> Scissor Lift , Cargo Lift etc
We design,manufacture,installation,repair,maintenance, trade and export following products:
>>> Scissor Lift , Cargo Lift etc
>>> Diesel Forklift,Electric Forklift,LPG Forklift
>>> Overhead Crane ,Gantry Crane
>>> Tractor25-200hp
We are sure we will be your best choice .
Any other questions, welcome to contact sls55 (at) tavolgroup.com or 86 17863879946
Any other questions, welcome to contact sls55 (at) tavolgroup.com or 86 17863879946
*20+ Years Production Experience *Professional Engineer Team
*Factory Directly Supply *Fast Delivery Time
*Accept OEM ODM and DIY
*Perfect After-Sales Service System
*Lifetime Maintenance Guide
*12-month warranty period
FAQ
Q.1. who are we?
A,We are based in Shandong, China, start from 2008,sell to South Asia,Southeast Asia,Western Europe,Africa,Central America,South America,Mid East,Oceania,North America,Southern Europe,Eastern Europe,Eastern Asia,Northern Europe. There are total about 51-100
people in our office.
Q. 2. how can we guarantee quality?
A. Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q. 3.what can you buy from us?
A. Overhead Crane,Gantry Crane,Hoist,Cargo Lift,Stationary Scissor Lift,Diesel Forklift ,Electric Forklift,LPG Forklfit
Q. 4. why should you buy from us not from other suppliers?
A. 1.Payment-Support Alibaba trade insurance,protect your paymen is safety. 2.More than 15 years manufacturing experience of crane equipment and lifting platform. 3.Professional engineer support original design, drawing and techinal information.
Q. 5. what services can we provide?
A. Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
A,We are based in Shandong, China, start from 2008,sell to South Asia,Southeast Asia,Western Europe,Africa,Central America,South America,Mid East,Oceania,North America,Southern Europe,Eastern Europe,Eastern Asia,Northern Europe. There are total about 51-100
people in our office.
Q. 2. how can we guarantee quality?
A. Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q. 3.what can you buy from us?
A. Overhead Crane,Gantry Crane,Hoist,Cargo Lift,Stationary Scissor Lift,Diesel Forklift ,Electric Forklift,LPG Forklfit
Q. 4. why should you buy from us not from other suppliers?
A. 1.Payment-Support Alibaba trade insurance,protect your paymen is safety. 2.More than 15 years manufacturing experience of crane equipment and lifting platform. 3.Professional engineer support original design, drawing and techinal information.
Q. 5. what services can we provide?
A. Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
