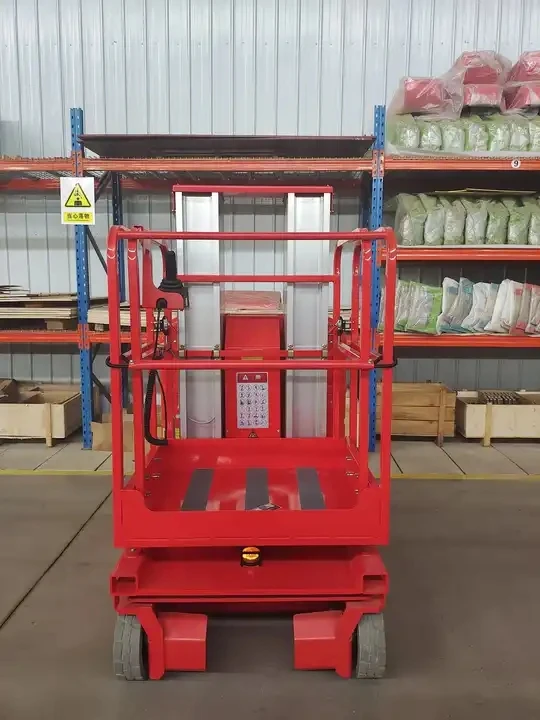

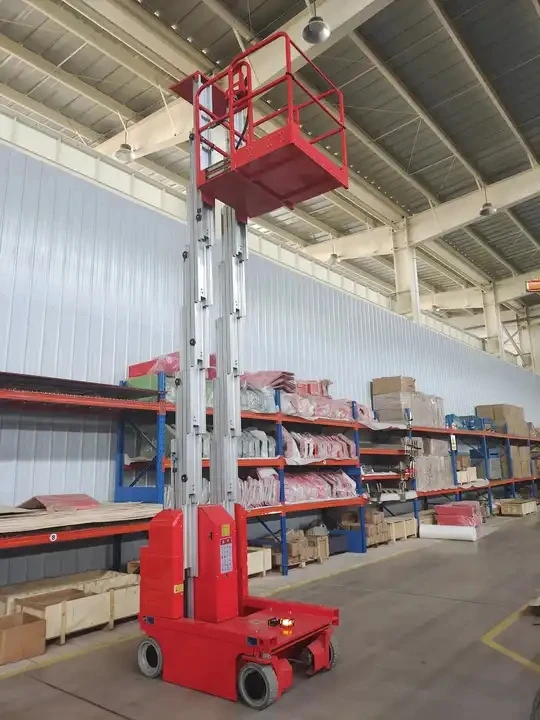

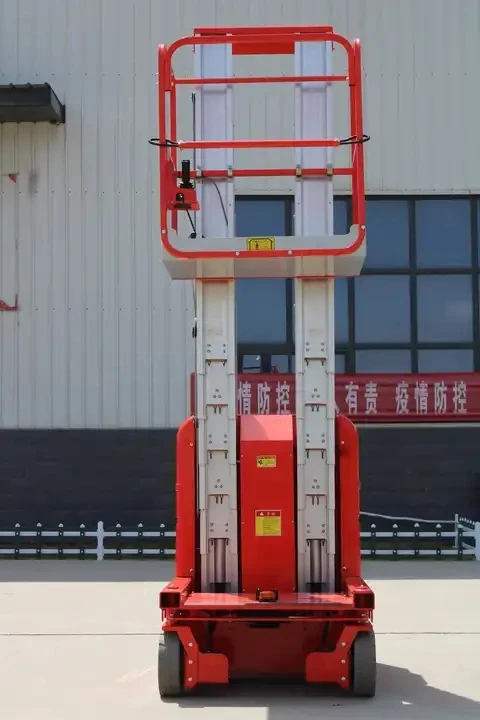

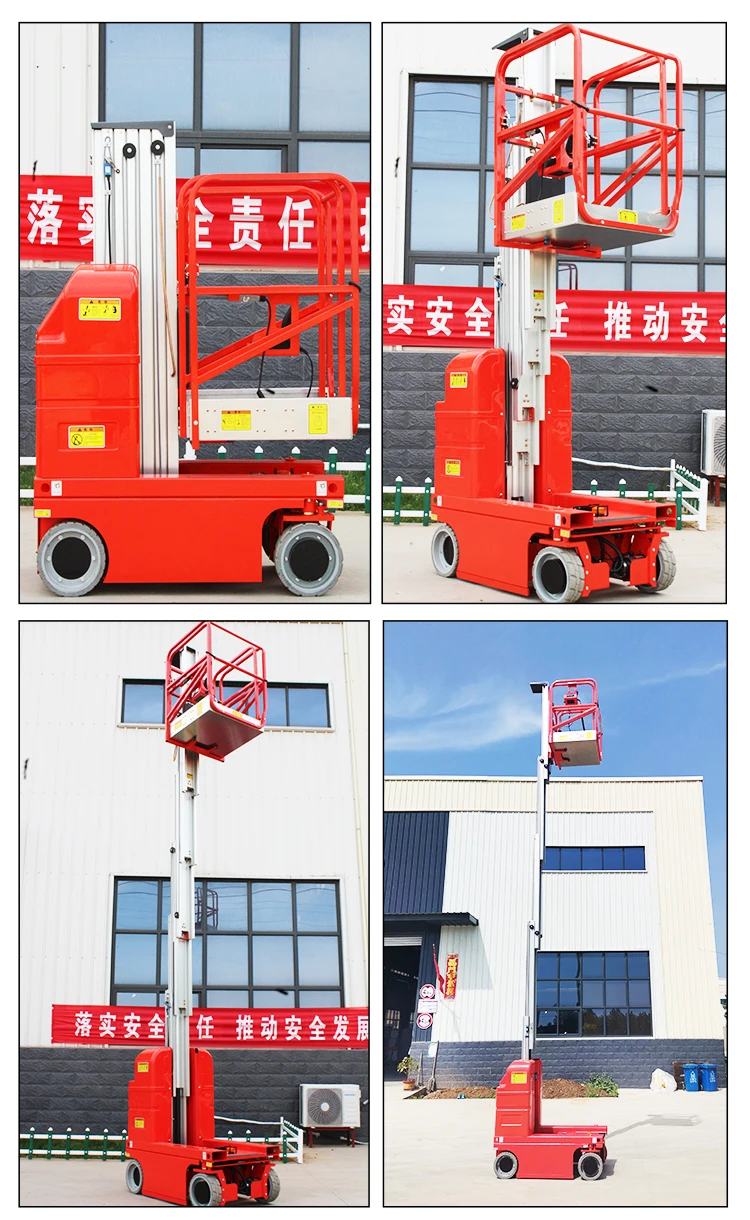

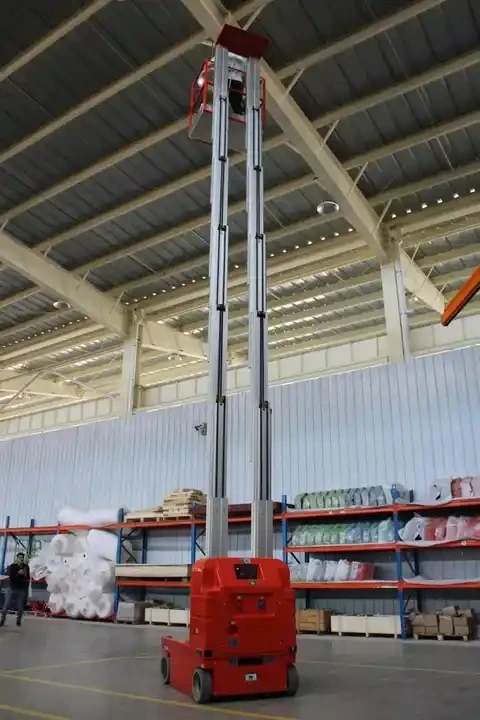

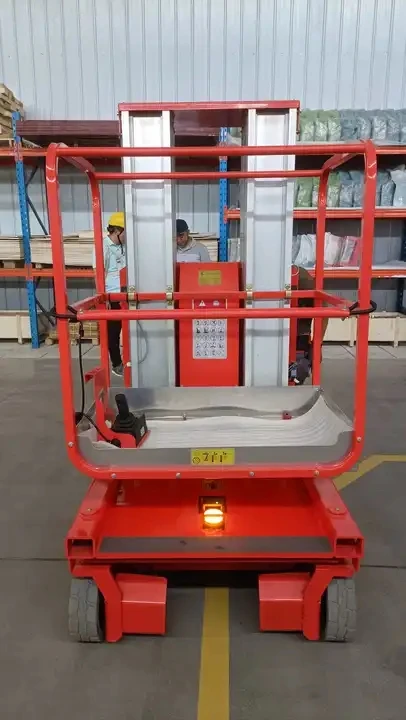

BTSP2 High Quality Electric Aluminium Alloy Telescopic Self Propelled Vertical Aerial Working Platform Lift
- Category: Lift Tables >>>
- Supplier: Xianheng International Science&technology Co. Ltd.
Share on (1600839185098):
Product Overview
Description

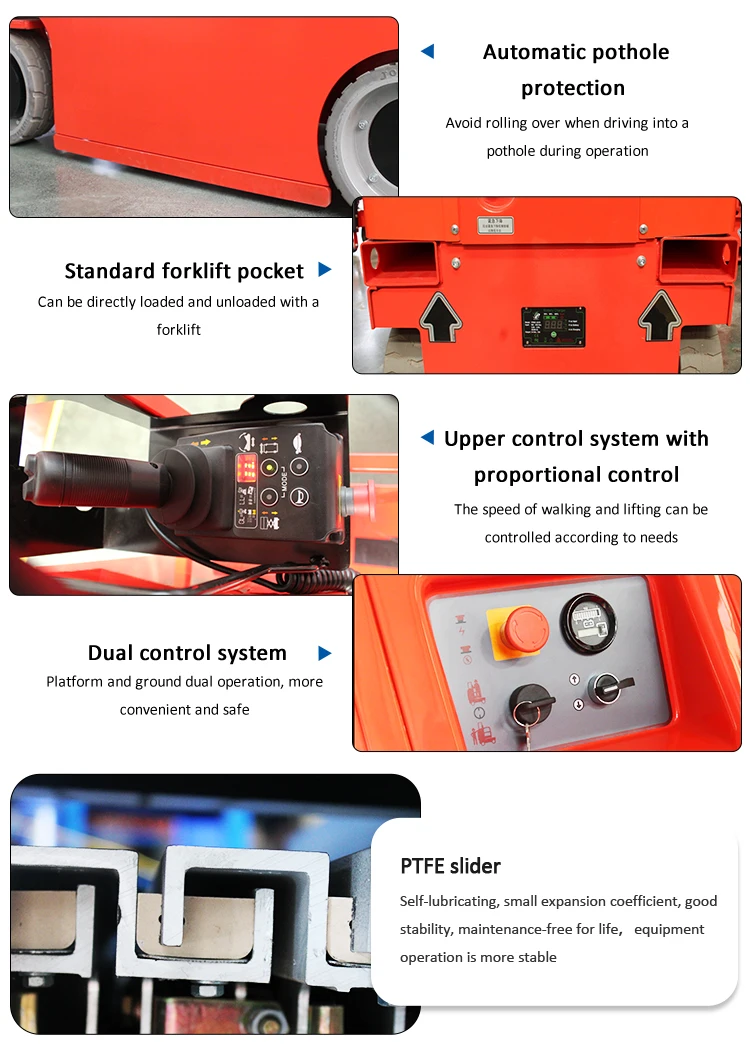

● Proportional controls ● Automatic pothole protection
● Drivable at full height ● Non-marking tyre

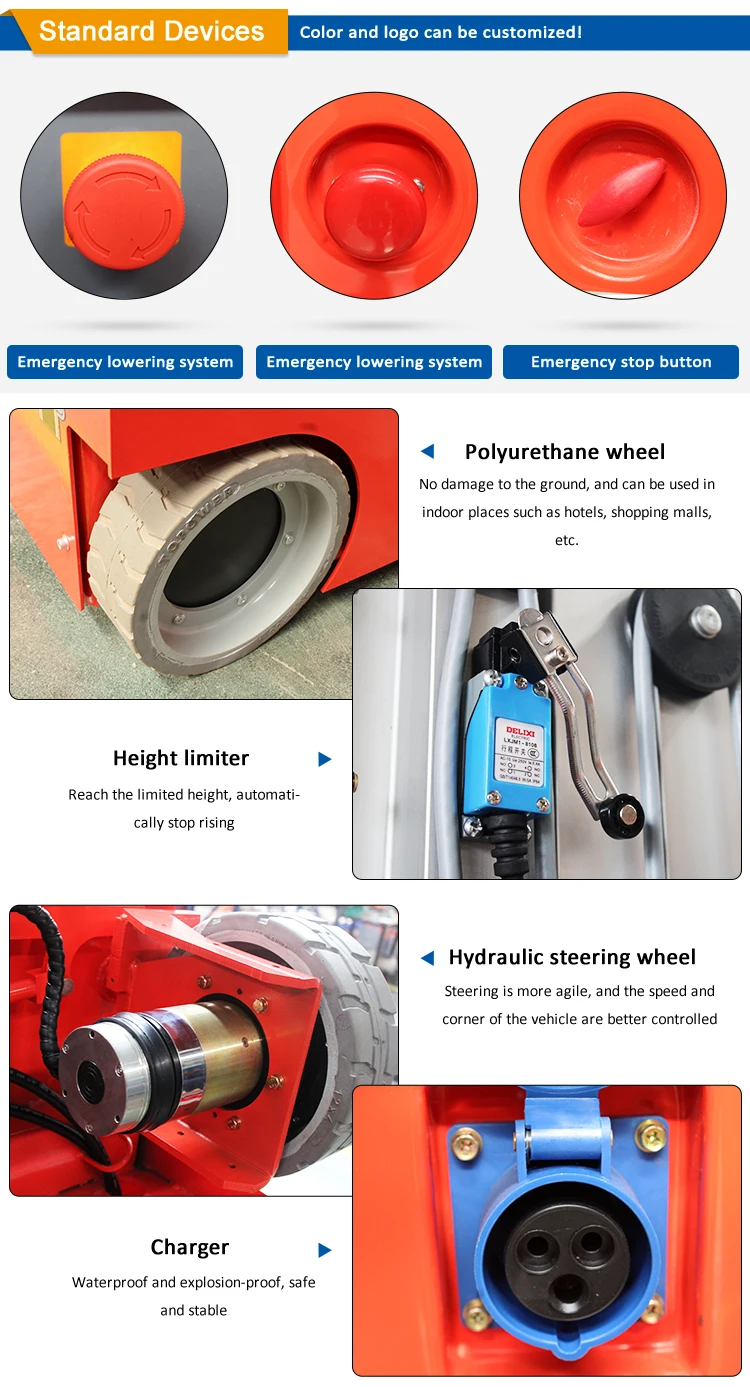

● Artomatic brake system ● Emergency lowering system
● Emergency stop button ● Cylinder holding valve
● Onboard diagnostic system
● Drivable at full height ● Non-marking tyre
● Artomatic brake system ● Emergency lowering system
● Emergency stop button ● Cylinder holding valve
● Onboard diagnostic system
Self-propelled Vertical Lift | ||||
Model | BTSP2-7.5 | BTSP2-9 | ||
Max. Working Height | 9.50m | 11.00m | ||
Max. Platform Height | 7.50m | 9.00m | ||
Loading Capacity | 200kg | 150kg | ||
Occupants | 1 | 1 | ||
Overall Length | 1.55m | 1.55m | ||
Overall Width | 1.01m | 1.01m | ||
Overall Height | 1.99m | 1.99m | ||
Platform Dimension | 1.00m×0.70m | 1.00m×0.70m | ||
Wheel Base | 1.23m | 1.23m | ||
Turning Radius | 0 | 0 | ||
Travel Speed(Stowed) | 4km/h | 4km/h | ||
Travel Speed(Raised) | 1.1km/h | 1.1km/h | ||
Up/Down Speed | 48/40sec | 58/49sec | ||
Gradeability | 25% | 25% | ||
Drive Tyres | Φ305×100mm | Φ305×100mm | ||
Drive Motors | 2×12VDC/0.4kW | 2×12VDC/0.4kW | ||
Lifting Motor | 24VDC/2.2kW | 24VDC/2.2kW | ||
Battery | 2×12V/100Ah | 2×12V/100Ah | ||
Charger | 24V/15A | 24V/15A | ||
Weight | 1270kg | 1345kg | ||
