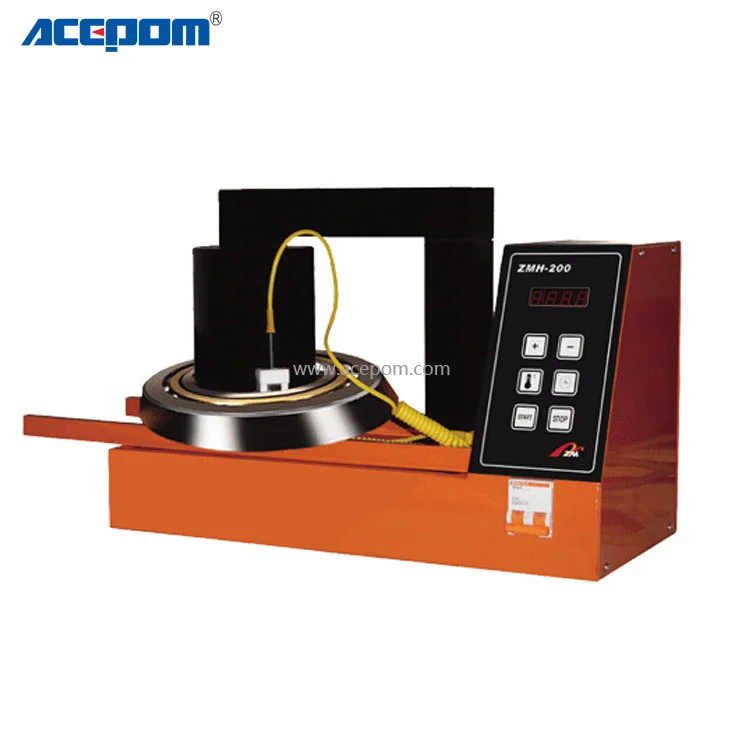

Induction bearing heaters ZMH 200 Precision, high efficiency and good quality

Product Overview

Description

Product Description
Induction bearing heaters provide a fast, efficient, safe, precise, clean, environmentally friendly and cost effective way of heating such products as bearings, gears, shrink rings, labyrinth rings, bushes, sprockets, sleeves, coupling, pulleys, pinions, bearing housings, rail wheel, cast wheels, conrods, piston rings and other ring shaped metal components. ZMTOOL offers a choice of portable, bench, trolley or skid type induction bearing heaters used in industries for manufacturing, production, assembly, maintenance, repair, reconditioning, and site work. Induction heating eliminates the risk of fire and burn accidents or smoke and fumes which are hazards of traditional type of heating methods.

Product Feature
Feature * Manual/automatic demagnetization * Time display switch on temperature mode. * Induction coil outside the heater’s housing allows shorter heating time and lower energy consumption * Easy-to-operate control panel and LCD display * Equipped with suitable portable case * Old Model, only for OEM

Product Specification/Models
Specification Voltage: 230V

Power Rating: 3.60kVA

Frequency: 50/60Hz

Min. bore diameter of work piece (Vertical / Horizontal ): 20mm/120mm

Max.O.D of work piece:480mm

Max. width of Work Piece (Vertical/ Horizontal): 130mm/ 195mm

Max. weight of bearing/ Other parts: 50.00Kg /35.00Kg

Max. temperature (approx): 240°C

Figure dimension(mm): 508*370*340mm

Mass heater body (incl. Yokes): 29Kg

Other Information
Standard yoke/ Min bore diameter of work piece (Vertical position) 14X14X250 / 20mm 20X20X250/ 30mm 30X30X250/ 45mm 45X45X250/ 65mm
