UGV 8 Artificial intelligent factory direct price wheeled platforms security robot with camera remote control

Share on (1600845767503):


Price:

Quantity:


Product Overview

Description

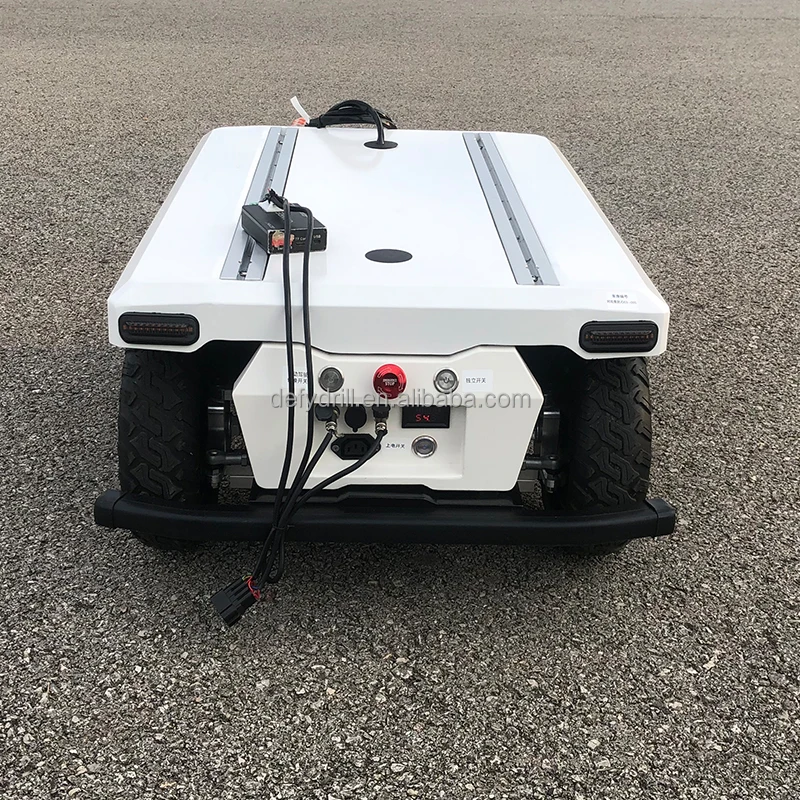

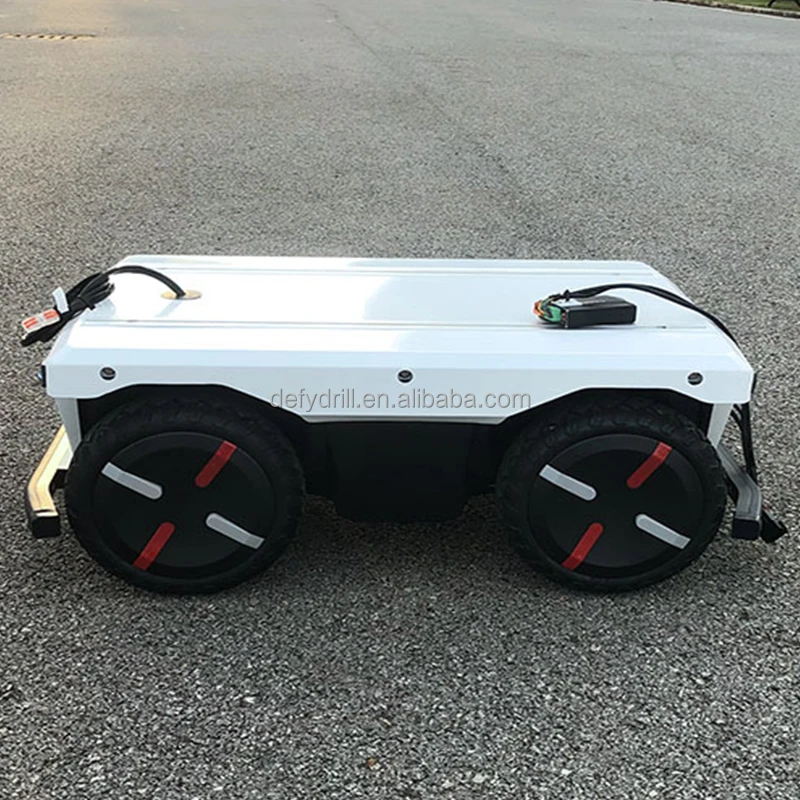

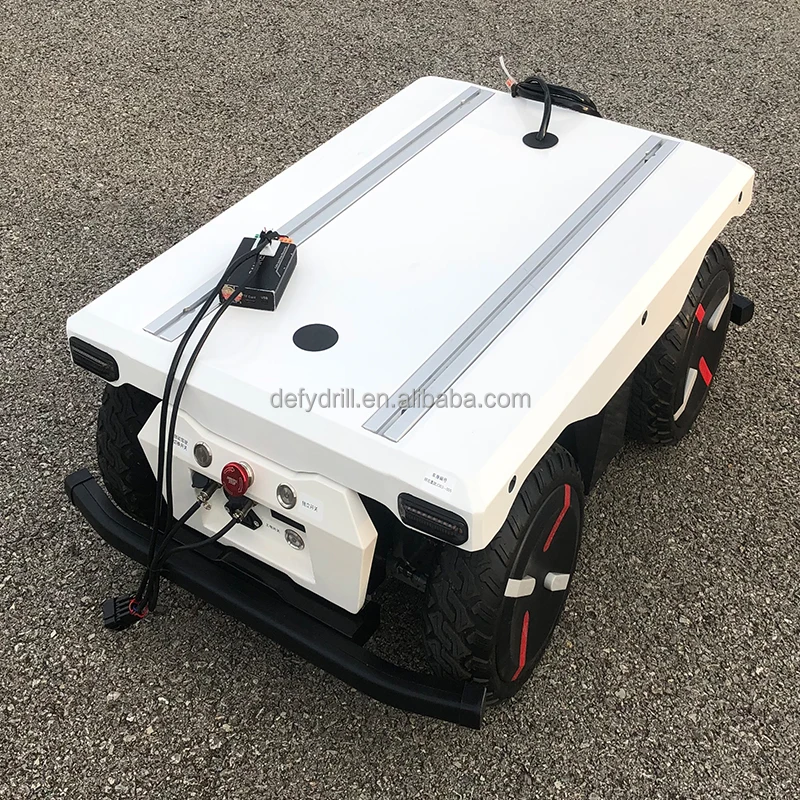

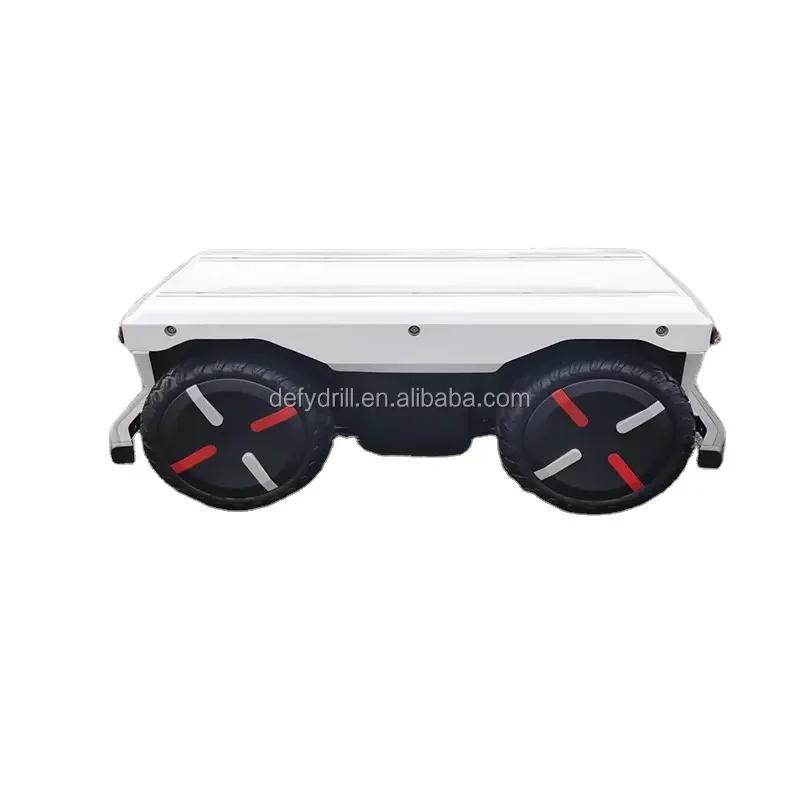

UGV-8

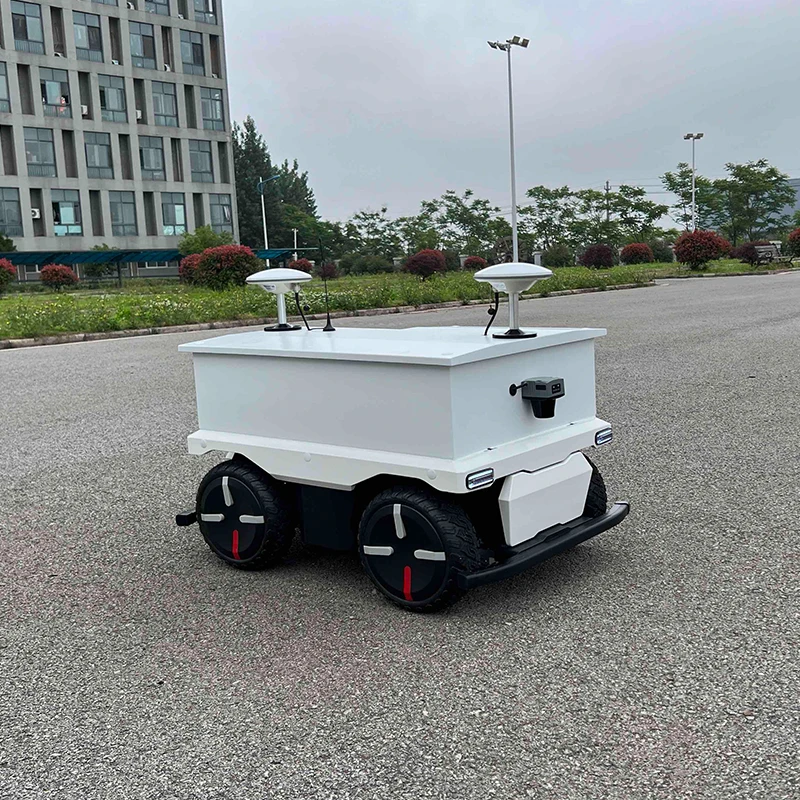

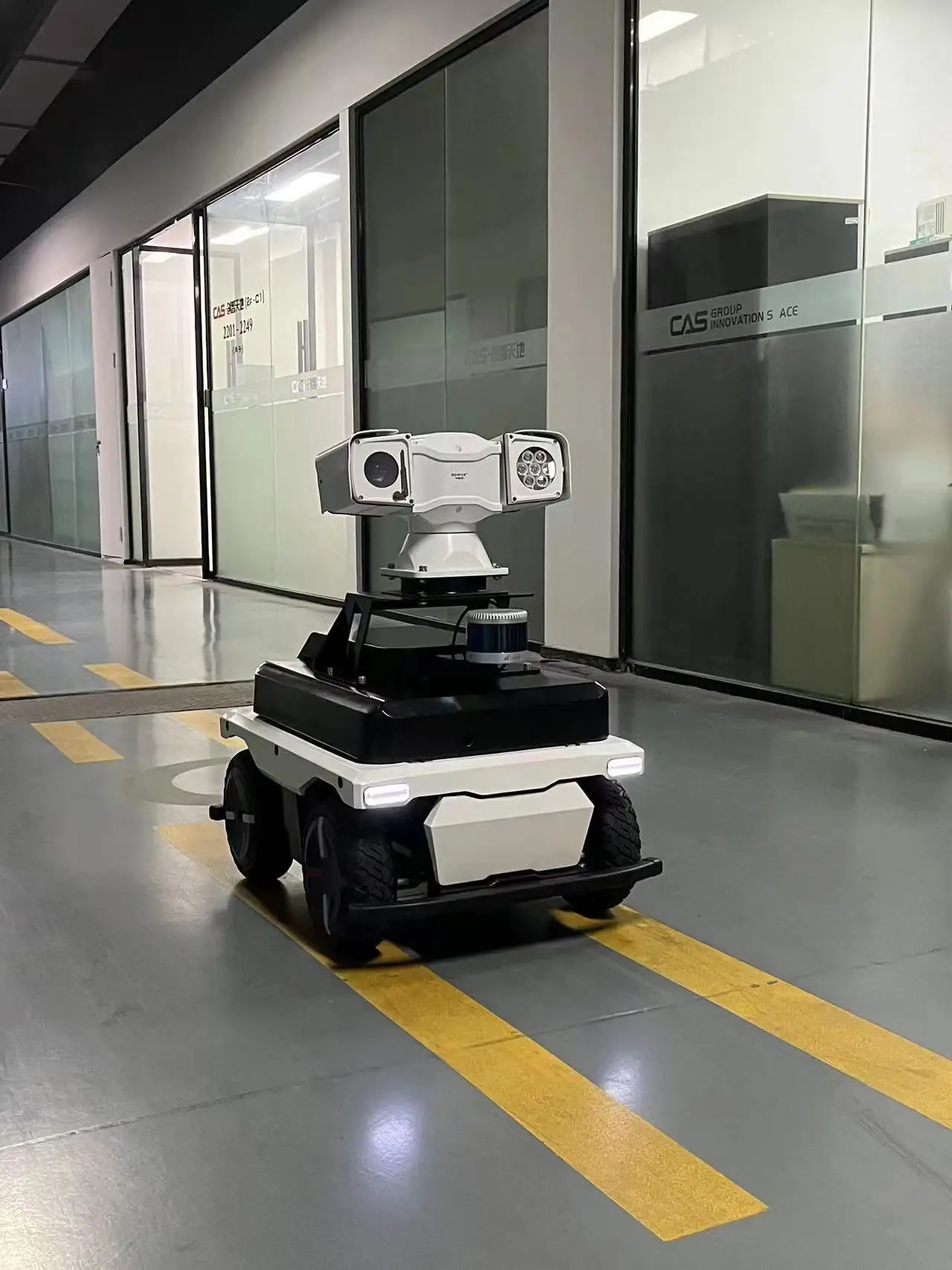

is a small robot chassis, using lightweight, modular, intelligent design concept to create a mobile robot development platform. It has strong load capacity, stable control performance, a wide range of applications, can be flexible movement on all kinds of typical pavement. Stereo camera, laser radar, GPS, IMU, manipulator and other equipment can choose to be installed on the chassis as an extension application, can be applied to scientific research, distribution, logistics and other fields.


Specification of the Entire Vehicle
Item
Data
L*W*H
820*572*310mm
Min. Ground clearance
87mm
Overall weight
About 43kg
Rated load
80kg
Chassis and Performance
Item
Data
Steering
Front wheel Differential steering
Brake form
Anti-drag braking
Tire outer diameter
266mm
Running speed
≤5km/h
Driving range
5-10km
Braking distance
0.4m
Turning radius
0.5m
Climbing angle
≤15°
Obstacle passing
8cm
Safety protection
Touch stop bar;
Emergency brake button
Electric drive
Item
Data
Motor type
Wheel hub motor (Permanent Magnet Synchronous Motor with encoder)
Motor Power
300W*4
Battery parameters
48V/20Ah battery
Battery working temperature
-10~60℃
Charger
AC220V independent charger
Charging time
≤3h (Quick charging can be customized)
Protection class
IP35 (IP66 can be customized)
Other
Communication protocol
Open underlying CAN protocol
Motion control
VCU control
Sensor type
Steering feedback sensor
Walking wheel speed sensor
Front and rear brake feedback sensor


Advantage:
1. Simple and easy to operate.
2. High configuration core hardware.
3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel drive.
4. Vehicle-grade drive by wire chassis control unit(VCU).
5. Electronic control logic design more suitable for autonomous driving needs.
6. Reading parameters, coordinating power output, intelligent body system.





Packing and Shipping




Within 3-5 working days




Services
1 year warranty for main parts
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance
we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support
Video technical support
Online Service
your question will be answer within 24 hours during working days, 48 hours during holiday.






Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.

20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.






FAQ:
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
