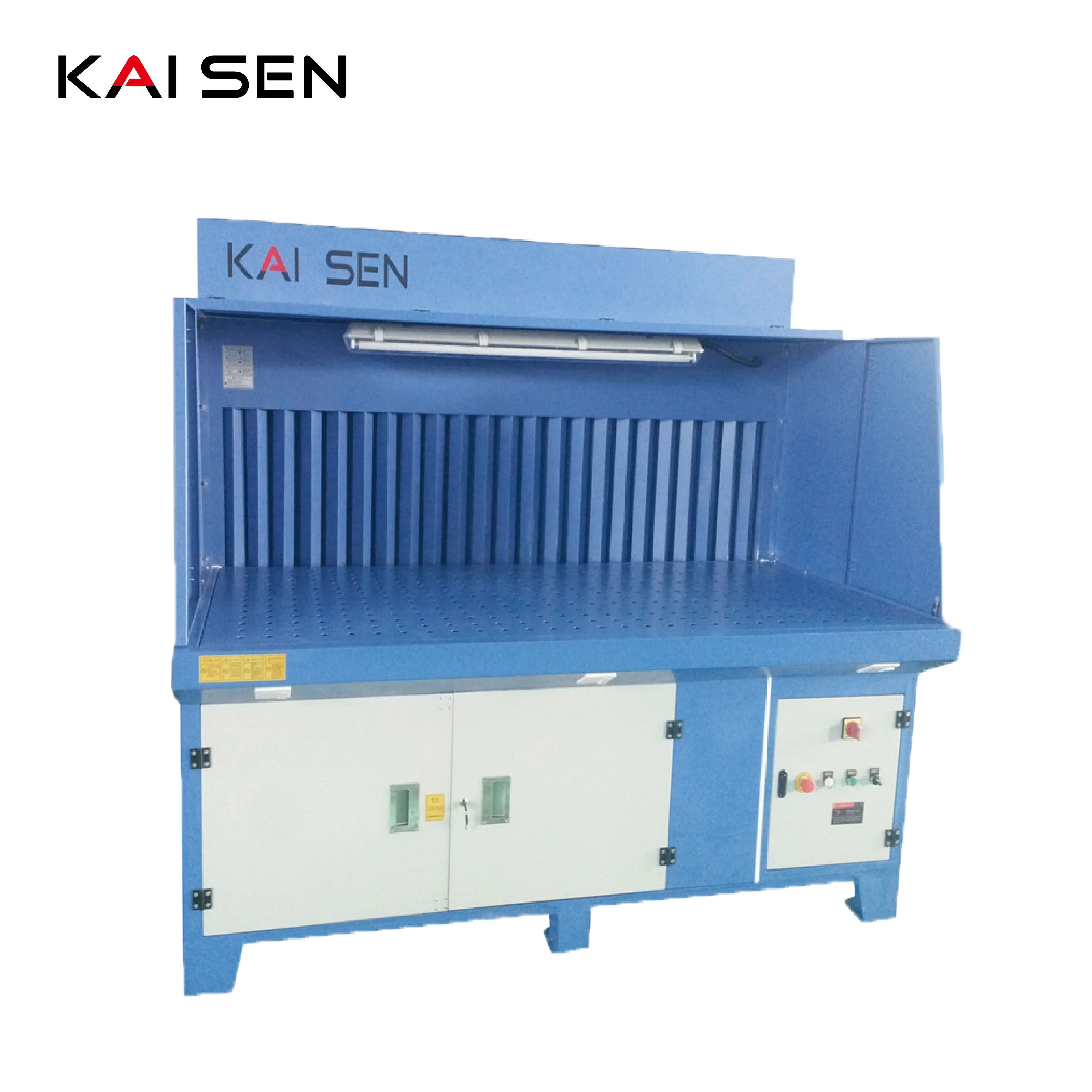

380V/50Hz Automatic Cleaning 7.5kW Industrial Downdraft Grinding Dust Collector
- Category: Gas Disposal Machinery >>>
- Supplier: Shanghai Kaisen Environmental Technology Co. Ltd.
Share on (1600848209692):
Product Overview
Description
Product Overview
Industrial Downdraft Grinding Dust Collector
Grinding and polishing is an indispensable process in the process of metal processing. During the grinding and polishing process, a large amount of dust will be produced, which will cause pollution to the working environment and also endanger the health of the workers.
For fixed and light weight small workpieces, we use the downdraft table type grinding dust collector to effectively aspirate dust and purify from the grinding process. We specially designed grinding dust collector to meet the requirements of dust treatment in the workshop of grinding.
For fixed and light weight small workpieces, we use the downdraft table type grinding dust collector to effectively aspirate dust and purify from the grinding process. We specially designed grinding dust collector to meet the requirements of dust treatment in the workshop of grinding.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | 7.5kW |
2 | Inlet Air Flow | 8000±300m³/h |
3 | Working Voltage | 3×380V/50Hz or 3×460V/60Hz |
4 | Filtering Material | Polyester |
5 | Filtering Area | 48 ㎡ |
6 | Filtering Efficiency | ＞99.9% |
7 | Filtering Precision | ≥0.1um |
8 | Filter Cartridge | 4 PCS |
9 | Cleaning Way | Automatic Cleaning |
10 | Noise Level | ≤72±5 dB (A) |
11 | Dimension | 2200×1820×1970mm |
12 | Net Weight | 1350±15 KGS |

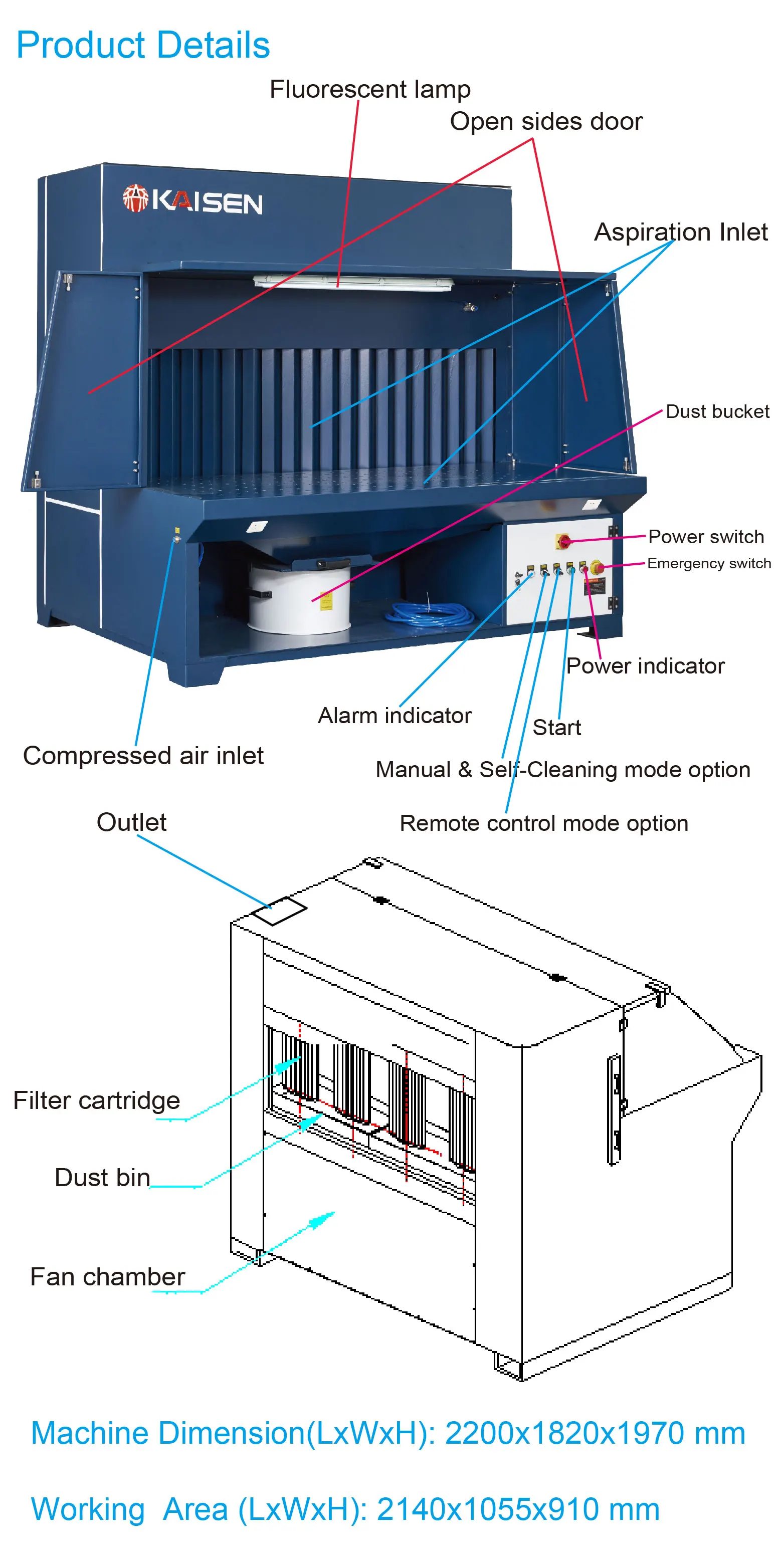

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

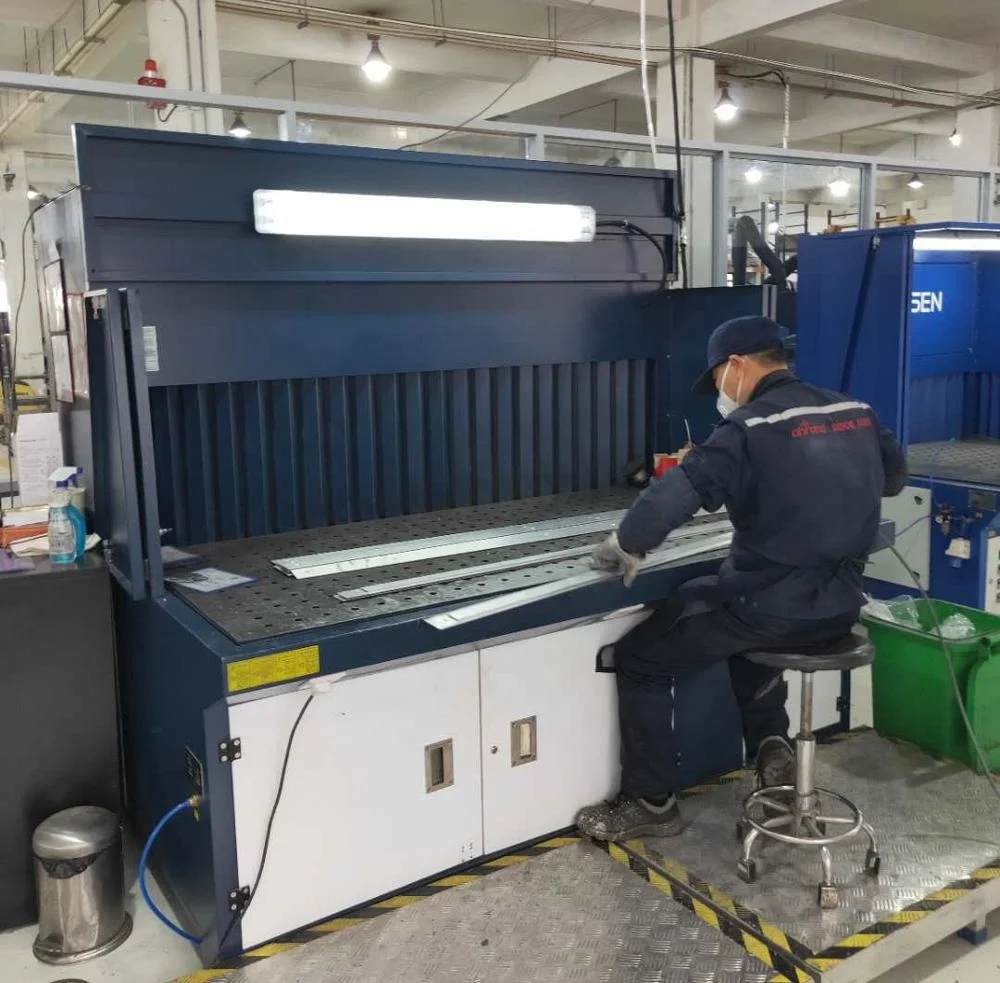

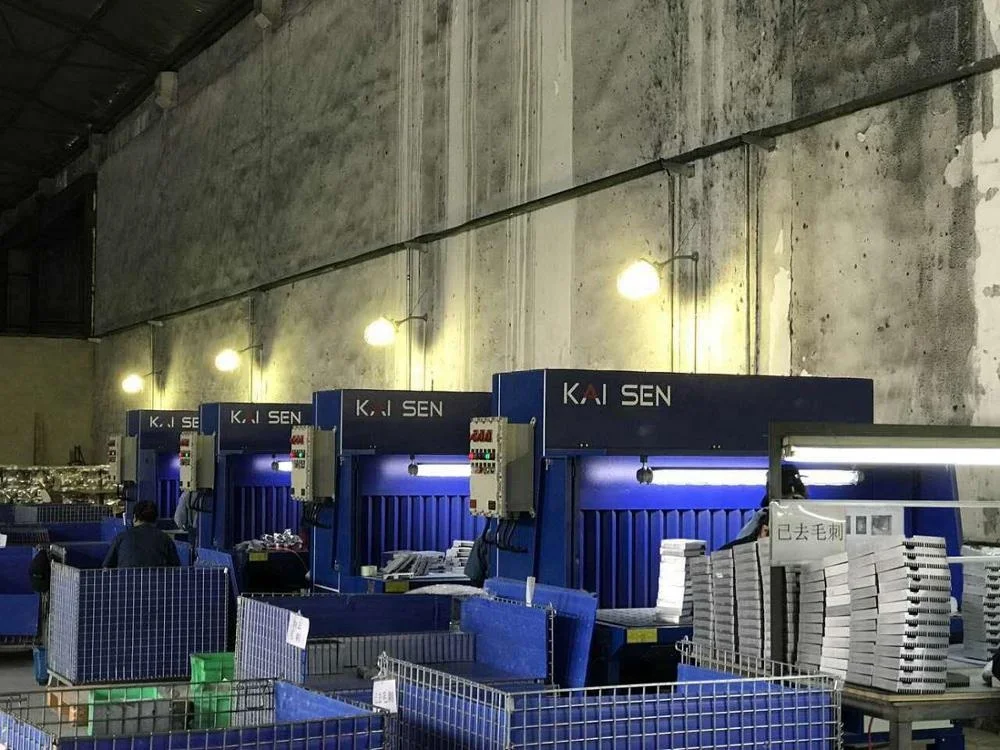

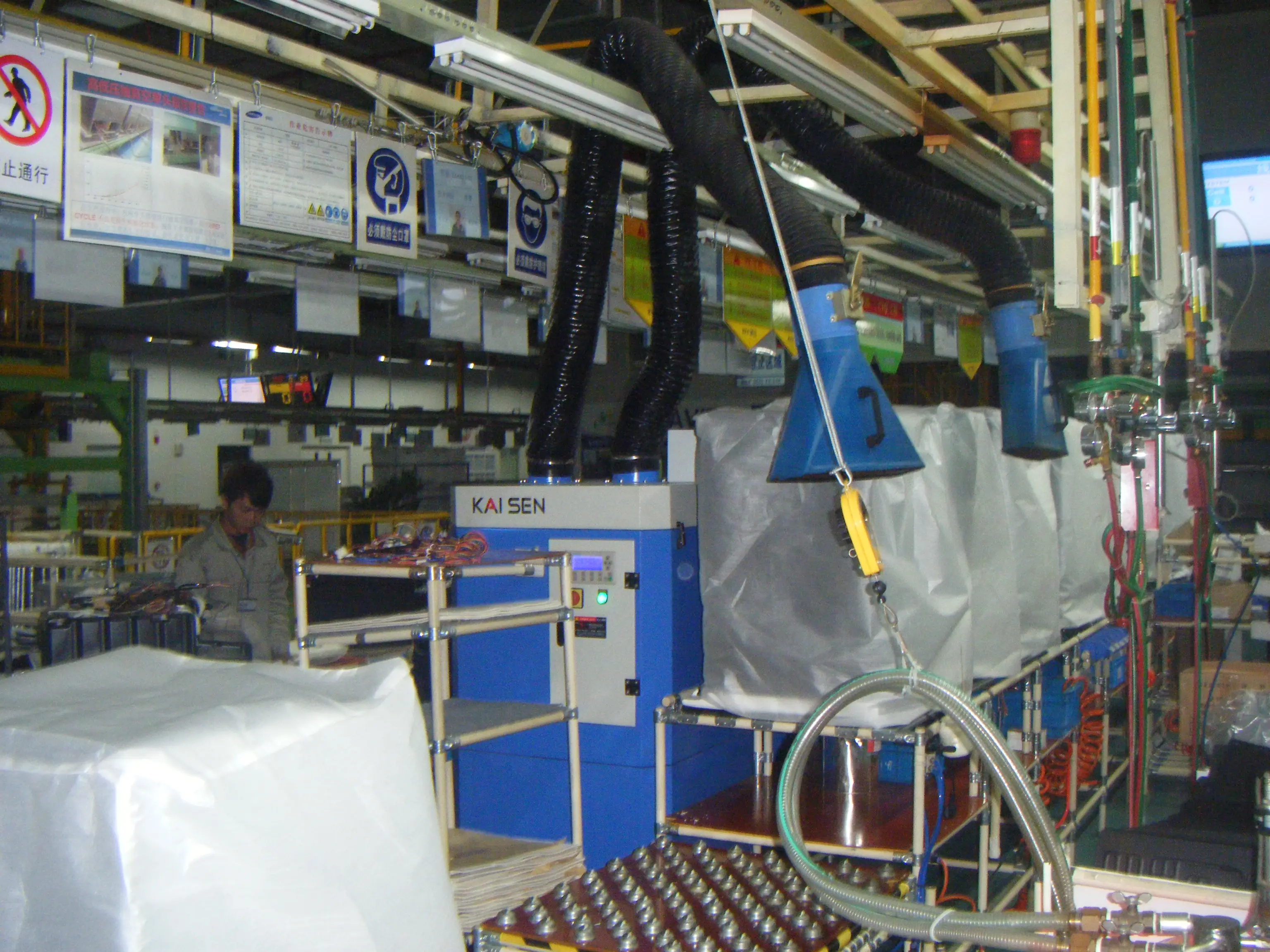

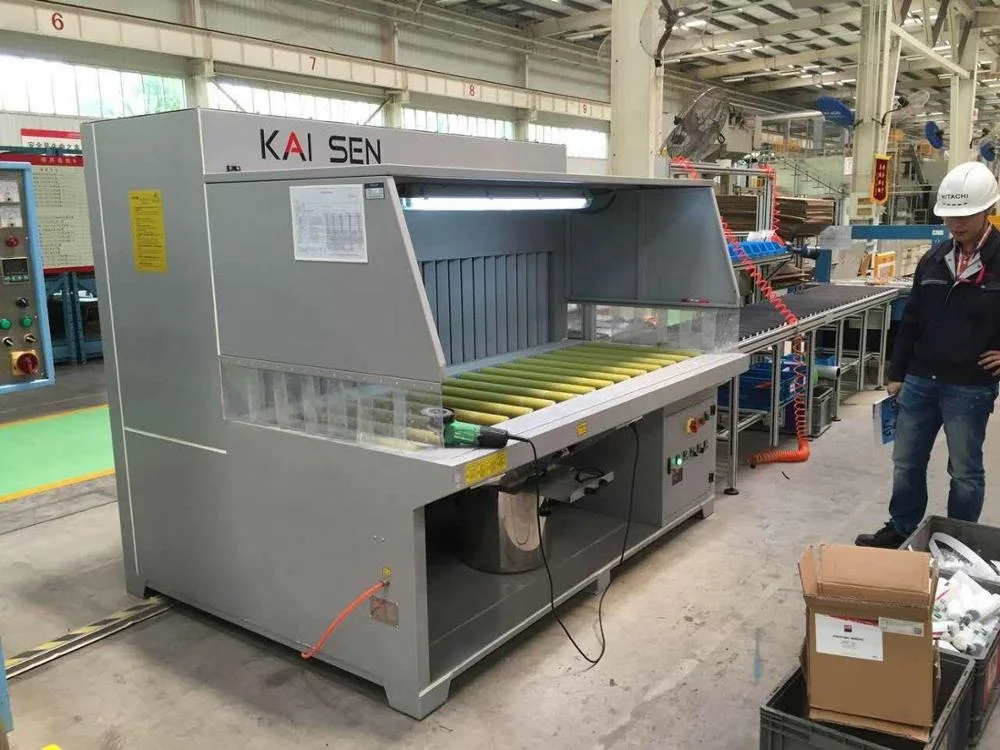

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Are you trading company or factory?
We are professional factory for making metal welding, cutting fume extractor system and grinding dust collector system since 2007.
Do you have any certificates for your products and factory?
Yes, We have kinds of certificates for different products For example, CE, EMC, ATEX etc. Meanwhile our factory also is approved by IS09001, 140001, OHSAS and EJ9001 (Nuclear Industry).
Do you only sell products in name of your own brand?
We are professional factory for making metal welding, cutting fume extractor system and grinding dust collector system since 2007.
Do you have any certificates for your products and factory?
Yes, We have kinds of certificates for different products For example, CE, EMC, ATEX etc. Meanwhile our factory also is approved by IS09001, 140001, OHSAS and EJ9001 (Nuclear Industry).
Do you only sell products in name of your own brand?
Besides selling in name of our own brand, we also accept custom production (OEM & ODIV) and show customer's LOGO.
How long is your delivery time?
Generally it is 5-10 days if we have goods in stock, and it will be about 20-30 days if we don't have stock. It also depends on the quantity and technology request of order.
How do you package the goods?
The machine is packed by vacuum bag and plywood wooden case.
How long is your delivery time?
Generally it is 5-10 days if we have goods in stock, and it will be about 20-30 days if we don't have stock. It also depends on the quantity and technology request of order.
How do you package the goods?
The machine is packed by vacuum bag and plywood wooden case.
How long is the warranty period of your dust collector?
We provide free service (Except filter cartridge) within 24 months and paid service for the whole working life.
We provide free service (Except filter cartridge) within 24 months and paid service for the whole working life.
