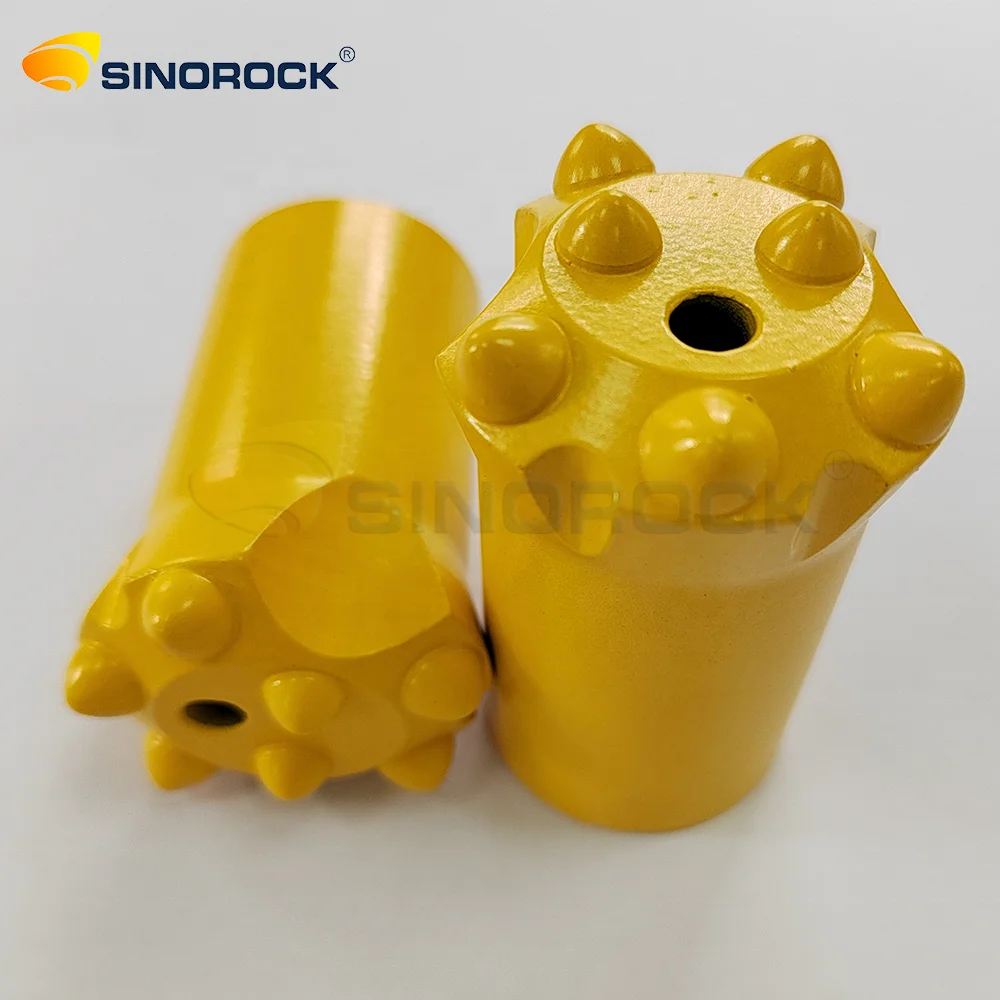

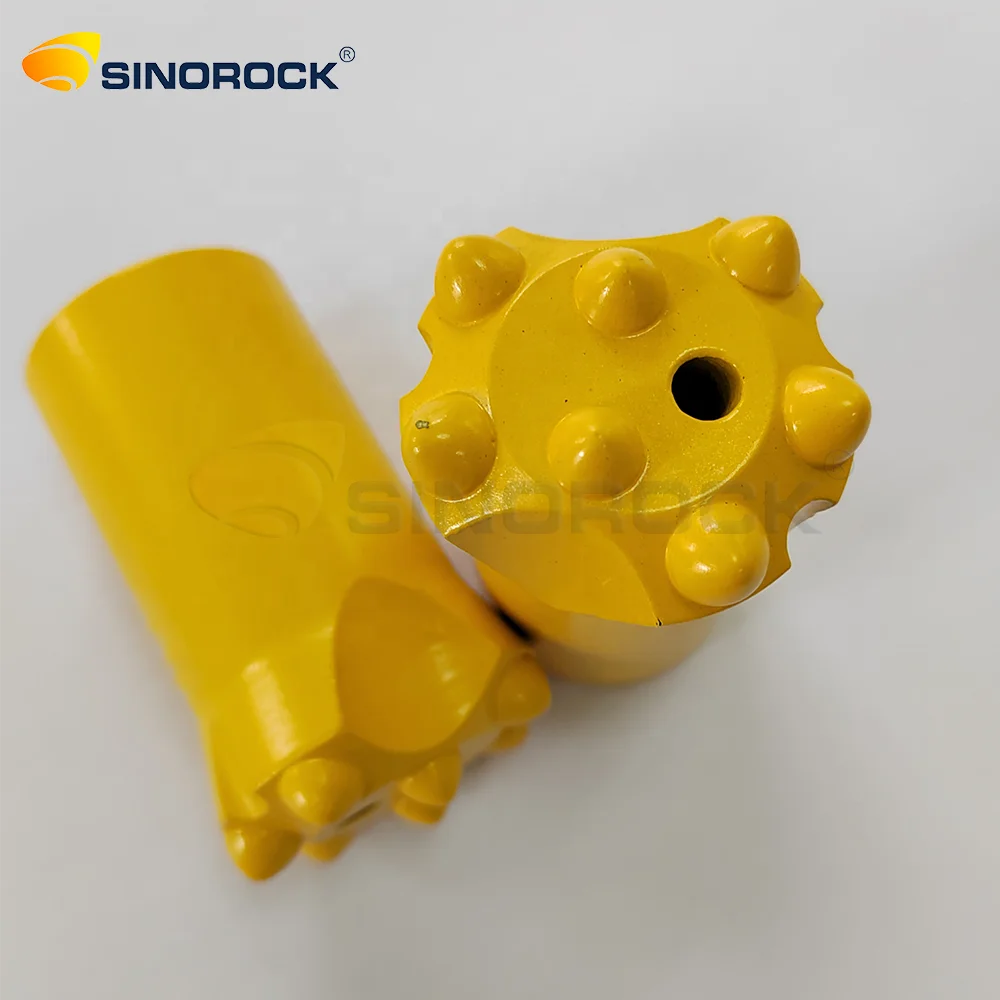

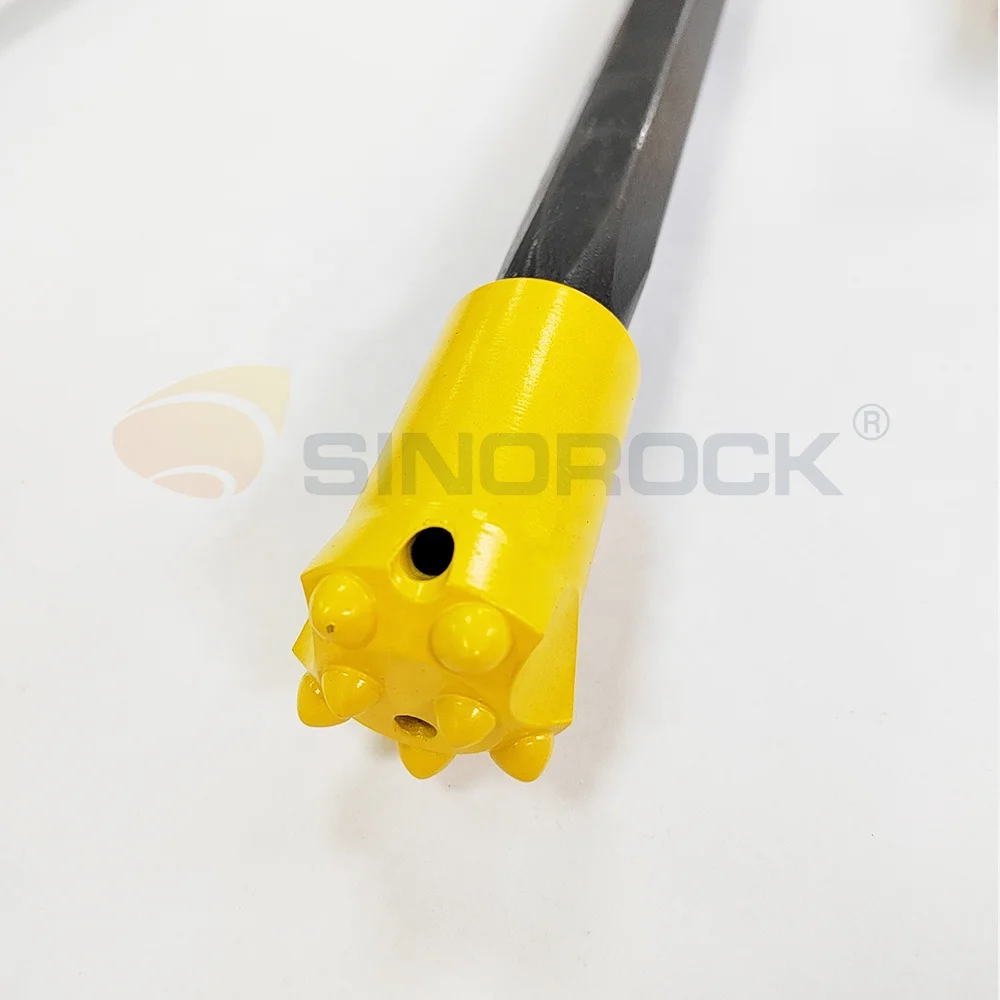

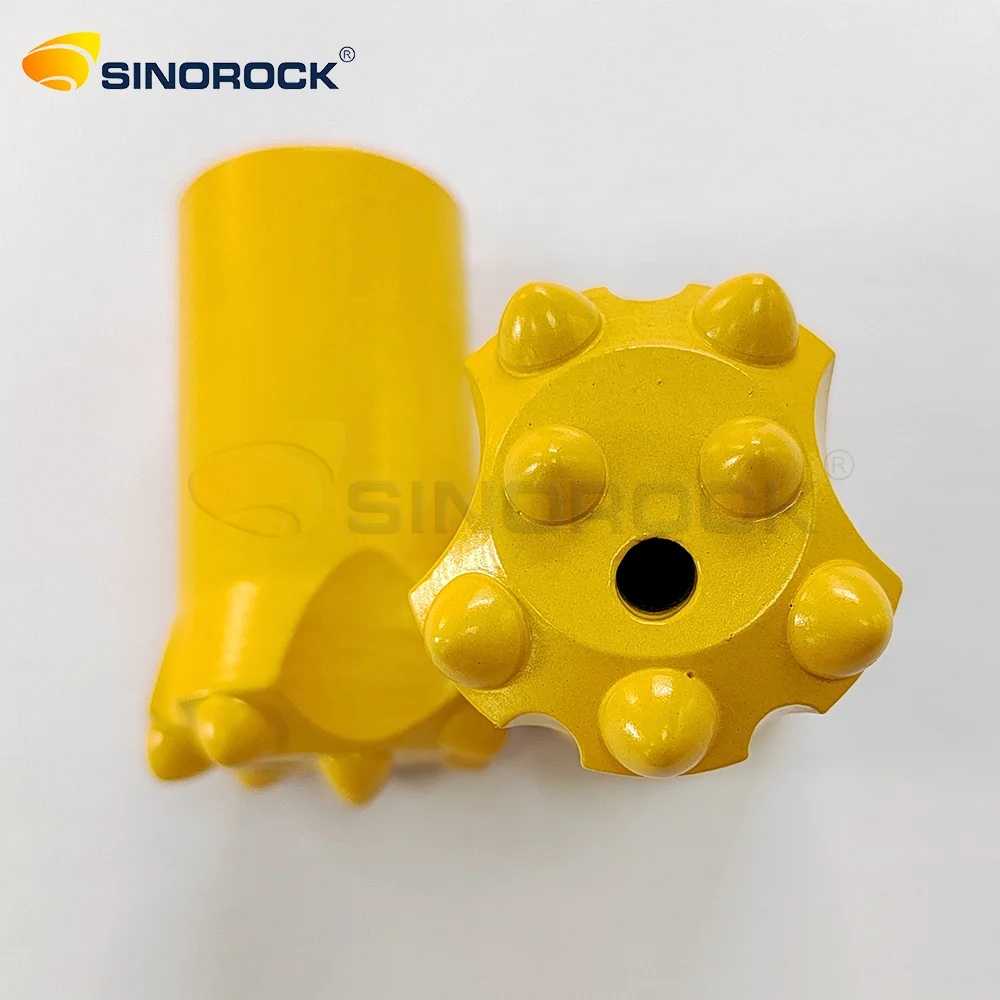

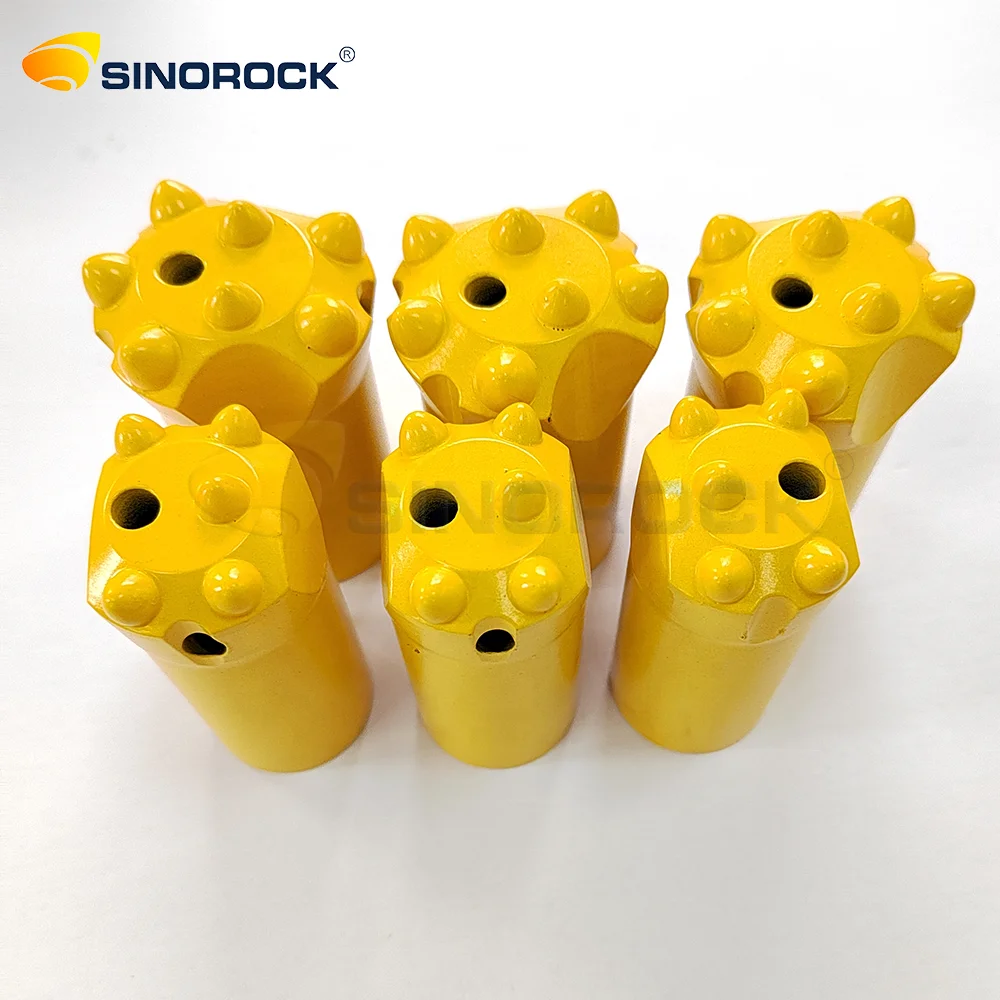

7 Degree Hard Rock Button Taper Drill Bit 32mm 36mm 38mm Customized High Performance top hammer drilling tool
- Category: >>>
- Supplier: Luoyang Sinorock Engineering Material Co. Ltd.
Share on (1600850459903):
Product Overview
Description
7 Degree Hard Rock Button Tapered Drill bit 32mm 36mm 38mm rod for mining and drilling top hammer drilling tool rock button bits

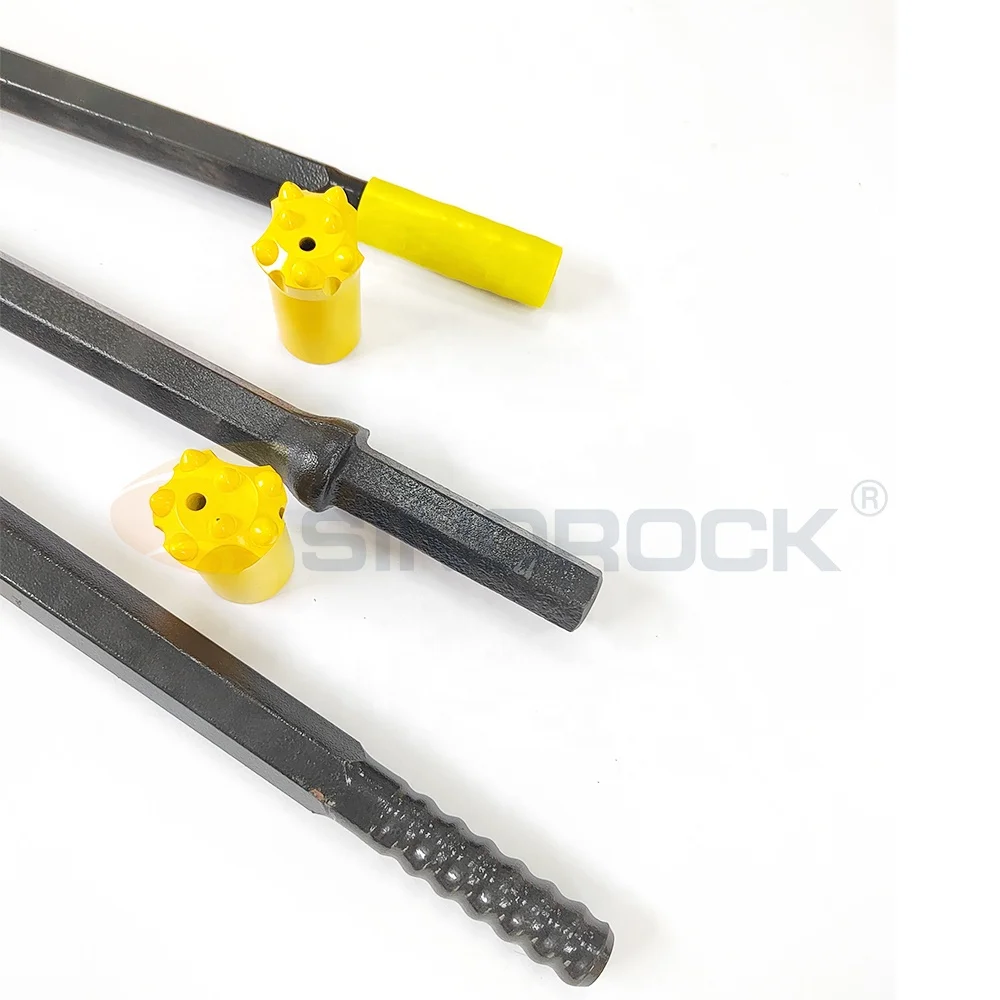

1. Drill rod types: extension rod, MF rod, and guide rod;
2. Length: 3050mm, 3660mm, 4265mm, 6095mm, etc;
3. Rod size: H32, H38, D32, D39, D46, D52, D56, D64, D76, and D87;
4. Thread size: R32, R38, T38, T45, and T51;

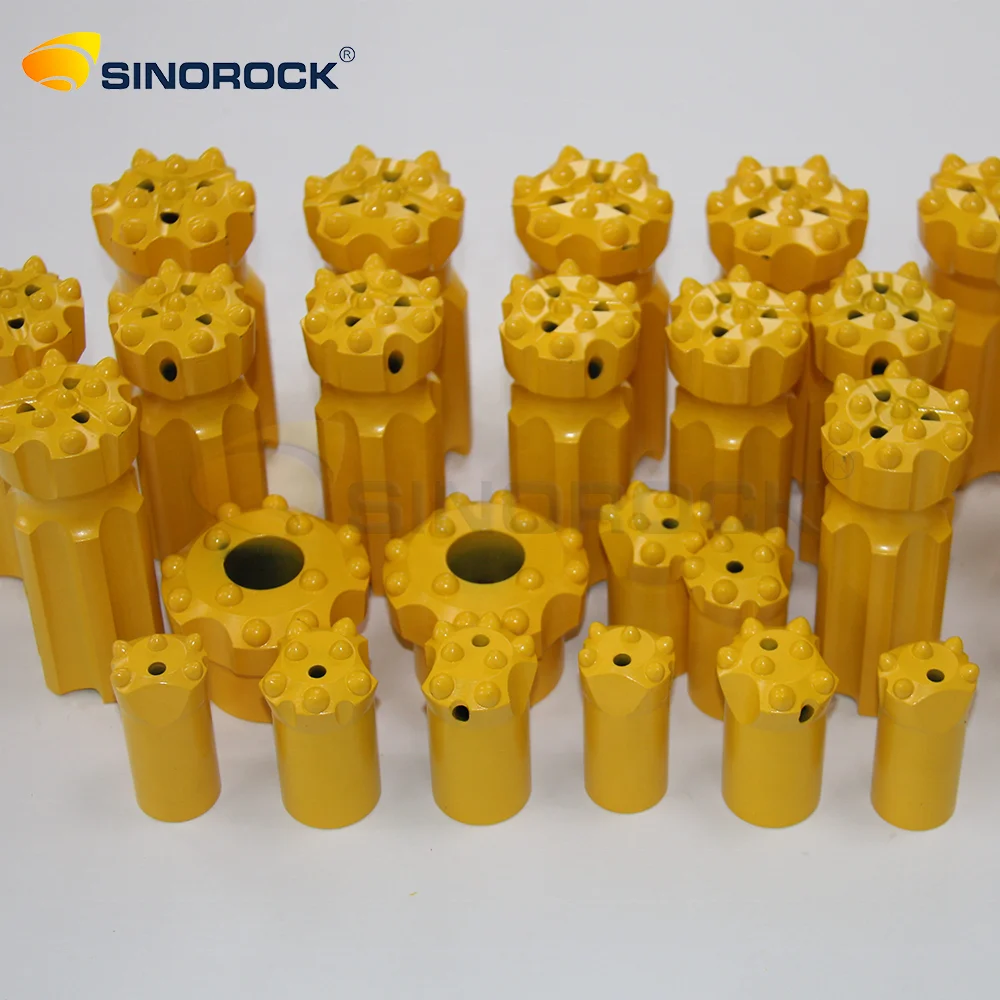

5. 5 types of drill bits: cross bit, button bit, drop center button bit, retrac button bit, and drop center retrac button bit;
6. Bits diameter: button bit – 51mm to 127mm; cross bit – 50mm to 65mm.
2. Length: 3050mm, 3660mm, 4265mm, 6095mm, etc;
3. Rod size: H32, H38, D32, D39, D46, D52, D56, D64, D76, and D87;
4. Thread size: R32, R38, T38, T45, and T51;
5. 5 types of drill bits: cross bit, button bit, drop center button bit, retrac button bit, and drop center retrac button bit;
6. Bits diameter: button bit – 51mm to 127mm; cross bit – 50mm to 65mm.
rock drill bits rock drill bits top hammer drilling tool taper button bits tapered button bits rock drill bits rock button bit
Products Details
Type | Bit Dia. | Button NO. × Button Size (mm) | Gauge Tooth Angle | Thread Type | Weight | ||||
mm | inch | Gauge | Front | kg | |||||
Button bit | 51 | 2″ | 6×10 | 3×9 | 35° | R32 | 1.1 | ||
57 | 2 1/4″ | 6×11 | 3×10 | 35° | R32 | 1.2 | |||
51 | 2″ | 6×10 | 3×9 | 35° | R32 | 1.1 | |||
64 | 2 1/2″ | 8×11 | 4×10 | 30° | R32 | 1.5 | |||
76 | 3″ | 8×11 | 4×11 | 35° | R32 | 2.4 | |||
64 | 2 1/2″ | 8×11 | 4×10 | 35° | R32 | 1.5 | |||
76 | 3″ | 8×11 | 4×11 | 35° | R32 | 2.4 | |||
76 | 3″ | 8×11 | 5×10 | 35° | R32 | 2.4 | |||
76 | 3″ | 8×11 | 6×10 | 35° | R32 | 2.4 | |||
Retrac button bit | 51 | 2″ | 6×11 | 3×10 | 30° | R32 | 1.3 | ||
64 | 2 1/2″ | 8×12 | 4×11 | 30° | R32 | 2.5 | |||
51 | 2″ | 6×11 | 3×10 | 30° | R32 | 1.3 | |||
Customer Feedback
Workshop Show
Sinorock is the Chinese best geotechnical engineering firms. We provide a wide range of geotechnical services, from soil nailing to rock drilling, all carried out by highly qualified engineering specialists. We have a real focus on providing value, meaning the highest quality product and specialist contractor services for very competitive prices.
SDA bolt Application
Self Drilling Anchor Bolt is mainly used in slope stabilization, tunneling pre-support, foundations with micropiles, it is also widely used in the railway system, metro project etc.
Binjiang West Road Pedestrian Mall,, China
Xingyi Noraml University for Nationalities Retaining Wall Reinforcement, China
Excavation Retaining of housing construction for a commercial district in the Middle East
Slope Retaining for Santiago expressway project in Chile
Slope Retaining for housing construction in Greenville, USA
Slope Retaining of Hawaii Highway Project
Root Piling in Zhengzhou-Wanzhou section of the Zhengzhou-Chongqing
Pre-support with umbrella arch method in YuxiMohan section, China
Shotcrete-bolt Support for Neelum Jhelum hydropower station in Pakistan
